◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#46217) — 67 parça

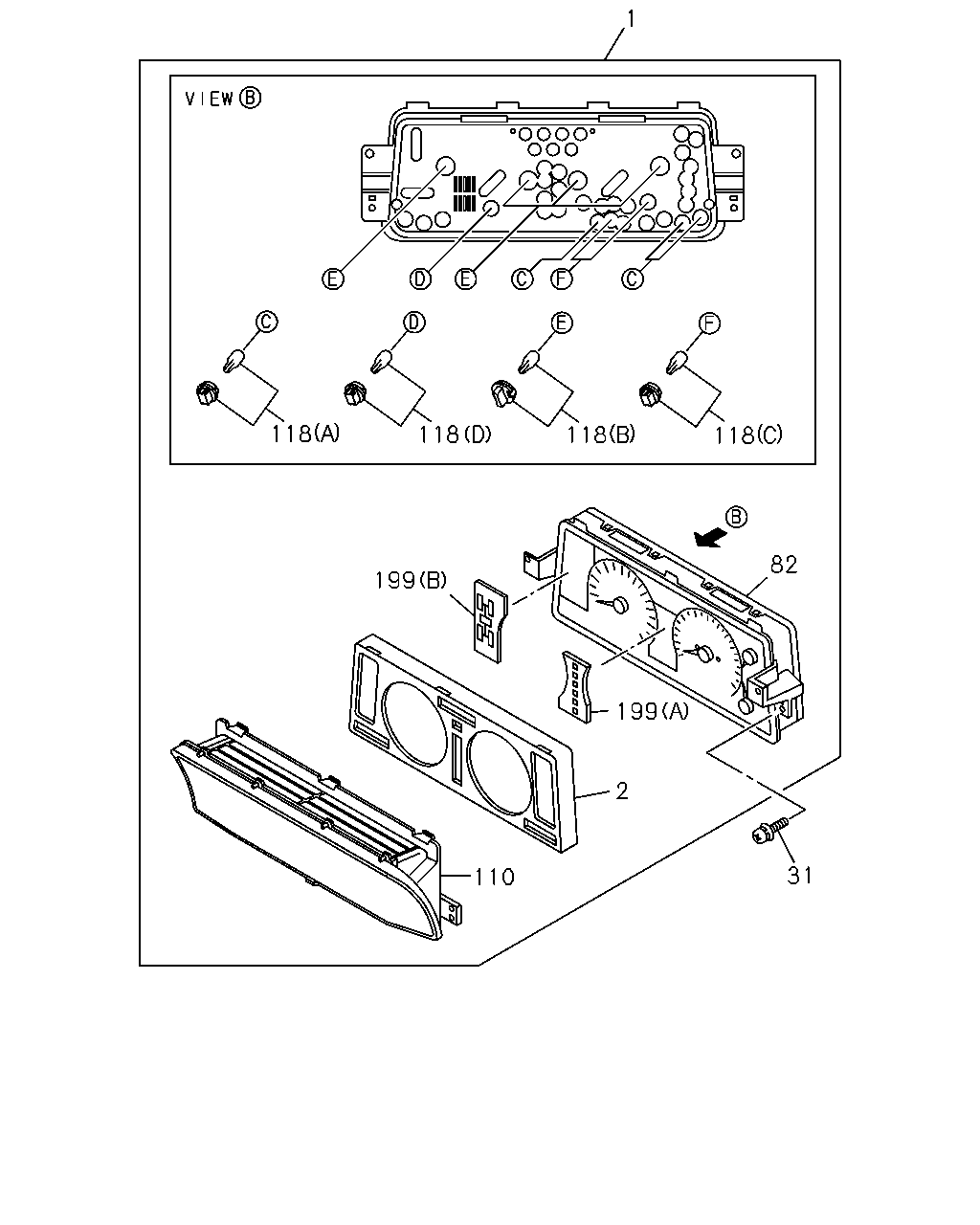

çizim 65076
1 118 118 118 118 82 199 199 2 31 110
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97162-396-1 01 1 9708-9801
1 METER COMPL; CLUSTER
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97162-399-2 01 1 9802-9806
1 METER COMPL; CLUSTER
TORQUE ON DEMAND<7HA> 		8-97162-399-3 01 1 9807-9907
1 METER COMPL; CLUSTER
TORQUE ON DEMAND<7HA> 		8-97219-480-1 01 1 9908-0202
1 METER COMPL; CLUSTER
TORQUE ON DEMAND<7HA> 		8-97263-142-0 01 1 0203-
1 METER COMPL; CLUSTER
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97162-395-1 01 1 9708-9801
1 METER COMPL; CLUSTER
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97162-398-2 01 1 9802-9806
1 METER COMPL; CLUSTER
EXC. TORQUE ON DEMAND<7HA> 		8-97162-398-3 01 1 9807-9907
1 METER COMPL; CLUSTER
EXC. TORQUE ON DEMAND<7HA> 		8-97219-479-1 01 1 9908-0202
1 METER COMPL; CLUSTER
EXC. TORQUE ON DEMAND<7HA> 		8-97263-141-0 01 1 0203-
1 METER COMPL; CLUSTER
M/T AR-5 5 SPEED(RNK) 		8-97162-394-1 01 1 9708-9801
1 METER COMPL; CLUSTER
M/T AR-5 5 SPEED(RNK) 		8-97162-397-2 01 1 9802-9806
2 PANEL; CLUSTER
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97182-034-0 01 1 9708-9806
2 PANEL; CLUSTER
TORQUE ON DEMAND<7HA> 		8-97182-034-0 01 1 9807-
2 PANEL; CLUSTER
M/T AR-5 5 SPEED(RNK) 		8-97182-033-0 01 1 9708-9806
2 PANEL; CLUSTER
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97182-033-0 01 1 9708-9806
2 PANEL; CLUSTER
EXC. TORQUE ON DEMAND<7HA> 		8-97182-033-0 01 1 9807-
31 SCREW; METER,INST PANEL
M5X16 W/PL WASHER 		0-74300-516-0 04 1 9708-
82 CASE ASM; CLUSTER METER
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97182-028-0 01 1 9708-9806
82 CASE ASM; CLUSTER METER
TORQUE ON DEMAND<7HA> 		8-97182-028-0 01 1 9807-
82 CASE ASM; CLUSTER METER
M/T AR-5 5 SPEED(RNK) 		8-97182-032-0 01 1 9708-9806
82 CASE ASM; CLUSTER METER
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97182-032-0 01 1 9708-9806
82 CASE ASM; CLUSTER METER
EXC. TORQUE ON DEMAND<7HA> 		8-97182-032-0 01 1 9807-
110 GLASS; CLUSTER METER 8-97182-021-0 01 1 9708-
118 BULB; CLUSTER METER
(B) 14V 3.4W 		8-97182-029-0 04 1 9708-
118 BULB; CLUSTER METER
(C) 14V 2W 		8-97182-031-0 03 1 9708-9711
118 BULB; CLUSTER METER
A/T THM(RMQ) (C) 14V 2W 		8-97182-031-0 03 1 9712-9802
118 BULB; CLUSTER METER
(C) 14V 2W 		8-97182-031-0 03 1 9803-9907
118 BULB; CLUSTER METER
(C) 14V 2W 		8-97182-031-0 02 1 9908-
118 BULB; CLUSTER METER
(D) LCD BACK LIGHT 14V 1.4W 		8-97253-564-0 01 1 0003-
118 BULB; CLUSTER METER
A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A) 14V 1.4W 		8-97182-030-0 28 1 9708-9711
118 BULB; CLUSTER METER
A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A) 14V 1.4W 		8-97182-030-0 29 1 9712-9801
118 BULB; CLUSTER METER
A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A) 14V 1.4W 		8-97182-030-0 30 1 9802-9806
118 BULB; CLUSTER METER
TORQUE ON DEMAND<7HA> (A) 14V 1.4W 		8-97182-030-0 30 1 9807-9907
118 BULB; CLUSTER METER
TORQUE ON DEMAND<7HA> (A),(D) 14V 1.4W 		8-97182-030-0 31 1 9908-0002
118 BULB; CLUSTER METER
TORQUE ON DEMAND<7HA> (A) 14V 1.4W 		8-97182-030-0 30 1 0003-
118 BULB; CLUSTER METER
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (A) 14V 1.4W 		8-97182-030-0 23 1 9708-9711
118 BULB; CLUSTER METER
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (A) 14V 1.4W 		8-97182-030-0 24 1 9712-9801
118 BULB; CLUSTER METER
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (A) 14V 1.4W 		8-97182-030-0 25 1 9802-9806
118 BULB; CLUSTER METER
EXC. TORQUE ON DEMAND<7HA> (A) 14V 1.4W 		8-97182-030-0 25 1 9807-9907
118 BULB; CLUSTER METER
EXC. TORQUE ON DEMAND<7HA> (A),(D) 14V 1.4W 		8-97182-030-0 26 1 9908-0002
118 BULB; CLUSTER METER
EXC. TORQUE ON DEMAND<7HA> (A) 14V 1.4W 		8-97182-030-0 25 1 0003-
118 BULB; CLUSTER METER
M/T AR-5 5 SPEED(RNK) (A) 14V 1.4W 		8-97182-030-0 13 1 9708-9711
118 BULB; CLUSTER METER
M/T AR-5 5 SPEED(RNK) (A) 14V 1.4W 		8-97182-030-0 14 1 9712-9801
118 BULB; CLUSTER METER
M/T AR-5 5 SPEED(RNK) (A) 14V 1.4W 		8-97182-030-0 15 1 9802-9802
118 BULB; CLUSTER METER
M/T AR-5 5 SPEED(RNK) (A) 14V 1.4W 		8-97182-030-0 14 1 9803-9806
118 BULB; CLUSTER METER
M/T AR-5 5 SPEED(RNK) (C) 14V 2W 		8-97182-031-0 02 1 9712-9802
199 LENS; WARNING LAMP
A/T THM(RMQ) (A) 		8-97182-024-0 01 1 9708-9806
199 LENS; WARNING LAMP
(A) 		8-97182-024-0 01 1 9807-
199 LENS; WARNING LAMP
A/T THM(RMQ) TORQUE ON DEMAND<7HA> (B) 		8-97182-027-0 01 1 9708-9806
199 LENS; WARNING LAMP
TORQUE ON DEMAND<7HA> (B) 		8-97182-027-0 01 1 9807-

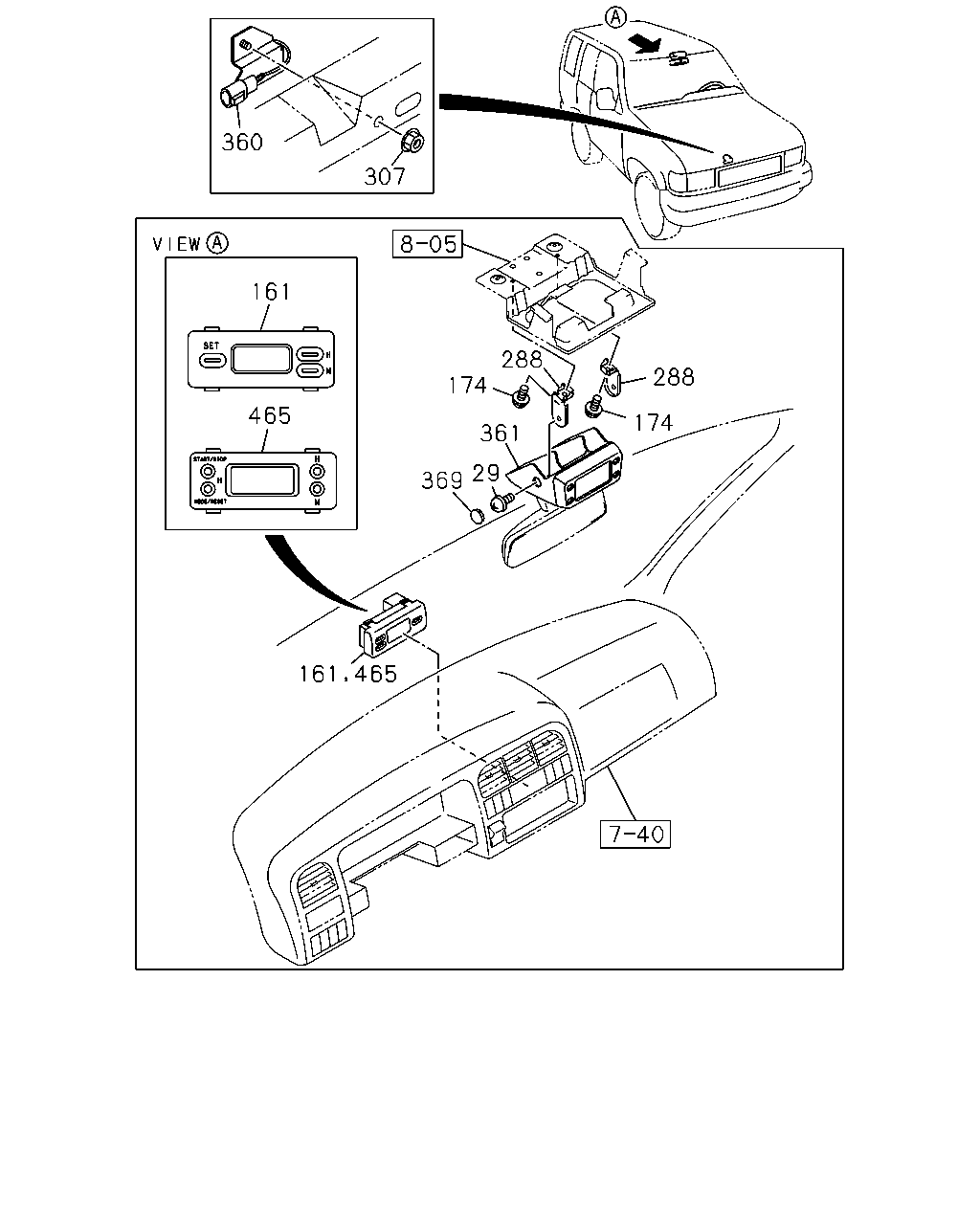

çizim 65165
360 307 161 288 288 174 465 174 361 29 369 161 465
BalonParca AdiParca NoAdetTipApplied Date
29 SCREW; METER TO BRKT
MULTI METER<7HT> M5X12 W/PL WASHER PAN-HD 		9-03900-512-0 02 1 9708-
161 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> 		8-97161-485-0 01 1 9708-9806
161 CLOCK; CLUSTER METER 8-97161-485-0 01 1 9807-0202
161 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> 		8-97161-485-1 01 1 0203-
174 SCREW; BRKT TO CASE
MULTI METER<7HT> M5X14 W/LK&PL WASHER 		9-03920-514-0 02 1 9708-
288 BRACKET
MULTI METER<7HT> 		8-97111-061-2 01 1 9708-
288 BRACKET
MULTI METER<7HT> 		8-97111-060-2 01 1 9708-
307 NUT
MULTI METER<7HT> M6 FLANGE 		0-91150-106-0 01 1 9708-
360 SENSOR; AMBIENT
MULTI METER<7HT> 		8-97124-313-2 01 1 9708-
361 METER; ACCESSORY
INTERIOR COLOR MEDIUM GRAY(113) MULTI METER<7HT> 		8-97146-085-1 01 1 9908-
361 METER; ACCESSORY
MULTI METER<7HT> 		8-97146-085-1 01 1 9708-9907
361 METER; ACCESSORY
INTERIOR COLOR BEIGE(181) MULTI METER<7HT> 		8-97226-198-0 01 1 9908-
369 CAP; SCREW
INTERIOR COLOR MEDIUM GRAY(113) MULTI METER<7HT> 		8-97134-852-0 02 1 9908-
369 CAP; SCREW
MULTI METER<7HT> 		8-97134-852-0 02 1 9708-9907
369 CAP; SCREW
INTERIOR COLOR BEIGE(181) MULTI METER<7HT> 		8-97226-207-0 02 1 9908-
465 DISPLAY; CLOCK & OUTSIDE TEMP
DIGITAL CLOCK W/OUTSIDE TEMP<8DZ> 		8-97323-691-0 01 1 0203-
