Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-16 - WIRING HARNESS CONNECTOR
▶
8-16 — WIRING HARNESS CONNECTOR
(#46216) — 21 parça
◀

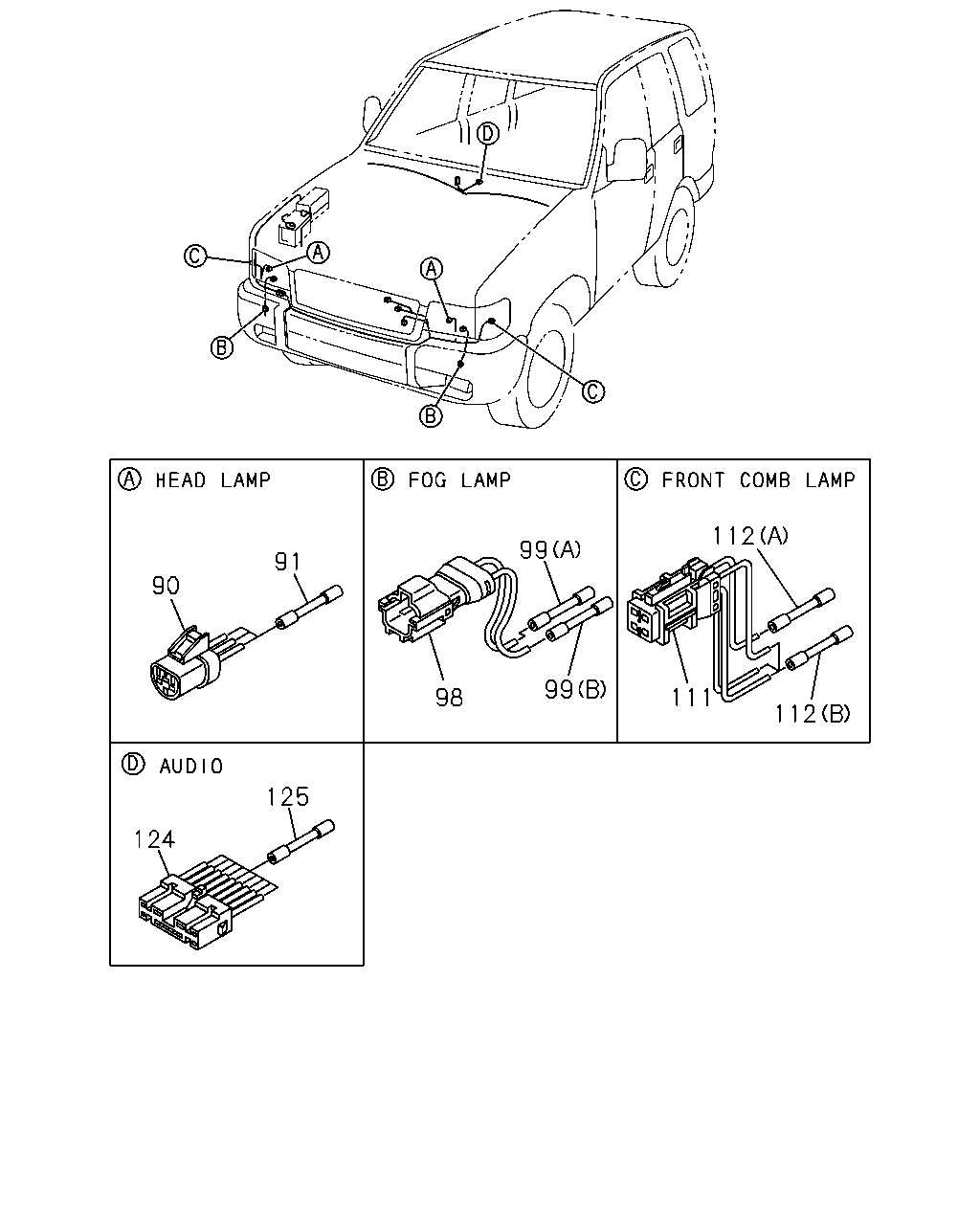

[816A] FRONT LAMP AND AUDIO (11 parça)
[816A] A/C WIRING (4 parça)

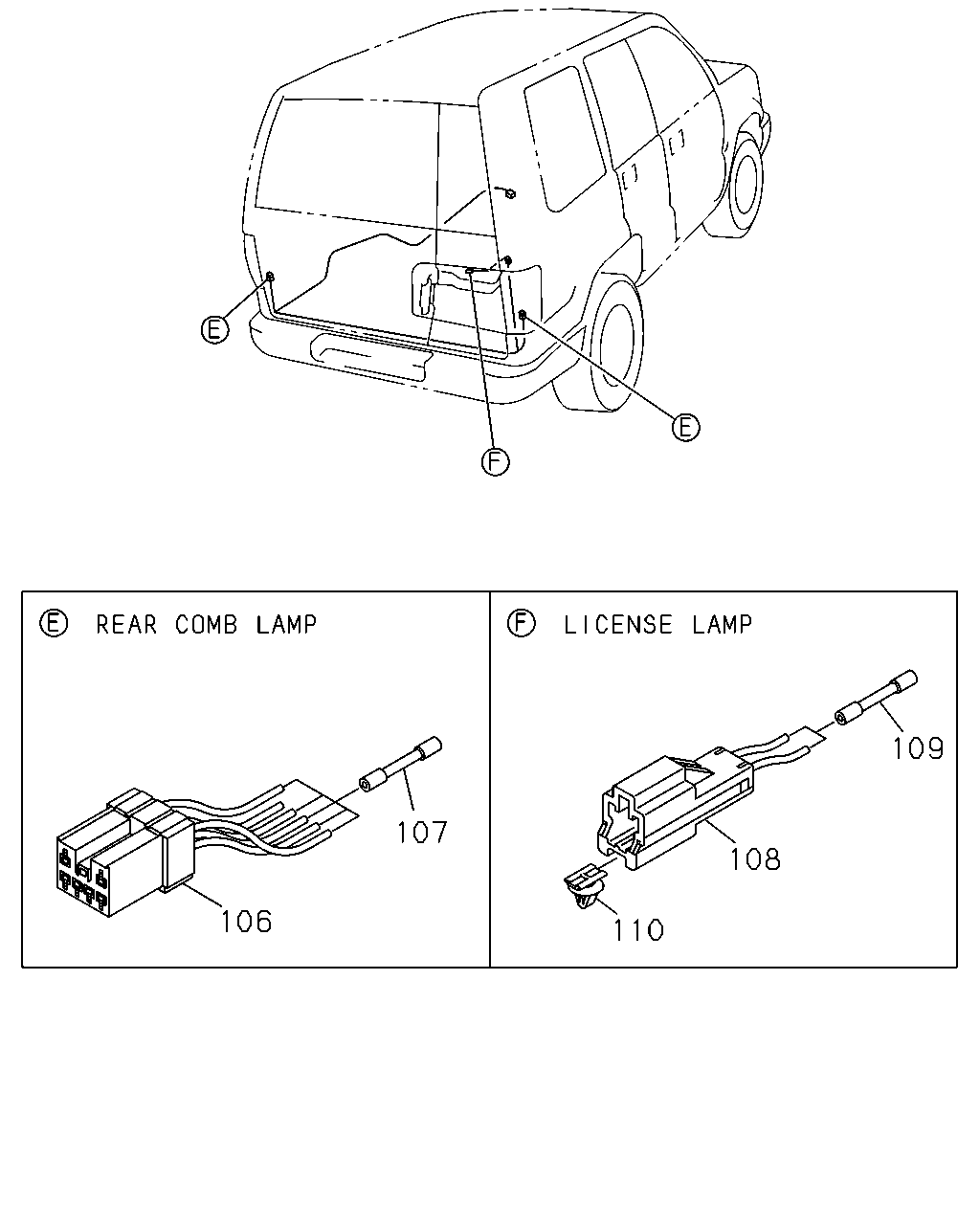

[816A] REAR LAMP (6 parça)
▶
112
99
91
90
99
98
111
112
125
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
90
CONNECTOR; HEAD LAMP
3P FEMALE NATURAL
8-97187-119-0
02
1
9708-
91
TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
06
1
9708-
98
CONNECTOR; FRT FOG LAMP
2P MALE GRAY
8-97170-984-0
02
1
9708-
99
TERMINAL; JOINT,FRT FOG LAMP
(A) WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
02
1
9708-
99
TERMINAL; JOINT,FRT FOG LAMP
(B) WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
02
1
9708-
111
CONNECTOR; FRT COMB LAMP
8-97174-882-0
02
1
9708-
112
TERMINAL; JOINT,FRT COMB LAMP
(A) WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
02
1
9708-
112
TERMINAL; JOINT,FRT COMB LAMP
(B) WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
06
1
9708-
124
CONNECTOR; AUDIO
16P FEMALE LIGHT GRAY
8-97187-121-0
01
1
9708-
125
TERMINAL; JOINT,AUDIO
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
11
1
9708-
125
TERMINAL; JOINT,AUDIO
WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
03
1
9708-
102
122
103
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
102
CONNECTOR; A/C PRESS SW
8-97174-883-0
01
1
9708-
103
TERMINAL; JOINT,A/C PRESS SW
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
02
1
9708-
122
CONNECTOR; THERMO SENSOR
8-97174-884-0
01
1
9708-
123
TERMINAL; JOINT,THERMO SENSOR
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
02
1
9708-
109
107
108
106
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
106
CONNECTOR; RR COMB LAMP
6P FEMALE NATURAL
8-97187-122-0
02
1
9708-
107
TERMINAL; JOINT,RR COMB LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE
8-97169-474-0
03
1
9708-
107
TERMINAL; JOINT,RR COMB LAMP
WIRE SIZE=2.0 USE TIN PLATE
8-97169-475-0
02
1
9708-
108
CONNECTOR; LICENSE LAMP
2P MALE NATURAL
8-97170-988-0
01
1
9708-
109
TERMINAL; JOINT,LICENSE LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE
8-97169-473-0
02
1
9708-
110
CLIP; CONNECTOR
OD=7 H=1.2
8-94364-750-0
01
1
9708-
