8-15 — FIXING PARTS; WIRING HARNESS (#46215) — 184 parça

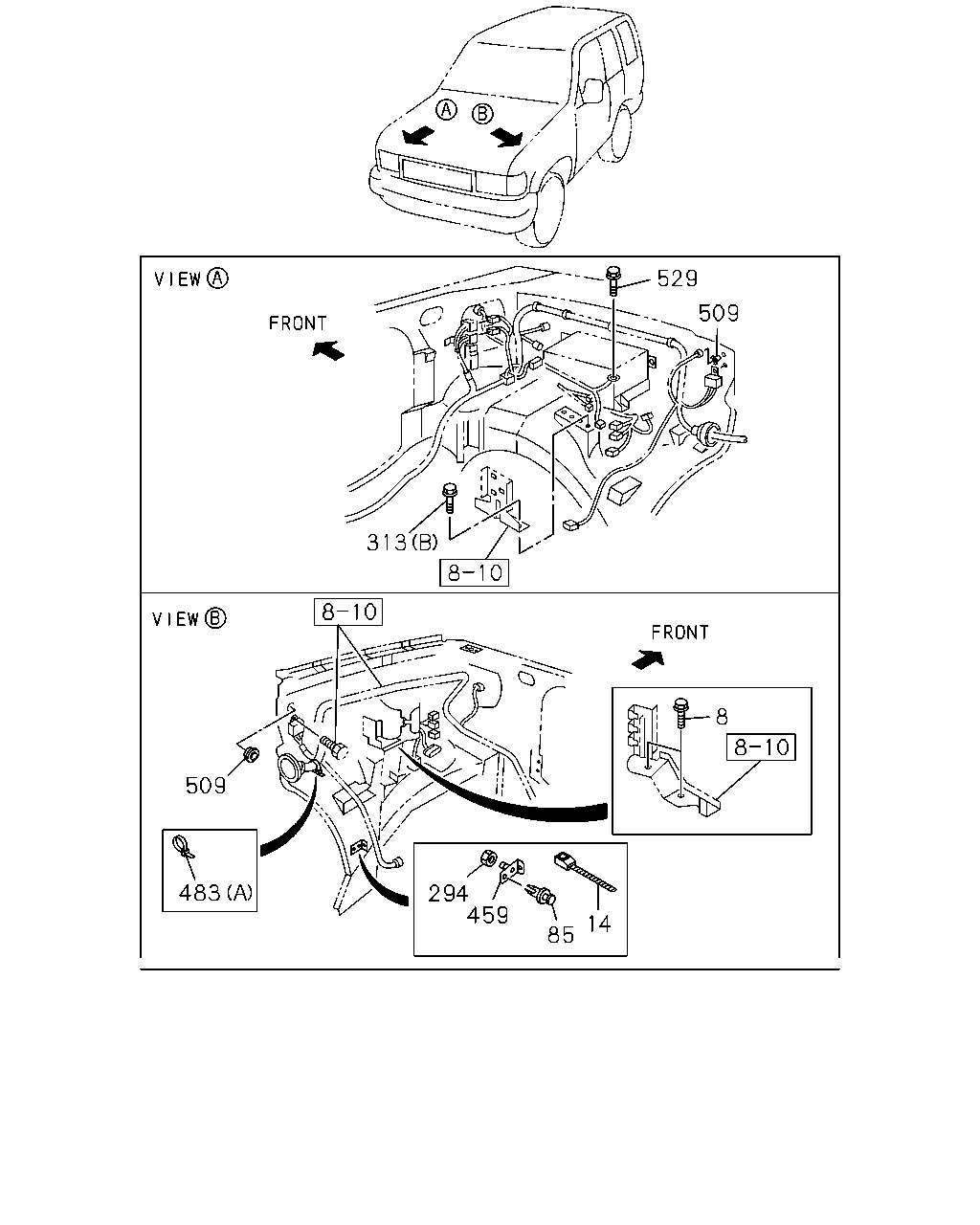

çizim 15707
529 509 313 8 509 483 294 459 14 85
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; BRKT,CONNECTOR
M6X12 FLANGE 		0-28080-612-0 02 1 9708-
14 CLIP; BAND,HARNESS
TORQUE ON DEMAND<7HA> L=140 		5-09707-031-1 01 1 0203-
85 CLIP; BRKT ASM,HARNESS
D6.8X12 		8-94198-687-0 01 1 9708-9902
294 NUT
M6 FLANGE 		0-91150-106-0 01 1 9708-9902
313 BOLT; BRKT
(B) M6X12 FLANGE 		0-28080-612-0 02 1 9708-9802
313 BOLT; BRKT
(B) M6X16 FLANGE 		0-28480-616-0 02 1 9803-
313 BOLT; BRKT
M/T AR-5 5 SPEED(RNK) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9708-9804
313 BOLT; BRKT
M/T AR-5 5 SPEED(RNK) (A) M6X10 FLANGE 		0-28080-610-0 01 1 9805-9806
459 BRACKET; SUPPORT,HARNESS 8-97807-647-2 01 1 9708-9902
483 CLIP; ENG HARNESS
(A) L=212 		8-94107-652-0 01 1 9708-0202
483 CLIP; ENG HARNESS
(A) L=172 		8-94232-620-0 01 1 0203-
483 CLIP; ENG HARNESS
(B) 		8-97310-905-0 01 1 0102-0106
509 PLUG; HOLE,TERMINAL 8-97800-739-0 02 1 9708-
529 BOLT; RELAY BOX
M6X12 FLANGE 		0-28080-612-0 01 1 9708-

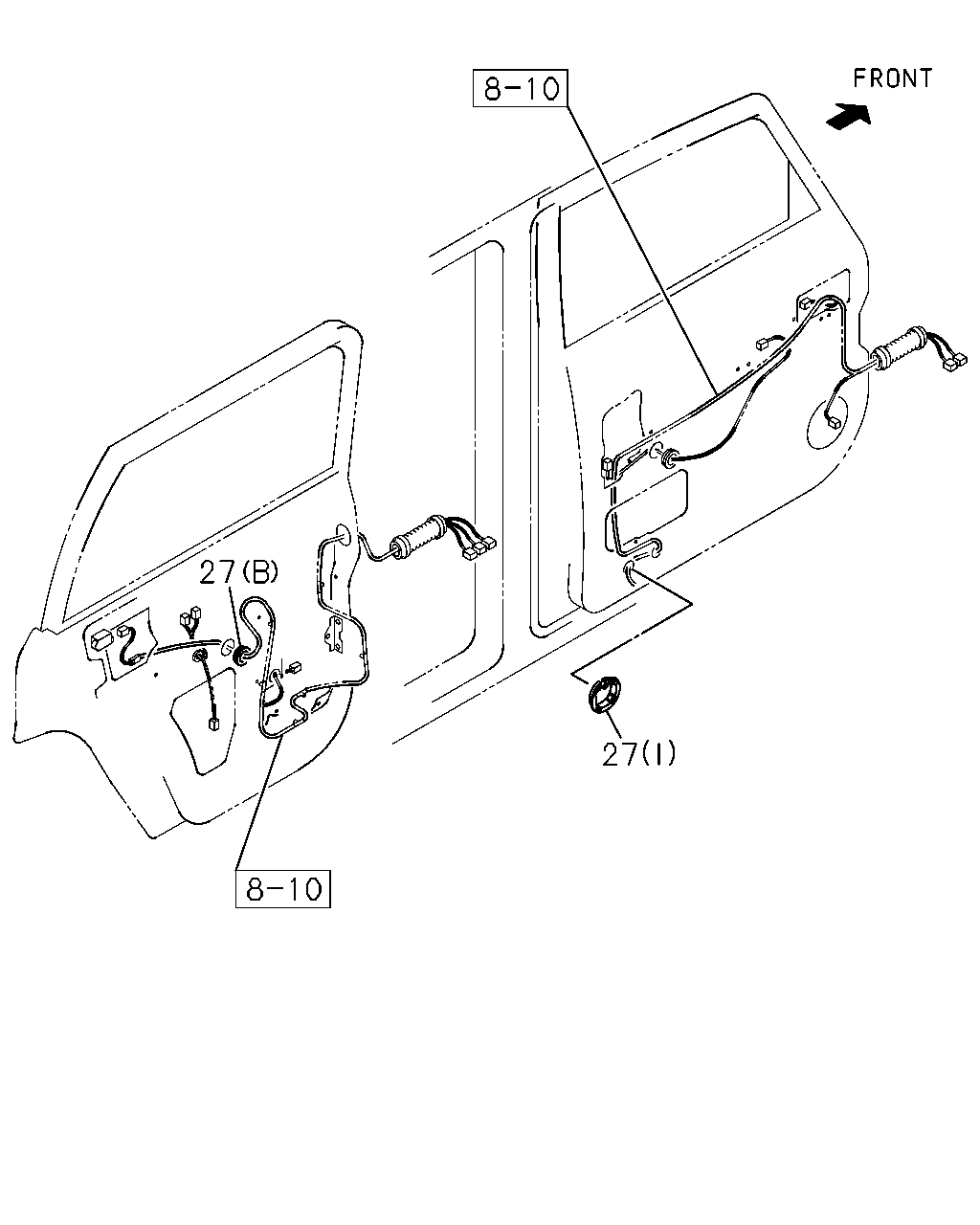

çizim 16860
27 27
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE
(G) L=40 SERVICED BY L=190 		1-71998-300-0 03 1 9708-
27 PROTECTOR; EDGE
(H) L=73 SERVICED BY L=190 		1-71998-300-0 01 1 9708-9711
27 PROTECTOR; EDGE
(H) L=150 SERVICED BY L=190 		1-71998-300-0 01 1 9712-9902
27 PROTECTOR; EDGE
(A) ID=30 		8-94142-264-0 04 1 9708-0005
27 PROTECTOR; EDGE
(A) ID=30 		8-94142-264-0 02 1 0006-
27 PROTECTOR; EDGE
(I) ID=30 		8-94142-264-0 02 1 9708-0005
27 PROTECTOR; EDGE
(I) ID=30 		8-94142-264-0 04 1 0006-
27 PROTECTOR; EDGE
(B) ID=36 		8-94178-685-0 06 1 9708-
27 PROTECTOR; EDGE
(D) L=65 		8-94235-856-0 02 1 9708-
27 PROTECTOR; EDGE
(E) 		8-97803-554-0 01 1 9708-
27 PROTECTOR; EDGE
(C) 		8-97804-817-1 01 1 9708-
27 PROTECTOR; EDGE
DIGITAL CLOCK<UE8> (J) 130X80 		8-97304-373-0 01 1 0203-
27 PROTECTOR; EDGE
DIVERSITY ANTENNA<7HE> (F) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 9708-9801
27 PROTECTOR; EDGE
(F) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 9802-0003
27 PROTECTOR; EDGE
(F) L=100 SERVICED BY L=880 		1-73948-003-0 02 1 0004-

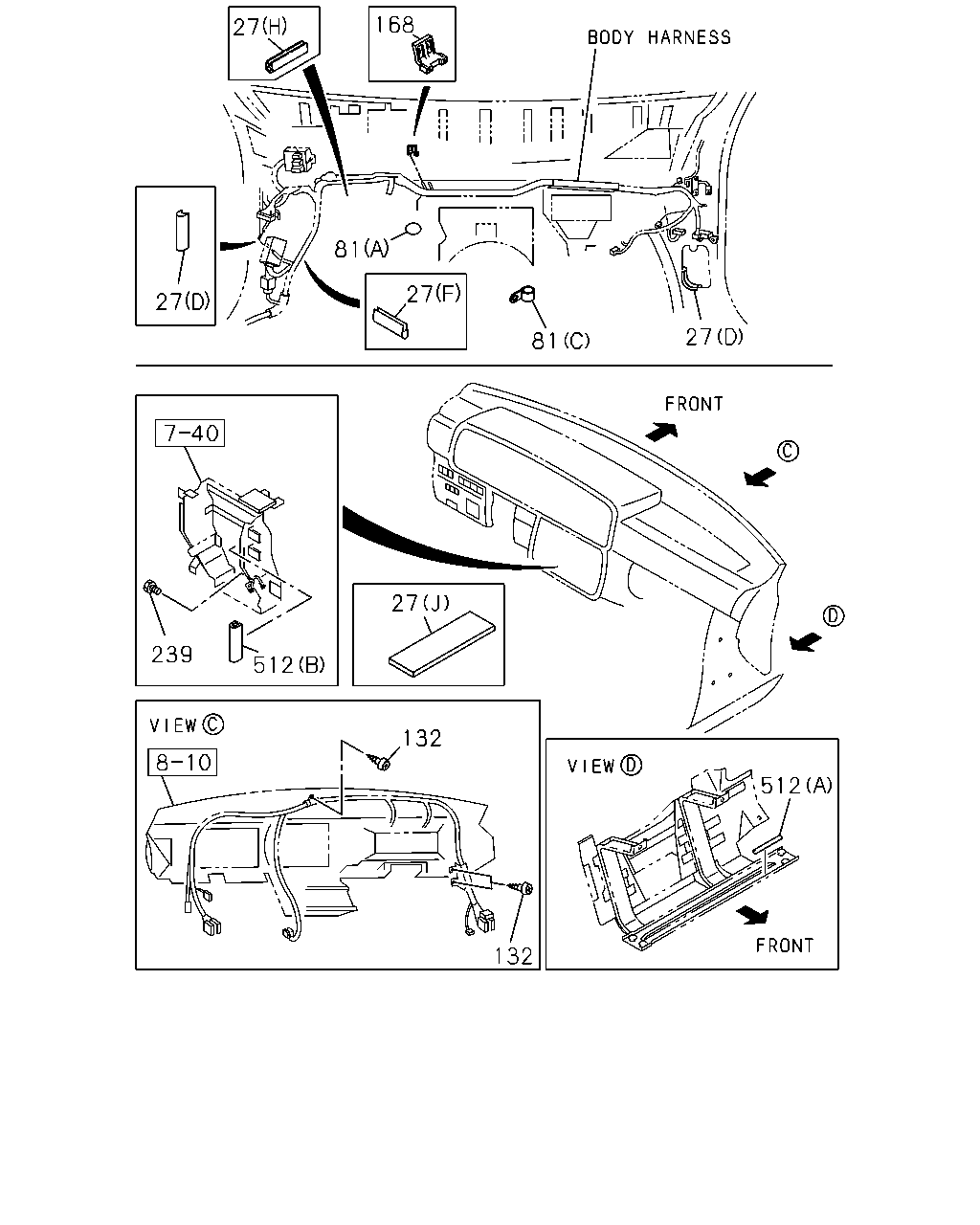

çizim 63787
168 27 81 27 27 27 81 27 239 512 132 512 132
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE
(G) L=40 SERVICED BY L=190 		1-71998-300-0 03 1 9708-
27 PROTECTOR; EDGE
(H) L=73 SERVICED BY L=190 		1-71998-300-0 01 1 9708-9711
27 PROTECTOR; EDGE
(H) L=150 SERVICED BY L=190 		1-71998-300-0 01 1 9712-9902
27 PROTECTOR; EDGE
(A) ID=30 		8-94142-264-0 04 1 9708-0005
27 PROTECTOR; EDGE
(A) ID=30 		8-94142-264-0 02 1 0006-
27 PROTECTOR; EDGE
(I) ID=30 		8-94142-264-0 02 1 9708-0005
27 PROTECTOR; EDGE
(I) ID=30 		8-94142-264-0 04 1 0006-
27 PROTECTOR; EDGE
(B) ID=36 		8-94178-685-0 06 1 9708-
27 PROTECTOR; EDGE
(D) L=65 		8-94235-856-0 02 1 9708-
27 PROTECTOR; EDGE
(E) 		8-97803-554-0 01 1 9708-
27 PROTECTOR; EDGE
(C) 		8-97804-817-1 01 1 9708-
27 PROTECTOR; EDGE
DIGITAL CLOCK<UE8> (J) 130X80 		8-97304-373-0 01 1 0203-
27 PROTECTOR; EDGE
DIVERSITY ANTENNA<7HE> (F) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 9708-9801
27 PROTECTOR; EDGE
(F) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 9802-0003
27 PROTECTOR; EDGE
(F) L=100 SERVICED BY L=880 		1-73948-003-0 02 1 0004-
81 CLIP; HARNESS
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (B) 		5-09709-095-0 01 1 9708-9806
81 CLIP; HARNESS
EXC. TORQUE ON DEMAND<7HA> (B) 		5-09709-095-0 01 1 9807-9911
81 CLIP; HARNESS
EXC. TORQUE ON DEMAND<7HA> (B) ID=22 OD=25 H=18 		8-97022-767-0 01 1 9912-
81 CLIP; HARNESS
ANTI THEFT<UA6> (A) ID=12 		5-09700-350-0 01 1 9708-9801
81 CLIP; HARNESS
(A) ID=12 		5-09700-350-0 01 1 9802-0004
81 CLIP; HARNESS
(A) ID=19 L=28 		9-09525-852-0 01 1 0005-
132 SCREW; HARNESS
M5X16 		9-09829-323-1 04 1 9708-
168 CLIP; DASH HARNESS 8-97807-829-0 01 1 9708-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9708-
512 PROTECTOR; HARNESS
(B) L=73 SERVICED BY L=190 		1-71998-300-0 01 1 9708-0005
512 PROTECTOR; HARNESS
(B) L=80 		5-71997-133-0 01 1 0006-
512 PROTECTOR; HARNESS
(A) L=120 SERVICED BY L=190 		1-71998-300-0 01 1 9708-
çizim 64175
188 27 27 27 27 27
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE
(G) L=40 SERVICED BY L=190 		1-71998-300-0 03 1 9708-
27 PROTECTOR; EDGE
(H) L=73 SERVICED BY L=190 		1-71998-300-0 01 1 9708-9711
27 PROTECTOR; EDGE
(H) L=150 SERVICED BY L=190 		1-71998-300-0 01 1 9712-9902
27 PROTECTOR; EDGE
(A) ID=30 		8-94142-264-0 04 1 9708-0005
27 PROTECTOR; EDGE
(A) ID=30 		8-94142-264-0 02 1 0006-
27 PROTECTOR; EDGE
(I) ID=30 		8-94142-264-0 02 1 9708-0005
27 PROTECTOR; EDGE
(I) ID=30 		8-94142-264-0 04 1 0006-
27 PROTECTOR; EDGE
(B) ID=36 		8-94178-685-0 06 1 9708-
27 PROTECTOR; EDGE
(D) L=65 		8-94235-856-0 02 1 9708-
27 PROTECTOR; EDGE
(E) 		8-97803-554-0 01 1 9708-
27 PROTECTOR; EDGE
(C) 		8-97804-817-1 01 1 9708-
27 PROTECTOR; EDGE
DIGITAL CLOCK<UE8> (J) 130X80 		8-97304-373-0 01 1 0203-
27 PROTECTOR; EDGE
DIVERSITY ANTENNA<7HE> (F) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 9708-9801
27 PROTECTOR; EDGE
(F) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 9802-0003
27 PROTECTOR; EDGE
(F) L=100 SERVICED BY L=880 		1-73948-003-0 02 1 0004-
188 CLIP; CHAS HARN TO BODY
L=55 		8-94473-398-0 03 1 9708-

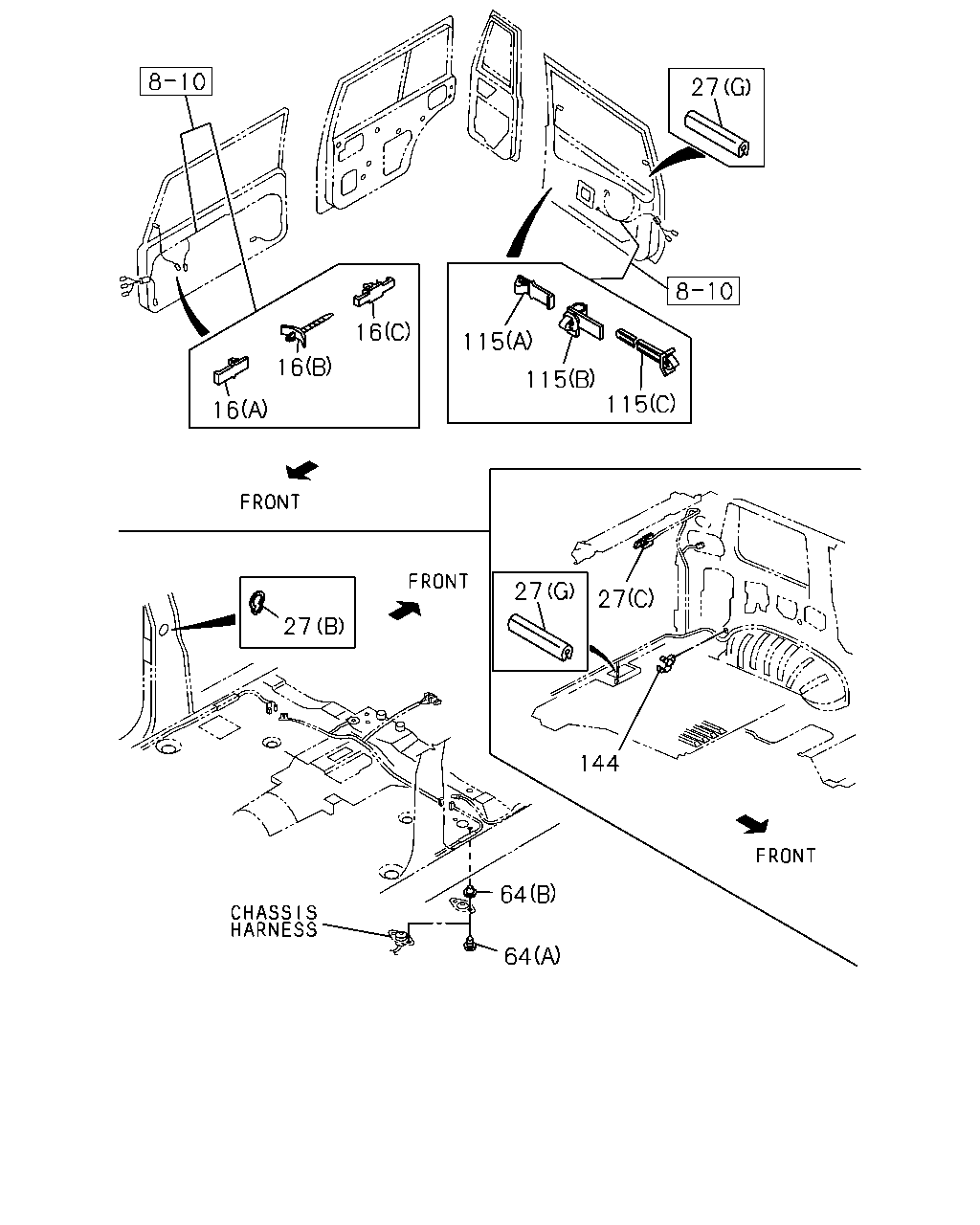

çizim 64200
27 16 115 16 115 115 16 27 27 27 144 64 64
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
A/T THM(RMQ) (D) 		8-97040-812-0 01 1 9708-9806
16 CLIP; HARNESS
(D) 		8-97040-812-0 01 1 9807-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=36.5 		8-97019-892-0 10 1 9708-9801
16 CLIP; HARNESS
(A) L=36.5 		8-97019-892-0 10 1 9802-9902
16 CLIP; HARNESS
(A) 		8-97229-357-0 10 1 9903-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104 		8-94433-185-0 02 1 9708-9801
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (B) L=104 		8-94433-185-0 02 1 9708-9801
16 CLIP; HARNESS
(B) L=104 		8-94433-185-0 02 1 9802-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) H=10.6 		8-94449-165-0 06 1 9708-9801
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (C) H=10.6 		8-94449-165-0 06 1 9708-9801
16 CLIP; HARNESS
(C) H=10.6 		8-94449-165-0 06 1 9802-9902
16 CLIP; HARNESS
(C) 		8-97229-356-0 06 1 9903-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5 		8-97019-892-0 08 1 9708-9801
27 PROTECTOR; EDGE
(G) L=40 SERVICED BY L=190 		1-71998-300-0 03 1 9708-
27 PROTECTOR; EDGE
(H) L=73 SERVICED BY L=190 		1-71998-300-0 01 1 9708-9711
27 PROTECTOR; EDGE
(H) L=150 SERVICED BY L=190 		1-71998-300-0 01 1 9712-9902
27 PROTECTOR; EDGE
(A) ID=30 		8-94142-264-0 04 1 9708-0005
27 PROTECTOR; EDGE
(A) ID=30 		8-94142-264-0 02 1 0006-
27 PROTECTOR; EDGE
(I) ID=30 		8-94142-264-0 02 1 9708-0005
27 PROTECTOR; EDGE
(I) ID=30 		8-94142-264-0 04 1 0006-
27 PROTECTOR; EDGE
(B) ID=36 		8-94178-685-0 06 1 9708-
27 PROTECTOR; EDGE
(D) L=65 		8-94235-856-0 02 1 9708-
27 PROTECTOR; EDGE
(E) 		8-97803-554-0 01 1 9708-
27 PROTECTOR; EDGE
(C) 		8-97804-817-1 01 1 9708-
27 PROTECTOR; EDGE
DIGITAL CLOCK<UE8> (J) 130X80 		8-97304-373-0 01 1 0203-
27 PROTECTOR; EDGE
DIVERSITY ANTENNA<7HE> (F) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 9708-9801
27 PROTECTOR; EDGE
(F) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 9802-0003
27 PROTECTOR; EDGE
(F) L=100 SERVICED BY L=880 		1-73948-003-0 02 1 0004-
64 SCREW; CLIP
(A) M5X14 		8-94120-095-0 02 1 9708-
64 SCREW; CLIP
(B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9708-
115 CLIP; DOOR HARNESS
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> (C) 		8-94338-044-0 06 1 9711-9712
115 CLIP; DOOR HARNESS
AUTO DOOR LOCK<AU4> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (C) 		8-94338-044-0 01 1 9708-9801
115 CLIP; DOOR HARNESS
RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> (C) 		8-94338-044-0 03 1 9708-9710
115 CLIP; DOOR HARNESS
RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> EXC. AUTO DOOR LOCK<AU4> (C) 		8-94338-044-0 03 1 9711-9712
115 CLIP; DOOR HARNESS
RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> (C) 		8-94338-044-0 03 1 9801-9801
115 CLIP; DOOR HARNESS
(C) 		8-94338-044-0 03 1 9802-9806
115 CLIP; DOOR HARNESS
(C) 		8-94338-044-0 03 1 9807-
115 CLIP; DOOR HARNESS
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> (A) L=36.5 		8-97019-892-0 08 1 9711-9712
115 CLIP; DOOR HARNESS
EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A) L=36.5 		8-97019-892-0 01 1 9708-9801
115 CLIP; DOOR HARNESS
AUTO DOOR LOCK<AU4> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A) L=36.5 		8-97019-892-0 04 1 9708-9710
115 CLIP; DOOR HARNESS
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> (A) L=36.5 		8-97019-892-0 04 1 9708-9710
115 CLIP; DOOR HARNESS
AUTO DOOR LOCK<AU4> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A) L=36.5 		8-97019-892-0 04 1 9711-9712
115 CLIP; DOOR HARNESS
AUTO DOOR LOCK<AU4> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A) L=36.5 		8-97019-892-0 04 1 9801-9801
115 CLIP; DOOR HARNESS
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> (A) L=36.5 		8-97019-892-0 04 1 9801-9801
115 CLIP; DOOR HARNESS
(A) L=36.5 		8-97019-892-0 04 1 9802-
115 CLIP; DOOR HARNESS
RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> (B) 		8-97804-785-0 05 1 9708-9710
115 CLIP; DOOR HARNESS
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> (B) 		8-97804-785-0 10 1 9711-9712
115 CLIP; DOOR HARNESS
RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> (B) 		8-97804-785-0 05 1 9801-9801
115 CLIP; DOOR HARNESS
(B) 		8-97804-785-0 05 1 9802-9906
115 CLIP; DOOR HARNESS
(B) 		8-97804-785-0 04 1 9907-
115 CLIP; DOOR HARNESS
RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> EXC. AUTO DOOR LOCK<AU4> (A) L=36.5 		8-97019-892-0 02 1 9708-9801
115 CLIP; DOOR HARNESS
RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> EXC. AUTO DOOR LOCK<AU4> (B) 		8-97804-785-0 05 1 9711-9712
115 CLIP; DOOR HARNESS
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (B) 		8-97804-785-0 03 1 9708-9801
144 CLIP; TAIL LAMP HARNESS
ID=6-13 		8-97069-515-0 01 1 9708-

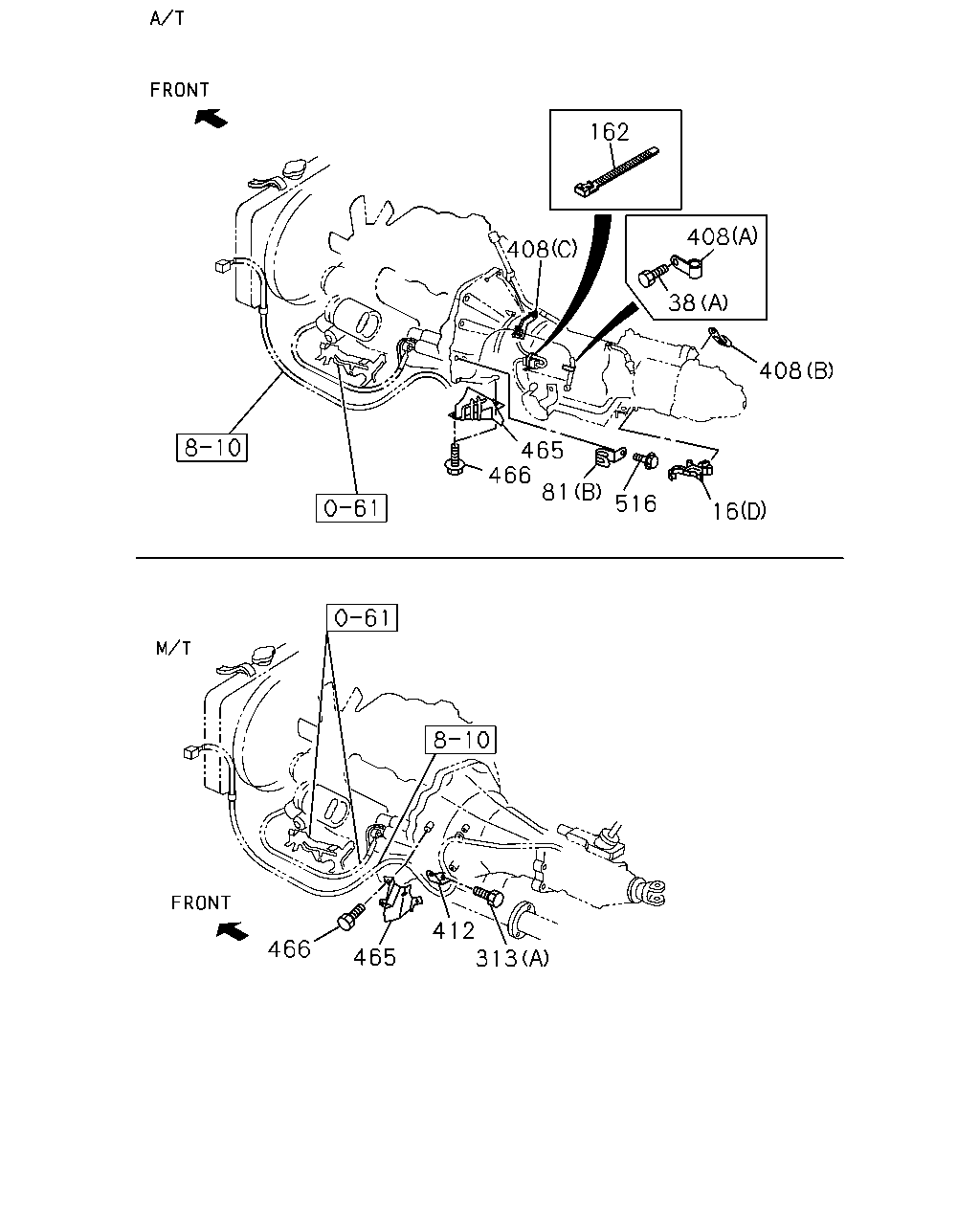

çizim 65228
162 408 408 38 408 465 466 81 516 16 412 313 466 465
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
A/T THM(RMQ) (D) 		8-97040-812-0 01 1 9708-9806
16 CLIP; HARNESS
(D) 		8-97040-812-0 01 1 9807-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (A) L=36.5 		8-97019-892-0 10 1 9708-9801
16 CLIP; HARNESS
(A) L=36.5 		8-97019-892-0 10 1 9802-9902
16 CLIP; HARNESS
(A) 		8-97229-357-0 10 1 9903-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104 		8-94433-185-0 02 1 9708-9801
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (B) L=104 		8-94433-185-0 02 1 9708-9801
16 CLIP; HARNESS
(B) L=104 		8-94433-185-0 02 1 9802-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) H=10.6 		8-94449-165-0 06 1 9708-9801
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> (C) H=10.6 		8-94449-165-0 06 1 9708-9801
16 CLIP; HARNESS
(C) H=10.6 		8-94449-165-0 06 1 9802-9902
16 CLIP; HARNESS
(C) 		8-97229-356-0 06 1 9903-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5 		8-97019-892-0 08 1 9708-9801
38 BOLT; CLIP,HARNESS
A/T THM(RMQ) (A) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9708-9806
38 BOLT; CLIP,HARNESS
(A) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9807-
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) M10X16 FLANGE 		0-28181-016-0 01 1 9708-9907
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X16 FLANGE 		0-28181-016-0 01 1 9908-
81 CLIP; HARNESS
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (B) 		5-09709-095-0 01 1 9708-9806
81 CLIP; HARNESS
EXC. TORQUE ON DEMAND<7HA> (B) 		5-09709-095-0 01 1 9807-9911
81 CLIP; HARNESS
EXC. TORQUE ON DEMAND<7HA> (B) ID=22 OD=25 H=18 		8-97022-767-0 01 1 9912-
81 CLIP; HARNESS
ANTI THEFT<UA6> (A) ID=12 		5-09700-350-0 01 1 9708-9801
81 CLIP; HARNESS
(A) ID=12 		5-09700-350-0 01 1 9802-0004
81 CLIP; HARNESS
(A) ID=19 L=28 		9-09525-852-0 01 1 0005-
162 CLIP; SW HARNESS
A/T THM(RMQ) L=200 		8-94464-835-0 01 1 9709-9806
162 CLIP; SW HARNESS
L=200 		8-94464-835-0 01 1 9807-
313 BOLT; BRKT
(B) M6X12 FLANGE 		0-28080-612-0 02 1 9708-9802
313 BOLT; BRKT
(B) M6X16 FLANGE 		0-28480-616-0 02 1 9803-
313 BOLT; BRKT
M/T AR-5 5 SPEED(RNK) (A) M6X12 FLANGE 		0-28080-612-0 01 1 9708-9804
313 BOLT; BRKT
M/T AR-5 5 SPEED(RNK) (A) M6X10 FLANGE 		0-28080-610-0 01 1 9805-9806
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (C) 		8-97022-809-0 01 1 9708-9711
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (C) 		8-97180-221-0 01 1 9712-9806
408 CLIP; TRANS HARNESS
(C) 		8-97180-221-0 01 1 9807-
408 CLIP; TRANS HARNESS
A/T THM(RMQ) (A) ID=16 		9-09525-522-0 01 1 9708-9806
408 CLIP; TRANS HARNESS
(A) ID=16 		9-09525-522-0 01 1 9807-
408 CLIP; TRANS HARNESS
A/T THM(RMQ) TORQUE ON DEMAND<7HA> (B) L=140 		5-09707-031-0 01 1 9708-9806
408 CLIP; TRANS HARNESS
TORQUE ON DEMAND<7HA> (B) L=140 		5-09707-031-1 01 1 9807-9907
412 BRACKET; HARNESS,TRANS
M/T AR-5 5 SPEED(RNK) 		8-97174-711-0 01 1 9708-9806
465 PROTECTOR; HEAT,HARNESS
A/T THM(RMQ) 		8-97169-910-0 01 1 9708-9806
465 PROTECTOR; HEAT,HARNESS 8-97169-910-1 01 1 9807-
465 PROTECTOR; HEAT,HARNESS
M/T AR-5 5 SPEED(RNK) 		8-97163-785-0 01 1 9708-9806
466 BOLT; HEAT PROTECTOR
A/T THM(RMQ) M6X16 FLANGE 		0-28680-616-0 02 1 9708-9806
466 BOLT; HEAT PROTECTOR
M6X16 FLANGE 		0-28680-616-0 02 1 9807-
466 BOLT; HEAT PROTECTOR
M/T AR-5 5 SPEED(RNK) M6X12 FLANGE 		0-28080-612-0 02 1 9708-9804
466 BOLT; HEAT PROTECTOR
M/T AR-5 5 SPEED(RNK) M6X10 FLANGE 		0-28080-610-0 02 1 9805-9806
516 BOLT; HARNESS
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> M10X16 FLANGE 		0-28081-016-0 01 1 9708-9806
516 BOLT; HARNESS
EXC. TORQUE ON DEMAND<7HA> M10X16 FLANGE 		0-28081-016-0 01 1 9807-0102
516 BOLT; HARNESS
EXC. TORQUE ON DEMAND<7HA> M10X12 FLANGE 		0-28081-012-0 01 1 0103-

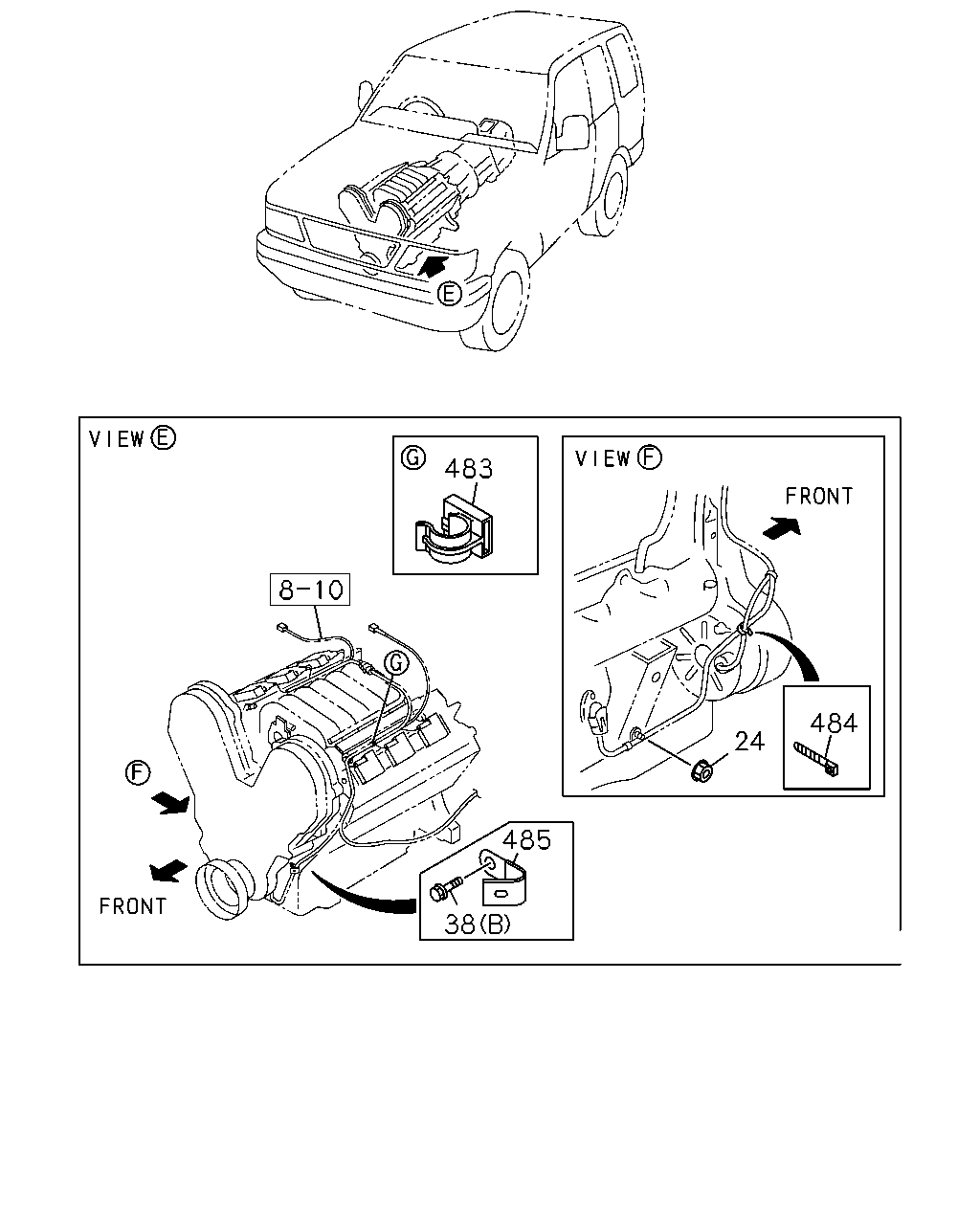

çizim 65315
483 484 24 485 38
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; HARNESS
M8 W/LK WASHER 		8-94327-073-0 01 1 9708-
38 BOLT; CLIP,HARNESS
A/T THM(RMQ) (A) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9708-9806
38 BOLT; CLIP,HARNESS
(A) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9807-
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) M10X16 FLANGE 		0-28181-016-0 01 1 9708-9907
38 BOLT; CLIP,HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X16 FLANGE 		0-28181-016-0 01 1 9908-
483 CLIP; ENG HARNESS
(A) L=212 		8-94107-652-0 01 1 9708-0202
483 CLIP; ENG HARNESS
(A) L=172 		8-94232-620-0 01 1 0203-
483 CLIP; ENG HARNESS
(B) 		8-97310-905-0 01 1 0102-0106
484 CLIP; ECGI HARNESS TO C/MBR
L=100 		5-09707-036-1 01 1 9708-
485 CLIP; HARNESS,ECGI
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94327-574-0 01 1 9708-9907
485 CLIP; HARNESS,ECGI
EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-94327-574-0 01 1 9908-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
