◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#46214) — 214 parça

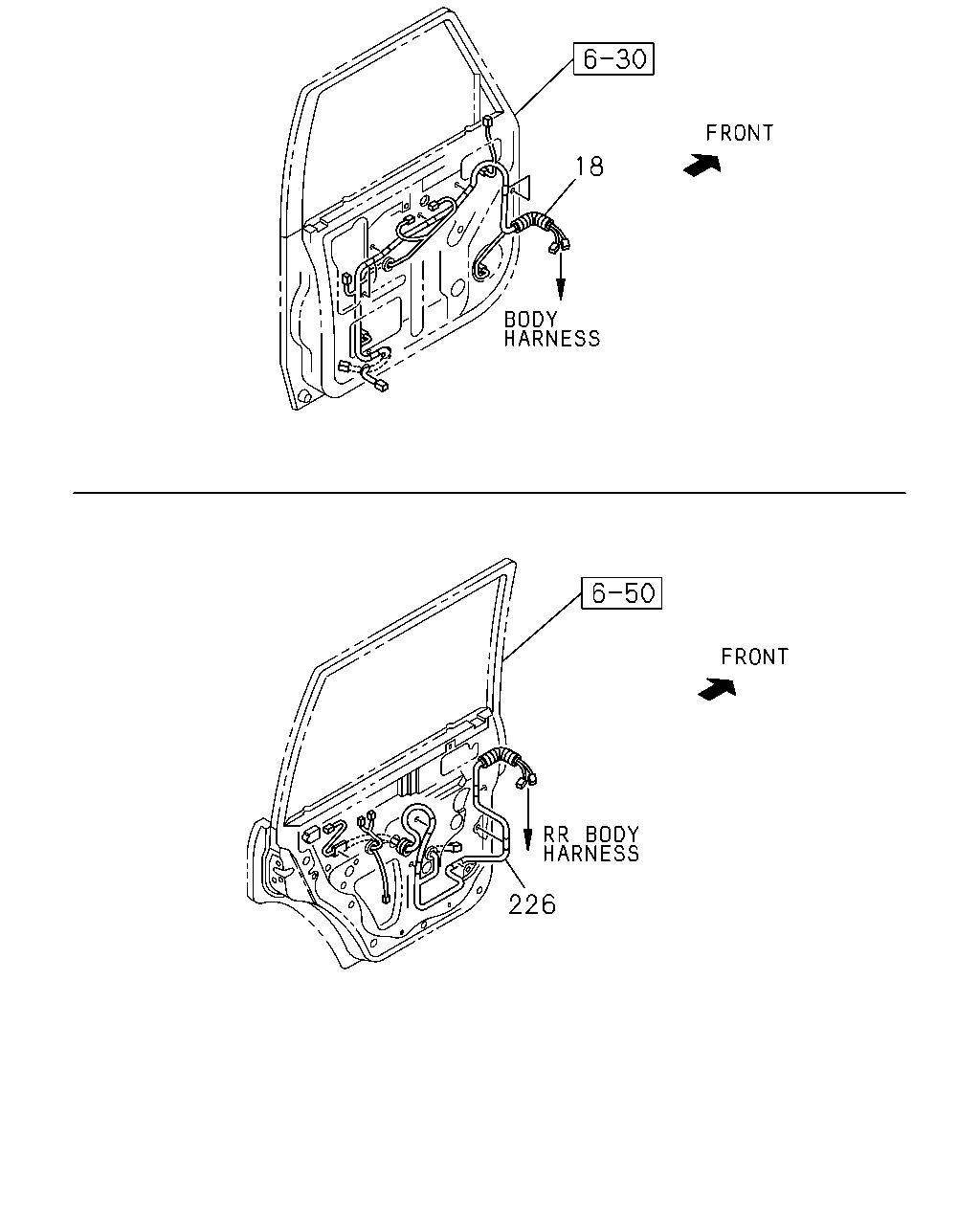

çizim 16118
18 226
BalonParca AdiParca NoAdetTipApplied Date
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97163-868-0 01 1 9708-9801
18 HARNESS; DOOR 8-97163-868-2 01 1 9802-0202
18 HARNESS; DOOR 8-97304-990-0 01 1 0203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> ANTI THEFT<UA6> 		8-97163-867-0 01 1 9708-9801
18 HARNESS; DOOR 8-97163-867-2 01 1 9802-0202
18 HARNESS; DOOR 8-97304-989-0 01 1 0203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97135-703-0 01 1 9708-9801
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. ANTI THEFT<UA6> 		8-97133-802-0 01 1 9708-9801
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6>,DOOR MIRROR ELEC FOLDING W/DEF(6MK) 		8-97106-951-1 02 1 9708-9801
18 HARNESS; DOOR
DOOR MIRROR ELEC FOLDING W/DEF(6MK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> 		8-97106-952-1 02 1 9708-9801
226 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97135-701-0 02 1 9708-9801
226 HARNESS; RR DOOR 8-97135-701-1 02 1 9802-0202
226 HARNESS; RR DOOR 8-97130-152-1 02 1 0203-
226 HARNESS; RR DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> 		8-97104-299-0 02 1 9708-9801

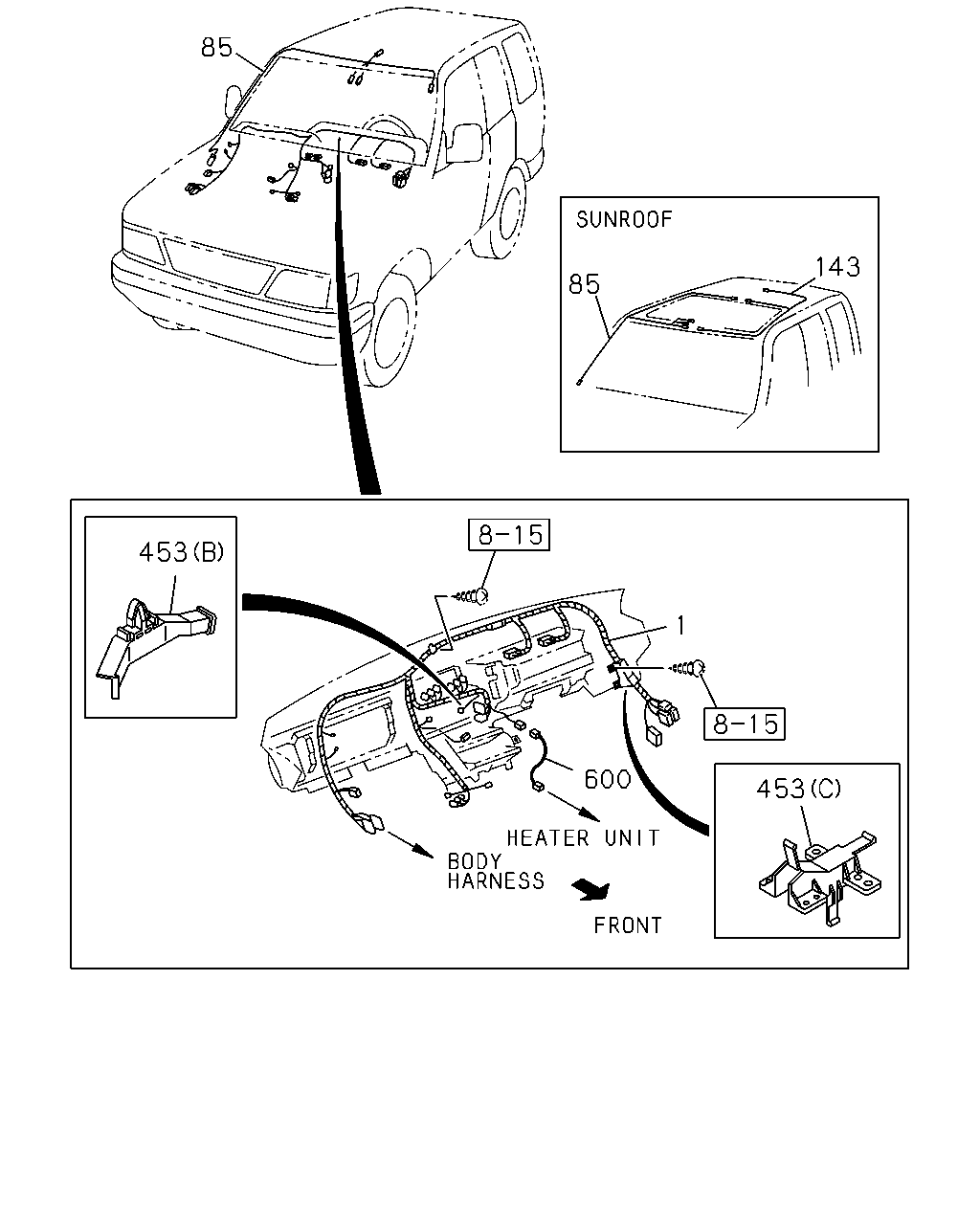

çizim 16346
85 143 85 453 1 600 453
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
GRADE LS(RBB),GRADE LTD(RBD) EXC. FULLAUTO AIR CONDITIONER(C68),TORQUE ON DEMAND<7HA> 		8-97226-014-0 01 1 9908-0202
1 HARNESS; CAB
GRADE LS(RBB),GRADE LTD(RBD) EXC. FULLAUTO AIR CONDITIONER(C68),TORQUE ON DEMAND<7HA> 		8-97263-453-2 01 1 0203-
1 HARNESS; CAB
GRADE LS(RBB),GRADE LTD(RBD) EXC. TORQUE ON DEMAND<7HA> 		8-97182-013-0 01 1 9708-9806
1 HARNESS; CAB
GRADE LS(RBB),GRADE LTD(RBD) EXC. TORQUE ON DEMAND<7HA> 		8-97203-757-1 01 1 9807-9907
1 HARNESS; CAB
GRADE LS(RBB),GRADE LTD(RBD) FULLAUTO AIR CONDITIONER(C68) EXC. TORQUE ON DEMAND<7HA> 		8-97226-017-1 01 1 9908-0202
1 HARNESS; CAB
GRADE LS(RBB),GRADE LTD(RBD) FULLAUTO AIR CONDITIONER(C68) EXC. TORQUE ON DEMAND<7HA> 		8-97263-456-3 01 1 0203-
1 HARNESS; CAB
GRADE S(RBA) EXC. TORQUE ON DEMAND<7HA> 		8-97182-012-0 01 1 9708-9801
1 HARNESS; CAB
TORQUE ON DEMAND<7HA> 		8-97182-014-0 01 1 9708-9806
1 HARNESS; CAB
TORQUE ON DEMAND<7HA> 		8-97203-758-1 01 1 9807-9907
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TORQUE ON DEMAND<7HA> 		8-97226-018-1 01 1 9908-0202
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) TORQUE ON DEMAND<7HA> 		8-97263-454-3 01 1 0203-
1 HARNESS; CAB
TORQUE ON DEMAND<7HA> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97226-015-0 01 1 9908-0202
1 HARNESS; CAB
TORQUE ON DEMAND<7HA> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97263-451-2 01 1 0203-
85 HARNESS; ROOM LAMP
GRADE S(RBA) CONVENIENT PACKAGE<6QZ> EXC. MULTI METER<7HT> 		8-97163-875-1 01 1 9708-9801
85 HARNESS; ROOM LAMP
GRADE S(RBA) EXC. CONVENIENT PACKAGE<6QZ>,MULTI METER<7HT> 		8-97163-873-0 01 1 9708-9801
85 HARNESS; ROOM LAMP
MAP LAMP<UF3> MULTI METER<7HT> EXC. SUN ROOF(CF5) 		8-97163-874-1 01 1 9708-9801
85 HARNESS; ROOM LAMP
MULTI METER<7HT> EXC. SUN ROOF(CF5) 		8-97163-874-3 01 1 9802-0202
85 HARNESS; ROOM LAMP
MULTI METER<7HT> EXC. SUN ROOF(CF5) 		8-97264-111-1 01 1 0203-
85 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. SUN ROOF(CF5),MULTI METER<7HT> 		8-97163-872-1 01 1 9708-9801
85 HARNESS; ROOM LAMP
EXC. SUN ROOF(CF5),MULTI METER<7HT> 		8-97163-872-3 01 1 9802-0202
85 HARNESS; ROOM LAMP
EXC. SUN ROOF(CF5),MULTI METER<7HT> 		8-97264-110-1 01 1 0203-
85 HARNESS; ROOM LAMP
SUN ROOF(CF5) 		8-97163-871-2 01 1 9708-0202
85 HARNESS; ROOM LAMP
SUN ROOF(CF5) MULTI METER<7HT> 		8-97264-109-1 01 1 0203-
85 HARNESS; ROOM LAMP
SUN ROOF(CF5) EXC. MULTI METER<7HT> 		8-97264-901-0 01 1 0203-
143 HARNESS; CABLE,SUNROOF
SUN ROOF(CF5) 		8-97805-525-1 01 1 9708-9806
143 HARNESS; CABLE,SUNROOF
SUN ROOF(CF5) 		8-97202-596-0 01 1 9807-
453 PROTECTOR; HARNESS
(A) 		8-97808-889-1 01 1 0006-
453 PROTECTOR; HARNESS
(B) 		8-97105-293-1 01 1 0203-
453 PROTECTOR; HARNESS
(C) 		8-97808-887-0 01 1 0203-
600 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-97226-385-1 01 1 9908-

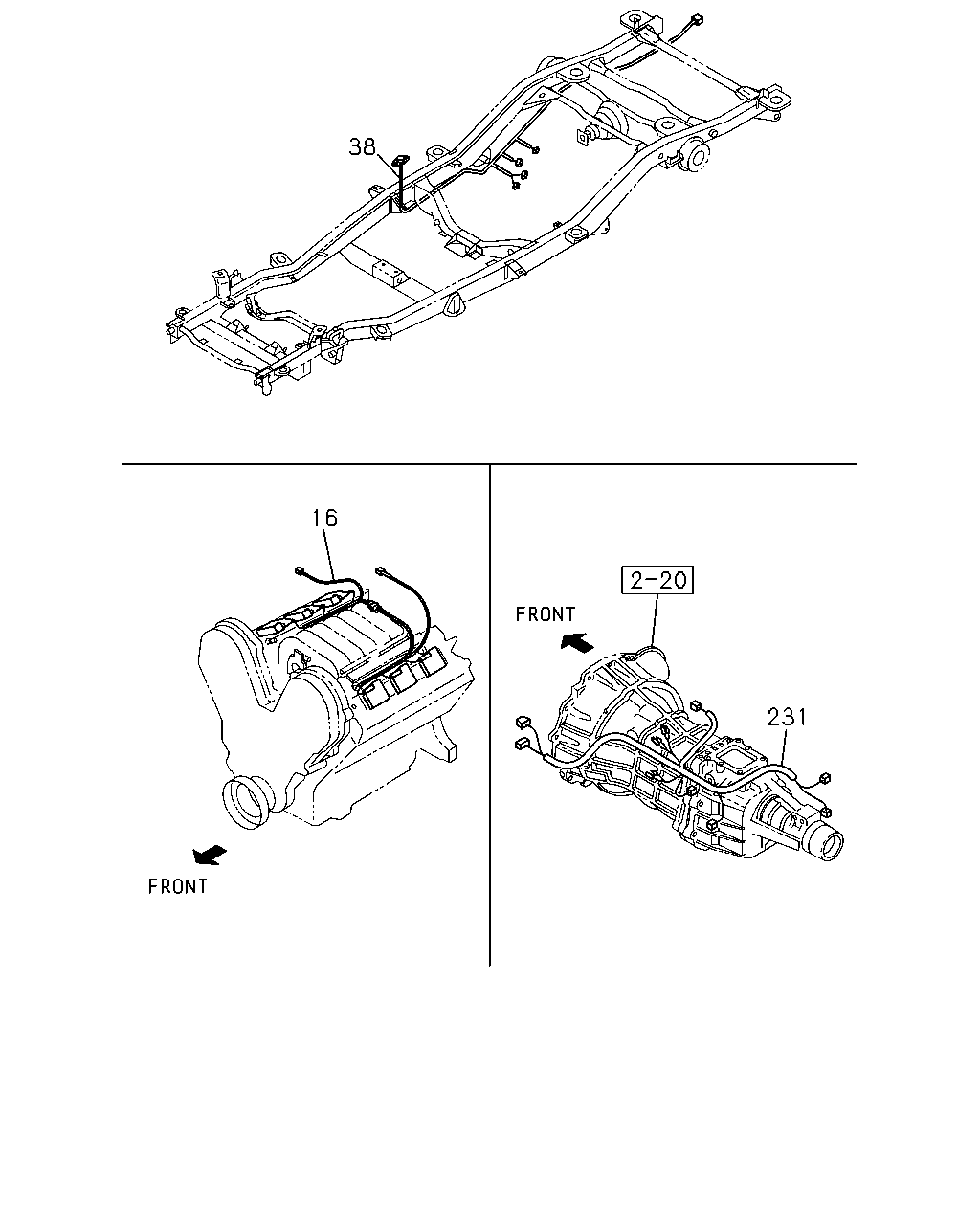

çizim 16612
38 16 231
BalonParca AdiParca NoAdetTipApplied Date
16 HARNESS; ENG,ECGI 8-97148-639-5 01 1 9708-9907
16 HARNESS; ENG,ECGI 8-97211-218-5 01 1 9908-0202
16 HARNESS; ENG,ECGI 8-97263-048-4 01 1 0203-
38 HARNESS; CHAS
TORQUE ON DEMAND<7HA> 		8-97174-393-0 01 1 9708-9806
38 HARNESS; CHAS
TORQUE ON DEMAND<7HA> 		8-97209-906-1 01 1 9807-0004
38 HARNESS; CHAS
TORQUE ON DEMAND<7HA> 		8-97244-815-0 01 1 0005-
38 HARNESS; CHAS
EXC. TORQUE ON DEMAND<7HA> 		8-97174-392-1 01 1 9708-
231 HARNESS; TRANS
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97181-797-1 01 1 9708-9806
231 HARNESS; TRANS
TORQUE ON DEMAND<7HA> 		8-97181-797-1 01 1 9807-9904
231 HARNESS; TRANS
TORQUE ON DEMAND<7HA> 		8-97227-857-0 01 1 9905-9907
231 HARNESS; TRANS
TORQUE ON DEMAND<7HA> 		8-97225-999-3 01 1 9908-
231 HARNESS; TRANS
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97181-796-1 01 1 9708-9806
231 HARNESS; TRANS
EXC. TORQUE ON DEMAND<7HA> 		8-97181-796-1 01 1 9807-9907
231 HARNESS; TRANS
EXC. TORQUE ON DEMAND<7HA> 		8-97226-000-3 01 1 9908-
231 HARNESS; TRANS
M/T AR-5 5 SPEED(RNK) 		8-97181-795-1 01 1 9708-9806

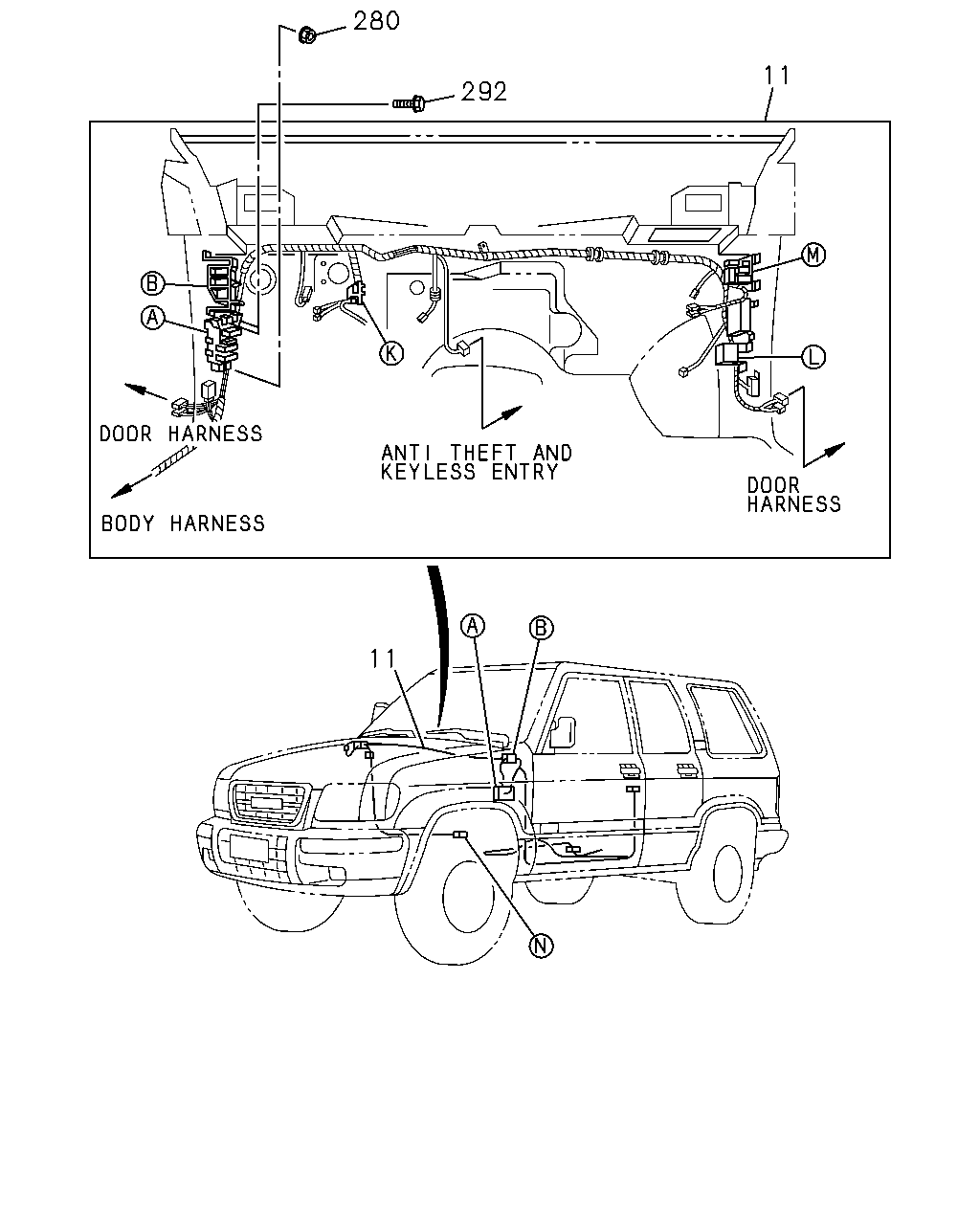

çizim 16634
280 11 292 11
BalonParca AdiParca NoAdetTipApplied Date
11 HARNESS; BODY
GRADE LS(RBB),GRADE LTD(RBD) EXC. TORQUE ON DEMAND<7HA> 		8-97182-007-1 01 1 9708-9801
11 HARNESS; BODY
EXC. TORQUE ON DEMAND<7HA>,RR COOLER<7UL> 		8-97182-007-1 01 1 9802-9806
11 HARNESS; BODY
EXC. TORQUE ON DEMAND<7HA>,RR COOLER<7UL> 		8-97203-965-1 01 1 9807-9907
11 HARNESS; BODY
EXC. TORQUE ON DEMAND<7HA>,RR COOLER<7UL> 		8-97226-006-2 01 1 9908-0202
11 HARNESS; BODY
EXC. TORQUE ON DEMAND<7HA>,RR COOLER<7UL> 		8-97263-445-2 01 1 0203-
11 HARNESS; BODY
GRADE S(RBA) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97182-006-1 01 1 9708-9801
11 HARNESS; BODY
TORQUE ON DEMAND<7HA> RR COOLER<7UL> 		8-97194-296-0 01 1 9802-9806
11 HARNESS; BODY
TORQUE ON DEMAND<7HA> RR COOLER<7UL> 		8-97203-749-1 01 1 9807-9907
11 HARNESS; BODY
TORQUE ON DEMAND<7HA> RR COOLER<7UL> 		8-97226-012-2 01 1 9908-0202
11 HARNESS; BODY
TORQUE ON DEMAND<7HA> RR COOLER<7UL> 		8-97263-446-2 01 1 0203-
11 HARNESS; BODY
GRADE S(RBA) AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97182-004-0 01 1 9708-9801
11 HARNESS; BODY
RR COOLER<7UL> EXC. TORQUE ON DEMAND<7HA> 		8-97194-294-0 01 1 9802-9806
11 HARNESS; BODY
RR COOLER<7UL> EXC. TORQUE ON DEMAND<7HA> 		8-97203-748-1 01 1 9807-9907
11 HARNESS; BODY
RR COOLER<7UL> EXC. TORQUE ON DEMAND<7HA> 		8-97226-011-2 01 1 9908-0202
11 HARNESS; BODY
RR COOLER<7UL> EXC. TORQUE ON DEMAND<7HA> 		8-97263-447-2 01 1 0203-
11 HARNESS; BODY
GRADE S(RBA) EXC. AUTO DOOR LOCK<AU4>,TORQUE ON DEMAND<7HA> 		8-97181-989-0 01 1 9708-9801
11 HARNESS; BODY
TORQUE ON DEMAND<7HA> ANTI THEFT<UA6> 		8-97182-008-1 01 1 9708-9801
11 HARNESS; BODY
TORQUE ON DEMAND<7HA> EXC. RR COOLER<7UL> 		8-97182-008-1 01 1 9802-9806
11 HARNESS; BODY
TORQUE ON DEMAND<7HA> EXC. RR COOLER<7UL> 		8-97203-745-1 01 1 9807-9907
11 HARNESS; BODY
TORQUE ON DEMAND<7HA> EXC. RR COOLER<7UL> 		8-97226-007-2 01 1 9908-0202
11 HARNESS; BODY
TORQUE ON DEMAND<7HA> EXC. RR COOLER<7UL> 		8-97263-441-2 01 1 0203-
11 HARNESS; BODY
TORQUE ON DEMAND<7HA> GRADE S(RBA) EXC. ANTI THEFT<UA6> 		8-97182-005-0 01 1 9708-9801
280 NUT; BOX ASM FIX
M6 FLANGE 		8-97063-399-0 01 1 9708-
292 BOLT; BOX
M6X16 FLANGE 		0-28080-616-0 07 1 9708-

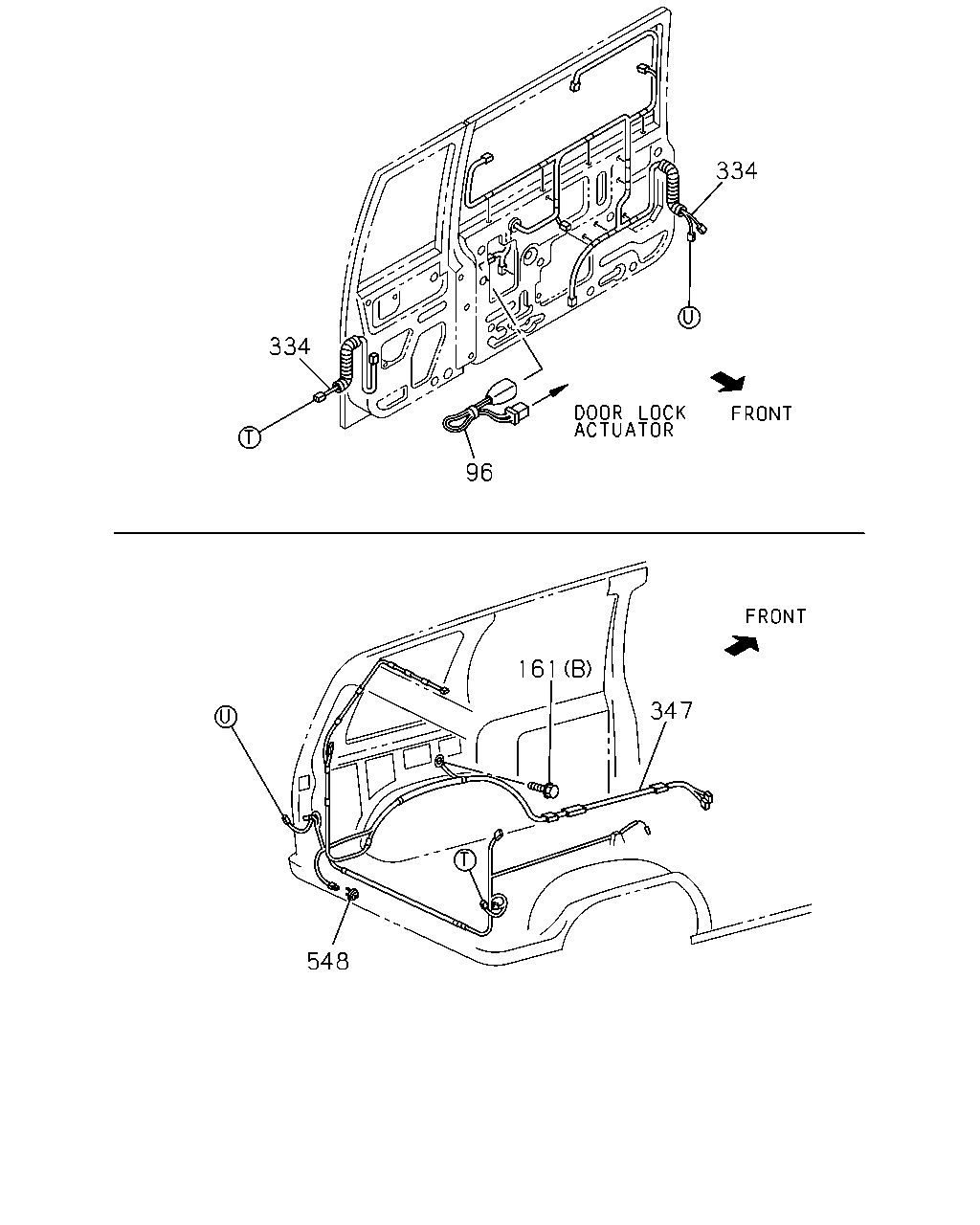

çizim 17493
334 334 96 161 347 548
BalonParca AdiParca NoAdetTipApplied Date
96 HARNESS; CABLE,DOOR LOCK 8-97201-439-1 01 1 9804-9806
161 BOLT; GRAND,HARNESS
(A) M6X20 		8-94412-422-0 03 1 9708-
161 BOLT; GRAND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9708-
334 HARNESS; CABLE,BACK DOOR 8-94359-020-4 01 1 9708-
334 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> 		8-97163-876-0 01 1 9708-9801
334 HARNESS; CABLE,BACK DOOR 8-97163-876-0 01 1 9802-9806
334 HARNESS; CABLE,BACK DOOR 8-97203-810-3 01 1 9807-
334 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> 		8-97163-877-0 01 1 9708-9801
334 HARNESS; CABLE,BACK DOOR
EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> 		8-97163-879-0 01 1 9708-9801
334 HARNESS; CABLE,BACK DOOR
RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> EXC. AUTO DOOR LOCK<AU4> 		8-97163-878-0 01 1 9708-9801
347 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4>,TORQUE ON DEMAND<7HA> 		8-97104-354-3 01 1 9708-9801
347 HARNESS; CABLE,RR BODY
RR COOLER<7UL> 		8-97194-297-1 01 1 9802-0202
347 HARNESS; CABLE,RR BODY
RR COOLER<7UL> 		8-97329-564-0 01 1 0203-
347 HARNESS; CABLE,RR BODY
TORQUE ON DEMAND<7HA> 		8-97133-883-1 01 1 9708-9801
347 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> EXC. TORQUE ON DEMAND<7HA> 		8-97133-883-1 01 1 9708-9801
347 HARNESS; CABLE,RR BODY
EXC. RR COOLER<7UL> 		8-97133-883-2 01 1 9802-0202
347 HARNESS; CABLE,RR BODY
EXC. RR COOLER<7UL> 		8-97263-458-0 01 1 0203-
548 GROMMET 8-97807-586-0 01 1 9903-

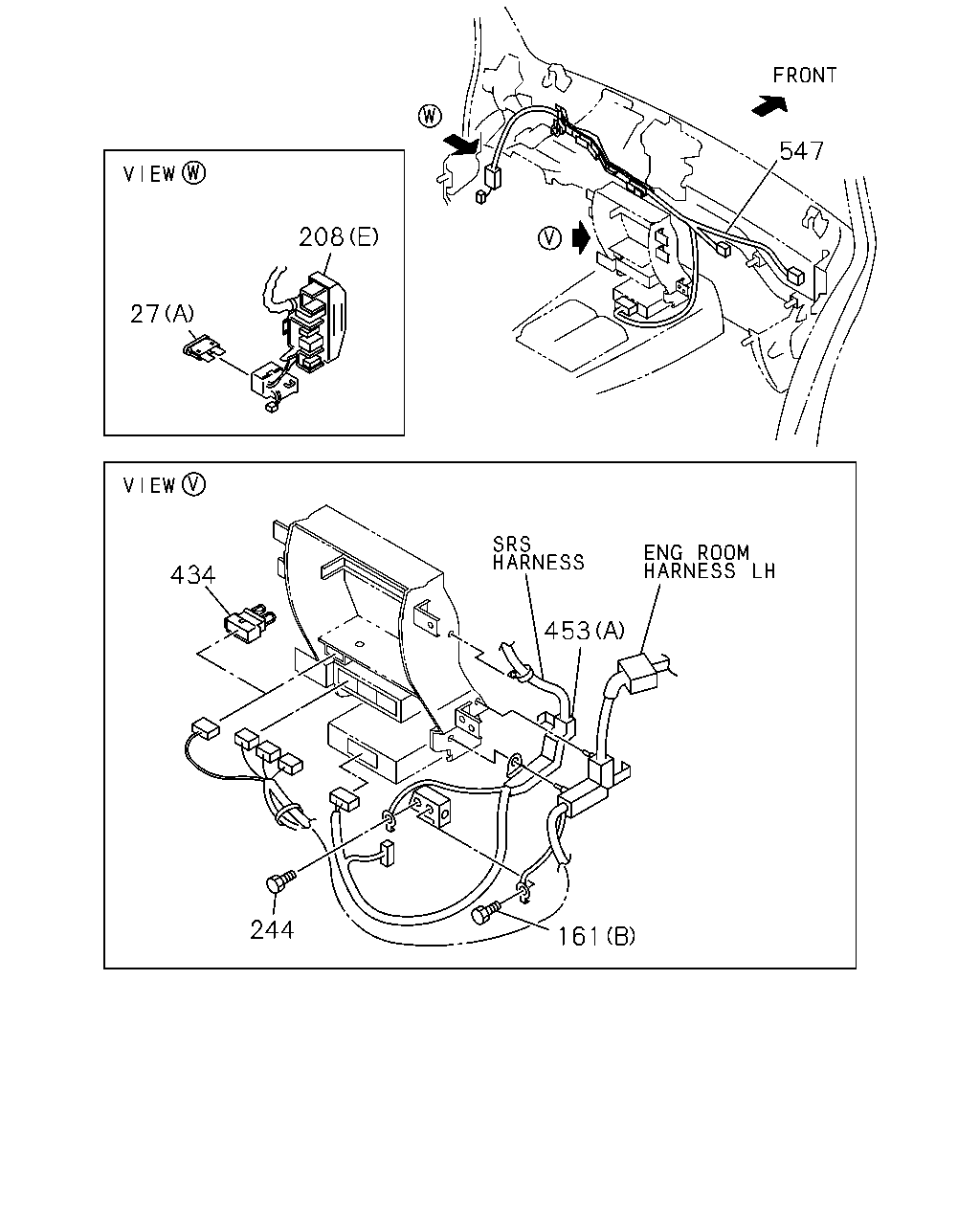

çizim 63925
547 208 27 434 453 244 161
BalonParca AdiParca NoAdetTipApplied Date
27 FUSE UNIT
(A) 10A RED 		5-82516-002-0 AR 1 9708-
27 FUSE UNIT
(A) 15A BLUE 		5-82516-003-0 AR 1 9708-
27 FUSE UNIT
(A) 20A YELLOW 		5-82516-004-0 AR 1 9708-
27 FUSE UNIT
(A) 25A CLEAR 		5-82516-005-0 AR 1 9708-
27 FUSE UNIT
(C) 50A RED 		8-94388-302-0 AR 1 9708-
27 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 9708-
27 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 9708-
27 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 9708-
161 BOLT; GRAND,HARNESS
(A) M6X20 		8-94412-422-0 03 1 9708-
161 BOLT; GRAND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9708-
208 HOLDER; CONNECTOR
(F) 		8-97105-296-0 01 1 9708-
208 HOLDER; CONNECTOR
(E) 		8-97147-320-0 01 1 9708-
208 HOLDER; CONNECTOR
(B) 		8-97164-701-0 01 1 9708-
208 HOLDER; CONNECTOR
(A) 		8-97808-879-2 01 1 9708-
208 HOLDER; CONNECTOR
(C) 		8-97808-880-0 01 1 9708-
208 HOLDER; CONNECTOR
(D) 		8-97808-881-1 01 1 9708-
244 BOLT; GRAND BONDING CABLE
M6X14 W/LK&PL WASHER 		8-97119-479-0 01 1 9708-
434 CONNECTOR; SHORT CIRCUIT
TORQUE ON DEMAND<7HA> 		8-97168-575-0 01 1 9708-
453 PROTECTOR; HARNESS
(A) 		8-97808-889-1 01 1 0006-
453 PROTECTOR; HARNESS
(B) 		8-97105-293-1 01 1 0203-
453 PROTECTOR; HARNESS
(C) 		8-97808-887-0 01 1 0203-
547 HARNESS; CABLE,SRS 8-97174-357-1 01 1 9708-

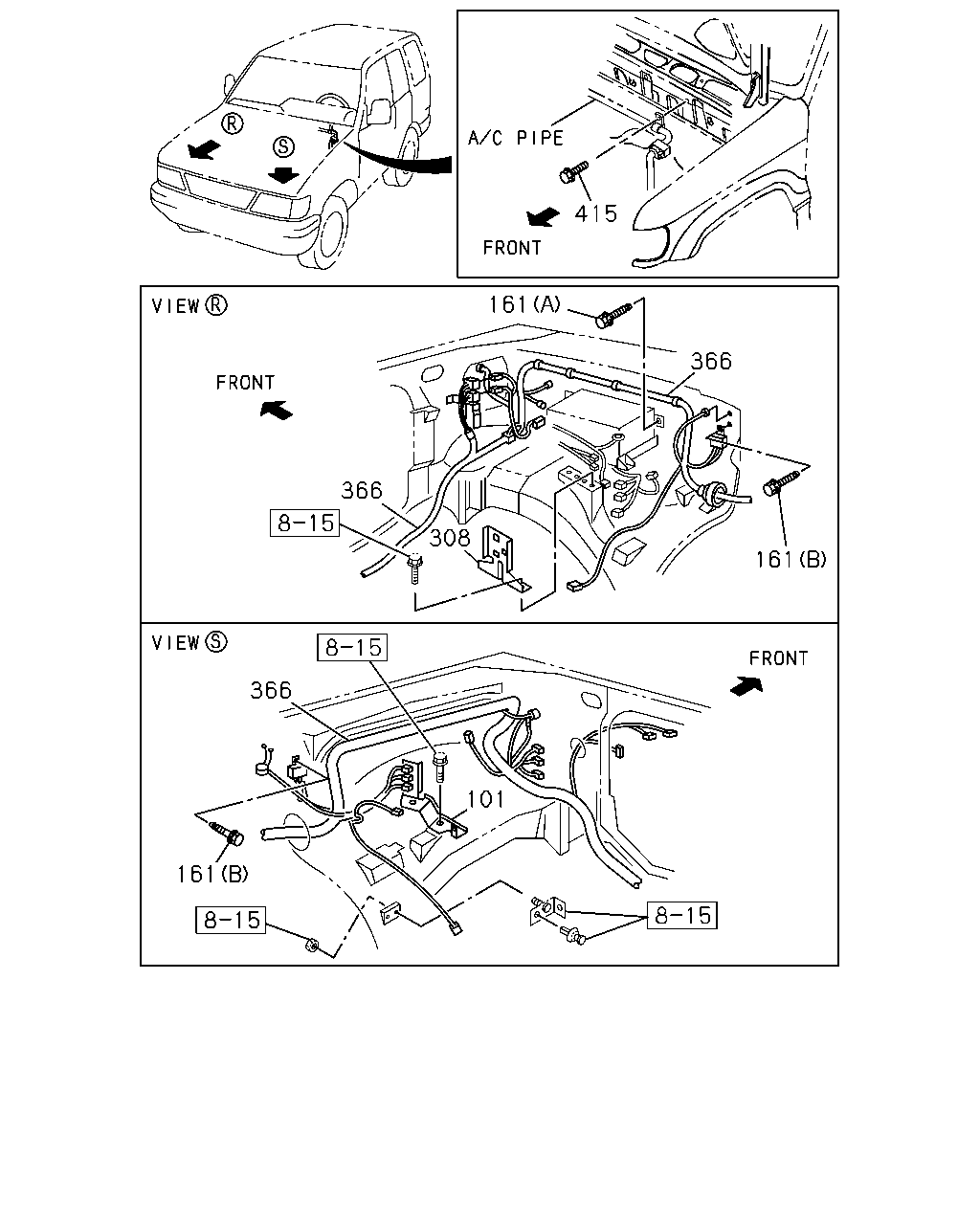

çizim 63935
415 161 366 366 308 161 366 101 161
BalonParca AdiParca NoAdetTipApplied Date
101 BRACKET; HARNESS CONNECTOR 8-97168-576-0 01 1 9708-0202
101 BRACKET; HARNESS CONNECTOR 8-97263-959-1 01 1 0203-
161 BOLT; GRAND,HARNESS
(A) M6X20 		8-94412-422-0 03 1 9708-
161 BOLT; GRAND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9708-
308 BRACKET; CONNECTOR 8-97161-668-0 01 1 9708-9907
308 BRACKET; CONNECTOR 8-97227-776-1 01 1 9908-
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97181-794-0 01 1 9708-9801
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97193-690-0 01 1 9802-9806
366 HARNESS; CABLE,ENG ROOM 8-97203-754-1 01 1 9807-9902
366 HARNESS; CABLE,ENG ROOM 8-97216-768-0 01 1 9903-9907
366 HARNESS; CABLE,ENG ROOM 8-97225-996-1 01 1 9908-0202
366 HARNESS; CABLE,ENG ROOM 8-97263-439-2 01 1 0203-
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97181-789-0 01 1 9708-9801
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97193-689-0 01 1 9802-9806
366 HARNESS; CABLE,ENG ROOM 8-97203-752-2 01 1 9807-9907
366 HARNESS; CABLE,ENG ROOM 8-97225-992-3 01 1 9908-0202
366 HARNESS; CABLE,ENG ROOM 8-97263-435-1 01 1 0203-
366 HARNESS; CABLE,ENG ROOM
M/T AR-5 5 SPEED(RNK) GRADE LS(RBB),GRADE LTD(RBD) 		8-97181-793-0 01 1 9708-9801
366 HARNESS; CABLE,ENG ROOM
M/T AR-5 5 SPEED(RNK) GRADE LS(RBB),GRADE LTD(RBD) 		8-97181-788-0 01 1 9708-9801
366 HARNESS; CABLE,ENG ROOM
M/T AR-5 5 SPEED(RNK) GRADE S(RBA) 		8-97181-792-0 01 1 9708-9801
366 HARNESS; CABLE,ENG ROOM
M/T AR-5 5 SPEED(RNK) GRADE S(RBA) 		8-97181-787-0 01 1 9708-9801
415 BOLT; CABLE,BONDING
AIR CONDITIONER MANUAL CONT(C60) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9708-9806
415 BOLT; CABLE,BONDING
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9807-9907
415 BOLT; CABLE,BONDING
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9908-0005
415 BOLT; CABLE,BONDING
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0006-0202

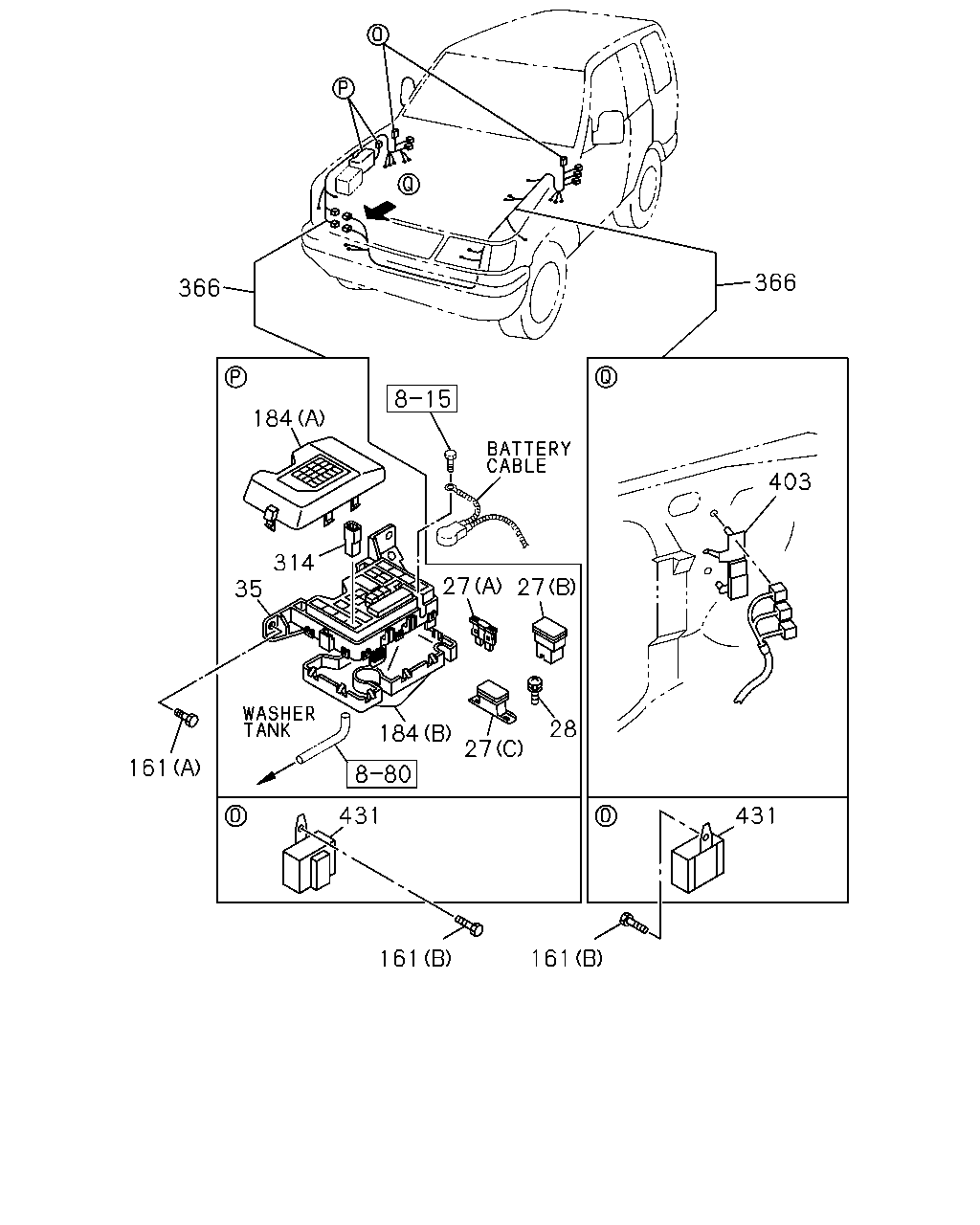

çizim 64112
366 366 184 403 314 35 28 184 27 161 431 431 161 161 27 27
BalonParca AdiParca NoAdetTipApplied Date
27 FUSE UNIT
(A) 10A RED 		5-82516-002-0 AR 1 9708-
27 FUSE UNIT
(A) 15A BLUE 		5-82516-003-0 AR 1 9708-
27 FUSE UNIT
(A) 20A YELLOW 		5-82516-004-0 AR 1 9708-
27 FUSE UNIT
(A) 25A CLEAR 		5-82516-005-0 AR 1 9708-
27 FUSE UNIT
(C) 50A RED 		8-94388-302-0 AR 1 9708-
27 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 9708-
27 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 9708-
27 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 9708-
28 SCREW; FUSE BOX
M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9912-
35 BOX; RELAY & FUSE 8-97044-200-1 01 1 9708-
161 BOLT; GRAND,HARNESS
(A) M6X20 		8-94412-422-0 03 1 9708-
161 BOLT; GRAND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9708-
184 COVER; RELAY & FUSE BOX
(B) 		8-97044-201-0 01 1 9708-
184 COVER; RELAY & FUSE BOX
(A) 		8-97193-741-0 01 1 9708-0202
184 COVER; RELAY & FUSE BOX
(A) 		8-97264-866-0 01 1 0203-
314 RESISTOR; HARNESS
M/T AR-5 5 SPEED(RNK) 		8-97039-689-0 01 1 9708-9801
314 RESISTOR; HARNESS
A/T THM(RMQ) 		8-97039-689-0 01 1 9802-9806
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97181-794-0 01 1 9708-9801
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97193-690-0 01 1 9802-9806
366 HARNESS; CABLE,ENG ROOM 8-97203-754-1 01 1 9807-9902
366 HARNESS; CABLE,ENG ROOM 8-97216-768-0 01 1 9903-9907
366 HARNESS; CABLE,ENG ROOM 8-97225-996-1 01 1 9908-0202
366 HARNESS; CABLE,ENG ROOM 8-97263-439-2 01 1 0203-
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97181-789-0 01 1 9708-9801
366 HARNESS; CABLE,ENG ROOM
A/T THM(RMQ) 		8-97193-689-0 01 1 9802-9806
366 HARNESS; CABLE,ENG ROOM 8-97203-752-2 01 1 9807-9907
366 HARNESS; CABLE,ENG ROOM 8-97225-992-3 01 1 9908-0202
366 HARNESS; CABLE,ENG ROOM 8-97263-435-1 01 1 0203-
366 HARNESS; CABLE,ENG ROOM
M/T AR-5 5 SPEED(RNK) GRADE LS(RBB),GRADE LTD(RBD) 		8-97181-793-0 01 1 9708-9801
366 HARNESS; CABLE,ENG ROOM
M/T AR-5 5 SPEED(RNK) GRADE LS(RBB),GRADE LTD(RBD) 		8-97181-788-0 01 1 9708-9801
366 HARNESS; CABLE,ENG ROOM
M/T AR-5 5 SPEED(RNK) GRADE S(RBA) 		8-97181-792-0 01 1 9708-9801
366 HARNESS; CABLE,ENG ROOM
M/T AR-5 5 SPEED(RNK) GRADE S(RBA) 		8-97181-787-0 01 1 9708-9801
403 BRACKET; CONNECTOR,HARNESS 8-97808-482-2 01 1 9708-9801
403 BRACKET; CONNECTOR,HARNESS
A/T THM(RMQ) 		8-97808-482-2 01 1 9802-9806
403 BRACKET; CONNECTOR,HARNESS 8-97808-482-2 01 1 9807-
431 CONNECTOR; JOINT 8-97805-765-0 02 1 9708-9801
431 CONNECTOR; JOINT
A/T THM(RMQ) 		8-97805-765-0 02 1 9802-9806
431 CONNECTOR; JOINT 8-97805-765-0 01 1 9807-
431 CONNECTOR; JOINT 8-97805-765-0 01 1 9807-

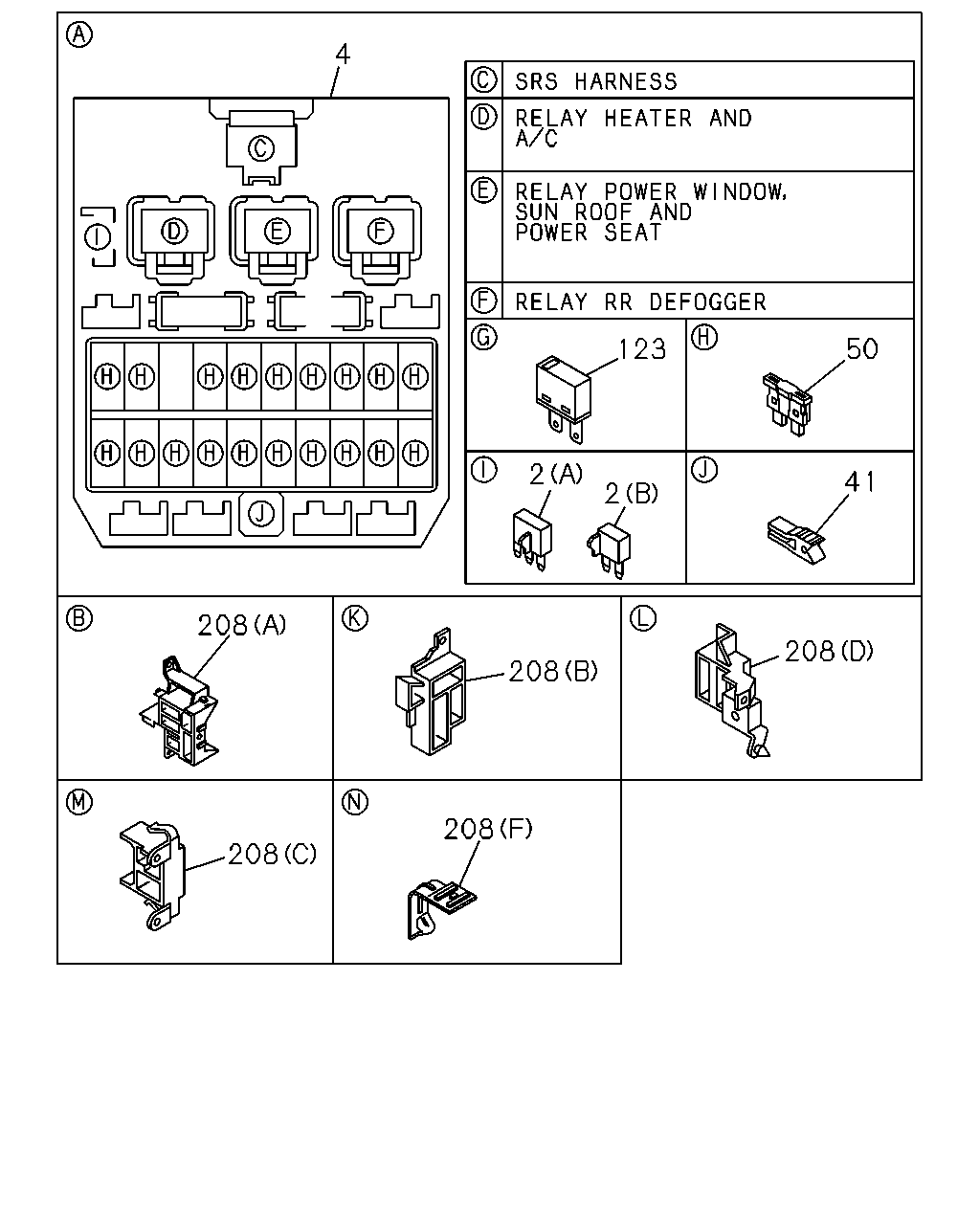

çizim 65121
4 123 50 2 41 28 208 208 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9708-
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9708-
4 BOX ASM; FUSE,HARNESS 8-97808-883-1 01 1 9708-
28 SCREW; FUSE BOX
M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9912-
41 PULLER; FUSE
L=31.0 B=10.0 		8-94369-144-0 01 1 9708-9812
41 PULLER; FUSE
TORQUE ON DEMAND<7HA> GRADE LS(RBB),GRADE LTD(RBD) RR COOLER<7UL> L=31.0 B=10.0 		8-94369-144-0 01 1 9901-9901
41 PULLER; FUSE
GRADE LS(RBB),GRADE LTD(RBD) EXC. TORQUE ON DEMAND<7HA> L=31.0 B=10.0 		8-94369-144-0 01 1 9901-9901
41 PULLER; FUSE
TORQUE ON DEMAND<7HA> EXC. RR COOLER<7UL> L=25.3 B=11.5 		8-94121-482-0 01 1 9901-9901
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9902-
50 FUSE; BODY HARNESS
10A RED 		5-82516-002-0 AR 1 9708-
50 FUSE; BODY HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9708-
50 FUSE; BODY HARNESS
25A CLEAR 		5-82516-005-0 AR 1 9708-
50 FUSE; BODY HARNESS
15A BLUE 		5-82516-003-0 AR 1 9802-
123 BREAKER; CIRCUIT 8-97106-113-0 01 1 9708-
208 HOLDER; CONNECTOR
(F) 		8-97105-296-0 01 1 9708-
208 HOLDER; CONNECTOR
(E) 		8-97147-320-0 01 1 9708-
208 HOLDER; CONNECTOR
(B) 		8-97164-701-0 01 1 9708-
208 HOLDER; CONNECTOR
(A) 		8-97808-879-2 01 1 9708-
208 HOLDER; CONNECTOR
(C) 		8-97808-880-0 01 1 9708-
208 HOLDER; CONNECTOR
(D) 		8-97808-881-1 01 1 9708-
çizim 65135
408 409 409 391 408
BalonParca AdiParca NoAdetTipApplied Date
391 SCREW; BRKT
M5X16 		9-09829-323-1 02 1 0203-
408 SOCKET ASM; ACCESSORY
(A) 		8-97263-410-0 01 1 0203-
408 SOCKET ASM; ACCESSORY
INTERIOR COLOR BEIGE(181) (B) 		8-97263-495-0 01 1 0203-
408 SOCKET ASM; ACCESSORY
INTERIOR COLOR MEDIUM GRAY(113) (B) 		8-97263-494-0 01 1 0203-
409 CAP; ACCESSORY SOCKET
(A) 		8-97310-925-0 01 1 0203-
409 CAP; ACCESSORY SOCKET
INTERIOR COLOR BEIGE(181) (B) 		8-97310-928-0 01 1 0203-
409 CAP; ACCESSORY SOCKET
INTERIOR COLOR MEDIUM GRAY(113) (B) 		8-97310-927-0 01 1 0203-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
