Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

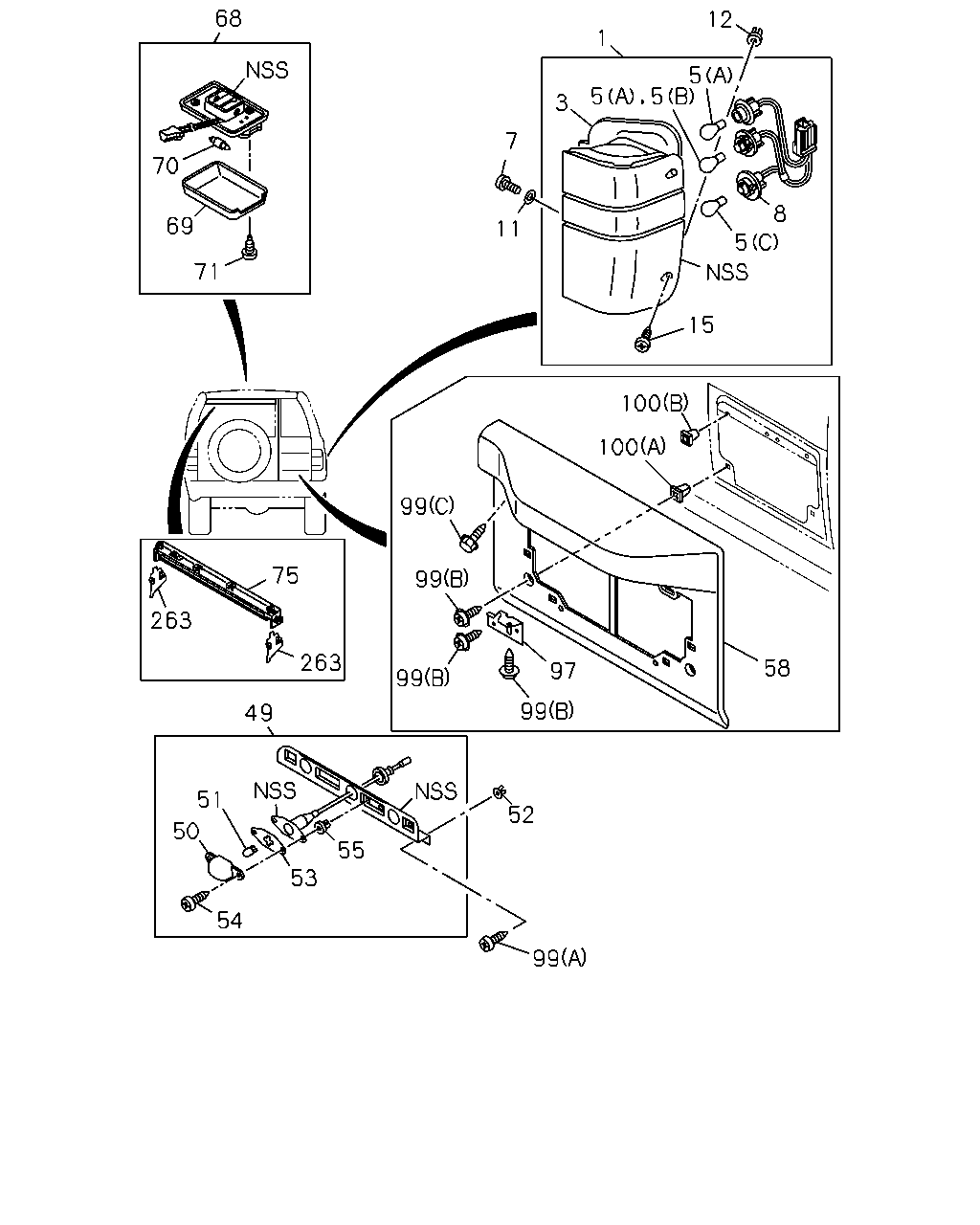

8-03 — LAMP; REAR AND REAR SIDE
(#46212) — 37 parça
68
12
1
5
5
5
3
7
70
8
5
69
11
71
15
100
100
99
75
99
263
263
58
97
99
99
49
51
50
52
55
53
54
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
8-97103-731-1
01
1
9708-9907
1
LAMP ASM; RR COMB
8-97218-951-1
01
1
9908-
1
LAMP ASM; RR COMB
8-97103-704-1
01
1
9708-9907
1
LAMP ASM; RR COMB
8-97218-950-1
01
1
9908-
3
GASKET; RR COMB LAMP
8-97807-106-1
02
1
9708-
5
BULB; RR COMB LAMP
(A),(B) 12V 23W
1-82194-040-0
04
1
9708-9907
5
BULB; RR COMB LAMP
(A),(B) 12V 23W
1-82194-040-0
02
1
9908-
5
BULB; RR COMB LAMP
(C) 12V 27/8W
8-94404-036-0
02
1
9708-
5
BULB; RR COMB LAMP
(A) 12V 27W
8-97222-072-0
02
1
9908-
7
SCREW; RR COMB LAMP
M5X16
8-97800-740-0
02
1
9708-0111
7
SCREW; RR COMB LAMP
M5X14
1-72548-072-0
02
1
0112-
8
HARNESS; RR COMB LAMP
8-97807-103-0
02
1
9708-
11
WASHER; PL,LAMP,RR COMB
D=16
8-94427-941-0
02
1
9708-
12
GROMMET; RR COMB LAMP
8-94430-318-1
04
1
9708-
15
SCREW; RR COMB LAMP
8-97807-135-0
04
1
9708-
49
LAMP; LICENSE PLATE
8-97118-027-0
01
1
9708-
50
LENS; LICENSE PLATE LAMP
8-94360-612-0
01
1
9708-
51
BULB; LICENSE PLATE LAMP
12V 5W
8-94124-595-0
01
1
9708-
52
GROMMET; SCREW,LICENSE PLATE LAMP
8-94430-318-1
02
1
9708-
53
GASKET; LICENSE LAMP
8-94379-544-0
01
1
9708-
54
SCREW; LICENSE PLATE LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
02
1
9708-
55
NUT; LICENSE PLATE LAMP
M4
5-09470-002-0
02
1
9708-
58
COVER; LICENSE PLATE LAMP
W/GRAIN GRAY
8-94359-730-4
01
1
9708-0202
68
LAMP; LUGGAGE ROOM
DARK GRAY
8-97098-336-2
01
1
9708-9907
68
LAMP; LUGGAGE ROOM
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY
8-97098-336-2
01
1
9908-
68
LAMP; LUGGAGE ROOM
INTERIOR COLOR BEIGE(181) LIGHT BEIGE
8-97290-741-2
01
1
9908-
69
LENS; LUGGAGE ROOM LAMP
8-94377-660-0
01
1
9708-
70
BULB; LUGGAGE ROOM LAMP
12V 8W
8-94153-335-0
01
1
9708-
71
SCREW; LUGGAGE ROOM LAMP
9-07067-516-0
02
1
9708-
75
LAMP ASM; STOP,HIGHMOUNTED
8-97160-391-1
01
1
9708-
97
BRACKET; LICENSE PLATE LAMP
8-97807-358-1
01
1
9708-
99
SCREW
(A) M5X16
8-94358-694-0
02
1
9708-
99
SCREW
(B) M6X16
8-97805-189-0
05
1
9708-
99
SCREW
(C) M6X25
8-97807-554-0
02
1
9708-
100
SCREW; GROMMET
(A) M6
8-97801-073-1
04
1
9708-
100
SCREW; GROMMET
(B)
8-97802-935-2
02
1
9708-
263
CLIP; STOP LAMP
8-97808-380-1
02
1
9708-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
