Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#46211) — 60 parça
◀

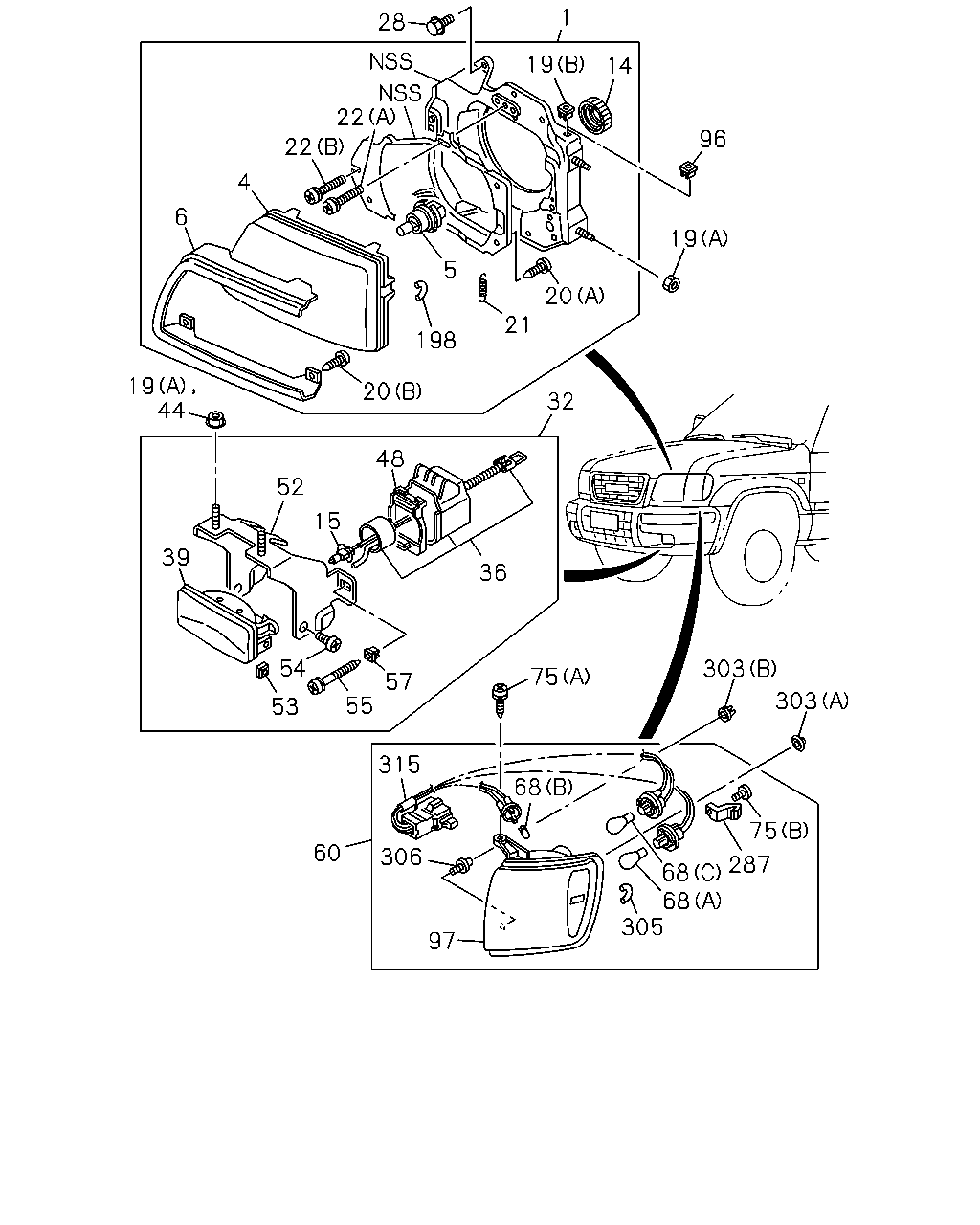

[801A] LAMP (56 parça)
[801A] COVER;HEADLAMP (4 parça)
▶
1
28
19
14
22
96
22
4
6
19
5
20
21
198
19
44
20
32
48
52
15
39
36
54
53
303
75
57
303
55
315
68
75
60
306
287
68
68
305
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-97174-779-0
01
1
9708-9708
1
LAMP ASM; HEAD
8-97187-332-0
01
1
9709-9806
1
LAMP ASM; HEAD
8-97204-906-1
01
1
9807-
1
LAMP ASM; HEAD
8-97174-778-0
01
1
9708-9708
1
LAMP ASM; HEAD
8-97187-331-0
01
1
9709-9806
1
LAMP ASM; HEAD
8-97204-905-1
01
1
9807-
4
HEADLAMP UNIT
8-97179-787-0
01
1
9708-
4
HEADLAMP UNIT
8-97179-786-0
01
1
9708-
5
BULB; HEADLAMP
12V 65/45W
8-94452-694-0
02
1
9708-
6
RIM; HEADLAMP
8-97179-779-0
01
1
9708-9708
6
RIM; HEADLAMP
8-97187-343-0
01
1
9709-
6
RIM; HEADLAMP
8-97179-780-0
01
1
9708-9708
6
RIM; HEADLAMP
8-97187-344-0
01
1
9709-
14
CAP; BULB,LAMP
8-97807-122-0
02
1
9708-
15
BULB; FOG LAMP
FOG LAMP HALOGEN(T37) 12V 55W
8-94458-282-0
02
1
9708-
19
NUT; HEADLAMP
(A) M6 FLANGE
0-91150-106-0
04
1
9708-0009
19
NUT; HEADLAMP
FOG LAMP HALOGEN(T37) (A) M6 FLANGE
0-91150-106-0
04
1
0010-
19
NUT; HEADLAMP
(B)
8-94252-864-2
02
1
9708-0206
19
NUT; HEADLAMP
(A) M6 FLANGE
0-91150-106-0
08
1
0010-
20
SCREW; HEADLAMP
(A)
8-97807-127-0
02
1
9708-
20
SCREW; HEADLAMP
(B)
8-97807-131-0
08
1
9708-
21
SPRING; ADJ HEADLAMP
8-97807-107-0
02
1
9708-
22
SCREW; ADJ,HEADLAMP
(A)
8-97807-132-0
02
1
9708-
22
SCREW; ADJ,HEADLAMP
(B)
8-97807-134-0
02
1
9708-
28
BOLT; HEADLAMP
M6X16 FLANGE
0-28680-616-0
04
1
9708-
32
LAMP ASM; FOG
FOG LAMP HALOGEN(T37)
8-97183-641-1
01
1
9708-
32
LAMP ASM; FOG
FOG LAMP HALOGEN(T37)
8-97183-640-1
01
1
9708-
36
CORD; FOG LAMP
FOG LAMP HALOGEN(T37)
8-97805-964-0
02
1
9708-0112
36
CORD; FOG LAMP
FOG LAMP HALOGEN(T37)
8-97329-162-0
02
1
0201-
39
UNIT; FOG LAMP
FOG LAMP HALOGEN(T37)
8-97805-963-0
01
1
9708-
39
UNIT; FOG LAMP
FOG LAMP HALOGEN(T37)
8-97805-962-0
01
1
9708-
44
NUT; FOG LAMP
FOG LAMP HALOGEN(T37) M6 FLANGE
0-91150-106-0
04
1
9708-0111
48
COVER; FOG LAMP
FOG LAMP HALOGEN(T37)
8-97807-726-0
02
1
9708-0112
52
RING; MTG,FOG LAMP
FOG LAMP HALOGEN(T37)
8-97184-780-0
02
1
9708-
53
NUT; MTG RING,FOG LAMP
FOG LAMP HALOGEN(T37)
8-94379-802-0
04
1
9708-
54
BOLT; MTG RING,FOG LAMP
FOG LAMP HALOGEN(T37) M5X12
8-94379-803-0
04
1
9708-
55
SCREW; ADJ,FOG LAMP
FOG LAMP HALOGEN(T37)
8-97016-275-0
02
1
9708-
57
NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN(T37)
8-94379-806-0
02
1
9708-
60
LAMP ASM; FRT COMB
8-97174-793-1
01
1
9708-
60
LAMP ASM; FRT COMB
8-97174-792-1
01
1
9708-
68
BULB; FRT COMB LAMP
(A) 12V 27W
1-82194-048-0
02
1
9708-
68
BULB; FRT COMB LAMP
(B) 12V 3.8W
5-82194-023-0
02
1
9708-
68
BULB; FRT COMB LAMP
(C) 12V 27/8W
8-97806-595-0
02
1
9708-9907
68
BULB; FRT COMB LAMP
(C) 12V 27/8W
8-97183-462-0
02
1
9908-
75
SCREW; FRT COMB LAMP
(B)
8-97807-124-0
02
1
9708-
75
SCREW; FRT COMB LAMP
(A) M4X16 W/WASHER
8-97809-122-0
02
1
9708-
96
GROMMET; SCREW,SIDE COMB LAMP
M4
5-09470-002-0
02
1
0207-
97
LAMP UNIT; COMB
8-97179-977-0
01
1
9708-
97
LAMP UNIT; COMB
8-97179-976-0
01
1
9708-
198
TUBE; COVER,HEADLAMP
8-94325-772-0
04
1
9708-
287
CLIP; FRT TURN SIGNAL
8-97807-111-0
02
1
9708-
303
CLIP; COMB LAMP
(A)
8-97800-741-0
02
1
9708-
303
CLIP; COMB LAMP
(B)
8-97801-572-0
02
1
9708-
305
COVER; FRT COMB LAMP
8-94325-772-0
02
1
9708-
306
PIVOT; FRT COMB LAMP
8-97807-110-0
02
1
9708-
315
HARNESS; FRT COMB LAMP
8-97179-973-0
02
1
9708-
236
139
236
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
139
COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60)
8-97129-573-0
02
1
9708-9806
139
COVER; HEADLAMP
8-97129-573-0
02
1
9807-
236
CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60) GRAY
8-94429-372-0
07
1
9708-9806
236
CLIP; COVER
GRAY
8-94429-372-0
07
1
9807-
