◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#46210) — 85 parça

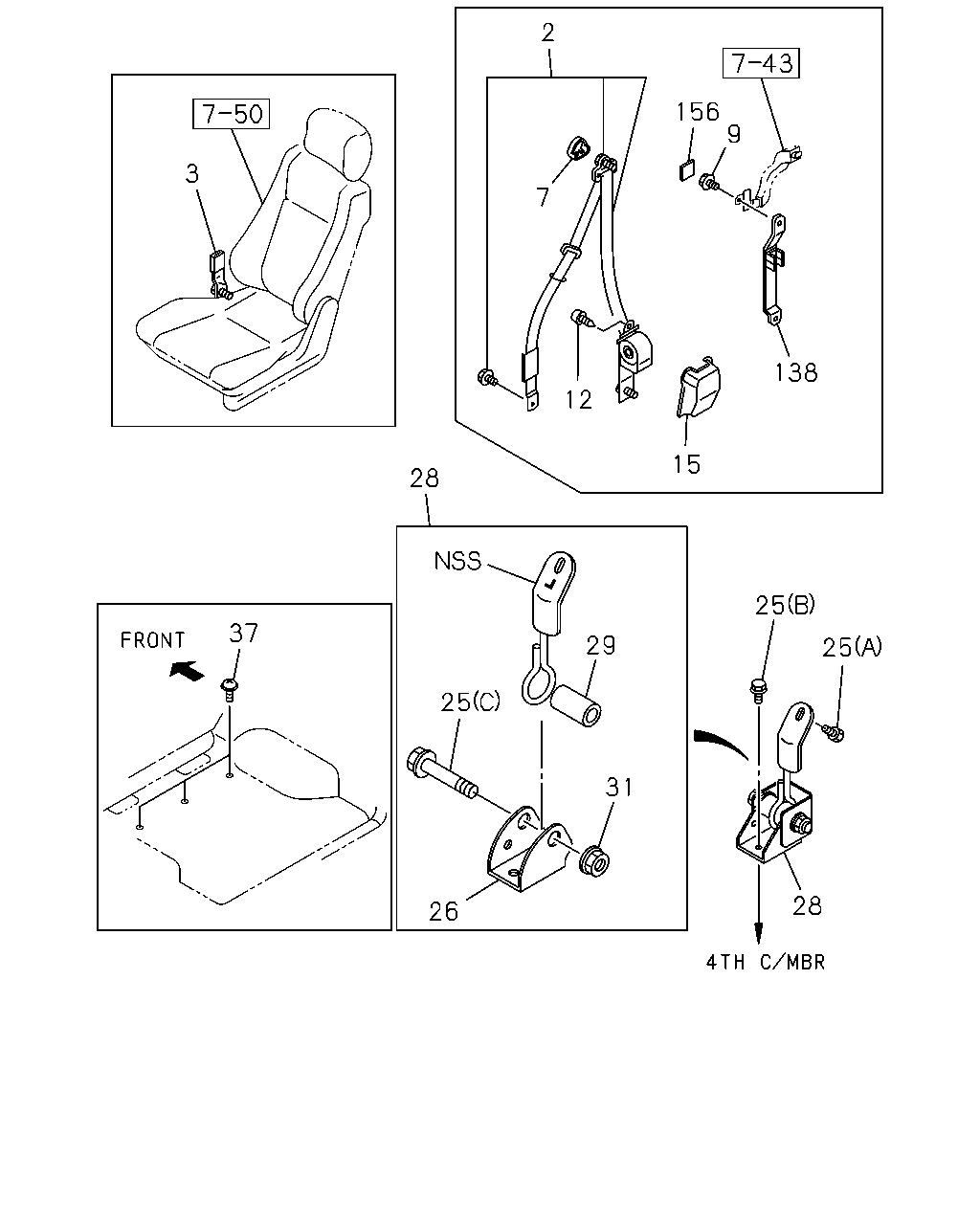

çizim 64569
2 156 9 3 7 138 12 15 28 25 37 29 25 25 31 28 26
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97153-176-3 01 1 9708-9806
2 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97198-164-0 01 1 9807-9907
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97198-164-0 01 1 9908-0110
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97392-333-0 01 1 0111-
2 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97153-175-3 01 1 9708-9806
2 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97198-163-0 01 1 9807-9907
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97292-746-1 01 1 9908-
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-896-0 01 1 9908-0110
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97392-334-0 01 1 0111-
2 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97292-747-1 01 1 9908-
3 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97153-456-1 01 1 9708-9907
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-456-2 01 1 9908-
3 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97153-455-1 01 1 9708-9907
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-455-2 01 1 9908-
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-874-2 01 1 9908-
3 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-873-2 01 1 9908-
7 COVER; SHOULDER ANCHOR,FRT SEAT
DARK GRAY 		8-97098-482-0 02 1 9708-9907
7 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-482-0 02 1 9908-
7 COVER; SHOULDER ANCHOR,FRT SEAT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-698-0 02 1 9908-
9 BOLT; SEAT BELT ANCHOR 8-97807-246-0 04 1 9708-
12 SCREW; RETRACTOR COVER,SEAT BELT
M6X12 TAPPING 		0-74100-612-0 02 1 9708-
15 COVER; DUST,FRT SEAT BELT RETRACTOR 8-97808-203-2 02 1 9708-9806
15 COVER; DUST,FRT SEAT BELT RETRACTOR 8-97188-817-0 01 1 9807-0110
15 COVER; DUST,FRT SEAT BELT RETRACTOR 8-97188-818-0 01 1 9807-0110
25 BOLT; TENSION ROD BRKT,SEAT BELT
(B) M10X20 FLANGE 		0-28081-020-0 02 1 9708-
25 BOLT; TENSION ROD BRKT,SEAT BELT
(C) M10X50 FLANGE 		0-28081-050-0 02 1 9708-
25 BOLT; TENSION ROD BRKT,SEAT BELT
(A) M10X20 W/PL WASHER 		8-94180-854-0 02 1 9708-
26 BRACKET; TENSION ROD,SEAT BELT 8-97801-223-1 02 1 9708-
28 ROD ASM; TENSION,SEAT BELT 8-97119-218-1 01 1 9708-9801
28 ROD ASM; TENSION,SEAT BELT 8-97189-277-1 01 1 9802-
28 ROD ASM; TENSION,SEAT BELT 8-97119-217-1 01 1 9708-9801
28 ROD ASM; TENSION,SEAT BELT 8-97189-276-1 01 1 9802-
29 SPACER; TENSION ROD,SEAT BELT 8-97801-222-0 02 1 9708-
31 NUT; TENSION ROD BRKT
M10 FLANGE 		0-91150-210-0 02 1 9708-
37 PLUG; SEAT BELT ANCHOR
M8X16 		8-94188-667-0 03 1 9708-9907
37 PLUG; SEAT BELT ANCHOR
M8X16 		8-94188-667-0 01 1 9908-9910
37 PLUG; SEAT BELT ANCHOR
M8X16 		8-94188-667-0 03 1 9911-
138 BRACKET; ANCHOR,SEAT BELT
DARK GRAY 		8-97151-478-7 02 1 9708-9907
138 BRACKET; ANCHOR,SEAT BELT
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97151-478-8 02 1 9908-
138 BRACKET; ANCHOR,SEAT BELT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-699-8 02 1 9908-
156 CUSHION; SHOULDER ANCHOR 8-97808-667-0 04 1 9708-

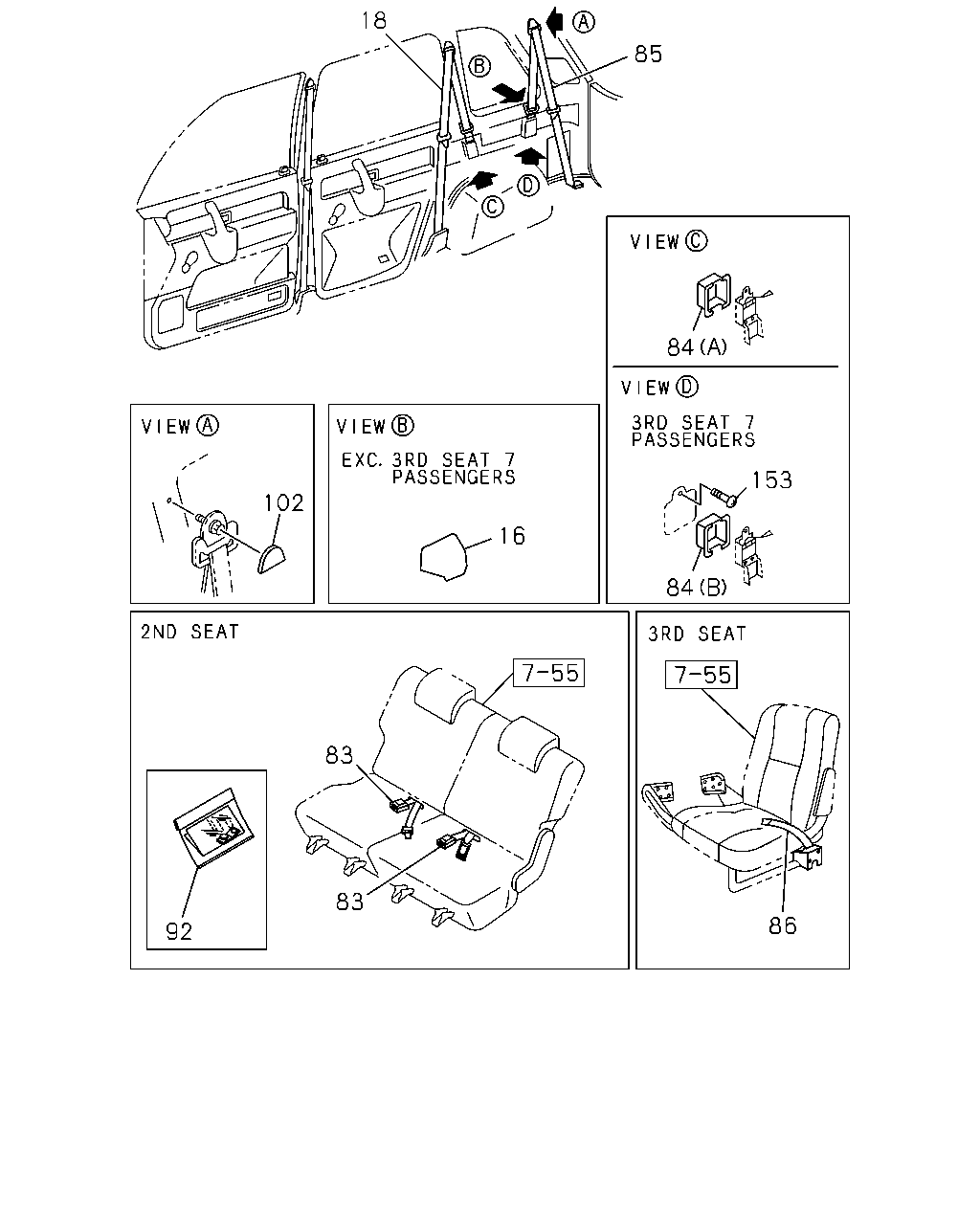

çizim 65110
18 85 84 153 102 16 84 83 83 86 92
BalonParca AdiParca NoAdetTipApplied Date
16 COVER; HOLE,SEAT BELT 8-97146-243-0 01 1 9708-9801
16 COVER; HOLE,SEAT BELT
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97146-243-0 01 1 9802-
16 COVER; HOLE,SEAT BELT 8-97146-242-1 01 1 9708-9801
16 COVER; HOLE,SEAT BELT
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97146-242-1 01 1 9802-
18 BELT; SEAT,RR
DARK GRAY 		8-97153-448-2 01 1 9708-9907
18 BELT; SEAT,RR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-448-3 01 1 9908-
18 BELT; SEAT,RR
DARK GRAY 		8-97153-447-2 01 1 9708-9907
18 BELT; SEAT,RR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-447-3 01 1 9908-
18 BELT; SEAT,RR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-876-3 01 1 9908-
18 BELT; SEAT,RR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-875-3 01 1 9908-
83 BELT; RR SEAT,INNER
DARK GRAY 		8-97153-449-1 01 1 9708-9907
83 BELT; RR SEAT,INNER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-449-2 01 1 9908-
83 BELT; RR SEAT,INNER
DARK GRAY 		8-97153-450-2 01 1 9708-9907
83 BELT; RR SEAT,INNER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-450-4 01 1 9908-
83 BELT; RR SEAT,INNER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-931-2 01 1 9908-
83 BELT; RR SEAT,INNER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-871-4 01 1 9908-
84 COVER; RETRACTOR,RR SEAT BELT
(A) 		8-97805-821-6 01 1 9708-
84 COVER; RETRACTOR,RR SEAT BELT
(A) 		8-97805-820-6 01 1 9708-
84 COVER; RETRACTOR,RR SEAT BELT
3RD SEAT 7 PASSENGERS(AS3) (B) 		8-97805-827-5 01 1 9802-
84 COVER; RETRACTOR,RR SEAT BELT
3RD SEAT 7 PASSENGERS(AS3) (B) 		8-97805-826-5 01 1 9802-
85 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-878-1 01 1 9908-0110
85 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97392-369-0 01 1 0111-
85 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-877-1 01 1 9908-0110
85 BELT; SEAT,RR OUTER
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97392-367-0 01 1 0111-
85 BELT; SEAT,RR OUTER
3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97155-293-1 01 1 9802-9907
85 BELT; SEAT,RR OUTER
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97155-293-1 01 1 9908-0110
85 BELT; SEAT,RR OUTER
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97392-368-0 01 1 0111-
85 BELT; SEAT,RR OUTER
3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97155-292-1 01 1 9802-9907
85 BELT; SEAT,RR OUTER
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97155-292-1 01 1 9908-0110
85 BELT; SEAT,RR OUTER
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97392-366-0 01 1 0111-
86 BELT; SEAT,RR INNER
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-872-3 02 1 9908-0110
86 BELT; SEAT,RR INNER
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97392-375-0 02 1 0111-
86 BELT; SEAT,RR INNER
3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97155-297-2 02 1 9802-9907
86 BELT; SEAT,RR INNER
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97155-297-3 02 1 9908-0110
86 BELT; SEAT,RR INNER
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97392-374-0 02 1 0111-
92 BRACKET; SEAT BELT ANCHOR 8-97805-890-2 01 1 9708-0202
102 COVER; SHOULDER ANCHOR
DARK GRAY 		8-97098-482-0 02 1 9708-9801
102 COVER; SHOULDER ANCHOR
DARK GRAY 		8-97098-482-0 02 1 9802-9907
102 COVER; SHOULDER ANCHOR
3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-482-0 02 1 9802-9907
102 COVER; SHOULDER ANCHOR
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-482-0 02 1 9908-
102 COVER; SHOULDER ANCHOR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-482-0 02 1 9908-
102 COVER; SHOULDER ANCHOR
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-698-0 02 1 9908-
102 COVER; SHOULDER ANCHOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-698-0 02 1 9908-
153 SCREW; RETRACTOR
3RD SEAT 7 PASSENGERS(AS3) M6X10 		9-03800-610-0 02 1 9802-
