7-50 — FRONT SEAT (#46208) — 1332 parça

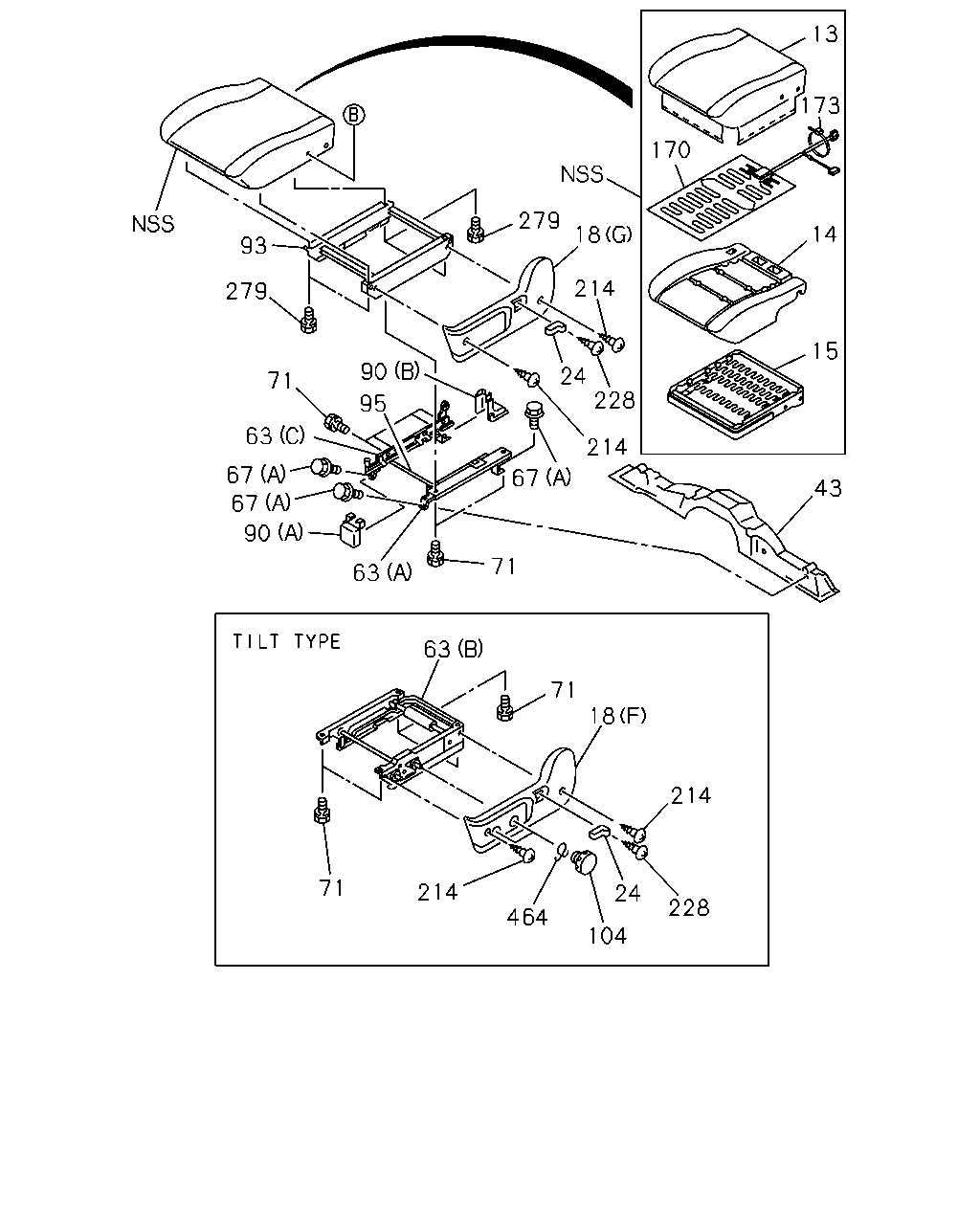

çizim 17495
13 173 170 279 18 14 93 214 279 15 90 95 24 228 71 63 214 67 67 67 90 43 71 63 63 71 18 214 71 214 24 228 464 104
BalonParca AdiParca NoAdetTipApplied Date A B C
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97195-418-0 01 1 9708-9801 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97195-414-0 01 1 9708-9801 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-460-0 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-460-1 01 1 9807-9907 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-804-5 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97299-035-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-453-0 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-453-1 01 1 9807-9907 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-805-5 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97299-027-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97150-977-5 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97150-977-5 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-977-5 01 1 9807-9907 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-977-5 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97298-990-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97151-006-5 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97151-006-5 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-006-5 01 1 9807-9907 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-006-5 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97298-998-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-789-0 01 1 9908-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-789-1 01 1 0004-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-017-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-778-0 01 1 9908-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-778-1 01 1 0004-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-011-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-725-2 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-023-0 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-731-2 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-031-0 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-707-0 01 1 9908-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-707-1 01 1 0004-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-980-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-699-0 01 1 9908-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-699-1 01 1 0004-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-974-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-717-2 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-986-0 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-737-2 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-994-0 01 1 0203- ● ●
14 PAD; FRT SEAT CUSHION 8-97044-518-1 02 1 9708-9801 ●
14 PAD; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97044-518-1 02 1 9708-9801 ●
14 PAD; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97044-518-1 02 1 9802-9806 ●
14 PAD; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB> 		8-97044-518-1 01 1 9807-9907 ● ●
14 PAD; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB> 		8-97044-518-1 01 1 9807-9907 ● ●
14 PAD; FRT SEAT CUSHION
FRT SEAT CAPTAIN SEAT<6JX> 		8-97044-518-1 01 1 9908-0202 ● ●
14 PAD; FRT SEAT CUSHION
FRT SEAT CAPTAIN SEAT<6JX> 		8-97044-518-1 01 1 9908-0202 ● ●
14 PAD; FRT SEAT CUSHION
FRT SEAT CAPTAIN SEAT<6JX> 		8-97289-989-1 01 1 0203- ● ●
14 PAD; FRT SEAT CUSHION
FRT SEAT CAPTAIN SEAT<6JX> 		8-97289-989-1 01 1 0203- ● ●
14 PAD; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97081-877-1 01 1 9708-0202 ● ●
14 PAD; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97081-877-1 01 1 9708-0202 ● ●
14 PAD; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97289-990-1 01 1 0203- ● ●
14 PAD; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97289-990-1 01 1 0203- ● ●
15 FRAME; CUSHION,FRT SEAT 8-97172-880-0 01 1 9708-9801 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-880-0 01 1 9708-9801 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-880-0 01 1 9802-9806 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-880-0 01 1 9807-9907 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97172-880-0 01 1 9908-0003 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97172-880-0 01 1 0004-0202 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97312-887-0 01 1 0203- ● ●
15 FRAME; CUSHION,FRT SEAT 8-97172-879-0 01 1 9708-9801 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-879-0 01 1 9708-9801 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-879-0 01 1 9802-9806 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-879-0 01 1 9807-9907 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97172-879-0 01 1 9908-0003 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97172-879-0 01 1 0004-0202 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97312-886-0 01 1 0203- ● ●
15 FRAME; CUSHION,FRT SEAT
POWER SEAT W/ARM REST<7DW> 		8-97172-881-0 01 1 9708-0202 ● ●
15 FRAME; CUSHION,FRT SEAT
POWER SEAT W/ARM REST<7DW> 		8-97172-881-0 01 1 9708-0202 ● ●
15 FRAME; CUSHION,FRT SEAT
POWER SEAT W/ARM REST<7DW> 		8-97312-888-0 01 1 0203- ● ●
15 FRAME; CUSHION,FRT SEAT
POWER SEAT W/ARM REST<7DW> 		8-97312-888-0 01 1 0203- ● ●
18 COVER; RECLINING
(G) DARK GRAY 		8-97152-807-2 01 1 9708-9801 ●
18 COVER; RECLINING
(G) DARK GRAY 		8-97152-806-2 01 1 9708-9801 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9708-9801 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9802-9806 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> (G) DARK GRAY 		8-97152-806-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (G) DARK GRAY 		8-97152-806-3 01 1 0004- ● ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (F) DARK GRAY 		8-97151-810-2 01 1 9708-9806 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (F) DARK GRAY 		8-97151-810-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> (F) DARK GRAY 		8-97151-810-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (F) DARK GRAY 		8-97151-810-3 01 1 0004- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9708-9806 ●
18 COVER; RECLINING
(C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-5 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9708-9806 ●
18 COVER; RECLINING
(D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-3 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9708-9806 ●
18 COVER; RECLINING
(E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9708-9806 ●
18 COVER; RECLINING
(C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-5 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9708-9806 ●
18 COVER; RECLINING
(D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-3 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> (F) LIGHT BEIGE 		8-97292-792-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (F) LIGHT BEIGE 		8-97292-792-3 01 1 0004- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> (G) LIGHT BEIGE 		8-97292-782-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (G) LIGHT BEIGE 		8-97292-782-3 01 1 0004- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (A) OUTER LIGHT BEIGE 		8-97290-802-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (A) OUTER LIGHT BEIGE 		8-97290-802-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (B) INNER LIGHT BEIGE 		8-97290-803-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (B) INNER LIGHT BEIGE 		8-97290-803-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT LIGHT BEIGE 		8-97290-787-5 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER LIGHT BEIGE 		8-97290-791-3 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-786-4 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-786-5 01 1 0006- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER LIGHT BEIGE 		8-97290-792-2 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER LIGHT BEIGE 		8-97290-792-3 01 1 0006- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-796-1 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-796-1 01 1 0006- ● ●

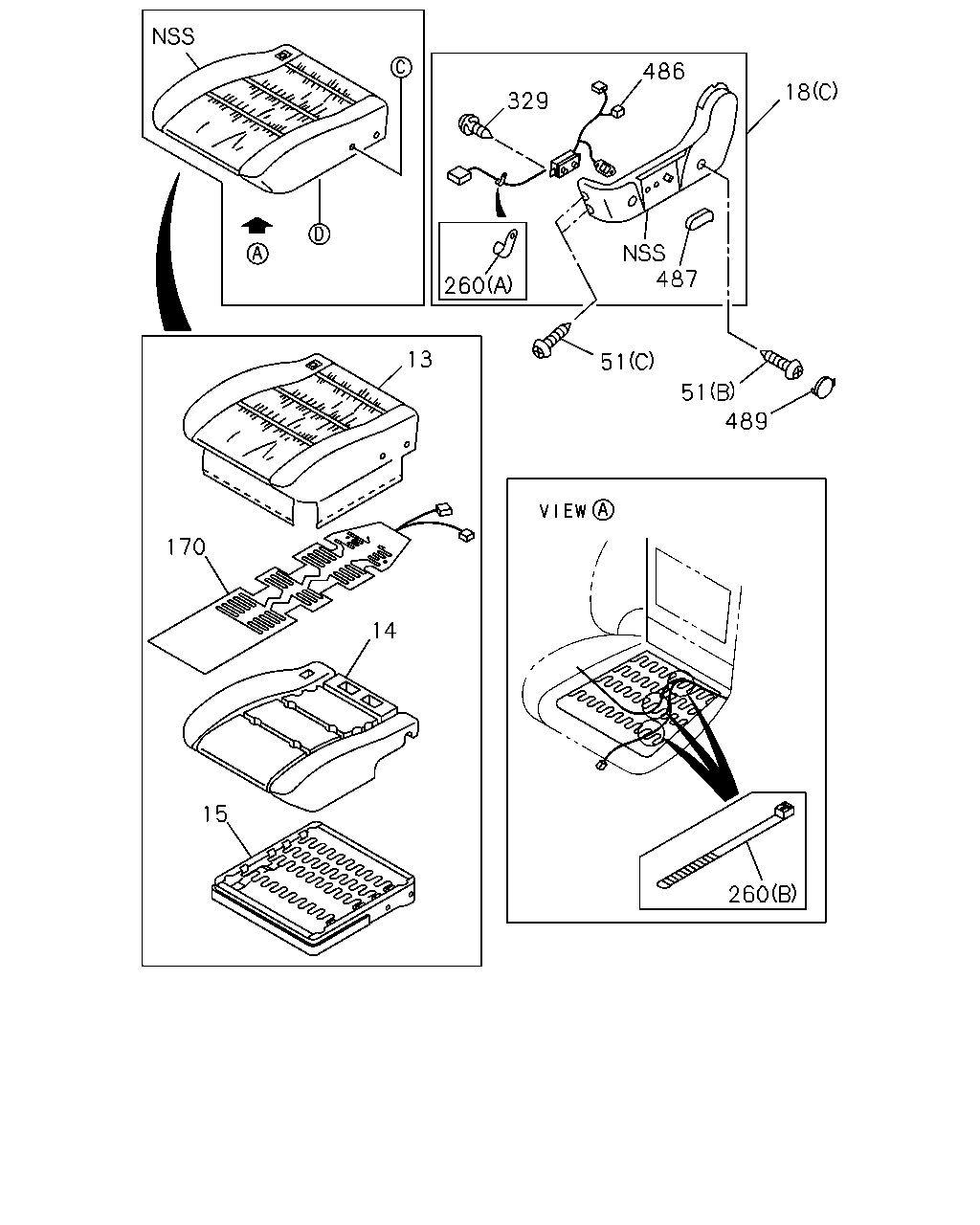

18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (A) OUTER DARK GRAY 		8-97150-982-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (A) OUTER DARK GRAY 		8-97150-982-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (A) OTUER DARK GRAY 		8-97150-982-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (A) OTUER DARK GRAY 		8-97150-982-1 01 1 9908- ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-1 01 1 9908- ● ●
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97151-811-1 01 1 9708-9801 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-811-1 01 1 9708-9801 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-811-1 01 1 9802-9806 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-811-1 01 1 9807-9907 ● ●
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97151-811-1 01 1 9908-0003 ● ●
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97151-811-1 01 1 0004- ● ●
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97152-809-1 01 1 9708-9801 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97152-809-1 01 1 9708-9801 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97152-809-1 01 1 9802-9806 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97152-809-1 01 1 9807-9907 ● ●
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97152-809-1 01 1 9908-0003 ● ●
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97152-809-1 01 1 0004- ● ●
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-775-1 01 1 9908-0003 ● ●
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-775-1 01 1 0004- ● ●
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-783-1 01 1 9908-0003 ● ●
24 KNOB; RECLINING,FRT,SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-783-1 01 1 0004- ● ●

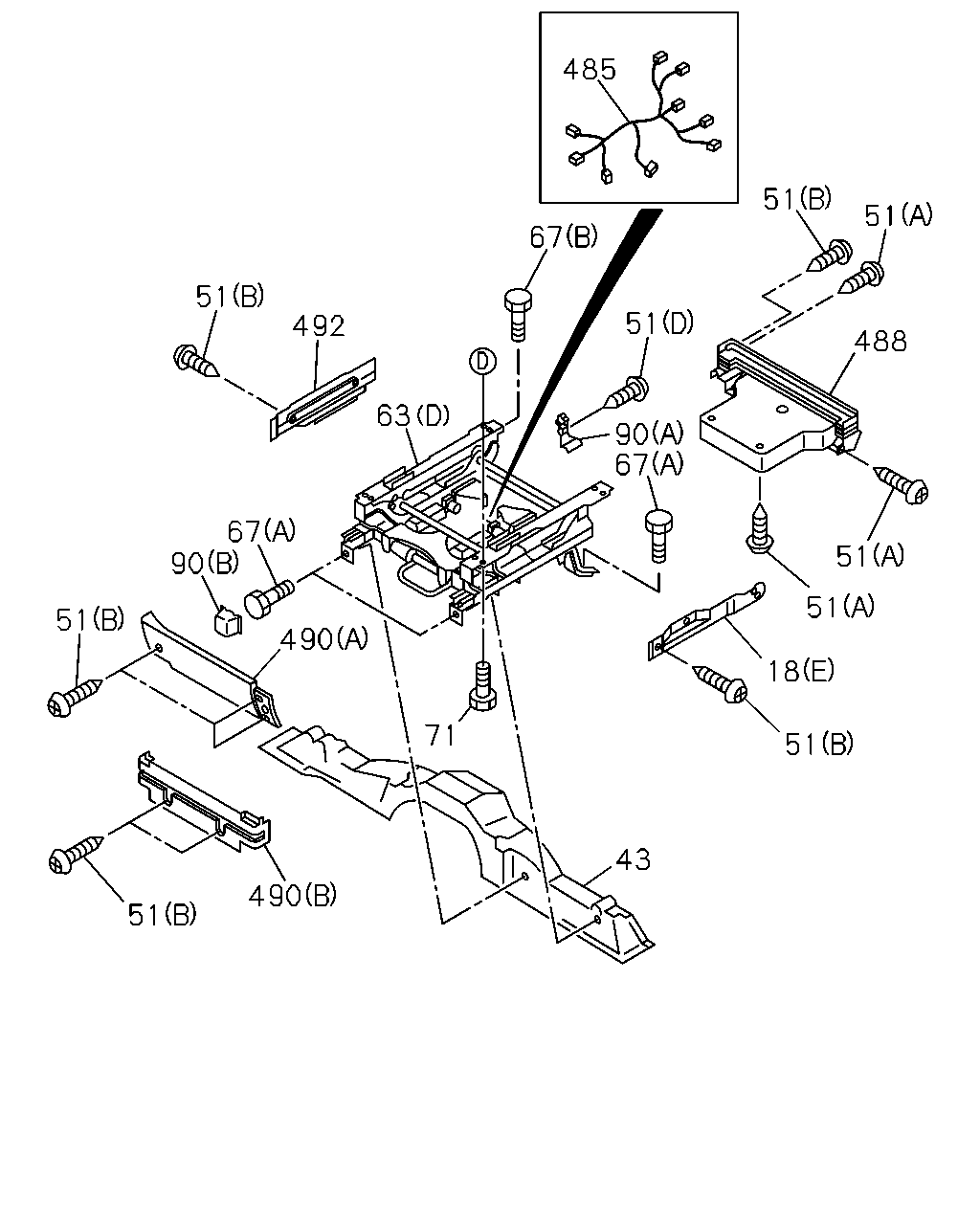

43 BAR ASM; FRT SEAT MTG 8-97138-012-2 01 1 9708-9806 ● ● ●
43 BAR ASM; FRT SEAT MTG 8-97138-012-2 01 1 9807-0011 ● ●
43 BAR ASM; FRT SEAT MTG 8-97289-460-0 01 1 0012- ● ●
63 ADJUSTER; SEAT SLIDE
(A) DRIVER SIDE OUTER 		8-97110-202-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE OUTER 		8-97110-202-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE OUTER 		8-97110-202-0 01 1 9802-9802 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 9803-9806 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT HEATER DRIVER<C37>,LEATHER SEAT<6TB>, POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 9807-9907 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. SEAT HEATER DRIVER<C37> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 9908-0002 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 0003-0003 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 0004-0202 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 0203- ● ●
63 ADJUSTER; SEAT SLIDE
(C) DRIVER SIDE INNER 		8-97110-207-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE INNER 		8-97110-207-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE INNER 		8-97110-207-0 01 1 9802-9802 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE INNER 		8-97192-558-0 01 1 9803-9806 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE INNER 		8-97192-558-0 01 1 9807-9907 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (C) DRIVER SIDE INNER 		8-97192-558-0 01 1 9908-0003 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (C) DRIVER SIDE INNER 		8-97192-558-0 01 1 0004-0202 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (C) DRIVER SIDE INNER 		8-97192-558-0 01 1 0203- ● ●
63 ADJUSTER; SEAT SLIDE
(A) PASSENGER SIDE OUTER 		8-97110-201-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE OUTER 		8-97110-201-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE OUTER 		8-97110-201-0 01 1 9802-9802 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 9803-9806 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 9807-9907 ● ●
63 ADJUSTER; SEAT SLIDE
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 9908-0002 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 9908-0002 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 0003-0003 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 0004-0202 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 0203- ● ●
63 ADJUSTER; SEAT SLIDE
(C) PASSENGER SIDE INNER 		8-97110-206-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE INNER 		8-97110-206-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE INNER 		8-97110-206-0 01 1 9802-9802 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE INNER 		8-97192-557-0 01 1 9803-9806 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE INNER 		8-97192-557-0 01 1 9807-9907 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (C) PASSENGER SIDE INNER 		8-97192-557-0 01 1 9908-0003 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (C) PASSENGER SIDE INNER 		8-97192-557-0 01 1 0004-0202 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (C) PASSENGER SIDE INNER 		8-97192-557-0 01 1 0203- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE TILT CONTROL 		8-97138-275-0 01 1 9708-9806 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE TILT CONTROL 		8-97138-275-0 01 1 9807-9907 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (B) DRIVER SIDE TILT CONTROL 		8-97138-275-0 01 1 9908-0003 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (B) DRIVER SIDE TILT CONTROL 		8-97138-275-0 01 1 0004-0202 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (B) DRIVER SIDE TILT CONTROL 		8-97138-275-0 01 1 0203- ● ●
63 ADJUSTER; SEAT SLIDE
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (D) 		8-97082-011-5 01 1 9708-9806 ●
63 ADJUSTER; SEAT SLIDE
(D) 		8-97082-011-5 01 1 9708-9806 ●
63 ADJUSTER; SEAT SLIDE
POWER SEAT W/ARM REST<7DW> (D) 		8-97082-011-5 01 1 9807-9905 ● ●
63 ADJUSTER; SEAT SLIDE
POWER SEAT W/ARM REST<7DW> (D) 		8-97222-668-1 01 1 9906-0301 ● ●
63 ADJUSTER; SEAT SLIDE
POWER SEAT W/ARM REST<7DW> (D) 		8-97359-192-0 01 1 0302- ● ●
63 ADJUSTER; SEAT SLIDE
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (D) 		8-97082-010-2 01 1 9708-9806 ●
63 ADJUSTER; SEAT SLIDE
(D) 		8-97082-010-2 01 1 9708-9806 ●
63 ADJUSTER; SEAT SLIDE
POWER SEAT W/ARM REST<7DW> (D) 		8-97082-010-2 01 1 9807- ● ●
67 BOLT; FRT SEAT TO BODY
POWER SEAT W/ARM REST<7DW> (A) M10X19 		8-94427-095-2 06 1 9708-9907 ● ● ●
67 BOLT; FRT SEAT TO BODY
POWER SEAT W/ARM REST<7DW> (A) M10X19 		8-94427-095-2 06 1 9908- ● ●
67 BOLT; FRT SEAT TO BODY
POWER SEAT W/ARM REST<7DW> (B) 		8-97086-507-0 02 1 9708-9907 ● ● ●
67 BOLT; FRT SEAT TO BODY
POWER SEAT W/ARM REST<7DW> (B) 		8-97086-507-0 02 1 9908- ● ●
67 BOLT; FRT SEAT TO BODY
EXC. POWER SEAT W/ARM REST<7DW> (A) M10X19 		8-94427-095-2 08 1 9708-9907 ● ● ●
67 BOLT; FRT SEAT TO BODY
EXC. POWER SEAT W/ARM REST<7DW> (A) M10X19 		8-94427-095-2 08 1 9908- ● ●
71 BOLT; ADJ TO SEAT
M8X25 		8-97073-032-0 08 1 9708-9801 ●
71 BOLT; ADJ TO SEAT
M8X20 		8-97066-705-0 04 1 9708-9801 ● ● ●
71 BOLT; ADJ TO SEAT
LEATHER SEAT<6TB> M8X20 		8-97066-705-0 04 1 9708-9801 ●
71 BOLT; ADJ TO SEAT
M8X20 		8-97066-705-0 04 1 9708-9801 ●
71 BOLT; ADJ TO SEAT
POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 04 1 9802- ● ●
71 BOLT; ADJ TO SEAT
POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 04 1 9802- ● ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 08 1 9708-9806 ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 02 1 9807-9907 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X20 		8-97066-705-0 02 1 9908-0003 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M8X20 		8-97066-705-0 02 1 0004-0202 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X20 		8-97066-705-0 02 1 0203- ● ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X25 		8-97073-032-0 07 1 9708-9806 ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X25 		8-97073-032-0 03 1 9807-9907 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X25 		8-97073-032-0 03 1 9908-0003 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M8X25 		8-97073-032-0 03 1 0004-0202 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X25 		8-97073-032-0 03 1 0203- ● ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M10X25 		8-97066-704-0 01 1 9708-9806 ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M10X25 		8-97066-704-0 01 1 9807-9907 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M10X25 		8-97066-704-0 01 1 9908-0003 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M10X25 		8-97066-704-0 01 1 0004-0202 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M10X25 		8-97066-704-0 01 1 0203- ● ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 06 1 9807-9907 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X20 		8-97066-705-0 06 1 9908-0003 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M8X20 		8-97066-705-0 06 1 0004-0202 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X20 		8-97066-705-0 06 1 0203- ● ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X25 		8-97073-032-0 04 1 9807-9907 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X25 		8-97073-032-0 04 1 9908-0003 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M8X25 		8-97073-032-0 04 1 0004-0202 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X25 		8-97073-032-0 04 1 0203- ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE BLACK 		8-97098-312-1 01 1 9708-9802 ● ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE BLACK 		8-97196-133-0 01 1 9803- ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (B) PASSENGER SIDE BLACK 		8-97098-311-1 01 1 9708-9802 ● ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (B) PASSENGER SIDE BLACK 		8-97196-132-0 01 1 9803- ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE BLACK 		8-97098-316-0 01 1 9708- ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE BLACK 		8-97098-315-0 01 1 9708- ● ●
90 COVER; SEAT ADJ BRKT
EXC. POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE BLACK 		8-97151-568-1 01 1 9708- ● ●
90 COVER; SEAT ADJ BRKT
EXC. POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE BLACK 		8-97158-941-0 01 1 9708- ● ●
90 COVER; SEAT ADJ BRKT
EXC. POWER SEAT W/ARM REST<7DW> (B) PASSENGER SIDE BLACK 		8-97151-567-1 01 1 9708- ● ●
90 COVER; SEAT ADJ BRKT
EXC. POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE BLACK 		8-97158-940-0 01 1 9708- ● ●
93 SPACER; FRT SEAT 8-97107-465-0 01 1 9708-9801 ●
93 SPACER; FRT SEAT 8-97107-464-0 01 1 9708-9801 ●
93 SPACER; FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97107-464-0 01 1 9708-9801 ●
93 SPACER; FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97107-464-0 01 1 9802-9806 ●
93 SPACER; FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97107-464-0 01 1 9807-9907 ● ●
93 SPACER; FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97107-464-0 01 1 9908-0003 ● ●
93 SPACER; FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97107-464-0 01 1 0004-0202 ● ●
93 SPACER; FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97107-464-0 01 1 0203- ● ●
95 WIRE; EXT,SEAT ADJ 8-97111-127-0 02 1 9708-9801 ●
95 WIRE; EXT,SEAT ADJ
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97111-127-0 02 1 9708-9801 ●
95 WIRE; EXT,SEAT ADJ
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97111-127-0 02 1 9802-9806 ●
95 WIRE; EXT,SEAT ADJ
EXC. LEATHER SEAT<6TB> 		8-97111-127-0 01 1 9807-9907 ● ●
95 WIRE; EXT,SEAT ADJ
EXC. LEATHER SEAT<6TB> 		8-97111-127-0 01 1 9807-9907 ● ●
95 WIRE; EXT,SEAT ADJ
FRT SEAT CAPTAIN SEAT<6JX> 		8-97111-127-0 01 1 9908- ● ●
95 WIRE; EXT,SEAT ADJ
FRT SEAT CAPTAIN SEAT<6JX> 		8-97111-127-0 01 1 9908- ● ●
104 KNOB; TILT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-812-1 02 1 9708-9806 ●
104 KNOB; TILT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-812-1 02 1 9807-9907 ● ●
104 KNOB; TILT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97151-812-1 02 1 9908-0003 ● ●
104 KNOB; TILT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97151-812-2 02 1 0004- ● ●
104 KNOB; TILT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-794-1 02 1 9908-0003 ● ●
104 KNOB; TILT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-794-2 02 1 0004- ● ●
170 HEATER ASM; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB> 		8-97110-428-0 01 1 9807-9907 ● ●
170 HEATER ASM; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB> 		8-97110-428-0 01 1 9807-9907 ● ●
170 HEATER ASM; FRT SEAT CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> 		8-97110-428-0 01 1 9908-0003 ● ●
170 HEATER ASM; FRT SEAT CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> 		8-97110-428-0 01 1 9908-0003 ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97110-428-0 01 1 0004-0202 ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97110-428-0 01 1 0004-0202 ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97305-844-0 01 1 0203- ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97305-844-0 01 1 0203- ● ●
170 HEATER ASM; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97083-179-2 01 1 9708-0202 ● ●
170 HEATER ASM; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97083-179-2 01 1 9708-0202 ● ●
170 HEATER ASM; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97305-846-0 01 1 0203- ● ●
170 HEATER ASM; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97305-846-0 01 1 0203- ● ●
173 CLIP; CABLE,SEAT HTR
EXC. LEATHER SEAT<6TB> L=140 		5-09707-031-1 02 1 9807-9907 ● ●
173 CLIP; CABLE,SEAT HTR
EXC. LEATHER SEAT<6TB> L=140 		5-09707-031-1 02 1 9807-9907 ● ●
173 CLIP; CABLE,SEAT HTR
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> L=140 		5-09707-031-1 02 1 9908-0002 ● ●
173 CLIP; CABLE,SEAT HTR
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> L=140 		5-09707-031-1 02 1 9908-0002 ● ●
173 CLIP; CABLE,SEAT HTR
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> L=140 		5-09707-031-1 03 1 0003-0003 ● ●
173 CLIP; CABLE,SEAT HTR
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> L=140 		5-09707-031-1 03 1 0004- ● ●
173 CLIP; CABLE,SEAT HTR
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> L=140 		5-09707-031-1 02 1 0003-0003 ● ●
173 CLIP; CABLE,SEAT HTR
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> L=140 		5-09707-031-1 02 1 0004- ● ●
214 SCREW; SIDE COVER 0-74110-410-0 04 1 9708-9801 ●
214 SCREW; SIDE COVER
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		0-74110-410-0 04 1 9708-9801 ●
214 SCREW; SIDE COVER
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		0-74110-410-0 04 1 9802-9806 ●
214 SCREW; SIDE COVER
EXC. LEATHER SEAT<6TB> 		0-74110-410-0 02 1 9807-9907 ● ●
214 SCREW; SIDE COVER
EXC. LEATHER SEAT<6TB> 		0-74110-410-0 02 1 9807-9907 ● ●
214 SCREW; SIDE COVER
FRT SEAT CAPTAIN SEAT<6JX> 		0-74110-410-0 02 1 9908- ● ●
214 SCREW; SIDE COVER
FRT SEAT CAPTAIN SEAT<6JX> 		0-74110-410-0 02 1 9908- ● ●
228 SCREW; KNOB
M4X6 		8-94186-602-0 02 1 9708-9801 ●
228 SCREW; KNOB
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M4X6 		8-94186-602-0 02 1 9708-9801 ●
228 SCREW; KNOB
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M4X6 		8-94186-602-0 02 1 9802-9806 ●
228 SCREW; KNOB
EXC. LEATHER SEAT<6TB> M4X6 		8-94186-602-0 01 1 9807-9907 ● ●
228 SCREW; KNOB
EXC. LEATHER SEAT<6TB> M4X6 		8-94186-602-0 01 1 9807-9907 ● ●
228 SCREW; KNOB
FRT SEAT CAPTAIN SEAT<6JX> M4X6 		8-94186-602-0 01 1 9908- ● ●
228 SCREW; KNOB
FRT SEAT CAPTAIN SEAT<6JX> M4X6 		8-94186-602-0 01 1 9908- ● ●
279 BOLT; FRT SEAT
M8X20 		8-97066-705-0 08 1 9708-9801 ●
279 BOLT; FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 04 1 9708-9806 ●
279 BOLT; FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 04 1 9807-9907 ● ●
279 BOLT; FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X20 		8-97066-705-0 04 1 9908-0003 ● ●
279 BOLT; FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M8X20 		8-97066-705-0 04 1 0004-0202 ● ●
279 BOLT; FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X20 		8-97066-705-0 04 1 0203- ● ●
464 SPRING; LK,KNOB
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97037-241-0 02 1 9708-9806 ●
464 SPRING; LK,KNOB
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97037-241-0 02 1 9807-9907 ● ●
464 SPRING; LK,KNOB
FRT SEAT CAPTAIN SEAT<6JX> 		8-97037-241-0 02 1 9908-0003 ● ●
464 SPRING; LK,KNOB
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97037-241-0 02 1 0004-0202 ● ●
464 SPRING; LK,KNOB
FRT SEAT CAPTAIN SEAT<6JX> 		8-97037-241-0 02 1 0203- ● ●

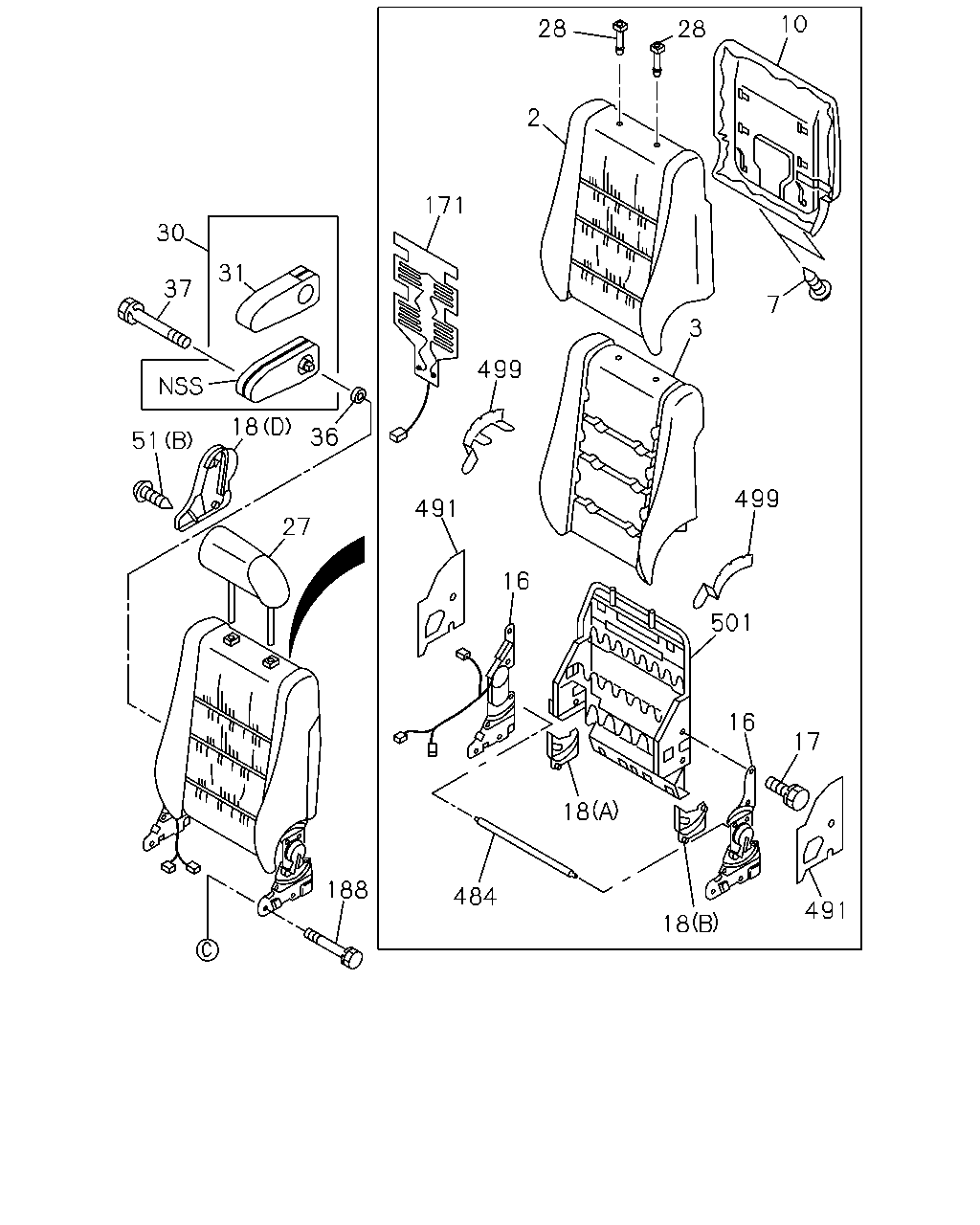

çizim 63823
10 28 28 2 171 30 31 37 7 3 499 18 36 51 499 491 27 16 501 16 17 18 188 484 491 18
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97195-420-0 01 1 9708-9801 ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97195-416-0 01 1 9708-9801 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-462-0 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-462-1 01 1 9807-9907 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-868-2 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97299-037-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-455-0 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-455-1 01 1 9807-9907 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-869-2 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97299-197-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97153-553-2 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97153-553-2 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97153-553-2 01 1 9807-9907 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97153-553-2 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97299-193-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97153-552-2 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97153-552-2 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97153-552-2 01 1 9807-9907 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97153-552-2 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97299-000-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-791-0 01 1 9908-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-791-1 01 1 0004-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-127-1 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-780-0 01 1 9908-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-780-1 01 1 0004-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-013-1 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-727-1 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-196-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-733-1 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-033-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-709-0 01 1 9908-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-709-1 01 1 0004-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97299-097-1 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-701-0 01 1 9908-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-701-1 01 1 0004-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-976-1 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-719-1 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97299-192-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-739-1 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-996-0 01 1 0203- ● ●
3 PAD; FRT SEAT BACK 8-97044-521-2 01 1 9708-9801 ●
3 PAD; FRT SEAT BACK 8-97044-520-2 01 1 9708-9801 ●
3 PAD; FRT SEAT BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97146-943-0 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97146-943-0 01 1 9807-9907 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> 		8-97146-943-0 01 1 9908-0003 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97146-943-0 01 1 0004-0202 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> 		8-97289-980-1 01 1 0203- ● ●
3 PAD; FRT SEAT BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97146-942-0 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97146-942-0 01 1 9807-9907 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> 		8-97146-942-0 01 1 9908-0003 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97146-942-0 01 1 0004-0202 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> 		8-97289-979-1 01 1 0203- ● ●
3 PAD; FRT SEAT BACK
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> 		8-97081-881-1 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK 8-97081-881-1 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97081-881-1 01 1 9807-0202 ● ●
3 PAD; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97289-986-1 01 1 0203- ● ●
3 PAD; FRT SEAT BACK
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> 		8-97081-880-1 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK 8-97081-880-1 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97081-880-1 01 1 9807-0202 ● ●
3 PAD; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97289-985-1 01 1 0203- ● ●
7 SCREW; BACK BOARD
POWER SEAT W/ARM REST<7DW> 		8-97103-323-0 02 1 9708- ● ●
7 SCREW; BACK BOARD
POWER SEAT W/ARM REST<7DW> 		8-97103-323-0 02 1 9708- ● ●

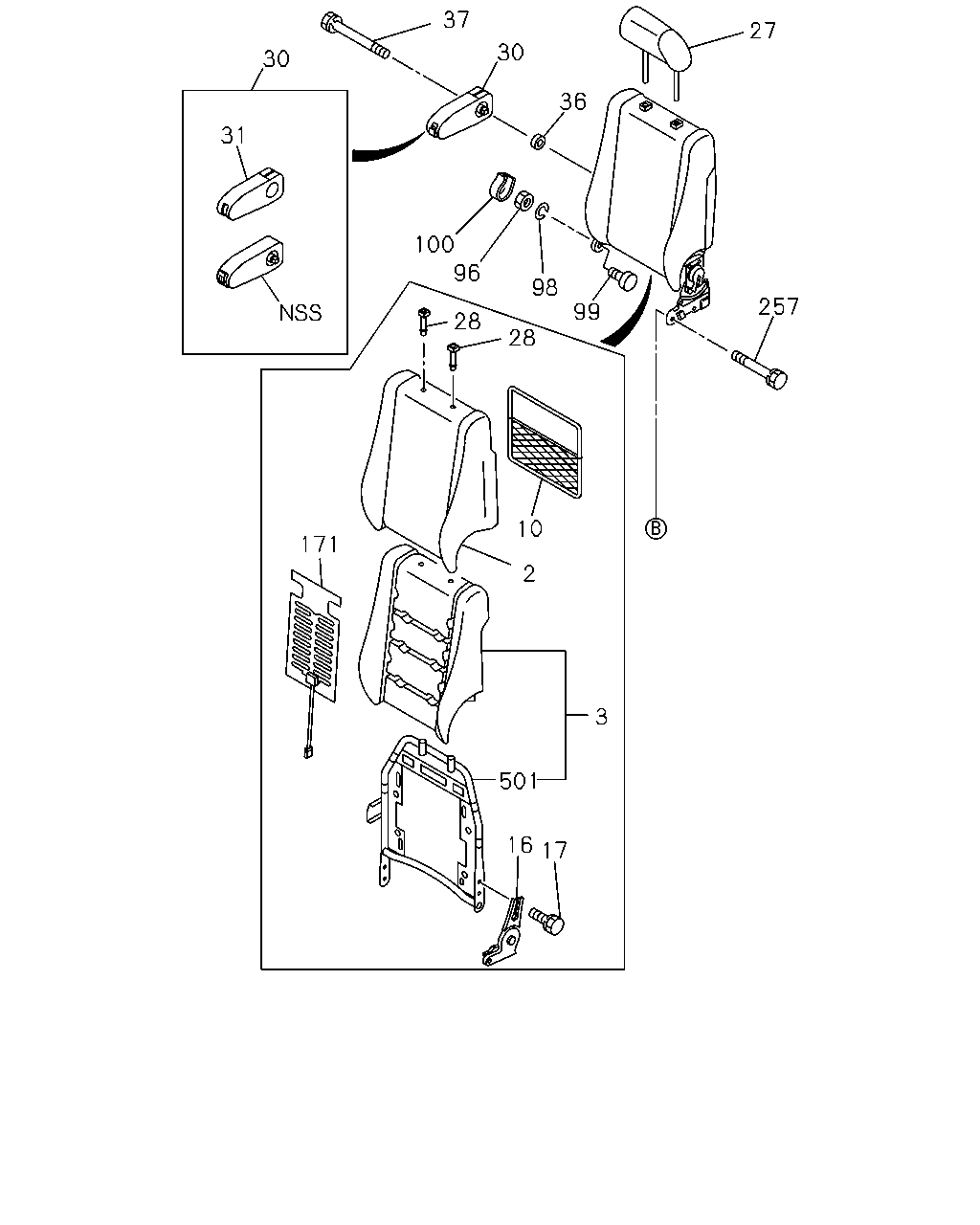

10 BOARD; SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-456-0 02 1 9708-9806 ●
10 BOARD; SEAT
EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97195-456-1 01 1 9807-9907 ● ●
10 BOARD; SEAT
EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97195-456-1 01 1 9807-9907 ● ●
10 BOARD; SEAT
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-799-4 01 1 9908-0005 ● ●
10 BOARD; SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-799-5 01 1 0006- ● ●
10 BOARD; SEAT
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97150-986-4 01 1 9708-9806 ●
10 BOARD; SEAT
DARK GRAY 		8-97150-986-4 01 1 9708-9806 ●
10 BOARD; SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-986-4 01 1 9807-9907 ● ●
10 BOARD; SEAT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-986-5 01 1 9908- ● ●
10 BOARD; SEAT
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97151-813-4 01 1 9708-9806 ●
10 BOARD; SEAT
DARK GRAY 		8-97151-813-4 01 1 9708-9806 ●
10 BOARD; SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-813-4 01 1 9807-9907 ● ●
10 BOARD; SEAT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-813-5 01 1 9908- ● ●
10 BOARD; SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-798-5 01 1 9908- ● ●
16 ADJUSTER ASM; RECLINING 8-97166-845-0 01 1 9708-9801 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-845-0 01 1 9708-9801 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-845-0 01 1 9802-9806 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-845-0 01 1 9807-9907 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97166-845-0 01 1 9908-0003 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97166-845-0 01 1 0004-0202 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97166-845-0 01 1 0203- ● ●
16 ADJUSTER ASM; RECLINING 8-97166-842-0 01 1 9708-9801 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-842-0 01 1 9708-9801 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-842-0 01 1 9802-9806 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-842-0 01 1 9807-9907 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97166-842-0 01 1 9908-0003 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97166-842-0 01 1 0004-0202 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97166-842-0 01 1 0203- ● ●
16 ADJUSTER ASM; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> WO/MOTOR 		8-97083-593-1 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
WO/MOTOR 		8-97083-593-1 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
POWER SEAT W/ARM REST<7DW> WO/MOTOR 		8-97083-593-1 01 1 9807- ● ●
16 ADJUSTER ASM; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> W/MOTOR 		8-97083-595-2 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
W/MOTOR 		8-97083-595-2 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
POWER SEAT W/ARM REST<7DW> W/MOTOR 		8-97083-595-2 01 1 9807- ● ●
16 ADJUSTER ASM; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> WO/MOTOR 		8-97083-592-1 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
WO/MOTOR 		8-97083-592-1 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
POWER SEAT W/ARM REST<7DW> WO/MOTOR 		8-97083-592-1 01 1 9807- ● ●
16 ADJUSTER ASM; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> W/MOTOR 		8-97083-594-2 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
W/MOTOR 		8-97083-594-2 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
POWER SEAT W/ARM REST<7DW> W/MOTOR 		8-97083-594-2 01 1 9807- ● ●
17 BOLT; RECLINING 8-97066-707-0 04 1 9708-9801 ● ● ●
17 BOLT; RECLINING
LEATHER SEAT<6TB> 		8-97066-707-0 04 1 9708-9801 ●
17 BOLT; RECLINING 8-97066-707-0 04 1 9708-9801 ●
17 BOLT; RECLINING 8-97066-707-0 04 1 9802-9806 ● ●
17 BOLT; RECLINING
LEATHER SEAT<6TB> 		8-97066-707-0 04 1 9802-9806 ●
17 BOLT; RECLINING 8-97066-707-0 04 1 9802-9806 ●
17 BOLT; RECLINING
POWER SEAT W/ARM REST<7DW> 		8-97066-707-0 04 1 9807- ● ●
17 BOLT; RECLINING
POWER SEAT W/ARM REST<7DW> 		8-97066-707-0 04 1 9807- ● ●
17 BOLT; RECLINING
EXC. LEATHER SEAT<6TB> 		8-97066-707-0 02 1 9807-9907 ● ●
17 BOLT; RECLINING
EXC. LEATHER SEAT<6TB> 		8-97066-707-0 02 1 9807-9907 ● ●
17 BOLT; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97066-707-0 02 1 9908- ● ●
17 BOLT; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97066-707-0 02 1 9908- ● ●
18 COVER; RECLINING
(G) DARK GRAY 		8-97152-807-2 01 1 9708-9801 ●
18 COVER; RECLINING
(G) DARK GRAY 		8-97152-806-2 01 1 9708-9801 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9708-9801 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9802-9806 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> (G) DARK GRAY 		8-97152-806-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (G) DARK GRAY 		8-97152-806-3 01 1 0004- ● ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (F) DARK GRAY 		8-97151-810-2 01 1 9708-9806 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (F) DARK GRAY 		8-97151-810-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> (F) DARK GRAY 		8-97151-810-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (F) DARK GRAY 		8-97151-810-3 01 1 0004- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9708-9806 ●
18 COVER; RECLINING
(C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-5 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9708-9806 ●
18 COVER; RECLINING
(D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-3 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9708-9806 ●
18 COVER; RECLINING
(E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9708-9806 ●
18 COVER; RECLINING
(C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-5 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9708-9806 ●
18 COVER; RECLINING
(D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-3 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> (F) LIGHT BEIGE 		8-97292-792-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (F) LIGHT BEIGE 		8-97292-792-3 01 1 0004- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> (G) LIGHT BEIGE 		8-97292-782-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (G) LIGHT BEIGE 		8-97292-782-3 01 1 0004- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (A) OUTER LIGHT BEIGE 		8-97290-802-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (A) OUTER LIGHT BEIGE 		8-97290-802-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (B) INNER LIGHT BEIGE 		8-97290-803-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (B) INNER LIGHT BEIGE 		8-97290-803-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT LIGHT BEIGE 		8-97290-787-5 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER LIGHT BEIGE 		8-97290-791-3 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-786-4 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-786-5 01 1 0006- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER LIGHT BEIGE 		8-97290-792-2 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER LIGHT BEIGE 		8-97290-792-3 01 1 0006- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-796-1 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-796-1 01 1 0006- ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (A) OUTER DARK GRAY 		8-97150-982-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (A) OUTER DARK GRAY 		8-97150-982-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (A) OTUER DARK GRAY 		8-97150-982-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (A) OTUER DARK GRAY 		8-97150-982-1 01 1 9908- ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-1 01 1 9908- ● ●
27 REST; HD,FRT SEAT
DARK GRAY 		8-97195-411-0 02 1 9708-9801 ●
27 REST; HD,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-450-0 02 1 9708-9806 ●
27 REST; HD,FRT SEAT
EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97195-450-1 01 1 9807-9907 ● ●
27 REST; HD,FRT SEAT
EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97195-450-1 01 1 9807-9907 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97290-837-2 01 1 9908- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97290-837-2 01 1 9908- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-722-0 02 1 9908-0003 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-722-0 02 1 9908-0003 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-722-1 01 1 0004- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-722-1 01 1 0004- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-696-0 02 1 9908-0003 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-696-0 02 1 9908-0003 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-696-1 01 1 0004- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-696-1 01 1 0004- ● ●
27 REST; HD,FRT SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97152-546-2 01 1 9708-9907 ● ●
27 REST; HD,FRT SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97152-546-2 01 1 9708-9907 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> DARK GRAY 		8-97152-546-2 01 1 9908- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> DARK GRAY 		8-97152-546-2 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
LOCK, DARK GRAY 		8-97150-984-0 02 1 9708-9801 ●
28 HOLDER; GUIDE,HD REST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> LOCK, DARK GRAY 		8-97150-984-0 02 1 9708-9801 ●
28 HOLDER; GUIDE,HD REST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> LOCK, DARK GRAY 		8-97150-984-0 02 1 9802-9806 ●
28 HOLDER; GUIDE,HD REST
FREE, DARK GRAY 		8-97150-985-0 02 1 9708-9801 ●
28 HOLDER; GUIDE,HD REST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> FREE, DARK GRAY 		8-97150-985-0 02 1 9708-9801 ●
28 HOLDER; GUIDE,HD REST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> FREE, DARK GRAY 		8-97150-985-0 02 1 9802-9806 ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR BEIGE(181) FREE, LIGHT BEIGE 		8-97290-754-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR BEIGE(181) FREE, LIGHT BEIGE 		8-97290-754-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR BEIGE(181) LOCK, LIGHT BEIGE 		8-97290-755-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR BEIGE(181) LOCK, LIGHT BEIGE 		8-97290-755-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
POWER SEAT W/ARM REST<7DW> LOCK, DARK GRAY 		8-97150-984-0 01 1 9708-9806 ● ●
28 HOLDER; GUIDE,HD REST
POWER SEAT W/ARM REST<7DW> LOCK, DARK GRAY 		8-97150-984-0 01 1 9708-9806 ● ●
28 HOLDER; GUIDE,HD REST
LOCK, DARK GRAY 		8-97150-984-0 01 1 9807-9907 ● ●
28 HOLDER; GUIDE,HD REST
LOCK, DARK GRAY 		8-97150-984-0 01 1 9807-9907 ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR MEDIUM GRAY(113) LOCK, DARK GRAY 		8-97150-984-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR MEDIUM GRAY(113) LOCK, DARK GRAY 		8-97150-984-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
POWER SEAT W/ARM REST<7DW> FREE, DARK GRAY 		8-97150-985-0 01 1 9708-9806 ● ●
28 HOLDER; GUIDE,HD REST
POWER SEAT W/ARM REST<7DW> FREE, DARK GRAY 		8-97150-985-0 01 1 9708-9806 ● ●
28 HOLDER; GUIDE,HD REST
FREE, DARK GRAY 		8-97150-985-0 01 1 9807-9907 ● ●
28 HOLDER; GUIDE,HD REST
FREE, DARK GRAY 		8-97150-985-0 01 1 9807-9907 ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR MEDIUM GRAY(113) FREE, DARK GRAY 		8-97150-985-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR MEDIUM GRAY(113) FREE, DARK GRAY 		8-97150-985-1 01 1 9908- ● ●
30 REST ASM; ARM,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-463-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-463-1 01 1 9807-9907 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-881-0 01 1 9908-9908 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97293-240-0 01 1 9909- ● ●
30 REST ASM; ARM,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-457-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-457-1 01 1 9807-9907 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-882-0 01 1 9908-9908 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97293-241-0 01 1 9909- ● ●
30 REST ASM; ARM,FRT SEAT
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97157-148-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
DARK GRAY 		8-97157-148-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-148-0 01 1 9807-9907 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-148-0 01 1 9908-9908 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97293-233-0 01 1 9909- ● ●
30 REST ASM; ARM,FRT SEAT
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97157-202-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
DARK GRAY 		8-97157-202-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-202-0 01 1 9807-9907 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-202-0 01 1 9908-9908 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97293-231-0 01 1 9909- ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97297-814-2 01 1 0107- ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-728-1 01 1 9908-0003 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-728-1 01 1 9908-0003 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. SEAT HEATER DRIVER<C37>,LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-728-2 01 1 0004-0106 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX>,POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-728-2 01 1 0004-0106 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-728-2 01 1 0107-0202 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-734-1 01 1 9908-9910 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-734-1 01 1 9908-9910 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-734-1 01 1 9911-0003 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-734-2 01 1 0004-0106 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97297-816-2 01 1 0107-0202 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97297-816-2 01 1 0203- ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-710-2 01 1 9908- ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-702-1 01 1 9908-9910 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-702-1 01 1 9908-9910 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-702-1 01 1 9911-0003 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-702-2 01 1 0004-0106 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-702-2 01 1 0107- ● ●
31 COVER; TRIM,ARMREST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-464-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-464-1 01 1 9807-9907 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-883-0 01 1 9908- ● ●
31 COVER; TRIM,ARMREST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-458-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-458-1 01 1 9807-9907 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-884-0 01 1 9908- ● ●
31 COVER; TRIM,ARMREST
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97157-149-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
DARK GRAY 		8-97157-149-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-149-0 01 1 9807-9907 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-149-0 01 1 9908- ● ●
31 COVER; TRIM,ARMREST
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97157-203-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
DARK GRAY 		8-97157-203-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-203-0 01 1 9807-9907 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-203-0 01 1 9908- ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97297-817-1 01 1 0107-0202 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97297-817-1 01 1 0203- ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-729-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-729-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. SEAT HEATER DRIVER<C37>,LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-729-1 01 1 0004-0106 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX>,POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-729-1 01 1 0004-0106 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-729-1 01 1 0107-0202 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-735-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-735-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. SEAT HEATER PASSENGER<C38>,LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-735-1 01 1 0004-0106 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX>,POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-735-1 01 1 0004-0106 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97297-815-1 01 1 0107- ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-711-1 01 1 9908- ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-703-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-703-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. SEAT HEATER PASSENGER<C38>,LEATHER SEAT<6TB> DARK GRAY 		8-97292-703-1 01 1 0004-0202 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX>,POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-703-1 01 1 0004-0202 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-703-1 01 1 0203- ● ●
36 BUSHING; ARMREST
POWER SEAT W/ARM REST<7DW> 		8-97175-882-0 01 1 9708- ● ●
36 BUSHING; ARMREST
POWER SEAT W/ARM REST<7DW> 		8-97175-882-0 01 1 9708- ● ●
36 BUSHING; ARMREST
SEAT HEATER PASSENGER<C38> EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-94485-046-0 01 1 9807-9907 ● ●
36 BUSHING; ARMREST
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> 		8-94485-046-0 01 1 9908-0003 ● ●
36 BUSHING; ARMREST
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-94485-046-0 01 1 0004- ● ●
37 BOLT; ARMREST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97091-607-0 02 1 9708-9806 ●
37 BOLT; ARMREST
POWER SEAT W/ARM REST<7DW> 		8-97091-607-0 01 1 9708-9806 ● ●
37 BOLT; ARMREST
POWER SEAT W/ARM REST<7DW> 		8-97091-607-0 01 1 9708-9806 ● ●
37 BOLT; ARMREST 8-97091-607-0 01 1 9807- ● ●
37 BOLT; ARMREST 8-97091-607-0 01 1 9807- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (D) M5X16 		9-09829-323-1 02 1 9708-9806 ● ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (D) M5X16 		9-09829-323-1 02 1 9807- ● ●
51 SCREW; COVER
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (B) 		0-74110-410-0 14 1 9708-9806 ●
51 SCREW; COVER
(B) 		0-74110-410-0 14 1 9708-9806 ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (B) 		0-74110-410-0 14 1 9807- ● ●
51 SCREW; COVER
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (B) 		0-74110-410-0 11 1 9708-9806 ●
51 SCREW; COVER
(B) 		0-74110-410-0 11 1 9708-9806 ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (B) 		0-74110-410-0 11 1 9807- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (C) 		8-97103-222-0 02 1 9708- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (C) 		8-97103-222-0 02 1 9708- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (A) 		8-97105-238-0 06 1 9708- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (A) 		8-97105-238-0 06 1 9708- ● ●
171 HEATER ASM; FRT SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-97093-640-0 01 1 9807-9907 ● ●
171 HEATER ASM; FRT SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-97093-640-0 01 1 9807-9907 ● ●
171 HEATER ASM; FRT SEAT BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> 		8-97093-640-0 01 1 9908-0003 ● ●
171 HEATER ASM; FRT SEAT BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> 		8-97093-640-0 01 1 9908-0003 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97093-640-0 01 1 0004-0202 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97093-640-0 01 1 0004-0202 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97305-845-0 01 1 0203- ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97305-845-0 01 1 0203- ● ●
171 HEATER ASM; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97083-182-2 01 1 9708-0202 ● ●
171 HEATER ASM; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97083-182-2 01 1 9708-0202 ● ●
171 HEATER ASM; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97305-847-0 01 1 0203- ● ●
171 HEATER ASM; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97305-847-0 01 1 0203- ● ●
188 BOLT; BACK TO CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97066-707-0 04 1 9708- ● ●
188 BOLT; BACK TO CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97066-707-0 04 1 9708- ● ●
484 PIPE; CONNECTING
POWER SEAT W/ARM REST<7DW> 		8-97083-210-0 01 1 9708- ● ●
484 PIPE; CONNECTING
POWER SEAT W/ARM REST<7DW> 		8-97083-210-0 01 1 9708- ● ●
491 PROTECTOR; BRKT
POWER SEAT W/ARM REST<7DW> DRIVER AND PASSENGER RH 		8-97088-786-1 01 1 9708- ● ●
491 PROTECTOR; BRKT
POWER SEAT W/ARM REST<7DW> DRIVER AND PASSENGER RH 		8-97088-786-1 01 1 9708- ● ●
491 PROTECTOR; BRKT
POWER SEAT W/ARM REST<7DW> DRIVER AND PASSENGER LH 		8-97088-787-1 01 1 9708- ● ●
491 PROTECTOR; BRKT
POWER SEAT W/ARM REST<7DW> DRIVER AND PASSENGER LH 		8-97088-787-1 01 1 9708- ● ●
499 PROTECTOR; HINGE
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DRIVER SIDE INNER DARK GRAY 		8-97151-819-0 01 1 9708-9806 ●
499 PROTECTOR; HINGE
DRIVER SIDE INNER DARK GRAY 		8-97151-819-0 01 1 9708-9806 ●
499 PROTECTOR; HINGE
POWER SEAT W/ARM REST<7DW> DRIVER SIDE INNER DARK GRAY 		8-97151-819-0 01 1 9807-9907 ● ●
499 PROTECTOR; HINGE
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DRIVER SIDE INNER DARK GRAY 		8-97151-819-0 01 1 9908- ● ●
499 PROTECTOR; HINGE
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DRIVER SIDE OUTER DARK GRAY 		8-97151-820-0 01 1 9708-9806 ●
499 PROTECTOR; HINGE
DRIVER SIDE OUTER DARK GRAY 		8-97151-820-0 01 1 9708-9806 ●
499 PROTECTOR; HINGE
POWER SEAT W/ARM REST<7DW> DRIVER SIDE OUTER DARK GRAY 		8-97151-820-0 01 1 9807-9907 ● ●
499 PROTECTOR; HINGE
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DRIVER SIDE OUTER DARK GRAY 		8-97151-820-0 01 1 9908- ● ●
499 PROTECTOR; HINGE
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> PASSENGER SIDE OUTER DARK GRAY 		8-97151-818-0 01 1 9708-9806 ●
499 PROTECTOR; HINGE
PASSENGER SIDE OUTER DARK GRAY 		8-97151-818-0 01 1 9708-9806 ●
499 PROTECTOR; HINGE
POWER SEAT W/ARM REST<7DW> PASSENGER SIDE OUTER DARK GRAY 		8-97151-818-0 01 1 9807-9907 ● ●
499 PROTECTOR; HINGE
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> PASSENGER SIDE OUTER DARK GRAY 		8-97151-818-0 01 1 9908- ● ●
499 PROTECTOR; HINGE
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> PASSENGER SIDE INNER DARK GRAY 		8-97151-817-0 01 1 9710-9806 ●
499 PROTECTOR; HINGE
PASSENGER SIDE INNER DARK GRAY 		8-97151-817-0 01 1 9710-9806 ●
499 PROTECTOR; HINGE
POWER SEAT W/ARM REST<7DW> PASSENGER SIDE INNER DARK GRAY 		8-97151-817-0 01 1 9807-9907 ● ●
499 PROTECTOR; HINGE
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> PASSENGER SIDE INNER DARK GRAY 		8-97151-817-0 01 1 9908- ● ●
499 PROTECTOR; HINGE
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> PASSENGER SIDE INNER LIGHT BEIGE 		8-97290-839-0 01 1 9908- ● ●
499 PROTECTOR; HINGE
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> PASSENGER SIDE OUTER LIGHT BEIGE 		8-97290-841-0 01 1 9908- ● ●
499 PROTECTOR; HINGE
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> DRIVER SIDE INNER LIGHT BEIGE 		8-97290-840-0 01 1 9908-0005 ● ●
499 PROTECTOR; HINGE
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> DRIVER SIDE INNER LIGHT BEIGE 		8-97290-840-0 01 1 0006- ● ●
499 PROTECTOR; HINGE
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-842-0 01 1 9908-0005 ● ●
499 PROTECTOR; HINGE
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-842-0 01 1 0006- ● ●
501 FRAME; BACK,FRT SEAT
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DRIVER SIDE 		8-97146-988-0 01 1 9708-9806 ●
501 FRAME; BACK,FRT SEAT
DRIVER SIDE 		8-97146-988-0 01 1 9708-9806 ●
501 FRAME; BACK,FRT SEAT
POWER SEAT W/ARM REST<7DW> DRIVER SIDE 		8-97146-988-1 01 1 9807- ● ●
501 FRAME; BACK,FRT SEAT
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> PASSENGER SIDE 		8-97146-987-0 01 1 9708-9806 ●
501 FRAME; BACK,FRT SEAT
PASSENGER SIDE 		8-97146-987-0 01 1 9708-9806 ●
501 FRAME; BACK,FRT SEAT
POWER SEAT W/ARM REST<7DW> PASSENGER SIDE 		8-97146-987-1 01 1 9807- ● ●
501 FRAME; BACK,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97312-892-0 01 1 0203- ● ●
501 FRAME; BACK,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97312-891-0 01 1 0203- ● ●
çizim 63826
37 27 30 30 36 31 100 96 98 257 99 28 28 10 171 2 3 501 16 17
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97195-420-0 01 1 9708-9801 ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97195-416-0 01 1 9708-9801 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-462-0 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-462-1 01 1 9807-9907 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-868-2 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97299-037-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-455-0 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-455-1 01 1 9807-9907 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-869-2 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97299-197-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97153-553-2 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97153-553-2 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97153-553-2 01 1 9807-9907 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97153-553-2 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97299-193-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97153-552-2 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97153-552-2 01 1 9708-9806 ●
2 COVER; TRIM,FRT SEAT,BACK
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97153-552-2 01 1 9807-9907 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97153-552-2 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97299-000-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-791-0 01 1 9908-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-791-1 01 1 0004-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-127-1 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-780-0 01 1 9908-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-780-1 01 1 0004-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-013-1 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-727-1 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-196-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-733-1 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-033-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-709-0 01 1 9908-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-709-1 01 1 0004-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97299-097-1 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-701-0 01 1 9908-0003 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-701-1 01 1 0004-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-976-1 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-719-1 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97299-192-0 01 1 0203- ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-739-1 01 1 9908-0202 ● ●
2 COVER; TRIM,FRT SEAT,BACK
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-996-0 01 1 0203- ● ●
3 PAD; FRT SEAT BACK 8-97044-521-2 01 1 9708-9801 ●
3 PAD; FRT SEAT BACK 8-97044-520-2 01 1 9708-9801 ●
3 PAD; FRT SEAT BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97146-943-0 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97146-943-0 01 1 9807-9907 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> 		8-97146-943-0 01 1 9908-0003 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97146-943-0 01 1 0004-0202 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> 		8-97289-980-1 01 1 0203- ● ●
3 PAD; FRT SEAT BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97146-942-0 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97146-942-0 01 1 9807-9907 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> 		8-97146-942-0 01 1 9908-0003 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97146-942-0 01 1 0004-0202 ● ●
3 PAD; FRT SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> 		8-97289-979-1 01 1 0203- ● ●
3 PAD; FRT SEAT BACK
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> 		8-97081-881-1 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK 8-97081-881-1 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97081-881-1 01 1 9807-0202 ● ●
3 PAD; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97289-986-1 01 1 0203- ● ●
3 PAD; FRT SEAT BACK
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> 		8-97081-880-1 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK 8-97081-880-1 01 1 9708-9806 ●
3 PAD; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97081-880-1 01 1 9807-0202 ● ●
3 PAD; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97289-985-1 01 1 0203- ● ●
10 BOARD; SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-456-0 02 1 9708-9806 ●
10 BOARD; SEAT
EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97195-456-1 01 1 9807-9907 ● ●
10 BOARD; SEAT
EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97195-456-1 01 1 9807-9907 ● ●
10 BOARD; SEAT
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-799-4 01 1 9908-0005 ● ●
10 BOARD; SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-799-5 01 1 0006- ● ●
10 BOARD; SEAT
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97150-986-4 01 1 9708-9806 ●
10 BOARD; SEAT
DARK GRAY 		8-97150-986-4 01 1 9708-9806 ●
10 BOARD; SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-986-4 01 1 9807-9907 ● ●
10 BOARD; SEAT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-986-5 01 1 9908- ● ●
10 BOARD; SEAT
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97151-813-4 01 1 9708-9806 ●
10 BOARD; SEAT
DARK GRAY 		8-97151-813-4 01 1 9708-9806 ●
10 BOARD; SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-813-4 01 1 9807-9907 ● ●
10 BOARD; SEAT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-813-5 01 1 9908- ● ●
10 BOARD; SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-798-5 01 1 9908- ● ●
16 ADJUSTER ASM; RECLINING 8-97166-845-0 01 1 9708-9801 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-845-0 01 1 9708-9801 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-845-0 01 1 9802-9806 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-845-0 01 1 9807-9907 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97166-845-0 01 1 9908-0003 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97166-845-0 01 1 0004-0202 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97166-845-0 01 1 0203- ● ●
16 ADJUSTER ASM; RECLINING 8-97166-842-0 01 1 9708-9801 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-842-0 01 1 9708-9801 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-842-0 01 1 9802-9806 ●
16 ADJUSTER ASM; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97166-842-0 01 1 9807-9907 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97166-842-0 01 1 9908-0003 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97166-842-0 01 1 0004-0202 ● ●
16 ADJUSTER ASM; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97166-842-0 01 1 0203- ● ●
16 ADJUSTER ASM; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> WO/MOTOR 		8-97083-593-1 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
WO/MOTOR 		8-97083-593-1 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
POWER SEAT W/ARM REST<7DW> WO/MOTOR 		8-97083-593-1 01 1 9807- ● ●
16 ADJUSTER ASM; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> W/MOTOR 		8-97083-595-2 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
W/MOTOR 		8-97083-595-2 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
POWER SEAT W/ARM REST<7DW> W/MOTOR 		8-97083-595-2 01 1 9807- ● ●
16 ADJUSTER ASM; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> WO/MOTOR 		8-97083-592-1 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
WO/MOTOR 		8-97083-592-1 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
POWER SEAT W/ARM REST<7DW> WO/MOTOR 		8-97083-592-1 01 1 9807- ● ●
16 ADJUSTER ASM; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> W/MOTOR 		8-97083-594-2 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
W/MOTOR 		8-97083-594-2 01 1 9708-9806 ●
16 ADJUSTER ASM; RECLINING
POWER SEAT W/ARM REST<7DW> W/MOTOR 		8-97083-594-2 01 1 9807- ● ●
17 BOLT; RECLINING 8-97066-707-0 04 1 9708-9801 ● ● ●
17 BOLT; RECLINING
LEATHER SEAT<6TB> 		8-97066-707-0 04 1 9708-9801 ●
17 BOLT; RECLINING 8-97066-707-0 04 1 9708-9801 ●
17 BOLT; RECLINING 8-97066-707-0 04 1 9802-9806 ● ●
17 BOLT; RECLINING
LEATHER SEAT<6TB> 		8-97066-707-0 04 1 9802-9806 ●
17 BOLT; RECLINING 8-97066-707-0 04 1 9802-9806 ●
17 BOLT; RECLINING
POWER SEAT W/ARM REST<7DW> 		8-97066-707-0 04 1 9807- ● ●
17 BOLT; RECLINING
POWER SEAT W/ARM REST<7DW> 		8-97066-707-0 04 1 9807- ● ●
17 BOLT; RECLINING
EXC. LEATHER SEAT<6TB> 		8-97066-707-0 02 1 9807-9907 ● ●
17 BOLT; RECLINING
EXC. LEATHER SEAT<6TB> 		8-97066-707-0 02 1 9807-9907 ● ●
17 BOLT; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97066-707-0 02 1 9908- ● ●
17 BOLT; RECLINING
FRT SEAT CAPTAIN SEAT<6JX> 		8-97066-707-0 02 1 9908- ● ●
27 REST; HD,FRT SEAT
DARK GRAY 		8-97195-411-0 02 1 9708-9801 ●
27 REST; HD,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-450-0 02 1 9708-9806 ●
27 REST; HD,FRT SEAT
EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97195-450-1 01 1 9807-9907 ● ●
27 REST; HD,FRT SEAT
EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97195-450-1 01 1 9807-9907 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97290-837-2 01 1 9908- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97290-837-2 01 1 9908- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-722-0 02 1 9908-0003 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-722-0 02 1 9908-0003 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-722-1 01 1 0004- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-722-1 01 1 0004- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-696-0 02 1 9908-0003 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-696-0 02 1 9908-0003 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-696-1 01 1 0004- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-696-1 01 1 0004- ● ●
27 REST; HD,FRT SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97152-546-2 01 1 9708-9907 ● ●
27 REST; HD,FRT SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97152-546-2 01 1 9708-9907 ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> DARK GRAY 		8-97152-546-2 01 1 9908- ● ●
27 REST; HD,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> DARK GRAY 		8-97152-546-2 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
LOCK, DARK GRAY 		8-97150-984-0 02 1 9708-9801 ●
28 HOLDER; GUIDE,HD REST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> LOCK, DARK GRAY 		8-97150-984-0 02 1 9708-9801 ●
28 HOLDER; GUIDE,HD REST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> LOCK, DARK GRAY 		8-97150-984-0 02 1 9802-9806 ●
28 HOLDER; GUIDE,HD REST
FREE, DARK GRAY 		8-97150-985-0 02 1 9708-9801 ●
28 HOLDER; GUIDE,HD REST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> FREE, DARK GRAY 		8-97150-985-0 02 1 9708-9801 ●
28 HOLDER; GUIDE,HD REST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> FREE, DARK GRAY 		8-97150-985-0 02 1 9802-9806 ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR BEIGE(181) FREE, LIGHT BEIGE 		8-97290-754-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR BEIGE(181) FREE, LIGHT BEIGE 		8-97290-754-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR BEIGE(181) LOCK, LIGHT BEIGE 		8-97290-755-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR BEIGE(181) LOCK, LIGHT BEIGE 		8-97290-755-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
POWER SEAT W/ARM REST<7DW> LOCK, DARK GRAY 		8-97150-984-0 01 1 9708-9806 ● ●
28 HOLDER; GUIDE,HD REST
POWER SEAT W/ARM REST<7DW> LOCK, DARK GRAY 		8-97150-984-0 01 1 9708-9806 ● ●
28 HOLDER; GUIDE,HD REST
LOCK, DARK GRAY 		8-97150-984-0 01 1 9807-9907 ● ●
28 HOLDER; GUIDE,HD REST
LOCK, DARK GRAY 		8-97150-984-0 01 1 9807-9907 ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR MEDIUM GRAY(113) LOCK, DARK GRAY 		8-97150-984-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR MEDIUM GRAY(113) LOCK, DARK GRAY 		8-97150-984-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
POWER SEAT W/ARM REST<7DW> FREE, DARK GRAY 		8-97150-985-0 01 1 9708-9806 ● ●
28 HOLDER; GUIDE,HD REST
POWER SEAT W/ARM REST<7DW> FREE, DARK GRAY 		8-97150-985-0 01 1 9708-9806 ● ●
28 HOLDER; GUIDE,HD REST
FREE, DARK GRAY 		8-97150-985-0 01 1 9807-9907 ● ●
28 HOLDER; GUIDE,HD REST
FREE, DARK GRAY 		8-97150-985-0 01 1 9807-9907 ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR MEDIUM GRAY(113) FREE, DARK GRAY 		8-97150-985-1 01 1 9908- ● ●
28 HOLDER; GUIDE,HD REST
INTERIOR COLOR MEDIUM GRAY(113) FREE, DARK GRAY 		8-97150-985-1 01 1 9908- ● ●
30 REST ASM; ARM,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-463-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-463-1 01 1 9807-9907 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-881-0 01 1 9908-9908 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97293-240-0 01 1 9909- ● ●
30 REST ASM; ARM,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-457-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-457-1 01 1 9807-9907 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-882-0 01 1 9908-9908 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97293-241-0 01 1 9909- ● ●
30 REST ASM; ARM,FRT SEAT
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97157-148-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
DARK GRAY 		8-97157-148-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-148-0 01 1 9807-9907 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-148-0 01 1 9908-9908 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97293-233-0 01 1 9909- ● ●
30 REST ASM; ARM,FRT SEAT
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97157-202-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
DARK GRAY 		8-97157-202-0 01 1 9708-9806 ●
30 REST ASM; ARM,FRT SEAT
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-202-0 01 1 9807-9907 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-202-0 01 1 9908-9908 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97293-231-0 01 1 9909- ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97297-814-2 01 1 0107- ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-728-1 01 1 9908-0003 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-728-1 01 1 9908-0003 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. SEAT HEATER DRIVER<C37>,LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-728-2 01 1 0004-0106 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX>,POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-728-2 01 1 0004-0106 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-728-2 01 1 0107-0202 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-734-1 01 1 9908-9910 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-734-1 01 1 9908-9910 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-734-1 01 1 9911-0003 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-734-2 01 1 0004-0106 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97297-816-2 01 1 0107-0202 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97297-816-2 01 1 0203- ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-710-2 01 1 9908- ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-702-1 01 1 9908-9910 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-702-1 01 1 9908-9910 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-702-1 01 1 9911-0003 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-702-2 01 1 0004-0106 ● ●
30 REST ASM; ARM,FRT SEAT
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-702-2 01 1 0107- ● ●
31 COVER; TRIM,ARMREST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-464-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-464-1 01 1 9807-9907 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-883-0 01 1 9908- ● ●
31 COVER; TRIM,ARMREST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-458-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-458-1 01 1 9807-9907 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-884-0 01 1 9908- ● ●
31 COVER; TRIM,ARMREST
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97157-149-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
DARK GRAY 		8-97157-149-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-149-0 01 1 9807-9907 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-149-0 01 1 9908- ● ●
31 COVER; TRIM,ARMREST
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97157-203-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
DARK GRAY 		8-97157-203-0 01 1 9708-9806 ●
31 COVER; TRIM,ARMREST
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-203-0 01 1 9807-9907 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97157-203-0 01 1 9908- ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97297-817-1 01 1 0107-0202 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97297-817-1 01 1 0203- ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-729-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-729-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. SEAT HEATER DRIVER<C37>,LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-729-1 01 1 0004-0106 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX>,POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-729-1 01 1 0004-0106 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-729-1 01 1 0107-0202 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-735-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-735-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. SEAT HEATER PASSENGER<C38>,LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-735-1 01 1 0004-0106 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX>,POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-735-1 01 1 0004-0106 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97297-815-1 01 1 0107- ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-711-1 01 1 9908- ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-703-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-703-0 01 1 9908-0003 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. SEAT HEATER PASSENGER<C38>,LEATHER SEAT<6TB> DARK GRAY 		8-97292-703-1 01 1 0004-0202 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX>,POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-703-1 01 1 0004-0202 ● ●
31 COVER; TRIM,ARMREST
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-703-1 01 1 0203- ● ●
36 BUSHING; ARMREST
POWER SEAT W/ARM REST<7DW> 		8-97175-882-0 01 1 9708- ● ●
36 BUSHING; ARMREST
POWER SEAT W/ARM REST<7DW> 		8-97175-882-0 01 1 9708- ● ●
36 BUSHING; ARMREST
SEAT HEATER PASSENGER<C38> EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-94485-046-0 01 1 9807-9907 ● ●
36 BUSHING; ARMREST
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> 		8-94485-046-0 01 1 9908-0003 ● ●
36 BUSHING; ARMREST
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-94485-046-0 01 1 0004- ● ●
37 BOLT; ARMREST
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97091-607-0 02 1 9708-9806 ●
37 BOLT; ARMREST
POWER SEAT W/ARM REST<7DW> 		8-97091-607-0 01 1 9708-9806 ● ●
37 BOLT; ARMREST
POWER SEAT W/ARM REST<7DW> 		8-97091-607-0 01 1 9708-9806 ● ●
37 BOLT; ARMREST 8-97091-607-0 01 1 9807- ● ●
37 BOLT; ARMREST 8-97091-607-0 01 1 9807- ● ●
96 NUT; LK,HINGE
M8 FLANGE 		8-94152-886-0 02 1 9708-9801 ●
96 NUT; LK,HINGE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8 FLANGE 		8-94152-886-0 02 1 9708-9801 ●
96 NUT; LK,HINGE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8 FLANGE 		8-94152-886-0 02 1 9802-9806 ●
96 NUT; LK,HINGE
EXC. LEATHER SEAT<6TB> M8 FLANGE 		8-94152-886-0 01 1 9807-9907 ● ●
96 NUT; LK,HINGE
EXC. LEATHER SEAT<6TB> M8 FLANGE 		8-94152-886-0 01 1 9807-9907 ● ●
96 NUT; LK,HINGE
FRT SEAT CAPTAIN SEAT<6JX> M8 FLANGE 		8-94152-886-0 01 1 9908- ● ●
96 NUT; LK,HINGE
FRT SEAT CAPTAIN SEAT<6JX> M8 FLANGE 		8-94152-886-0 01 1 9908- ● ●
98 WASHER; HINGE
ID=8.4 OD=20 		8-94408-413-0 02 1 9708-9801 ●
98 WASHER; HINGE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> ID=8.4 OD=20 		8-94408-413-0 02 1 9708-9801 ●
98 WASHER; HINGE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> ID=8.4 OD=20 		8-94408-413-0 02 1 9802-9806 ●
98 WASHER; HINGE
EXC. LEATHER SEAT<6TB> ID=8.4 OD=20 		8-94408-413-0 01 1 9807-9907 ● ●
98 WASHER; HINGE
EXC. LEATHER SEAT<6TB> ID=8.4 OD=20 		8-94408-413-0 01 1 9807-9907 ● ●
98 WASHER; HINGE
FRT SEAT CAPTAIN SEAT<6JX> ID=8.4 OD=20 		8-94408-413-0 01 1 9908- ● ●
98 WASHER; HINGE
FRT SEAT CAPTAIN SEAT<6JX> ID=8.4 OD=20 		8-94408-413-0 01 1 9908- ● ●
99 BUSHING; SEAT BACK 8-94408-414-0 02 1 9708-9801 ●
99 BUSHING; SEAT BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-94408-414-0 02 1 9708-9801 ●
99 BUSHING; SEAT BACK
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-94408-414-0 02 1 9802-9806 ●
99 BUSHING; SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-94408-414-0 01 1 9807-9907 ● ●
99 BUSHING; SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-94408-414-0 01 1 9807-9907 ● ●
99 BUSHING; SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> 		8-94408-414-0 01 1 9908- ● ●
99 BUSHING; SEAT BACK
FRT SEAT CAPTAIN SEAT<6JX> 		8-94408-414-0 01 1 9908- ● ●
100 COVER; HINGE
DARK GRAY 		8-97151-809-0 02 1 9708-9801 ●
100 COVER; HINGE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-809-0 02 1 9708-9801 ●
100 COVER; HINGE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-809-0 02 1 9802-9806 ●
100 COVER; HINGE
EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97151-809-0 01 1 9807-9907 ● ●
100 COVER; HINGE
EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97151-809-0 01 1 9807-9907 ● ●
100 COVER; HINGE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97151-809-1 01 1 9908- ● ●
100 COVER; HINGE
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97151-809-1 01 1 9908- ● ●
100 COVER; HINGE
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-781-1 01 1 9908- ● ●
100 COVER; HINGE
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-781-1 01 1 9908- ● ●
171 HEATER ASM; FRT SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-97093-640-0 01 1 9807-9907 ● ●
171 HEATER ASM; FRT SEAT BACK
EXC. LEATHER SEAT<6TB> 		8-97093-640-0 01 1 9807-9907 ● ●
171 HEATER ASM; FRT SEAT BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> 		8-97093-640-0 01 1 9908-0003 ● ●
171 HEATER ASM; FRT SEAT BACK
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> 		8-97093-640-0 01 1 9908-0003 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97093-640-0 01 1 0004-0202 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97093-640-0 01 1 0004-0202 ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97305-845-0 01 1 0203- ● ●
171 HEATER ASM; FRT SEAT BACK
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97305-845-0 01 1 0203- ● ●
171 HEATER ASM; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97083-182-2 01 1 9708-0202 ● ●
171 HEATER ASM; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97083-182-2 01 1 9708-0202 ● ●
171 HEATER ASM; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97305-847-0 01 1 0203- ● ●
171 HEATER ASM; FRT SEAT BACK
POWER SEAT W/ARM REST<7DW> 		8-97305-847-0 01 1 0203- ● ●
257 BOLT; RECLINING DEVICE 8-97066-707-0 04 1 9708-9801 ●
257 BOLT; RECLINING DEVICE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97066-707-0 04 1 9708-9801 ●
257 BOLT; RECLINING DEVICE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97066-707-0 04 1 9802-9806 ●
257 BOLT; RECLINING DEVICE
EXC. LEATHER SEAT<6TB> 		8-97066-707-0 02 1 9807-9907 ● ●
257 BOLT; RECLINING DEVICE
EXC. LEATHER SEAT<6TB> 		8-97066-707-0 02 1 9807-9907 ● ●
257 BOLT; RECLINING DEVICE
FRT SEAT CAPTAIN SEAT<6JX> 		8-97066-707-0 02 1 9908- ● ●
257 BOLT; RECLINING DEVICE
FRT SEAT CAPTAIN SEAT<6JX> 		8-97066-707-0 02 1 9908- ● ●
501 FRAME; BACK,FRT SEAT
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DRIVER SIDE 		8-97146-988-0 01 1 9708-9806 ●
501 FRAME; BACK,FRT SEAT
DRIVER SIDE 		8-97146-988-0 01 1 9708-9806 ●
501 FRAME; BACK,FRT SEAT
POWER SEAT W/ARM REST<7DW> DRIVER SIDE 		8-97146-988-1 01 1 9807- ● ●
501 FRAME; BACK,FRT SEAT
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> PASSENGER SIDE 		8-97146-987-0 01 1 9708-9806 ●
501 FRAME; BACK,FRT SEAT
PASSENGER SIDE 		8-97146-987-0 01 1 9708-9806 ●
501 FRAME; BACK,FRT SEAT
POWER SEAT W/ARM REST<7DW> PASSENGER SIDE 		8-97146-987-1 01 1 9807- ● ●
501 FRAME; BACK,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97312-892-0 01 1 0203- ● ●
501 FRAME; BACK,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97312-891-0 01 1 0203- ● ●
çizim 64038
485 51 51 67 51 51 492 488 63 90 67 67 90 51 51 51 490 18 71 51 43 490 51
BalonParca AdiParca NoAdetTipApplied Date A B C
18 COVER; RECLINING
(G) DARK GRAY 		8-97152-807-2 01 1 9708-9801 ●
18 COVER; RECLINING
(G) DARK GRAY 		8-97152-806-2 01 1 9708-9801 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9708-9801 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9802-9806 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> (G) DARK GRAY 		8-97152-806-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (G) DARK GRAY 		8-97152-806-3 01 1 0004- ● ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (F) DARK GRAY 		8-97151-810-2 01 1 9708-9806 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (F) DARK GRAY 		8-97151-810-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> (F) DARK GRAY 		8-97151-810-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (F) DARK GRAY 		8-97151-810-3 01 1 0004- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9708-9806 ●
18 COVER; RECLINING
(C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-5 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9708-9806 ●
18 COVER; RECLINING
(D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-3 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9708-9806 ●
18 COVER; RECLINING
(E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9708-9806 ●
18 COVER; RECLINING
(C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-5 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9708-9806 ●
18 COVER; RECLINING
(D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-3 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> (F) LIGHT BEIGE 		8-97292-792-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (F) LIGHT BEIGE 		8-97292-792-3 01 1 0004- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> (G) LIGHT BEIGE 		8-97292-782-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (G) LIGHT BEIGE 		8-97292-782-3 01 1 0004- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (A) OUTER LIGHT BEIGE 		8-97290-802-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (A) OUTER LIGHT BEIGE 		8-97290-802-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (B) INNER LIGHT BEIGE 		8-97290-803-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (B) INNER LIGHT BEIGE 		8-97290-803-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT LIGHT BEIGE 		8-97290-787-5 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER LIGHT BEIGE 		8-97290-791-3 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-786-4 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-786-5 01 1 0006- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER LIGHT BEIGE 		8-97290-792-2 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER LIGHT BEIGE 		8-97290-792-3 01 1 0006- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-796-1 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-796-1 01 1 0006- ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (A) OUTER DARK GRAY 		8-97150-982-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (A) OUTER DARK GRAY 		8-97150-982-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (A) OTUER DARK GRAY 		8-97150-982-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (A) OTUER DARK GRAY 		8-97150-982-1 01 1 9908- ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-1 01 1 9908- ● ●
43 BAR ASM; FRT SEAT MTG 8-97138-012-2 01 1 9708-9806 ● ● ●
43 BAR ASM; FRT SEAT MTG 8-97138-012-2 01 1 9807-0011 ● ●
43 BAR ASM; FRT SEAT MTG 8-97289-460-0 01 1 0012- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (D) M5X16 		9-09829-323-1 02 1 9708-9806 ● ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (D) M5X16 		9-09829-323-1 02 1 9807- ● ●
51 SCREW; COVER
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (B) 		0-74110-410-0 14 1 9708-9806 ●
51 SCREW; COVER
(B) 		0-74110-410-0 14 1 9708-9806 ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (B) 		0-74110-410-0 14 1 9807- ● ●
51 SCREW; COVER
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (B) 		0-74110-410-0 11 1 9708-9806 ●
51 SCREW; COVER
(B) 		0-74110-410-0 11 1 9708-9806 ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (B) 		0-74110-410-0 11 1 9807- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (C) 		8-97103-222-0 02 1 9708- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (C) 		8-97103-222-0 02 1 9708- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (A) 		8-97105-238-0 06 1 9708- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (A) 		8-97105-238-0 06 1 9708- ● ●
63 ADJUSTER; SEAT SLIDE
(A) DRIVER SIDE OUTER 		8-97110-202-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE OUTER 		8-97110-202-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE OUTER 		8-97110-202-0 01 1 9802-9802 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 9803-9806 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT HEATER DRIVER<C37>,LEATHER SEAT<6TB>, POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 9807-9907 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. SEAT HEATER DRIVER<C37> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 9908-0002 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 0003-0003 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 0004-0202 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (A) DRIVER SIDE OUTER 		8-97192-568-0 01 1 0203- ● ●
63 ADJUSTER; SEAT SLIDE
(C) DRIVER SIDE INNER 		8-97110-207-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE INNER 		8-97110-207-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE INNER 		8-97110-207-0 01 1 9802-9802 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE INNER 		8-97192-558-0 01 1 9803-9806 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE INNER 		8-97192-558-0 01 1 9807-9907 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (C) DRIVER SIDE INNER 		8-97192-558-0 01 1 9908-0003 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (C) DRIVER SIDE INNER 		8-97192-558-0 01 1 0004-0202 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (C) DRIVER SIDE INNER 		8-97192-558-0 01 1 0203- ● ●
63 ADJUSTER; SEAT SLIDE
(A) PASSENGER SIDE OUTER 		8-97110-201-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE OUTER 		8-97110-201-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE OUTER 		8-97110-201-0 01 1 9802-9802 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 9803-9806 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 9807-9907 ● ●
63 ADJUSTER; SEAT SLIDE
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 9908-0002 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 9908-0002 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 0003-0003 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 0004-0202 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (A) PASSENGER SIDE OUTER 		8-97192-567-0 01 1 0203- ● ●
63 ADJUSTER; SEAT SLIDE
(C) PASSENGER SIDE INNER 		8-97110-206-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE INNER 		8-97110-206-0 01 1 9708-9801 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE INNER 		8-97110-206-0 01 1 9802-9802 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE INNER 		8-97192-557-0 01 1 9803-9806 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE INNER 		8-97192-557-0 01 1 9807-9907 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (C) PASSENGER SIDE INNER 		8-97192-557-0 01 1 9908-0003 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (C) PASSENGER SIDE INNER 		8-97192-557-0 01 1 0004-0202 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (C) PASSENGER SIDE INNER 		8-97192-557-0 01 1 0203- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE TILT CONTROL 		8-97138-275-0 01 1 9708-9806 ●
63 ADJUSTER; SEAT SLIDE
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE TILT CONTROL 		8-97138-275-0 01 1 9807-9907 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (B) DRIVER SIDE TILT CONTROL 		8-97138-275-0 01 1 9908-0003 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (B) DRIVER SIDE TILT CONTROL 		8-97138-275-0 01 1 0004-0202 ● ●
63 ADJUSTER; SEAT SLIDE
FRT SEAT CAPTAIN SEAT<6JX> (B) DRIVER SIDE TILT CONTROL 		8-97138-275-0 01 1 0203- ● ●
63 ADJUSTER; SEAT SLIDE
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (D) 		8-97082-011-5 01 1 9708-9806 ●
63 ADJUSTER; SEAT SLIDE
(D) 		8-97082-011-5 01 1 9708-9806 ●
63 ADJUSTER; SEAT SLIDE
POWER SEAT W/ARM REST<7DW> (D) 		8-97082-011-5 01 1 9807-9905 ● ●
63 ADJUSTER; SEAT SLIDE
POWER SEAT W/ARM REST<7DW> (D) 		8-97222-668-1 01 1 9906-0301 ● ●
63 ADJUSTER; SEAT SLIDE
POWER SEAT W/ARM REST<7DW> (D) 		8-97359-192-0 01 1 0302- ● ●
63 ADJUSTER; SEAT SLIDE
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (D) 		8-97082-010-2 01 1 9708-9806 ●
63 ADJUSTER; SEAT SLIDE
(D) 		8-97082-010-2 01 1 9708-9806 ●
63 ADJUSTER; SEAT SLIDE
POWER SEAT W/ARM REST<7DW> (D) 		8-97082-010-2 01 1 9807- ● ●
67 BOLT; FRT SEAT TO BODY
POWER SEAT W/ARM REST<7DW> (A) M10X19 		8-94427-095-2 06 1 9708-9907 ● ● ●
67 BOLT; FRT SEAT TO BODY
POWER SEAT W/ARM REST<7DW> (A) M10X19 		8-94427-095-2 06 1 9908- ● ●
67 BOLT; FRT SEAT TO BODY
POWER SEAT W/ARM REST<7DW> (B) 		8-97086-507-0 02 1 9708-9907 ● ● ●
67 BOLT; FRT SEAT TO BODY
POWER SEAT W/ARM REST<7DW> (B) 		8-97086-507-0 02 1 9908- ● ●
67 BOLT; FRT SEAT TO BODY
EXC. POWER SEAT W/ARM REST<7DW> (A) M10X19 		8-94427-095-2 08 1 9708-9907 ● ● ●
67 BOLT; FRT SEAT TO BODY
EXC. POWER SEAT W/ARM REST<7DW> (A) M10X19 		8-94427-095-2 08 1 9908- ● ●
71 BOLT; ADJ TO SEAT
M8X25 		8-97073-032-0 08 1 9708-9801 ●
71 BOLT; ADJ TO SEAT
M8X20 		8-97066-705-0 04 1 9708-9801 ● ● ●
71 BOLT; ADJ TO SEAT
LEATHER SEAT<6TB> M8X20 		8-97066-705-0 04 1 9708-9801 ●
71 BOLT; ADJ TO SEAT
M8X20 		8-97066-705-0 04 1 9708-9801 ●
71 BOLT; ADJ TO SEAT
POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 04 1 9802- ● ●
71 BOLT; ADJ TO SEAT
POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 04 1 9802- ● ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 08 1 9708-9806 ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 02 1 9807-9907 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X20 		8-97066-705-0 02 1 9908-0003 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M8X20 		8-97066-705-0 02 1 0004-0202 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X20 		8-97066-705-0 02 1 0203- ● ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X25 		8-97073-032-0 07 1 9708-9806 ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X25 		8-97073-032-0 03 1 9807-9907 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X25 		8-97073-032-0 03 1 9908-0003 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M8X25 		8-97073-032-0 03 1 0004-0202 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X25 		8-97073-032-0 03 1 0203- ● ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M10X25 		8-97066-704-0 01 1 9708-9806 ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M10X25 		8-97066-704-0 01 1 9807-9907 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M10X25 		8-97066-704-0 01 1 9908-0003 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M10X25 		8-97066-704-0 01 1 0004-0202 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M10X25 		8-97066-704-0 01 1 0203- ● ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X20 		8-97066-705-0 06 1 9807-9907 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X20 		8-97066-705-0 06 1 9908-0003 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M8X20 		8-97066-705-0 06 1 0004-0202 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X20 		8-97066-705-0 06 1 0203- ● ●
71 BOLT; ADJ TO SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> M8X25 		8-97073-032-0 04 1 9807-9907 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X25 		8-97073-032-0 04 1 9908-0003 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> M8X25 		8-97073-032-0 04 1 0004-0202 ● ●
71 BOLT; ADJ TO SEAT
FRT SEAT CAPTAIN SEAT<6JX> M8X25 		8-97073-032-0 04 1 0203- ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE BLACK 		8-97098-312-1 01 1 9708-9802 ● ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE BLACK 		8-97196-133-0 01 1 9803- ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (B) PASSENGER SIDE BLACK 		8-97098-311-1 01 1 9708-9802 ● ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (B) PASSENGER SIDE BLACK 		8-97196-132-0 01 1 9803- ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE BLACK 		8-97098-316-0 01 1 9708- ● ●
90 COVER; SEAT ADJ BRKT
POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE BLACK 		8-97098-315-0 01 1 9708- ● ●
90 COVER; SEAT ADJ BRKT
EXC. POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE BLACK 		8-97151-568-1 01 1 9708- ● ●
90 COVER; SEAT ADJ BRKT
EXC. POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE BLACK 		8-97158-941-0 01 1 9708- ● ●
90 COVER; SEAT ADJ BRKT
EXC. POWER SEAT W/ARM REST<7DW> (B) PASSENGER SIDE BLACK 		8-97151-567-1 01 1 9708- ● ●
90 COVER; SEAT ADJ BRKT
EXC. POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE BLACK 		8-97158-940-0 01 1 9708- ● ●
485 HARNESS; FRT SEAT
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> 		8-97081-884-1 01 1 9708-9806 ●
485 HARNESS; FRT SEAT 8-97081-884-1 01 1 9708-9806 ●
485 HARNESS; FRT SEAT
POWER SEAT W/ARM REST<7DW> 		8-97081-884-1 01 1 9807- ● ●
485 HARNESS; FRT SEAT
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> 		8-97081-885-1 01 1 9708-9806 ●
485 HARNESS; FRT SEAT 8-97081-885-1 01 1 9708-9806 ●
485 HARNESS; FRT SEAT
POWER SEAT W/ARM REST<7DW> 		8-97081-885-1 01 1 9807- ● ●
488 COVER; REAR
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-836-1 01 1 9908- ● ●
488 COVER; REAR
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-836-1 01 1 9908- ● ●
488 COVER; REAR
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-000-0 01 1 9708-9907 ● ●
488 COVER; REAR
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-000-0 01 1 9708-9907 ● ●
488 COVER; REAR
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-000-1 01 1 9908- ● ●
488 COVER; REAR
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-000-1 01 1 9908- ● ●
490 COVER; FRONT
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (A) DRIVER SIDE DARK GRAY 		8-97150-999-2 01 1 9708-9806 ●
490 COVER; FRONT
(A) DRIVER SIDE DARK GRAY 		8-97150-999-2 01 1 9708-9806 ●
490 COVER; FRONT
POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE DARK GRAY 		8-97150-999-2 01 1 9807-9907 ● ●
490 COVER; FRONT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE DARK GRAY 		8-97150-999-3 01 1 9908- ● ●
490 COVER; FRONT
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (B) DRIVER SIDE DARK GRAY 		8-97151-004-0 01 1 9708-9806 ●
490 COVER; FRONT
(B) DRIVER SIDE DARK GRAY 		8-97151-004-0 01 1 9708-9806 ●
490 COVER; FRONT
POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE DARK GRAY 		8-97151-004-0 01 1 9807-9907 ● ●
490 COVER; FRONT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE DARK GRAY 		8-97151-004-0 01 1 9908- ● ●
490 COVER; FRONT
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (A) PASSENGER SIDE DARK GRAY 		8-97151-021-2 01 1 9708-9806 ●
490 COVER; FRONT
(A) PASSENGER SIDE DARK GRAY 		8-97151-021-2 01 1 9708-9806 ●
490 COVER; FRONT
POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE DARK GRAY 		8-97151-021-2 01 1 9807-9907 ● ●
490 COVER; FRONT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE DARK GRAY 		8-97151-021-3 01 1 9908- ● ●
490 COVER; FRONT
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (B) PASSENGER SIDE DARK GRAY 		8-97151-022-1 01 1 9708-9806 ●
490 COVER; FRONT
(B) PASSENGER SIDE DARK GRAY 		8-97151-022-1 01 1 9708-9806 ●
490 COVER; FRONT
POWER SEAT W/ARM REST<7DW> (B) PASSENGER SIDE DARK GRAY 		8-97151-022-1 01 1 9807-9907 ● ●
490 COVER; FRONT
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (B) PASSENGER SIDE DARK GRAY 		8-97151-022-1 01 1 9908- ● ●
490 COVER; FRONT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (A) PASSENGER SIDE LIGHT BEIGE 		8-97290-793-3 01 1 9908- ● ●
490 COVER; FRONT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (B) PASSENGER SIDE LIGHT BEIGE 		8-97290-797-1 01 1 9908- ● ●
490 COVER; FRONT
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE LIGHT BEIGE 		8-97290-829-2 01 1 9908-0005 ● ●
490 COVER; FRONT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (A) DRIVER SIDE LIGHT BEIGE 		8-97290-829-3 01 1 0006- ● ●
490 COVER; FRONT
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE LIGHT BEIGE 		8-97290-838-0 01 1 9908-0005 ● ●
490 COVER; FRONT
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (B) DRIVER SIDE LIGHT BEIGE 		8-97290-838-0 01 1 0006- ● ●
492 COVER; INNER
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DRIVER SIDE DARK GRAY 		8-97150-996-1 01 1 9708-9806 ●
492 COVER; INNER
DRIVER SIDE DARK GRAY 		8-97150-996-1 01 1 9708-9806 ●
492 COVER; INNER
POWER SEAT W/ARM REST<7DW> DRIVER SIDE DARK GRAY 		8-97150-996-1 01 1 9807-9907 ● ●
492 COVER; INNER
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DRIVER SIDE DARK GRAY 		8-97150-996-2 01 1 9908- ● ●
492 COVER; INNER
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> PASSENGER SIDE DARK GRAY 		8-97151-019-1 01 1 9708-9806 ●
492 COVER; INNER
PASSENGER SIDE DARK GRAY 		8-97151-019-1 01 1 9708-9806 ●
492 COVER; INNER
POWER SEAT W/ARM REST<7DW> PASSENGER SIDE DARK GRAY 		8-97151-019-1 01 1 9807-9907 ● ●
492 COVER; INNER
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> PASSENGER SIDE DARK GRAY 		8-97151-019-2 01 1 9908- ● ●
492 COVER; INNER
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> PASSENGER SIDE LIGHT BEIGE 		8-97290-789-2 01 1 9908- ● ●
492 COVER; INNER
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> DRIVER SIDE LIGHT BEIGE 		8-97290-790-1 01 1 9908-0005 ● ●
492 COVER; INNER
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> DRIVER SIDE LIGHT BEIGE 		8-97290-790-2 01 1 0006- ● ●
çizim 64174
486 18 329 487 260 13 51 51 489 170 14 15 260
BalonParca AdiParca NoAdetTipApplied Date A B C
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97195-418-0 01 1 9708-9801 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97195-414-0 01 1 9708-9801 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-460-0 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-460-1 01 1 9807-9907 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-804-5 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97299-035-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-453-0 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97195-453-1 01 1 9807-9907 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-805-5 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97299-027-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97150-977-5 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97150-977-5 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-977-5 01 1 9807-9907 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-977-5 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97298-990-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97151-006-5 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97151-006-5 01 1 9708-9806 ●
13 COVER; TRIM,FRT SEAT,CUSHION
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-006-5 01 1 9807-9907 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-006-5 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97298-998-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-789-0 01 1 9908-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-789-1 01 1 0004-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-017-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> LIGHT BEIGE 		8-97292-778-0 01 1 9908-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-778-1 01 1 0004-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-011-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-725-2 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-023-0 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97292-731-2 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97299-031-0 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-707-0 01 1 9908-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-707-1 01 1 0004-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-980-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> DARK GRAY 		8-97292-699-0 01 1 9908-0003 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-699-1 01 1 0004-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-974-1 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-717-2 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-986-0 01 1 0203- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97292-737-2 01 1 9908-0202 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97298-994-0 01 1 0203- ● ●
14 PAD; FRT SEAT CUSHION 8-97044-518-1 02 1 9708-9801 ●
14 PAD; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97044-518-1 02 1 9708-9801 ●
14 PAD; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97044-518-1 02 1 9802-9806 ●
14 PAD; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB> 		8-97044-518-1 01 1 9807-9907 ● ●
14 PAD; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB> 		8-97044-518-1 01 1 9807-9907 ● ●
14 PAD; FRT SEAT CUSHION
FRT SEAT CAPTAIN SEAT<6JX> 		8-97044-518-1 01 1 9908-0202 ● ●
14 PAD; FRT SEAT CUSHION
FRT SEAT CAPTAIN SEAT<6JX> 		8-97044-518-1 01 1 9908-0202 ● ●
14 PAD; FRT SEAT CUSHION
FRT SEAT CAPTAIN SEAT<6JX> 		8-97289-989-1 01 1 0203- ● ●
14 PAD; FRT SEAT CUSHION
FRT SEAT CAPTAIN SEAT<6JX> 		8-97289-989-1 01 1 0203- ● ●
14 PAD; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97081-877-1 01 1 9708-0202 ● ●
14 PAD; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97081-877-1 01 1 9708-0202 ● ●
14 PAD; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97289-990-1 01 1 0203- ● ●
14 PAD; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97289-990-1 01 1 0203- ● ●
15 FRAME; CUSHION,FRT SEAT 8-97172-880-0 01 1 9708-9801 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-880-0 01 1 9708-9801 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-880-0 01 1 9802-9806 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-880-0 01 1 9807-9907 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97172-880-0 01 1 9908-0003 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97172-880-0 01 1 0004-0202 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97312-887-0 01 1 0203- ● ●
15 FRAME; CUSHION,FRT SEAT 8-97172-879-0 01 1 9708-9801 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-879-0 01 1 9708-9801 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-879-0 01 1 9802-9806 ●
15 FRAME; CUSHION,FRT SEAT
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> 		8-97172-879-0 01 1 9807-9907 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97172-879-0 01 1 9908-0003 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97172-879-0 01 1 0004-0202 ● ●
15 FRAME; CUSHION,FRT SEAT
FRT SEAT CAPTAIN SEAT<6JX> 		8-97312-886-0 01 1 0203- ● ●
15 FRAME; CUSHION,FRT SEAT
POWER SEAT W/ARM REST<7DW> 		8-97172-881-0 01 1 9708-0202 ● ●
15 FRAME; CUSHION,FRT SEAT
POWER SEAT W/ARM REST<7DW> 		8-97172-881-0 01 1 9708-0202 ● ●
15 FRAME; CUSHION,FRT SEAT
POWER SEAT W/ARM REST<7DW> 		8-97312-888-0 01 1 0203- ● ●
15 FRAME; CUSHION,FRT SEAT
POWER SEAT W/ARM REST<7DW> 		8-97312-888-0 01 1 0203- ● ●
18 COVER; RECLINING
(G) DARK GRAY 		8-97152-807-2 01 1 9708-9801 ●
18 COVER; RECLINING
(G) DARK GRAY 		8-97152-806-2 01 1 9708-9801 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9708-9801 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9802-9806 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (G) DARK GRAY 		8-97152-806-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> (G) DARK GRAY 		8-97152-806-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (G) DARK GRAY 		8-97152-806-3 01 1 0004- ● ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (F) DARK GRAY 		8-97151-810-2 01 1 9708-9806 ●
18 COVER; RECLINING
EXC. LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (F) DARK GRAY 		8-97151-810-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> (F) DARK GRAY 		8-97151-810-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (F) DARK GRAY 		8-97151-810-3 01 1 0004- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9708-9806 ●
18 COVER; RECLINING
(C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-4 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER DARK GRAY 		8-97150-991-5 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9708-9806 ●
18 COVER; RECLINING
(D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER DARK GRAY 		8-97150-998-3 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9708-9806 ●
18 COVER; RECLINING
(E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER DARK GRAY 		8-97151-003-1 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9708-9806 ●
18 COVER; RECLINING
(C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-4 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT DARK GRAY 		8-97151-015-5 01 1 9908- ● ●
18 COVER; RECLINING
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9708-9806 ●
18 COVER; RECLINING
(D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9708-9806 ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-2 01 1 9807-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER DARK GRAY 		8-97151-020-3 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> (F) LIGHT BEIGE 		8-97292-792-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (F) LIGHT BEIGE 		8-97292-792-3 01 1 0004- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> (G) LIGHT BEIGE 		8-97292-782-2 01 1 9908-0003 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> (G) LIGHT BEIGE 		8-97292-782-3 01 1 0004- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (A) OUTER LIGHT BEIGE 		8-97290-802-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (A) OUTER LIGHT BEIGE 		8-97290-802-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (B) INNER LIGHT BEIGE 		8-97290-803-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (B) INNER LIGHT BEIGE 		8-97290-803-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (C) PASSENGER SIDE OUT LIGHT BEIGE 		8-97290-787-5 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (D) PASSENGER SIDE INNER LIGHT BEIGE 		8-97290-791-3 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-786-4 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (C) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-786-5 01 1 0006- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER LIGHT BEIGE 		8-97290-792-2 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (D) DRIVER SIDE INNER LIGHT BEIGE 		8-97290-792-3 01 1 0006- ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-796-1 01 1 9908-0005 ● ●
18 COVER; RECLINING
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> (E) DRIVER SIDE OUTER LIGHT BEIGE 		8-97290-796-1 01 1 0006- ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (A) OUTER DARK GRAY 		8-97150-982-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (A) OUTER DARK GRAY 		8-97150-982-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (A) OTUER DARK GRAY 		8-97150-982-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (A) OTUER DARK GRAY 		8-97150-982-1 01 1 9908- ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-0 01 1 9708-9907 ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-1 01 1 9908- ● ●
18 COVER; RECLINING
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> (B) INNER DARK GRAY 		8-97150-983-1 01 1 9908- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (D) M5X16 		9-09829-323-1 02 1 9708-9806 ● ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (D) M5X16 		9-09829-323-1 02 1 9807- ● ●
51 SCREW; COVER
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> (B) 		0-74110-410-0 14 1 9708-9806 ●
51 SCREW; COVER
(B) 		0-74110-410-0 14 1 9708-9806 ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (B) 		0-74110-410-0 14 1 9807- ● ●
51 SCREW; COVER
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> (B) 		0-74110-410-0 11 1 9708-9806 ●
51 SCREW; COVER
(B) 		0-74110-410-0 11 1 9708-9806 ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (B) 		0-74110-410-0 11 1 9807- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (C) 		8-97103-222-0 02 1 9708- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (C) 		8-97103-222-0 02 1 9708- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (A) 		8-97105-238-0 06 1 9708- ● ●
51 SCREW; COVER
POWER SEAT W/ARM REST<7DW> (A) 		8-97105-238-0 06 1 9708- ● ●
170 HEATER ASM; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB> 		8-97110-428-0 01 1 9807-9907 ● ●
170 HEATER ASM; FRT SEAT CUSHION
EXC. LEATHER SEAT<6TB> 		8-97110-428-0 01 1 9807-9907 ● ●
170 HEATER ASM; FRT SEAT CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> 		8-97110-428-0 01 1 9908-0003 ● ●
170 HEATER ASM; FRT SEAT CUSHION
INTERIOR COLOR BEIGE(181) FRT SEAT CAPTAIN SEAT<6JX> 		8-97110-428-0 01 1 9908-0003 ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97110-428-0 01 1 0004-0202 ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97110-428-0 01 1 0004-0202 ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER PASSENGER<C38> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97305-844-0 01 1 0203- ● ●
170 HEATER ASM; FRT SEAT CUSHION
SEAT HEATER DRIVER<C37> FRT SEAT CAPTAIN SEAT<6JX> EXC. LEATHER SEAT<6TB> 		8-97305-844-0 01 1 0203- ● ●
170 HEATER ASM; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97083-179-2 01 1 9708-0202 ● ●
170 HEATER ASM; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97083-179-2 01 1 9708-0202 ● ●
170 HEATER ASM; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97305-846-0 01 1 0203- ● ●
170 HEATER ASM; FRT SEAT CUSHION
POWER SEAT W/ARM REST<7DW> 		8-97305-846-0 01 1 0203- ● ●
260 CLIP; HARNESS
POWER SEAT W/ARM REST<7DW> (B) L=140 		5-09707-031-1 04 1 9708- ● ●
260 CLIP; HARNESS
POWER SEAT W/ARM REST<7DW> (B) L=140 		5-09707-031-1 04 1 9708- ● ●
260 CLIP; HARNESS
POWER SEAT W/ARM REST<7DW> (A) 		8-97086-279-0 03 1 9708- ● ●
260 CLIP; HARNESS
POWER SEAT W/ARM REST<7DW> (A) 		8-97086-279-0 03 1 9708- ● ●
329 SCREW; CLIP
POWER SEAT W/ARM REST<7DW> 		8-97103-224-0 06 1 9708- ● ●
329 SCREW; CLIP
POWER SEAT W/ARM REST<7DW> 		8-97103-224-0 06 1 9708- ● ●
486 SWITCH; POWER
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97150-993-2 01 1 9708-9806 ●
486 SWITCH; POWER
DARK GRAY 		8-97150-993-2 01 1 9708-9806 ●
486 SWITCH; POWER
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-993-2 01 1 9807-9907 ● ●
486 SWITCH; POWER
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-993-2 01 1 9908- ● ●
486 SWITCH; POWER
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97151-017-2 01 1 9708-9806 ●
486 SWITCH; POWER
DARK GRAY 		8-97151-017-2 01 1 9708-9806 ●
486 SWITCH; POWER
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-017-2 01 1 9807-9907 ● ●
486 SWITCH; POWER
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-017-2 01 1 9908- ● ●
486 SWITCH; POWER
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-820-2 01 1 9908- ● ●
486 SWITCH; POWER
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-819-2 01 1 9908-0005 ● ●
486 SWITCH; POWER
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-819-2 01 1 0006- ● ●
487 KNOB; SWITCH
SEAT HEATER DRIVER<C37> LEATHER SEAT<6TB> DARK GRAY 		8-97150-994-1 01 1 9708-9806 ●
487 KNOB; SWITCH
DARK GRAY 		8-97150-994-1 01 1 9708-9806 ●
487 KNOB; SWITCH
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-994-1 01 1 9807-9907 ● ●
487 KNOB; SWITCH
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-994-1 01 1 9908- ● ●
487 KNOB; SWITCH
SEAT HEATER PASSENGER<C38> LEATHER SEAT<6TB> DARK GRAY 		8-97151-018-1 01 1 9708-9806 ●
487 KNOB; SWITCH
DARK GRAY 		8-97151-018-1 01 1 9708-9806 ●
487 KNOB; SWITCH
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-018-1 01 1 9807-9907 ● ●
487 KNOB; SWITCH
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97151-018-1 01 1 9908- ● ●
487 KNOB; SWITCH
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-822-1 01 1 9908- ● ●
487 KNOB; SWITCH
INTERIOR COLOR BEIGE(181) SEAT HEATER DRIVER<C37> POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-821-1 01 1 9908-0005 ● ●
487 KNOB; SWITCH
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-821-1 01 1 0006- ● ●
489 CAP; COVER
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-818-0 02 1 9908- ● ●
489 CAP; COVER
INTERIOR COLOR BEIGE(181) POWER SEAT W/ARM REST<7DW> LIGHT BEIGE 		8-97290-818-0 02 1 9908- ● ●
489 CAP; COVER
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-995-0 02 1 9708-9907 ● ●
489 CAP; COVER
POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-995-0 02 1 9708-9907 ● ●
489 CAP; COVER
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-995-0 02 1 9908- ● ●
489 CAP; COVER
INTERIOR COLOR MEDIUM GRAY(113) POWER SEAT W/ARM REST<7DW> DARK GRAY 		8-97150-995-0 02 1 9908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
