◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#46207) — 75 parça

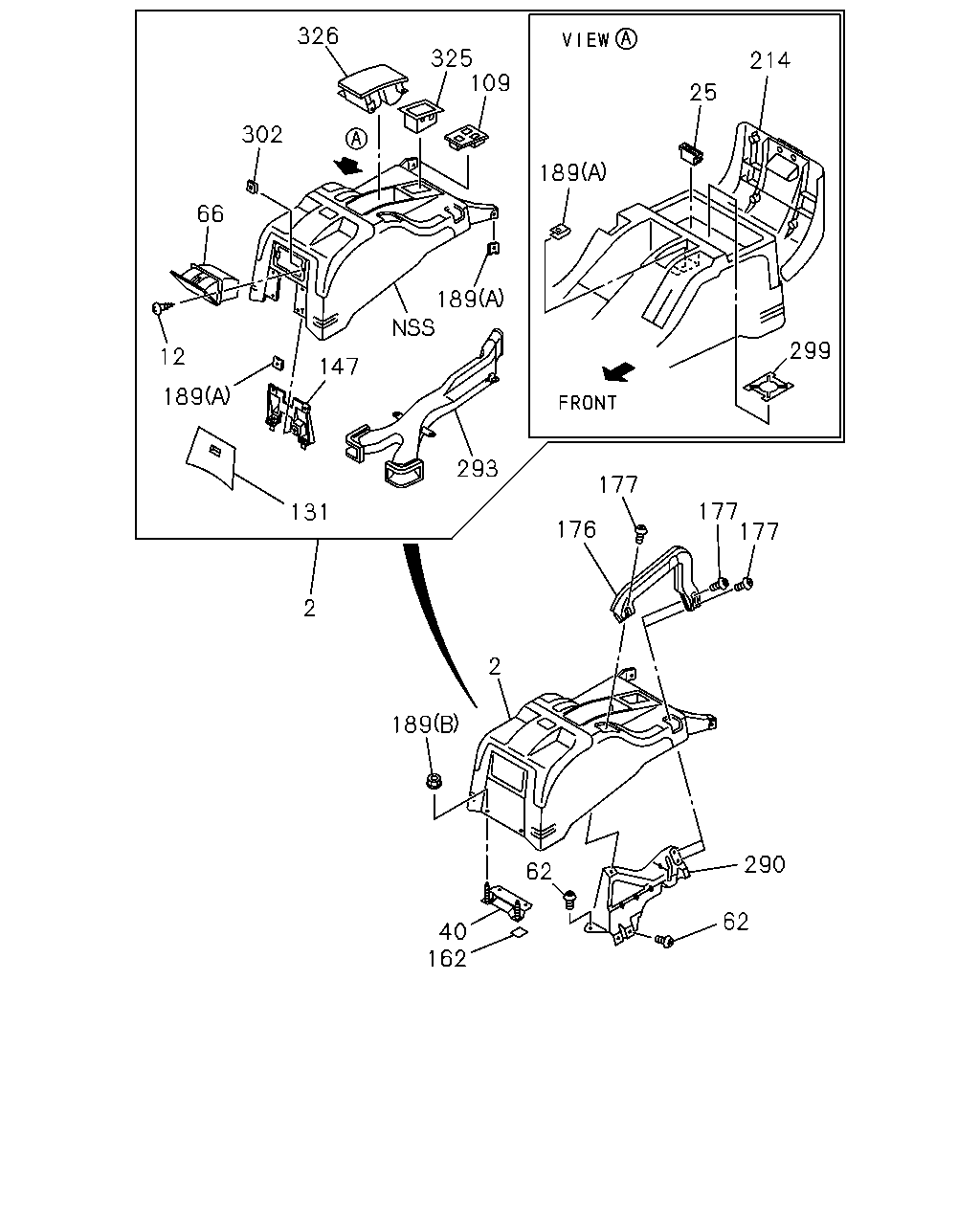

çizim 63862
326 325 109 214 25 302 189 66 189 299 12 147 189 293 177 177 177 131 176 2 2 189 290 62 62 40 162
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CONSOLE; CENTER
DARK GRAY 		8-97154-902-1 01 1 9708-9907 ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97154-902-3 01 1 9908-0202 ● ●
2 CONSOLE; CENTER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97297-018-3 01 1 0203- ● ●
2 CONSOLE; CENTER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-556-3 01 1 9908-0202 ● ●
2 CONSOLE; CENTER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97297-019-3 01 1 0203- ● ●
12 SCREW; DOOR HINGE
M4X16 		9-07037-416-0 02 1 9708-9907 ● ● ●
12 SCREW; DOOR HINGE
M4X16 		9-07037-416-0 02 1 9908- ● ●
25 MAGNET; CENTER CONSOLE 8-97103-831-0 01 1 9708-9907 ● ● ●
25 MAGNET; CENTER CONSOLE 8-97103-831-0 01 1 9908- ● ●
40 BRACKET; SUPPORT,CENTER CONSOLE 8-97808-660-1 01 1 9708-9806 ● ● ●
40 BRACKET; SUPPORT,CENTER CONSOLE 8-97808-660-1 01 1 9807- ● ●
62 SCREW; BRKT
M6X16 W/LK&PL WASHER 		9-03920-616-0 05 1 9708-9806 ● ● ●
62 SCREW; BRKT
M6X16 W/LK&PL WASHER 		9-03920-616-0 05 1 9807-0210 ● ●
62 SCREW; BRKT
M6X14 W/PL WASHER 		9-03900-614-0 05 1 0211- ● ●
66 TRAY ASM; ASH
DARK GRAY 		8-97151-531-1 01 1 9708-9907 ● ● ●
66 TRAY ASM; ASH
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97151-531-1 01 1 9908- ● ●
66 TRAY ASM; ASH
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-752-1 01 1 9908- ● ●
109 BEZEL; POWER WINDOW SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 		8-97083-239-1 01 1 9708-9801 ● ● ●
109 BEZEL; POWER WINDOW SW 8-97083-239-1 01 1 9802- ● ●
131 COVER; CONSOLE SIDE
DARK GRAY 		8-97151-532-1 01 1 9708-9907 ● ● ●
131 COVER; CONSOLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97151-532-1 01 1 9908- ● ●
131 COVER; CONSOLE SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-835-1 01 1 9908- ● ●
147 BASE ASM; CENTER CONSOLE 8-97088-818-2 01 1 9708-9907 ● ● ●
147 BASE ASM; CENTER CONSOLE 8-97088-818-2 01 1 9908- ● ●
162 CUSHION; PARCEL BOX 8-97808-667-0 02 1 9708-9806 ● ● ●
162 CUSHION; PARCEL BOX 8-97808-667-0 02 1 9807- ● ●
176 GRIP; CTR,CONSOLE
DARK GRAY 		8-97098-372-3 01 1 9708-9907 ● ● ●
176 GRIP; CTR,CONSOLE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-372-3 01 1 9908- ● ●
176 GRIP; CTR,CONSOLE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-557-3 01 1 9908- ● ●
177 SCREW; CTR GRIP
M6X25 FLANGE 		0-28680-625-0 03 1 9708-9806 ● ● ●
177 SCREW; CTR GRIP
M6X25 FLANGE 		0-28680-625-0 03 1 9807- ● ●
189 NUT; CONSOLE BOX
(A) M5 SPIRE NUT 		8-94217-271-0 04 1 9708-9907 ● ● ●
189 NUT; CONSOLE BOX
(A) M5 SPIRE NUT 		8-94217-271-0 04 1 9908- ● ●
189 NUT; CONSOLE BOX
(B) M5 FLANGE 		8-94379-494-0 02 1 9708-9806 ● ● ●
189 NUT; CONSOLE BOX
(B) M5 FLANGE 		8-94379-494-0 02 1 9807-0301 ● ●
189 NUT; CONSOLE BOX
(B) M5 FLANGE 		5-09440-003-0 02 1 0302- ● ●
214 LID; CONSOLE
DARK GRAY 		8-97151-528-1 01 1 9708-9907 ● ● ●
214 LID; CONSOLE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97151-528-1 01 1 9908- ● ●
214 LID; CONSOLE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-834-1 01 1 9908- ● ●
290 BRACKET; GRIP 8-97113-889-1 01 1 9708-9806 ● ● ●
290 BRACKET; GRIP 8-97113-889-1 01 1 9807- ● ●
293 DUCT 8-97116-662-1 01 1 9708-9806 ● ● ●
293 DUCT 8-97116-662-1 01 1 9807- ● ●
299 PLATE; CONSOLE 8-97133-452-3 01 1 9708-9806 ● ● ●
299 PLATE; CONSOLE 8-97133-452-3 01 1 9807-0202 ● ●
302 RETAINER; ASH TRAY 8-97142-901-0 02 1 9708-9907 ● ● ●
302 RETAINER; ASH TRAY 8-97142-901-0 02 1 9908- ● ●
325 POCKET
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) 		8-97083-252-1 01 1 9708-9801 ● ● ●
326 HOLDER; CUP
DARK GRAY 		8-97151-533-0 01 1 9708-9907 ● ● ●
326 HOLDER; CUP
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97151-533-0 01 1 9908-0202 ● ●
326 HOLDER; CUP
BLACK 		8-97298-310-1 01 1 0203- ● ●
326 HOLDER; CUP
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-848-0 01 1 9908-0202 ● ●

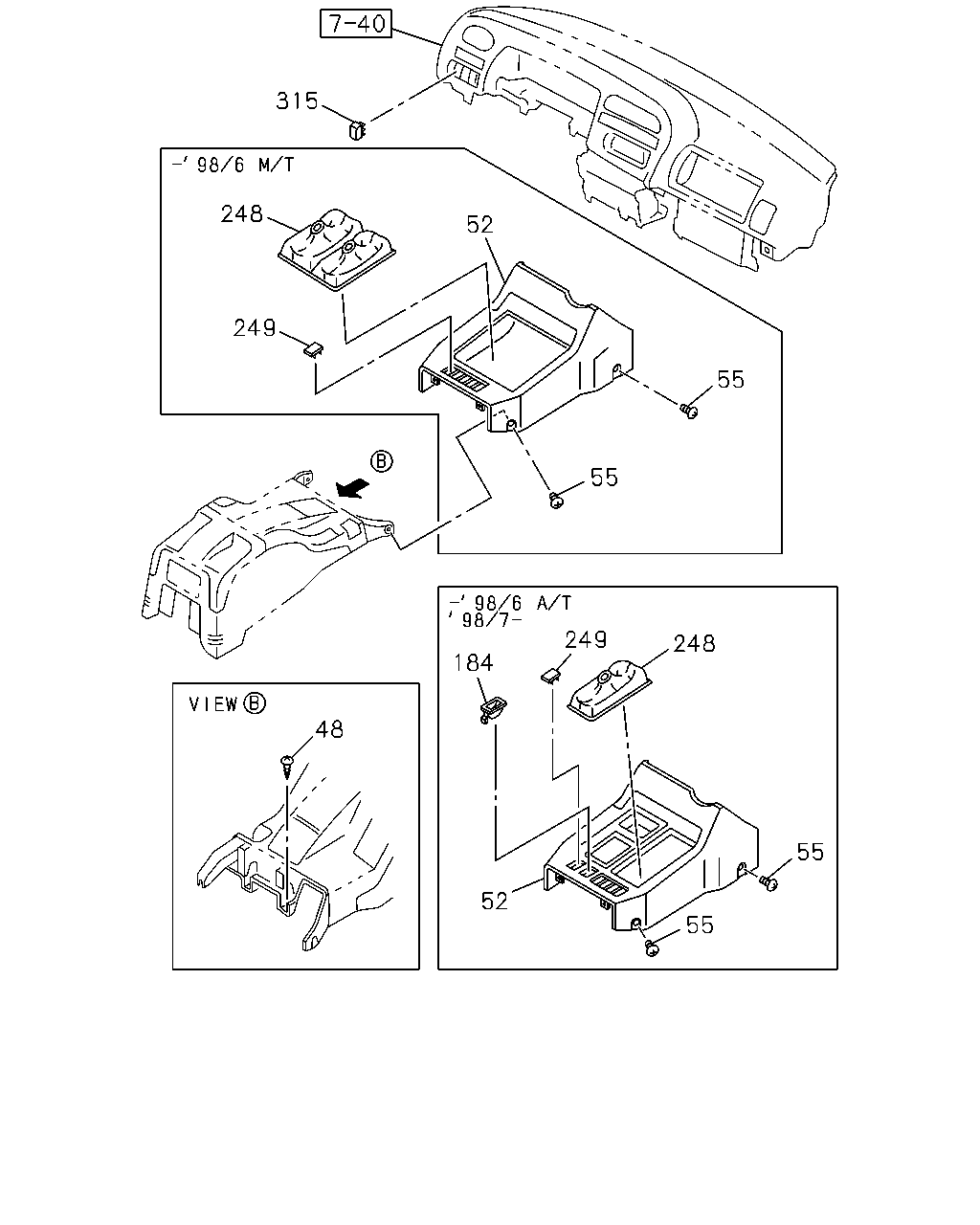

çizim 65497
315 248 52 249 55 55 249 248 184 48 55 52 55
BalonParca AdiParca NoAdetTipApplied Date A B C
48 SCREW; BRKT,CENTER CONSOLE
M5X16 		8-94295-854-0 02 1 9708-9806 ● ● ●
48 SCREW; BRKT,CENTER CONSOLE
M5X16 		8-94295-854-0 02 1 9807- ● ●
52 CONSOLE; FRT
A/T THM(RMQ) DARK GRAY 		8-97098-647-3 01 1 9708-9806 ● ● ●
52 CONSOLE; FRT
DARK GRAY 		8-97098-647-3 01 1 9807-9907 ● ● ●
52 CONSOLE; FRT
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-647-3 01 1 9908-0202 ● ●
52 CONSOLE; FRT
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97297-820-0 01 1 0203- ● ●
52 CONSOLE; FRT
M/T AR-5 5 SPEED(RNK) DARK GRAY 		8-97098-646-3 01 1 9708-9806 ● ● ●
52 CONSOLE; FRT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-807-3 01 1 9908-0202 ● ●
52 CONSOLE; FRT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97297-821-0 01 1 0203- ● ●
55 SCREW; FRT CONSOLE
M5X14 		1-72548-072-0 04 1 9708-9806 ● ● ●
55 SCREW; FRT CONSOLE
M5X14 		1-72548-072-0 04 1 9807- ● ●
184 BOX; COIN,SEAT SIDE
A/T THM(RMQ) 		8-94482-280-2 01 1 9708-9806 ● ● ●
184 BOX; COIN,SEAT SIDE 8-94482-280-2 01 1 9807- ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) BLACK 		8-97159-879-0 01 1 9708-9806 ● ● ●
248 BOOT; SHIFT CONT
BLACK 		8-97159-879-0 01 1 9807-9907 ● ●
248 BOOT; SHIFT CONT
INTERIOR COLOR MEDIUM GRAY(113) BLACK 		8-97159-879-0 01 1 9908- ● ●
248 BOOT; SHIFT CONT
M/T AR-5 5 SPEED(RNK) BLACK 		8-97159-878-0 01 1 9708-9806 ● ● ●
248 BOOT; SHIFT CONT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-892-0 01 1 9908- ● ●
249 COVER
M/T AR-5 5 SPEED(RNK) 		8-97043-732-1 01 1 9708-9806 ● ● ●
249 COVER 8-97043-732-1 02 1 9708- ● ●
249 COVER
EXC. SEAT HEATER DRIVER<C37>,SEAT HEATER PASSENGER<C38> 		8-97043-732-1 02 1 9708- ● ●
315 COVER; HOLE,SW 8-97081-617-1 01 1 9708-9806 ● ● ●
315 COVER; HOLE,SW 8-97081-617-1 01 1 9807- ● ●
