◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#46203) — 115 parça

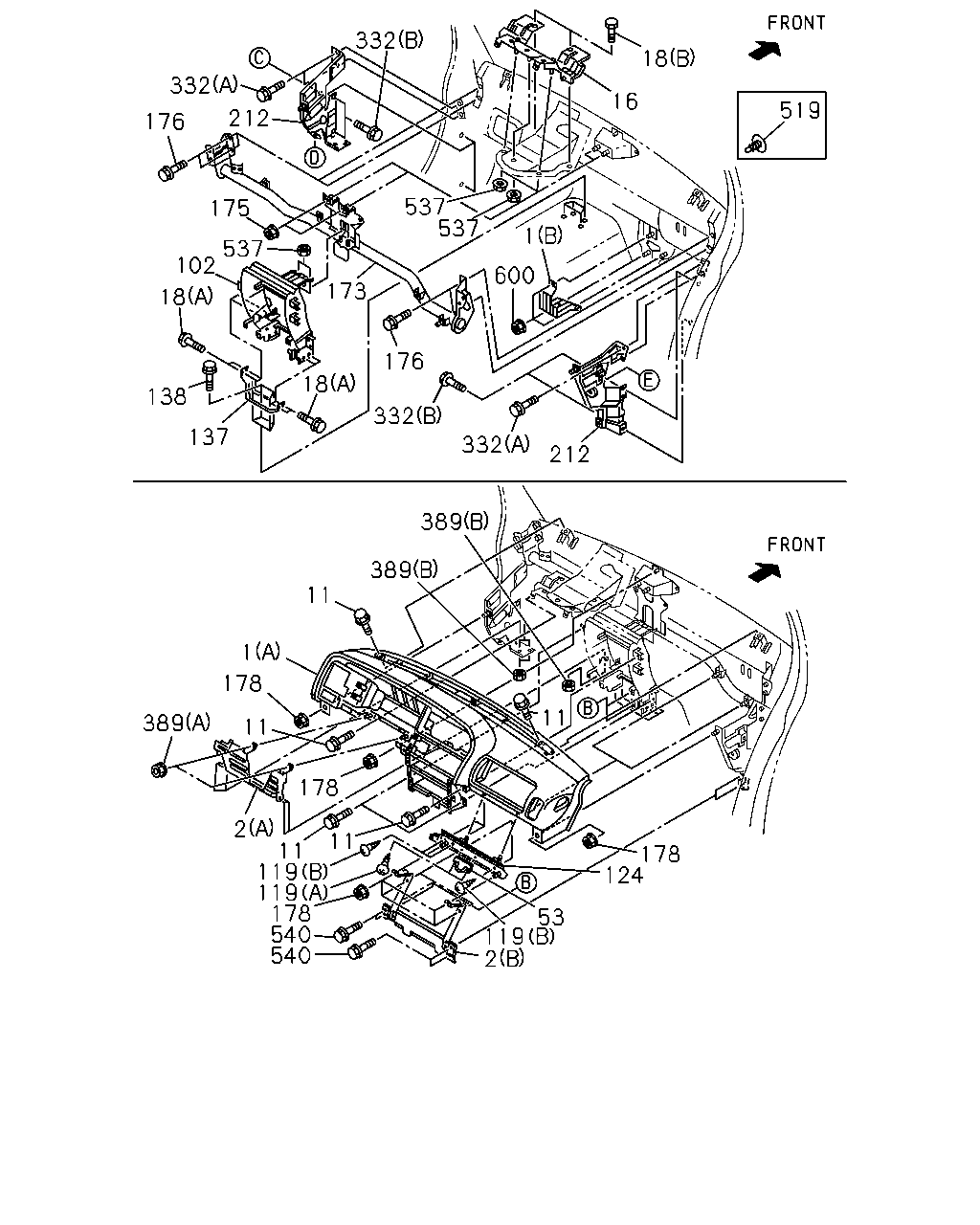

çizim 16635
537 537 332 18 332 212 16 519 176 175 537 102 18 1 173 600 18 176 138 332 137 332 212 389 11 389 11 1 178 389 11 178 2 11 11 119 119 178 540 540 178 124 53 119 2
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
(A) DARK GRAY 		8-97098-650-5 01 1 9708-9907
1 PANEL; INST
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97098-650-6 01 1 9908-
1 PANEL; INST
HEATER & DEFROSTER(C41) (B) 		8-97105-338-0 01 1 9708-9806
1 PANEL; INST
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97290-781-6 01 1 9908-
2 REINFORCEMENT; INST PNL,LWR
(A) 		8-97110-154-0 01 1 9708-
2 REINFORCEMENT; INST PNL,LWR
(B) 		8-97110-155-3 01 1 9708-
11 BOLT; INST PNL
M6X18 W/LK&PL WASHER 		8-97060-719-0 06 1 9708-
16 BRACKET; INST PNL 8-97110-158-1 01 1 9708-
18 BOLT; BRKT
(A) M6X12 W/LK WASHER 		0-50040-612-0 04 1 9708-
18 BOLT; BRKT
(B) M8X25 		8-94493-360-1 02 1 9708-
53 STRIKER; GLOVE BOX 8-97064-753-0 01 1 9708-
102 BRACKET; INST PANEL TO FLOOR 8-97110-153-2 01 1 9708-
119 SCREW; BRKT TO INST
(A),(B) M5X16 		9-09829-323-1 08 1 9708-9901
119 SCREW; BRKT TO INST
(A) M5X16 		9-09829-323-1 02 1 9902-
119 SCREW; BRKT TO INST
(B) M5X16 		9-09829-188-0 04 1 9902-
124 REINFORCEMENT; INST PNL,UPR 8-97080-122-3 01 1 9708-
137 BRACKET; INST PNL MTG 8-97115-363-0 01 1 9708-
138 BOLT; BRKT TO BODY
M6X16 W/LK&PL WASHER 		8-97086-823-0 06 1 9708-
173 BEAM ASM; CROSS,INST PANEL 8-97138-017-0 01 1 9708-
175 NUT; CROSS BEAM
M6 FLANGE 		8-97063-399-0 02 1 9708-
176 BOLT; CROSS BEAM
M6X14 W/PL WASHER 		8-94204-636-0 04 1 9708-
178 NUT; INST PANEL
M6 W/WASHER 		8-94170-192-0 07 1 9708-
212 BRACKET; INST PNL SIDE 8-97083-247-6 01 1 9708-
212 BRACKET; INST PNL SIDE 8-97083-246-5 01 1 9708-
332 BOLT; SIDE CLUSTER
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9708-9907
332 BOLT; SIDE CLUSTER
(A) 		8-94250-305-0 04 1 9908-0110
332 BOLT; SIDE CLUSTER
(B) M6X14 W/PL WASHER 		8-94204-636-0 04 1 9708-0110
332 BOLT; SIDE CLUSTER
(B) M6X14 W/PL WASHER 		8-94204-636-0 08 1 0111-
389 NUT; REINF
(A) M6 FLANGE 		0-91150-106-0 02 1 9708-
389 NUT; REINF
(B) M8 FLANGE 		0-91150-208-0 04 1 9708-
519 PLUG; DASH UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) OD=12 L=14.8 		8-94279-921-0 01 1 9708-9806
519 PLUG; DASH UPR
EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) OD=12 L=14.8 		8-94279-921-0 01 1 9908-
537 NUT; BRKT
M6 FLANGE 		8-97063-399-0 05 1 9708-
540 BOLT; REINFORCEMENT
M6X20 W/WASHER 		8-94112-987-1 04 1 9708-
600 NUT; PANEL
HEATER & DEFROSTER(C41) M6 FLANGE 		8-97063-399-0 03 1 9708-9806

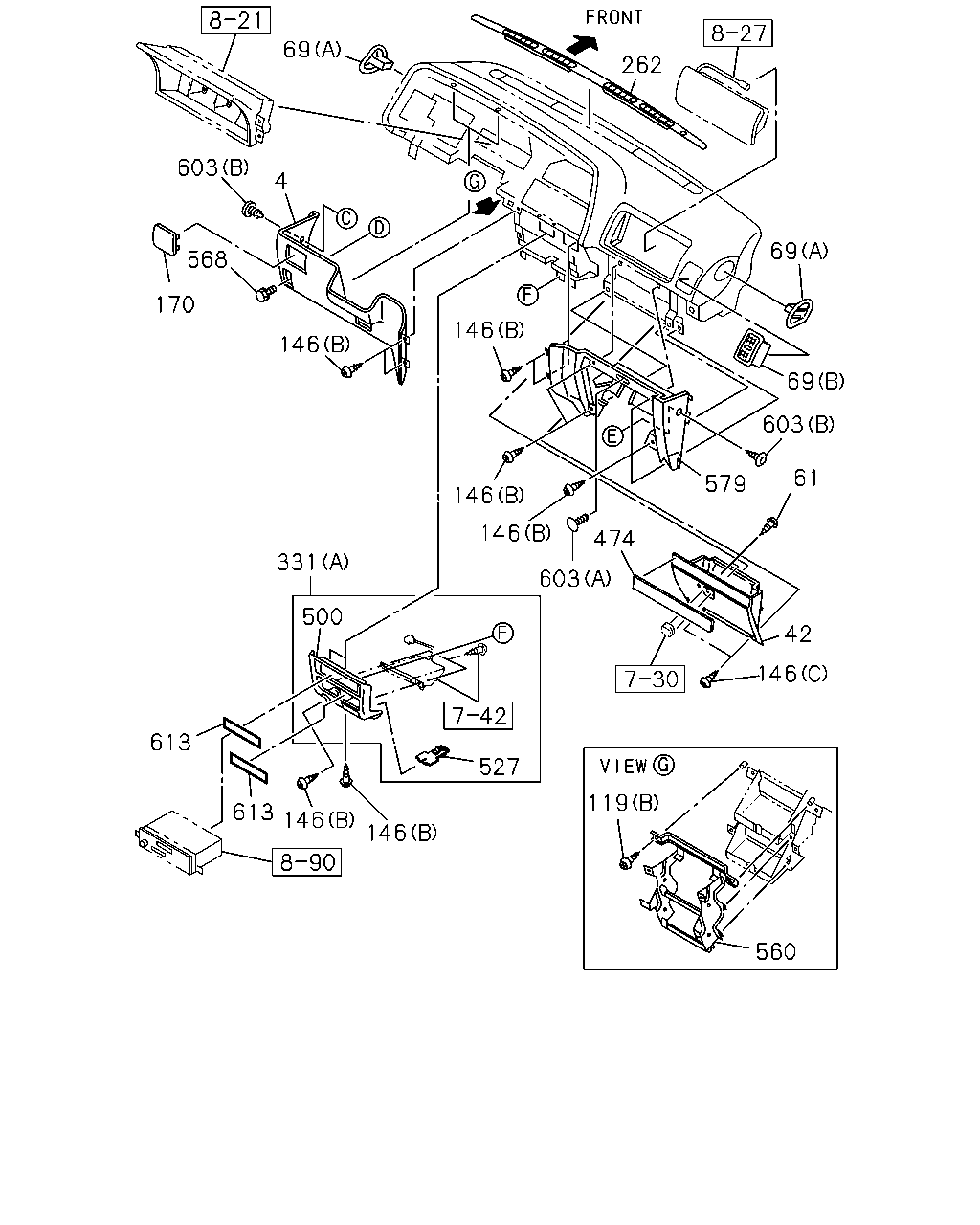

çizim 63859
69 262 603 4 69 568 170 146 146 69 603 61 579 146 474 146 331 603 500 42 146 613 527 119 613 146 146 560
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
DARK GRAY 		8-97098-308-6 01 1 9708-9907
4 COVER; INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-308-9 01 1 9908-
4 COVER; INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-559-9 01 1 9908-
42 BOX; GLOVE,INST PNL
DARK GRAY 		8-97098-844-6 01 1 9708-9907
42 BOX; GLOVE,INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-844-8 01 1 9908-0301
42 BOX; GLOVE,INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97395-747-0 01 1 0302-
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-587-8 01 1 9908-0301
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97395-748-0 01 1 0302-
61 SCREW; GLOVE BOX
M4X14 TAPPING 		8-97111-555-0 02 1 9708-
69 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97080-486-2 01 1 9708-
69 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97151-143-1 01 1 9708-9907
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97151-143-1 01 1 9908-0202
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-97313-410-0 01 1 0203-
69 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97151-142-1 01 1 9708-9907
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97151-142-1 01 1 9908-0202
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-97313-409-0 01 1 0203-
69 GRILLE; SIDE,AIR OUTLET
(C) 		8-97091-908-1 01 1 9708-
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97290-572-1 01 1 9908-0202
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97290-571-1 01 1 9908-0202
119 SCREW; BRKT TO INST
(A),(B) M5X16 		9-09829-323-1 08 1 9708-9901
119 SCREW; BRKT TO INST
(A) M5X16 		9-09829-323-1 02 1 9902-
119 SCREW; BRKT TO INST
(B) M5X16 		9-09829-188-0 04 1 9902-
146 SCREW; TAP
(C) M5X12 		0-74110-512-0 02 1 9708-
146 SCREW; TAP
(B) M5X14 		1-72548-072-0 12 1 9708-
146 SCREW; TAP
(D) M4X12 		9-09829-312-1 04 1 9708-
146 SCREW; TAP
(A) M5X12 		9-09829-321-1 05 1 9708-
170 COVER; HOLE
DARK GRAY 		8-97098-843-2 01 1 9708-9907
170 COVER; HOLE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-843-2 01 1 9908-
170 COVER; HOLE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-560-2 01 1 9908-
262 GRILLE; DEFROSTER
DARK GRAY 		8-97098-380-2 01 1 9708-9907
262 GRILLE; DEFROSTER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-380-2 01 1 9908-
262 GRILLE; DEFROSTER
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97290-568-2 01 1 9908-
331 CLUSTER; INST SIDE
(B) 		8-97160-266-1 01 1 9708-0202
331 CLUSTER; INST SIDE
EXC. WOOD GRAIN TRIM CLUSTER<BC1> (B) 		8-97160-266-1 01 1 0203-
331 CLUSTER; INST SIDE
(A) 		8-97165-355-1 01 1 9708-0202
331 CLUSTER; INST SIDE
EXC. WOOD GRAIN TRIM CLUSTER<BC1> (A) 		8-97165-355-2 01 1 0203-
331 CLUSTER; INST SIDE
WOOD GRAIN TRIM CLUSTER<BC1> (B) 		8-97263-486-3 01 1 0203-
331 CLUSTER; INST SIDE
WOOD GRAIN TRIM CLUSTER<BC1> (A) 		8-97263-488-3 01 1 0203-
474 PANEL ASM; ORNAMENT
WOOD GRAIN TRIM<7FB> 		8-97169-721-1 01 1 9708-0202
474 PANEL ASM; ORNAMENT
WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> 		8-97169-721-1 01 1 0203-
500 CLUSTER; INST CENTER 8-97160-270-1 01 1 9708-0202
500 CLUSTER; INST CENTER
EXC. WOOD GRAIN TRIM CLUSTER<BC1> 		8-97160-270-1 01 1 0203-
500 CLUSTER; INST CENTER
WOOD GRAIN TRIM CLUSTER<BC1> 		8-97287-988-2 01 1 0203-
527 CLIP; INST CLUSTER 8-97137-828-0 08 1 9708-
560 BRACKET 8-97080-119-1 01 1 9708-
568 BOLT; COVER
M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9708-9907
568 BOLT; COVER
M6X20 W/WASHER 		8-94112-987-1 01 1 9908-
579 COVER; INST PNL
DARK GRAY 		8-97154-461-1 01 1 9708-9907
579 COVER; INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97154-461-4 01 1 9908-
579 COVER; INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-561-4 01 1 9908-
603 CLIP; COVER
(A) OD=12 L=14.8 		8-94279-921-0 01 1 9708-
603 CLIP; COVER
(B) DARK GRAY 		8-97151-280-1 02 1 9708-9907
603 CLIP; COVER
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97151-280-1 02 1 9908-
603 CLIP; COVER
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-744-1 02 1 9908-
613 PANEL; WOOD
INST TRIM WOOD GRAIN<7HB> 		8-97135-972-1 02 1 9908-

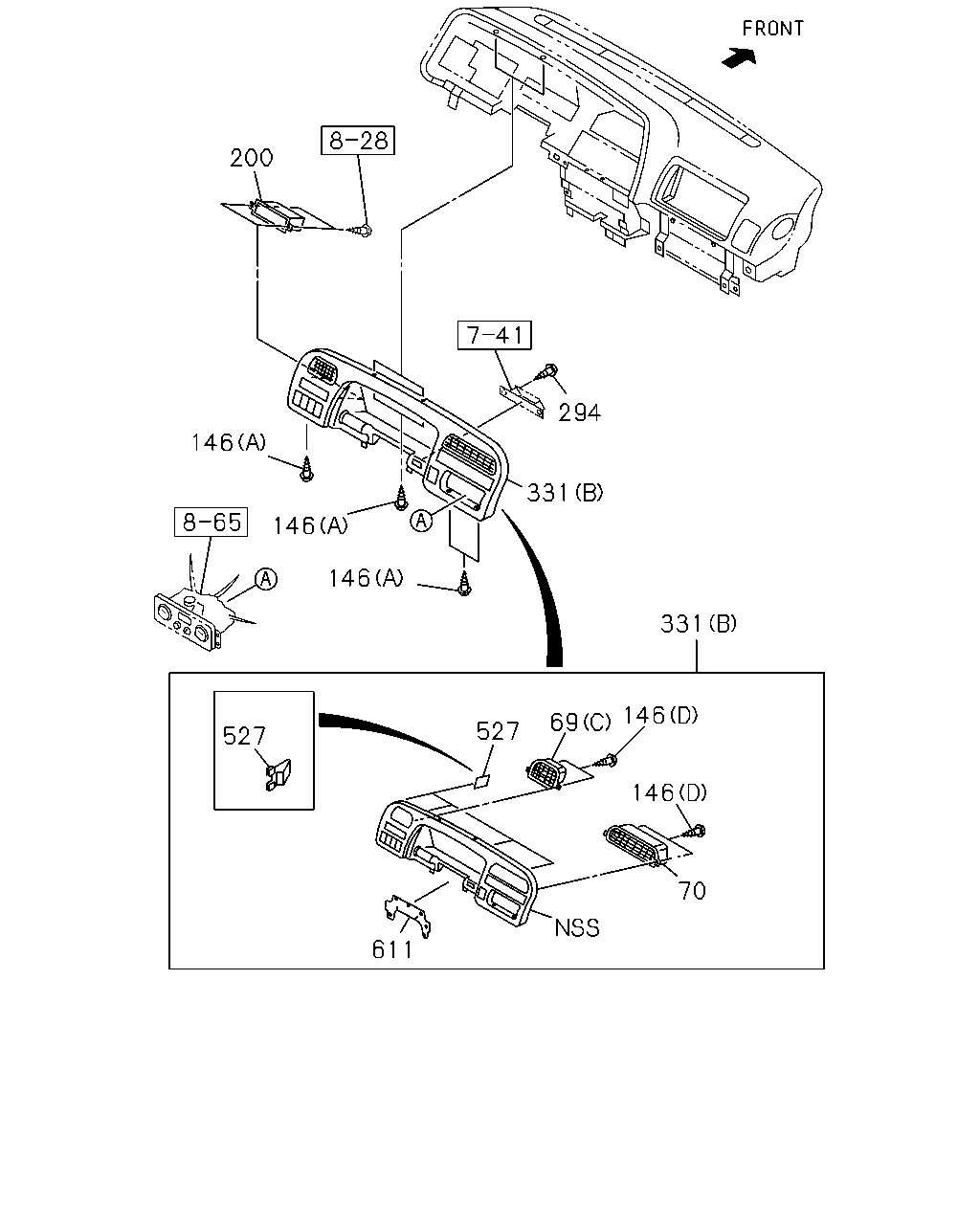

çizim 65109
200 294 146 331 146 146 331 146 69 527 527 146 70 611
BalonParca AdiParca NoAdetTipApplied Date
69 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97080-486-2 01 1 9708-
69 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97151-143-1 01 1 9708-9907
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97151-143-1 01 1 9908-0202
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-97313-410-0 01 1 0203-
69 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97151-142-1 01 1 9708-9907
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97151-142-1 01 1 9908-0202
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-97313-409-0 01 1 0203-
69 GRILLE; SIDE,AIR OUTLET
(C) 		8-97091-908-1 01 1 9708-
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97290-572-1 01 1 9908-0202
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97290-571-1 01 1 9908-0202
70 GRILLE; CENTER,AIR OUTLET
BLACK 		8-97091-909-2 01 1 9708-
146 SCREW; TAP
(C) M5X12 		0-74110-512-0 02 1 9708-
146 SCREW; TAP
(B) M5X14 		1-72548-072-0 12 1 9708-
146 SCREW; TAP
(D) M4X12 		9-09829-312-1 04 1 9708-
146 SCREW; TAP
(A) M5X12 		9-09829-321-1 05 1 9708-
200 BOX; CENTER CLUSTER
EXC. ANTI THEFT<UA6> 		8-97103-473-1 01 1 9708-9801
294 SCREW; BEZEL 0-74300-414-0 02 1 9708-
331 CLUSTER; INST SIDE
(B) 		8-97160-266-1 01 1 9708-0202
331 CLUSTER; INST SIDE
EXC. WOOD GRAIN TRIM CLUSTER<BC1> (B) 		8-97160-266-1 01 1 0203-
331 CLUSTER; INST SIDE
(A) 		8-97165-355-1 01 1 9708-0202
331 CLUSTER; INST SIDE
EXC. WOOD GRAIN TRIM CLUSTER<BC1> (A) 		8-97165-355-2 01 1 0203-
331 CLUSTER; INST SIDE
WOOD GRAIN TRIM CLUSTER<BC1> (B) 		8-97263-486-3 01 1 0203-
331 CLUSTER; INST SIDE
WOOD GRAIN TRIM CLUSTER<BC1> (A) 		8-97263-488-3 01 1 0203-
527 CLIP; INST CLUSTER 8-97137-828-0 08 1 9708-
611 SHEET 8-97103-470-1 01 1 9708-
