◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#4620) — 27 parça

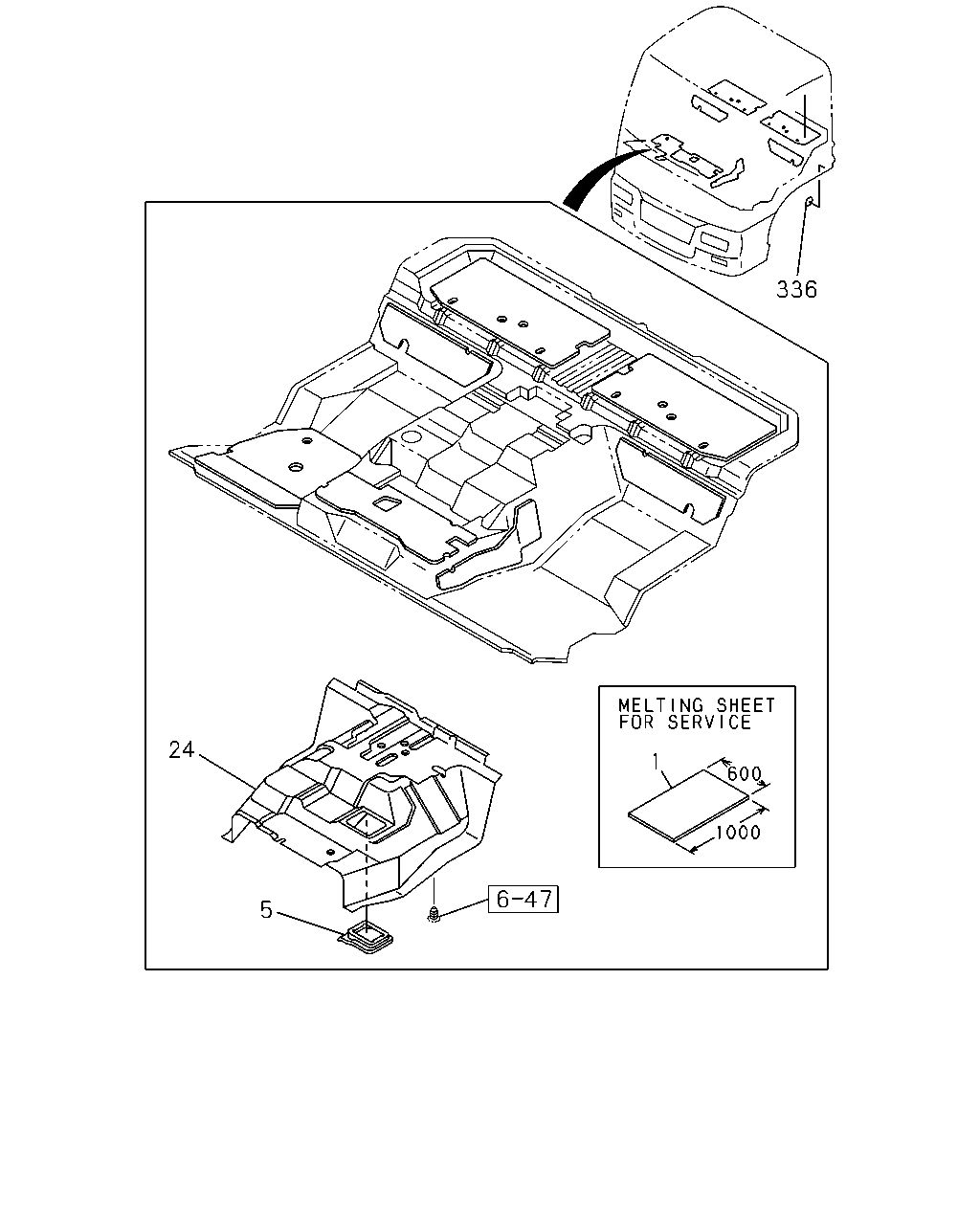

çizim 9272
336 24 1 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9603-
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 9603-
24 INSULATOR; HEAT,FRT 1-71907-373-5 01 1 9603-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9603-
336 SEAL; FLOOR SIDE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 01 1 9603-

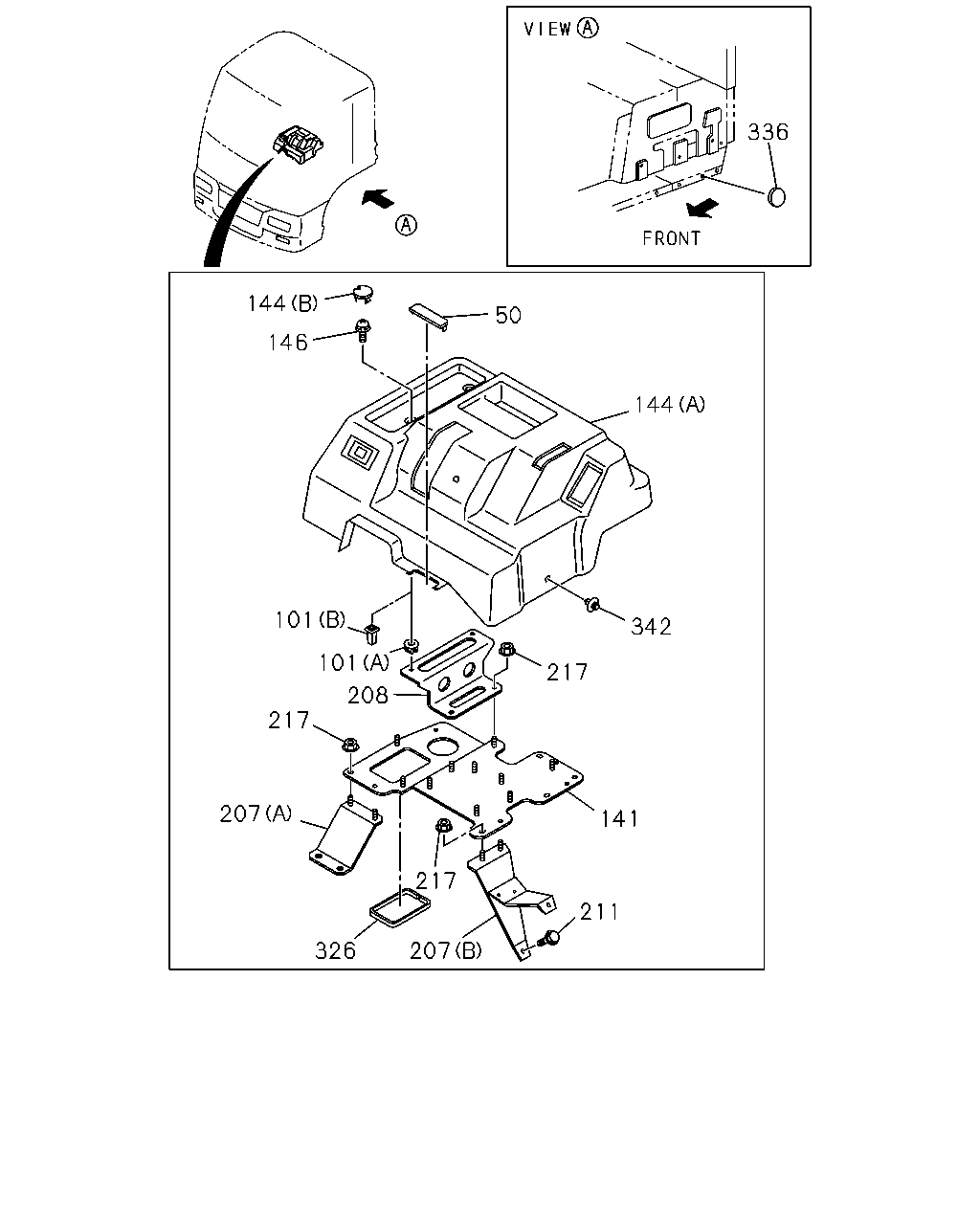

çizim 42908
336 144 50 146 144 101 342 101 217 208 217 207 141 217 211 326 207
BalonParca AdiParca NoAdetTipApplied Date
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 9603-
101 GROMMET; SCREW,FLOOR BOARD
(A) D=7X7 L=7.5 		5-09983-007-0 02 1 9603-
101 GROMMET; SCREW,FLOOR BOARD
(B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 01 1 9603-
141 HOLDER 1-79996-111-1 01 1 9603-9904
141 HOLDER 1-79996-438-0 01 1 9905-
144 COVER; HAND BRK VLV
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-319-2 01 1 9603-
144 COVER; HAND BRK VLV
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (B) 		1-72537-106-0 02 1 9603-9812
144 COVER; HAND BRK VLV
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (B) 		1-72538-166-0 02 1 9901-
144 COVER; HAND BRK VLV
DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-72417-317-2 01 1 9603-
146 BOLT; COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9603-9603
146 BOLT; COVER BRKT
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 9604-
207 BRACKET ASM; HAND BRAKE VALVE
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (A) 		1-79996-129-0 01 1 9603-
207 BRACKET ASM; HAND BRAKE VALVE
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (B) 		1-79996-130-0 01 1 9603-
208 BRACKET ASM; COVER & BRK VLV 1-79996-347-0 01 1 9603-
211 BOLT; COVER
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603-
211 BOLT; COVER
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9603-
211 BOLT; COVER
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9603-
217 NUT
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8 FLANGE 		0-91150-108-0 06 1 9603-
326 SEAL; COVER
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) 		1-79996-132-0 01 1 9603-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9603-
336 SEAL; FLOOR SIDE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 01 1 9603-
342 FASTENER
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) D8X13.5 		1-09987-248-1 01 1 9603-
