7-01 — EMBLEM AND NAME PLATE (#46199) — 13 parça

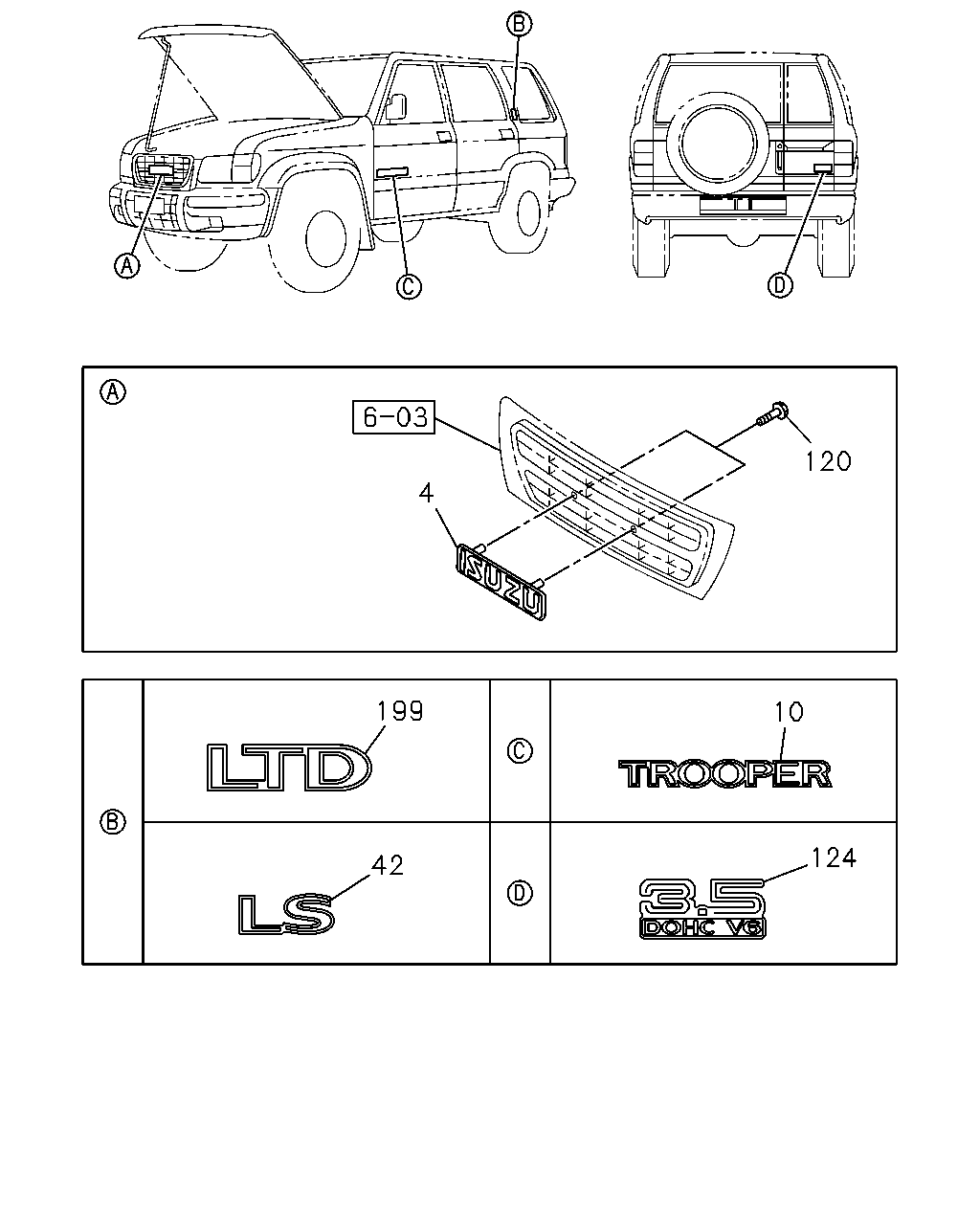

çizim 64173
120 4 199 10 124 42
BalonParca AdiParca NoAdetTipApplied Date A B C
4 EMBLEM; RAD GRILLE 8-97178-944-0 01 1 9708-9806 ● ● ●
4 EMBLEM; RAD GRILLE
EXC. GOLD PACKAGE<6MU> 		8-97178-944-0 01 1 9807-9907 ● ●
4 EMBLEM; RAD GRILLE
EXC. GOLD PACKAGE<6MU> SILVER 		8-97126-635-0 01 1 9908- ● ●
4 EMBLEM; RAD GRILLE
GOLD PACKAGE<6MU> 		8-97211-704-0 01 1 9807-9907 ● ●
4 EMBLEM; RAD GRILLE
GOLD PACKAGE<6MU> GOLD 		8-97210-921-0 01 1 9908- ● ●
10 EMBLEM; DOOR 8-97805-218-2 02 1 9807-9907 ● ● ●
10 EMBLEM; DOOR 8-97805-218-2 02 1 9908- ● ●
42 DECAL; RR QUARTER 8-97805-215-2 02 1 9807- ●
120 SCREW; MARK
M4X16 		8-94380-268-0 02 1 9708-9806 ● ● ●
120 SCREW; MARK
M4X16 		8-94380-268-0 02 1 9807-9907 ● ●
124 PLATE; NAME 8-97162-887-1 01 1 9807-9907 ● ● ●
124 PLATE; NAME 8-97162-887-1 01 1 9908- ● ●
199 EMBLEM; "LTD" 8-97806-006-1 02 1 9802- ●
