◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-87 - TRUNK ROOM PACKAGE AND REAR PARCEL ▶
6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#46197) — 76 parça
çizim 15850
123 18 148
BalonParca AdiParca NoAdetTipApplied Date
18 LID; LUGGAGE SIDE POCKET
DARK GRAY 		8-97098-438-1 01 1 9708-9907
18 LID; LUGGAGE SIDE POCKET
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-438-1 01 1 9908-
18 LID; LUGGAGE SIDE POCKET
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-622-1 01 1 9908-
123 SEAL; REAR
(C) 		8-97135-087-0 04 1 9708-
123 SEAL; REAR
(A) 		8-97805-793-2 02 1 9708-
123 SEAL; REAR
(B) 		8-97805-794-2 01 1 9708-
148 PAD; CUSHION,JACK & TOOL 8-97111-186-0 01 1 9708-

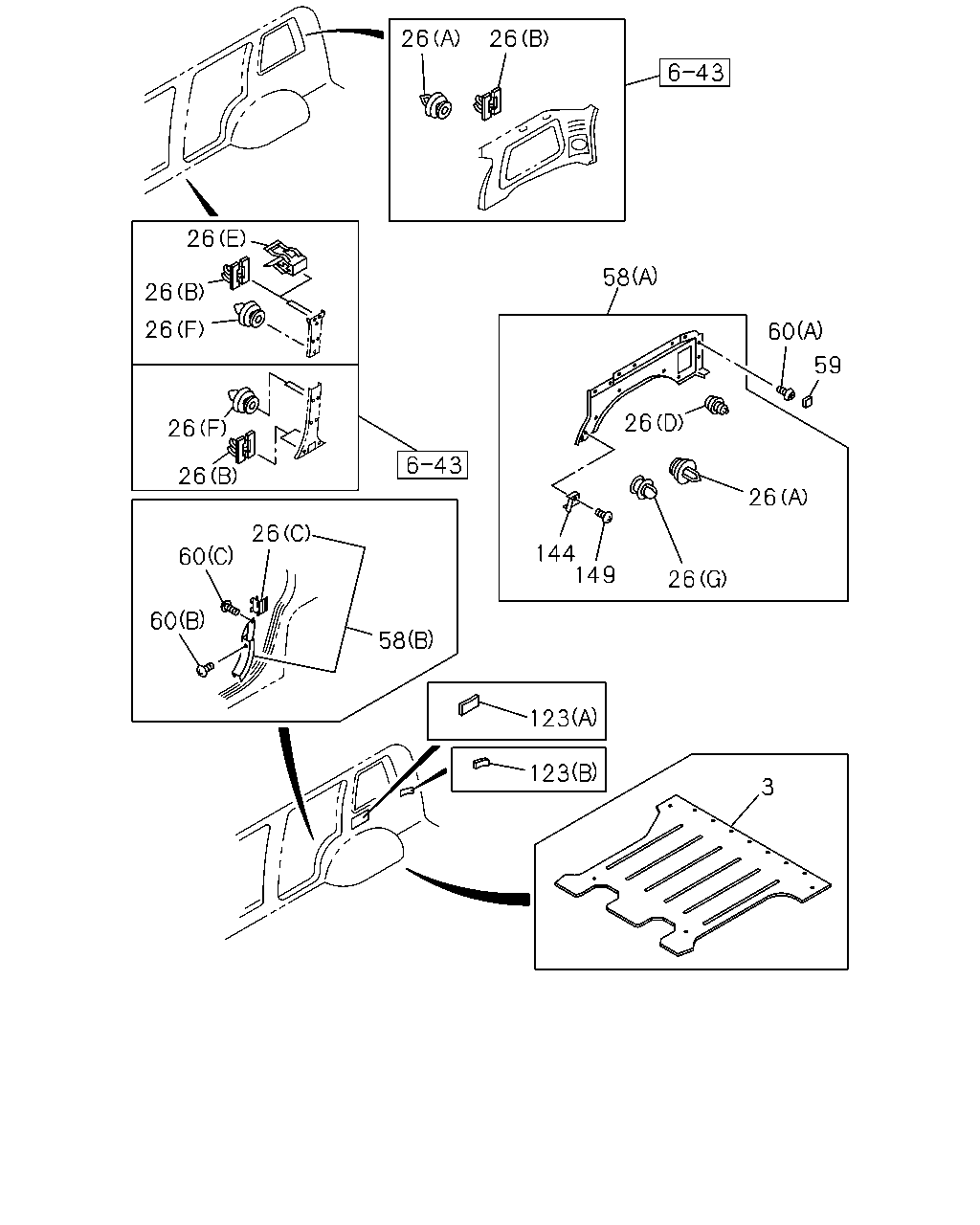

çizim 64020
26 26 26 58 26 26 60 59 26 26 26 26 26 144 149 60 26 60 58 123 123 3
BalonParca AdiParca NoAdetTipApplied Date
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR BEIGE(181) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-535-2 01 1 9908-0202
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) EXC. LUGGAGE COVER W/RAIL<6WG> LIGHT BEIGE 		8-97290-537-1 01 1 9908-0202
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-537-1 01 1 0203-0210
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97395-030-0 01 1 0211-
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR BEIGE(181) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> LIGHT BEIGE 		8-97290-536-1 01 1 9908-0202
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR BEIGE(181) EXC. 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-536-1 01 1 0203-0210
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR BEIGE(181) EXC. 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97395-028-0 01 1 0211-
3 MAT; LUGGAGE FLOOR
LUGGAGE COVER W/RAIL<6WG> DARK GRAY 		8-97098-349-2 01 1 9708-9801
3 MAT; LUGGAGE FLOOR
LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-349-2 01 1 9802-9907
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR MEDIUM GRAY(113) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-349-2 01 1 9908-0202
3 MAT; LUGGAGE FLOOR
EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY 		8-97098-351-1 01 1 9708-9801
3 MAT; LUGGAGE FLOOR
EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK GRAY 		8-97098-351-1 01 1 9802-9907
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK GRAY 		8-97098-351-1 01 1 9908-0202
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97098-351-1 01 1 0203-0210
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97395-027-0 01 1 0211-
3 MAT; LUGGAGE FLOOR
3RD SEAT 7 PASSENGERS(AS3) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY 		8-97151-265-1 01 1 9802-9907
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY 		8-97151-265-1 01 1 9908-0202
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-265-1 01 1 0203-0210
3 MAT; LUGGAGE FLOOR
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97395-029-0 01 1 0211-
26 CLIP; TRIM COVER
(B) 		8-94313-458-0 04 1 9708-
26 CLIP; TRIM COVER
(B) 		8-94313-458-0 04 1 9708-
26 CLIP; TRIM COVER
(C) 		8-94365-771-0 02 1 9708-
26 CLIP; TRIM COVER
(D) H=19.1 		8-94385-553-0 05 1 9708-9711
26 CLIP; TRIM COVER
(D) H=19.1 		8-94385-553-0 03 1 9712-
26 CLIP; TRIM COVER
(A) H=16.7 		8-97022-017-0 22 1 9708-0005
26 CLIP; TRIM COVER
(A) H=16.7 		8-97022-017-0 22 1 0006-
26 CLIP; TRIM COVER
(A) H=16.7 		8-97022-017-0 16 1 9708-9711
26 CLIP; TRIM COVER
(A) H=16.7 		8-97022-017-0 07 1 9712-
26 CLIP; TRIM COVER
(F) H=15.3 		8-97804-778-0 06 1 9708-
26 CLIP; TRIM COVER
(G) H=11.2 		8-97807-381-0 02 1 9708-0005
26 CLIP; TRIM COVER
(G) H=11.2 		8-97807-381-0 01 1 0006-0202
26 CLIP; TRIM COVER
(G) H=11.2 		8-97807-381-0 01 1 0203-
26 CLIP; TRIM COVER
(G) H=11.2 		8-97807-381-0 01 1 0203-
26 CLIP; TRIM COVER
(D) H=19.1 		8-94385-553-0 02 1 9712-
26 CLIP; TRIM COVER
(A) H=16.7 		8-97022-017-0 09 1 9712-
26 CLIP; TRIM COVER
(E) 		8-97808-609-0 04 1 9908-
58 COVER; TRIM,LUGGAGE SIDE
(B) DARK GRAY 		8-97098-361-7 01 1 9708-9907
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97098-361-8 01 1 9908-
58 COVER; TRIM,LUGGAGE SIDE
(A) DARK GRAY 		8-97098-419-2 01 1 9708-9801
58 COVER; TRIM,LUGGAGE SIDE
EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY 		8-97098-419-3 01 1 9802-9907
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR MEDIUM GRAY(113) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY 		8-97098-419-4 01 1 9908-0202
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR MEDIUM GRAY(113) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY 		8-97151-333-3 01 1 0203-
58 COVER; TRIM,LUGGAGE SIDE
(B) DARK GRAY 		8-97098-360-7 01 1 9708-9907
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97098-360-8 01 1 9908-
58 COVER; TRIM,LUGGAGE SIDE
(A) DARK GRAY 		8-97151-934-1 01 1 9708-9907
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97151-934-2 01 1 9908-
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-547-8 01 1 9908-
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-546-8 01 1 9908-
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE 		8-97290-620-2 01 1 9908-
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) (A) LIGHT BEIGE 		8-97290-619-4 01 1 9908-0202
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) (A) LIGHT BEIGE 		8-97291-374-3 01 1 0203-
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR BEIGE(181) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) LIGHT BEIGE 		8-97290-618-4 01 1 9908-0202
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR BEIGE(181) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) LIGHT BEIGE 		8-97291-531-3 01 1 0203-
58 COVER; TRIM,LUGGAGE SIDE
3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY 		8-97151-335-3 01 1 9802-9907
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY 		8-97151-335-4 01 1 9908-0202
58 COVER; TRIM,LUGGAGE SIDE
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY 		8-97151-334-3 01 1 0203-
59 CAP; TRIM COVER
DARK GRAY 		8-97098-423-2 04 1 9708-9907
59 CAP; TRIM COVER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-423-2 04 1 9908-
59 CAP; TRIM COVER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-621-2 04 1 9908-
60 SCREW; LUGGAGE SIDE TRIM
(C) M4X16 		0-70580-416-0 02 1 9708-
60 SCREW; LUGGAGE SIDE TRIM
(A) M7X20 		8-94242-874-0 04 1 9708-
60 SCREW; LUGGAGE SIDE TRIM
(B) M5X16 		8-94295-854-0 02 1 9708-
123 SEAL; REAR
(C) 		8-97135-087-0 04 1 9708-
123 SEAL; REAR
(A) 		8-97805-793-2 02 1 9708-
123 SEAL; REAR
(B) 		8-97805-794-2 01 1 9708-
144 BRACKET 8-97807-629-0 01 1 9708-
144 BRACKET 8-97807-628-0 01 1 9708-
149 SCREW; BRKT
M4X8 		9-07076-408-0 04 1 9708-0005
149 SCREW; BRKT
M4X8 		9-07076-408-0 02 1 0006-
