Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-86 - TRUNK OPENER AND FUEL LID
▶

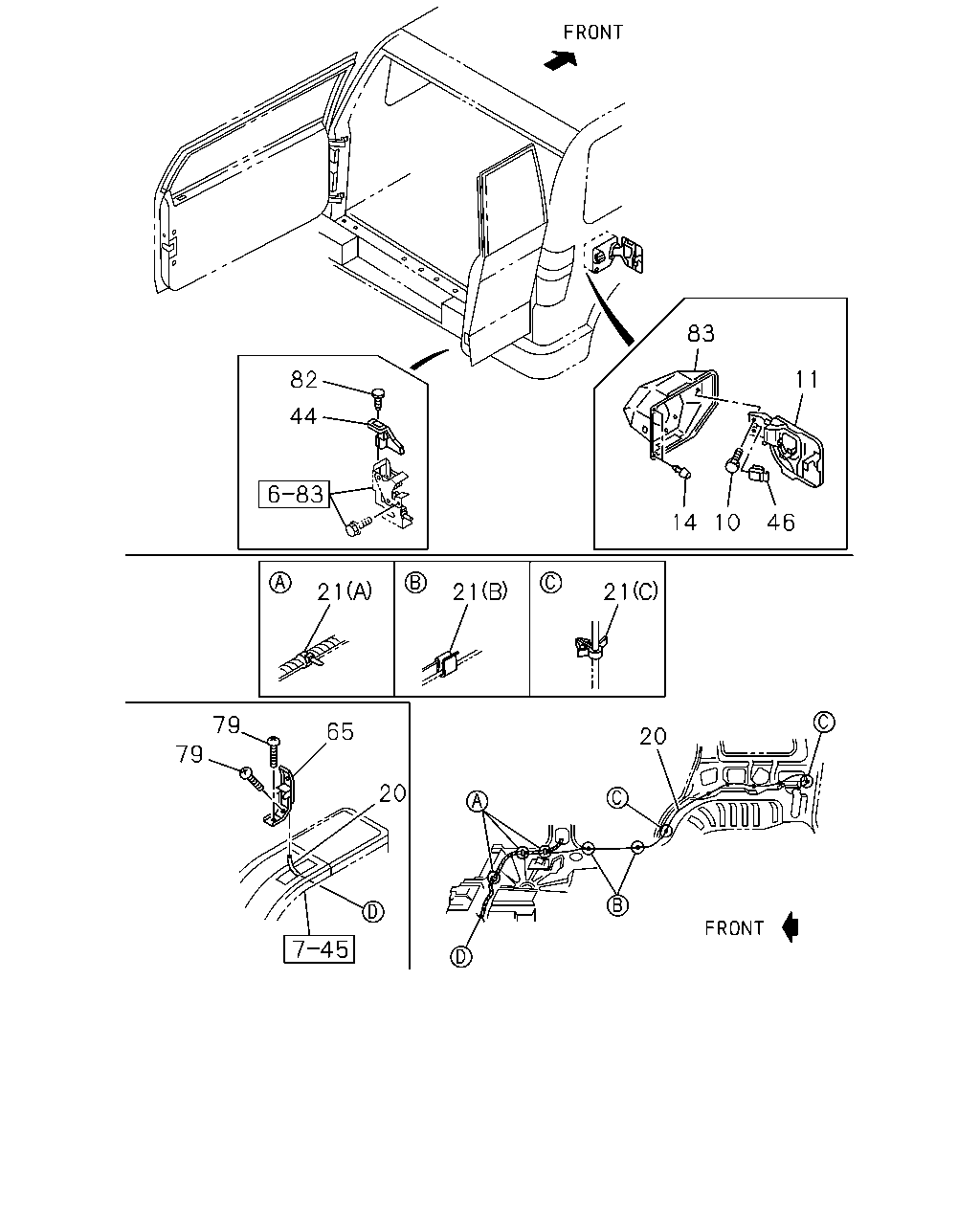

6-86 — TRUNK OPENER AND FUEL LID
(#46196) — 15 parça
83
11
82
44
10
46
14
21
21
21
79
65
20
79
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
BOLT; FUEL FILLER LID
M6X20 FLANGE
0-28680-620-0
02
1
9708-
11
LID; FUEL
8-94358-634-5
01
1
9708-
14
CUSHION; RUBBER,FUEL LID
8-94466-607-0
02
1
9708-
20
CABLE; TRUNK LID & FUEL FILLER
8-97811-376-0
01
1
9708-0002
20
CABLE; TRUNK LID & FUEL FILLER
8-97256-541-0
01
1
0003-
21
CLIP; CABLE,TAIL GATE
(A) L=140
5-09707-031-1
03
1
9708-
21
CLIP; CABLE,TAIL GATE
(B) B=8.4 H=16 CR-PLATED
8-94116-002-3
02
1
9708-
21
CLIP; CABLE,TAIL GATE
(C) ID=6
8-94417-625-0
02
1
9708-
44
COVER; LK CYL
8-97163-766-0
01
1
9708-
46
SPRING; FUEL FILLER DOOR
8-97811-383-0
01
1
9708-
65
KNOB; FUEL FILLER DOOR
BLACK
8-97817-143-2
01
1
9708-
79
SCREW; LEVER TO ROCKER PNL
M5X16
8-94295-854-0
02
1
9708-
82
CLIP; COVER
BLACK
8-94259-671-0
01
1
9708-0112
82
CLIP; COVER
OD=12 L=14.8
8-94279-921-0
01
1
0201-
83
RECESS; FILLER NECK
8-97164-304-0
01
1
9708-
