◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#46195) — 30 parça

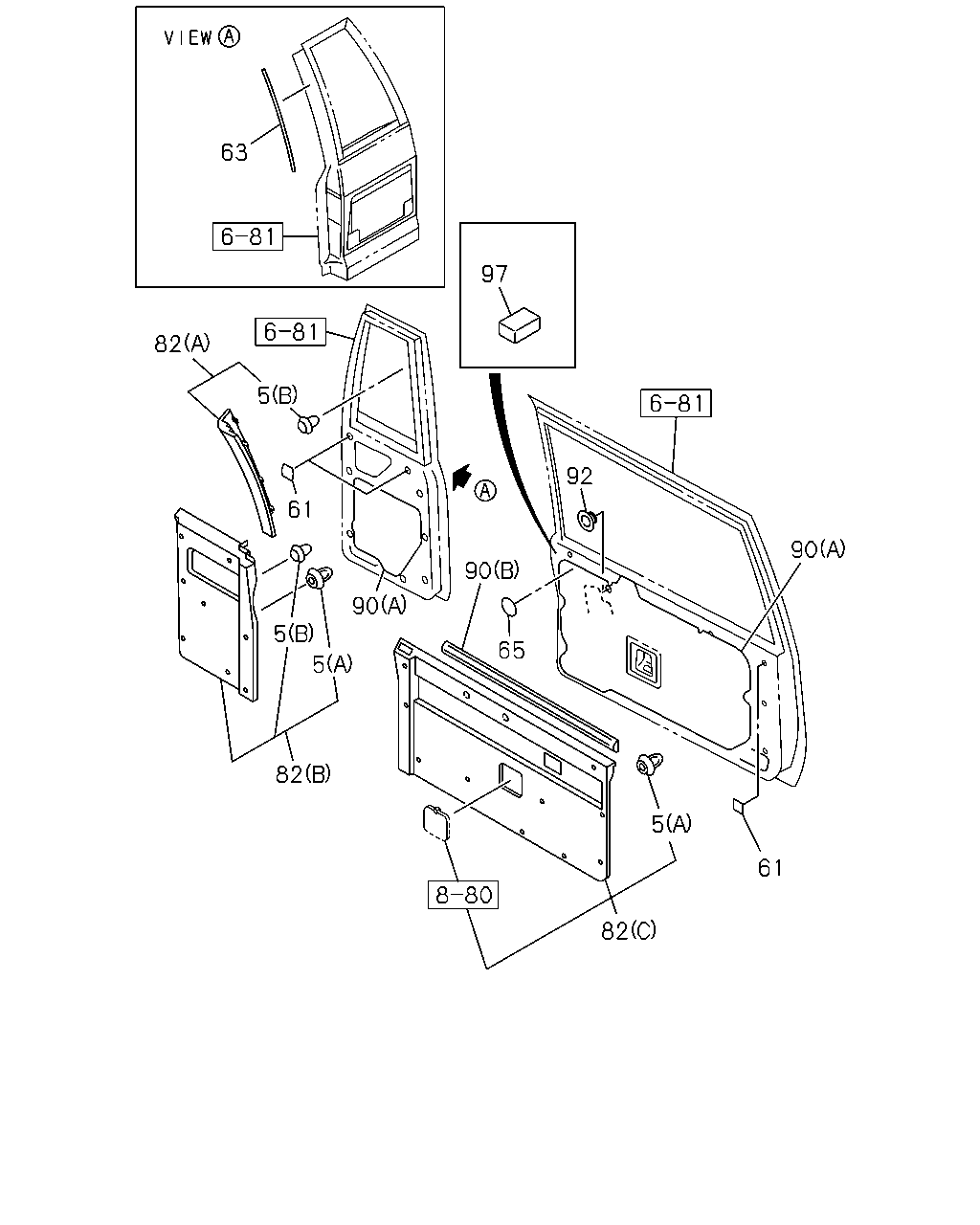

çizim 65263
63 97 82 5 92 61 90 90 90 5 65 5 82 5 61 82
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; BACK DOOR TRIM
(A) H=16.7 		8-97022-017-0 18 1 9708- ● ● ●
5 CLIP; BACK DOOR TRIM
(B) 		8-97804-705-0 06 1 9708- ● ● ●
61 SEAL; BACK DOOR,UPR
OD=45 BLACK 		1-76798-017-0 03 1 9708- ● ● ●
63 SEAL; BACK DOOR,CENTER 8-97811-274-0 01 1 9708- ● ● ●
65 SEAL; BACK DOOR,LWR
OD=16 		8-94111-207-1 01 1 9708- ● ● ●
82 COVER; TRIM,BACK DOOR
(A) DARK GRAY 		8-97098-475-2 01 1 9708-9907 ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97098-475-3 01 1 9908- ● ● ●
82 COVER; TRIM,BACK DOOR
(C) DARK GRAY 		8-97098-474-3 01 1 9708-9801 ● ● ●
82 COVER; TRIM,BACK DOOR
EXC. 3RD SEAT 7 PASSENGERS(AS3) (C) DARK GRAY 		8-97098-474-4 01 1 9802-9907 ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. 3RD SEAT 7 PASSENGERS(AS3) (C) DARK GRAY 		8-97098-474-5 01 1 9908-0202 ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR MEDIUM GRAY(113) (C) DARK GRAY 		8-97098-474-5 01 1 0203- ● ● ●
82 COVER; TRIM,BACK DOOR
(B) DARK GRAY 		8-97098-473-7 01 1 9708-9907 ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97098-473-8 01 1 9908- ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE 		8-97290-676-3 01 1 9908- ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-674-8 01 1 9908- ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) (C) LIGHT BEIGE 		8-97293-271-1 01 1 9908-0202 ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(181) EXC. 3RD SEAT 7 PASSENGERS(AS3) (C) LIGHT BEIGE 		8-97290-675-5 01 1 9908-0202 ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(181) (C) LIGHT BEIGE 		8-97290-675-5 01 1 0203- ● ● ●
82 COVER; TRIM,BACK DOOR
3RD SEAT 7 PASSENGERS(AS3) (C) DARK GRAY 		8-97151-353-9 01 1 9802-9907 ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) (C) DARK GRAY 		8-97293-270-1 01 1 9908-0202 ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
(B) 		8-97811-164-0 01 1 9708- ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
(A) 		8-97804-702-1 01 1 9708- ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97809-612-3 01 1 9708-9801 ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) 		8-97809-612-3 01 1 9802-0202 ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
(A) 		8-97809-612-3 01 1 0203- ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
EXC. RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97809-617-2 01 1 9708-9801 ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
3RD SEAT 7 PASSENGERS(AS3) (A) 		8-97804-703-5 01 1 9802-0202 ● ● ●
92 PROTECTOR; BACK DOOR EDGE
AUTO DOOR LOCK<AU4> 		8-94340-075-0 01 1 9708-9801 ● ● ●
92 PROTECTOR; BACK DOOR EDGE 8-94340-075-0 01 1 9802- ● ● ●
97 CUSHION 8-97809-154-1 01 1 9708- ● ● ●
