◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-82 - BACK GLASS AND WEATHERSTRIP ▶
6-82 — BACK GLASS AND WEATHERSTRIP (#46193) — 19 parça

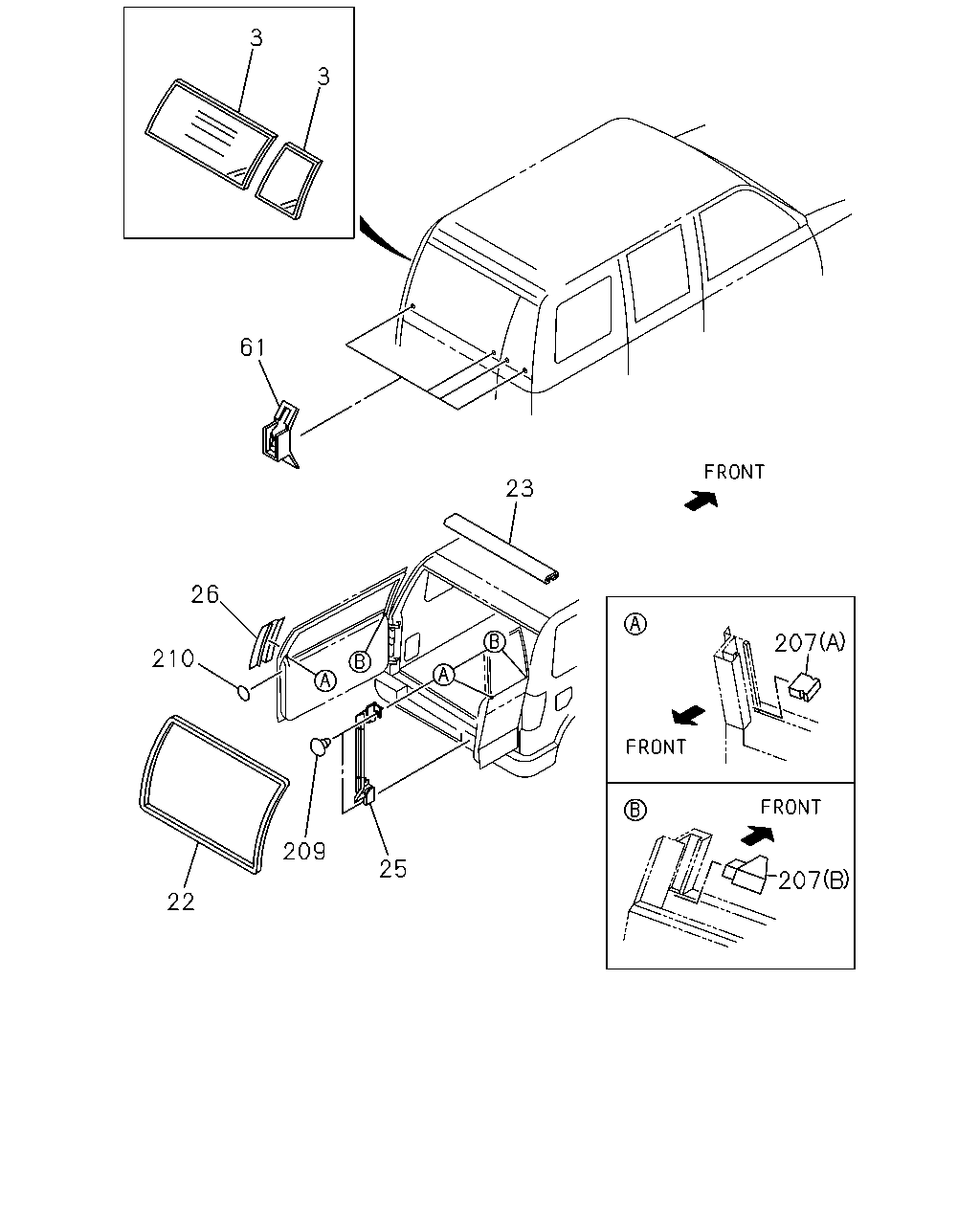

çizim 16859
3 3 61 23 26 207 210 209 25 207 22
BalonParca AdiParca NoAdetTipApplied Date
3 GLASS; BACK DOOR WINDOW
LAMINATED TINTED GLASS(YM4) 		8-97121-770-1 01 1 9708-9801
3 GLASS; BACK DOOR WINDOW
LAMINATED TINTED GLASS(YM4) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> 		8-97121-776-1 01 1 9708-9801
3 GLASS; BACK DOOR WINDOW
PRIVACY GLASS(S3Y) 		8-97810-998-1 01 1 9708-9801
3 GLASS; BACK DOOR WINDOW 8-97810-998-1 01 1 9802-0202
3 GLASS; BACK DOOR WINDOW 8-97263-696-1 01 1 0203-
3 GLASS; BACK DOOR WINDOW
PRIVACY GLASS(S3Y) RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> 		8-97811-033-1 01 1 9708-9801
3 GLASS; BACK DOOR WINDOW 8-97811-033-1 01 1 9802-0202
3 GLASS; BACK DOOR WINDOW 8-97263-698-1 01 1 0203-
3 GLASS; BACK DOOR WINDOW
RR DEFOGGER W/AUTO CANCEL<S4Y> LAMINATED TINTED GLASS(YM4) RR WIPER W/INTERMITTENT<6WJ> 		8-97130-207-1 01 1 9708-9801
22 WEATHERSTRIP; BACK DOOR 8-94358-611-3 01 1 9708-
23 WEATHERSTRIP; BACK DOOR OUTER UPR 8-97174-086-0 01 1 9708-
25 WEATHERSTRIP; BACK DOOR CTR 8-94358-612-5 01 1 9708-9907
25 WEATHERSTRIP; BACK DOOR CTR 8-97233-271-1 01 1 9908-
26 WEATHERSTRIP; BACK DOOR OUTER CTR 8-97804-786-1 01 1 9708-
61 CLIP; GLASS 8-97801-234-1 04 1 9708-
207 SEAL; BACK DOOR
(B) 		8-97806-556-1 02 1 9708-
207 SEAL; BACK DOOR
(A) 		8-97806-557-1 02 1 9708-
209 CLIP; WEATHERSTRIP 8-97807-338-0 02 1 9708-
210 REFLECTOR; DOOR SEAL 8-97808-650-0 01 1 9708-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
