Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-81 - BACK DOOR AND HINGE
▶

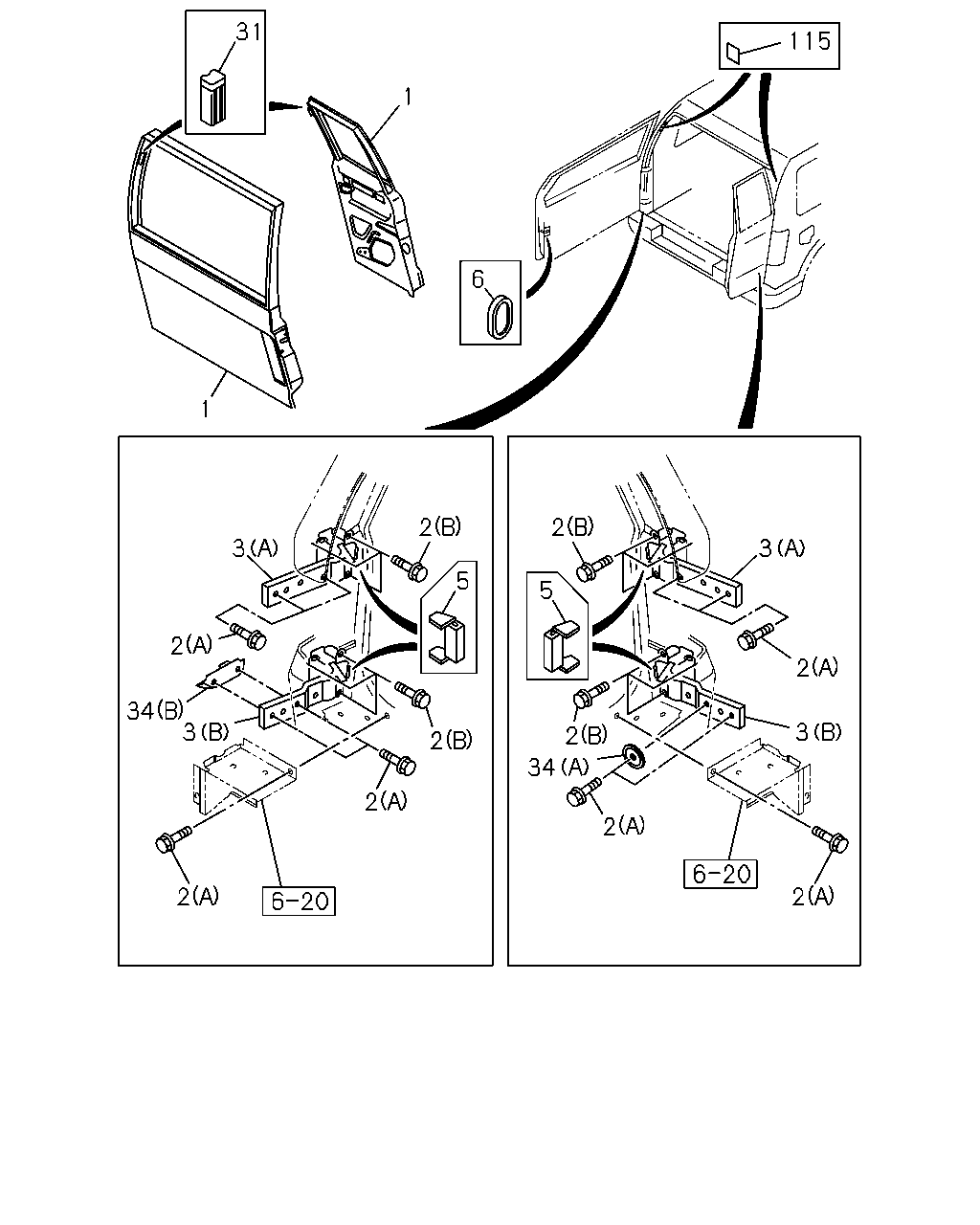

6-81 — BACK DOOR AND HINGE
(#46192) — 17 parça
31
115
1
6
1
2
2
3
3
5
5
2
2
2
34
34
3
3
2
2
2
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; BACK
8-97183-085-0
01
1
9708-0301
1
DOOR ASM; BACK
8-97183-085-0
01
1
0302-
1
DOOR ASM; BACK
8-97184-464-0
01
1
9708-0011
1
DOOR ASM; BACK
8-97263-707-0
01
1
0012-
2
BOLT; HINGE TO BODY,BACK DOOR
(B) M8X23 FLANGE
8-94174-559-2
12
1
9708-
2
BOLT; HINGE TO BODY,BACK DOOR
(A) M8X30
8-97035-384-0
10
1
9708-
3
HINGE; BACK DOOR
(B)
8-97129-336-0
01
1
9708-
3
HINGE; BACK DOOR
(A)
8-97811-385-0
01
1
9708-
3
HINGE; BACK DOOR
(A)
8-97811-384-0
01
1
9708-
3
HINGE; BACK DOOR
(B)
8-97811-386-0
01
1
9708-
5
SEAT; RUBBER,DOOR HINGE
8-97809-623-1
04
1
9708-
6
SEAL; BACK DOOR HINGE
3RD SEAT 7 PASSENGERS(AS3)
8-94355-937-0
01
1
9802-9907
6
SEAL; BACK DOOR HINGE
HANDLE BACK DOOR INNER<S2A>
8-94355-937-0
01
1
9908-0202
31
BUFFER; BACK DOOR
8-97808-519-1
02
1
9708-
34
SPACER; DOOR HINGE
(B)
8-97808-701-0
01
1
9708-
34
SPACER; DOOR HINGE
(A)
8-97134-959-0
01
1
9708-
115
TAPE; PROTECTION
8-97809-445-1
02
1
9708-
