Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶
6-76 — FLOOR EQUIPMENT AND SEALING
(#46190) — 33 parça
◀

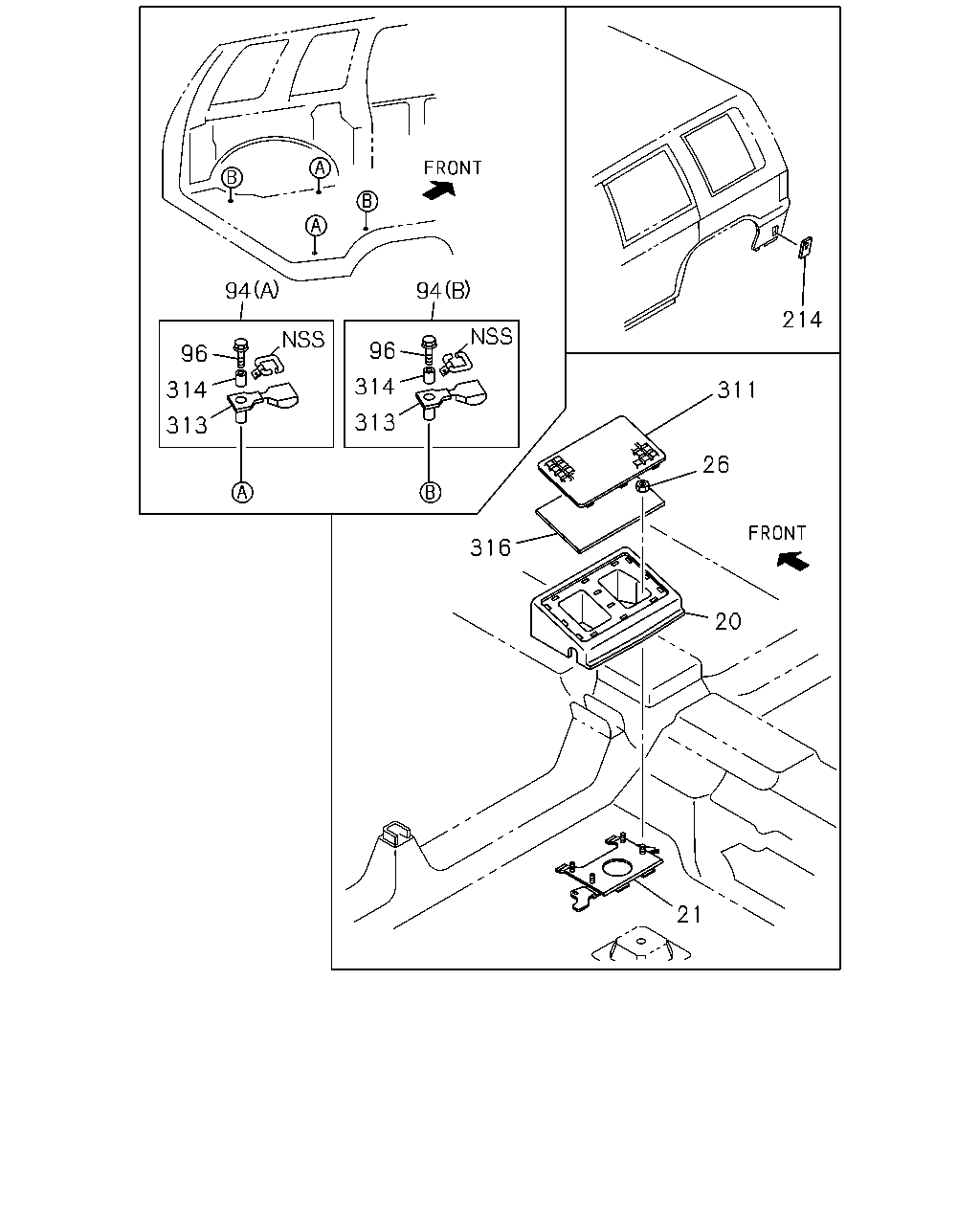

[676A] NO.1 (30 parça)
[676A] NO.2 (3 parça)
▶
94
94
214
96
96
314
314
311
313
313
26
316
20
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
REST; FOOT
RR FOOT REST<6WM> BLACK
8-97151-275-0
01
1
9708-9806
20
REST; FOOT
BLACK
8-97151-275-0
01
1
9807-0202
20
REST; FOOT
RR FOOT REST<6WM> BLACK
8-97151-274-0
01
1
9708-9806
20
REST; FOOT
BLACK
8-97151-274-0
01
1
9807-0202
21
BRACKET; FOOT REST
RR FOOT REST<6WM>
8-97111-183-0
01
1
9708-9806
21
BRACKET; FOOT REST
8-97111-183-0
01
1
9807-0202
21
BRACKET; FOOT REST
RR FOOT REST<6WM> EXC. TORQUE ON DEMAND<7HA>
8-97111-182-0
01
1
9708-9806
21
BRACKET; FOOT REST
EXC. TORQUE ON DEMAND<7HA>
8-97111-182-0
01
1
9807-0202
21
BRACKET; FOOT REST
TORQUE ON DEMAND<7HA> RR FOOT REST<6WM>
8-97113-166-0
01
1
9708-9806
21
BRACKET; FOOT REST
TORQUE ON DEMAND<7HA>
8-97113-166-0
01
1
9807-0202
21
BRACKET; FOOT REST
TORQUE ON DEMAND<7HA>
8-97161-000-1
01
1
0203-
21
BRACKET; FOOT REST
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM>
8-97161-000-0
01
1
9708-9806
26
NUT; FLANGE
RR FOOT REST<6WM> M6 FLANGE
0-91150-106-0
04
1
9708-9806
26
NUT; FLANGE
M6 FLANGE
0-91150-106-0
04
1
9807-0202
26
NUT; FLANGE
TORQUE ON DEMAND<7HA> RR FOOT REST<6WM> M6 FLANGE
0-91150-106-0
05
1
9708-9806
26
NUT; FLANGE
TORQUE ON DEMAND<7HA> M6 FLANGE
0-91150-106-0
05
1
9807-0202
26
NUT; FLANGE
TORQUE ON DEMAND<7HA> M6 FLANGE
0-91150-106-0
02
1
0203-
26
NUT; FLANGE
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM> M6 FLANGE
0-91150-106-0
02
1
9708-9806
94
HOOK ASM; ROPE
(A) BLACK
8-97151-775-0
02
1
9708-
94
HOOK ASM; ROPE
(B) BLACK
8-97151-776-0
02
1
9708-
96
BOLT; ROPE HOOK FIX
M8X40 FLANGE
0-28690-840-0
04
1
9708-
214
SEAL; HOLE COVER
8-97803-265-1
02
1
9708-
311
PAD; FOOT REST
RR FOOT REST<6WM> BLACK
8-97807-585-3
02
1
9708-9806
311
PAD; FOOT REST
BLACK
8-97807-585-3
02
1
9807-0202
313
COVER; ROPE HOOK
BLACK
8-97151-777-0
04
1
9708-
314
COLLAR; ROPE HOOK
8-97803-657-0
04
1
9708-
316
INSULATOR; BRKT
RR FOOT REST<6WM>
8-97808-527-0
02
1
9708-9806
316
INSULATOR; BRKT
8-97808-527-0
02
1
9807-0202
316
INSULATOR; BRKT
TORQUE ON DEMAND<7HA>
8-97808-527-0
01
1
0203-
316
INSULATOR; BRKT
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM>
8-97808-527-0
01
1
9708-9806
365
365
365
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
365
SEAL; DASH SIDE LWR
(A)
8-97184-089-0
02
1
9708-
365
SEAL; DASH SIDE LWR
(B)
8-97185-279-0
02
1
9708-
365
SEAL; DASH SIDE LWR
(C)
8-97185-548-0
02
1
9708-
