◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#46189) — 115 parça

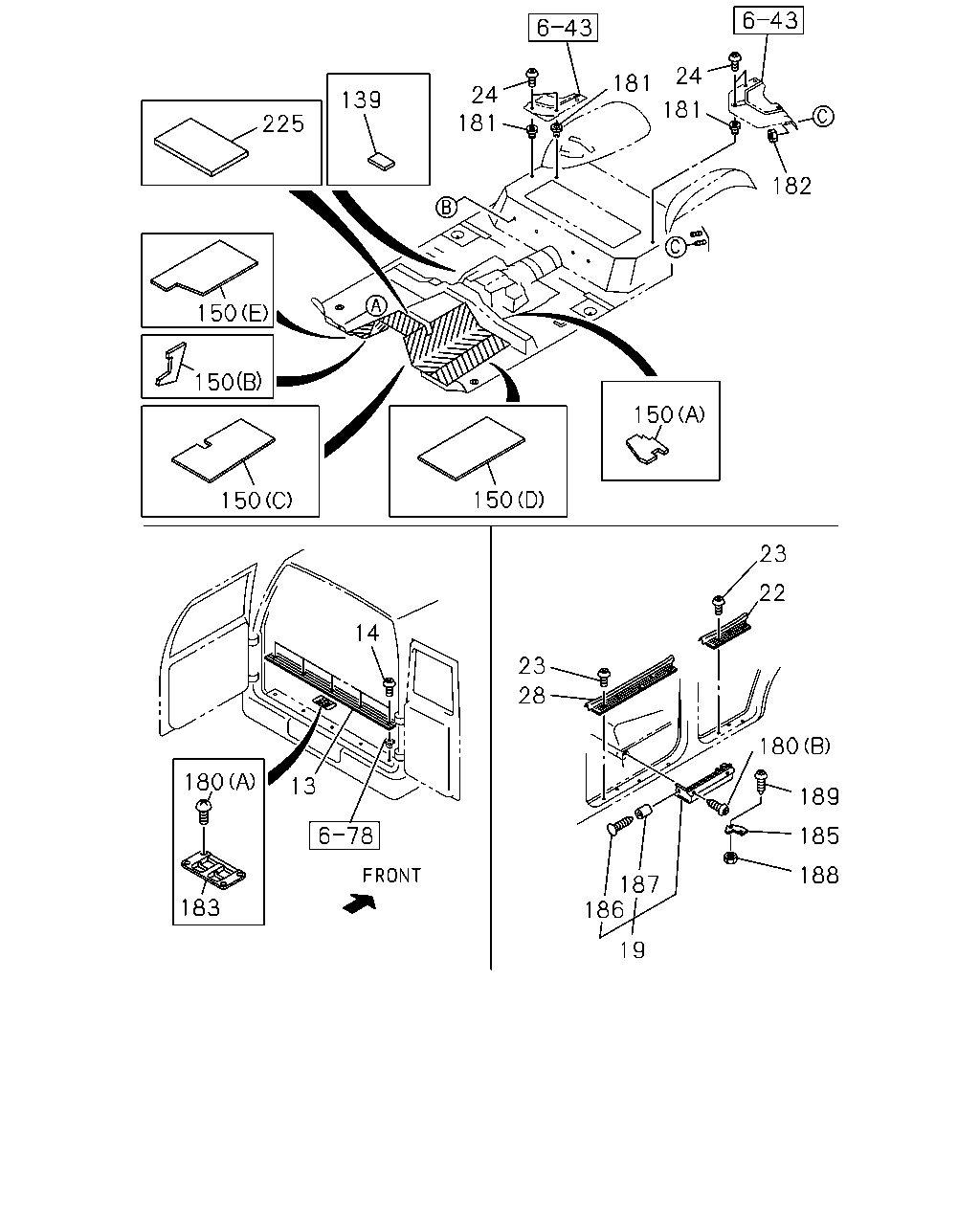

çizim 64111
24 181 24 181 139 181 225 182 150 150 150 150 150 23 22 14 23 28 180 180 13 189 185 188 187 186 183 19
BalonParca AdiParca NoAdetTipApplied Date A B C
13 PLATE; RR FLOOR CARPET
DARK GRAY 		8-97098-365-3 01 1 9708-9907 ● ● ●
13 PLATE; RR FLOOR CARPET
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-365-4 01 1 9908- ● ● ●
13 PLATE; RR FLOOR CARPET
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-548-4 01 1 9908- ● ● ●
14 SCREW; PLATE 8-97803-149-1 05 1 9708- ● ● ●
19 COVER; SEAT RISER
DARK GRAY 		8-97098-367-3 01 1 9708-9907 ● ● ●
19 COVER; SEAT RISER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-367-4 01 1 9908- ● ● ●
19 COVER; SEAT RISER
DARK GRAY 		8-97098-366-3 01 1 9708-9907 ● ● ●
19 COVER; SEAT RISER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-366-4 01 1 9908- ● ● ●
19 COVER; SEAT RISER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-550-4 01 1 9908- ● ● ●
19 COVER; SEAT RISER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-549-4 01 1 9908- ● ● ●
22 PLATE; SILL,RR
DARK GRAY 		8-97098-359-7 01 1 9708-9907 ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-359-8 01 1 9908- ● ● ●
22 PLATE; SILL,RR
DARK GRAY 		8-97098-358-7 01 1 9708-9907 ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-358-8 01 1 9908- ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-545-8 01 1 9908- ● ● ●
22 PLATE; SILL,RR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-544-8 01 1 9908- ● ● ●
23 SCREW; SILL PLATE
M5X16 		8-94384-690-0 16 1 9708- ● ● ●
24 SCREW; HEEL BOARD COVER
M5X16 		9-09829-323-1 04 1 9708- ● ● ●
28 PLATE; SILL,FRT
DARK GRAY 		8-97098-357-6 01 1 9708-9907 ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-357-7 01 1 9908- ● ● ●
28 PLATE; SILL,FRT
DARK GRAY 		8-97098-356-6 01 1 9708-9907 ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-356-7 01 1 9908- ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-543-7 01 1 9908- ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-542-7 01 1 9908- ● ● ●
139 SEAL; FLOOR
POWER SEAT W/ARM REST<7DW> 		8-97810-863-0 02 1 9708- ● ● ●
150 INSULATION; HEAT,FLOOR
(C) 		8-97807-474-2 01 1 9708- ● ● ●
150 INSULATION; HEAT,FLOOR
(B) 		8-97807-472-2 01 1 9708- ● ● ●
150 INSULATION; HEAT,FLOOR
(D) 		8-97289-601-2 01 1 0203- ● ● ●
150 INSULATION; HEAT,FLOOR
(E) 		8-97289-602-2 01 1 0203- ● ● ●
150 INSULATION; HEAT,FLOOR
RR FOOT REST<6WM> (A) 		8-97807-916-1 01 1 9708-9806 ● ● ●
150 INSULATION; HEAT,FLOOR
(A) 		8-97807-916-1 01 1 9807-0202 ● ● ●
150 INSULATION; HEAT,FLOOR
(A) 		8-97807-475-2 01 1 0203- ● ● ●
150 INSULATION; HEAT,FLOOR
EXC. RR FOOT REST<6WM> (A) 		8-97807-475-2 01 1 9708-9806 ● ● ●
180 SCREW; COVER
(B) M5X16 		9-09829-323-1 06 1 9708- ● ● ●
180 SCREW; COVER
3RD SEAT 7 PASSENGERS(AS3) (A) M6X16 		8-94479-534-0 04 1 9802- ● ● ●
181 GROMMET; SCREW,COVER 8-94203-326-0 04 1 9708- ● ● ●
182 NUT; COVER
M6 W/WASHER 		8-94170-192-0 04 1 9708- ● ● ●
183 COVER; SEAT STRIKER
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-551-3 01 1 9908- ● ● ●
183 COVER; SEAT STRIKER
3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-271-1 01 1 9802-9907 ● ● ●
183 COVER; SEAT STRIKER
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-271-3 01 1 9908- ● ● ●
185 BRACKET; COVER
EXC. RR FOOT REST<6WM> 		8-97807-469-0 02 1 9708- ● ● ●
185 BRACKET; COVER
TORQUE ON DEMAND<7HA> 		8-97807-469-0 01 1 0203- ● ● ●
185 BRACKET; COVER
EXC. TORQUE ON DEMAND<7HA> 		8-97807-469-0 02 1 0203- ● ● ●
186 CLIP; COVER 8-97807-496-0 02 1 9708- ● ● ●
187 COLLER; COVER 8-97811-203-0 02 1 9708- ● ● ●
188 NUT; BRKT 5-09466-004-1 02 1 9708- ● ● ●
189 SCREW; BRKT
M5X12 		0-74110-512-0 02 1 9708- ● ● ●
225 INSULATOR; FLOOR,FRT CENTER 8-97185-827-0 01 1 9708- ● ● ●

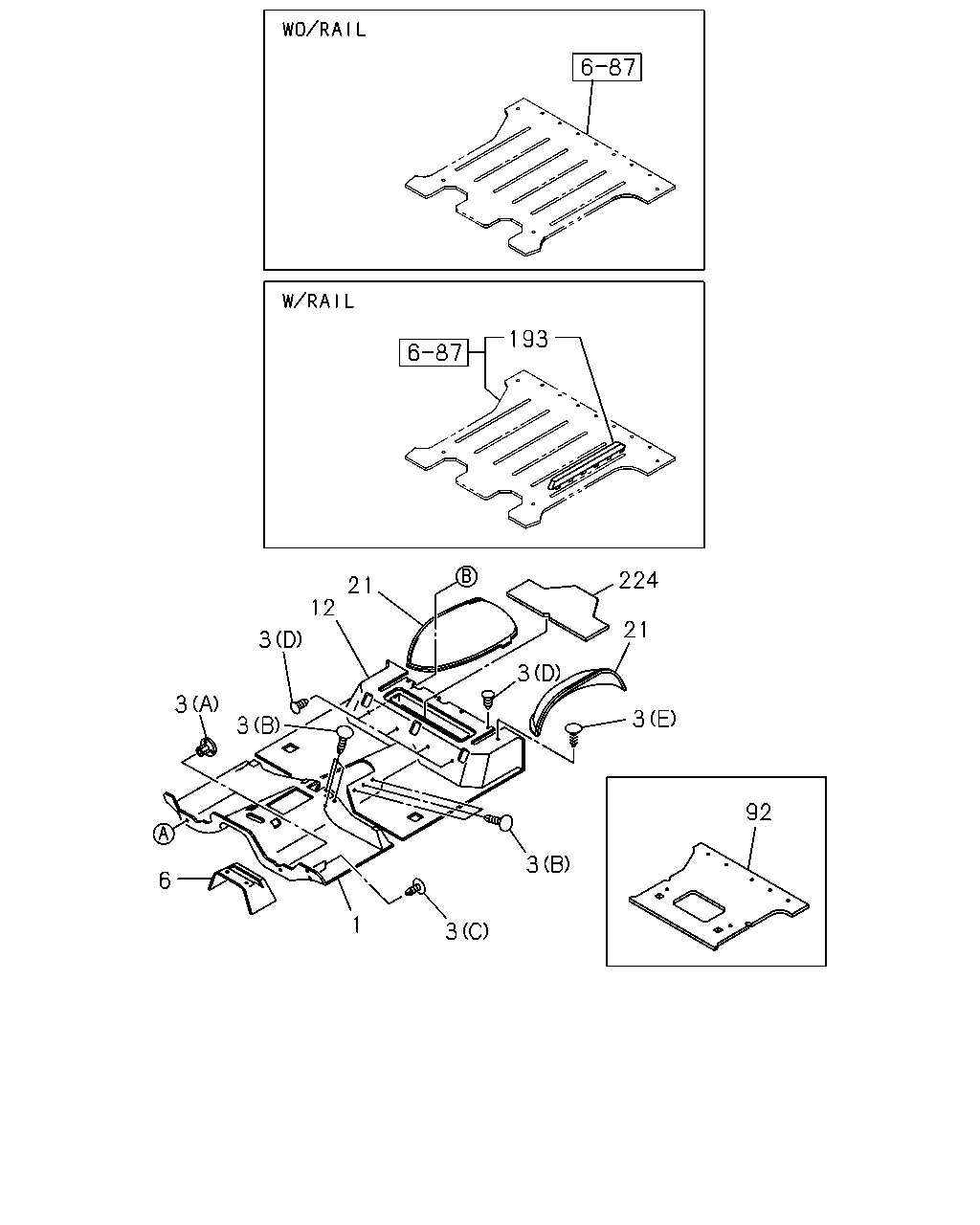

çizim 64187
193 224 21 12 3 21 3 3 3 3 92 3 6 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CARPET; FLOOR,FRT
INTERIOR COLOR BEIGE(181) TORQUE ON DEMAND<7HA> LIGHT BEIGE 		8-97290-523-2 01 1 9908-0202 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR BEIGE(181) TORQUE ON DEMAND<7HA> LIGHT BEIGE 		8-97390-667-0 01 1 0203-0210 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR BEIGE(181) TORQUE ON DEMAND<7HA> LIGHT BEIGE 		8-97395-022-0 01 1 0211- ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR BEIGE(181) EXC. TORQUE ON DEMAND<7HA> LIGHT BEIGE 		8-97290-522-3 01 1 9908-0210 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR BEIGE(181) EXC. TORQUE ON DEMAND<7HA> LIGHT BEIGE 		8-97395-020-0 01 1 0211- ● ● ●
1 CARPET; FLOOR,FRT
TORQUE ON DEMAND<7HA> DARK GRAY 		8-97158-240-1 01 1 9708-9907 ● ● ●
1 CARPET; FLOOR,FRT
TORQUE ON DEMAND<7HA> INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97158-240-2 01 1 9908-0202 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR MEDIUM GRAY(113) TORQUE ON DEMAND<7HA> DARK GRAY 		8-97390-666-0 01 1 0203-0210 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR MEDIUM GRAY(113) TORQUE ON DEMAND<7HA> DARK GRAY 		8-97395-021-0 01 1 0211- ● ● ●
1 CARPET; FLOOR,FRT
EXC. TORQUE ON DEMAND<7HA> DARK GRAY 		8-97153-135-2 01 1 9708-9907 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR MEDIUM GRAY(113) EXC. TORQUE ON DEMAND<7HA> DARK GRAY 		8-97153-135-3 01 1 9908-0210 ● ● ●
1 CARPET; FLOOR,FRT
INTERIOR COLOR MEDIUM GRAY(113) EXC. TORQUE ON DEMAND<7HA> DARK GRAY 		8-97395-019-0 01 1 0211- ● ● ●
3 CLIP; CARPET FIX
(D) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9708- ● ● ●
3 CLIP; CARPET FIX
(C) L=19 BLACK 		8-94363-776-0 04 1 9708-9907 ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BEIGE(181) (C) LIGHT BEIGE 		8-97293-224-0 04 1 9908- ● ● ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9708- ● ● ●
3 CLIP; CARPET FIX
(B) DARK GRAY 		8-97098-324-0 06 1 9708-9907 ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97098-324-0 06 1 9908- ● ● ●
3 CLIP; CARPET FIX
(E) DARK GRAY 		8-97098-326-0 02 1 9708-9907 ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR MEDIUM GRAY(113) (E) DARK GRAY 		8-97098-326-0 02 1 9908- ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-524-0 06 1 9908- ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BEIGE(181) (E) LIGHT BEIGE 		8-97290-525-0 02 1 9908- ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR MEDIUM GRAY(113) (C) DARK GRAY 		8-97152-683-0 04 1 9908- ● ● ●
6 DEADENER; FLOOR GEAR BOX FRT 8-97802-100-7 01 1 9708- ● ● ●
12 CARPET; FLOOR,RR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-526-3 01 1 9908-0202 ● ● ●
12 CARPET; FLOOR,RR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97390-780-1 01 1 0203-0210 ● ● ●
12 CARPET; FLOOR,RR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97395-024-0 01 1 0211- ● ● ●
12 CARPET; FLOOR,RR
RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> DARK GRAY 		8-97151-254-3 01 1 9708-9801 ● ● ●
12 CARPET; FLOOR,RR
RR FOOT REST<6WM> DARK GRAY 		8-97151-254-3 01 1 9802-9806 ● ● ●
12 CARPET; FLOOR,RR
DARK GRAY 		8-97151-254-3 01 1 9807-9907 ● ● ●
12 CARPET; FLOOR,RR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97151-254-3 01 1 9908-0202 ● ● ●
12 CARPET; FLOOR,RR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97390-779-1 01 1 0203-0210 ● ● ●
12 CARPET; FLOOR,RR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97395-023-0 01 1 0211- ● ● ●
12 CARPET; FLOOR,RR
RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM>,TORQUE ON DEMAND<7HA> DARK GRAY 		8-97152-074-1 01 1 9708-9801 ● ● ●
12 CARPET; FLOOR,RR
EXC. RR FOOT REST<6WM>,TORQUE ON DEMAND<7HA> DARK GRAY 		8-97152-074-1 01 1 9802-9806 ● ● ●
12 CARPET; FLOOR,RR
EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOT REST<6WM>,TORQUE ON DEMAND<7HA> DARK GRAY 		8-97152-075-1 01 1 9708-9801 ● ● ●
12 CARPET; FLOOR,RR
TORQUE ON DEMAND<7HA> RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM> DARK GRAY 		8-97157-900-1 01 1 9708-9801 ● ● ●
12 CARPET; FLOOR,RR
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM> DARK GRAY 		8-97157-900-1 01 1 9802-9806 ● ● ●
12 CARPET; FLOOR,RR
TORQUE ON DEMAND<7HA> EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOT REST<6WM> DARK GRAY 		8-97157-901-1 01 1 9708-9801 ● ● ●
21 CARPET; RR WHEEL HOUSE
DARK GRAY 		8-97151-963-0 01 1 9708-9801 ● ● ●
21 CARPET; RR WHEEL HOUSE
EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-963-0 01 1 9802-9907 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR MEDIUM GRAY(113) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-963-1 01 1 9908-0210 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR MEDIUM GRAY(113) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97395-033-0 01 1 0211- ● ● ●
21 CARPET; RR WHEEL HOUSE
DARK GRAY 		8-97151-962-0 01 1 9708-9801 ● ● ●
21 CARPET; RR WHEEL HOUSE
EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-962-0 01 1 9802-9907 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR MEDIUM GRAY(113) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-962-1 01 1 9908-0210 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR MEDIUM GRAY(113) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97395-031-0 01 1 0211- ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-541-1 01 1 9908-0210 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97395-038-0 01 1 0211- ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-540-1 01 1 9908-0210 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97395-036-0 01 1 0211- ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR BEIGE(181) EXC. 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-539-1 01 1 9908-0210 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR BEIGE(181) EXC. 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97395-034-0 01 1 0211- ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR BEIGE(181) EXC. 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97290-538-1 01 1 9908-0210 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR BEIGE(181) EXC. 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE 		8-97395-032-0 01 1 0211- ● ● ●
21 CARPET; RR WHEEL HOUSE
3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-965-0 01 1 9802-9907 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-965-1 01 1 9908-0210 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97395-037-0 01 1 0211- ● ● ●
21 CARPET; RR WHEEL HOUSE
3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-964-0 01 1 9802-9907 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-964-1 01 1 9908-0210 ● ● ●
21 CARPET; RR WHEEL HOUSE
INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97395-035-0 01 1 0211- ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR 8-97811-265-0 01 1 9708-9801 ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-265-1 01 1 9802- ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
3RD SEAT 7 PASSENGERS(AS3) 		8-97811-272-1 01 1 9802- ● ● ●
193 RAIL; LUGGAGE FLOOR
LUGGAGE COVER W/RAIL<6WG> L=700 		8-97804-656-0 04 1 9708-9801 ● ● ●
193 RAIL; LUGGAGE FLOOR
LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) L=700 		8-97804-656-0 04 1 9802-0202 ● ● ●
224 INSULATOR; FLOOR,HEEL BOARD 8-97183-934-0 01 1 9708- ● ● ●
