6-70 — FLOOR PANEL (#46188) — 61 parça

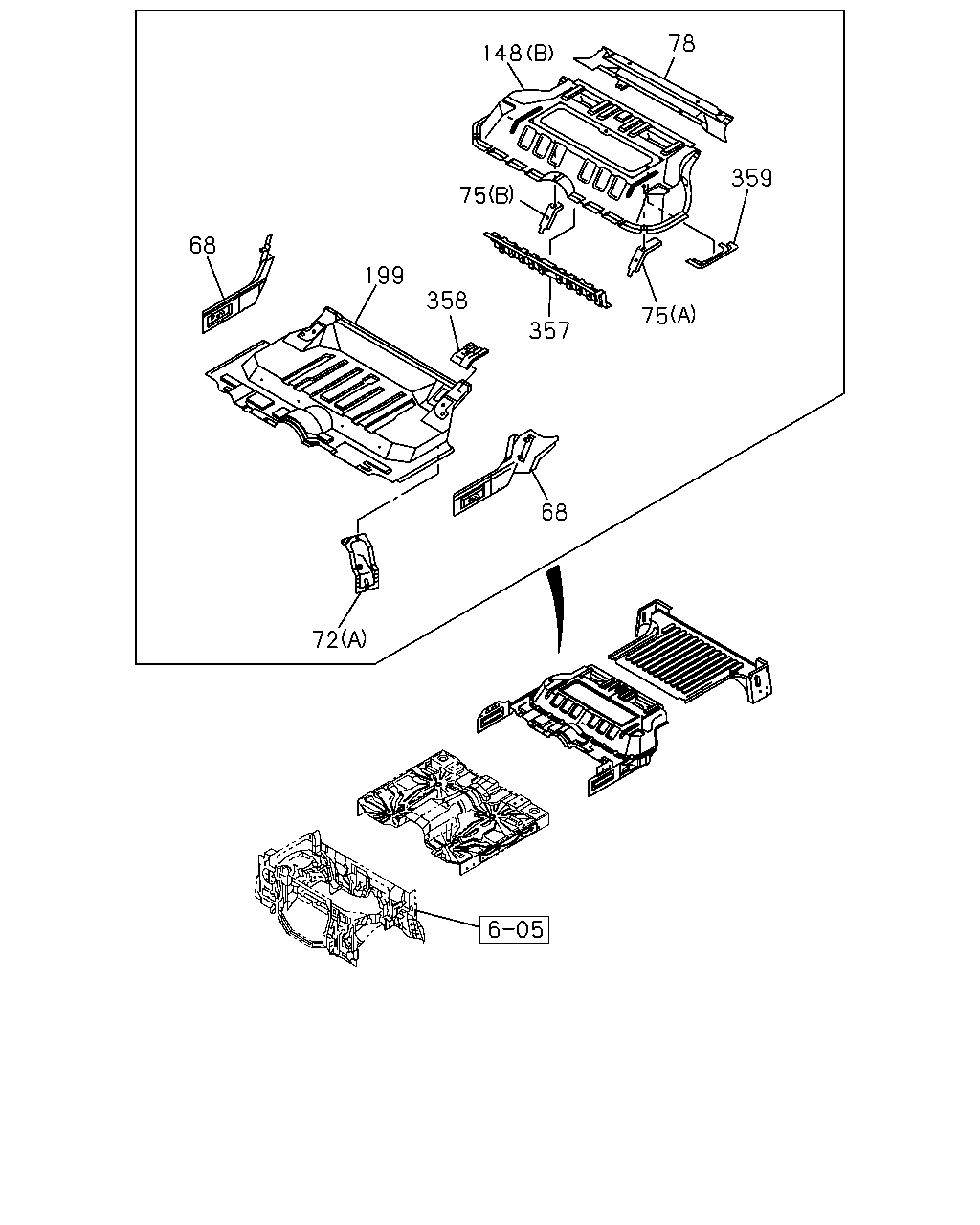

çizim 15731
78 148 359 75 68 199 358 75 357 68 72
BalonParca AdiParca NoAdetTipApplied Date
68 PANEL; ROCKER INNER,CENTER 8-97802-751-3 01 1 9708-
68 PANEL; ROCKER INNER,CENTER 8-97802-750-3 01 1 9708-
72 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9708-
72 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9708-
72 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9708-
72 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9708-
75 REINFORCEMENT; RR SEAT BELT,CENTER
(A) 		8-94359-649-0 02 1 9708-
75 REINFORCEMENT; RR SEAT BELT,CENTER
(B) 		8-94359-653-1 02 1 9708-
78 BOLSTER ASM; RR FLOOR NO 2 8-97808-086-1 01 1 9708-
148 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9708-0012
148 BRACKET; SEAT
(B) 		8-97263-877-1 01 1 0101-
148 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9708-
199 PANEL; RR FLOOR 8-97164-296-1 01 1 9708-
357 REINFORCEMENT; LID HINGE 8-94359-656-3 01 1 9708-
358 BRACKET; RR FLOOR SIDE 8-97803-333-0 01 1 9708-
358 BRACKET; RR FLOOR SIDE 8-97803-332-0 01 1 9708-
359 REINFORCEMENT; HOLE SIDE 8-94359-657-0 02 1 9708-

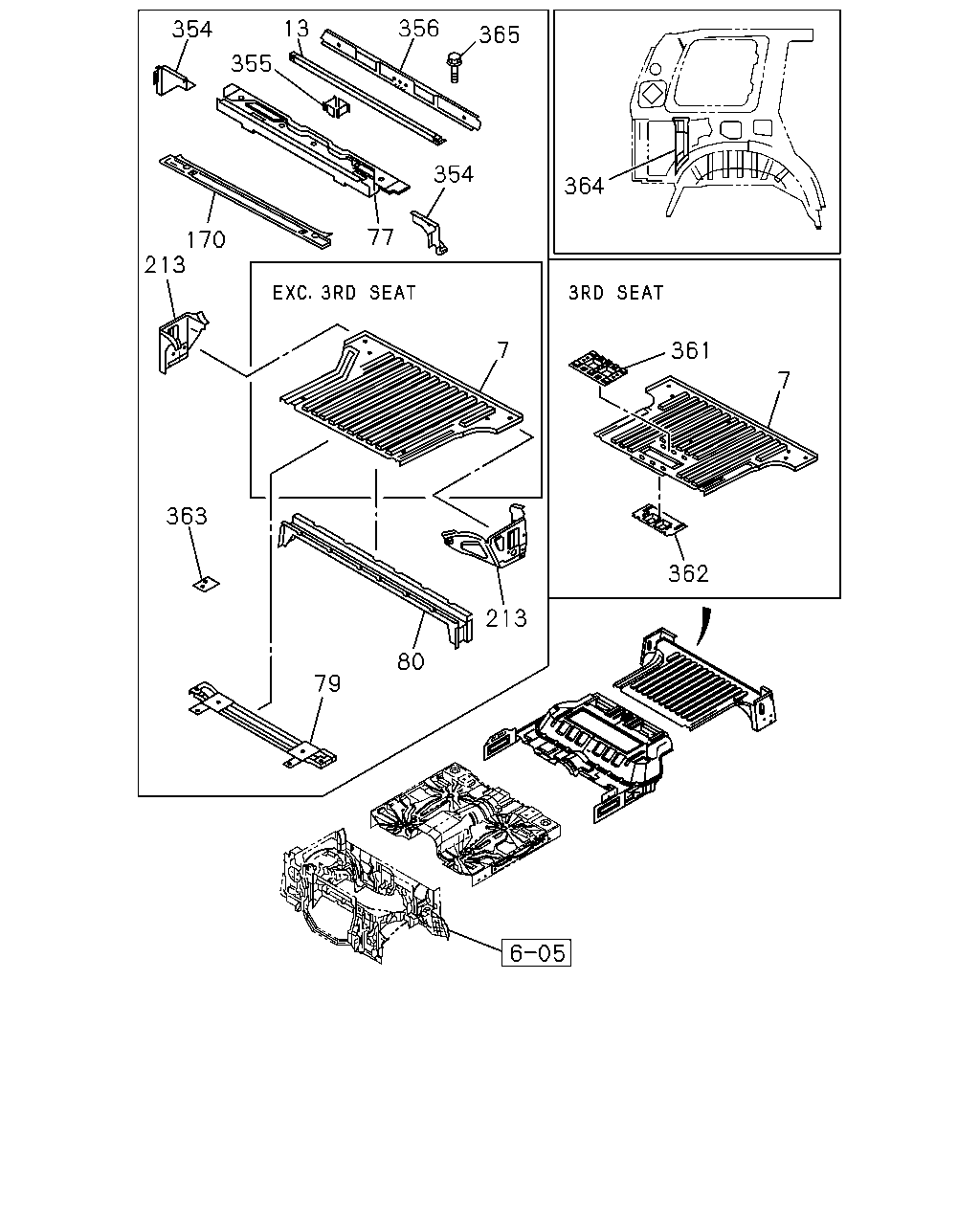

çizim 63838
13 356 354 365 355 364 354 77 170 213 7 361 7 363 362 213 80 79
BalonParca AdiParca NoAdetTipApplied Date
7 PANEL; RR FLOOR,RR 8-97809-432-1 01 1 9708-9801
7 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 9802-
7 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 9802-
13 PANEL; FAIRING RR 8-94358-823-5 01 1 9708-
77 BOLSTER ASM; END 8-97127-025-0 01 1 9708-
79 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 9708-
80 BOLSTER ASM; RR FLOOR NO.4 8-97802-182-1 01 1 9708-
170 EXTENSION; RR FLOOR 8-94358-828-1 01 1 9708-
213 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 9708-
213 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 9708-
354 EXTENSION; END BOLSTER 8-94359-682-3 01 1 9708-
354 EXTENSION; END BOLSTER 8-94359-681-3 01 1 9708-
355 BRACKET; END BOLSTER 8-94359-683-1 02 1 9708-
356 CLOSING; END BOLSTER 8-97803-733-1 01 1 9708-
361 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 9802-
362 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 9802-
363 PATCH; TETHER ANCHOR 8-97803-596-1 01 1 9708-
364 BRACKET; 3RD SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97803-404-2 01 1 9802-
365 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9708-

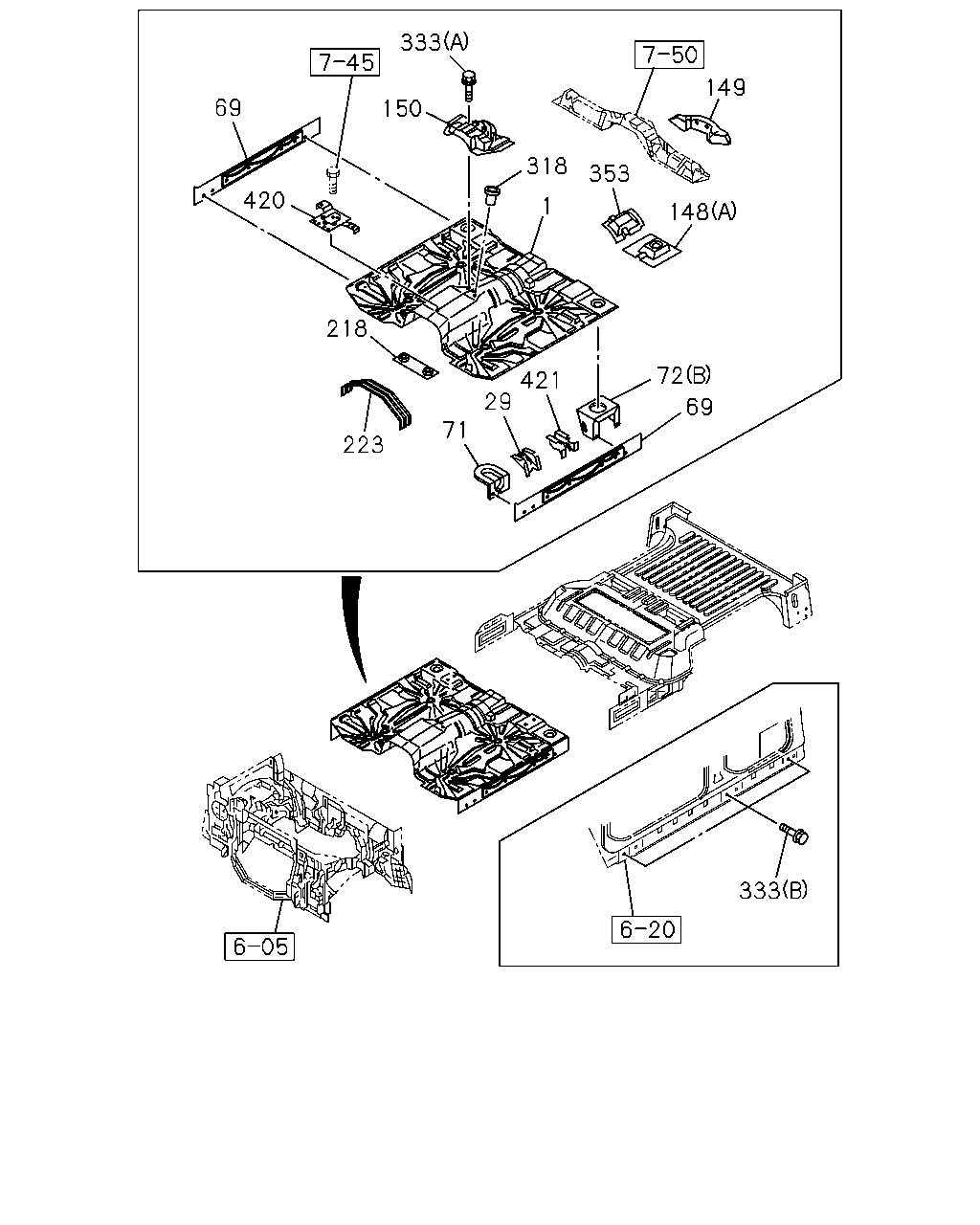

çizim 65115
333 149 69 150 318 353 420 1 148 218 72 69 421 29 71 223 333
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
TORQUE ON DEMAND<7HA> 		8-97161-709-0 01 1 9708-0011
1 PANEL; FLOOR 8-97161-709-1 01 1 0012-
1 PANEL; FLOOR
EXC. TORQUE ON DEMAND<7HA> 		8-97121-264-2 01 1 9708-0011
29 GUSSET 8-94359-305-0 02 1 9708-
69 PANEL; ROCKER INNER 8-94359-308-2 01 1 9708-
69 PANEL; ROCKER INNER 8-94359-307-2 01 1 9708-
71 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9708-
71 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9708-
72 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9708-
72 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9708-
72 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9708-
72 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9708-
148 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9708-0012
148 BRACKET; SEAT
(B) 		8-97263-877-1 01 1 0101-
148 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9708-
149 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 9708-
150 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 9708-
218 PATCH; A/T CONT LEVER 8-97800-803-1 01 1 9708-
223 PATCH; CONSOLE BOX 8-97109-933-0 01 1 9708-
318 NUT; COVER
M8 POP NUT 		8-94279-538-0 02 1 9708-
333 BOLT; BRKT
(A) M10X25 		8-94126-841-0 02 1 9708-
333 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 9708-
353 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9708-
420 BRACKET; SENSOR,SIR 8-97164-322-0 01 1 9708-
421 GUSSET; CAB STOPPER 8-97121-305-2 02 1 9708-
