◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#46186) — 59 parça

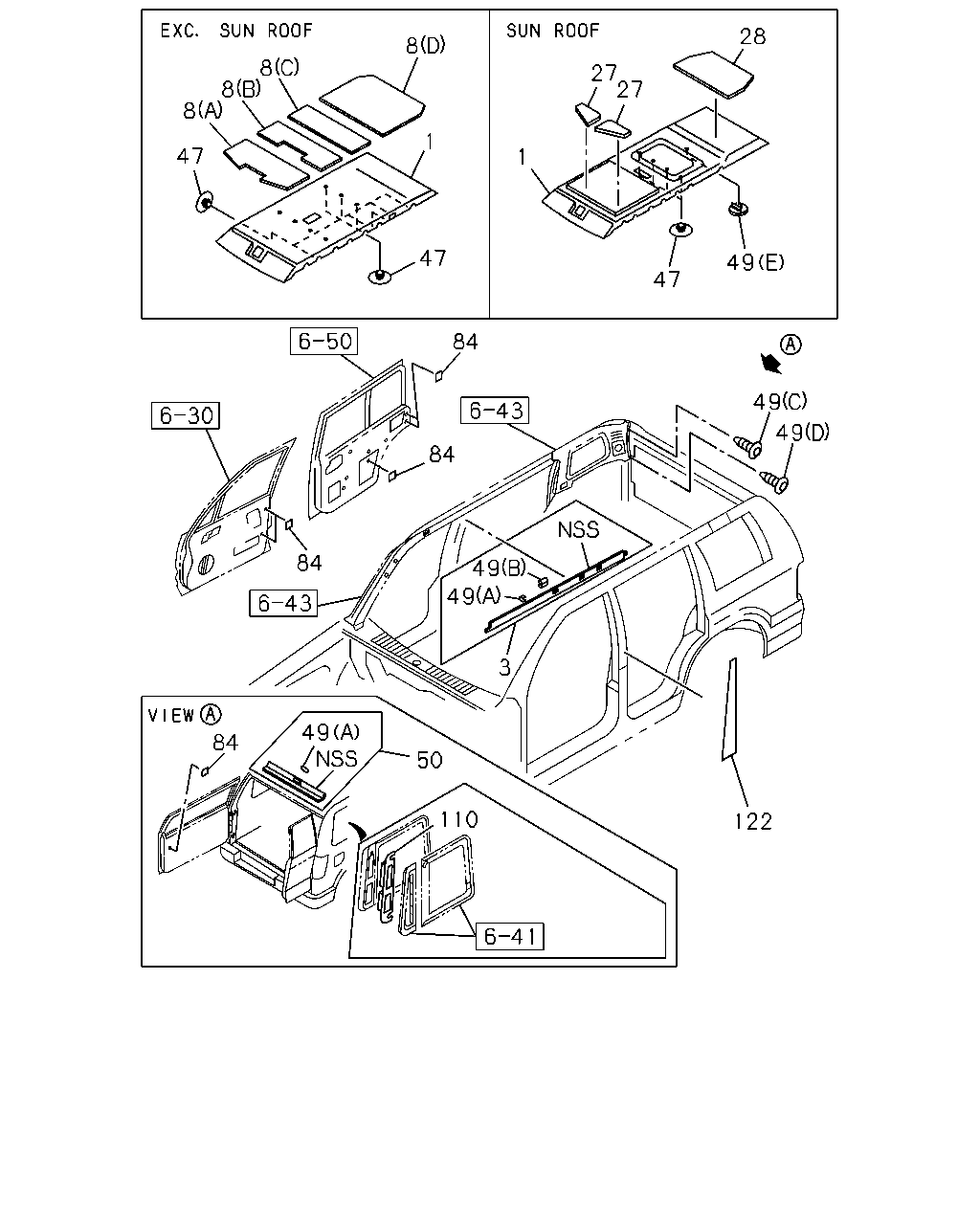

çizim 65474
28 8 8 8 8 27 27 1 47 1 47 49 47 84 49 49 84 49 49 84 3 84 49 50 110 122
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINING; HD
INTERIOR COLOR BEIGE(181) MULTI METER<7HT> EXC. SUN ROOF(CF5) LIGHT BEIGE 		8-97290-592-2 01 1 9908- ● ● ●
1 LINING; HD
INTERIOR COLOR BEIGE(181) SUN ROOF(CF5) MULTI METER<7HT> LIGHT BEIGE 		8-97290-594-1 01 1 9908- ● ● ●
1 LINING; HD
INTERIOR COLOR BEIGE(181) SUN ROOF(CF5) EXC. MULTI METER<7HT> LIGHT BEIGE 		8-97290-593-1 01 1 9908- ● ● ●
1 LINING; HD
INTERIOR COLOR BEIGE(181) EXC. SUN ROOF(CF5),MULTI METER<7HT> LIGHT BEIGE 		8-97290-591-2 01 1 9908- ● ● ●
1 LINING; HD
MAP LAMP<UF3> MULTI METER<7HT> EXC. SUN ROOF(CF5) LIGHT GRAY 		8-97151-308-2 01 1 9708-9712 ● ● ●
1 LINING; HD
MAP LAMP<UF3> MULTI METER<7HT> EXC. SUN ROOF(CF5) LIGHT GRAY 		8-97158-649-1 01 1 9801-9801 ● ● ●
1 LINING; HD
MULTI METER<7HT> EXC. SUN ROOF(CF5) LIGHT GRAY 		8-97158-649-1 01 1 9802-9907 ● ● ●
1 LINING; HD
INTERIOR COLOR MEDIUM GRAY(113) MULTI METER<7HT> EXC. SUN ROOF(CF5) LIGHT GRAY 		8-97158-649-2 01 1 9908- ● ● ●
1 LINING; HD
MAP LAMP<UF3> EXC. SUN ROOF(CF5),MULTI METER<7HT> LIGHT GRAY 		8-97098-391-6 01 1 9708-9712 ● ● ●
1 LINING; HD
MAP LAMP<UF3> EXC. SUN ROOF(CF5),MULTI METER<7HT> LIGHT GRAY 		8-97158-647-1 01 1 9801-9801 ● ● ●
1 LINING; HD
EXC. SUN ROOF(CF5),MULTI METER<7HT> LIGHT GRAY 		8-97158-647-1 01 1 9802-9907 ● ● ●
1 LINING; HD
INTERIOR COLOR MEDIUM GRAY(113) EXC. SUN ROOF(CF5),MULTI METER<7HT> LIGHT GRAY 		8-97158-647-2 01 1 9908- ● ● ●
1 LINING; HD
SUN ROOF(CF5) MAP LAMP<UF3> MULTI METER<7HT> LIGHT GRAY 		8-97151-309-2 01 1 9708-9712 ● ● ●
1 LINING; HD
SUN ROOF(CF5) MAP LAMP<UF3> MULTI METER<7HT> LIGHT GRAY 		8-97158-650-1 01 1 9801-9801 ● ● ●
1 LINING; HD
SUN ROOF(CF5) MULTI METER<7HT> LIGHT GRAY 		8-97158-650-1 01 1 9802-9907 ● ● ●
1 LINING; HD
INTERIOR COLOR MEDIUM GRAY(113) SUN ROOF(CF5) MULTI METER<7HT> LIGHT GRAY 		8-97158-650-1 01 1 9908- ● ● ●
1 LINING; HD
SUN ROOF(CF5) MAP LAMP<UF3> EXC. MULTI METER<7HT> LIGHT GRAY 		8-97098-389-4 01 1 9708-9712 ● ● ●
1 LINING; HD
SUN ROOF(CF5) MAP LAMP<UF3> EXC. MULTI METER<7HT> LIGHT GRAY 		8-97158-648-1 01 1 9801-9801 ● ● ●
1 LINING; HD
SUN ROOF(CF5) EXC. MULTI METER<7HT> LIGHT GRAY 		8-97158-648-1 01 1 9802-9907 ● ● ●
1 LINING; HD
INTERIOR COLOR MEDIUM GRAY(113) SUN ROOF(CF5) EXC. MULTI METER<7HT> LIGHT GRAY 		8-97158-648-1 01 1 9908- ● ● ●
1 LINING; HD
EXC. SUN ROOF(CF5),MAP LAMP<UF3>,MULTI METER<7HT> LIGHT GRAY 		8-97098-390-6 01 1 9708-9712 ● ● ●
1 LINING; HD
EXC. SUN ROOF(CF5),MAP LAMP<UF3>,MULTI METER<7HT> LIGHT GRAY 		8-97158-646-1 01 1 9801-9801 ● ● ●
3 COVER; TRIM,ROOF SIDE
DARK GRAY 		8-97152-040-0 01 1 9708-9907 ● ● ●
3 COVER; TRIM,ROOF SIDE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97152-040-0 01 1 9908- ● ● ●
3 COVER; TRIM,ROOF SIDE
DARK GRAY 		8-97152-041-0 01 1 9708-9907 ● ● ●
3 COVER; TRIM,ROOF SIDE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97152-041-0 01 1 9908- ● ● ●
3 COVER; TRIM,ROOF SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-596-0 01 1 9908- ● ● ●
3 COVER; TRIM,ROOF SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-595-0 01 1 9908- ● ● ●
8 PAD; HEADLINING
EXC. SUN ROOF(CF5) (A) 		8-97811-267-0 01 1 9708- ● ● ●
8 PAD; HEADLINING
EXC. SUN ROOF(CF5) (B) 		8-97811-268-0 01 1 9708- ● ● ●
8 PAD; HEADLINING
EXC. SUN ROOF(CF5) (C) 		8-97811-269-0 01 1 9708- ● ● ●
8 PAD; HEADLINING
EXC. SUN ROOF(CF5) (D) 		8-97811-270-0 01 1 9708- ● ● ●
27 INSULATION; ROOF
SUN ROOF(CF5) 		8-97135-975-0 01 1 9708- ● ● ●
27 INSULATION; ROOF
SUN ROOF(CF5) 		8-97135-974-0 01 1 9708- ● ● ●
28 INSULATION; ROOF,RR
SUN ROOF(CF5) 		8-97135-976-0 01 1 9708- ● ● ●
47 CLIP; HEADLINING
LIGHT GRAY 		8-97098-397-0 12 1 9708-9907 ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR MEDIUM GRAY(113) LIGHT GRAY 		8-97098-397-0 12 1 9908- ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-597-0 12 1 9908- ● ● ●
49 CLIP; TRIM COVER
(A) 		8-94313-458-0 14 1 9708- ● ● ●
49 CLIP; TRIM COVER
(D) BLACK 		8-94355-808-1 02 1 9708- ● ● ●
49 CLIP; TRIM COVER
(C) 		8-94388-826-0 06 1 9708- ● ● ●
49 CLIP; TRIM COVER
(B) DARK GRAY 		8-97098-326-0 06 1 9708-9907 ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97098-326-0 06 1 9908- ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-525-0 06 1 9908- ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR BEIGE(181) SUN ROOF(CF5) (E) LIGHT BEIGE 		8-97290-589-2 01 1 9908- ● ● ●
49 CLIP; TRIM COVER
SUN ROOF(CF5) (E) LIGHT GRAY 		8-97098-388-2 01 1 9708-9907 ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR MEDIUM GRAY(113) SUN ROOF(CF5) (E) LIGHT GRAY 		8-97098-388-2 01 1 9908- ● ● ●
50 TRIM; ROOF BACK
DARK GRAY 		8-97098-398-2 01 1 9708-9907 ● ● ●
50 TRIM; ROOF BACK
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-398-2 01 1 9908- ● ● ●
50 TRIM; ROOF BACK
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-598-2 01 1 9908- ● ● ●
84 PATCH; WATER PROOF SHEET,DOOR
45X45 T=0.08 		8-94238-288-1 07 1 9708- ● ● ●
110 VALVE; OUTLET VENT 8-97801-166-3 01 1 9708-9804 ● ● ●
110 VALVE; OUTLET VENT 8-97182-003-0 01 1 9805- ● ● ●
110 VALVE; OUTLET VENT 8-94358-809-3 01 1 9708-9804 ● ● ●
110 VALVE; OUTLET VENT 8-97182-002-0 01 1 9805- ● ● ●
122 SEAL; CENTER PILLAR
BLACK 		8-97156-002-2 01 1 9708-0202 ● ●
122 SEAL; CENTER PILLAR
BODY COLOR POLAR WHITE MICA(610),BODY COLOR SATINGOLD MET(613),BODY COLOR SATIN GOLD MET/LIGHT SI LVER MET(616),BODY COLOR SATIN GOLD MET/MOONMIST GRAY MICA(628),BODY COLOR FJORD BLUE MET/LIGHT SILVER MET(629),BODY COLOR DRAGON GREEN MICA/KAISERSILVERMET(632),BODY COLOR FJORD BLUE MET/KAISERSILVER MET(633),BODY COLOR LT.SILVER MET/MOONMISTGRAY MICA(712),BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR MOONMIST GRAY MICA/LT.SILVER MET(742),BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747),BODY COLOR LT.SILVER MET(753),BODY COLOR MOONMIST GRAY MICA(857),BODY COLOR DRAGON GREEN MICA(860),BODY COLOR FOXFIRE RED MICA(865),BODY COLOR ALPINE WHITE(877),BODY COLOR CAVALIER BLUE/HYPER SILVER MET(887) BLACK 		8-97156-002-2 01 1 0203- ● ●
122 SEAL; CENTER PILLAR
BLACK 		8-97156-001-2 01 1 9708-0202 ● ●
122 SEAL; CENTER PILLAR
BODY COLOR POLAR WHITE MICA(610),BODY COLOR SATINGOLD MET(613),BODY COLOR SATIN GOLD MET/LIGHT SI LVER MET(616),BODY COLOR SATIN GOLD MET/MOONMIST GRAY MICA(628),BODY COLOR FJORD BLUE MET/LIGHT SILVER MET(629),BODY COLOR DRAGON GREEN MICA/KAISERSILVERMET(632),BODY COLOR FJORD BLUE MET/KAISERSILVER MET(633),BODY COLOR LT.SILVER MET/MOONMISTGRAY MICA(712),BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724),BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR MOONMIST GRAY MICA/LT.SILVER MET(742),BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747),BODY COLOR LT.SILVER MET(753),BODY COLOR MOONMIST GRAY MICA(857),BODY COLOR DRAGON GREEN MICA(860),BODY COLOR FOXFIRE RED MICA(865),BODY COLOR ALPINE WHITE(877),BODY COLOR CAVALIER BLUE/HYPER SILVER MET(887) BLACK 		8-97156-001-2 01 1 0203- ● ●
