6-65 — SUNROOF (#46185) — 61 parça

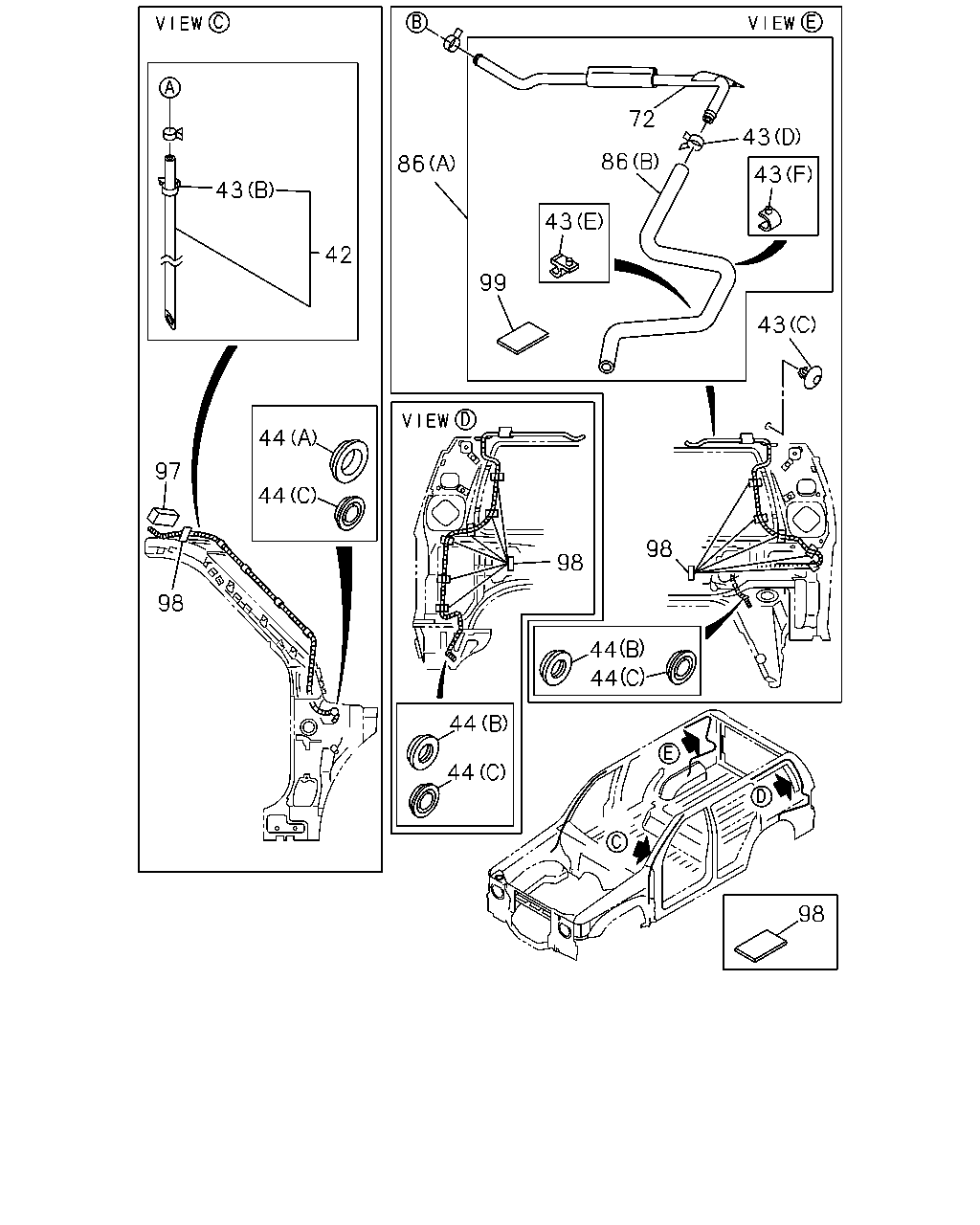

çizim 64110
72 43 86 86 43 43 43 42 99 43 44 97 44 98 98 98 44 44 44 44 98
BalonParca AdiParca NoAdetTipApplied Date
42 HOSE; DRAIN,FRT,SUNROOF
SUN ROOF(CF5) 		8-97809-581-0 01 1 9708-
42 HOSE; DRAIN,FRT,SUNROOF
SUN ROOF(CF5) 		8-97809-580-0 01 1 9708-
43 CLIP; DRAIN HOSE
SUN ROOF(CF5) (A) ID=13 		8-94238-571-0 04 1 9708-
43 CLIP; DRAIN HOSE
SUN ROOF(CF5) (D) 		8-94279-939-0 02 1 9708-
43 CLIP; DRAIN HOSE
SUN ROOF(CF5) (B) 		8-97809-577-0 08 1 9708-
43 CLIP; DRAIN HOSE
SUN ROOF(CF5) (C) 		8-97809-579-0 02 1 9708-
43 CLIP; DRAIN HOSE
SUN ROOF(CF5) (E) 		8-97809-576-0 01 1 9708-
43 CLIP; DRAIN HOSE
SUN ROOF(CF5) (F) 		8-97809-578-0 01 1 9708-
44 GROMMET; DRAIN HOSE
SUN ROOF(CF5) (A) 		5-09333-026-1 02 1 9708-
44 GROMMET; DRAIN HOSE
SUN ROOF(CF5) (B) 		8-97809-167-0 02 1 9708-
44 GROMMET; DRAIN HOSE
EXC. SUN ROOF(CF5) (C) OD=26 		8-94141-484-0 04 1 9708-
72 PIPE ASM; SUNROOF DRAIN
SUN ROOF(CF5) 		8-97809-583-0 01 1 9708-
72 PIPE ASM; SUNROOF DRAIN
SUN ROOF(CF5) 		8-97809-474-0 01 1 9708-
86 HOSE; DRAIN,SUNROOF RR
SUN ROOF(CF5) (A) 		8-97809-159-2 01 1 9708-
86 HOSE; DRAIN,SUNROOF RR
SUN ROOF(CF5) (B) 		8-97809-472-0 01 1 9708-
86 HOSE; DRAIN,SUNROOF RR
SUN ROOF(CF5) (A) 		8-97809-158-2 01 1 9708-
86 HOSE; DRAIN,SUNROOF RR
SUN ROOF(CF5) (B) 		8-97809-472-0 01 1 9708-
97 CUSHION; SUNROOF
SUN ROOF(CF5) 		8-97809-154-1 02 1 9708-
98 TAPE; DRAIN HOSE
SUN ROOF(CF5) 		8-97809-155-0 13 1 9708-
99 TAPE; SUNROOF
SUN ROOF(CF5) 		8-97809-155-0 02 1 9708-

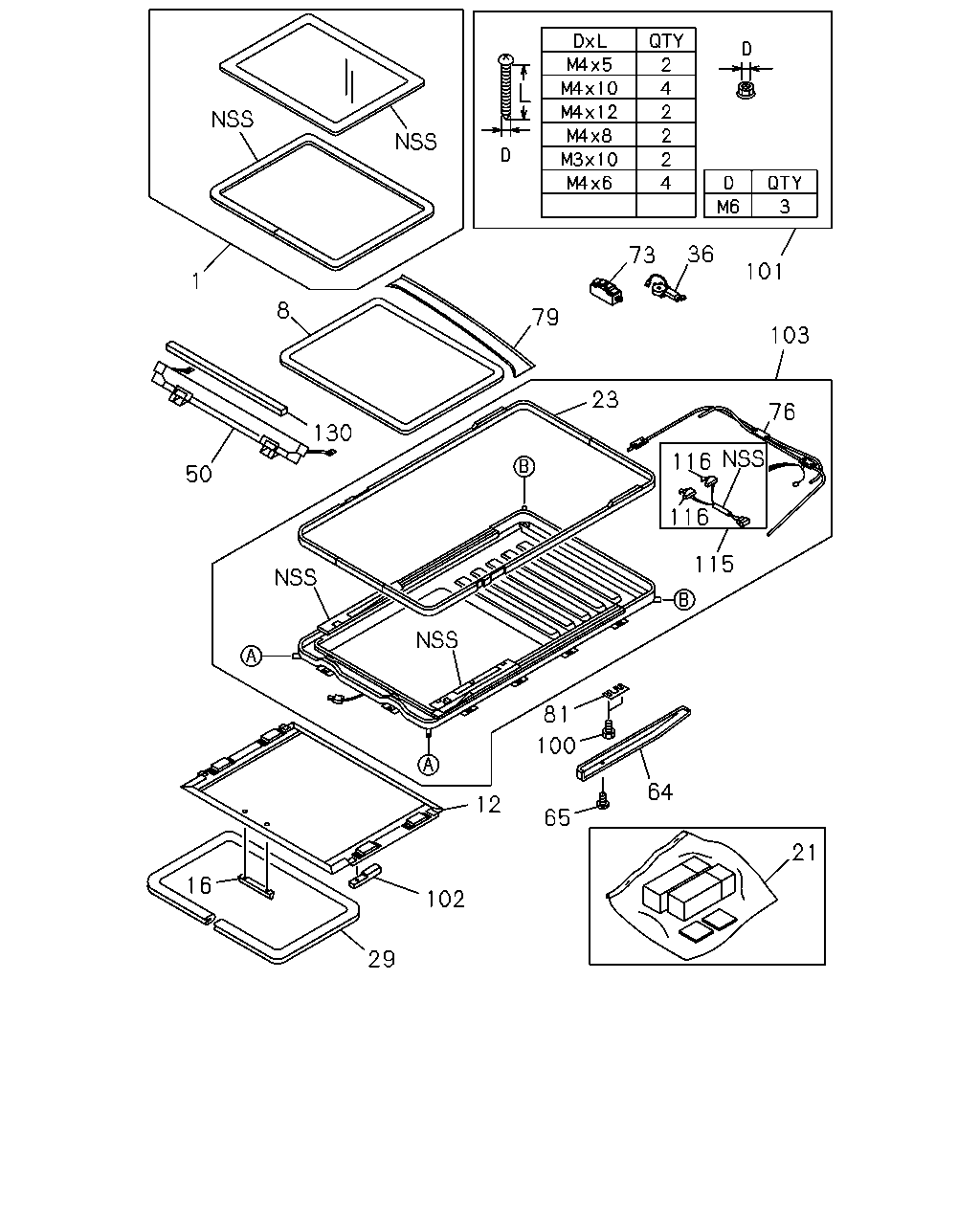

çizim 64201
36 73 101 1 8 79 103 23 76 130 116 50 116 115 81 100 64 12 65 21 16 102 29
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; SUNROOF
SUN ROOF(CF5) 		8-97121-755-2 01 1 9708-0210
1 GLASS; SUNROOF
SUN ROOF(CF5) 		8-97333-700-0 01 1 0211-
8 WEATHERSTRIP; OUTER SUNROOF
SUN ROOF(CF5) 		8-97803-023-5 01 1 9708-9710
8 WEATHERSTRIP; OUTER SUNROOF
SUN ROOF(CF5) 		8-97186-458-0 01 1 9711-
12 SUNSHADE; SUNROOF
INTERIOR COLOR BEIGE(181) SUN ROOF(CF5) LIGHT BEIGE 		8-97290-893-0 01 1 9908-9912
12 SUNSHADE; SUNROOF
INTERIOR COLOR BEIGE(181) SUN ROOF(CF5) LIGHT BEIGE 		8-97294-776-0 01 1 0001-0103
12 SUNSHADE; SUNROOF
INTERIOR COLOR BEIGE(181) SUN ROOF(CF5) LIGHT BEIGE 		8-97298-767-0 01 1 0104-
12 SUNSHADE; SUNROOF
SUN ROOF(CF5) LIGHT GRAY 		8-97151-535-4 01 1 9708-9801
12 SUNSHADE; SUNROOF
SUN ROOF(CF5) LIGHT GRAY 		8-97196-097-0 01 1 9802-9907
12 SUNSHADE; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUN ROOF(CF5) LIGHT GRAY 		8-97196-097-0 01 1 9908-9912
12 SUNSHADE; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUN ROOF(CF5) LIGHT GRAY 		8-97294-775-0 01 1 0001-0103
12 SUNSHADE; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUN ROOF(CF5) LIGHT GRAY 		8-97298-766-0 01 1 0104-
16 LOCK; ROTARY,SUNSHADE
INTERIOR COLOR BEIGE(181) SUN ROOF(CF5) LIGHT BEIGE 		8-97290-914-0 01 1 9908-
16 LOCK; ROTARY,SUNSHADE
SUN ROOF(CF5) LIGHT GRAY 		8-97151-537-0 01 1 9708-9907
16 LOCK; ROTARY,SUNSHADE
INTERIOR COLOR MEDIUM GRAY(113) SUN ROOF(CF5) LIGHT GRAY 		8-97151-537-0 01 1 9908-
21 SEAL; RR,SUNROOF
SUN ROOF(CF5) 		8-97146-874-0 01 1 9708-
23 SEAL; RUBBER,SUNROOF,CENTER
SUN ROOF(CF5) 		8-97805-701-0 01 1 9708-
29 FINISHER; SUNROOF
INTERIOR COLOR BEIGE(181) SUN ROOF(CF5) LIGHT BEIGE 		8-97290-599-2 01 1 9908-
29 FINISHER; SUNROOF
SUN ROOF(CF5) LIGHT GRAY 		8-97098-399-2 01 1 9708-9907
29 FINISHER; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUN ROOF(CF5) LIGHT GRAY 		8-97098-399-2 01 1 9908-
36 MOTOR; SUNROOF
SUN ROOF(CF5) 		8-97805-524-1 01 1 9708-9806
36 MOTOR; SUNROOF
SUN ROOF(CF5) 		8-97202-594-0 01 1 9807-
50 DEFLECTOR; SUNROOF
SUN ROOF(CF5) 		8-97806-599-1 01 1 9708-
64 COVER; SUNROOF DECORATION
SUN ROOF(CF5) 		8-97805-527-0 01 1 9708-
64 COVER; SUNROOF DECORATION
SUN ROOF(CF5) 		8-97805-526-0 01 1 9708-
65 SCREW; DECORATION COVER
SUN ROOF(CF5) M4X6 		9-03494-406-0 04 1 9708-
73 CONTROLLER; SUNROOF
SUN ROOF(CF5) 		8-97810-119-0 01 1 9708-9806
76 DRIVE UNIT; SUNROOF
SUN ROOF(CF5) 		8-97805-522-0 01 1 9708-9806
76 DRIVE UNIT; SUNROOF
SUN ROOF(CF5) 		8-97202-833-0 01 1 9807-
79 DRAIN ASM; SUNROOF
SUN ROOF(CF5) 		8-97805-523-1 01 1 9708-
81 SHIM; SUNROOF
SUN ROOF(CF5) 		8-97805-529-0 AR 1 9708-
100 BOLT; LID
SUN ROOF(CF5) M6X9 		8-97808-813-0 AR 1 9708-0201
100 BOLT; LID
SUN ROOF(CF5) M6X11 		8-97808-812-0 AR 1 0202-
101 FIXING KIT; SUNROOF
SUN ROOF(CF5) 		8-97810-404-1 01 1 9708-
102 STOPPER; SUN SHADE
SUN ROOF(CF5) 		8-97810-405-0 02 1 9708-
103 SUNROOF SET
SUN ROOF(CF5) 		8-97169-679-0 01 1 9708-9708
103 SUNROOF SET
SUN ROOF(CF5) 		8-97184-891-0 01 1 9709-9806
103 SUNROOF SET
SUN ROOF(CF5) 		8-97202-588-0 01 1 9807-
115 SWITCH KIT
SUN ROOF(CF5) 		8-97148-298-0 01 1 9708-
116 SWITCH; MICRO
SUN ROOF(CF5) 		8-97148-297-0 02 1 9708-
130 SEAL; SUNROOF
SUN ROOF(CF5) 		8-97186-534-0 01 1 9711-
