Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

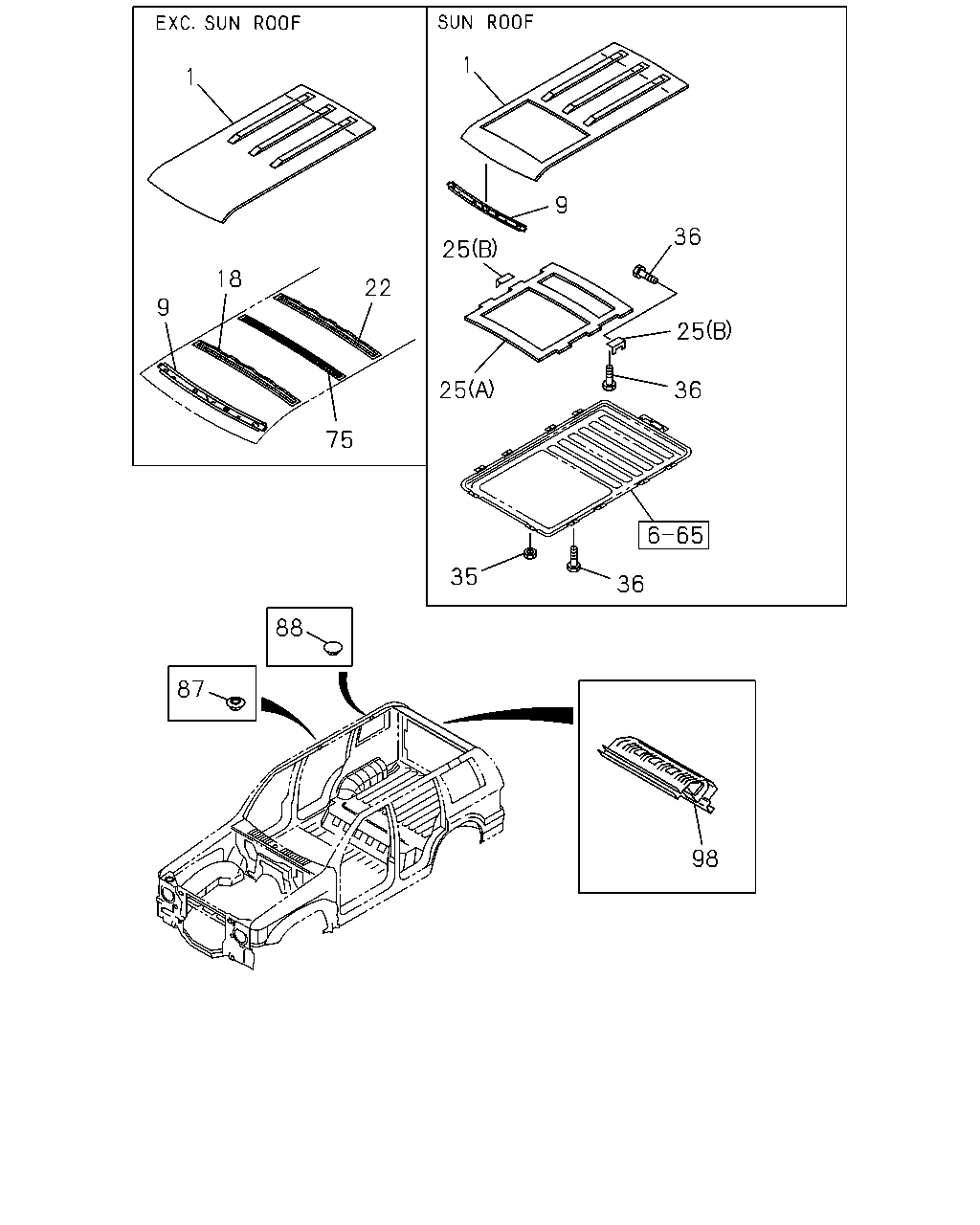

6-60 — ROOF PANEL
(#46184) — 13 parça
1
1
9
36
25
18
22
9
25
25
36
75
35
36
88
87
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
SUN ROOF(CF5)
8-94358-942-4
01
1
9708-
1
PANEL; ROOF
EXC. SUN ROOF(CF5)
8-94358-386-3
01
1
9708-
9
RAIL; ROOF FRT
8-94358-971-1
01
1
9708-
18
RAIL; ROOF CTR FRT
EXC. SUN ROOF(CF5)
8-94358-943-2
01
1
9708-
22
RAIL; ROOF CTR RR
EXC. SUN ROOF(CF5)
8-94358-944-2
01
1
9708-
25
REINFORCEMENT; SUNROOF
SUN ROOF(CF5) (A)
8-97801-932-4
01
1
9708-
25
REINFORCEMENT; SUNROOF
SUN ROOF(CF5) (B)
8-97803-616-0
02
1
9708-
35
NUT; BRKT
SUN ROOF(CF5) M6 FLANGE
0-91150-106-0
02
1
9708-
36
BOLT; SUNROOF FRAME
SUN ROOF(CF5) M6X16 FLANGE
0-28480-616-0
08
1
9708-
75
BOW; ROOF
EXC. SUN ROOF(CF5)
8-97803-255-1
01
1
9708-
87
GROMMET; CANTRAIL INNER
OD=35
8-94122-971-0
02
1
9708-
88
GROMMET; SIDE INNER
OD=22
9-09956-226-0
02
1
9708-
98
RAIL; ROOF RR
8-94358-970-0
01
1
9708-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
