6-52 — REAR DOOR LOCK AND HANDLE (#46182) — 86 parça

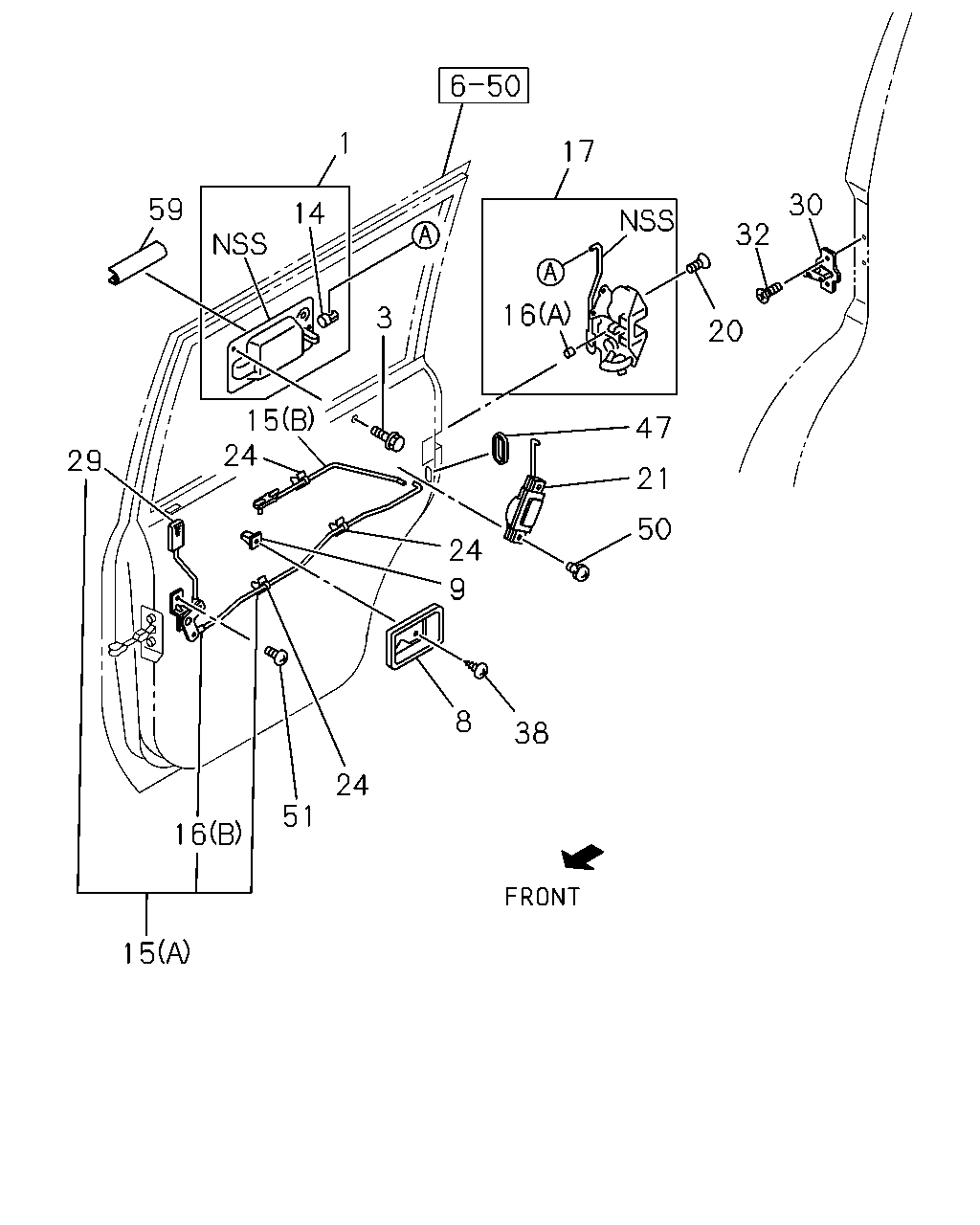

çizim 65136
1 17 30 32 59 14 16 20 3 15 24 47 29 21 50 24 9 8 38 24 51 16 15
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR CREAM WHITE(752) WHITE 		8-97817-301-0 01 1 9708-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ALPINE WHITE(877) GRADE LS(RBB),GRADE LTD(RBD) WHITE 		8-97290-986-0 01 1 9908-0202
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ALPINE WHITE(877),BODY COLOR CAVALIER BLUE/HYPERSILVER MET(887) GRADE LS(RBB),GRADE LTD(RBD) WHITE 		8-97290-986-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CREAM WHITE/LT.SILVER MET(748),BODY COLOR CREAM WHITE(752) WHITE 		8-97817-291-0 01 1 9708-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ALPINE WHITE(877) GRADE LS(RBB),GRADE LTD(RBD) WHITE 		8-97290-982-0 01 1 9908-0202
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE/LT.SILVER MET(740),BODY COLOR ALPINE WHITE(877),BODY COLOR CAVALIER BLUE/HYPERSILVER MET(887) GRADE LS(RBB),GRADE LTD(RBD) WHITE 		8-97290-982-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR EBONY BLACK(826) GRADE S(RBA),GRADE LTD(RBD) BLACK 		8-97817-307-0 01 1 9708-9801
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EBONY BLACK/LT.SILVER MET(774) GRADE LS(RBB),GRADE LTD(RBD) BLACK 		8-97817-307-0 01 1 9802-9806
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR EBONY BLACK(826) GRADE LS(RBB),GRADE LTD(RBD) BLACK 		8-97817-307-0 01 1 9807-0202
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EBONY BLACK/KAISER SILVER MET(630),BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR EBONY BLACK(826) GRADE LS(RBB),GRADE LTD(RBD) BLACK 		8-97817-307-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR EBONY BLACK(826) GRADE S(RBA),GRADE LTD(RBD) BLACK 		8-97817-297-0 01 1 9708-9801
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EBONY BLACK/LT.SILVER MET(774) GRADE LS(RBB),GRADE LTD(RBD) BLACK 		8-97817-297-0 01 1 9802-9806
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR EBONY BLACK(826) GRADE LS(RBB),GRADE LTD(RBD) BLACK 		8-97817-297-0 01 1 9807-0202
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EBONY BLACK/KAISER SILVER MET(630),BODY COLOR EBONY BLACK/LT.SILVER MET(774),BODY COLOR EBONY BLACK(826) GRADE LS(RBB),GRADE LTD(RBD) BLACK 		8-97817-297-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EMPIRE BLUE MICA/LT.SILVER MET(733), BODYCOLOR EMPIRE BLUE MICA(858) GRADE S(RBA),GRADE LTD(RBD) DARK BLUE 		8-97158-490-0 01 1 9708-9801
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EMPIRE BLUE MICA/LT.SILVER MET(733) GRADE LS(RBB),GRADE LTD(RBD) DARK BLUE 		8-97158-490-0 01 1 9802-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724), BODYCOLOR FOXFIRE RED MICA(865) GRADE LS(RBB),GRADE LTD(RBD) DARK RED 		8-97290-985-1 01 1 9908-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EMPIRE BLUE MICA/LT.SILVER MET(733), BODYCOLOR EMPIRE BLUE MICA(858) GRADE S(RBA),GRADE LTD(RBD) DARK BLUE 		8-97158-488-0 01 1 9708-9801
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR EMPIRE BLUE MICA/LT.SILVER MET(733) GRADE LS(RBB),GRADE LTD(RBD) DARK BLUE 		8-97158-488-0 01 1 9802-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOXFIRE RED/MOONMIST GRAY MICA(724), BODYCOLOR FOXFIRE RED MICA(865) GRADE LS(RBB),GRADE LTD(RBD) DARK RED 		8-97290-981-1 01 1 9908-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FIR GREEN MICA(871),BODY COLOR FIR GREENMICA/LT.SILVER MET(883) DARK GREEN 		8-97151-941-0 01 1 9708-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747), BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB),GRADE LTD(RBD) DARK GREEN 		8-97290-988-0 01 1 9908-0202
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR DRAGON GREEN MICA/KAISER SILVERMET(632), BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747), BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB),GRADE LTD(RBD) DARK GREEN 		8-97290-988-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FIR GREEN MICA(871),BODY COLOR FIR GREENMICA/LT.SILVER MET(883) DARK GREEN 		8-97151-939-0 01 1 9708-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747), BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB),GRADE LTD(RBD) DARK GREEN 		8-97290-984-0 01 1 9908-0202
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR DRAGON GREEN MICA/KAISER SILVERMET(632), BODY COLOR DRAGON GREEN MICA/LT.SILVER MET(747), BODY COLOR DRAGON GREEN MICA(860) GRADE LS(RBB),GRADE LTD(RBD) DARK GREEN 		8-97290-984-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FJORD BLUE MET/LIGHT SILVER MET(629), BODY COLOR FJORD BLUE MET/KAISER SILVER MET(633) GRADE LS(RBB),GRADE LTD(RBD) LIGHT BLUE 		8-97297-186-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FJORD BLUE MET/LIGHT SILVER MET(629), BODY COLOR FJORD BLUE MET/KAISER SILVER MET(633) GRADE LS(RBB),GRADE LTD(RBD) LIGHT BLUE 		8-97297-183-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOREST GREEN MICA/LT.SILVER MET(735), BODY COLOR FOREST GREEN MICA(863) GRADE S(RBA),GRADE LTD(RBD) DARK GREEN 		8-97158-491-0 01 1 9708-9801
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOREST GREEN MICA/LT.SILVER MET(735) GRADE LS(RBB),GRADE LTD(RBD) DARK GREEN 		8-97158-491-0 01 1 9802-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR MOONMIST GRAY MICA/LT.SILVER MET(742), BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB),GRADE LTD(RBD) DARK GRAY 		8-97290-987-1 01 1 9908-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOREST GREEN MICA/LT.SILVER MET(735), BODY COLOR FOREST GREEN MICA(863) GRADE S(RBA),GRADE LTD(RBD) DARK GREEN 		8-97158-489-0 01 1 9708-9801
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOREST GREEN MICA/LT.SILVER MET(735) GRADE LS(RBB),GRADE LTD(RBD) DARK GREEN 		8-97158-489-0 01 1 9802-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR MOONMIST GRAY MICA/LT.SILVER MET(742), BODY COLOR MOONMIST GRAY MICA(857) GRADE LS(RBB),GRADE LTD(RBD) DARK GRAY 		8-97290-983-1 01 1 9908-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR LT.SILVER MET(753) LIGHT SILVER 		8-97817-302-0 01 1 9708-9801
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB),GRADE LTD(RBD) LIGHT SILVER 		8-97817-302-0 01 1 9802-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR LT.SILVER MET(753) GRADE LS(RBB),GRADE LTD(RBD) LIGHT SILVER 		8-97817-302-1 01 1 9908-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR LT.SILVER MET(753) LIGHT SILVER 		8-97817-292-0 01 1 9708-9801
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR LT.SILVER MET(753) GRADE LS(RBB),GRADE LTD(RBD) LIGHT SILVER 		8-97817-292-0 01 1 9802-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR LT.SILVER MET/MOONMIST GRAY MICA(712), BODY COLOR LT.SILVER MET(753) GRADE LS(RBB),GRADE LTD(RBD) LIGHT SILVER 		8-97817-292-1 01 1 9908-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR POLAR WHITE MICA(610) GRADE LS(RBB),GRADE LTD(RBD) WHITE 		8-97297-184-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR POLAR WHITE MICA(610) GRADE LS(RBB),GRADE LTD(RBD) WHITE W/MARK 		8-97297-181-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR RED ROCK MICA(872),BODY COLOR RED ROCK MICA/LT.SILVER MET(882) DARK RED 		8-97151-942-0 01 1 9708-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR RED ROCK MICA(872),BODY COLOR RED ROCK MICA/LT.SILVER MET(882) DARK RED 		8-97151-940-0 01 1 9708-9907
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR SATIN GOLD MET(613),BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616),BODY COLOR SATIN GOLD MET/MOONMIST GRAY MICA(628) GRADE LS(RBB),GRADE LTD(RBD) SILVER 		8-97297-185-1 01 1 0203-
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR SATIN GOLD MET(613),BODY COLOR SATIN GOLD MET/LIGHT SILVER MET(616),BODY COLOR SATIN GOLD MET/MOONMIST GRAY MICA(628) GRADE LS(RBB),GRADE LTD(RBD) SILVER 		8-97297-182-1 01 1 0203-
3 BOLT; DOOR OUTSIDE HANDLE
M6X8 		8-94155-893-0 06 1 9708-
8 HANDLE; INSIDE,RR DOOR
BLACK 		8-97817-145-6 01 1 9708-9907
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-443-6 01 1 9908-
8 HANDLE; INSIDE,RR DOOR
BLACK 		8-97817-144-6 01 1 9708-9907
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-442-6 01 1 9908-
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-672-6 01 1 9908-
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-379-6 01 1 9908-
9 GROMMET; SCREW,INSIDE HANDLE 8-94152-494-0 02 1 9708-
14 HOLDER; DOOR LK ROD
WHITE 		8-97037-508-0 01 1 9708-
14 HOLDER; DOOR LK ROD
YELLOW 		8-97044-834-0 01 1 9708-
15 LINK; RR DOOR LK
(B) 		8-94358-555-3 01 1 9708-
15 LINK; RR DOOR LK
(A) DARK GRAY 		8-97155-302-0 01 1 9708-9907
15 LINK; RR DOOR LK
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97155-302-0 01 1 9908-
15 LINK; RR DOOR LK
(B) DARK GRAY 		8-94358-554-3 01 1 9708-
15 LINK; RR DOOR LK
(A) DARK GRAY 		8-97155-301-0 01 1 9708-9907
15 LINK; RR DOOR LK
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97155-301-0 01 1 9908-
15 LINK; RR DOOR LK
INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE 		8-97290-651-0 01 1 9908-
15 LINK; RR DOOR LK
INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE 		8-97290-650-0 01 1 9908-
16 CLIP; DOOR LK LINK
(B) 		8-97811-065-0 02 1 9708-
16 CLIP; DOOR LK LINK
(A) 		8-97807-333-0 03 1 9708-
16 CLIP; DOOR LK LINK
(A) 		8-97807-332-0 03 1 9708-
17 LOCK; DOOR,RR DOOR 8-94358-540-3 01 1 9708-
17 LOCK; DOOR,RR DOOR 8-94358-539-3 01 1 9708-
20 SCREW; DOOR LK
M6X16 CK-HD 		8-97113-761-0 06 1 9708-
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97128-324-1 01 1 9708-9801
21 ACTUATOR; RR DOOR LOCK 8-97128-324-2 01 1 9802-
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97128-323-1 01 1 9708-9801
21 ACTUATOR; RR DOOR LOCK 8-97128-323-2 01 1 9802-
24 ANTIRATTLER; DOOR INSIDE HANDLE
ID=3.8 WHITE 		8-94217-699-0 06 1 9708-
29 KNOB; LK LINK,RR DOOR
DARK GRAY 		8-97098-574-0 02 1 9708-9907
29 KNOB; LK LINK,RR DOOR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-574-0 02 1 9908-
29 KNOB; LK LINK,RR DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-899-0 02 1 9908-
30 STRIKER; RR DOOR 8-94358-462-0 02 1 9708-
32 SCREW; DOOR STRIKER
M8X20 		9-03097-820-0 04 1 9708-
38 SCREW; INSIDE LEVER,RR DOOR LK
M5X14 		8-94152-495-0 02 1 9708-
47 SEAL 8-94355-937-0 02 1 9708-
50 BOLT; ACTUATOR
AUTO DOOR LOCK<AU4> M6X8 		8-94155-893-0 04 1 9708-9801
50 BOLT; ACTUATOR
M6X8 		8-94155-893-0 04 1 9802-
51 BOLT; LINK,DOOR LOCK
M6X8 		8-94155-893-0 02 1 9708-
59 RUBBER; OUTSIDE HANDLE 8-97811-249-0 02 1 9708-
