Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-50 - REAR DOOR AND HINGE
▶

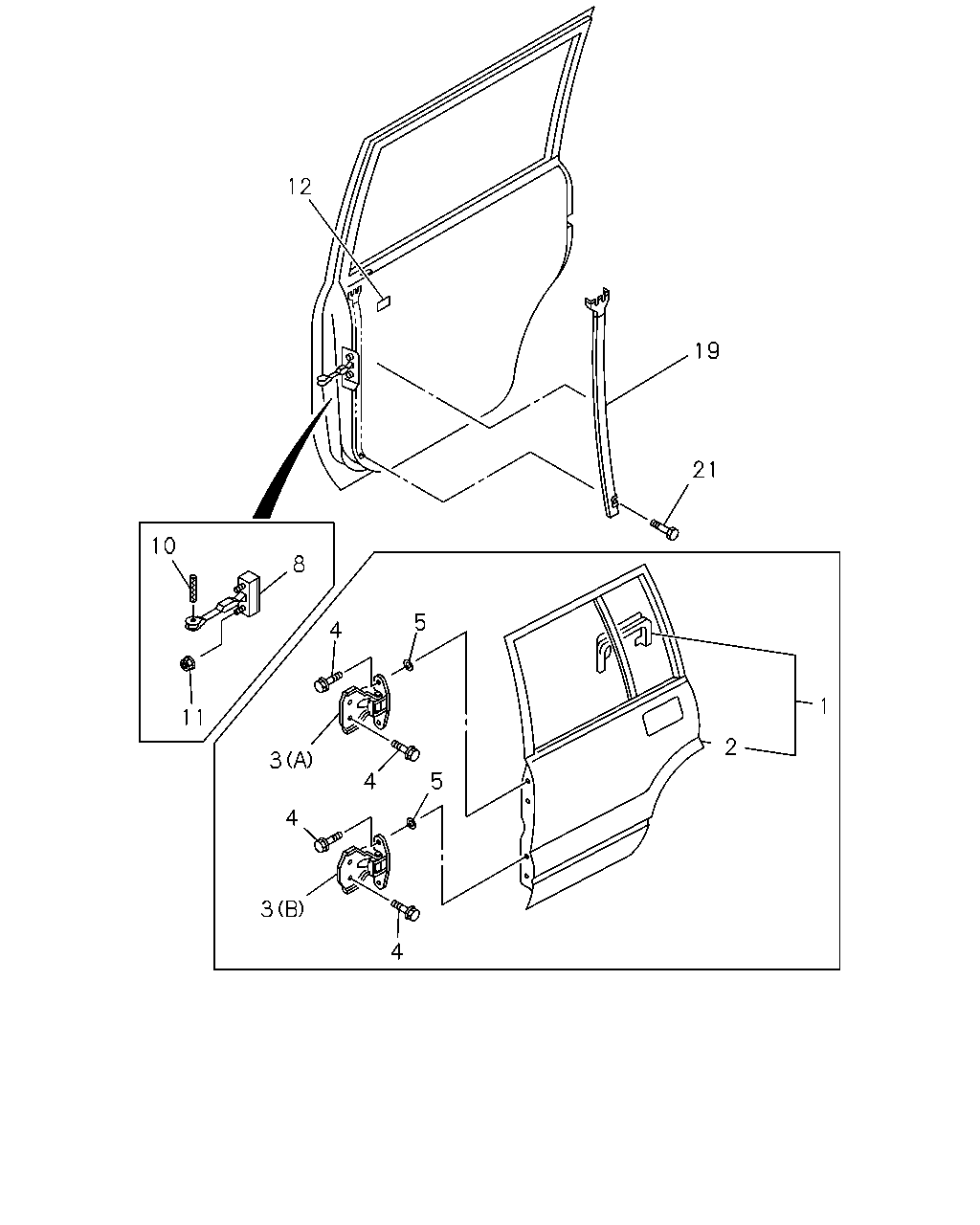

6-50 — REAR DOOR AND HINGE
(#46180) — 20 parça
12
19
21
10
8
5
4
1
11
2
3
5
4
4
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; REAR
8-97184-459-0
01
1
9708-0301
1
DOOR ASM; REAR
8-97184-459-0
01
1
0302-
1
DOOR ASM; REAR
8-97184-458-0
01
1
9708-0301
1
DOOR ASM; REAR
8-97184-458-0
01
1
0302-
2
PANEL; RR DOOR OUTER
8-97103-012-2
01
1
9708-
2
PANEL; RR DOOR OUTER
8-97103-011-2
01
1
9708-
3
HINGE; RR DOOR
(A)
8-97076-891-0
01
1
9708-
3
HINGE; RR DOOR
(B)
8-97076-893-0
01
1
9708-
3
HINGE; RR DOOR
(A)
8-97076-890-0
01
1
9708-
3
HINGE; RR DOOR
(B)
8-97076-892-0
01
1
9708-
4
BOLT; HINGE
M8X23 FLANGE
8-94174-559-2
16
1
9708-
5
WASHER; PL,HINGE TO DOOR
ID=8.1 W/PL WASHER
8-97173-691-0
04
1
9708-0106
5
WASHER; PL,HINGE TO DOOR
8-97308-583-0
04
1
0107-
8
ARM; CHECK,RR DOOR
8-94358-620-0
02
1
9708-
10
PIN; CHECK ARM
8-97020-859-0
02
1
9708-
11
NUT
M6 FLANGE
5-09440-004-0
04
1
9708-
12
SEAL; DOOR INNER PANEL
8-97808-226-1
02
1
9708-
19
RAIL; FRT GUIDE,RR DOOR
8-97810-351-1
01
1
9708-
19
RAIL; FRT GUIDE,RR DOOR
8-97810-350-1
01
1
9708-
21
BOLT; GUIDE RAIL
M6X8
8-94155-893-0
02
1
9708-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
