◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#4618) — 34 parça

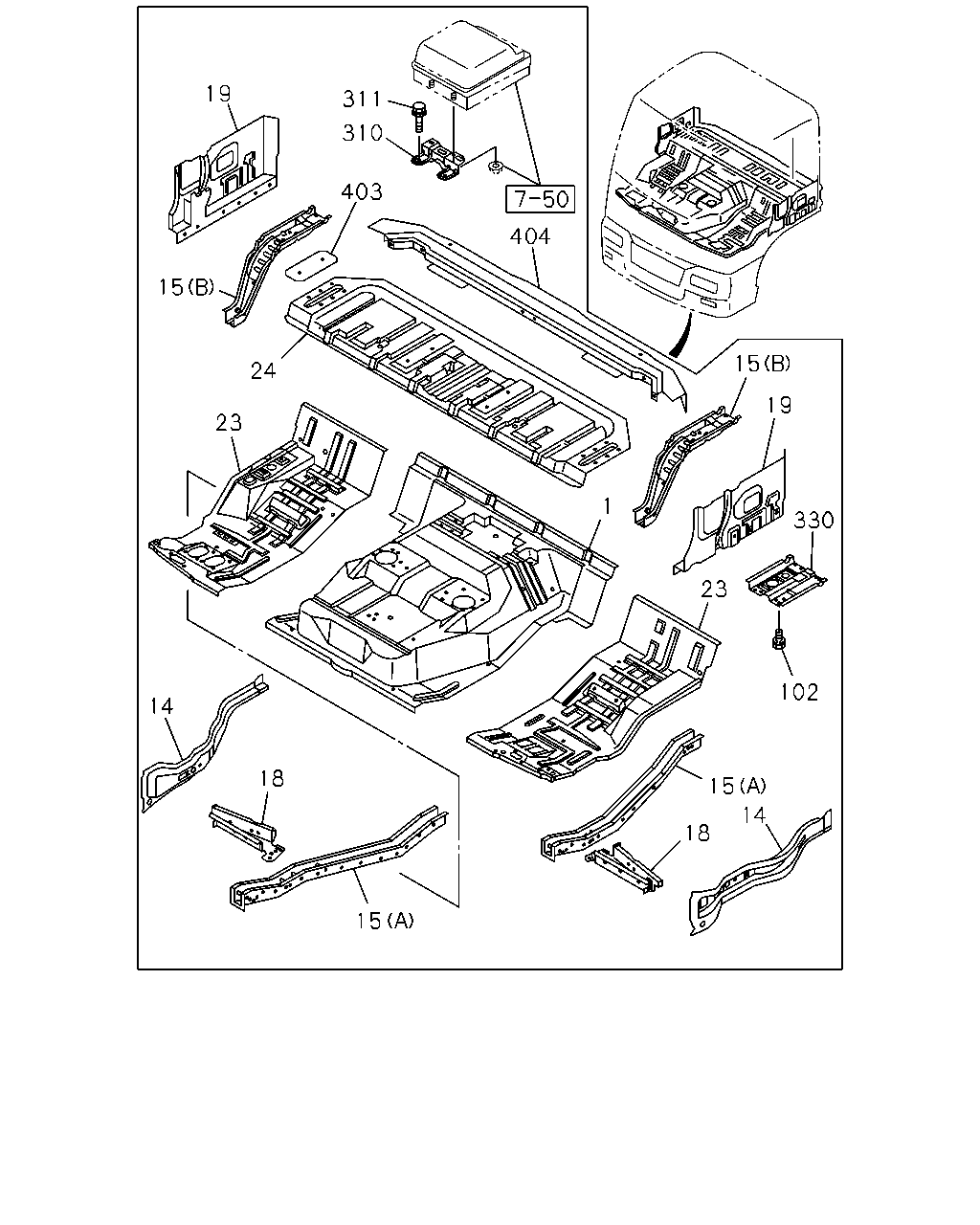

çizim 42512
19 311 310 403 404 15 15 24 19 23 1 330 23 102 14 18 15 14 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
ISUZU M/T<X9A> 		1-62172-614-2 01 1 9603-9904
1 PANEL; FLOOR
MJA7U M/T(X6G),MJA6A M/T(X6V),TRANSMISSION-ZF 8S151OD(Y3N) 		1-62172-614-5 01 1 9905-
1 PANEL; FLOOR
ZF M/T<X9E> 		1-62172-627-2 01 1 9603-9904
1 PANEL; FLOOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-627-5 01 1 9905-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9603-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9603-
15 FRAME; UNDER
(A) 		1-62472-670-3 01 1 9603-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 9603-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 9603-
15 FRAME; UNDER
(A) 		1-62472-669-3 01 1 9603-
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 9603-
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-3 01 1 9603-
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 9603-9904
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 9905-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 9603-
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 9905-
23 PANEL; FLOOR,SIDE 1-62183-272-4 01 1 9603-9903
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 9904-
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> ISUZU M/T<X9A> 		1-62172-642-4 01 1 9603-9903
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> ISUZU M/T<X9A> 		1-62172-803-0 01 1 9904-9904
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 9905-
23 PANEL; FLOOR,SIDE
ZF M/T<X9E> 		1-62172-615-4 01 1 9603-9903
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> EXC. DUMP CONTROL LEVER<RC4> 		1-62172-615-4 01 1 9603-9903
23 PANEL; FLOOR,SIDE
ZF M/T<X9E> 		1-62172-801-0 01 1 9904-9904
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> EXC. DUMP CONTROL LEVER<RC4> 		1-62172-801-0 01 1 9904-9904
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62172-801-0 01 1 9905-0101
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62172-805-0 01 1 0102-
24 PANEL; BED PAN 1-62172-540-9 01 1 9603-
102 BOLT; FLOOR BOARD
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9603-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 9603-
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9603-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 9603-
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 9603-9810
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 9603-
