◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-45 - MOLDING AND STRIPE ▶
6-45 — MOLDING AND STRIPE (#46178) — 100 parça
çizim 63856
193 38 192 31 191 30
BalonParca AdiParca NoAdetTipApplied Date A B C
30 MOLDING; FENDER
BODY COLOR ALPINE WHITE(877) BODY SIDE MOLDING<B85> WHITE 		8-97291-189-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY COLOR ALPINE WHITE(877) BODY SIDE MOLDING<B85> WHITE 		8-97291-183-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY COLOR DRAGON GREEN MICA(860) BODY SIDE MOLDING<B85> DARK GREEN 		8-97291-187-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY COLOR DRAGON GREEN MICA(860) BODY SIDE MOLDING<B85> DARK GREEN 		8-97291-181-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY COLOR EBONY BLACK(826) BODY SIDE MOLDING<B85> BLACK 		8-97291-185-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY COLOR EBONY BLACK(826) BODY SIDE MOLDING<B85> BLACK 		8-97291-179-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY COLOR FOXFIRE RED MICA(865) BODY SIDE MOLDING<B85> DARK RED 		8-97291-188-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY COLOR FOXFIRE RED MICA(865) BODY SIDE MOLDING<B85> DARK RED 		8-97291-182-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY COLOR LT.SILVER MET(753) BODY SIDE MOLDING<B85> LIGHT SILVER 		8-97291-184-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY COLOR LT.SILVER MET(753) BODY SIDE MOLDING<B85> LIGHT SILVER 		8-97291-178-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY COLOR POLAR WHITE MICA(610) BODY SIDE MOLDING<B85> WHITE 		8-97297-271-0 01 1 0203- ● ● ●
30 MOLDING; FENDER
BODY COLOR POLAR WHITE MICA(610) BODY SIDE MOLDING<B85> WHITE 		8-97297-270-0 01 1 0203- ● ● ●
30 MOLDING; FENDER
BODY COLOR SATIN GOLD MET(613) BODY SIDE MOLDING<B85> SILVER 		8-97297-277-0 01 1 0203- ● ● ●
30 MOLDING; FENDER
BODY COLOR SATIN GOLD MET(613) BODY SIDE MOLDING<B85> SILVER 		8-97297-276-0 01 1 0203- ● ● ●
30 MOLDING; FENDER
BODY SIDE MOLDING<B85> 		8-97177-730-0 01 1 9708-9907 ● ● ●
30 MOLDING; FENDER
BODY COLOR MOONMIST GRAY MICA(857) BODY SIDE MOLDING<B85> DARK GRAY 		8-97291-186-0 01 1 9908- ● ● ●
30 MOLDING; FENDER
BODY SIDE MOLDING<B85> 		8-97177-729-0 01 1 9708-9907 ● ● ●
30 MOLDING; FENDER
BODY COLOR MOONMIST GRAY MICA(857) BODY SIDE MOLDING<B85> DARK GRAY 		8-97291-180-0 01 1 9908- ● ● ●
31 MOLDING; FRT DOOR
BODY SIDE MOLDING<B85> (A) 		8-97177-732-0 01 1 9708-9806 ● ● ●
31 MOLDING; FRT DOOR
BODY SIDE MOLDING<B85> (A) 		8-97177-731-0 01 1 9708-9806 ● ● ●
31 MOLDING; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-077-4 01 1 9708-9806 ● ● ●
31 MOLDING; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-076-4 01 1 9708-9806 ● ● ●
38 MOLDING; RR DOOR
BODY SIDE MOLDING<B85> (C) 		8-97177-734-0 01 1 9708-9806 ● ● ●
38 MOLDING; RR DOOR
BODY SIDE MOLDING<B85> (C) 		8-97177-733-0 01 1 9708-9806 ● ● ●
38 MOLDING; RR DOOR
EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97811-369-0 02 1 9708-9806 ● ● ●
38 MOLDING; RR DOOR
EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-081-3 01 1 9708-9806 ● ● ●
38 MOLDING; RR DOOR
EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-080-3 01 1 9708-9806 ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) BODY SIDE MOLDING<B85> WHITE 		8-97291-201-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) BODY SIDE MOLDING<B85> WHITE 		8-97291-195-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR DRAGON GREEN MICA(860) BODY SIDE MOLDING<B85> DARK GREEN 		8-97291-199-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR DRAGON GREEN MICA(860) BODY SIDE MOLDING<B85> DARK GREEN 		8-97291-193-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR EBONY BLACK(826) BODY SIDE MOLDING<B85> BLACK 		8-97291-197-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR EBONY BLACK(826) BODY SIDE MOLDING<B85> BLACK 		8-97291-191-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA(865) BODY SIDE MOLDING<B85> DARK RED 		8-97291-200-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA(865) BODY SIDE MOLDING<B85> DARK RED 		8-97291-194-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR LT.SILVER MET(753) BODY SIDE MOLDING<B85> LIGHT SILVER 		8-97291-196-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR LT.SILVER MET(753) BODY SIDE MOLDING<B85> LIGHT SILVER 		8-97291-190-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR POLAR WHITE MICA(610) BODY SIDE MOLDING<B85> WHITE 		8-97297-273-1 01 1 0203- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR POLAR WHITE MICA(610) BODY SIDE MOLDING<B85> WHITE 		8-97297-272-1 01 1 0203- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR SATIN GOLD MET(613) BODY SIDE MOLDING<B85> SILVER 		8-97297-279-1 01 1 0203- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR SATIN GOLD MET(613) BODY SIDE MOLDING<B85> SILVER 		8-97297-278-1 01 1 0203- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY SIDE MOLDING<B85> 		8-97177-732-0 01 1 9807-9907 ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR MOONMIST GRAY MICA(857) BODY SIDE MOLDING<B85> DARK GRAY 		8-97291-198-1 01 1 9908- ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY SIDE MOLDING<B85> 		8-97177-731-0 01 1 9807-9907 ● ● ●
191 MOLDING; BODY SIDE,FRT DOOR
BODY COLOR MOONMIST GRAY MICA(857) BODY SIDE MOLDING<B85> DARK GRAY 		8-97291-192-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR ALPINE WHITE(877) BODY SIDE MOLDING<B85> WHITE 		8-97291-213-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR ALPINE WHITE(877) BODY SIDE MOLDING<B85> WHITE 		8-97291-207-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR DRAGON GREEN MICA(860) BODY SIDE MOLDING<B85> DARK GREEN 		8-97291-211-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR DRAGON GREEN MICA(860) BODY SIDE MOLDING<B85> DARK GREEN 		8-97291-205-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR EBONY BLACK(826) BODY SIDE MOLDING<B85> BLACK 		8-97291-209-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR EBONY BLACK(826) BODY SIDE MOLDING<B85> BLACK 		8-97291-203-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR FOXFIRE RED MICA(865) BODY SIDE MOLDING<B85> DARK RED 		8-97291-212-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR FOXFIRE RED MICA(865) BODY SIDE MOLDING<B85> DARK RED 		8-97291-206-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR LT.SILVER MET(753) BODY SIDE MOLDING<B85> LIGHT SILVER 		8-97291-208-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR LT.SILVER MET(753) BODY SIDE MOLDING<B85> LIGHT SILVER 		8-97291-202-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR POLAR WHITE MICA(610) BODY SIDE MOLDING<B85> WHITE 		8-97297-275-1 01 1 0203- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR POLAR WHITE MICA(610) BODY SIDE MOLDING<B85> WHITE 		8-97297-274-1 01 1 0203- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR SATIN GOLD MET(613) BODY SIDE MOLDING<B85> SILVER 		8-97297-281-1 01 1 0203- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR SATIN GOLD MET(613) BODY SIDE MOLDING<B85> SILVER 		8-97297-280-1 01 1 0203- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY SIDE MOLDING<B85> 		8-97177-734-0 01 1 9807-9907 ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR MOONMIST GRAY MICA(857) BODY SIDE MOLDING<B85> DARK GRAY 		8-97291-210-1 01 1 9908- ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY SIDE MOLDING<B85> 		8-97177-733-0 01 1 9807-9907 ● ● ●
192 MOLDING; BODY SIDE,RR DOOR
BODY COLOR MOONMIST GRAY MICA(857) BODY SIDE MOLDING<B85> DARK GRAY 		8-97291-204-1 01 1 9908- ● ● ●
193 DECAL SET; BODY SIDE
BODY SIDE STRIPE FEATHER TYPE<6GV> 		5-87831-808-0 01 1 9910- ● ●
193 DECAL SET; BODY SIDE
BODY SIDE STRIPE FEATHER TYPE<6GV> 		5-87831-807-0 01 1 9910- ● ●

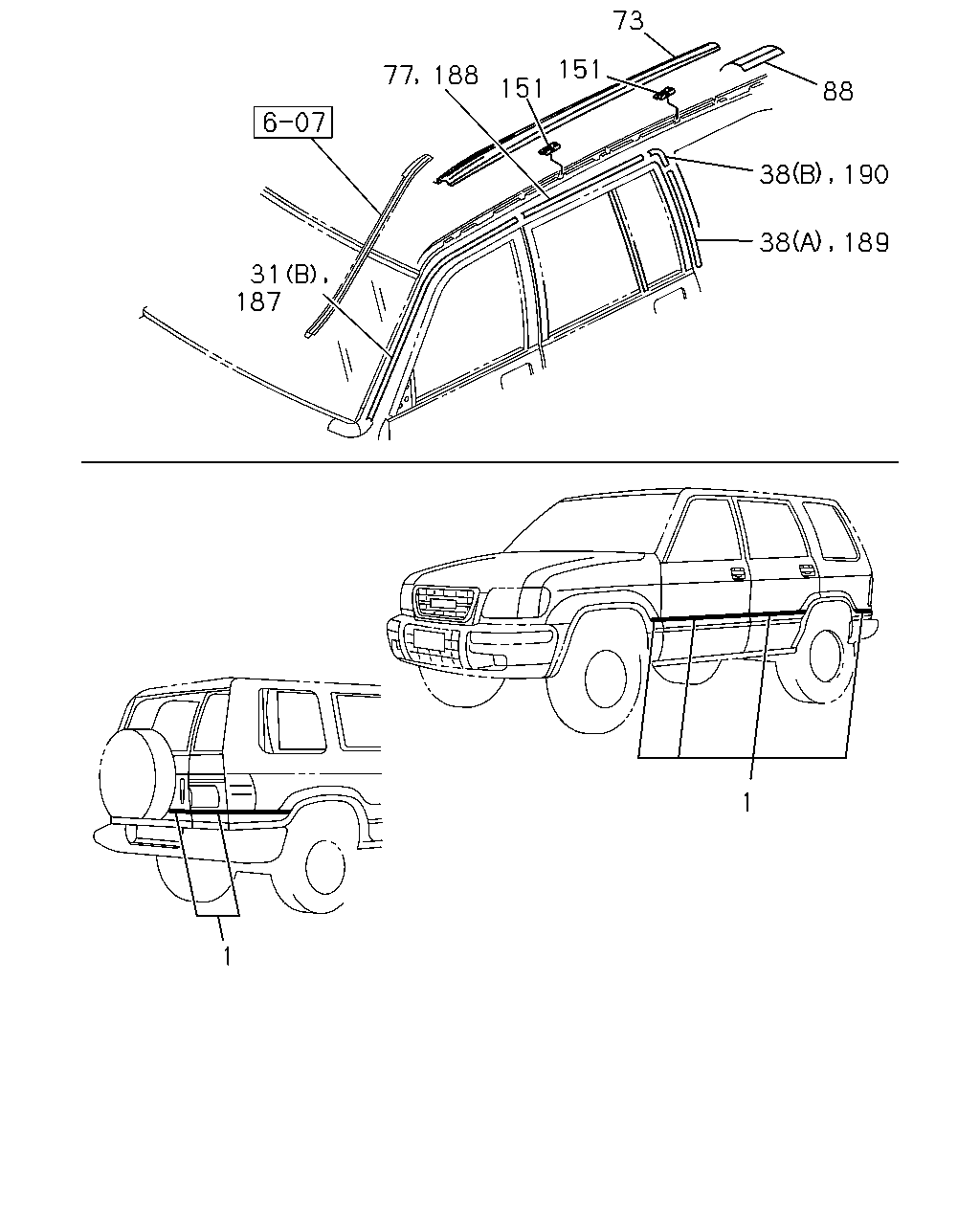

çizim 64177
73 151 77 188 151 88 38 190 38 189 31 187 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STRIPE SET; BODY SIDE
OVER FENDER<6GH> CUSTOM TWO TONE E TYPE<7KE> LIGHT SILVER 		5-87831-498-0 01 1 9708-9806 ● ● ●
1 STRIPE SET; BODY SIDE
OVER FENDER<6GH> CUSTOM TWO TONE E TYPE<7KE> LIGHT SILVER 		5-87831-497-0 01 1 9708-9806 ● ● ●
31 MOLDING; FRT DOOR
BODY SIDE MOLDING<B85> (A) 		8-97177-732-0 01 1 9708-9806 ● ● ●
31 MOLDING; FRT DOOR
BODY SIDE MOLDING<B85> (A) 		8-97177-731-0 01 1 9708-9806 ● ● ●
31 MOLDING; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-077-4 01 1 9708-9806 ● ● ●
31 MOLDING; FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-076-4 01 1 9708-9806 ● ● ●
38 MOLDING; RR DOOR
BODY SIDE MOLDING<B85> (C) 		8-97177-734-0 01 1 9708-9806 ● ● ●
38 MOLDING; RR DOOR
BODY SIDE MOLDING<B85> (C) 		8-97177-733-0 01 1 9708-9806 ● ● ●
38 MOLDING; RR DOOR
EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97811-369-0 02 1 9708-9806 ● ● ●
38 MOLDING; RR DOOR
EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-081-3 01 1 9708-9806 ● ● ●
38 MOLDING; RR DOOR
EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-080-3 01 1 9708-9806 ● ● ●
73 MOLDING; DRIP,BODY SIDE 8-97810-187-1 01 1 9708-0212 ● ● ●
73 MOLDING; DRIP,BODY SIDE 8-97360-915-0 01 1 0301- ● ● ●
73 MOLDING; DRIP,BODY SIDE 8-97810-186-1 01 1 9708-0212 ● ● ●
73 MOLDING; DRIP,BODY SIDE 8-97360-914-0 01 1 0301- ● ● ●
77 MOLDING; RR DOOR FRAME,UPR
EXTERIOR CHROME PACKAGE<6CX> 		8-97803-079-4 01 1 9708-9806 ● ● ●
77 MOLDING; RR DOOR FRAME,UPR
EXTERIOR CHROME PACKAGE<6CX> 		8-97803-078-4 01 1 9708-9806 ● ● ●
88 MOLDING; DRIP,RR 8-97166-284-1 01 1 9708- ● ● ●
88 MOLDING; DRIP,RR 8-97166-283-1 01 1 9708- ● ● ●
151 CLIP; MOLDING 8-97165-372-0 14 1 9708-9802 ● ● ●
151 CLIP; MOLDING 8-97165-372-0 16 1 9803- ● ● ●
187 MOLDING; FRT DOOR SASH 8-97803-077-5 01 1 9807-0212 ● ● ●
187 MOLDING; FRT DOOR SASH 8-97360-919-0 01 1 0301- ● ● ●
187 MOLDING; FRT DOOR SASH 8-97803-076-5 01 1 9807-0212 ● ● ●
187 MOLDING; FRT DOOR SASH 8-97360-918-0 01 1 0301- ● ● ●
188 MOLDING; RR DOOR UPR 8-97803-079-5 01 1 9807-0212 ● ● ●
188 MOLDING; RR DOOR UPR 8-97360-921-0 01 1 0301- ● ● ●
188 MOLDING; RR DOOR UPR 8-97803-078-5 01 1 9807-0212 ● ● ●
188 MOLDING; RR DOOR UPR 8-97360-920-0 01 1 0301- ● ● ●
189 MOLDING; RR DOOR SIDE 8-97803-081-3 01 1 9807-0212 ● ● ●
189 MOLDING; RR DOOR SIDE 8-97360-923-0 01 1 0301- ● ● ●
189 MOLDING; RR DOOR SIDE 8-97803-080-3 01 1 9807-0212 ● ● ●
189 MOLDING; RR DOOR SIDE 8-97360-922-0 01 1 0301- ● ● ●
190 MOLDING; RR DOOR CORNER 8-97811-369-0 02 1 9807-0212 ● ● ●
190 MOLDING; RR DOOR CORNER 8-97361-284-0 02 1 0301- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
