◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#46175) — 107 parça

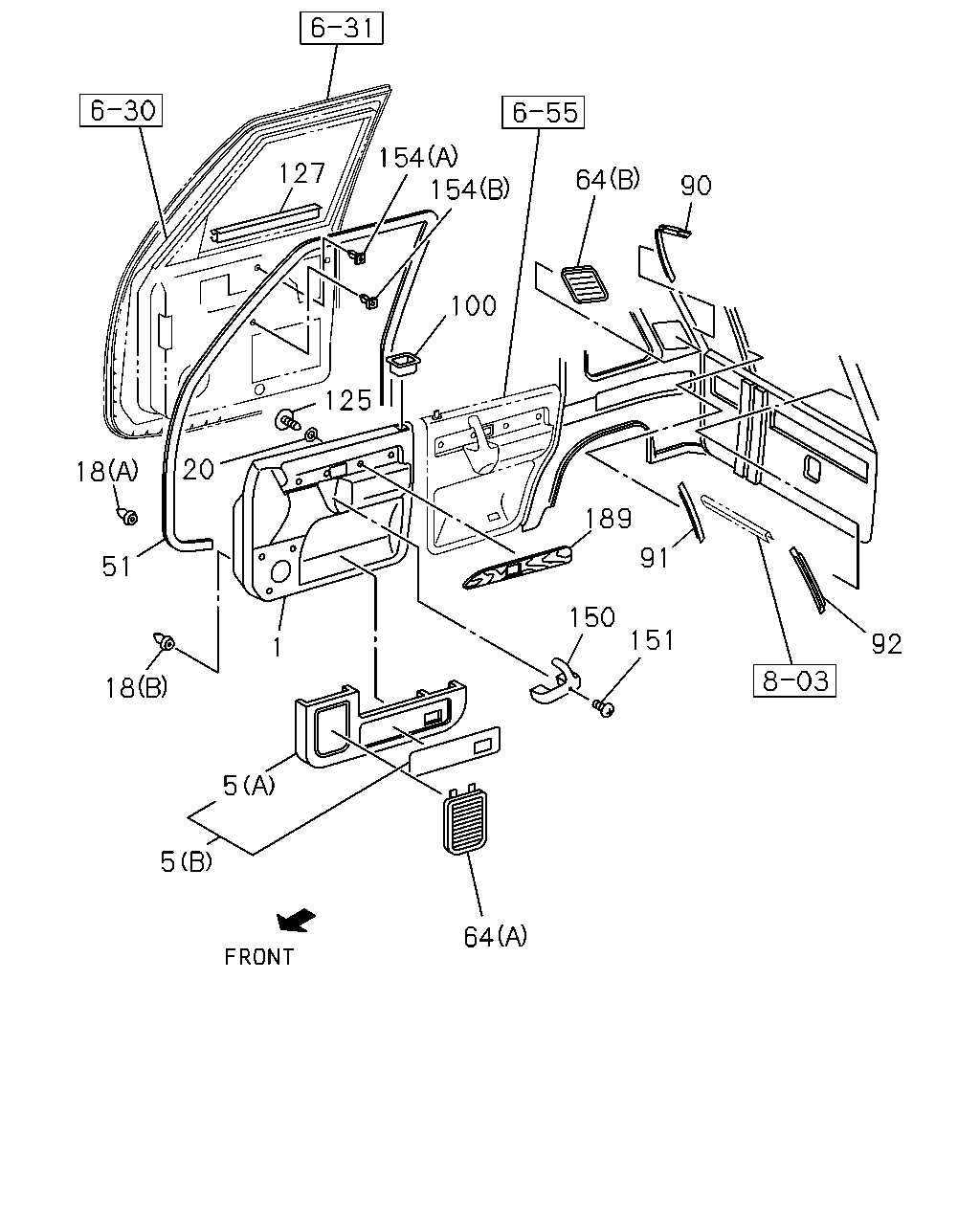

çizim 65153
154 154 127 64 90 100 125 18 20 189 91 51 150 151 92 1 18 5 5 64
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> DARK GRAY 		8-97158-953-0 01 1 9708-9801 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> DARK GRAY 		8-97158-952-0 01 1 9708-9801 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97158-951-0 01 1 9708-9801 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97158-950-0 01 1 9708-9801 ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> EXC. WOOD GRAIN TRIM<7FB> LIGHT BEIGE 		8-97293-517-2 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> EXC. WOOD GRAIN TRIM<7FB> LIGHT BEIGE 		8-97293-515-2 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB>,WOOD GRAIN TRIM<7FB> LIGHT BEIGE 		8-97293-529-1 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB>,WOOD GRAIN TRIM<7FB> LIGHT BEIGE 		8-97293-527-1 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> EXC. WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97293-516-2 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) LEATHER SEAT<6TB> EXC. WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97293-514-2 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> LEATHER SEAT<6TB> EXC. WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97158-965-0 01 1 9708-9801 ● ●
1 PAD; TRIM,FRT DOOR
LEATHER SEAT<6TB> EXC. WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97158-965-0 01 1 9802-9907 ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR BEIGE(181) WOOD GRAIN TRIM<7FB> LIGHT BEIGE 		8-97290-783-2 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> LEATHER SEAT<6TB> EXC. WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97158-964-0 01 1 9708-9801 ● ●
1 PAD; TRIM,FRT DOOR
LEATHER SEAT<6TB> EXC. WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97158-964-0 01 1 9802-9907 ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR BEIGE(181) WOOD GRAIN TRIM<7FB> LIGHT BEIGE 		8-97290-782-2 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> EXC. LEATHER SEAT<6TB>,WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97158-955-0 01 1 9708-9801 ● ●
1 PAD; TRIM,FRT DOOR
EXC. LEATHER SEAT<6TB>,WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97158-955-0 01 1 9802-9907 ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB>,WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97293-528-1 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> EXC. LEATHER SEAT<6TB>,WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97158-954-0 01 1 9708-9801 ● ●
1 PAD; TRIM,FRT DOOR
EXC. LEATHER SEAT<6TB>,WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97158-954-0 01 1 9802-9907 ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. LEATHER SEAT<6TB>,WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97293-526-1 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97152-094-1 01 1 9708-9801 ● ●
1 PAD; TRIM,FRT DOOR
WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97152-094-1 01 1 9802-9907 ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97152-094-2 01 1 9908- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97152-093-1 01 1 9708-9801 ● ●
1 PAD; TRIM,FRT DOOR
WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97152-093-1 01 1 9802-9907 ● ●
1 PAD; TRIM,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) WOOD GRAIN TRIM<7FB> DARK GRAY 		8-97152-093-2 01 1 9908- ● ●
5 POCKET; DOOR
(A) WO/CARPET DARK GRAY 		8-97098-553-2 01 1 9708-9801 ●
5 POCKET; DOOR
POWER WINDOW<A30> (A) WO/CARPET DARK GRAY 		8-97098-553-2 01 1 9708-9801 ● ●
5 POCKET; DOOR
(A) WO/CARPET DARK GRAY 		8-97098-553-2 01 1 9802-9907 ● ●
5 POCKET; DOOR
INTERIOR COLOR MEDIUM GRAY(113) (A) WO/CARPET DARK GRAY 		8-97098-553-2 01 1 9908- ● ●
5 POCKET; DOOR
(A) WO/CARPET DARK GRAY 		8-97098-551-2 01 1 9708-9801 ●
5 POCKET; DOOR
POWER WINDOW<A30> (A) WO/CARPET DARK GRAY 		8-97098-551-2 01 1 9708-9801 ● ●
5 POCKET; DOOR
(A) WO/CARPET DARK GRAY 		8-97098-551-2 01 1 9802-9907 ● ●
5 POCKET; DOOR
INTERIOR COLOR MEDIUM GRAY(113) (A) WO/CARPET DARK GRAY 		8-97098-551-2 01 1 9908- ● ●
5 POCKET; DOOR
INTERIOR COLOR BEIGE(181) (B) W/CARPET LIGHT BEIGE 		8-97290-758-1 01 1 9908- ● ●
5 POCKET; DOOR
INTERIOR COLOR BEIGE(181) (A) WO/CARPET LIGHT BEIGE 		8-97290-897-2 01 1 9908- ● ●
5 POCKET; DOOR
INTERIOR COLOR BEIGE(181) (B) W/CARPET LIGHT BEIGE 		8-97290-757-1 01 1 9908- ● ●
5 POCKET; DOOR
INTERIOR COLOR BEIGE(181) (A) WO/CARPET LIGHT BEIGE 		8-97290-898-2 01 1 9908- ● ●
5 POCKET; DOOR
INTERIOR COLOR MEDIUM GRAY(113) (B) W/CARPET DARK GRAY 		8-97151-911-1 01 1 9908- ● ●
5 POCKET; DOOR
POWER WINDOW<A30> (B) W/CARPET DARK GRAY 		8-97151-911-1 01 1 9708-9801 ● ●
5 POCKET; DOOR
(B) W/CARPET DARK GRAY 		8-97151-911-1 01 1 9802-9907 ● ●
5 POCKET; DOOR
POWER WINDOW<A30> (B) W/CARPET DARK GRAY 		8-97151-910-1 01 1 9708-9801 ● ●
5 POCKET; DOOR
(B) W/CARPET DARK GRAY 		8-97151-910-1 01 1 9802-9907 ● ●
5 POCKET; DOOR
INTERIOR COLOR MEDIUM GRAY(113) (B) W/CARPET DARK GRAY 		8-97151-910-1 01 1 9908- ● ●
18 CLIP; DOOR PAD
(A) 		8-97074-005-0 12 1 9708-9801 ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (A) 		8-97074-005-0 12 1 9708-9801 ● ●
18 CLIP; DOOR PAD
(A) 		8-97074-005-0 12 1 9802- ● ●
18 CLIP; DOOR PAD
(B) H=16.3 		8-97126-393-0 02 1 9708-9801 ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) H=16.3 		8-97126-393-0 02 1 9708-9801 ● ●
18 CLIP; DOOR PAD
(B) H=16.3 		8-97126-393-0 02 1 9802-0006 ● ●
18 CLIP; DOOR PAD
(B) H=16 		8-94318-803-1 02 1 0007-0007 ● ●
18 CLIP; DOOR PAD
(B) H=16.7 		8-97022-017-0 02 1 0008- ● ●
20 WASHER; TRIM PAD
WOOD GRAIN TRIM<7FB> 		8-94279-646-0 08 1 9708- ● ● ●
51 WEATHERSTRIP; FRONT DOOR
DARK GRAY 		8-97098-455-5 01 1 9708-9907 ● ● ●
51 WEATHERSTRIP; FRONT DOOR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-455-5 01 1 9908- ● ● ●
51 WEATHERSTRIP; FRONT DOOR
DARK GRAY 		8-97098-454-5 01 1 9708-9907 ● ● ●
51 WEATHERSTRIP; FRONT DOOR
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-454-5 01 1 9908- ● ● ●
51 WEATHERSTRIP; FRONT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-649-5 01 1 9908- ● ● ●
51 WEATHERSTRIP; FRONT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-648-5 01 1 9908- ● ● ●
64 GRILLE
(A) DARK GRAY 		8-97098-290-1 01 1 9708-9907 ● ● ●
64 GRILLE
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97098-290-1 01 1 9908- ● ● ●
64 GRILLE
(B) DARK GRAY 		8-97098-418-1 01 1 9708-9907 ● ● ●
64 GRILLE
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97098-418-2 01 1 9908- ● ● ●
64 GRILLE
(A) DARK GRAY 		8-97098-289-1 01 1 9708-9907 ● ● ●
64 GRILLE
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97098-289-1 01 1 9908- ● ● ●
64 GRILLE
(B) DARK GRAY 		8-97098-417-1 01 1 9708-9907 ● ● ●
64 GRILLE
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97098-417-2 01 1 9908- ● ● ●
64 GRILLE
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-617-2 01 1 9908- ● ● ●
64 GRILLE
INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE 		8-97290-647-1 01 1 9908- ● ● ●
64 GRILLE
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-616-2 01 1 9908- ● ● ●
64 GRILLE
INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE 		8-97290-646-1 01 1 9908- ● ● ●
90 COVER; DOOR CORNER 8-94359-091-2 01 1 9708- ● ● ●
91 COVER; DOOR CORNER INNER,DOOR
RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97807-071-2 01 1 9708-9801 ● ● ●
91 COVER; DOOR CORNER INNER,DOOR 8-97807-071-2 01 1 9802- ● ● ●
91 COVER; DOOR CORNER INNER,DOOR
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97808-361-2 01 1 9708-9801 ● ● ●
92 COVER; DOOR CORNER OUTER,DOOR
RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> 		8-97808-362-2 01 1 9708-9801 ● ● ●
92 COVER; DOOR CORNER OUTER,DOOR 8-97808-362-2 01 1 9802- ● ● ●
92 COVER; DOOR CORNER OUTER,DOOR
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> 		8-97808-363-2 01 1 9708-9801 ● ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
DARK GRAY 		8-97098-545-3 02 1 9708-9801 ●
100 GUIDE; HOLE,DOOR LOCK KNOB
POWER WINDOW<A30> DARK GRAY 		8-97098-545-3 02 1 9708-9801 ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
DARK GRAY 		8-97098-545-3 02 1 9802-9907 ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-545-3 02 1 9908- ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-753-3 02 1 9908- ● ●
125 SCREW; ORNAMENT PANEL
WOOD GRAIN TRIM<7FB> 		8-94220-096-0 08 1 9708- ● ● ●
127 SEAL; DOOR INNER 8-97061-644-5 01 1 9708-9801 ●
127 SEAL; DOOR INNER
POWER WINDOW<A30> 		8-97061-644-5 01 1 9708-9801 ● ●
127 SEAL; DOOR INNER 8-97061-644-5 01 1 9802- ● ●
127 SEAL; DOOR INNER 8-97800-754-6 01 1 9708-9801 ●
127 SEAL; DOOR INNER
POWER WINDOW<A30> 		8-97800-754-6 01 1 9708-9801 ● ●
127 SEAL; DOOR INNER 8-97800-754-6 01 1 9802- ● ●
150 GRIP; ASSIST,DOOR TRIM
EXC. POWER WINDOW<A30> DARK GRAY 		8-97098-547-1 01 1 9708-9801 ●
150 GRIP; ASSIST,DOOR TRIM
EXC. POWER WINDOW<A30> DARK GRAY 		8-97098-546-1 01 1 9708-9801 ●
150 GRIP; ASSIST,DOOR TRIM
POWER WINDOW<A30> DARK GRAY 		8-97098-549-4 01 1 9708-9801 ● ● ●
150 GRIP; ASSIST,DOOR TRIM
DARK GRAY 		8-97098-549-4 01 1 9802-9907 ● ●
150 GRIP; ASSIST,DOOR TRIM
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-549-4 01 1 9908- ● ●
150 GRIP; ASSIST,DOOR TRIM
POWER WINDOW<A30> DARK GRAY 		8-97098-548-4 01 1 9708-9801 ● ● ●
150 GRIP; ASSIST,DOOR TRIM
DARK GRAY 		8-97098-548-4 01 1 9802-9907 ● ●
150 GRIP; ASSIST,DOOR TRIM
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-548-4 01 1 9908- ● ●
150 GRIP; ASSIST,DOOR TRIM
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-785-4 01 1 9908- ● ●
150 GRIP; ASSIST,DOOR TRIM
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-784-4 01 1 9908- ● ●
151 SCREW; ASSIST GRIP,DOOR TRIM
M6X25 		8-97062-057-0 04 1 9708- ● ● ●
154 GROMMET; GRIP
(A) 		8-94481-285-0 02 1 9708- ● ● ●
154 GROMMET; GRIP
(B) 		8-97801-635-1 02 1 9708- ● ● ●
189 PANEL; WOOD
WOOD GRAIN TRIM<7FB> 		8-97135-969-1 01 1 9708- ● ● ●
189 PANEL; WOOD
WOOD GRAIN TRIM<7FB> 		8-97135-968-1 01 1 9708- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
