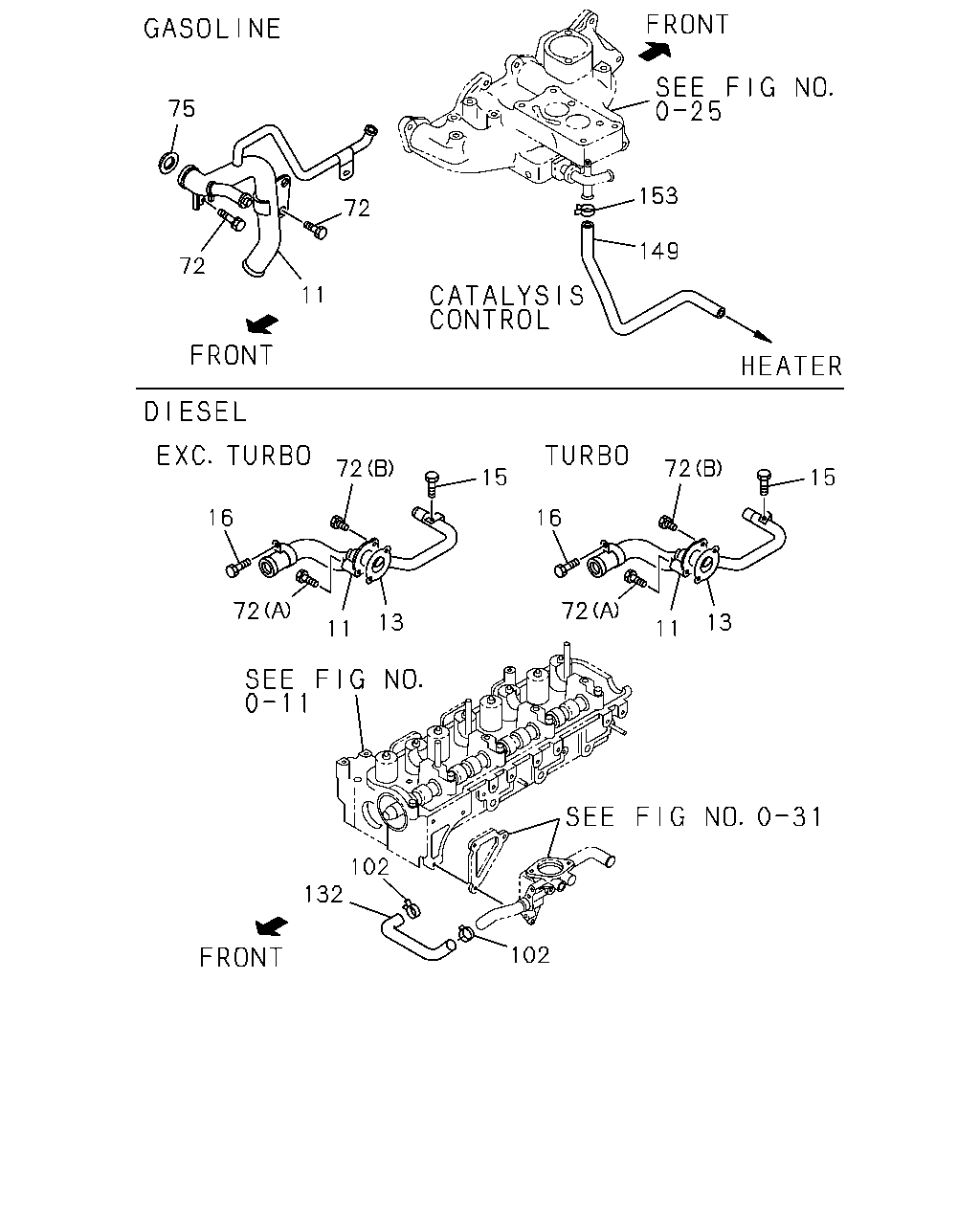

0-32 — WATER PIPING; ENGINE (#46174) — 27 parça

75 153 72 149 72 11 72 72 15 15 16 16 72 72 13 13 11 11 102 132 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	PIPE; INL,WATER PUMP	8-94412-134-6	01	1	9307-	●
11	PIPE; INL,WATER PUMP	8-94340-040-1	01	1	9307-9406		●
11	PIPE; INL,WATER PUMP EXC. TURBOCHARGER(K51)	8-94340-040-1	01	1	9407-		●
11	PIPE; INL,WATER PUMP TURBOCHARGER(K51)	8-94340-039-1	01	1	9407-		●
13	GASKET; SUCTION PIPE	8-94334-332-0	01	1	9307-		●
15	BOLT; RETURN PIPE,WATER M8X18 W/LK WASHER	0-50040-818-0	01	1	9307-		●
16	BOLT; INL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9307-		●
72	BOLT; WATER PIPE M8X14 W/LK WASHER	0-50040-814-0	02	1	9307-	●
72	BOLT; WATER PIPE (A) M8X40 HEX-HOLE-HEAD	8-94225-551-0	01	1	9307-		●
72	BOLT; WATER PIPE (B) M8X22 HEX-HOLE-HEAD	8-94225-552-0	01	1	9307-		●
75	GASKET; INL PIPE TO WATER PUMP	8-94235-013-0	01	1	9307-	●
102	CLIP; WATER HOSE ID=20.8	8-94125-862-0	02	1	9307-		●
132	HOSE; WATER PIPE	8-94109-909-1	01	1	9307-		●
149	HOSE; RUBBER,PUMP TO MANIF CATALYSIS CONTROL<6MZ> L=195	8-94412-147-7	01	1	9407-	●
153	CLIP; RUBBER HOSE CATALYSIS CONTROL<6MZ> ID=14.8	8-94448-727-0	01	1	9407-	●

122 123 118 123 123 119 123 116 123 121 123 19 123 18 134 19 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
18	HOSE; RUBBER,COOLER TO INL PIPE L=110 SERVICED BY L=3000	0-03266-300-0	01	1	9307-	●
19	CLIP; OIL COOLER HOSE ID=20.8	8-94125-862-0	02	1	9307-	●
116	VALVE ASM; THERMO,OIL COOLER EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51)	5-21770-001-2	01	1	9407-	●
118	HOSE; RUBBER,OIL COOLER TO CONNECTOR TURBOCHARGER(K51)	8-94341-405-0	01	1	9407-	●
119	HOSE; RUBBER,THERMO VLV TO CONN EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) L=55 SERVICED BY L=3000	0-03266-300-0	01	1	9407-	●
121	HOSE; THERMO VLV TO OIL COOLER EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51)	8-94341-405-0	01	1	9407-	●
122	CONNECTOR; OIL COOLER TURBOCHARGER(K51)	8-97026-408-0	01	1	9407-	●
123	CLIP; RUBBER,HOSE,OIL COOLER ID=20.8	8-94125-862-0	02	1	9307-9406	●
123	CLIP; RUBBER,HOSE,OIL COOLER EXC. TURBOCHARGER(K51) ID=20.8	8-94125-862-0	02	1	9407-	●
123	CLIP; RUBBER,HOSE,OIL COOLER EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51) ID=20.8	8-94125-862-0	06	1	9407-	●
134	HOSE; OIL COOLER DELIVERY	8-94341-408-0	01	1	9307-9406	●
134	HOSE; OIL COOLER DELIVERY EXC. TURBOCHARGER(K51)	8-94341-408-0	01	1	9407-	●
