◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶
9-30 — REAR BODY ASM AND MOUNTING (#46173) — 128 parça

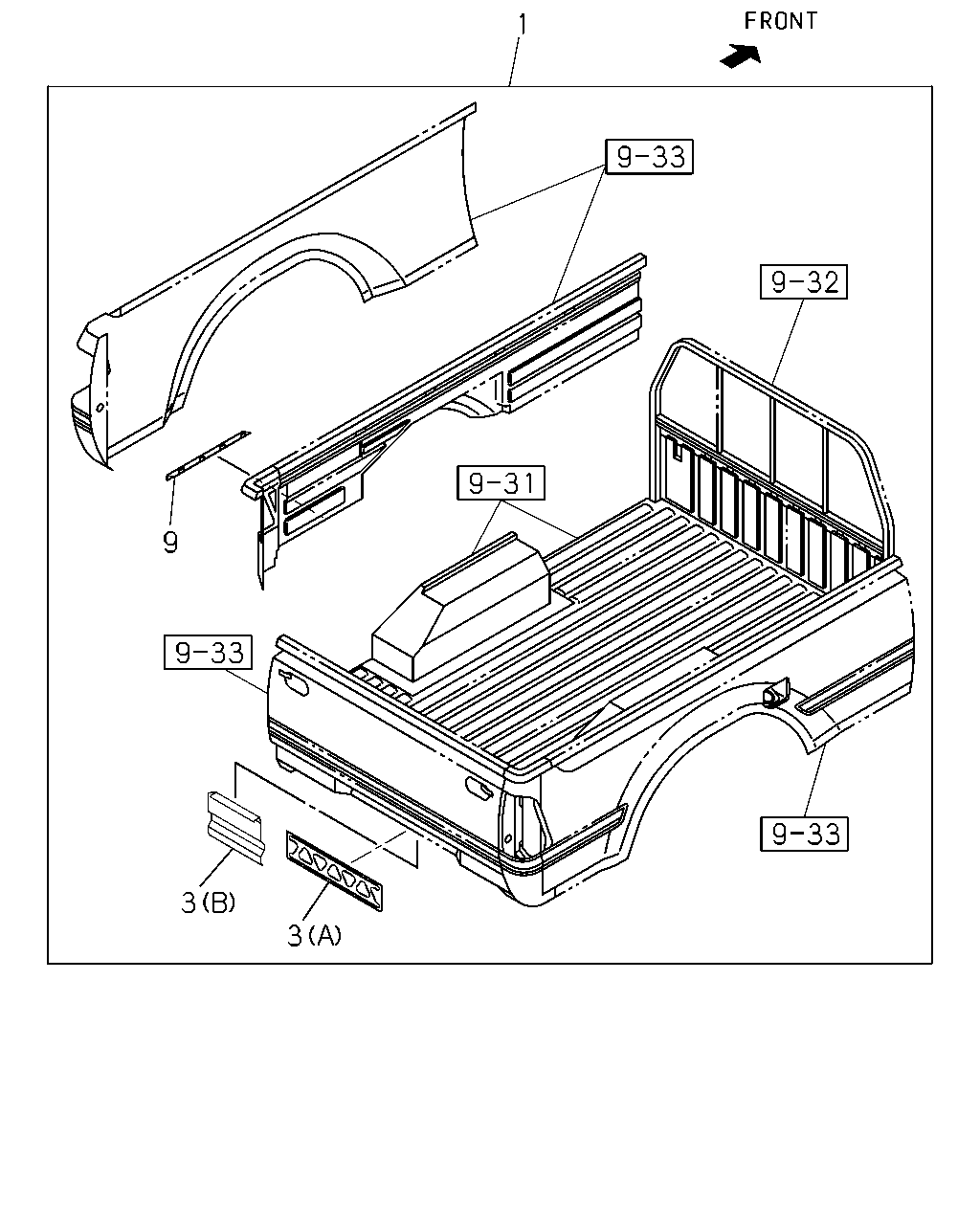

çizim 19088
1 9 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97180-801-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97258-914-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97180-805-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97180-805-1 01 1 9910-0012 ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97180-805-1 01 1 9910-0012 ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97258-915-0 01 1 0101- ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97258-915-0 01 1 0101- ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-318-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-318-1 01 1 9910-0012 ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-318-1 01 1 9910-0012 ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97258-913-0 01 1 0101- ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97258-913-0 01 1 0101- ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97180-803-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97258-908-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-319-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97258-907-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-020-0 01 1 9804- ●
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97180-798-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97258-910-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97180-804-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97258-911-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-317-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97258-909-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97180-807-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97258-912-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97135-771-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97180-808-1 01 1 9910-0012 ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97258-916-0 01 1 0101- ●
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97180-802-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97217-086-1 01 1 9910- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97180-806-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97217-087-1 01 1 9910- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-323-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97217-084-1 01 1 9910- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97180-809-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97217-088-1 01 1 9910- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97135-770-0 01 1 9804-9909 ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97115-001-3 01 1 9804-9804 ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (C) 		8-94404-323-0 01 1 9804- ●
3 07.800 BRACKET; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94327-560-1 01 1 9911- ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (B) 		8-94327-560-1 01 1 9804-9909 ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94327-560-1 01 1 9910-9910 ● ● ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97115-008-0 02 1 9804-9804 ● ● ● ● ● ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-532-0 02 1 9805- ● ● ● ● ● ● ● ●
çizim 69312
1 36 15 14 36 49 49 3 2 49 49 13 11 11 11 16 12 15 16 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97180-801-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97258-914-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97180-805-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97180-805-1 01 1 9910-0012 ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97180-805-1 01 1 9910-0012 ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97258-915-0 01 1 0101- ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97258-915-0 01 1 0101- ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-318-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-318-1 01 1 9910-0012 ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-318-1 01 1 9910-0012 ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97258-913-0 01 1 0101- ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97258-913-0 01 1 0101- ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97180-803-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97258-908-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-319-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97258-907-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6> 		8-94198-020-0 01 1 9804- ●
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97180-798-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97258-910-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97180-804-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97258-911-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-317-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97258-909-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97180-807-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97258-912-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97135-771-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97180-808-1 01 1 9910-0012 ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97258-916-0 01 1 0101- ●
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97180-802-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
AUSTRALIAN EQUIPMENT(RR3) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97217-086-1 01 1 9910- ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97180-806-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97217-087-1 01 1 9910- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-323-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97217-084-1 01 1 9910- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97180-809-0 01 1 9804-9909 ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) 		8-97217-088-1 01 1 9910- ● ●
1 17.090 BODY ASM; REAR
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97135-770-0 01 1 9804-9909 ● ●
2 17.185 STEP; RR
RR BODY FLAT BED<RS6> 		8-94178-853-0 01 1 9804- ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97115-001-3 01 1 9804-9804 ● ● ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (C) 		8-94404-323-0 01 1 9804- ●
3 07.800 BRACKET; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94327-560-1 01 1 9911- ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (B) 		8-94327-560-1 01 1 9804-9909 ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94327-560-1 01 1 9910-9910 ● ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-94331-737-0 04 1 9804- ● ● ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-94331-738-1 06 1 9804- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) (B) 		8-94331-738-1 08 1 9804- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6> (C) 		8-94331-736-0 02 1 9804- ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-94331-737-0 02 1 9804- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 03.163 M6X20 		9-07077-620-0 08 1 9804- ● ● ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY FLAT BED<RS6> M5X16 TAPPING CK-HEAD 		9-07006-516-0 02 1 9804- ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 03.163 M6X20 		9-07077-620-0 04 1 9804- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) M12X40 W/PL WASHER 		8-97169-423-0 02 1 9804- ● ● ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97169-896-0 02 1 9804- ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> (B) M12X40 W/PL WASHER 		8-97169-423-0 06 1 9804- ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97169-896-0 04 1 9804- ● ●
14 09.011 WASHER; PL,RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 		8-97065-438-0 12 1 9804- ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) M12 FLANGE 		8-97028-764-0 06 1 9804- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) (A) M12 FLANGE 		8-97028-764-0 08 1 9804- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 (B) M10 FLANGE 		8-97065-439-0 08 1 9804- ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 07.874 ID=12.5 		5-09503-093-0 06 1 9804- ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) 07.874 ID=12.5 		5-09503-093-0 08 1 9804- ● ● ● ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 07 1 9804- ●
36 17.447 BOLT; FRAME
RR BODY FLAT BED<RS6> 17.455 (B) M10X22 FLANGE 		8-97065-440-0 12 1 9804- ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> 17.090 (A) 		8-94232-734-0 01 1 9804- ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> (B) 		8-94311-685-0 01 1 9804- ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> 17.090 (A) 		8-94232-733-0 01 1 9804- ●
49 02.662 BRACKET; RR COMB LAMP
RR BODY FLAT BED<RS6> (B) 		8-94311-684-0 01 1 9804- ●
çizim 73411
13 11 12 11 11 16 15 16 15 13 11 16 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-94331-737-0 04 1 9804- ● ● ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-94331-738-1 06 1 9804- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) (B) 		8-94331-738-1 08 1 9804- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY FLAT BED<RS6> (C) 		8-94331-736-0 02 1 9804- ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-94331-737-0 02 1 9804- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 03.163 M6X20 		9-07077-620-0 08 1 9804- ● ● ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY FLAT BED<RS6> M5X16 TAPPING CK-HEAD 		9-07006-516-0 02 1 9804- ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 03.163 M6X20 		9-07077-620-0 04 1 9804- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) M12X40 W/PL WASHER 		8-97169-423-0 02 1 9804- ● ● ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97169-896-0 02 1 9804- ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY FLAT BED<RS6> (B) M12X40 W/PL WASHER 		8-97169-423-0 06 1 9804- ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97169-896-0 04 1 9804- ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) M12 FLANGE 		8-97028-764-0 06 1 9804- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) (A) M12 FLANGE 		8-97028-764-0 08 1 9804- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED<RS6> 17.455 (B) M10 FLANGE 		8-97065-439-0 08 1 9804- ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 07.874 ID=12.5 		5-09503-093-0 06 1 9804- ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S), RRBODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) 07.874 ID=12.5 		5-09503-093-0 08 1 9804- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
