9-01 — TOOLS (#46172) — 100 parça

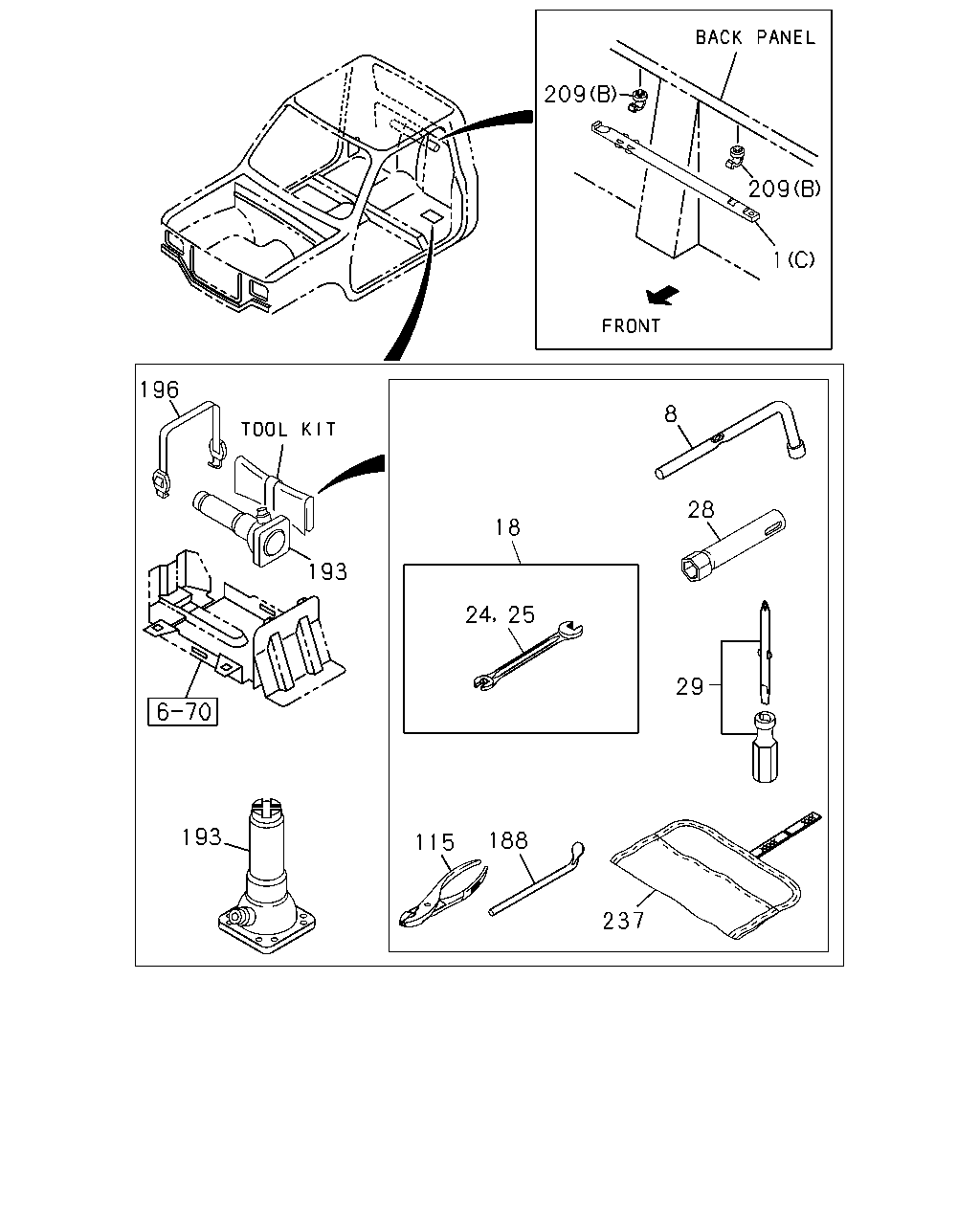

çizim 19087
209 209 1 196 8 28 18 193 24 25 29 193 188 115 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-94367-915-1 01 1 9804- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) 		8-94367-921-1 01 1 9804- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(C) 		8-94367-914-1 01 1 9804- ● ● ● ●
8 08.821 WRENCH; WHEEL 8-94367-941-0 01 1 9804- ● ● ● ● ● ● ● ●
18 08.821 WRENCH KIT 8-97115-905-1 01 1 9804- ● ● ● ● ● ● ● ●
24 08.821 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9804- ● ● ● ● ● ● ● ●
25 08.821 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9804- ● ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
22LE/C22NE ENG(RJT) 		8-94366-368-0 01 1 9804- ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
6VD1 ENG(RLV) 		8-97089-572-0 01 1 9804- ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9804- ● ● ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9804- ● ● ● ● ● ● ● ●
188 08.821 EXTRACTOR; WHEEL CAP 9-85292-102-1 01 1 9804- ● ● ● ● ● ● ● ●
193 08.820 JACK ASM
AUSTRALIAN EQUIPMENT(RR3) 		8-97175-222-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM
EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97175-223-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM 8-97204-143-0 01 1 9805-9808 ● ● ●
193 08.820 JACK ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97204-143-0 01 1 9809-0012 ● ● ●
193 08.820 JACK ASM
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97204-143-0 01 1 0101-0103 ● ● ●
193 08.820 JACK ASM 8-97204-143-0 01 1 0101-0103 ●
193 08.820 JACK ASM
AUSTRALIAN EQUIPMENT(RR3) 		8-97175-224-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM
EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97175-226-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM 8-97175-226-0 01 1 9804-9804 ●
193 08.820 JACK ASM 8-97204-144-0 01 1 9805-9808 ● ● ● ●
193 08.820 JACK ASM
6VD1 ENG(RLV) 		8-97204-144-0 01 1 9809-0012 ● ● ●
193 08.820 JACK ASM 8-97204-144-0 01 1 9809-0012 ● ● ● ●
193 08.820 JACK ASM
4X2 HIGH RIDE SUSPENSION(7YC) 		8-97204-144-0 01 1 0101-0103 ● ● ●
193 08.820 JACK ASM 8-97204-144-0 01 1 0101-0103 ● ● ● ●
193 08.820 JACK ASM 8-97204-144-0 01 1 0104- ● ● ● ● ● ● ● ●
196 08.820 BAND; JACK
00.643 		8-94319-180-0 01 1 9804- ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(A) 		8-94368-495-0 02 1 9804- ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(B) 		8-94342-917-0 02 1 9804- ● ● ● ●
237 08.821 BAG; TOOL 8-97103-736-0 01 1 9804-0111 ● ● ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97312-893-0 01 1 0112- ● ● ● ● ● ● ● ●

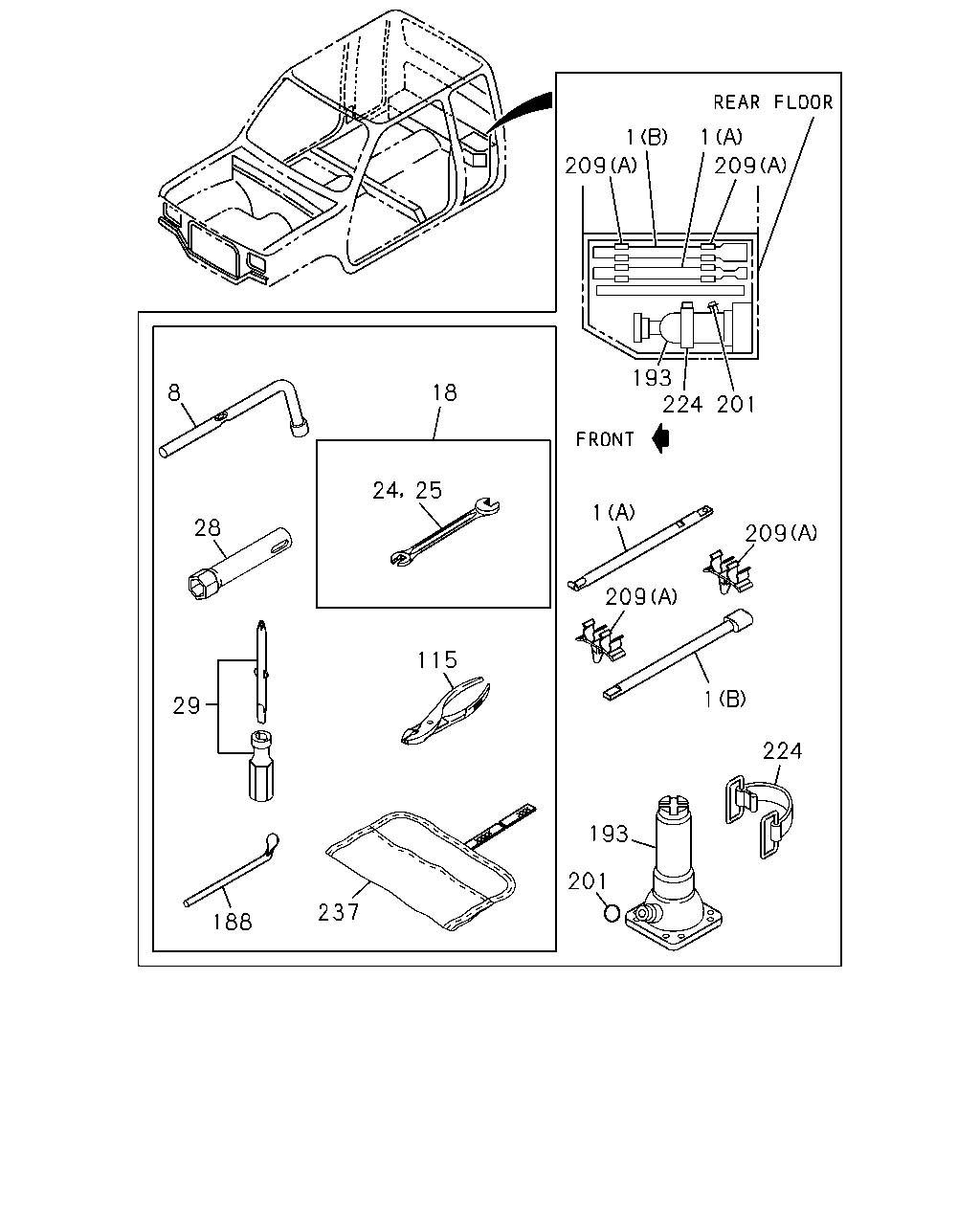

çizim 69289
18 209 1 209 193 8 18 24 25 1 28 209 209 115 1 29 224 193 201 237 188 224 201
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-94367-915-1 01 1 9804- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) 		8-94367-921-1 01 1 9804- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(C) 		8-94367-914-1 01 1 9804- ● ● ● ●
8 08.821 WRENCH; WHEEL 8-94367-941-0 01 1 9804- ● ● ● ● ● ● ● ●
18 08.821 WRENCH KIT 8-97115-905-1 01 1 9804- ● ● ● ● ● ● ● ●
24 08.821 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9804- ● ● ● ● ● ● ● ●
25 08.821 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9804- ● ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
22LE/C22NE ENG(RJT) 		8-94366-368-0 01 1 9804- ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
6VD1 ENG(RLV) 		8-97089-572-0 01 1 9804- ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9804- ● ● ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9804- ● ● ● ● ● ● ● ●
188 08.821 EXTRACTOR; WHEEL CAP 9-85292-102-1 01 1 9804- ● ● ● ● ● ● ● ●
193 08.820 JACK ASM
AUSTRALIAN EQUIPMENT(RR3) 		8-97175-222-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM
EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97175-223-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM 8-97204-143-0 01 1 9805-9808 ● ● ●
193 08.820 JACK ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97204-143-0 01 1 9809-0012 ● ● ●
193 08.820 JACK ASM
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97204-143-0 01 1 0101-0103 ● ● ●
193 08.820 JACK ASM 8-97204-143-0 01 1 0101-0103 ●
193 08.820 JACK ASM
AUSTRALIAN EQUIPMENT(RR3) 		8-97175-224-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM
EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97175-226-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM 8-97175-226-0 01 1 9804-9804 ●
193 08.820 JACK ASM 8-97204-144-0 01 1 9805-9808 ● ● ● ●
193 08.820 JACK ASM
6VD1 ENG(RLV) 		8-97204-144-0 01 1 9809-0012 ● ● ●
193 08.820 JACK ASM 8-97204-144-0 01 1 9809-0012 ● ● ● ●
193 08.820 JACK ASM
4X2 HIGH RIDE SUSPENSION(7YC) 		8-97204-144-0 01 1 0101-0103 ● ● ●
193 08.820 JACK ASM 8-97204-144-0 01 1 0101-0103 ● ● ● ●
193 08.820 JACK ASM 8-97204-144-0 01 1 0104- ● ● ● ● ● ● ● ●
201 08.820 GASKET; JACK
04.439 		9-09561-324-0 01 1 9804-9808 ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(A) 		8-94368-495-0 02 1 9804- ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(B) 		8-94342-917-0 02 1 9804- ● ● ● ●
224 08.821 BAND; RUBBER,JACK
08.820 		9-68399-059-0 01 1 9804- ● ● ● ●
237 08.821 BAG; TOOL 8-97103-736-0 01 1 9804-0111 ● ● ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97312-893-0 01 1 0112- ● ● ● ● ● ● ● ●

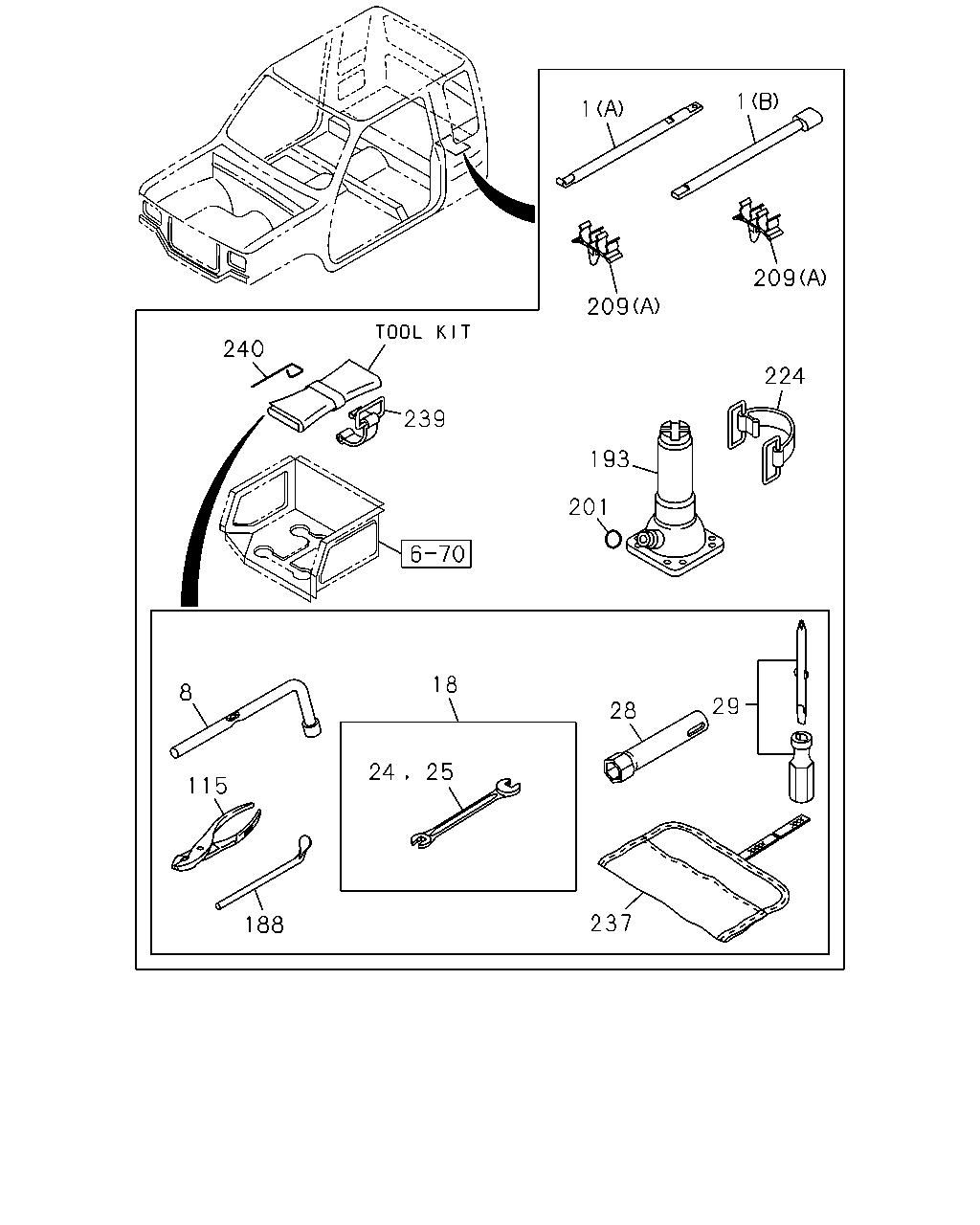

çizim 73938
1 1 209 209 240 224 239 193 201 18 8 29 28 24 25 115 237 188
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-94367-915-1 01 1 9804- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) 		8-94367-921-1 01 1 9804- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(C) 		8-94367-914-1 01 1 9804- ● ● ● ●
8 08.821 WRENCH; WHEEL 8-94367-941-0 01 1 9804- ● ● ● ● ● ● ● ●
18 08.821 WRENCH KIT 8-97115-905-1 01 1 9804- ● ● ● ● ● ● ● ●
24 08.821 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9804- ● ● ● ● ● ● ● ●
25 08.821 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9804- ● ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
22LE/C22NE ENG(RJT) 		8-94366-368-0 01 1 9804- ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
6VD1 ENG(RLV) 		8-97089-572-0 01 1 9804- ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9804- ● ● ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9804- ● ● ● ● ● ● ● ●
188 08.821 EXTRACTOR; WHEEL CAP 9-85292-102-1 01 1 9804- ● ● ● ● ● ● ● ●
193 08.820 JACK ASM
AUSTRALIAN EQUIPMENT(RR3) 		8-97175-222-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM
EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97175-223-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM 8-97204-143-0 01 1 9805-9808 ● ● ●
193 08.820 JACK ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97204-143-0 01 1 9809-0012 ● ● ●
193 08.820 JACK ASM
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97204-143-0 01 1 0101-0103 ● ● ●
193 08.820 JACK ASM 8-97204-143-0 01 1 0101-0103 ●
193 08.820 JACK ASM
AUSTRALIAN EQUIPMENT(RR3) 		8-97175-224-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM
EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97175-226-0 01 1 9804-9804 ● ● ●
193 08.820 JACK ASM 8-97175-226-0 01 1 9804-9804 ●
193 08.820 JACK ASM 8-97204-144-0 01 1 9805-9808 ● ● ● ●
193 08.820 JACK ASM
6VD1 ENG(RLV) 		8-97204-144-0 01 1 9809-0012 ● ● ●
193 08.820 JACK ASM 8-97204-144-0 01 1 9809-0012 ● ● ● ●
193 08.820 JACK ASM
4X2 HIGH RIDE SUSPENSION(7YC) 		8-97204-144-0 01 1 0101-0103 ● ● ●
193 08.820 JACK ASM 8-97204-144-0 01 1 0101-0103 ● ● ● ●
193 08.820 JACK ASM 8-97204-144-0 01 1 0104- ● ● ● ● ● ● ● ●
201 08.820 GASKET; JACK
04.439 		9-09561-324-0 01 1 9804-9808 ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(A) 		8-94368-495-0 02 1 9804- ● ● ● ●
209 08.820 CLIP; JACK HANDLE
(B) 		8-94342-917-0 02 1 9804- ● ● ● ●
224 08.821 BAND; RUBBER,JACK
08.820 		9-68399-059-0 01 1 9804- ● ● ● ●
237 08.821 BAG; TOOL 8-97103-736-0 01 1 9804-0111 ● ● ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97312-893-0 01 1 0112- ● ● ● ● ● ● ● ●
239 08.820 BAND; TOOL BAG
L=82 		9-68399-060-0 01 1 9804- ● ●
240 08.820 PIN; SPLIT,TOOL BAG BAND
D=2.5 L=43 		8-94335-692-2 01 1 9804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
