◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#46171) — 63 parça
çizim 19089
69 81 83 198 80 89 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
69 09.663 CABLE; BONDING,ENG TO BODY
22LE/C22NE ENG(RJT) 		8-97191-073-1 01 1 9804- ● ● ● ● ● ● ●
80 09.645 ANTENNA
ANTENNA<U73> 		8-97111-841-1 01 1 9804- ● ● ● ● ● ● ● ●
81 09.647 NUT; ANTENNA POLE
ANTENNA<U73> 		8-97072-734-0 01 1 9804- ● ● ● ● ● ● ● ●
83 09.647 GROMMET; BASE,ANTENNA POLE INNER
ANTENNA<U73> 		8-97146-501-0 01 1 9804- ● ● ● ● ● ● ● ●
88 09.647 BOLT; ANTENNA EARTH
ANTENNA<U73> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9804- ● ● ● ● ● ● ● ●
89 09.775 GROMMET; FEEDER CABLE
EXC. ANTENNA<U73> 		8-94111-420-0 01 1 9804- ● ● ● ● ● ● ● ●
198 09.647 SHEET; ANTENNA
ANTENNA<U73> 		8-97146-502-0 01 1 9804- ● ● ● ● ● ● ● ●

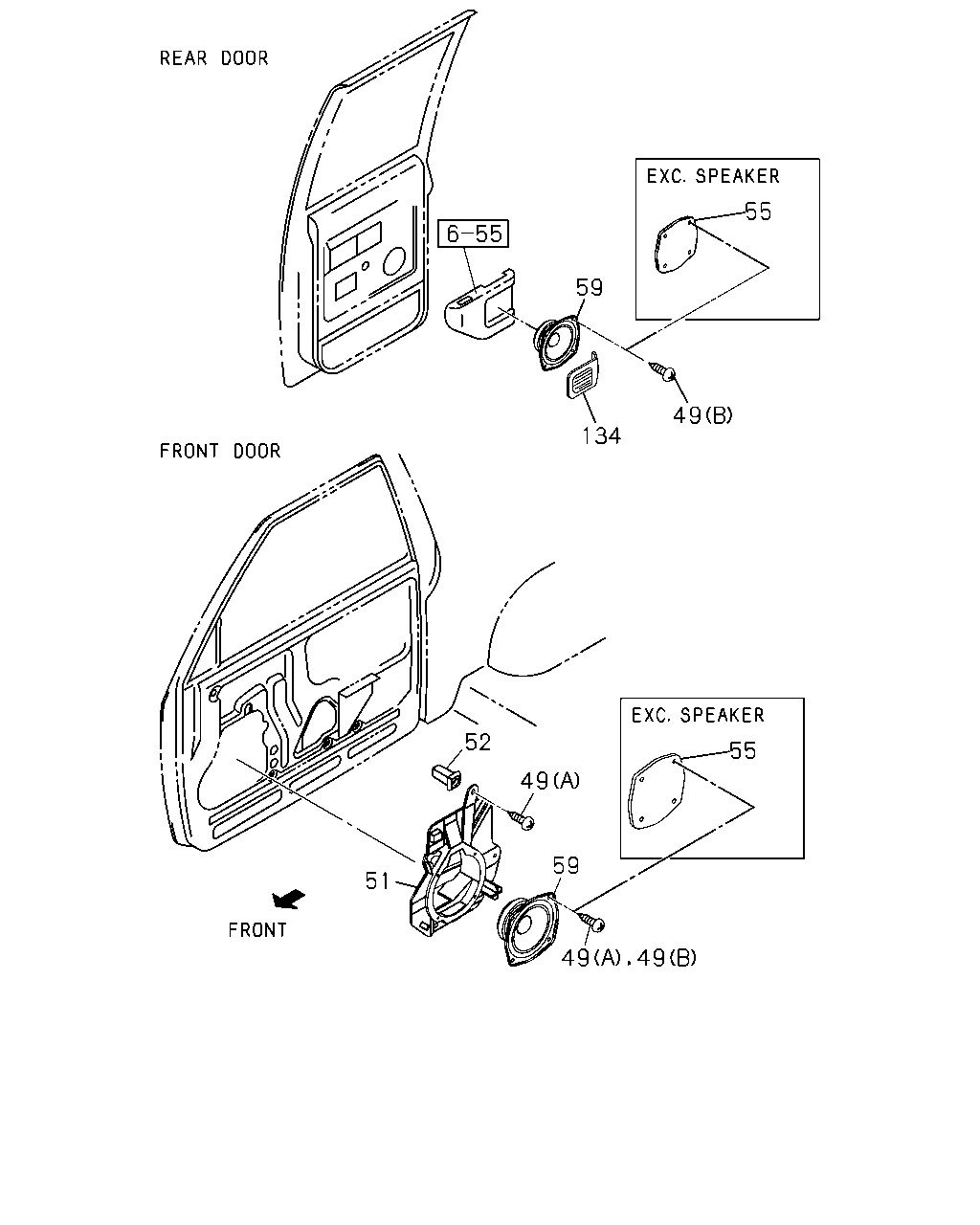

çizim 71487
55 59 49 134 52 55 49 59 51 49 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
49 09.655 SCREW; SPEAKER
15.100 (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 06 1 9804-9807 ● ● ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
16.085 (A) M5X16 TAPPING 		9-09829-323-1 14 1 9808- ● ● ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
16.085 (B) M5X16 TAPPING 		9-09829-323-1 08 1 9804-9807 ● ● ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
POWER WINDOW<A30> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 08 1 9804-9807 ● ●
49 09.655 SCREW; SPEAKER
POWER WINDOW<A30> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 08 1 9808- ● ●
51 09.655 SPACER; SPEAKER 8-97107-962-5 01 1 9804-9909 ● ●
51 09.655 SPACER; SPEAKER
GRADE LS(RBD) 		8-97107-962-5 01 1 9804-9909 ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97107-962-6 01 1 9910- ●
51 09.655 SPACER; SPEAKER
GRADE LS(RBD) 		8-97107-962-6 01 1 9910- ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97107-963-5 01 1 9804-9909 ● ●
51 09.655 SPACER; SPEAKER
GRADE LS(RBD) 		8-97107-963-5 01 1 9804-9909 ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97107-963-6 01 1 9910- ●
51 09.655 SPACER; SPEAKER
GRADE LS(RBD) 		8-97107-963-6 01 1 9910- ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER
GRADE S(RBA) 		8-97174-046-0 01 1 9804-9909 ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97174-046-0 01 1 9804-9909 ●
51 09.655 SPACER; SPEAKER
GRADE S(RBA) 		8-97174-046-0 01 1 9910-0104 ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97174-046-0 01 1 9910-0104 ●
51 09.655 SPACER; SPEAKER
GRADE S(RBA) 		8-97310-305-0 01 1 0105- ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97310-305-0 01 1 0105- ●
51 09.655 SPACER; SPEAKER
GRADE S(RBA) 		8-97174-047-0 01 1 9804-9909 ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97174-047-0 01 1 9804-9909 ●
51 09.655 SPACER; SPEAKER
GRADE S(RBA) 		8-97174-047-0 01 1 9910-0104 ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97174-047-0 01 1 9910-0104 ●
51 09.655 SPACER; SPEAKER
GRADE S(RBA) 		8-97310-306-0 01 1 0105- ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97310-306-0 01 1 0105- ●
52 09.655 GROMMET; SCREW,SPEAKER
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9804- ● ● ● ● ● ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),SPEAKER OPTION 4 SPEAKER<7HK>,PRE WIRING & 2 SPEAKER<7MV>,AM /FM W/CASSETTE ALL AREA BAND 2SPEAK ERS(7ND) 		8-94372-840-0 02 1 9804- ● ● ● ● ● ● ● ●
55 09.650 COVER; SPEAKER HOLE
POWER WINDOW<A30> EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),SPEAKER OPTION 4 SPEAKER<7HK> 		8-94372-840-0 02 1 9804- ● ●
59 09.665 SPEAKER; AUDIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE ALL AREA BAND2SPEAKERS(7ND) 		8-97147-525-0 02 1 9804-0006 ● ● ● ● ● ● ● ●
59 09.665 SPEAKER; AUDIO
SPEAKER OPTION 4 SPEAKER<7HK>,PRE WIRING & 2 SPEAKER<7MV> 		8-97147-525-0 02 1 9804-0006 ● ● ● ● ● ● ● ●
59 09.665 SPEAKER; AUDIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) 		8-97147-525-0 02 1 9804-0006 ● ●
59 09.665 SPEAKER; AUDIO
SPEAKER OPTION 4 SPEAKER<7HK> 		8-97147-525-0 02 1 9804-0006 ● ●
59 09.665 SPEAKER; AUDIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),AM/FM W/CASSETTE ALL AREA BAND2SPEAKERS(7ND) 		8-97233-511-0 02 1 0007- ● ● ● ● ● ● ● ●
59 09.665 SPEAKER; AUDIO
SPEAKER OPTION 4 SPEAKER<7HK>,PRE WIRING & 2 SPEAKER<7MV> 		8-97233-511-0 02 1 0007- ● ● ● ● ● ● ● ●
59 09.665 SPEAKER; AUDIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) 		8-97233-511-0 02 1 0007- ● ●
59 09.665 SPEAKER; AUDIO
SPEAKER OPTION 4 SPEAKER<7HK> 		8-97233-511-0 02 1 0007- ● ●
134 09.665 GRILLE; SPEAKER,RR
GRADE LS(RBD) POWER WINDOW<A30> GRAY 		8-97154-679-2 01 1 9804-0012 ● ●
134 09.665 GRILLE; SPEAKER,RR
POWER WINDOW<A30> GRAY 		8-97154-679-2 01 1 0101- ● ●
134 09.665 GRILLE; SPEAKER,RR
GRADE LS(RBD) POWER WINDOW<A30> GRAY 		8-97154-678-2 01 1 9804-0012 ● ●
134 09.665 GRILLE; SPEAKER,RR
POWER WINDOW<A30> GRAY 		8-97154-678-2 01 1 0101- ● ●

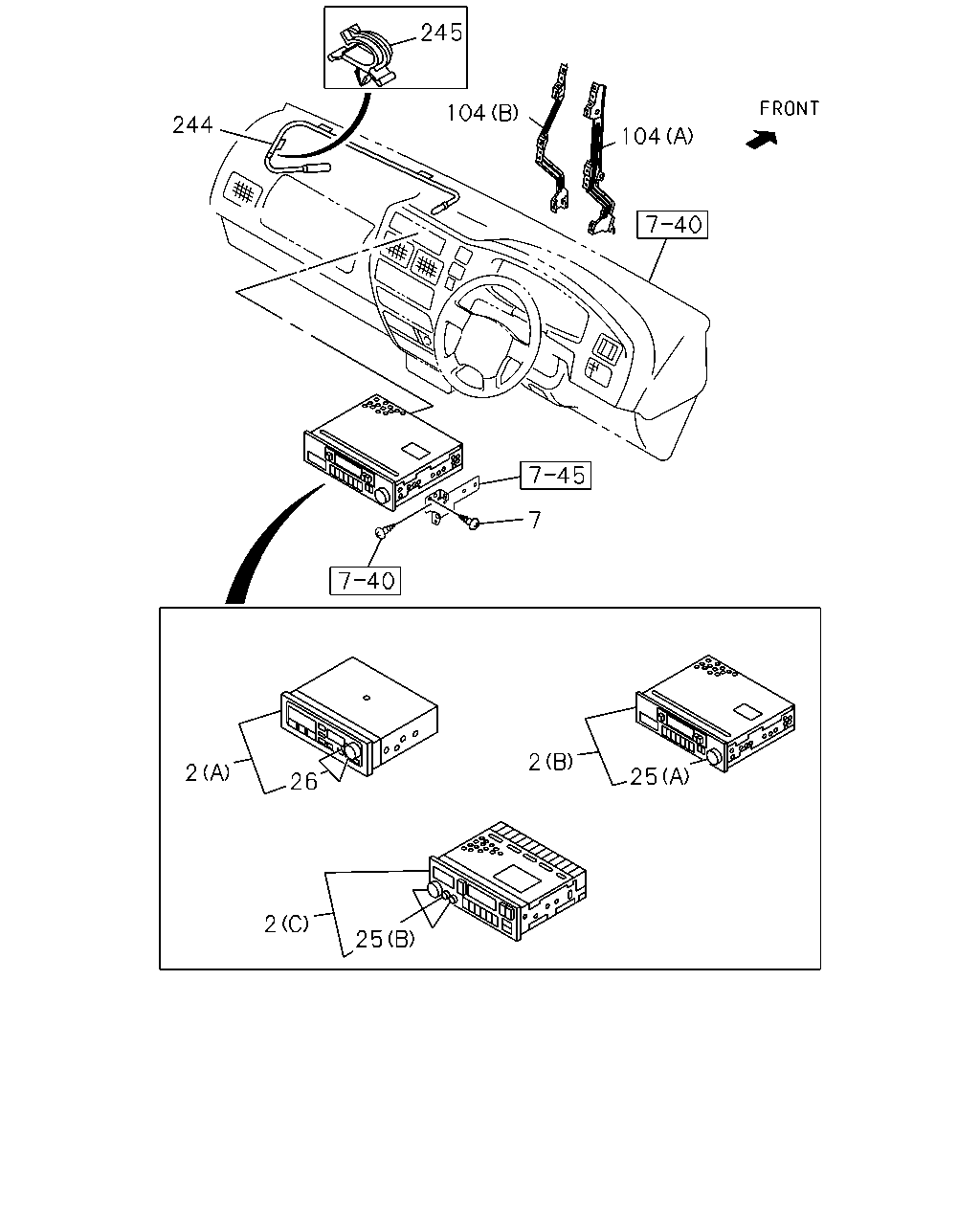

çizim 73446
245 104 244 104 7 2 2 25 26 2 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE ALL AREA BAND 2SPE AKERS(7ND) (B) 		8-97137-801-0 01 1 9804- ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
RADIO AM ASIA/OCEANIA BAND(7AQ) (A) 		8-97131-640-0 01 1 9804-0002 ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
RADIO AM ASIA/OCEANIA BAND(7AQ) (A) SANYO AM 		8-97241-357-0 01 1 0003- ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKER S(UX4) (C) 		8-97131-757-1 01 1 9804- ● ●
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE 4 SPEAKERS(UM6) (C) 		8-97131-639-0 01 1 9804-9910 ● ●
2 09.645 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE 4 SPEAKERS(UM6) (C) 		8-97241-356-0 01 1 9911- ● ●
7 09.650 SCREW; RADIO
04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9804- ● ● ● ● ● ● ● ●
25 09.649 ATTACH KIT; CASSETTE DECK
AM/FM W/CASSETTE ALL AREA BAND 2SPE AKERS(7ND) (A) 		8-97162-105-0 01 1 9804- ● ● ● ● ● ● ● ●
25 09.649 ATTACH KIT; CASSETTE DECK
AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B) 		8-97162-104-0 01 1 9804- ● ●
26 09.649 ATTACH KIT; RADIO
RADIO AM ASIA/OCEANIA BAND(7AQ) SANYO 		8-97093-557-0 01 1 9804- ● ● ● ● ● ● ● ●
104 09.645 BRACKET; AUDIO
(A) 		8-97111-964-0 01 1 9804- ● ● ● ● ● ● ● ●
104 09.645 BRACKET; AUDIO
(B) 		8-97111-965-2 01 1 9804- ● ● ● ● ● ● ● ●
244 09.647 CABLE; FEEDER
ANTENNA<U73> 		8-97145-351-2 01 1 9804- ● ● ● ● ● ● ● ●
245 09.647 CLIP; CABLE,FEEDER
ANTENNA<U73> 04.342 ID=7 		5-09707-053-0 01 1 9804- ● ● ● ● ● ● ● ●

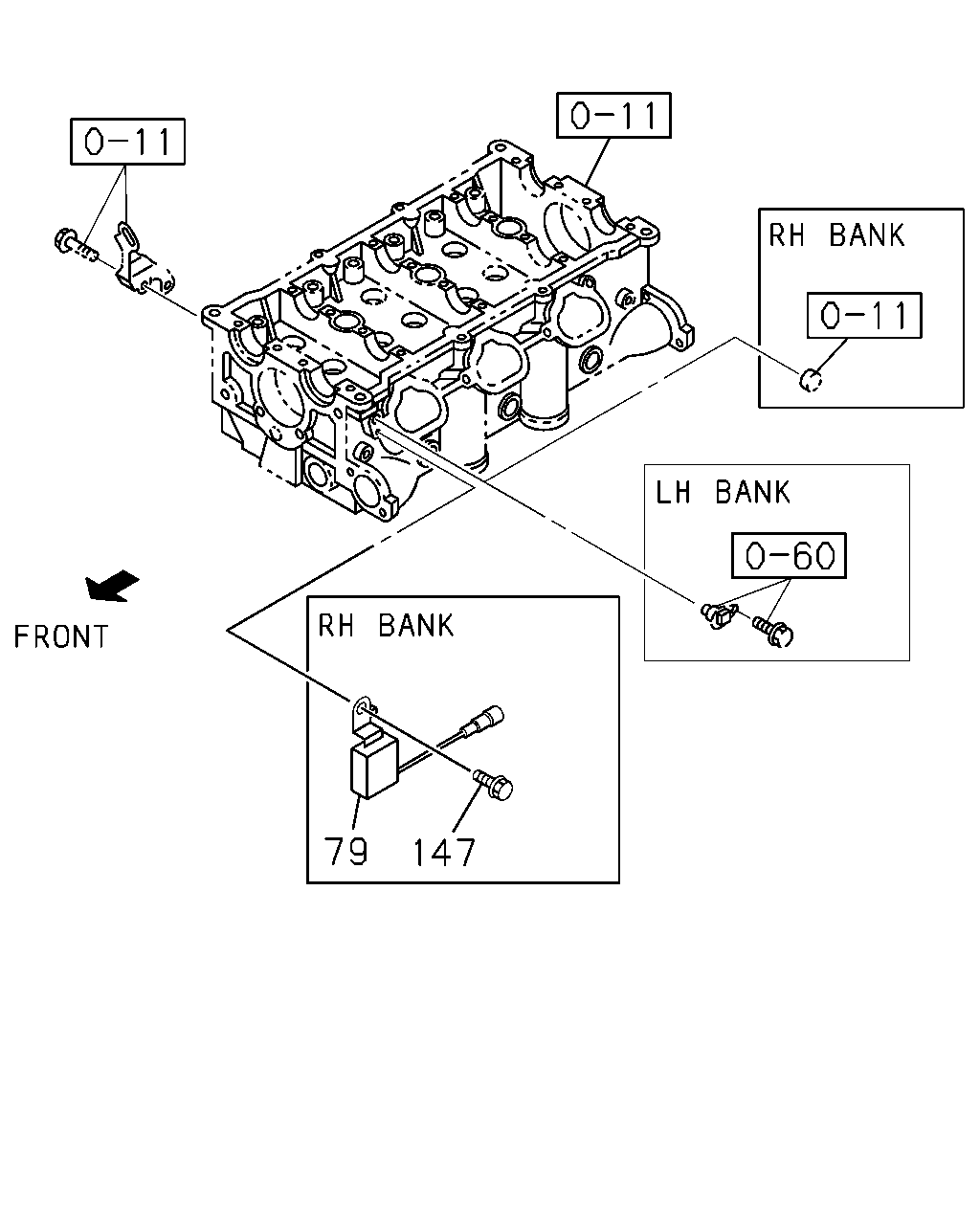

çizim 74079
79 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
79 02.319 CONDENSER; RADIO
6VD1 ENG(RLV) 		8-97174-553-1 01 1 9804- ● ● ● ● ● ●
147 09.663 BOLT; CONDENSER
6VD1 ENG(RLV) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9804- ● ● ● ● ● ●
