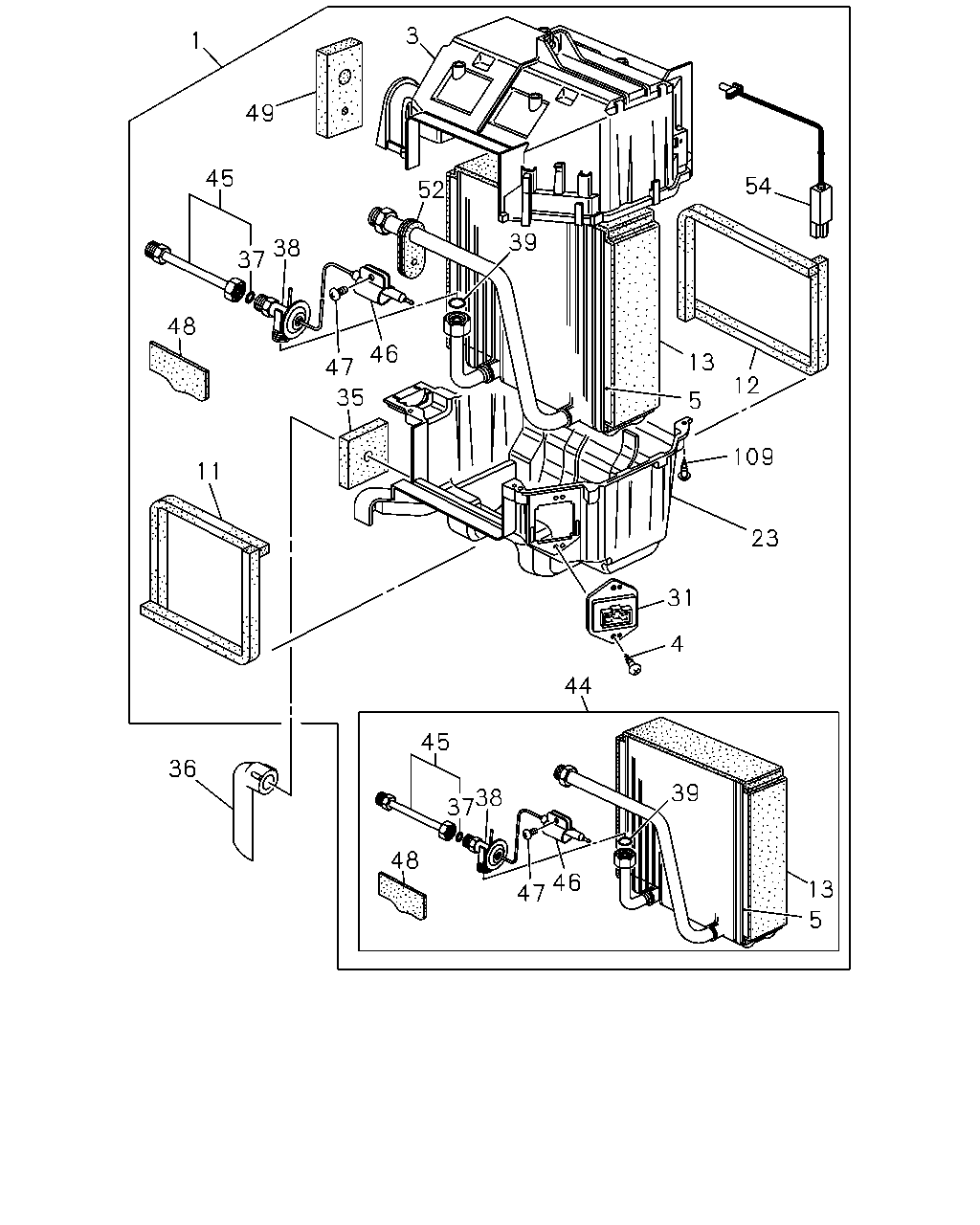

8-74 — EVAPORATOR (#46168) — 28 parça

3 1 49 45 54 52 39 38 37 48 46 13 47 12 35 5 109 11 23 31 4 44 45 36 39 38 37 48 46 47 13 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97164-581-0	01	1	9804-9901	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97223-661-0	01	1	9902-0101	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97264-504-0	01	1	0102-	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-797-0	01	1	9804-	●	●	●	●	●	●	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	02	1	9804-	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-791-0	01	1	9804-	●	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-724-0	01	1	9804-	●	●	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-723-0	01	1	9804-	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=4.0	8-97165-293-0	01	1	9804-	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-801-0	01	1	9804-	●	●	●	●	●	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-136-1	01	1	9804-	●	●	●	●	●	●	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97069-405-3	01	1	9804-	●	●	●	●	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97140-076-0	01	1	9804-	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.195 ID=6.07	8-94461-902-0	01	1	9804-	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-788-0	01	1	9804-	●	●	●	●	●	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94481-717-0	01	1	9804-	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-792-0	01	1	9804-	●	●	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97165-292-0	01	1	9804-	●	●	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 ID=8X2	8-94344-881-1	01	1	9804-	●	●	●	●	●	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97130-601-0	01	1	9804-	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-725-0	01	1	9804-9901	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	1-83579-784-0	01	1	9902-	●	●	●	●	●	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97069-404-1	01	1	9804-	●	●	●	●	●	●	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94324-801-0	01	1	9804-	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-805-0	01	1	9804-9901	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97223-415-0	01	1	9902-0101	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97287-650-0	01	1	0102-	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	06	1	9804-	●	●	●	●	●	●	●	●
