8-73 — BLOWER UNIT (#46167) — 19 parça

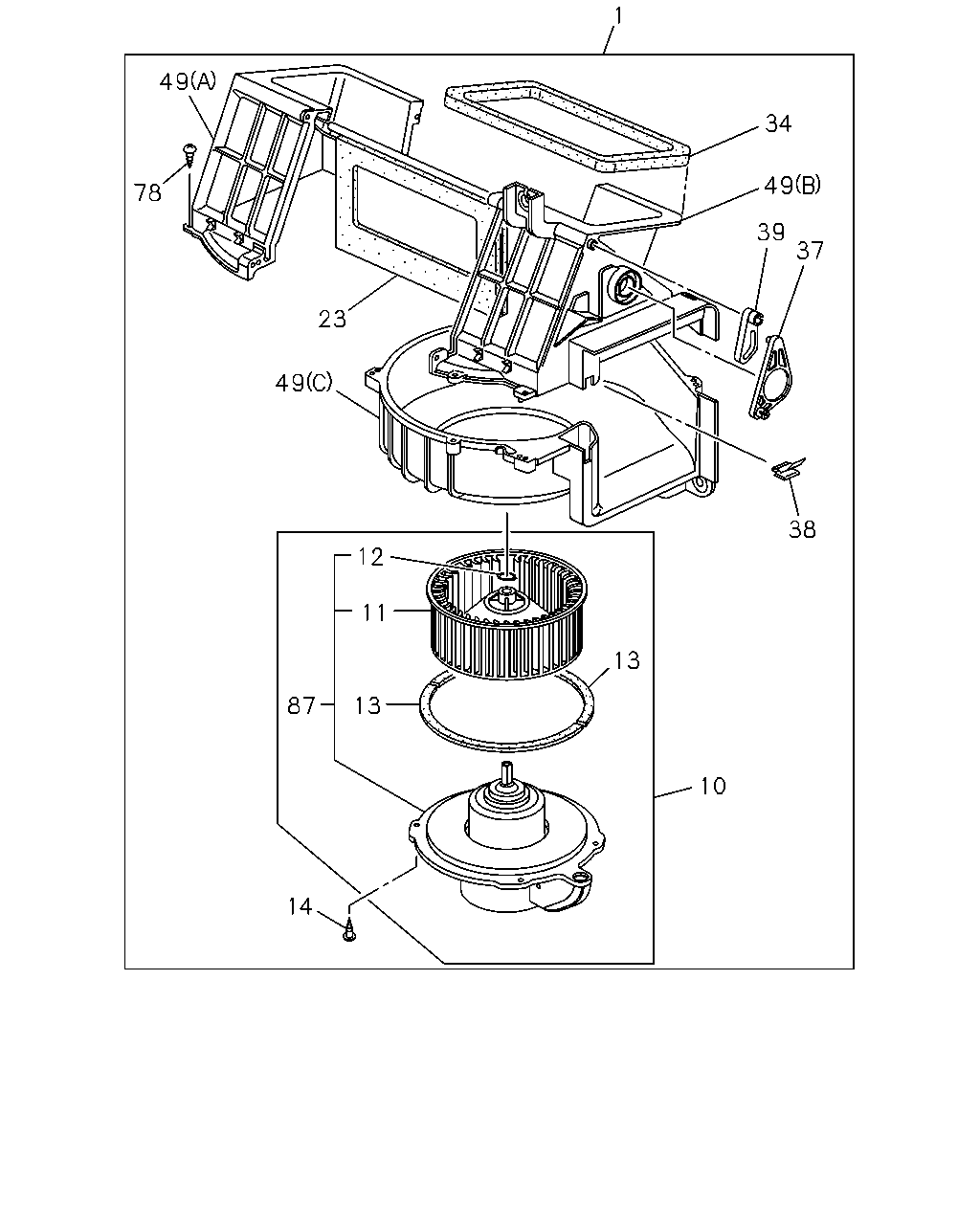

çizim 71831
1 49 34 49 78 39 37 23 49 38 12 11 13 87 13 10 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97139-526-1 01 1 9804-9907 ● ● ● ● ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97231-614-0 01 1 9908- ● ● ● ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97103-726-0 01 1 9804-9907 ● ● ● ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97231-637-0 01 1 9908- ● ● ● ● ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97089-700-0 01 1 9804- ● ● ● ● ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94243-962-0 01 1 9804- ● ● ● ● ● ● ● ●
13 08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94324-816-0 02 1 9804- ● ● ● ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 10.240 M5X20 		9-09829-324-1 04 1 9804- ● ● ● ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94324-818-2 01 1 9804- ● ● ● ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94327-437-0 01 1 9804- ● ● ● ● ● ● ● ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94327-435-2 01 1 9804- ● ● ● ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94337-654-0 01 1 9804- ● ● ● ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97178-223-0 01 1 9804- ● ● ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) 		8-94327-430-1 01 1 9804- ● ● ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) 		8-94327-431-1 01 1 9804- ● ● ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) 		8-94327-432-1 01 1 9804- ● ● ● ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.852 M4X16 		8-94324-850-0 08 1 9804- ● ● ● ● ● ● ● ●
87 08.855 MOTOR ASM; FAN
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97106-493-1 01 1 9804-9907 ● ● ● ● ● ● ● ●
87 08.855 MOTOR ASM; FAN
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97241-384-0 01 1 9908- ● ● ● ● ● ● ● ●
