Sayfa 8-71 - Isuzu EPC

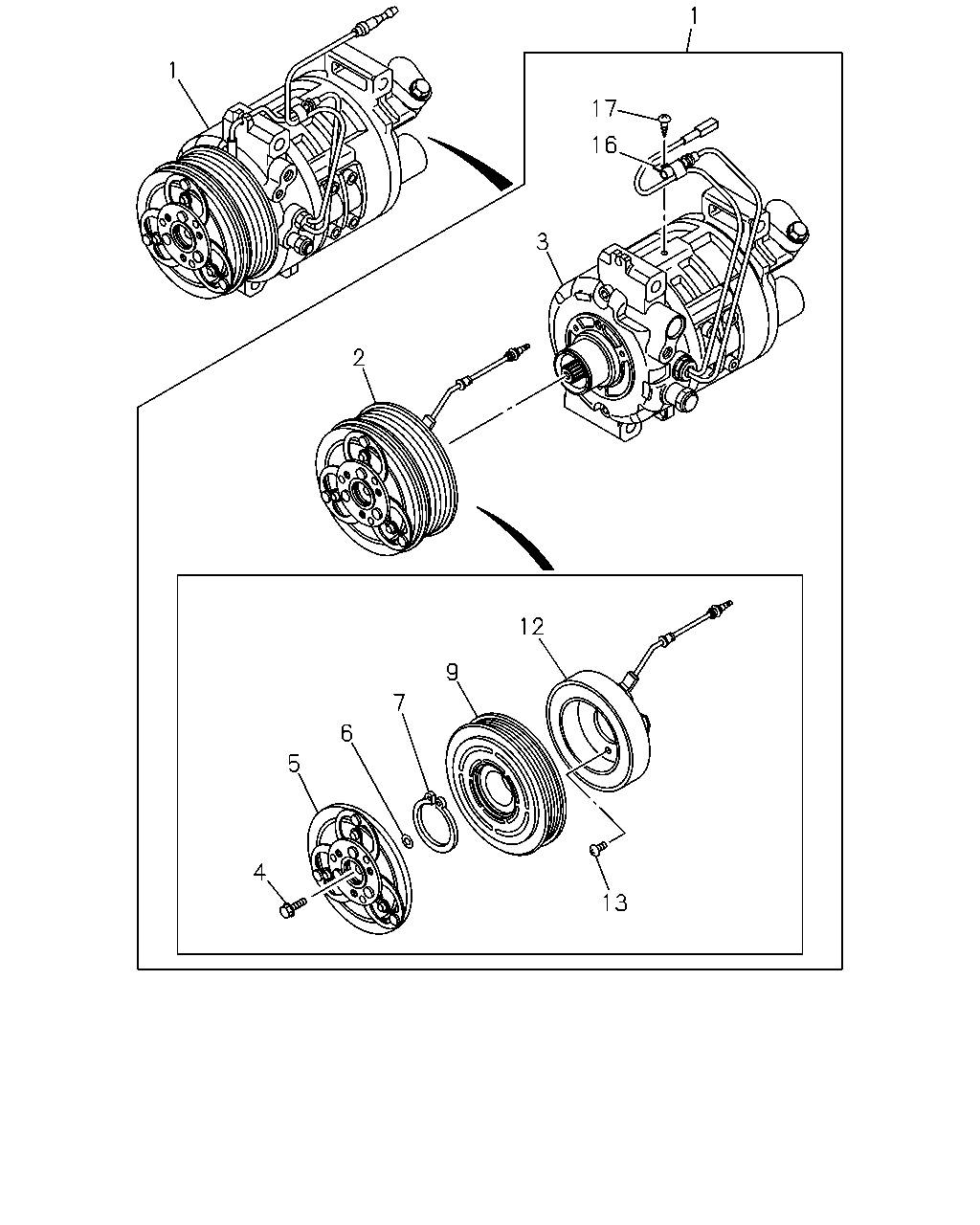

8-71 — COMPRESSOR; AIR CONDITIONING (#46166) — 266 parça

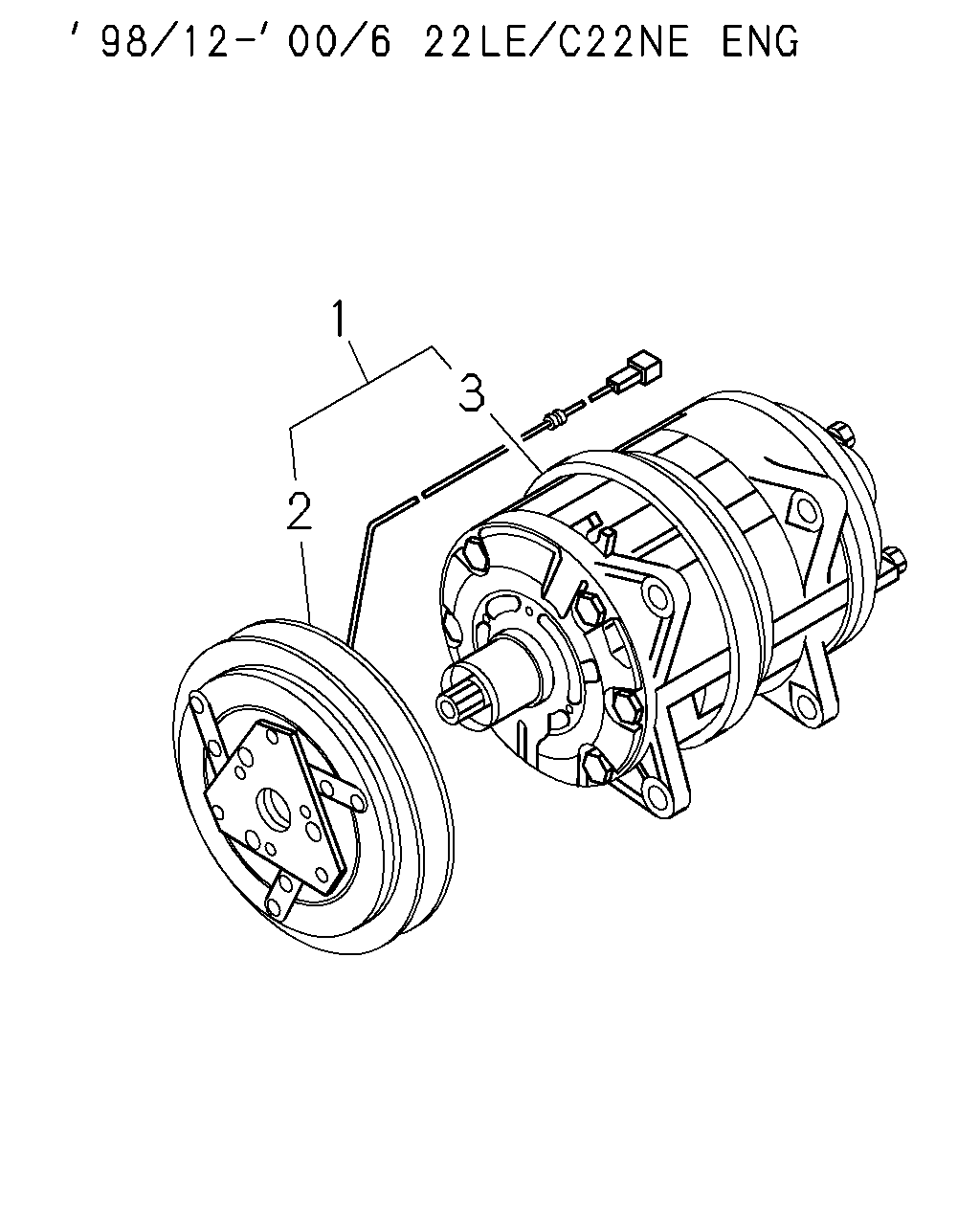

1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97168-990-0	01	1	9804-9810	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97217-449-0	01	1	9811-9909	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97217-449-0	01	1	9910-0005	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97252-452-0	01	1	0006-0109	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97252-452-1	01	1	0110-	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97144-648-0	01	1	9804-9811	●	●	●	●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97214-272-0	01	1	9812-0006	●	●	●	●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97252-450-1	01	1	0007-	●	●	●	●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-820-0	01	1	9804-0109	●		●	●	●		●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97264-508-3	01	1	0110-	●		●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-923-0	01	1	9804-9810	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9804-9810	●	●	●	●		●	●	●
2	09.188 CLUTCH; MAGNET,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9811-9811	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9812-9909	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9910-0109	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-1	01	1	0110-	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97211-282-2	01	1	9812-	●	●	●	●		●	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-511-0	01	1	9804-0109	●		●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97311-495-0	01	1	0110-0208	●		●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97357-113-0	01	1	0209-	●		●	●	●		●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-199-2	01	1	9804-9909	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-199-2	01	1	9910-0005	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97262-882-0	01	1	0006-0109	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97262-882-0	01	1	0110-	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-192-2	01	1	9804-0006	●	●	●	●		●	●	●
3	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97261-814-0	01	1	0007-	●	●	●	●		●	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-004-0	01	1	9804-0109	●		●	●	●		●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97320-622-0	01	1	0110-	●		●	●	●		●	●

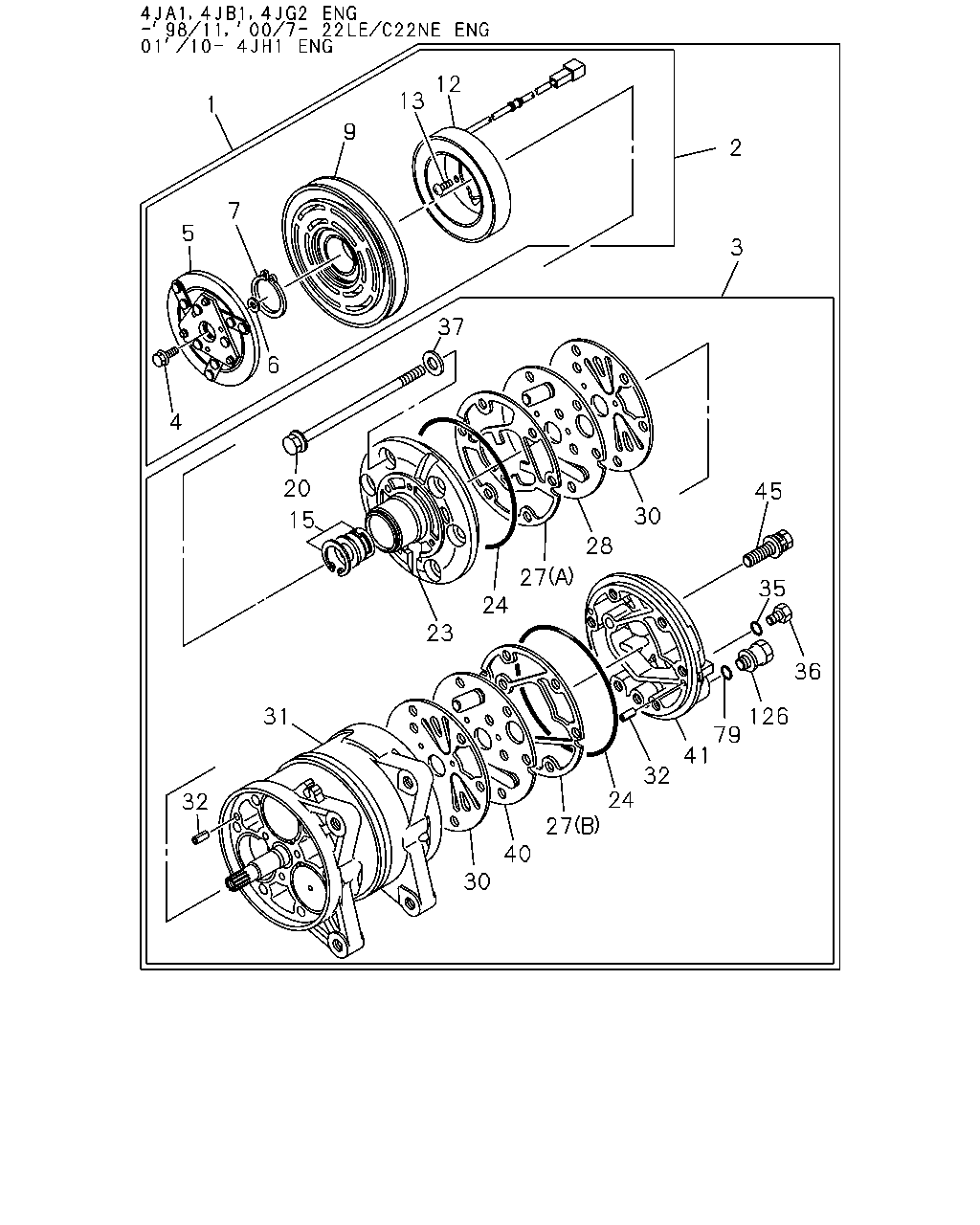

12 13 1 9 2 7 5 3 37 6 4 20 45 30 15 28 27 35 24 23 36 31 126 79 41 32 24 32 27 40 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97168-990-0	01	1	9804-9810	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97217-449-0	01	1	9811-9909	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97217-449-0	01	1	9910-0005	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97252-452-0	01	1	0006-0109	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97252-452-1	01	1	0110-	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97144-648-0	01	1	9804-9811	●	●	●	●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97214-272-0	01	1	9812-0006	●	●	●	●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97252-450-1	01	1	0007-	●	●	●	●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-820-0	01	1	9804-0109	●		●	●	●		●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97264-508-3	01	1	0110-	●		●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-923-0	01	1	9804-9810	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9804-9810	●	●	●	●		●	●	●
2	09.188 CLUTCH; MAGNET,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9811-9811	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9812-9909	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9910-0109	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-1	01	1	0110-	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97211-282-2	01	1	9812-	●	●	●	●		●	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-511-0	01	1	9804-0109	●		●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97311-495-0	01	1	0110-0208	●		●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97357-113-0	01	1	0209-	●		●	●	●		●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-199-2	01	1	9804-9909	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-199-2	01	1	9910-0005	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97262-882-0	01	1	0006-0109	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97262-882-0	01	1	0110-	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-192-2	01	1	9804-0006	●	●	●	●		●	●	●
3	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97261-814-0	01	1	0007-	●	●	●	●		●	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-004-0	01	1	9804-0109	●		●	●	●		●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97320-622-0	01	1	0110-	●		●	●	●		●	●
4	09.181 BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	9804-9810	●	●	●	●	●	●	●	●
4	09.181 BOLT; MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	9812-0006	●	●	●	●	●	●	●	●
4	09.181 BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	0007-	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-922-0	01	1	9804-9810	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-193-0	01	1	9811-0109	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-193-0	01	1	0110-0210	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-193-0	01	1	9804-9811	●	●	●	●		●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-921-0	01	1	0007-0210	●	●	●	●		●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97357-156-0	01	1	0211-	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-513-0	01	1	9804-0109	●		●	●	●		●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97313-253-0	01	1	0110-0208	●		●	●	●		●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97357-112-0	01	1	0209-	●		●	●	●		●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9804-9811	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9812-0006	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	0007-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9804-9811	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9812-0006	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	0007-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9804-9811	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9812-0006	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	0007-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188 T=0.8	8-94380-751-0	AR	1	9804-	●		●	●	●		●	●
6	09.181 SHIM; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.15	1-83578-029-0	AR	1	0110-0208	●		●	●	●		●	●
6	09.181 SHIM; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.25	1-83578-030-0	AR	1	0110-0208	●		●	●	●		●	●
7	09.181 RING; SNAP,PULLEY 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	9804-9811	●	●	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	9812-0006	●	●	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	0007-0109	●	●	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	0110-	●	●	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94380-752-0	01	1	9804-	●		●	●	●		●	●
9	09.181 PULLEY; MAGNET CLU 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-920-0	01	1	9804-9810	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-195-0	01	1	9811-0109	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-195-0	01	1	0110-0210	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97365-826-0	01	1	0211-	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-195-0	01	1	9804-9811	●	●	●	●		●	●	●
9	09.181 PULLEY; MAGNET CLU 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97287-810-0	01	1	0007-0210	●	●	●	●		●	●	●
9	09.181 PULLEY; MAGNET CLU 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97360-618-0	01	1	0211-	●	●	●	●		●	●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-514-0	01	1	9804-0109	●		●	●	●		●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97313-254-0	01	1	0110-0208	●		●	●	●		●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97357-111-0	01	1	0209-	●		●	●	●		●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-917-0	01	1	9804-9810	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-198-0	01	1	9811-0006	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-198-1	01	1	0007-0109	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-198-1	01	1	0110-0210	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-918-0	01	1	0211-	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-198-0	01	1	9804-9811	●	●	●	●		●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-512-0	01	1	9804-0109	●		●	●	●		●	●
12	09.186 COIL; FIELD,MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97313-255-0	01	1	0110-0208	●		●	●	●		●	●
12	09.186 COIL; FIELD,MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97320-620-0	01	1	0209-	●		●	●	●		●	●
13	09.186 SCREW; COIL FIELD AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	9804-9811	●	●	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	9812-0006	●	●	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	0007-0109	●	●	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	0110-	●	●	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94164-438-0	03	1	0110-	●		●	●	●		●	●
15	09.175 SEAL; SHAFT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-403-0	01	1	9804-9811	●	●	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-403-0	01	1	9812-0006	●	●	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-403-0	01	1	0007-0109	●	●	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-403-0	01	1	0110-	●	●	●	●	●	●	●	●
20	09.174 BOLT; CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97081-394-0	06	1	9804-9811	●	●	●	●	●	●	●	●
20	09.174 BOLT; CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97081-394-0	06	1	9812-0109	●	●	●	●	●	●	●	●
20	09.174 BOLT; CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97081-394-0	06	1	0110-	●	●	●	●	●	●	●	●
20	09.174 BOLT; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97233-738-0	06	1	0007-	●	●	●	●		●	●	●
23	09.174 HEAD; CYL,FRT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-401-0	01	1	9804-9811	●	●	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-401-0	01	1	9812-0006	●	●	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-401-0	01	1	0007-0109	●	●	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-401-0	01	1	0110-	●	●	●	●	●	●	●	●
24	09.172 GASKET; CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97081-396-0	02	1	9804-9811	●	●	●	●	●	●	●	●
24	09.172 GASKET; CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97081-396-0	02	1	9812-0006	●	●	●	●	●	●	●	●
24	09.172 GASKET; CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97081-396-0	02	1	0007-0109	●	●	●	●	●	●	●	●
24	09.172 GASKET; CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97081-396-0	02	1	0110-	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97170-930-0	01	1	9804-9811	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97170-933-0	01	1	9804-9811	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97170-930-0	01	1	9812-0006	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97170-930-0	01	1	0007-0109	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97170-930-0	01	1	0110-	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97170-933-0	01	1	9812-0006	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97170-933-0	01	1	0007-0109	●	●	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97170-933-0	01	1	0110-	●	●	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-932-0	01	1	9804-9811	●	●	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-932-0	01	1	9812-0006	●	●	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-932-0	01	1	0007-0109	●	●	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-932-0	01	1	0110-	●	●	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97134-755-0	02	1	9804-9811	●	●	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97134-755-0	02	1	9812-0006	●	●	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97134-755-0	02	1	0007-0109	●	●	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97134-755-0	02	1	0110-	●	●	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97138-175-0	01	1	9804-9909	●	●	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97138-175-0	01	1	9910-0109	●	●	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97138-175-0	01	1	0110-	●	●	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-407-0	01	1	9804-9811	●	●	●	●		●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-407-1	01	1	0007-	●	●	●	●		●	●	●
32	09.174 PIN; CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94154-711-0	04	1	9804-9811	●	●	●	●	●	●	●	●
32	09.174 PIN; CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94154-711-0	04	1	9812-0006	●	●	●	●	●	●	●	●
32	09.174 PIN; CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94154-711-0	04	1	0007-0109	●	●	●	●	●	●	●	●
32	09.174 PIN; CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94154-711-0	04	1	0110-	●	●	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97081-395-0	01	1	9804-9811	●	●	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97081-395-0	01	1	9812-0006	●	●	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97081-395-0	01	1	0007-0109	●	●	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97081-395-0	01	1	0110-	●	●	●	●	●	●	●	●
36	09.173 PLUG; CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94164-473-0	01	1	9804-9811	●	●	●	●	●	●	●	●
36	09.173 PLUG; CYL 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94164-473-0	01	1	9812-0006	●	●	●	●	●	●	●	●
36	09.173 PLUG; CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94164-473-0	01	1	0007-0109	●	●	●	●	●	●	●	●
36	09.173 PLUG; CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94164-473-0	01	1	0110-	●	●	●	●	●	●	●	●
37	09.172 GASKET; CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.174	8-94466-678-0	06	1	9804-9811	●	●	●	●	●	●	●	●
37	09.172 GASKET; CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.174	8-94466-678-0	06	1	9812-0109	●	●	●	●	●	●	●	●
37	09.172 GASKET; CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.174	8-94466-678-0	06	1	0110-	●	●	●	●	●	●	●	●
37	09.172 GASKET; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97233-739-0	06	1	0007-	●	●	●	●		●	●	●
40	09.172 PLATE; VLV,RR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-931-0	01	1	9804-9811	●	●	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-931-0	01	1	9812-0006	●	●	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-931-0	01	1	0007-0109	●	●	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-931-0	01	1	0110-	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-200-0	01	1	9804-9810	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97223-548-1	01	1	9811-0109	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97223-548-1	01	1	0110-	●	●	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-929-1	01	1	9804-9811	●	●	●	●		●	●	●
41	09.174 HEAD; CYL,RR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97233-736-1	01	1	0007-	●	●	●	●		●	●	●
45	09.173 BOLT; PLATE TO CYL HD 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9804-9811	●	●	●	●	●	●	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9812-0109	●	●	●	●	●	●	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	0110-	●	●	●	●	●	●	●	●
45	09.173 BOLT; PLATE TO CYL HD 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97205-574-0	01	1	0007-	●	●	●	●		●	●	●
79	09.172 GASKET; VLV,CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-202-0	01	1	9804-9909	●	●	●	●	●	●	●	●
79	09.172 GASKET; VLV,CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-202-0	01	1	9910-0109	●	●	●	●	●	●	●	●
79	09.172 GASKET; VLV,CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-202-0	01	1	0110-	●	●	●	●	●	●	●	●
126	09.172 VALVE; RELIEF,CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-201-0	01	1	9804-9909	●	●	●	●	●	●	●	●
126	09.172 VALVE; RELIEF,CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-201-0	01	1	9910-0109	●	●	●	●	●	●	●	●
126	09.172 VALVE; RELIEF,CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-201-0	01	1	0110-	●	●	●	●	●	●	●	●

1 1 17 16 3 2 12 9 7 6 5 4 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97168-990-0	01	1	9804-9810	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97217-449-0	01	1	9811-9909	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97217-449-0	01	1	9910-0005	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97252-452-0	01	1	0006-0109	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97252-452-1	01	1	0110-	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97144-648-0	01	1	9804-9811	●	●	●	●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97214-272-0	01	1	9812-0006	●	●	●	●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97252-450-1	01	1	0007-	●	●	●	●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-820-0	01	1	9804-0109	●		●	●	●		●	●
1	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97264-508-3	01	1	0110-	●		●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-923-0	01	1	9804-9810	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9804-9810	●	●	●	●		●	●	●
2	09.188 CLUTCH; MAGNET,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9811-9811	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9812-9909	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-0	01	1	9910-0109	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-924-1	01	1	0110-	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97211-282-2	01	1	9812-	●	●	●	●		●	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-511-0	01	1	9804-0109	●		●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97311-495-0	01	1	0110-0208	●		●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97357-113-0	01	1	0209-	●		●	●	●		●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-199-2	01	1	9804-9909	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-199-2	01	1	9910-0005	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97262-882-0	01	1	0006-0109	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97262-882-0	01	1	0110-	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-192-2	01	1	9804-0006	●	●	●	●		●	●	●
3	09.170 COMPRESSOR ASM; A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97261-814-0	01	1	0007-	●	●	●	●		●	●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-004-0	01	1	9804-0109	●		●	●	●		●	●
3	09.170 COMPRESSOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97320-622-0	01	1	0110-	●		●	●	●		●	●
4	09.181 BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	9804-9810	●	●	●	●	●	●	●	●
4	09.181 BOLT; MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	9812-0006	●	●	●	●	●	●	●	●
4	09.181 BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.186	8-94164-439-0	01	1	0007-	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-922-0	01	1	9804-9810	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-193-0	01	1	9811-0109	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-193-0	01	1	0110-0210	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-193-0	01	1	9804-9811	●	●	●	●		●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-921-0	01	1	0007-0210	●	●	●	●		●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97357-156-0	01	1	0211-	●	●	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-513-0	01	1	9804-0109	●		●	●	●		●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97313-253-0	01	1	0110-0208	●		●	●	●		●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97357-112-0	01	1	0209-	●		●	●	●		●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9804-9811	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	9812-0006	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.1	8-94120-721-0	AR	1	0007-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9804-9811	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	9812-0006	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.3	8-94120-722-0	AR	1	0007-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9804-9811	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	9812-0006	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.5	8-94120-723-0	AR	1	0007-	●	●	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188 T=0.8	8-94380-751-0	AR	1	9804-	●		●	●	●		●	●
6	09.181 SHIM; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.15	1-83578-029-0	AR	1	0110-0208	●		●	●	●		●	●
6	09.181 SHIM; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.25	1-83578-030-0	AR	1	0110-0208	●		●	●	●		●	●
7	09.181 RING; SNAP,PULLEY 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	9804-9811	●	●	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	9812-0006	●	●	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	0007-0109	●	●	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94120-724-0	01	1	0110-	●	●	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94380-752-0	01	1	9804-	●		●	●	●		●	●
9	09.181 PULLEY; MAGNET CLU 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-920-0	01	1	9804-9810	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-195-0	01	1	9811-0109	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-195-0	01	1	0110-0210	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97365-826-0	01	1	0211-	●	●	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-195-0	01	1	9804-9811	●	●	●	●		●	●	●
9	09.181 PULLEY; MAGNET CLU 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97287-810-0	01	1	0007-0210	●	●	●	●		●	●	●
9	09.181 PULLEY; MAGNET CLU 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97360-618-0	01	1	0211-	●	●	●	●		●	●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-514-0	01	1	9804-0109	●		●	●	●		●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97313-254-0	01	1	0110-0208	●		●	●	●		●	●
9	09.181 PULLEY; MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97357-111-0	01	1	0209-	●		●	●	●		●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-917-0	01	1	9804-9810	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-198-0	01	1	9811-0006	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-198-1	01	1	0007-0109	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-198-1	01	1	0110-0210	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-918-0	01	1	0211-	●	●	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97183-198-0	01	1	9804-9811	●	●	●	●		●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-512-0	01	1	9804-0109	●		●	●	●		●	●
12	09.186 COIL; FIELD,MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97313-255-0	01	1	0110-0208	●		●	●	●		●	●
12	09.186 COIL; FIELD,MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97320-620-0	01	1	0209-	●		●	●	●		●	●
13	09.186 SCREW; COIL FIELD AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	9804-9811	●	●	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	9812-0006	●	●	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	0007-0109	●	●	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188	8-94120-727-0	03	1	0110-	●	●	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94164-438-0	03	1	0110-	●		●	●	●		●	●
16	09.181 CLIP; WIRE,MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97024-418-0	01	1	9804-0109	●		●	●	●		●	●
16	09.181 CLIP; WIRE,MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97311-505-0	01	1	0110-0208	●		●	●	●		●	●
16	09.181 CLIP; WIRE,MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97320-623-0	01	1	0209-	●		●	●	●		●	●
17	09.181 SCREW; WIRE CLIP MAGNET CLU 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97024-419-0	01	1	9804-	●		●	●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
