8-70 — AIR CONDITIONING VENTILATION UNIT (#46165) — 25 parça

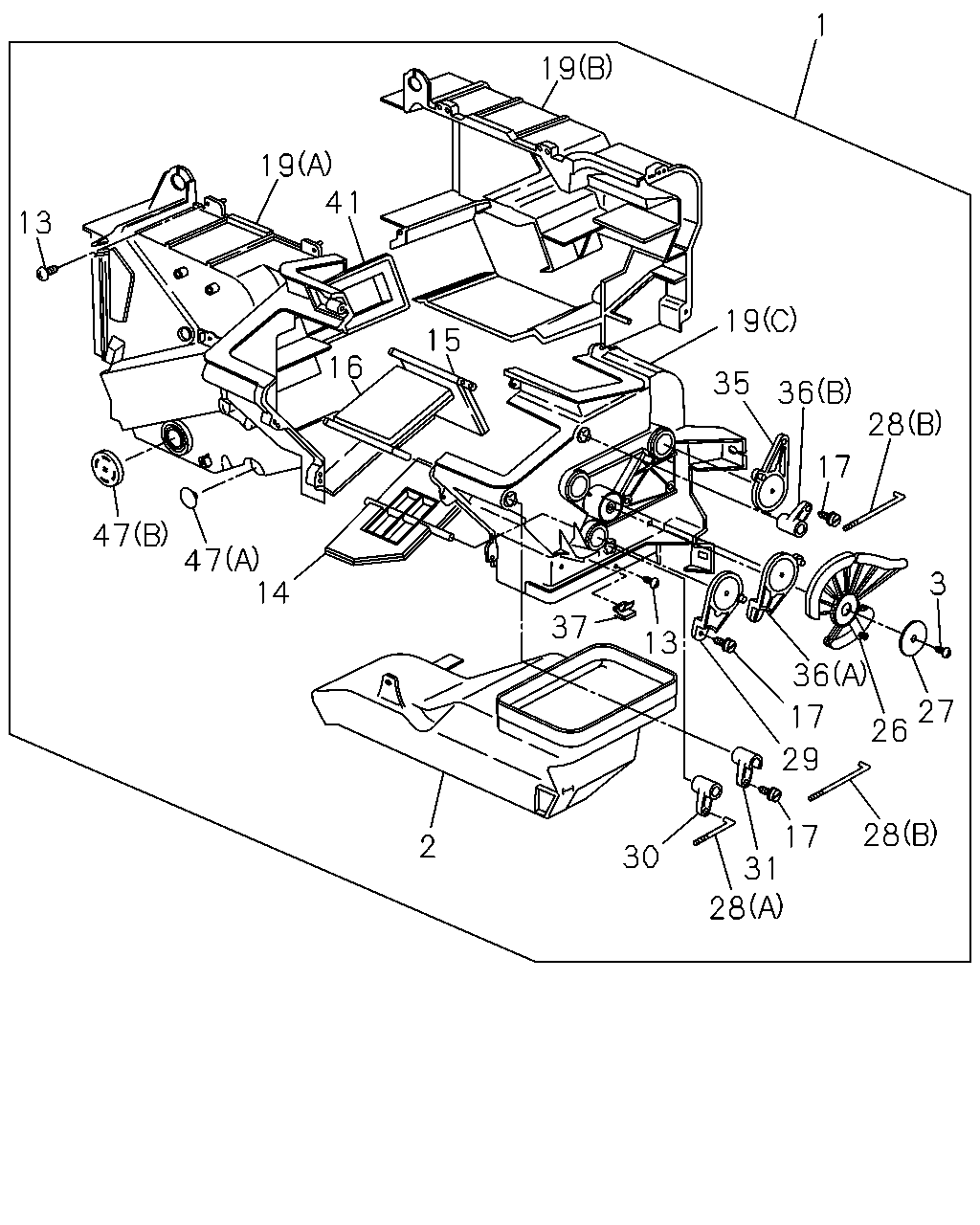

çizim 74125
1 19 19 41 13 19 15 16 35 36 28 17 47 47 3 14 37 13 36 27 26 17 29 28 17 31 2 30 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.845 VENTILATION UNIT
COOLER WO/HEATER(YL1) 		8-97042-555-2 01 1 9804- ● ● ● ● ● ● ● ●
2 08.854 DUCT; VENTILATOR
COOLER WO/HEATER(YL1) 		8-94328-639-1 01 1 9804- ● ● ● ● ● ● ● ●
3 08.852 SCREW; LEVER
COOLER WO/HEATER(YL1) 08.846 M5X16 		8-94248-820-0 01 1 9804- ● ● ● ● ● ● ● ●
13 08.852 SCREW; CASE
COOLER WO/HEATER(YL1) M4X16 		8-94324-850-0 13 1 9804- ● ● ● ● ● ● ● ●
14 08.854 DOOR; MODE,VENTILATOR
COOLER WO/HEATER(YL1) 		8-94328-630-0 01 1 9804- ● ● ● ● ● ● ● ●
15 08.854 DOOR; MIX,VENTILATION UNIT
COOLER WO/HEATER(YL1) 		8-94328-631-0 01 1 9804- ● ● ● ● ● ● ● ●
16 08.854 DOOR; MODE,VENTILATOR
COOLER WO/HEATER(YL1) 08.845 		8-94328-629-0 01 1 9804- ● ● ● ● ● ● ● ●
17 08.852 CLIP; SHUTTER LEVER,VENTILATION
COOLER WO/HEATER(YL1) 09.786 		8-94248-794-0 03 1 9804- ● ● ● ● ● ● ● ●
19 08.854 CASE; VENTILATION UNIT
COOLER WO/HEATER(YL1) (A) 		8-94328-636-3 01 1 9804- ● ● ● ● ● ● ● ●
19 08.854 CASE; VENTILATION UNIT
COOLER WO/HEATER(YL1) (B) 		8-94328-637-3 01 1 9804- ● ● ● ● ● ● ● ●
19 08.854 CASE; VENTILATION UNIT
COOLER WO/HEATER(YL1) (C) 		8-94328-638-2 01 1 9804- ● ● ● ● ● ● ● ●
26 08.852 LEVER; VENTILATOR
COOLER WO/HEATER(YL1) 09.786 		8-97045-861-0 01 1 9804- ● ● ● ● ● ● ● ●
27 08.852 WASHER; LEVER
COOLER WO/HEATER(YL1) 		8-94129-950-0 01 1 9804- ● ● ● ● ● ● ● ●
28 08.852 ROD; SHUTTER LEVER,VENTILATION U
COOLER WO/HEATER(YL1) (A) 		8-94324-848-0 01 1 9804- ● ● ● ● ● ● ● ●
28 08.852 ROD; SHUTTER LEVER,VENTILATION U
COOLER WO/HEATER(YL1) (B) 		8-94328-635-0 02 1 9804- ● ● ● ● ● ● ● ●
29 08.852 LEVER; SHUTTER,VENTILATION UNIT
COOLER WO/HEATER(YL1) 09.786 		8-94328-646-1 01 1 9804- ● ● ● ● ● ● ● ●
30 08.852 LEVER; VENTILATOR
COOLER WO/HEATER(YL1) 		8-94328-627-0 01 1 9804- ● ● ● ● ● ● ● ●
31 08.852 LEVER; VENTILATION UNIT
COOLER WO/HEATER(YL1) 		8-94328-649-0 01 1 9804- ● ● ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,VENTILATION UNIT
COOLER WO/HEATER(YL1) 		8-94328-645-1 01 1 9804- ● ● ● ● ● ● ● ●
36 08.852 LEVER; SHUTTER,VENTILATION UNIT
COOLER WO/HEATER(YL1) 09.786 (A) 		8-97045-859-0 01 1 9804- ● ● ● ● ● ● ● ●
36 08.852 LEVER; SHUTTER,VENTILATION UNIT
COOLER WO/HEATER(YL1) (B) 		8-97045-860-0 01 1 9804- ● ● ● ● ● ● ● ●
37 08.852 CLIP; CABLE,VENTILATION UNIT
COOLER WO/HEATER(YL1) 09.787 		8-94337-654-0 01 1 9804- ● ● ● ● ● ● ● ●
41 08.852 COVER; CASE
COOLER WO/HEATER(YL1) 		8-94328-659-0 01 1 9804- ● ● ● ● ● ● ● ●
47 08.845 PLUG; CASE
COOLER WO/HEATER(YL1) (A) 		8-94328-657-0 04 1 9804- ● ● ● ● ● ● ● ●
47 08.845 PLUG; CASE
COOLER WO/HEATER(YL1) (B) 		8-94328-658-0 01 1 9804- ● ● ● ● ● ● ● ●
