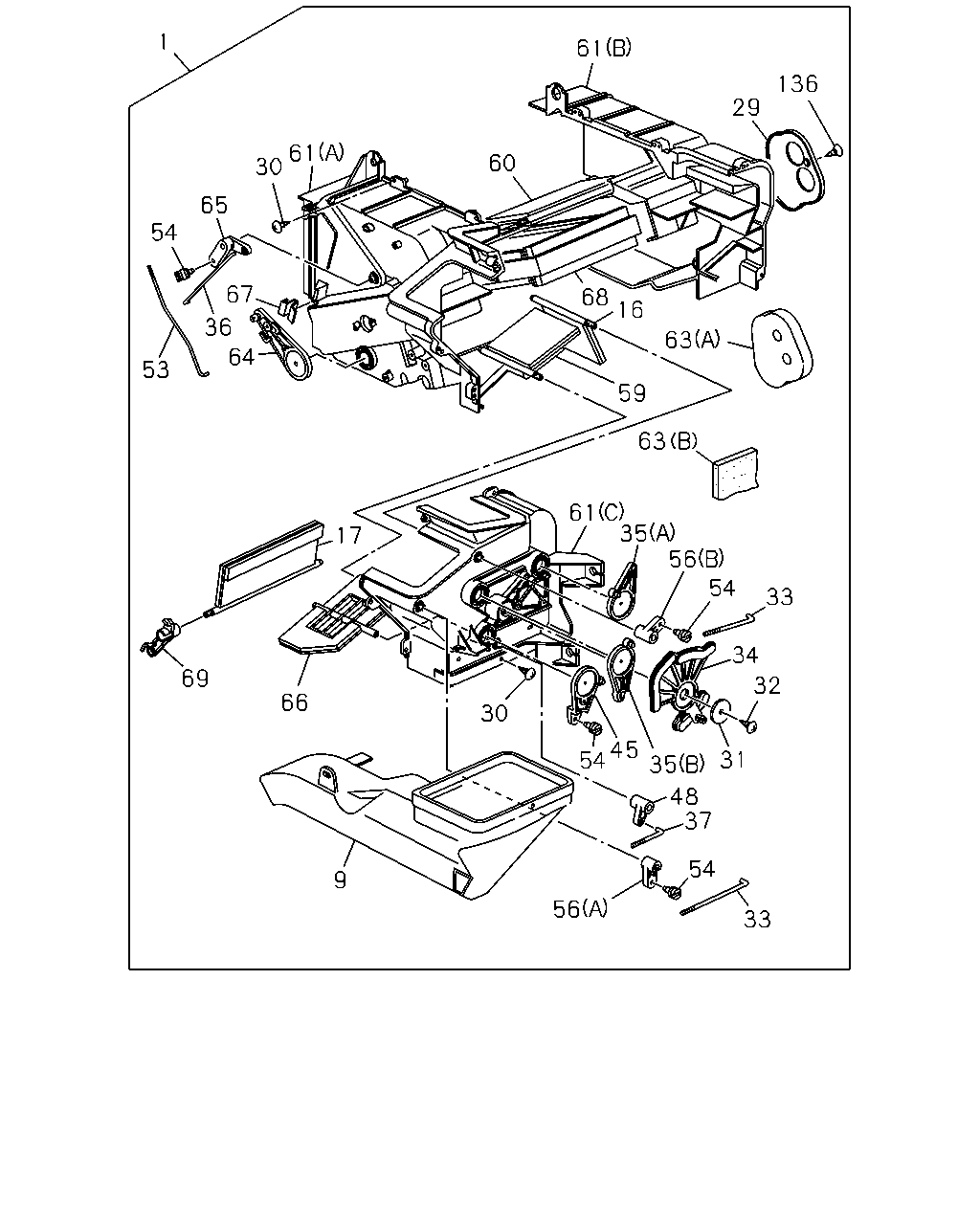

8-60 — HEATER UNIT; FRONT (#46163) — 49 parça

1 61 136 29 61 30 60 65 54 67 68 16 36 63 64 53 59 63 61 35 17 56 54 33 34 69 32 66 30 45 54 31 35 48 37 54 9 56 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	08.845 HEATER UNIT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97118-552-0	01	1	9804-9909	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97118-552-0	01	1	9910-0109	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97118-552-0	01	1	0110-	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97177-163-0	01	1	9804-	●		●	●	●		●	●
9	08.854 DUCT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97120-825-0	01	1	9804-	●	●	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854	8-94328-631-0	01	1	9804-	●	●	●	●	●	●	●	●
17	09.786 SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94328-641-0	01	1	9804-	●	●	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845	8-97045-865-0	01	1	9804-9909	●	●	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845	8-97045-865-0	01	1	9910-0109	●	●	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845	8-97045-865-0	01	1	0110-	●	●	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854	8-97045-862-0	01	1	9804-	●		●	●	●		●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	13	1	9804-	●	●	●	●	●	●	●	●
31	08.852 WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94129-950-0	01	1	9804-	●	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20	9-09829-324-1	01	1	9804-	●	●	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-94328-635-0	02	1	9804-	●	●	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97045-861-0	01	1	9804-	●	●	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94328-645-1	01	1	9804-	●	●	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97045-860-0	01	1	9804-	●	●	●	●	●	●	●	●
36	08.852 ROD; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786	8-94324-847-0	01	1	9804-	●	●	●	●	●	●	●	●
37	08.852 ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-848-0	01	1	9804-	●	●	●	●	●	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94328-646-1	01	1	9804-	●	●	●	●	●	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-94328-627-0	01	1	9804-	●	●	●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-846-0	01	1	9804-	●	●	●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786	8-94248-794-0	04	1	9804-	●	●	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 (B)	8-94328-649-0	01	1	9804-	●	●	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97045-859-0	01	1	9804-	●	●	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94328-629-0	01	1	9804-9909	●	●	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94328-629-0	01	1	9910-0109	●	●	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94328-629-0	01	1	0110-	●	●	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97130-339-0	01	1	9804-	●		●	●	●		●	●
60	08.854 DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-833-0	01	1	9804-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94328-636-3	01	1	9804-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-94328-637-3	01	1	9804-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94328-638-2	01	1	9804-	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97069-412-1	01	1	9804-9909	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97069-412-1	01	1	9910-0109	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97069-412-1	01	1	0110-	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97069-415-1	01	1	9804-	●		●	●	●		●	●
63	08.856 LINING; HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97081-291-0	01	1	9804-	●		●	●	●		●	●
64	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-840-1	01	1	9804-	●	●	●	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94328-642-0	01	1	9804-	●	●	●	●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854	8-94328-630-0	01	1	9804-	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9804-	●	●	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94328-640-2	01	1	9804-9909	●	●	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94328-640-2	01	1	9910-0109	●	●	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94328-640-2	01	1	0110-	●	●	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97170-854-0	01	1	9804-	●		●	●	●		●	●
69	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97045-858-0	01	1	9804-	●	●	●	●	●	●	●	●
136	08.850 SCREW; PLATE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97045-863-0	01	1	9804-	●	●	●	●	●	●	●	●
