Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#46162) — 178 parça

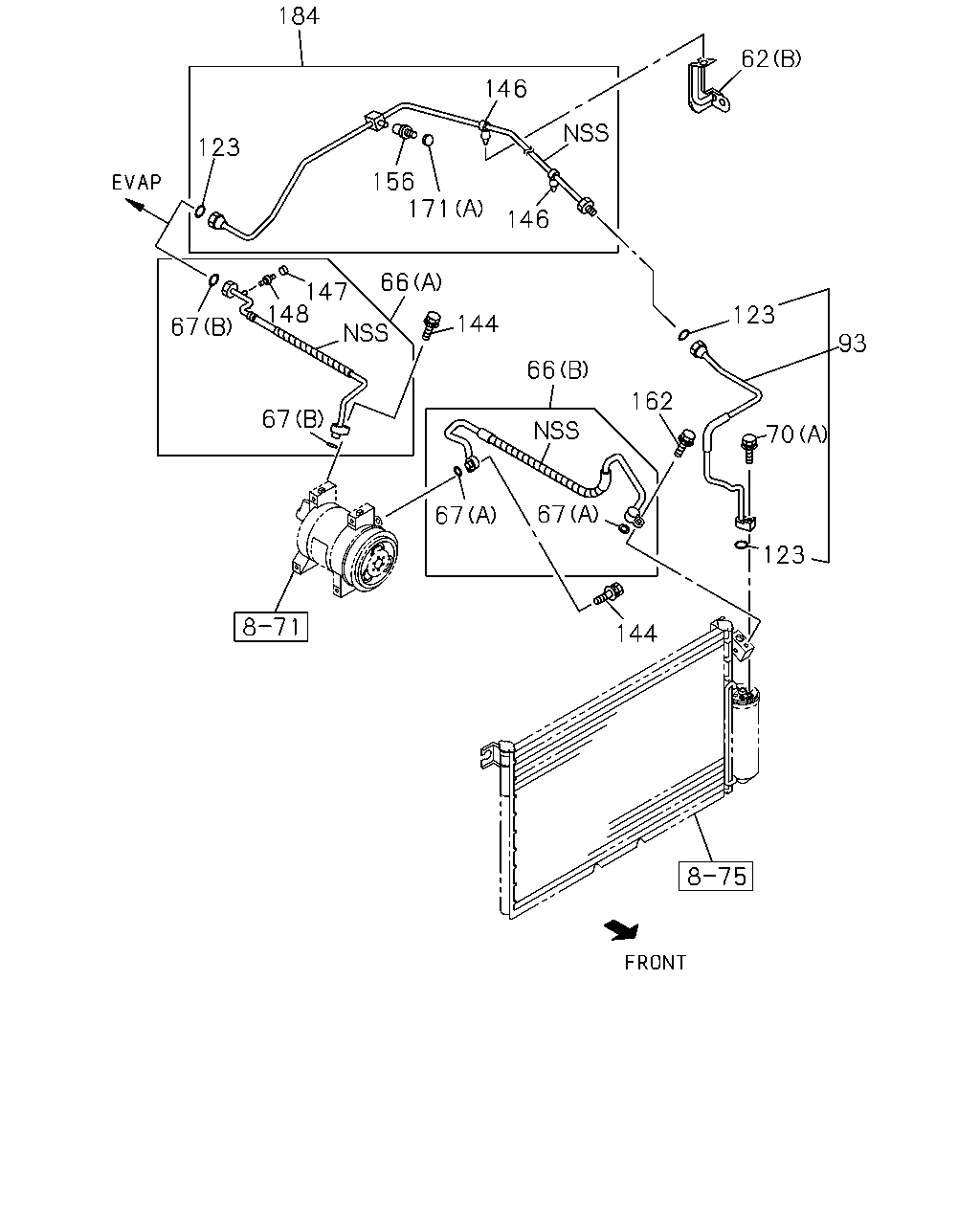

184 62 146 123 156 171 146 66 147 148 123 144 67 93 66 162 67 70 67 67 123 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
62	09.242 BRACKET; PIPE HIGH PRESSURE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	9804-0109	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	0110-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9804-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9804-	●		●	●	●		●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97167-977-1	01	1	9804-0109	●		●	●	●		●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97264-667-0	01	1	0110-	●		●	●	●		●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97177-228-1	01	1	9804-0109	●		●	●	●		●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97301-239-1	01	1	0110-	●		●	●	●		●	●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=15.5	8-97161-777-0	02	1	9804-	●		●	●	●		●	●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9804-	●		●	●	●		●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9804-0012	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0101-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0110-			●	●	●		●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9804-9909	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97181-358-0	01	1	9910-0109	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97301-236-0	01	1	0110-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97177-165-0	01	1	9910-0012			●	●	●		●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97177-165-0	01	1	0101-0109			●	●	●		●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97301-235-0	01	1	0110-			●	●	●		●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9804-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9804-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9804-9909	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9910-0109	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	0110-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-	●		●	●	●		●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9804-	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9804-	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9804-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-9909	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-9909	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9910-0109	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9910-0109	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0110-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0110-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9804-9909	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9910-0109	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0110-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-167-0	01	1	9804-	●	●	●	●	●	●	●	●

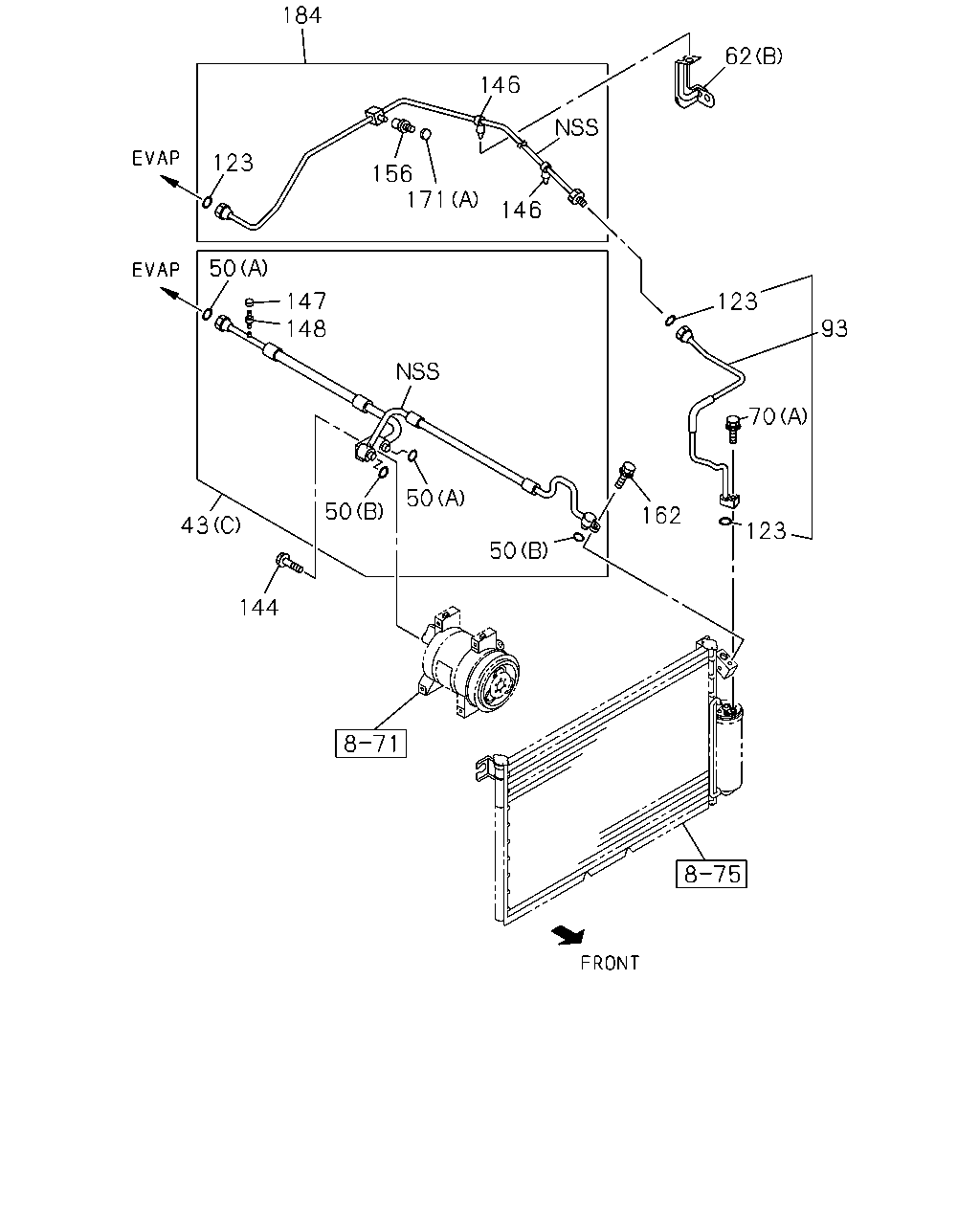

184 62 146 123 156 171 146 50 123 147 148 93 70 50 50 162 43 123 50 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. CHARGE AIR COOLER<6PL> (A)	8-97301-259-0	01	1	0110-	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97301-259-0	01	1	0110-	●		●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-230-0	01	1	9804-9909	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97227-321-0	01	1	9910-0109	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHARGE AIR COOLER<6PL> (B)	8-97301-245-2	01	1	0110-			●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-97180-919-0	01	1	9804-9909	●	●	●	●		●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-97225-666-0	01	1	9910-0109	●	●	●	●		●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-97301-243-1	01	1	0110-	●	●	●	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	9804-9909	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	9910-0109	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	0110-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	9804-9909	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	9910-0109	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	0110-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	9804-0109	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	0110-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9804-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9804-	●		●	●	●		●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9804-0012	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0101-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0110-			●	●	●		●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9804-9909	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97181-358-0	01	1	9910-0109	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97301-236-0	01	1	0110-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97177-165-0	01	1	9910-0012			●	●	●		●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97177-165-0	01	1	0101-0109			●	●	●		●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97301-235-0	01	1	0110-			●	●	●		●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9804-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9804-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9804-9909	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9910-0109	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	0110-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-	●		●	●	●		●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9804-	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9804-	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9804-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-9909	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-9909	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9910-0109	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9910-0109	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0110-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0110-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9804-9909	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9910-0109	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0110-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-167-0	01	1	9804-	●	●	●	●	●	●	●	●

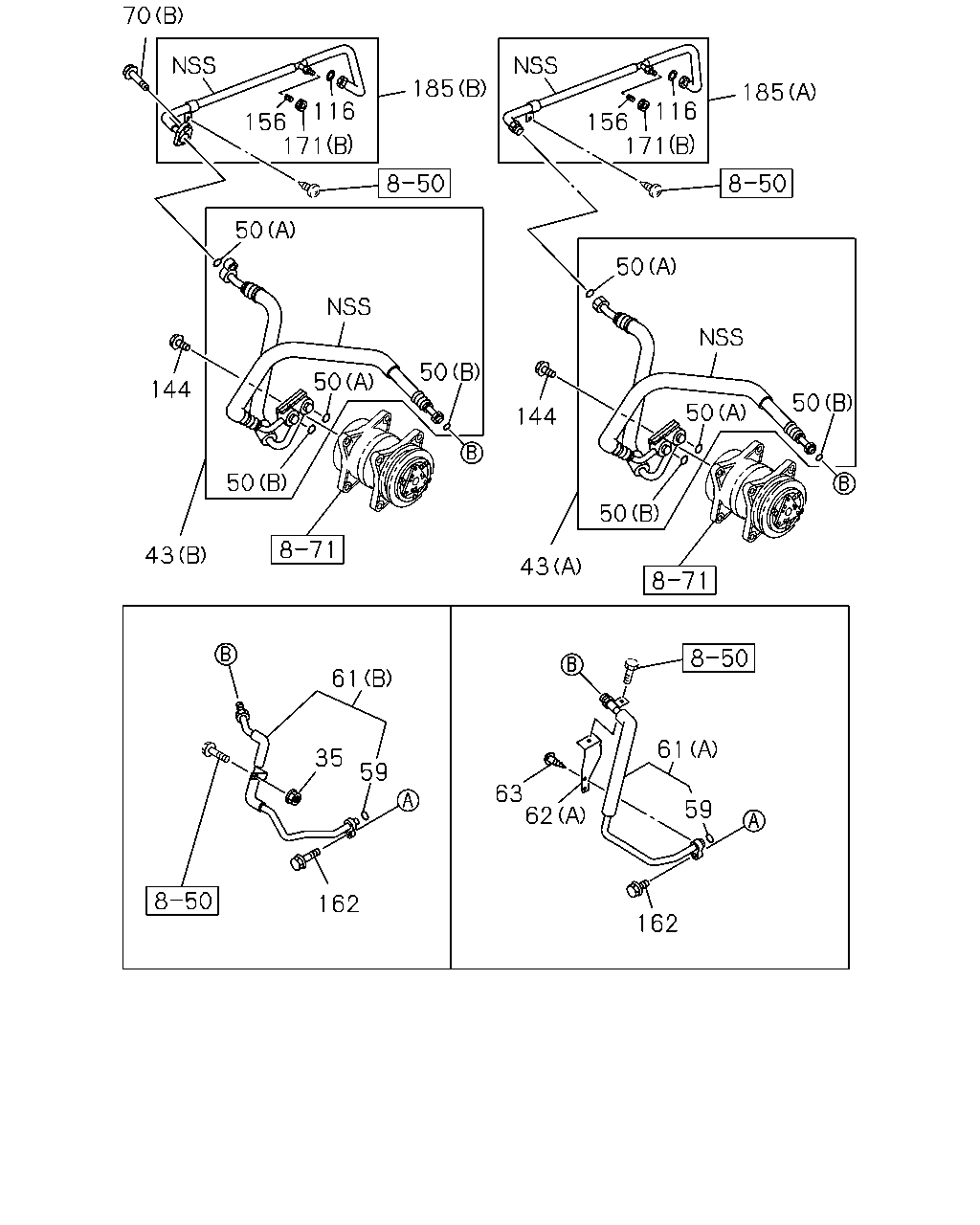

70 185 185 116 116 156 171 156 171 50 50 50 50 144 50 50 144 50 50 43 43 61 61 35 59 63 62 59 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
35	09.242 NUT; FLEX HOSE,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.062 M6 FLANGE	0-91150-206-0	01	1	9910-0012	●		●	●	●		●	●
35	09.242 NUT; FLEX HOSE,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 01.062 M6 FLANGE	0-91150-206-0	01	1	0101-0109	●		●	●	●		●	●
35	09.242 NUT; FLEX HOSE,A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 01.062 M6 FLANGE	0-91150-206-0	01	1	0110-0111	●		●	●	●		●	●
35	09.242 NUT; FLEX HOSE,A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 04.594 M6 FLANGE	0-91150-106-0	01	1	0112-	●		●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. CHARGE AIR COOLER<6PL> (A)	8-97301-259-0	01	1	0110-	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97301-259-0	01	1	0110-	●		●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-230-0	01	1	9804-9909	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97227-321-0	01	1	9910-0109	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHARGE AIR COOLER<6PL> (B)	8-97301-245-2	01	1	0110-			●	●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-97180-919-0	01	1	9804-9909	●	●	●	●		●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-97225-666-0	01	1	9910-0109	●	●	●	●		●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-97301-243-1	01	1	0110-	●	●	●	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	9804-9909	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	9910-0109	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (B) ID=15.5	8-97161-777-0	02	1	0110-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	9804-9909	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	9910-0109	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (A) ID=18.3	8-97161-778-0	02	1	0110-	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> 09.260 ID=15.5	8-97161-777-0	01	1	9804-9909	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 ID=15.5	8-97161-777-0	01	1	9804-9909	●		●	●	●		●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 ID=15.5	8-97161-777-0	01	1	9910-0109	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 ID=15.5	8-97161-777-0	01	1	0110-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97177-164-0	01	1	9804-0109	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-164-0	01	1	9804-0109	●		●	●	●		●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97301-233-0	01	1	0110-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97301-233-0	01	1	0110-	●		●	●	●		●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> (B)	8-97180-850-0	01	1	9910-0109	●		●	●	●		●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> (B)	8-97301-234-0	01	1	0110-	●		●	●	●		●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JG2 ENG(RJC),4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97301-234-0	01	1	0110-			●	●	●		●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	9804-0109	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	0110-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9804-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9804-	●		●	●	●		●	●
63	09.242 SCREW; BRKT 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> M6X12	9-09829-330-1	02	1	9804-	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M6X12	9-09829-330-1	02	1	9804-	●		●	●	●		●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9804-0012	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0101-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0110-			●	●	●		●	●
116	09.225 GASKET; PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=18.3	8-97161-778-0	01	1	9804-9909	●	●	●	●	●	●	●	●
116	09.225 GASKET; PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=18.3	8-97161-778-0	01	1	9910-0109	●	●	●	●	●	●	●	●
116	09.225 GASKET; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=18.3	8-97161-778-0	01	1	0110-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9804-9909	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9910-0109	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	0110-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-	●		●	●	●		●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-9909	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-9909	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9910-0109	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9910-0109	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0110-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0110-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9804-9909	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9910-0109	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0110-	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-168-0	01	1	9804-9909	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-168-0	01	1	9910-0109	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. CHARGE AIR COOLER<6PL> (A)	8-97177-168-0	01	1	0110-	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-168-0	01	1	0110-	●		●	●	●		●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHARGE AIR COOLER<6PL> (B)	8-97311-909-1	01	1	0110-			●	●	●		●	●

184 146 123 23 62 156 171 146 123 70 93 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
23	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.077 M6X18	8-94408-386-1	02	1	9910-0012					●		●	●
23	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.077 M6X18	8-97071-681-0	02	1	0101-			●	●	●		●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	9804-0109	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-2	01	1	0110-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9804-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9804-	●		●	●	●		●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9804-0012	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0101-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0110-			●	●	●		●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9804-9909	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97181-358-0	01	1	9910-0109	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97301-236-0	01	1	0110-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97177-165-0	01	1	9910-0012			●	●	●		●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97177-165-0	01	1	0101-0109			●	●	●		●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97301-235-0	01	1	0110-			●	●	●		●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9804-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9804-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9804-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-9909	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9804-9909	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9910-0109	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9910-0109	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0110-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	0110-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9804-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9804-9909	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9910-0109	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0110-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-167-0	01	1	9804-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
