Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#46161) — 193 parça

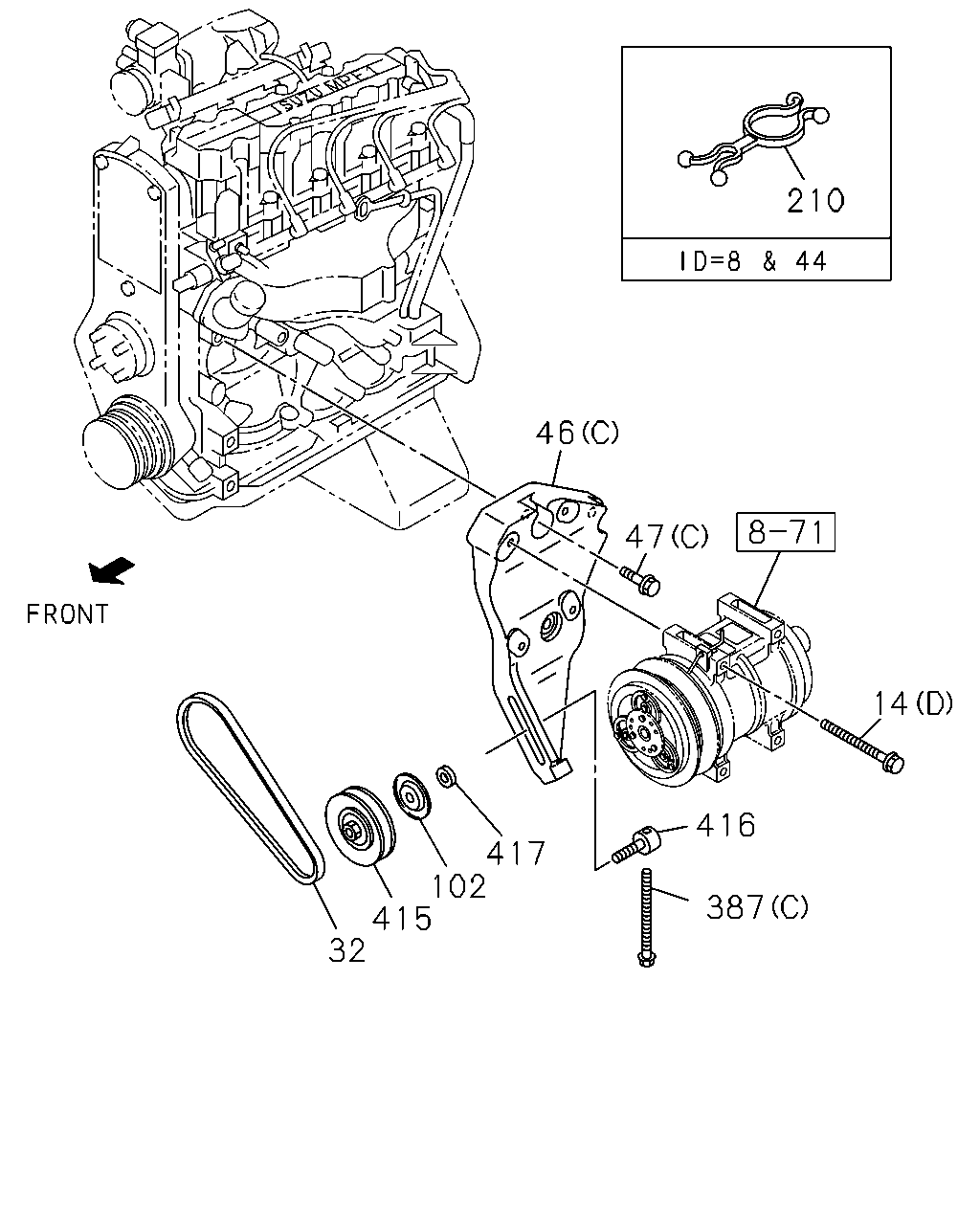

210 46 47 14 416 417 102 415 32 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
14	09.171 BOLT; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) M8X100 FLANGE	0-28080-800-0	04	1	9804-9805	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.278 (D) M8X100 FLANGE	0-28080-800-0	04	1	9806-	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (A) M8X80 FLANGE	0-28080-880-0	02	1	9804-9911	●		●	●		●	●	●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) M8X80 FLANGE	0-28080-880-0	02	1	9912-0109	●		●	●		●	●	●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.840 (C) M8X70 FLANGE	0-28080-870-0	04	1	0110-	●		●	●		●	●	●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9804-9911	●		●	●		●	●	●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9912-0109	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94440-010-0	01	1	9804-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) POWER STEERING<N40> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94442-970-0	01	1	9804-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) L=918	8-92063-696-0	01	1	9804-9805	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) L=918	8-92063-696-0	01	1	9806-	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-94434-926-0	01	1	9804-9909	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-94434-926-0	01	1	9910-0009	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94434-926-0	01	1	0010-0109	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94434-926-0	01	1	0110-	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	9804-9909	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	9910-0109	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	0110-0211	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	0212-	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97114-781-0	01	1	9804-0106	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97254-188-0	01	1	0107-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	9804-9909	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	9910-0109	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	0110-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) (C)	8-92063-291-0	01	1	9804-9805	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-92063-291-0	01	1	9806-	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9804-9909	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9910-0009	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (A)	8-97114-780-0	01	1	0010-0109	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (A)	8-97114-780-0	01	1	0110-	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97130-360-1	01	1	9804-9911	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D)	8-97130-360-1	01	1	9912-	●		●	●		●	●	●
47	09.173 BOLT; BRKT TO BODY 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M10X35 FLANGE	0-28781-035-0	03	1	9804-9805	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 (C) M10X35 FLANGE	0-28781-035-0	03	1	9806-	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	9804-9911	●		●	●		●	●	●
47	09.173 BOLT; BRKT TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	9912-	●		●	●		●	●	●
47	09.173 BOLT; BRKT TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	9804-9911	●		●	●		●	●	●
47	09.173 BOLT; BRKT TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	9912-	●		●	●		●	●	●
102	09.170 COVER; PULLEY 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60)	8-92064-071-0	01	1	9804-9805	●	●	●	●	●	●	●
102	09.170 COVER; PULLEY 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-92064-071-0	01	1	9806-	●	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) 02.559	8-94109-862-0	01	1	9804-9805	●	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559	8-94109-862-0	01	1	9806-	●	●	●	●	●	●	●
387	09.190 BOLT; TENSIONER FIX 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) (C)	8-92063-707-0	01	1	9804-9805	●	●	●	●	●	●	●
387	09.190 BOLT; TENSIONER FIX 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-92063-707-0	01	1	9806-	●	●	●	●	●	●	●
387	09.190 BOLT; TENSIONER FIX 6VD1 ENG(RLV) 04.686 (A) M8X30 FLANGE	0-28680-830-0	01	1	9804-	●		●	●		●	●	●
387	09.190 BOLT; TENSIONER FIX 6VD1 ENG(RLV) (B) M10X65	9-05821-065-0	01	1	9804-	●		●	●		●	●	●
415	09.180 PULLEY; TENSIONER 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60)	8-92063-936-0	01	1	9804-9805	●	●	●	●	●	●	●
415	09.180 PULLEY; TENSIONER 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-92063-936-0	01	1	9806-	●	●	●	●	●	●	●
416	09.173 BOLT; PULLEY 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60)	8-92026-660-0	01	1	9804-9805	●	●	●	●	●	●	●
416	09.173 BOLT; PULLEY 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-92026-660-0	01	1	9806-	●	●	●	●	●	●	●
417	09.173 SPACER; PULLEY 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60)	8-92026-661-0	01	1	9804-9805	●	●	●	●	●	●	●
417	09.173 SPACER; PULLEY 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-92026-661-0	01	1	9806-	●	●	●	●	●	●	●

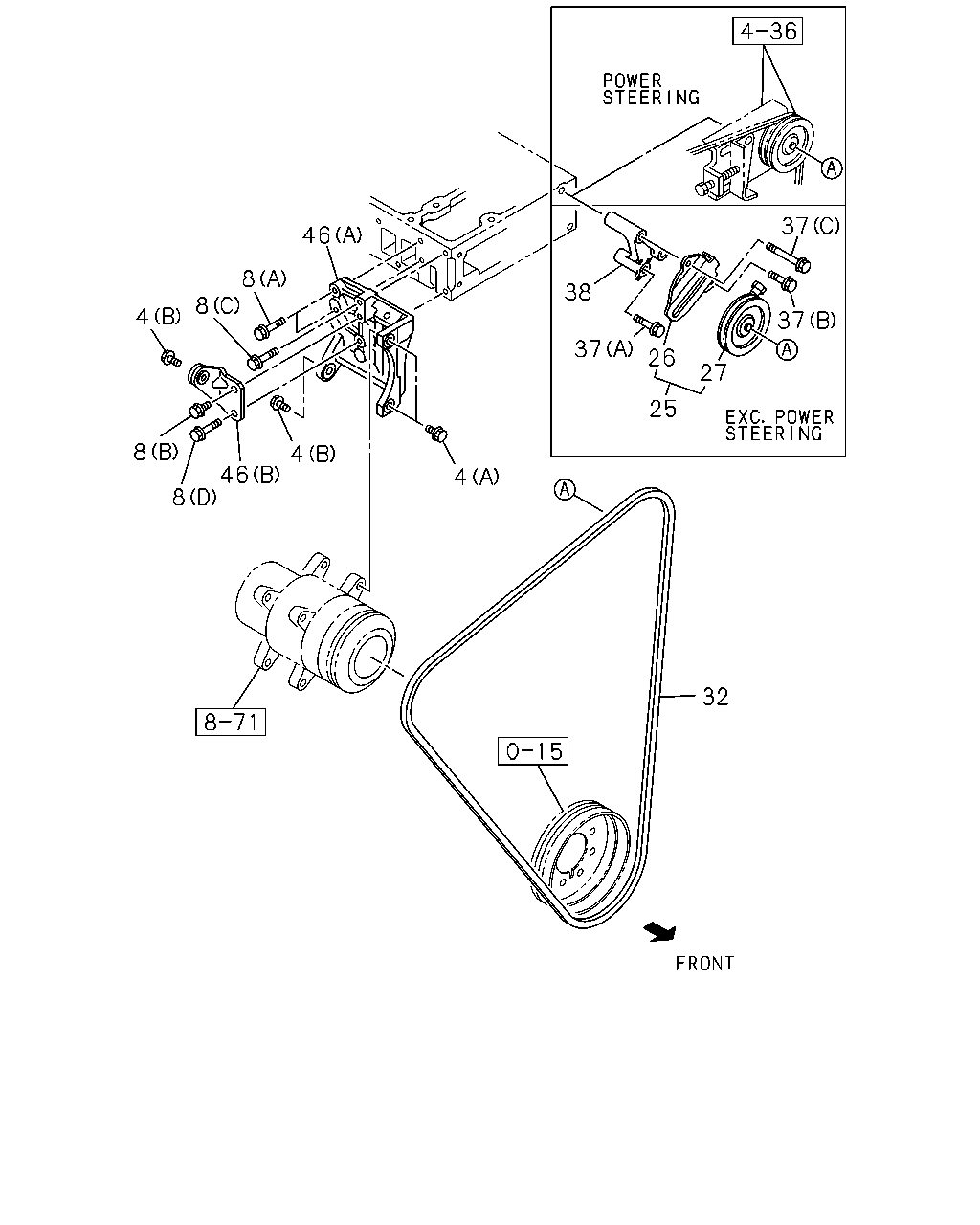

37 46 8 8 38 4 37 37 26 27 25 8 4 46 8 4 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	9804-9909	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	9910-0109	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0110-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9804-9909	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9910-0109	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	0110-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.386 (C) M10X50 W/LK WASHER	0-50041-050-0	01	1	9804-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.405 (B) M10X30 FLANGE	0-28681-030-0	01	1	9804-9909	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.405 (B) M10X30 FLANGE	0-28681-030-0	01	1	9910-0109	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.405 (B) M10X30 FLANGE	0-28681-030-0	01	1	0110-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9804-9909	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9910-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9804-9909	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9910-0109	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	0110-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9804-9909	●		●	●		●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9910-0009	●		●	●		●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	0010-	●		●	●		●	●	●
8	09.171 BOLT; BRKT 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (E) M10X16 FLANGE	0-28181-016-0	01	1	9804-9911	●		●	●		●	●	●
8	09.171 BOLT; BRKT 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.604 (E) M10X16 FLANGE	0-28181-016-0	01	1	9912-	●		●	●		●	●	●
8	09.171 BOLT; BRKT 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	0110-			●	●		●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97080-948-0	01	1	9804-9909	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97080-948-0	01	1	9910-0109	●	●	●	●	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97080-948-0	01	1	0110-	●	●	●	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 09.171	8-94120-998-2	01	1	9804-9909	●	●	●	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 09.171	8-94120-998-2	01	1	9910-0109	●	●	●	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 09.171	8-94120-998-2	01	1	0110-	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	9804-9909	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	9910-0109	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	0110-	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 6VD1 ENG(RLV)	8-97178-354-0	01	1	9804-	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94440-010-0	01	1	9804-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) POWER STEERING<N40> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94442-970-0	01	1	9804-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) L=918	8-92063-696-0	01	1	9804-9805	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) L=918	8-92063-696-0	01	1	9806-	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-94434-926-0	01	1	9804-9909	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40>	8-94434-926-0	01	1	9910-0009	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94434-926-0	01	1	0010-0109	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94434-926-0	01	1	0110-	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	9804-9909	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	9910-0109	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	0110-0211	●		●	●		●	●	●
32	01.066 BELT; A/C CMPR 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	0212-	●		●	●		●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 03.417 (B) M10X25 FLANGE	0-28081-025-0	01	1	9804-9909	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 03.417 (B) M10X25 FLANGE	0-28081-025-0	01	1	9910-0109	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 03.417 (B) M10X25 FLANGE	0-28081-025-0	01	1	0110-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 01.252 (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9804-9909	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 01.252 (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9910-0109	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 01.252 (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	0110-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 03.275 (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9804-9909	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 03.275 (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9910-0109	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 03.275 (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	0110-	●	●	●	●	●	●	●	●
38	09.171 BRACKET; PULLEY TO CYL HD 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97107-868-0	01	1	9804-9909	●	●	●	●	●	●	●	●
38	09.171 BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97107-868-0	01	1	9910-0109	●	●	●	●	●	●	●	●
38	09.171 BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97107-868-0	01	1	0110-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97114-781-0	01	1	9804-0106	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97254-188-0	01	1	0107-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	9804-9909	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	9910-0109	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	0110-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) (C)	8-92063-291-0	01	1	9804-9805	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-92063-291-0	01	1	9806-	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9804-9909	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9910-0009	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (A)	8-97114-780-0	01	1	0010-0109	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (A)	8-97114-780-0	01	1	0110-	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97130-360-1	01	1	9804-9911	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D)	8-97130-360-1	01	1	9912-	●		●	●		●	●	●

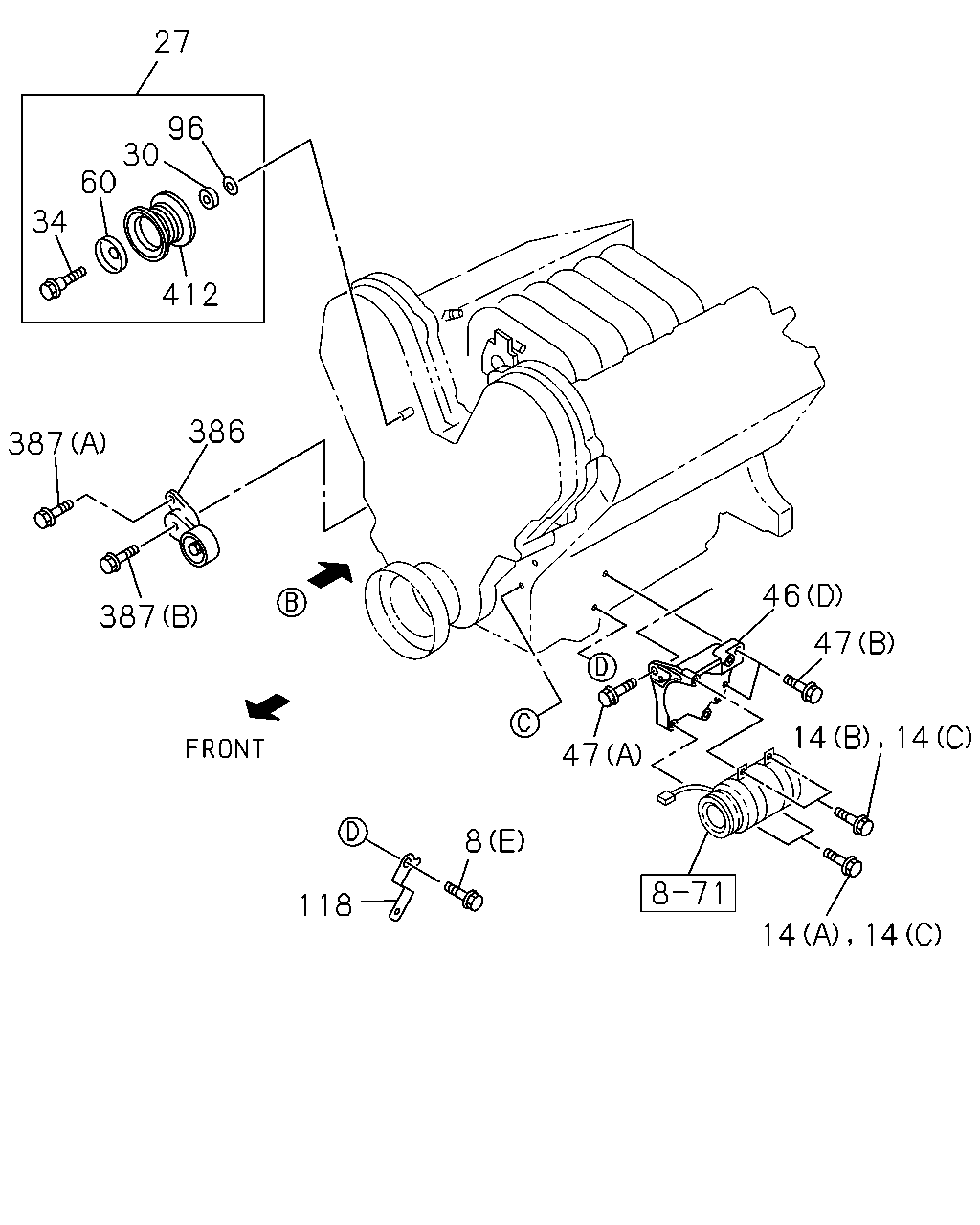

27 96 30 60 34 412 386 387 46 387 47 14 14 47 8 118 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.386 (C) M10X50 W/LK WASHER	0-50041-050-0	01	1	9804-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.405 (B) M10X30 FLANGE	0-28681-030-0	01	1	9804-9909	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.405 (B) M10X30 FLANGE	0-28681-030-0	01	1	9910-0109	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.405 (B) M10X30 FLANGE	0-28681-030-0	01	1	0110-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9804-9909	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9910-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9804-9909	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9910-0109	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	0110-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9804-9909	●		●	●		●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9910-0009	●		●	●		●	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	0010-	●		●	●		●	●	●
8	09.171 BOLT; BRKT 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (E) M10X16 FLANGE	0-28181-016-0	01	1	9804-9911	●		●	●		●	●	●
8	09.171 BOLT; BRKT 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.604 (E) M10X16 FLANGE	0-28181-016-0	01	1	9912-	●		●	●		●	●	●
8	09.171 BOLT; BRKT 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	0110-			●	●		●	●	●
14	09.171 BOLT; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) M8X100 FLANGE	0-28080-800-0	04	1	9804-9805	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.278 (D) M8X100 FLANGE	0-28080-800-0	04	1	9806-	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (A) M8X80 FLANGE	0-28080-880-0	02	1	9804-9911	●		●	●		●	●	●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) M8X80 FLANGE	0-28080-880-0	02	1	9912-0109	●		●	●		●	●	●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.840 (C) M8X70 FLANGE	0-28080-870-0	04	1	0110-	●		●	●		●	●	●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9804-9911	●		●	●		●	●	●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9912-0109	●		●	●		●	●	●
27	09.180 PULLEY; IDLE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	9804-9909	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	9910-0109	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	0110-	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 6VD1 ENG(RLV)	8-97178-354-0	01	1	9804-	●		●	●		●	●	●
30	09.181 COLLAR; IDLE PULLEY 6VD1 ENG(RLV)	8-97185-854-0	01	1	9804-	●		●	●		●	●	●
34	09.181 SHAFT; IDLE PULLEY 6VD1 ENG(RLV)	8-97185-858-0	01	1	9804-	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97114-781-0	01	1	9804-0106	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97254-188-0	01	1	0107-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	9804-9909	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	9910-0109	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	0110-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) (C)	8-92063-291-0	01	1	9804-9805	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-92063-291-0	01	1	9806-	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9804-9909	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9910-0009	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (A)	8-97114-780-0	01	1	0010-0109	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (A)	8-97114-780-0	01	1	0110-	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97130-360-1	01	1	9804-9911	●		●	●		●	●	●
46	09.171 BRACKET; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D)	8-97130-360-1	01	1	9912-	●		●	●		●	●	●
47	09.173 BOLT; BRKT TO BODY 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M10X35 FLANGE	0-28781-035-0	03	1	9804-9805	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.685 (C) M10X35 FLANGE	0-28781-035-0	03	1	9806-	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	9804-9911	●		●	●		●	●	●
47	09.173 BOLT; BRKT TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	9912-	●		●	●		●	●	●
47	09.173 BOLT; BRKT TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	9804-9911	●		●	●		●	●	●
47	09.173 BOLT; BRKT TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	9912-	●		●	●		●	●	●
60	09.181 COVER; IDLER PULLEY 6VD1 ENG(RLV)	8-97185-857-0	01	1	9804-	●		●	●		●	●	●
96	08.929 WASHER; LK 6VD1 ENG(RLV)	8-97185-853-0	01	1	9804-	●		●	●		●	●	●
118	09.173 BRACKET; HARNESS CLIP,A/C 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97039-000-0	01	1	9804-9911	●		●	●		●	●	●
118	09.173 BRACKET; HARNESS CLIP,A/C 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97039-000-0	01	1	9912-	●		●	●		●	●	●
386	09.180 TENSIONER ASM 6VD1 ENG(RLV)	8-97125-860-1	01	1	9804-	●		●	●		●	●	●
387	09.190 BOLT; TENSIONER FIX 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60) (C)	8-92063-707-0	01	1	9804-9805	●	●	●	●	●	●	●
387	09.190 BOLT; TENSIONER FIX 22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C)	8-92063-707-0	01	1	9806-	●	●	●	●	●	●	●
387	09.190 BOLT; TENSIONER FIX 6VD1 ENG(RLV) 04.686 (A) M8X30 FLANGE	0-28680-830-0	01	1	9804-	●		●	●		●	●	●
387	09.190 BOLT; TENSIONER FIX 6VD1 ENG(RLV) (B) M10X65	9-05821-065-0	01	1	9804-	●		●	●		●	●	●
412	09.180 PULLEY; IDLER WITH BRG 6VD1 ENG(RLV)	8-97185-859-0	01	1	9804-	●		●	●		●	●	●

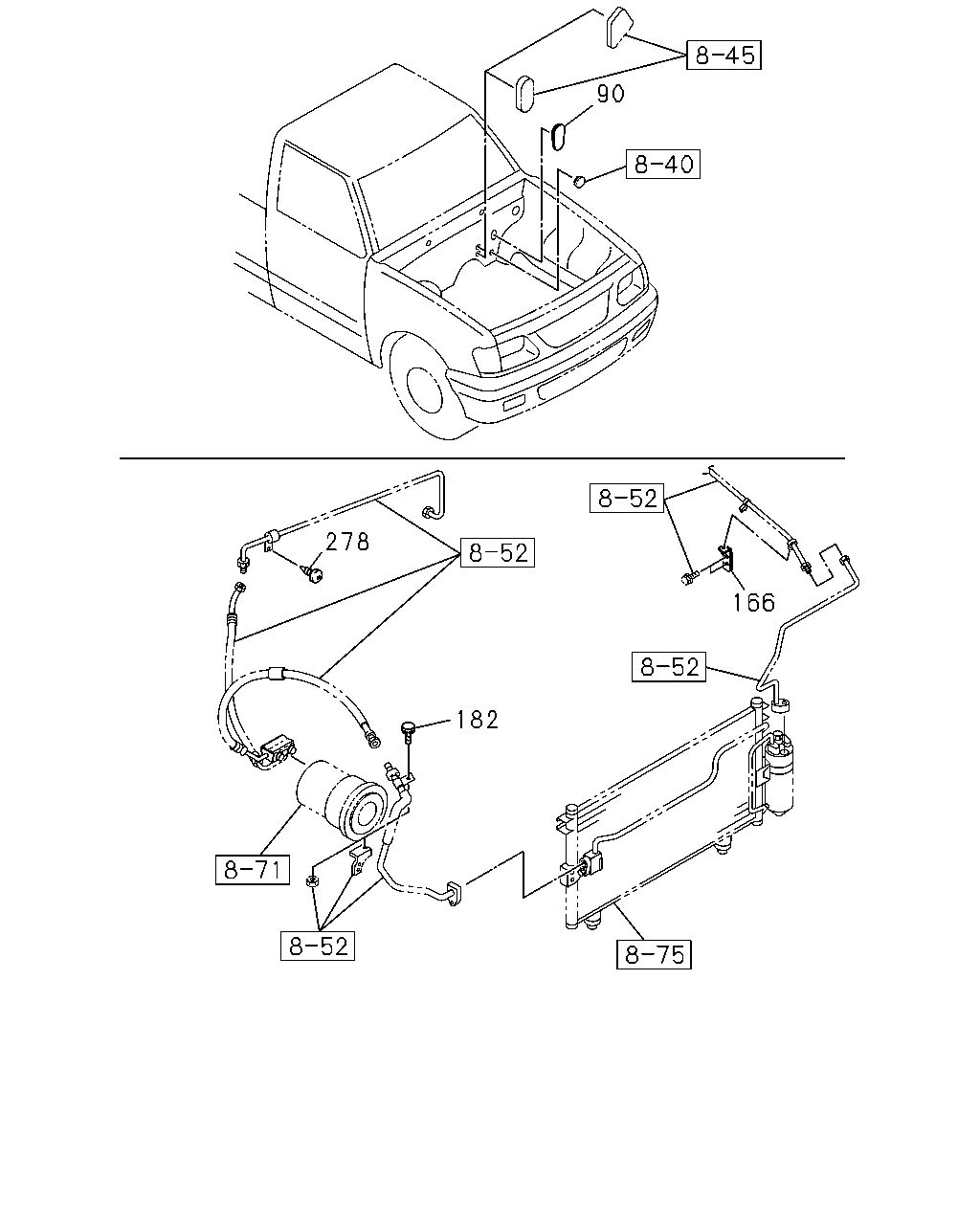

90 278 166 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94222-310-1	01	1	9804-	●	●	●	●	●	●	●	●
166	09.226 BRACKET; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97072-706-1	01	1	9910-0012						●	●	●
166	09.226 BRACKET; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97072-706-1	01	1	0101-			●	●		●	●	●
182	09.242 BOLT; PIPE TO BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	01	1	9804-9909	●	●	●	●	●	●	●	●
182	09.242 BOLT; PIPE TO BRKT 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> 10.701 M6X16	8-94206-784-0	01	1	9910-0012	●	●	●	●	●	●	●	●
182	09.242 BOLT; PIPE TO BRKT 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	01	1	9910-0012	●		●	●		●	●	●
182	09.242 BOLT; PIPE TO BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 10.701 M6X16	8-94206-784-0	01	1	9910-0012	●		●	●		●	●	●
182	09.242 BOLT; PIPE TO BRKT 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> 10.701 M6X16	8-94206-784-0	01	1	0101-0109	●	●	●	●	●	●	●	●
182	09.242 BOLT; PIPE TO BRKT 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	01	1	0101-0109	●		●	●		●	●	●
182	09.242 BOLT; PIPE TO BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 10.701 M6X16	8-94206-784-0	01	1	0101-0109	●		●	●		●	●	●
182	09.242 BOLT; PIPE TO BRKT 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> 10.701 M6X16	8-94206-784-0	01	1	0110-	●	●	●	●	●	●	●	●
182	09.242 BOLT; PIPE TO BRKT 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	01	1	0110-	●		●	●		●	●	●
182	09.242 BOLT; PIPE TO BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 10.701 M6X16	8-94206-784-0	01	1	0110-	●		●	●		●	●	●
278	09.242 SCREW; CLIP 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.165 M6X16 TAPPING W/PL WASHER	0-74305-616-0	01	1	9804-9909	●	●	●	●	●	●	●	●
278	09.242 SCREW; CLIP 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.165 M6X16 TAPPING W/PL WASHER	0-74305-616-0	01	1	9910-0109	●	●	●	●	●	●	●	●
278	09.242 SCREW; CLIP 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.165 M6X16 TAPPING W/PL WASHER	0-74305-616-0	01	1	0110-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
