◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶

8-45 — HEATER PIPING (#46160) — 74 parça

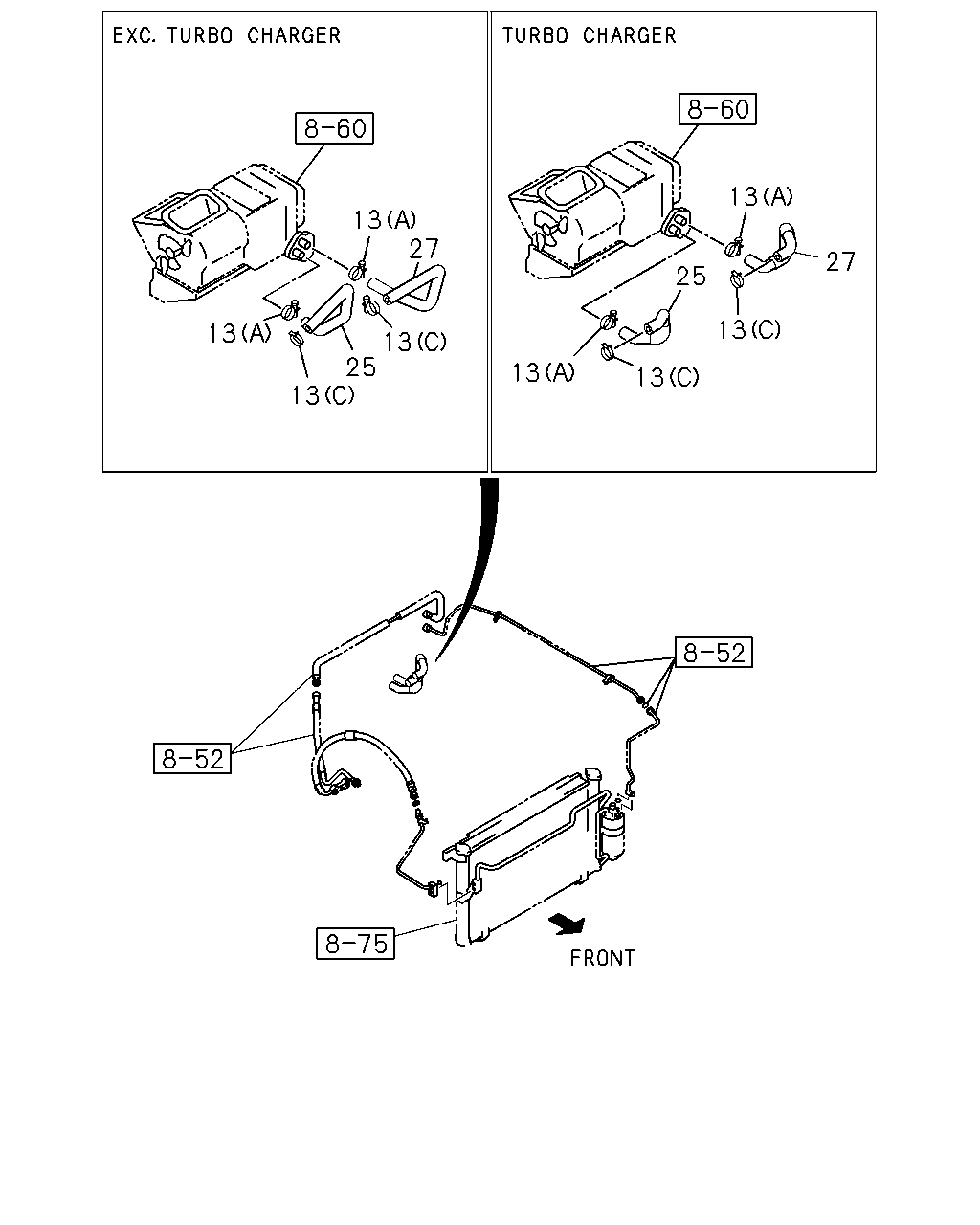

107 13 107 25 13 13 27 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9804-9909	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9910-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	9804-9909	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	9910-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	9804-	●	●	●	●		●	●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	9804-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-207-3	01	1	9804-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-924-0	01	1	9804-	●	●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	9804-9909	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	9910-0109	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	0110-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-338-0	01	1	9804-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-204-5	01	1	9804-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-922-0	01	1	9804-	●	●	●	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	9804-9909	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	9910-0109	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	0110-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-340-0	01	1	9804-	●		●	●	●		●	●
107	08.864 HOSE; WATER,HTR 6VD1 ENG(RLV) (A)	8-97160-625-2	01	1	9804-	●		●	●	●		●	●
107	08.864 HOSE; WATER,HTR 6VD1 ENG(RLV) (B)	8-97160-626-3	01	1	9804-	●		●	●	●		●	●

104 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

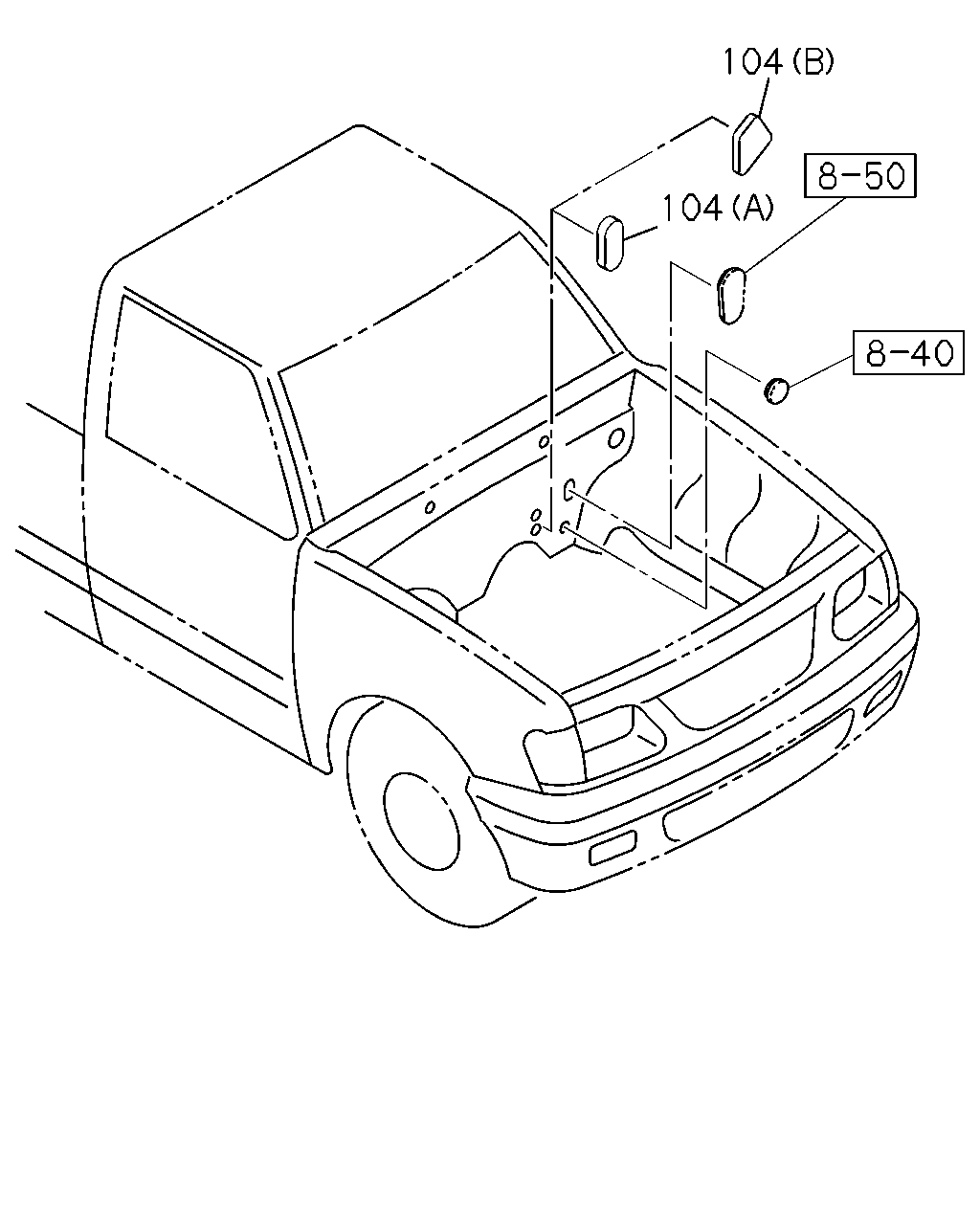

104	16.550 PLUG; RUBBER,HTR HOSE HOLE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94468-656-0	01	1	9804-0109	●	●	●	●	●	●	●	●
104	16.550 PLUG; RUBBER,HTR HOSE HOLE 22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94468-656-0	01	1	0110-	●	●	●	●	●	●	●	●
104	16.550 PLUG; RUBBER,HTR HOSE HOLE 6VD1 ENG(RLV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97038-490-0	01	1	9804-	●		●	●	●		●	●

13 13 27 25 27 13 13 13 25 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9804-9909	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9910-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	9804-9909	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	9910-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	9804-	●	●	●	●		●	●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	9804-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-207-3	01	1	9804-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-924-0	01	1	9804-	●	●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	9804-9909	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	9910-0109	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	0110-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-338-0	01	1	9804-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-204-5	01	1	9804-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-922-0	01	1	9804-	●	●	●	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	9804-9909	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	9910-0109	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	0110-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-340-0	01	1	9804-	●		●	●	●		●	●

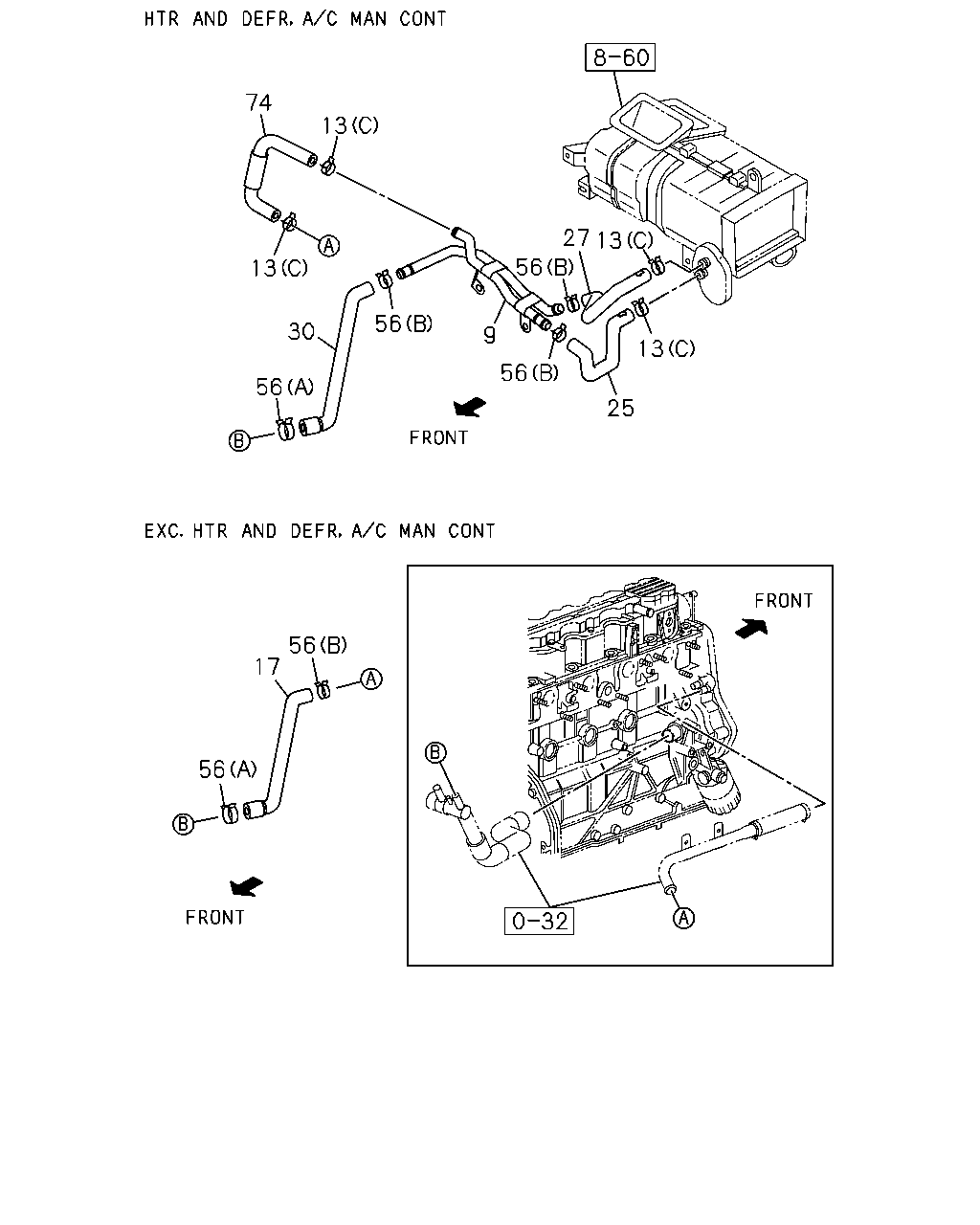

74 13 27 13 56 13 56 30 9 13 56 56 25 56 17 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
9	08.846 PIPE; HTR 22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97168-154-0	01	1	9804-	●	●	●	●		●	●	●
9	08.846 PIPE; HTR 22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97168-095-0	01	1	9804-0103	●		●	●		●	●	●
9	08.846 PIPE; HTR 22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97168-095-0	01	1	0104-	●	●	●	●		●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9804-9909	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9910-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	9804-9909	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	9910-0109	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0110-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	04	1	9804-	●	●	●	●		●	●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	9804-	●		●	●	●		●	●
17	08.846 HOSE; WATER,BYPASS 22LE/C22NE ENG(RJT) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97181-424-0	01	1	9804-	●	●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-207-3	01	1	9804-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-924-0	01	1	9804-	●	●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	9804-9909	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	9910-0109	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	0110-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-338-0	01	1	9804-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-204-5	01	1	9804-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97180-922-0	01	1	9804-	●	●	●	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	9804-9909	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	9910-0109	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	0110-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-340-0	01	1	9804-	●		●	●	●		●	●
30	08.846 HOSE; WATER,CONN TO ENG 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97175-365-0	01	1	9804-	●	●	●	●		●	●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT) (A) ID=23	8-94382-402-0	01	1	9804-	●	●	●	●		●	●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	03	1	9804-	●	●	●	●		●	●	●
56	08.846 CLAMP; HTR HOSE 22LE/C22NE ENG(RJT) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9804-	●	●	●	●		●	●	●
74	08.866 HOSE; WATER,ENG TO PIPE 22LE/C22NE ENG(RJT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97175-364-1	01	1	9804-	●	●	●	●		●	●	●
