Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#46158) — 42 parça

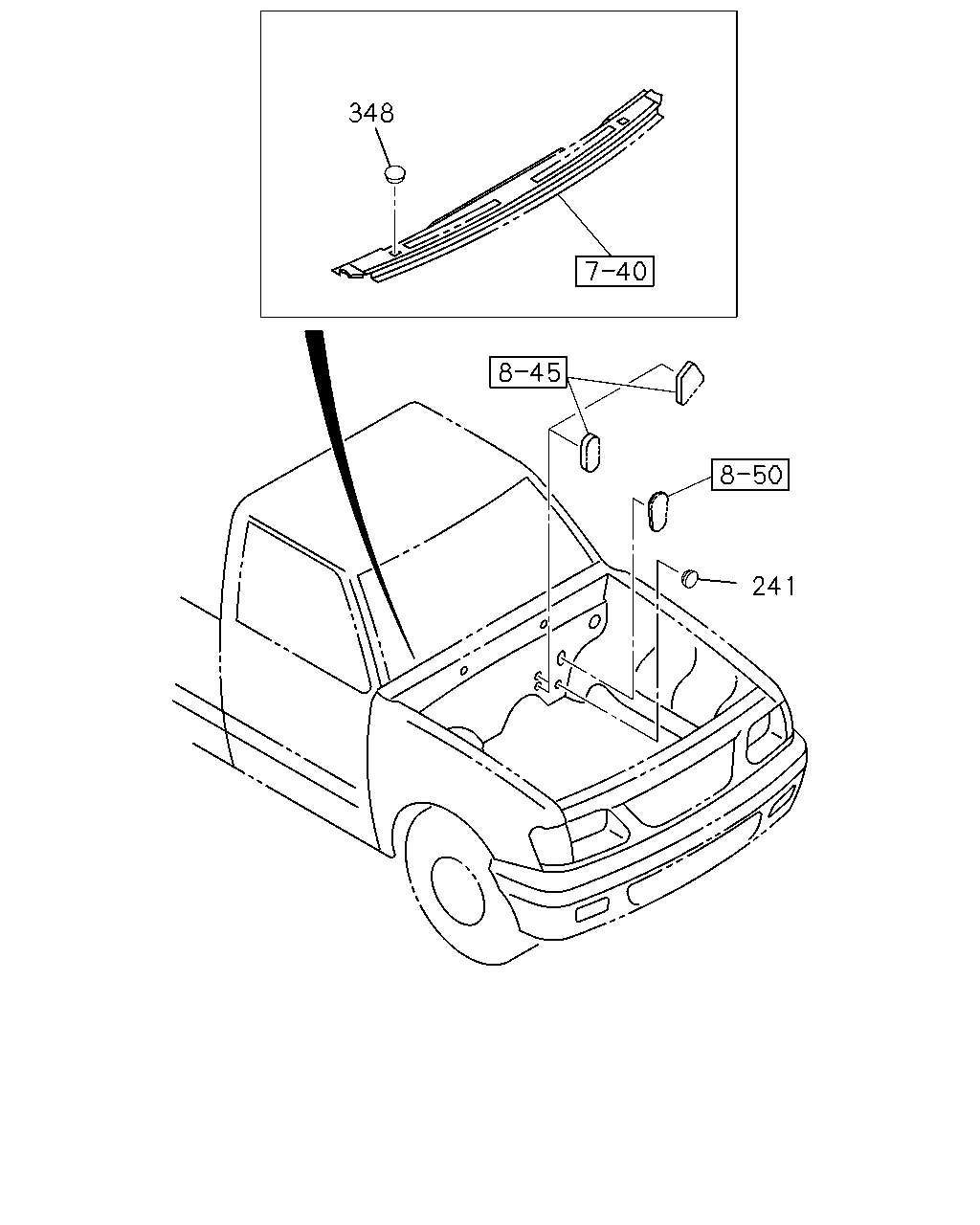

348 241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.206	8-94222-309-1	01	1	9804-	●	●	●	●	●	●	●	●
	348	08.850 COVER; SUN SENSOR EXC. VENTILATION RAM AIR(6TN)	8-97121-843-1	01	1	9804-0112	●	●	●	●	●	●	●	●

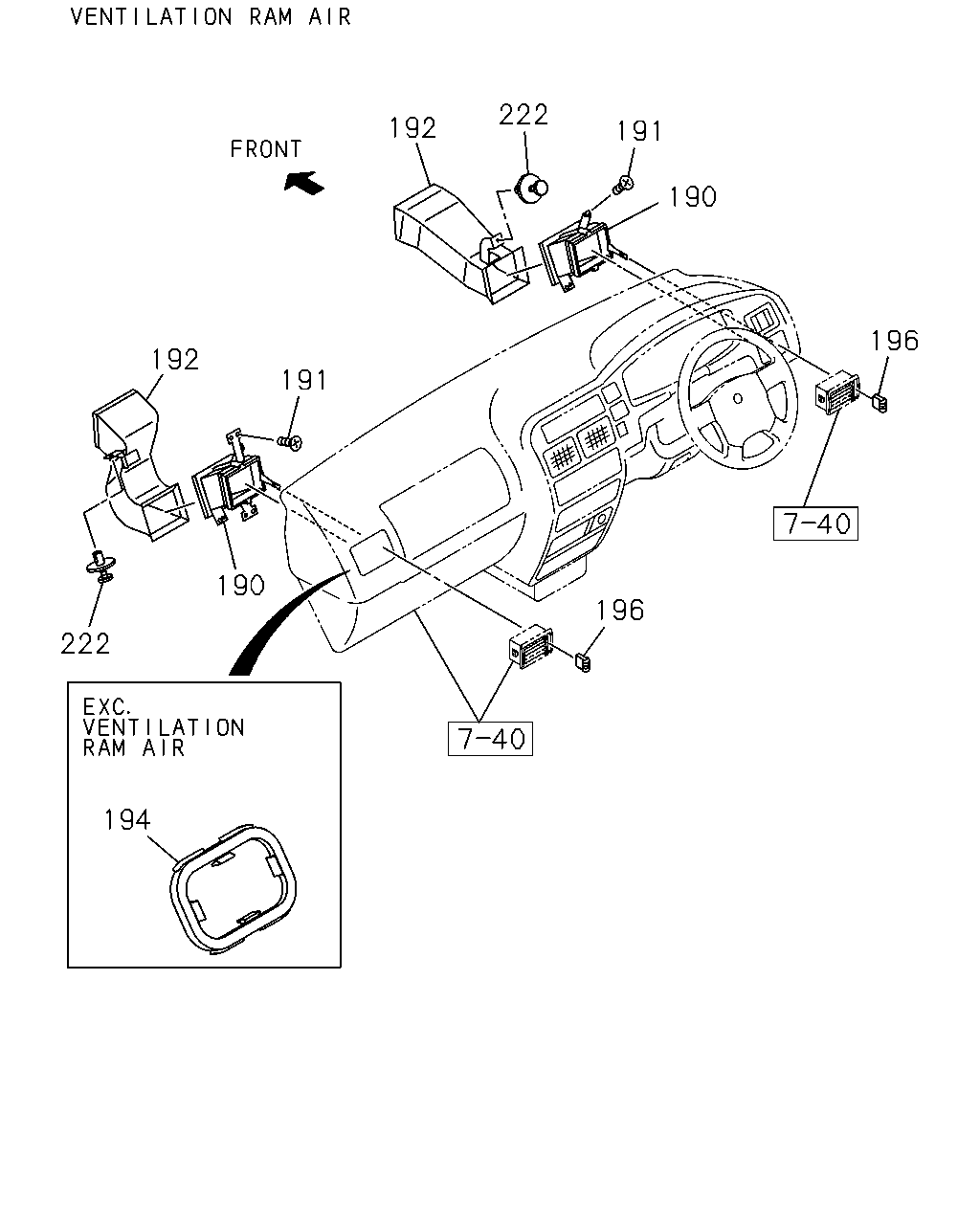

222 192 191 190 196 192 191 190 196 222 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
190	09.262 BOX; VENT,RAM AIR VENTILATION RAM AIR(6TN)	8-97145-176-2	01	1	9804-	●	●	●	●	●	●	●	●
190	09.262 BOX; VENT,RAM AIR VENTILATION RAM AIR(6TN)	8-97145-177-2	01	1	9804-	●	●	●	●	●	●	●	●
191	09.262 SCREW; VENT BOX VENTILATION RAM AIR(6TN) 16.085 M5X16 TAPPING	9-09829-323-1	04	1	9804-	●	●	●	●	●	●	●	●
192	09.262 DUCT; RAM AIR VENTILATION RAM AIR(6TN)	8-97145-178-1	01	1	9804-	●	●	●	●	●	●	●	●
192	09.262 DUCT; RAM AIR VENTILATION RAM AIR(6TN)	8-97145-179-1	01	1	9804-	●	●	●	●	●	●	●	●
194	09.262 COVER; HOLE,RAM AIR EXC. VENTILATION RAM AIR(6TN)	8-94435-191-1	02	1	9804-	●	●	●	●	●	●	●	●
196	09.262 KNOB; VENT BOX VENTILATION RAM AIR(6TN) BLACK	8-97000-038-0	02	1	9804-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	02	1	0203-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	05	1	9804-0112	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97326-594-0	05	1	0201-0202	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97326-594-0	03	1	0203-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT VENTILATION RAM AIR(6TN) 06.760	8-94243-190-0	02	1	9804-0112	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT VENTILATION RAM AIR(6TN)	8-97326-594-0	02	1	0201-	●	●	●	●	●	●	●	●

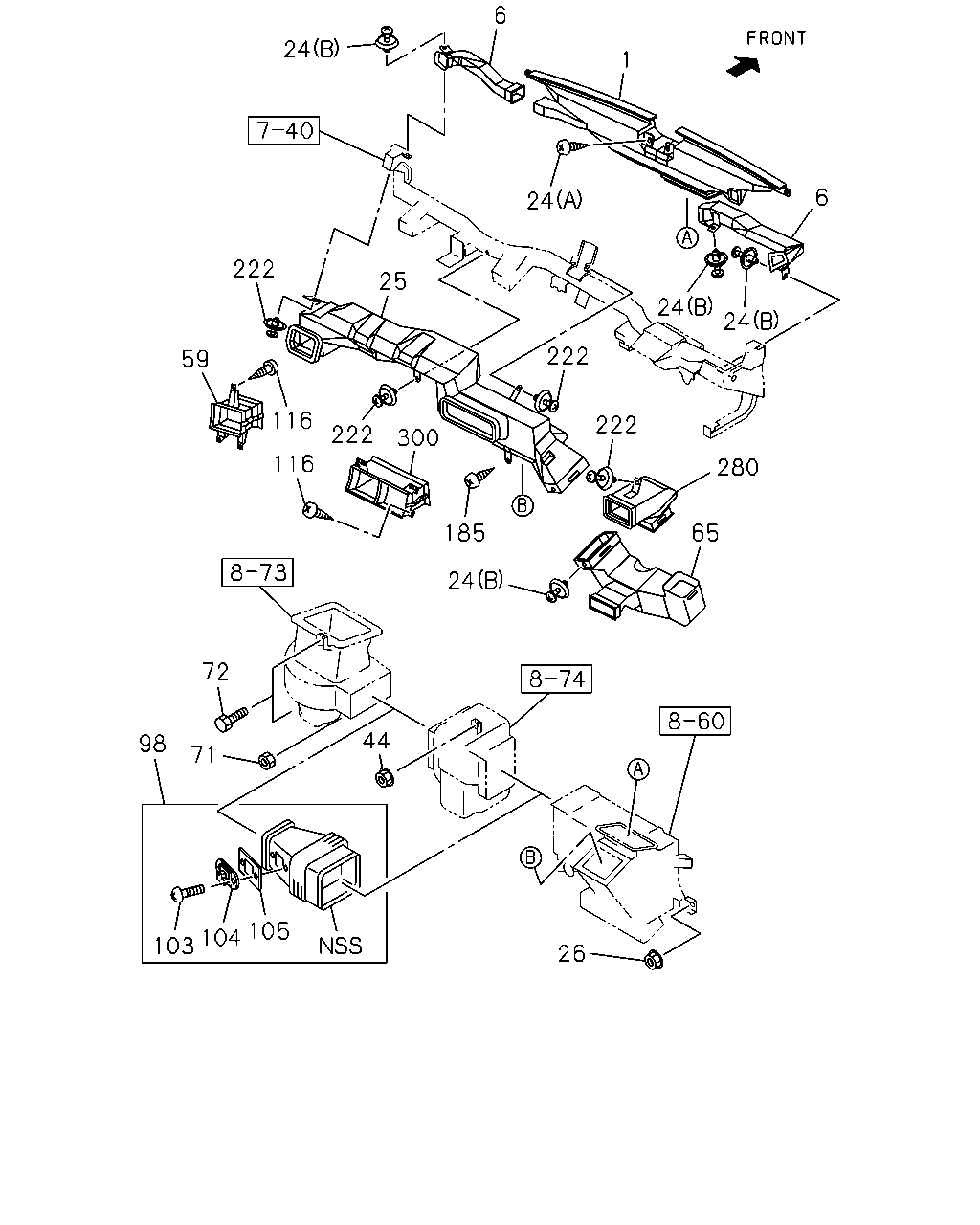

6 24 1 6 24 222 25 24 24 222 59 116 222 222 300 116 280 185 65 24 72 44 98 71 105 104 103 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.779 NOZZLE; DEFROSTER,INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97118-555-1	01	1	9804-	●	●	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97118-557-0	01	1	9804-	●	●	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97118-556-2	01	1	9804-	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 15.222 (A) M5X16 TAPPING W/PL WASHER	0-74315-516-0	04	1	9804-	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760 (B)	8-94243-190-0	05	1	9804-0112	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.787 (B)	8-97326-594-0	05	1	0201-	●	●	●	●	●	●	●	●
25	09.786 DUCT; CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97118-558-0	01	1	9804-	●	●	●	●	●	●	●	●
26	08.845 NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	04	1	9804-	●	●	●	●	●	●	●	●
44	09.222 NUT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	02	1	9804-	●	●	●	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97118-560-1	01	1	9804-	●	●	●	●	●	●	●	●
65	09.786 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97160-616-0	01	1	9804-	●	●	●	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	01	1	9804-	●	●	●	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	02	1	9804-	●	●	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C41)	8-94376-107-0	01	1	9804-	●	●	●	●	●	●	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX HEATER & DEFROSTER(C41) 09.789 M4X16 TAPPING	1-83579-114-0	02	1	9804-	●	●	●	●	●	●	●	●
104	08.855 RESISTOR; HTR DUCT HEATER & DEFROSTER(C41)	8-97045-850-0	01	1	9804-	●	●	●	●	●	●	●	●
105	08.856 PLATE; HTR DUCT HEATER & DEFROSTER(C41) 00.030	8-97045-851-0	01	1	9804-	●	●	●	●	●	●	●	●
116	08.845 SCREW; TAP AIR DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	07	1	9804-	●	●	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 15.222 M5X16 TAPPING W/PL WASHER	0-74315-516-0	01	1	9804-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	02	1	0203-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	05	1	9804-0112	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97326-594-0	05	1	0201-0202	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97326-594-0	03	1	0203-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT VENTILATION RAM AIR(6TN) 06.760	8-94243-190-0	02	1	9804-0112	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT VENTILATION RAM AIR(6TN)	8-97326-594-0	02	1	0201-	●	●	●	●	●	●	●	●
280	09.264 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97118-562-0	01	1	9804-	●	●	●	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97118-559-1	01	1	9804-	●	●	●	●	●	●	●	●
