Isuzu WW
▶
PICKUP
▶
TFR
▶
50800 - TFR/TFS-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#46157) — 48 parça
Tümü
A - TFS5CF
B - TFS5SF
C - TFS5WF
D - TFB5CF
E - TFB5SF
F - TFB5WF
G - TFB5SC
H - TFS5SC
◀
[828A] NO.2 (1 parça)
[828A] NO.4 (11 parça)
[828A] NO.3 (12 parça)
[828A] NO.1 (24 parça)
▶

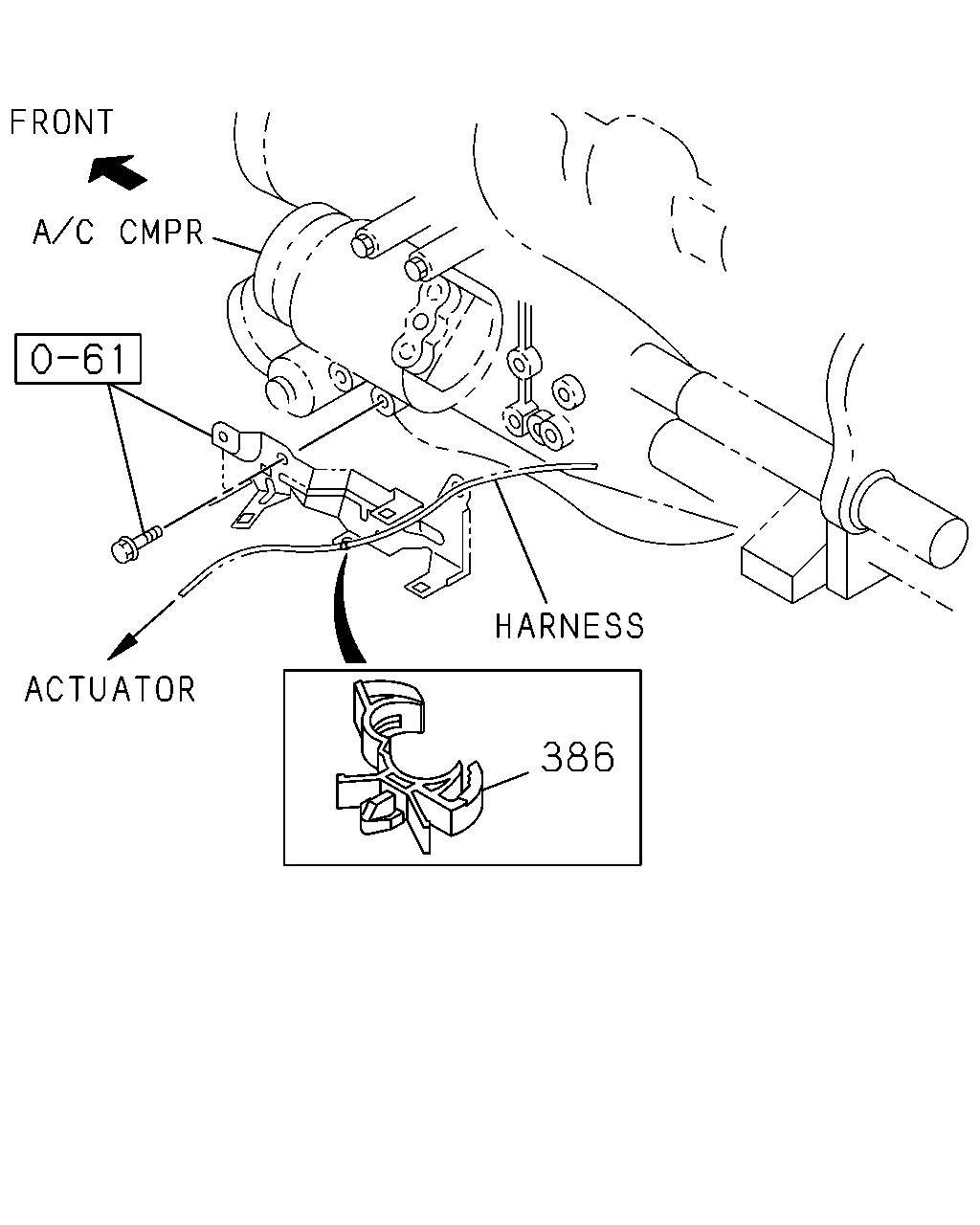

386
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
386
02.559 CLIP; HARNESS
6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) ID=7-10
8-94472-578-0
01
1
9910-
●
●
●

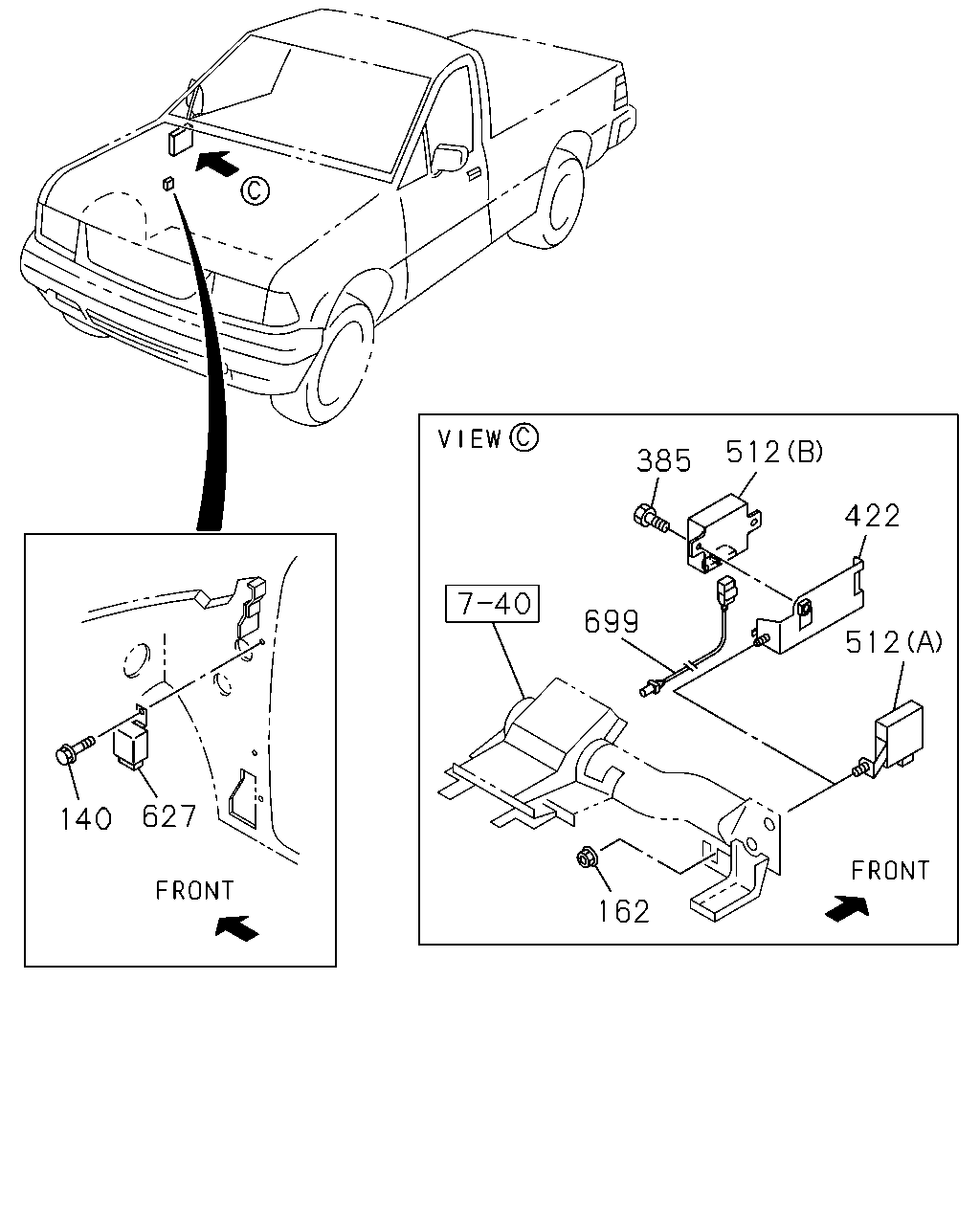

512
385
422
699
512
627
140
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
140
16.263 BOLT; CONTROLLER
SHIFT ON THE FLY(7EX) 06.635 M6X16 FLANGE
0-28480-616-0
01
1
9910-
●
●
●
162
03.415 NUT; ECM BRKT
IMMOBILIZER SYSTEM<7KC> 04.594 M6 FLANGE
0-91150-106-0
01
1
0101-
●
●
●
●
●
●
385
03.670 BOLT; CONT UNIT
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> 01.428 M6X12 FLANGE
0-28080-612-0
01
1
0110-
●
●
●
●
●
422
03.415 BRACKET; CONT UNIT
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC>
8-97263-118-0
01
1
0110-
●
●
●
●
●
512
16.263 CONTROL UNIT; IMMOBILIZER
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) IMMOBILIZER SYSTEM<7KC> (A)
8-97228-184-1
01
1
0101-
●
●
●
●
●
●
512
16.263 CONTROL UNIT; IMMOBILIZER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) IMMOBILIZER SYSTEM<7KC> (A)
8-97228-183-2
01
1
0101-0109
●
●
●
●
●
●
512
16.263 CONTROL UNIT; IMMOBILIZER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) IMMOBILIZER SYSTEM<7KC> EXC. CHARGE AIR COOLER<6PL> (A)
8-97228-183-2
01
1
0110-
●
●
●
●
●
●
512
16.263 CONTROL UNIT; IMMOBILIZER
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (B)
8-97234-671-0
01
1
0110-
●
●
●
●
●
627
02.440 CONTROLLER; SHIFT ON THE FLY
SHIFT ON THE FLY(7EX)
8-97215-990-1
01
1
9910-0301
●
●
●
627
02.440 CONTROLLER; SHIFT ON THE FLY
SHIFT ON THE FLY(7EX)
8-97364-910-0
01
1
0302-
●
●
●
699
01.150 HARNESS; EXT
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC>
8-97303-923-0
01
1
0110-
●
●
●
●
●

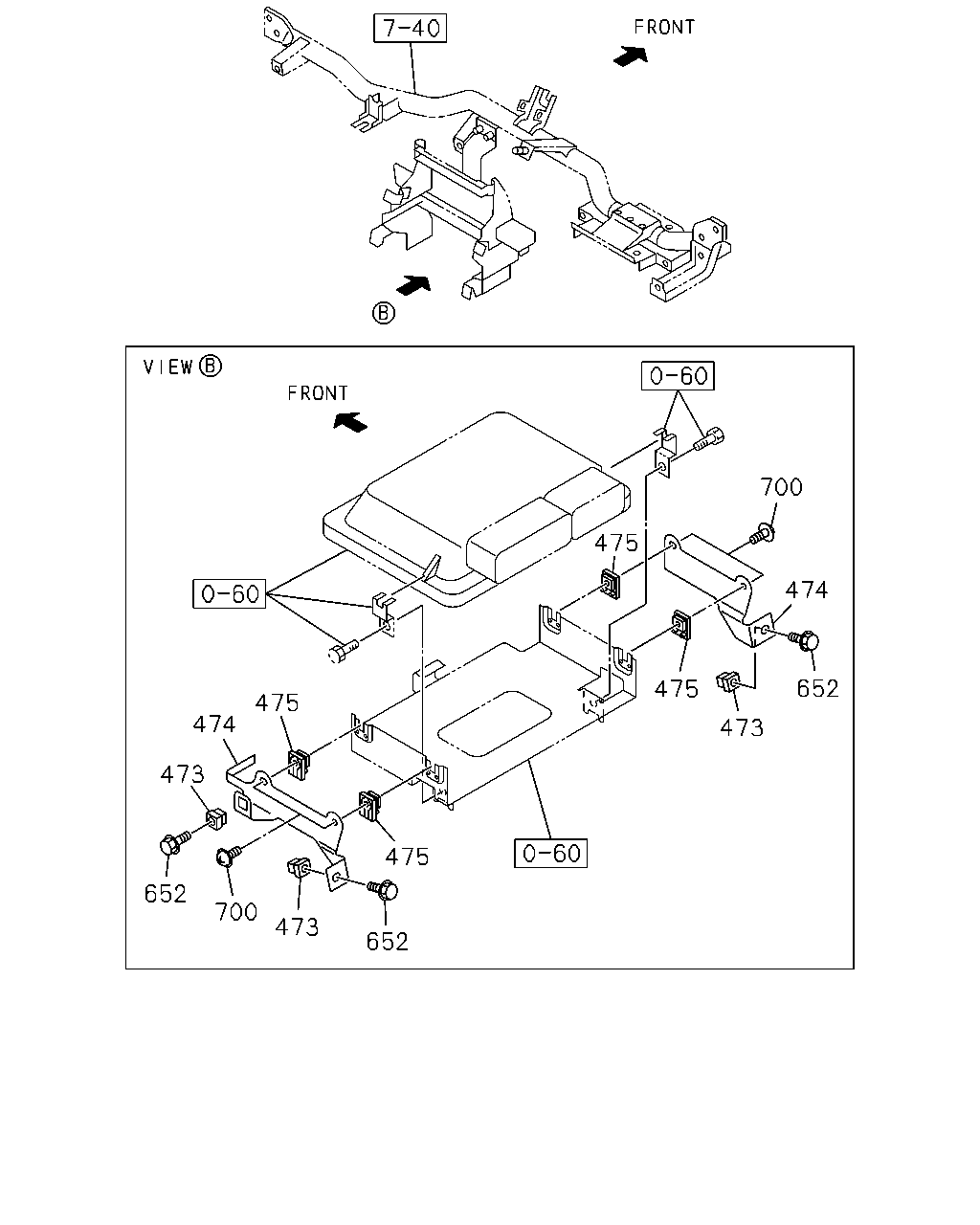

700
475
474
652
475
475
474
473
473
475
652
700
473
652
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
473
02.487 NUT; PCM
4JH1 ENG(RJX) 09.190 D=9.7X9.7 L=8
8-94222-314-0
03
1
0110-
●
●
●
●
●
473
02.487 NUT; PCM
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 09.190 D=9.7X9.7 L=8
8-94222-314-0
03
1
0110-
●
●
●
●
●
474
09.766 BRACKET; PCM
4JH1 ENG(RJX)
8-97101-906-0
01
1
0110-
●
●
●
●
●
474
09.766 BRACKET; PCM
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)
8-97101-906-0
01
1
0110-
●
●
●
●
●
474
09.766 BRACKET; PCM
4JH1 ENG(RJX)
8-97289-527-0
01
1
0110-
●
●
●
●
●
474
09.766 BRACKET; PCM
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)
8-97289-527-0
01
1
0110-
●
●
●
●
●
475
09.765 GROMMET; PCM
4JH1 ENG(RJX) 04.342
8-97110-216-1
04
1
0110-
●
●
●
●
●
475
09.765 GROMMET; PCM
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 04.342
8-97110-216-1
04
1
0110-
●
●
●
●
●
652
09.765 BOLT; BRKT,PCM
4JH1 ENG(RJX) 16.585 M6X14 W/PL WASHER
9-03900-614-0
03
1
0110-
●
●
●
●
●
652
09.765 BOLT; BRKT,PCM
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 16.585 M6X14 W/PL WASHER
9-03900-614-0
03
1
0110-
●
●
●
●
●
700
16.067 SCREW; PCM
4JH1 ENG(RJX) 06.514 M4X10 TAPPING W/PL WASHER
0-74100-410-0
04
1
0110-
●
●
●
●
●
700
16.067 SCREW; PCM
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 06.514 M4X10 TAPPING W/PL WASHER
0-74100-410-0
04
1
0110-
●
●
●
●
●

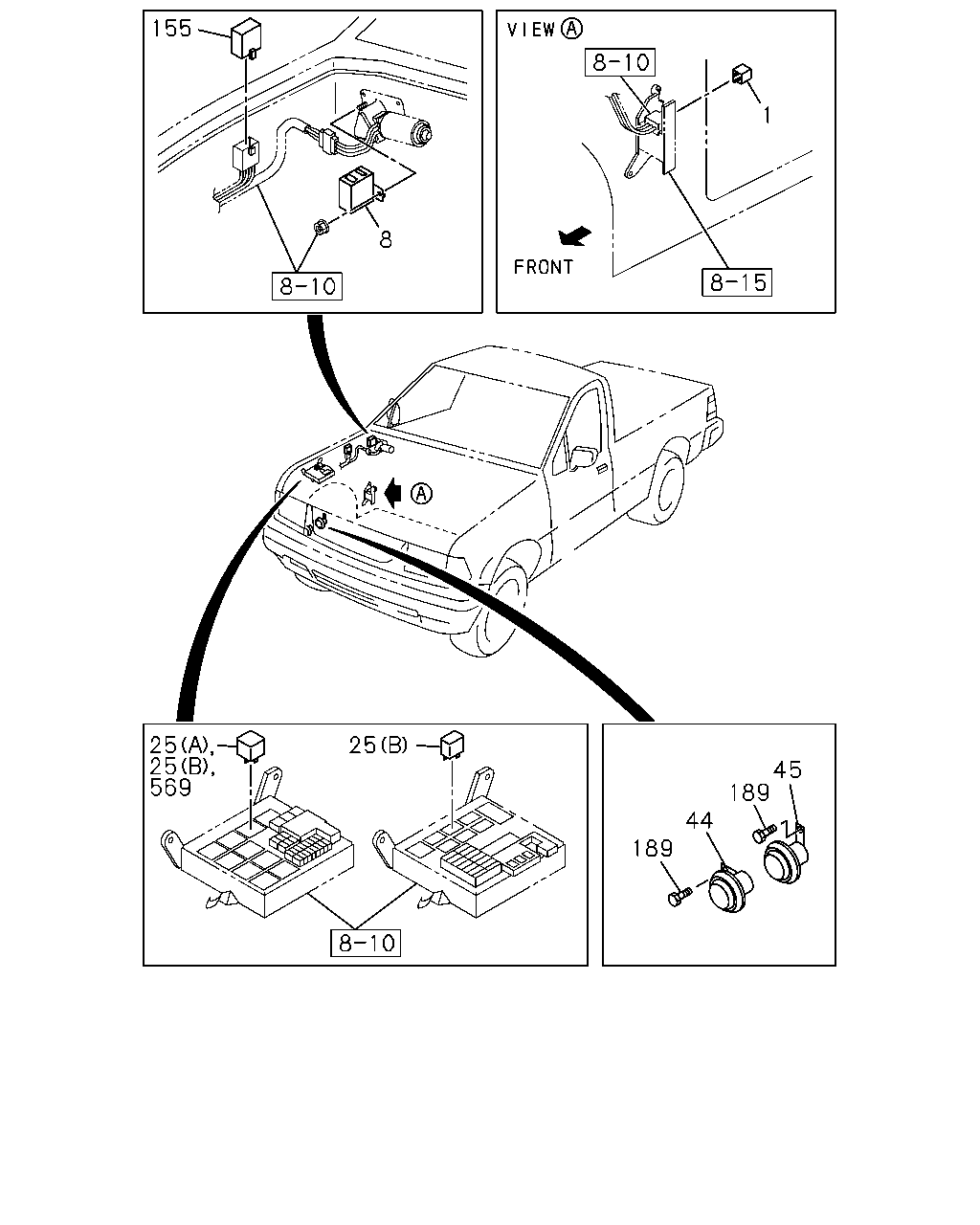

155
1
8
25
25
569
25
45
189
44
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
1
02.575 UNIT; FLASHER
DENSO
8-97038-317-0
01
1
9804-9902
●
●
●
●
●
●
●
●
1
02.575 UNIT; FLASHER
DENSO
8-97202-225-1
01
1
9903-
●
●
●
●
●
●
●
●
1
02.575 UNIT; FLASHER
VALEO
8-97105-453-0
01
1
9804-0110
●
●
●
●
●
●
●
●
8
16.067 RELAY; WIPER
8-97096-762-1
01
1
9804-
●
8
16.067 RELAY; WIPER
INTERMITTENT WIPER<C13>
8-97096-762-1
01
1
9804-
●
●
●
●
●
●
●
25
02.100 RELAY; TAIL LAMP
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) (B) 12V 20A
8-97173-039-1
01
1
9804-9909
●
●
●
●
●
●
●
●
25
02.100 RELAY; TAIL LAMP
(B) 12V 20A
8-97173-039-1
01
1
9910-
●
●
●
●
●
●
●
●
25
02.100 RELAY; TAIL LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.852 (A) 12V 20A
8-97060-926-1
01
1
9804-9909
●
●
●
●
●
●
●
●
44
02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. UNITED KINGDOM EQUIPMENT(EK3)
8-97109-359-0
01
1
9804-9903
●
●
●
●
●
●
●
●
44
02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. UNITED KINGDOM EQUIPMENT(EK3)
8-97218-380-0
01
1
9904-9909
●
●
●
●
●
●
●
●
44
02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05>
8-97218-380-2
01
1
9910-
●
●
●
●
●
●
●
●
44
02.810 HORN; HIGH NOTE
UNITED KINGDOM EQUIPMENT(EK3) DUAL TONE HORN<U05>
8-97138-273-0
01
1
9804-9909
●
●
●
●
45
02.810 HORN; LOW NOTE
8-97109-360-0
01
1
9804-9903
●
●
●
●
45
02.810 HORN; LOW NOTE
EXC. UNITED KINGDOM EQUIPMENT(EK3)
8-97109-360-0
01
1
9804-9903
●
●
●
●
45
02.810 HORN; LOW NOTE
8-97218-382-0
01
1
9904-9909
●
●
●
●
45
02.810 HORN; LOW NOTE
EXC. UNITED KINGDOM EQUIPMENT(EK3)
8-97218-382-0
01
1
9904-9909
●
●
●
●
45
02.810 HORN; LOW NOTE
8-97218-382-2
01
1
9910-
●
●
●
●
●
●
●
●
45
02.810 HORN; LOW NOTE
UNITED KINGDOM EQUIPMENT(EK3)
8-97138-270-0
01
1
9804-9909
●
●
●
●
155
16.067 CONNECTOR; SHORT
EXC. INTERMITTENT WIPER<C13> 02.559
8-97114-443-0
01
1
9804-9909
●
●
●
●
●
●
155
16.067 CONNECTOR; SHORT
EXC. INTERMITTENT WIPER<C13> 02.559
8-97114-443-0
01
1
9910-
●
●
●
●
●
●
●
189
02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER
8-97087-055-0
02
1
9804-
●
●
●
●
●
●
●
●
189
02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
9804-
●
●
●
●
●
●
●
●
569
02.485 RELAY; IMMOBILIZER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) IMMOBILIZER SYSTEM<7KC> 02.100 12V 20A
8-97173-039-1
01
1
0101-0109
●
●
●
●
●
●
569
02.485 RELAY; IMMOBILIZER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) IMMOBILIZER SYSTEM<7KC> 02.100 12V 20A
8-97173-039-1
01
1
0110-
●
●
●
●
●
●
