8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#46155) — 68 parça

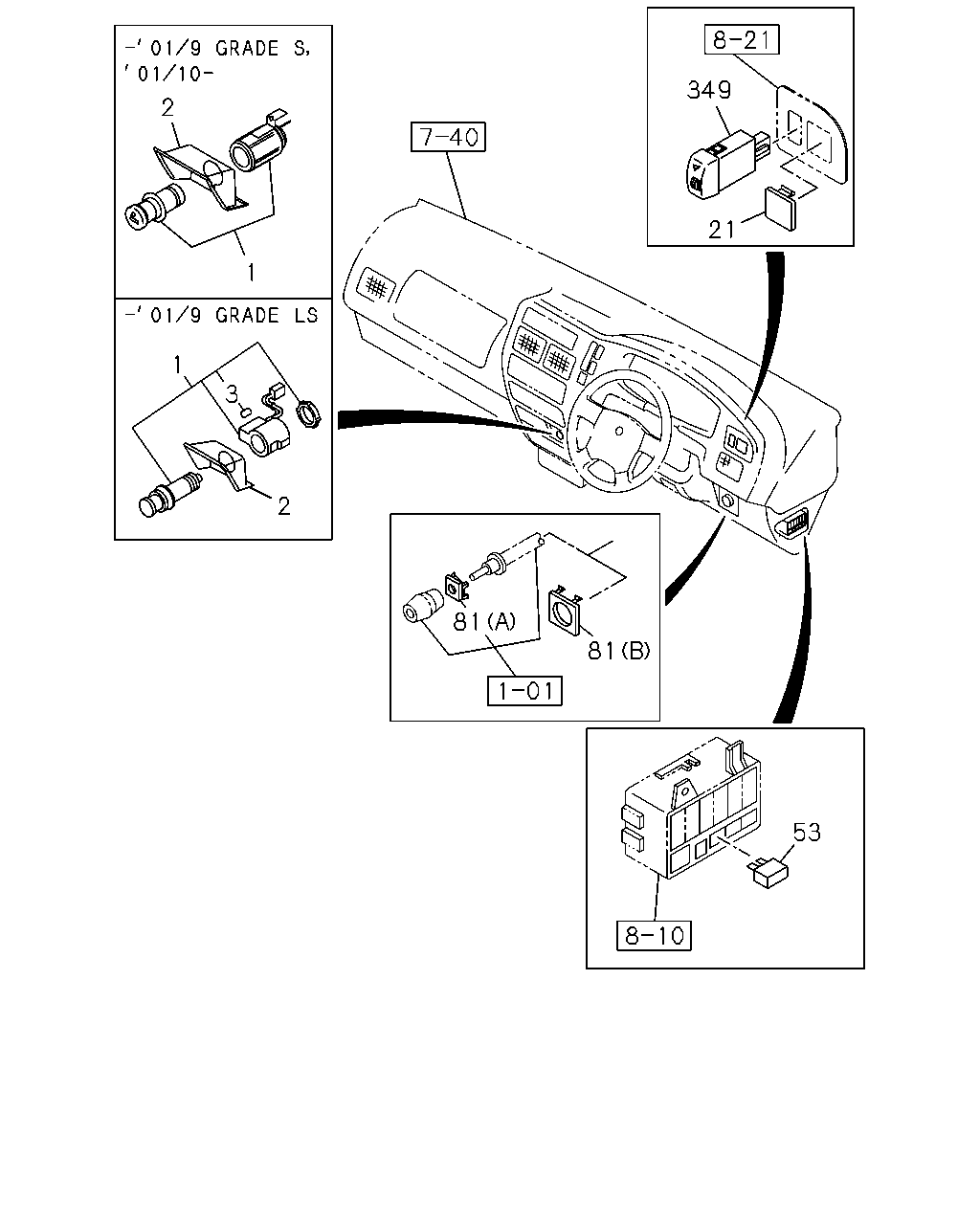

çizim 19493
349 2 21 1 1 3 2 81 81 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.709 LIGHTER; CIGAR 8-97094-468-1 01 1 9804-9909 ● ●
1 09.709 LIGHTER; CIGAR
GRADE LS(RBD) 		8-97094-468-1 01 1 9804-9909 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97094-468-2 01 1 9910-0109 ●
1 09.709 LIGHTER; CIGAR
GRADE LS(RBD) 		8-97094-468-2 01 1 9910-0109 ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE S(RBA) 		8-97100-029-0 01 1 9804-9909 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97100-029-0 01 1 9804-9909 ●
1 09.709 LIGHTER; CIGAR
GRADE S(RBA) 		8-97100-029-0 01 1 9910-0109 ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97100-029-0 01 1 9910-0109 ●
1 09.709 LIGHTER; CIGAR 8-97100-029-0 01 1 0110-0206 ● ● ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97314-003-0 01 1 0207- ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 9804-9909 ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) BLACK 		8-97000-043-0 01 1 9804-9909 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 9910-0109 ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) BLACK 		8-97000-043-0 01 1 9910-0109 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE S(RBA) BLACK 		8-94333-793-0 01 1 9804-9909 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-94333-793-0 01 1 9804-9909 ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE S(RBA) BLACK 		8-94333-793-0 01 1 9910-0109 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-94333-793-0 01 1 9910-0109 ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-94333-793-0 01 1 0110-0206 ● ● ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 0207- ● ● ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W WO/CAP 		5-82194-026-0 01 1 9804-9909 ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LS(RBD) 14V 1.4W WO/CAP 		5-82194-026-0 01 1 9804-9909 ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W WO/CAP 		5-82194-026-0 01 1 9910-0109 ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LS(RBD) 14V 1.4W WO/CAP 		5-82194-026-0 01 1 9910-0109 ● ● ● ● ● ●
21 09.744 COVER; HOLE
UNITED KINGDOM EQUIPMENT(EK3) EXC. DOOR MIRROR ELECTRIC CONT BRIG HT<7HX> BLACK 		8-97154-764-0 01 1 9910- ● ● ● ● ●
53 02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW<A30> 02.485 		8-97106-113-0 01 1 9804-9909 ● ● ● ● ● ●
53 02.510 BREAKER; ELEC CIRCUIT
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> EXC. AIR BAG DRIVER(AJ3) 02.485 		8-97106-113-0 01 1 9911-0012 ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) (B) 		8-97165-448-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 6VD1 ENG(RLV) (B) 		8-97165-448-0 01 1 0110- ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (B) 		8-97165-448-0 01 1 0110- ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97065-377-3 01 1 9804-9909 ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97065-377-3 01 1 9910-0109 ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97065-377-3 01 1 0110- ● ● ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97065-377-3 01 1 0110- ● ● ● ● ● ●
349 02.490 CONTROL; ILLUMINATION
22LE/C22NE ENG(RJT),4JB1 ENG(RLF), 6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97111-853-1 01 1 9804-0103 ● ● ● ● ● ●
349 02.490 CONTROL; ILLUMINATION
AUSTRALIAN EQUIPMENT(RR3) 		8-97111-853-2 01 1 0104- ● ● ● ● ● ●

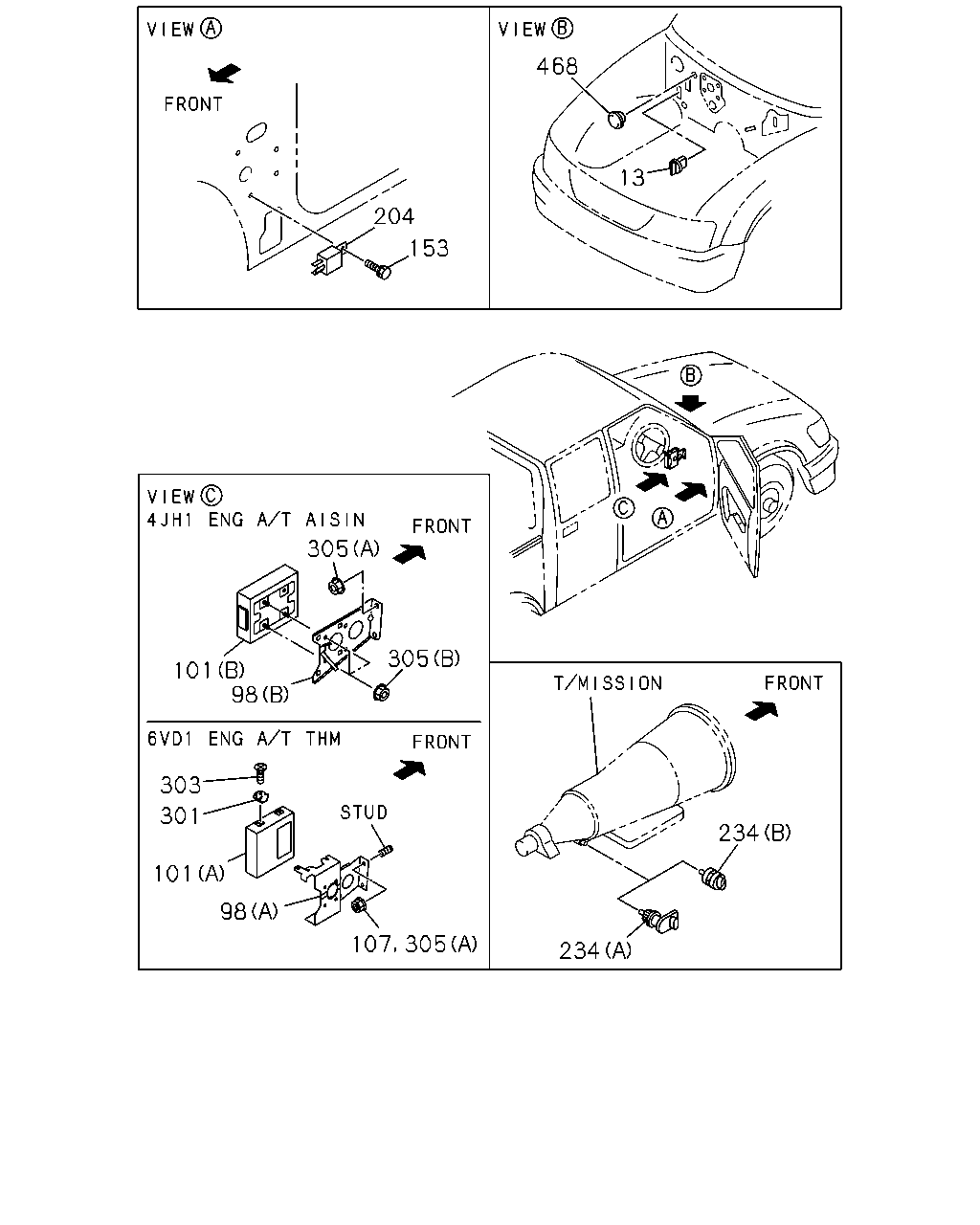

çizim 74251
468 13 204 153 305 305 101 98 303 301 234 101 98 234 107 305
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 03.880 PLUG; CONTROLLER,CRUISE
12.804 		8-94147-164-1 01 1 9804- ● ● ● ● ● ● ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (A) 		8-97116-916-1 01 1 9804-0012 ● ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-97116-916-1 01 1 0101- ● ● ● ● ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
4JH1 ENG(RJX) A/T AISIN(RMD) (B) 		8-97116-918-1 01 1 0110- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-09350-909-0 01 1 9804-0012 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-09350-909-0 01 1 0101-0111 ● ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-12203-599-0 01 1 0112- ● ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1 ENG(RJX) A/T AISIN(RMD) (B) 		8-97303-884-0 01 1 0110- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JH1 ENG(RJX) A/T AISIN(RMD) (B) 		8-97303-885-0 01 1 0110- ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
6VD1 ENG(RLV) A/T THM(RMQ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9804-0012 ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
6VD1 ENG(RLV) A/T THM(RMQ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0101-0109 ● ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
UNITED KINGDOM EQUIPMENT(EK3) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9804-9909 ● ● ● ●
153 16.085 BOLT; BUZZER FIX
UNITED KINGDOM EQUIPMENT(EK3) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9910-0012 ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
AUSTRALIAN EQUIPMENT(RR3) HEAD LAMP REMINDER<T63> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0101- ● ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
UNITED KINGDOM EQUIPMENT(EK3) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0101- ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
UNITED KINGDOM EQUIPMENT(EK3) 02.485 		8-94100-124-0 01 1 9804-9909 ● ● ● ●
204 02.195 BUZZER; KEY REMIND
UNITED KINGDOM EQUIPMENT(EK3) 02.485 		8-94100-124-0 01 1 9910-0012 ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
AUSTRALIAN EQUIPMENT(RR3) HEAD LAMP REMINDER<T63> 02.485 		8-94100-124-0 01 1 0101- ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
UNITED KINGDOM EQUIPMENT(EK3) 02.485 		8-94100-124-0 01 1 0101- ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75) (A) 		8-97129-727-0 01 1 9804-0302 ● ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) (A) 		8-97129-727-0 01 1 9804-0302 ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75) (A) 		8-97365-743-0 01 1 0303- ● ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75) (A) 		8-97365-743-0 01 1 0303- ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) (B) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9804-0109 ● ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) ,A/T THM(RMQ) (B) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0110- ● ● ● ● ● ● ●
301 04.342 GROMMET; CONT UNIT BRKT
6VD1 ENG(RLV) A/T THM(RMQ) 		8-97110-216-1 04 1 9804-0012 ● ● ●
301 04.342 GROMMET; CONT UNIT BRKT
6VD1 ENG(RLV) A/T THM(RMQ) 		8-97110-216-1 04 1 0101- ● ● ● ● ● ●
303 04.224 SCREW; CONT UNIT
6VD1 ENG(RLV) A/T THM(RMQ) 06.514 M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9804-0012 ● ● ●
303 04.224 SCREW; CONT UNIT
6VD1 ENG(RLV) A/T THM(RMQ) 06.514 M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 0101- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
A/T AISIN(RMD),A/T THM(RMQ) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0110- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
4JH1 ENG(RJX) A/T AISIN(RMD) 04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 0110- ● ●
468 04.342 GROMMET; HOLE,METER CABLE
16.585 OD=31.6 		8-94198-177-0 01 1 9804- ● ● ● ● ● ● ● ●
