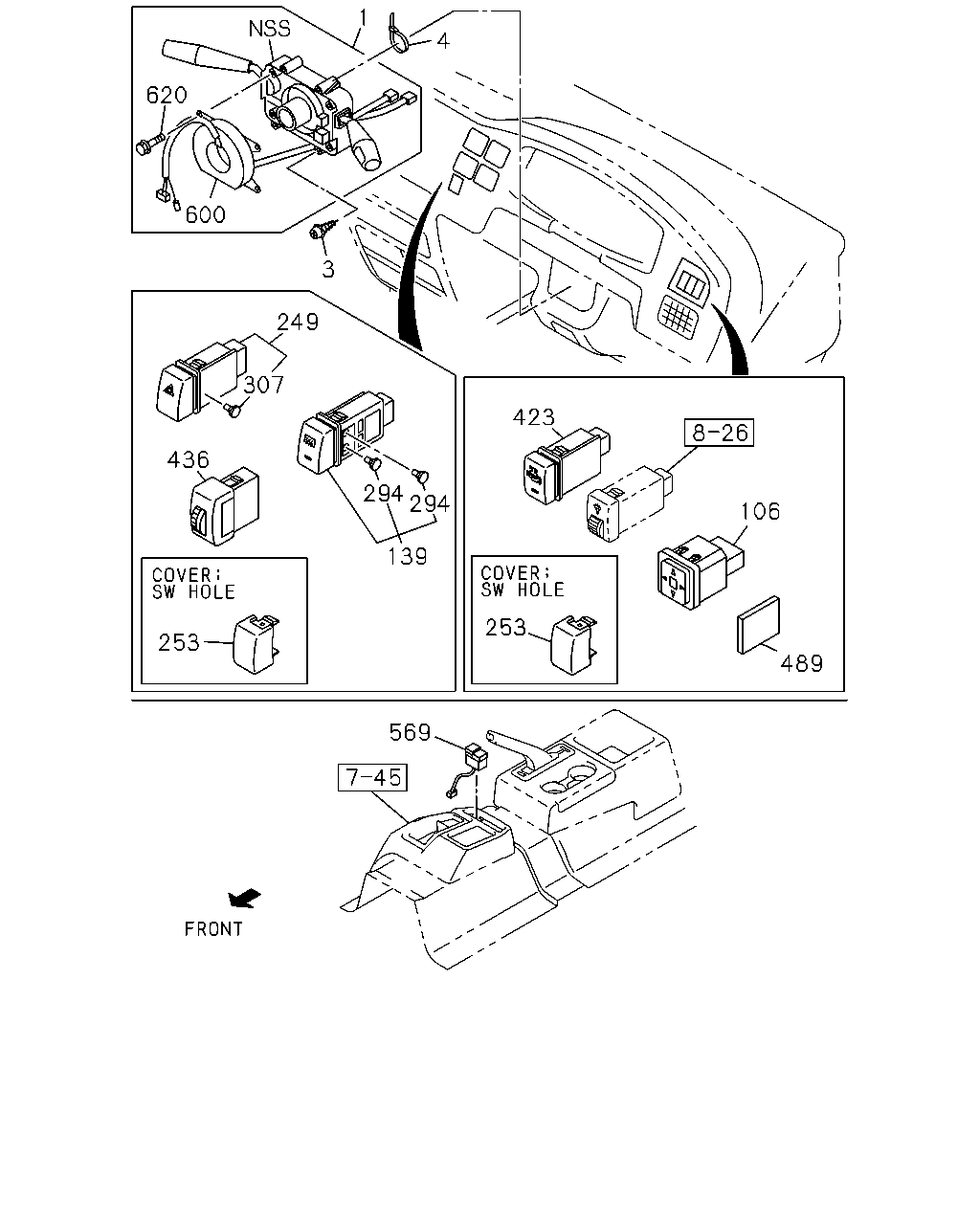

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#46154) — 98 parça

1 4 620 600 3 249 307 423 436 294 294 106 139 253 253 489 569

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3)	8-97216-204-3	01	1	9910-	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>	8-97216-204-3	01	1	9910-		●	●	●	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>	8-97102-096-4	01	1	9804-9909	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),RR FOG LAMP<T79>	8-97102-096-7	01	1	9910-	●	●	●	●	●	●	●	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97111-492-3	01	1	9804-9909		●	●		●	●	●	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97111-492-3	01	1	9910-0009		●	●	●	●	●	●	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER(AJ3), INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>	8-97111-492-6	01	1	0010-		●	●	●	●	●	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> RR FOG LAMP<T79>	8-97216-205-3	01	1	9910-		●	●	●	●	●
1	02.895 SWITCH; COMB RR FOG LAMP<T79> EXC. AIR BAG DRIVER(AJ3), INTERMITTENT WIPER<C13>	8-97304-082-3	01	1	0010-0207		●	●	●	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79>	8-97137-620-1	01	1	9804-9909		●	●		●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER(AJ3)	8-97137-620-4	01	1	9910-		●	●	●	●	●
3	02.897 SCREW; COMB SW 06.512 M5X14 W/LK WASHER	9-03910-514-0	04	1	9804-	●	●	●	●	●	●	●	●
4	02.892 CLIP; COMB SW 02.559 L=250	5-09707-030-1	01	1	9804-	●	●	●	●	●	●	●	●
106	10.186 SWITCH; REMOTE CONT MIRROR DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97131-293-0	01	1	9804-9909	●	●	●	●	●	●
106	10.186 SWITCH; REMOTE CONT MIRROR DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97131-293-1	01	1	9910-	●	●	●	●	●	●
139	09.778 SWITCH; RR DEFOGGER REAR DEFOGGER<C49>	8-97094-074-2	01	1	9804-	●		●	●		●
249	02.485 SWITCH; HAZARD	8-97093-961-1	01	1	9804-	●	●	●	●	●	●	●	●
253	16.081 COVER; SW HOLE	8-97081-617-1	AR	1	9804-	●	●	●	●	●	●	●	●
294	08.991 BULB; DEFOGGER SW REAR DEFOGGER<C49> 10.186 14V 0.84W	8-97102-440-0	01	1	9804-	●		●	●		●
294	08.991 BULB; DEFOGGER SW REAR DEFOGGER<C49> 14V 0.84W	8-97117-108-0	01	1	9804-	●		●	●		●
307	08.991 BULB ASM; SW	8-97130-932-0	01	1	9910-	●	●	●	●	●	●	●	●
423	03.883 SWITCH; ENG WARMING 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97093-964-2	01	1	9804-9909		●	●		●	●
423	03.883 SWITCH; ENG WARMING 4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97127-439-0	01	1	9910-0012		●	●	●	●	●
423	03.883 SWITCH; ENG WARMING 4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97127-439-0	01	1	0101-0106		●	●	●	●	●
423	03.883 SWITCH; ENG WARMING 4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97314-019-0	01	1	0107-0109		●	●	●	●	●
423	03.883 SWITCH; ENG WARMING 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97314-019-0	01	1	0110-		●	●	●	●	●
423	03.883 SWITCH; ENG WARMING ENG QUICK WARM UP SYSTEM<6JZ>	8-97314-019-0	01	1	0110-		●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING UNITED KINGDOM EQUIPMENT(EK3)	8-97081-614-1	01	1	9804-9909		●	●		●	●
436	02.485 SWITCH; HEADLAMP LEVELING UNITED KINGDOM EQUIPMENT(EK3)	8-97081-614-1	01	1	9910-0011		●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97081-614-1	01	1	0012-0012		●	●	●	●	●
436	02.485 SWITCH; HEADLAMP LEVELING UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW>	8-97081-614-1	01	1	0101-		●	●	●	●	●
489	16.494 TAPE; SEALING 4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 02.559 130X80	8-94137-549-0	01	1	0110-0110		●	●	●	●	●
489	16.494 TAPE; SEALING 4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 02.559 130X80	8-97304-373-0	01	1	0111-0203		●	●	●	●	●
489	16.494 TAPE; SEALING 4JG2 ENG(RJC) 02.559 130X80	8-97304-373-0	01	1	0204-		●	●	●	●	●
489	16.494 TAPE; SEALING 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 02.559 130X80	8-97304-373-0	01	1	0204-		●	●	●	●	●
569	16.283 SWITCH; POWER-NORMAL A/T THM(RMQ) AUSTRALIAN EQUIPMENT(RR3)	8-97101-782-0	01	1	9804-0009	●	●	●
569	16.283 SWITCH; POWER-NORMAL A/T THM(RMQ)	8-97101-782-0	01	1	0010-0012	●	●	●
569	16.283 SWITCH; POWER-NORMAL A/T THM(RMQ)	8-97101-782-0	01	1	0101-0109	●	●	●	●	●	●
569	16.283 SWITCH; POWER-NORMAL A/T AISIN(RMD),A/T THM(RMQ)	8-97101-782-1	01	1	0110-	●	●	●	●	●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13>	8-97218-242-0	01	1	9910-	●	●	●	●	●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13>	8-97289-540-0	04	1	9910-	●	●	●	●	●	●

45 85 98 151 490 85 151 45 490 98 45 85 660 151 277 85 490 45 151 151 151 98 154 660 154 490 277 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
45	02.252 RELAY; HORN 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 02.100 12V 20A	8-97173-039-1	01	1	9804-9909	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 02.100 12V 20A	8-97173-039-1	01	1	9910-	●	●	●	●	●	●	●	●
45	02.252 RELAY; HORN 4JA1 ENG(RLE),4JB1 ENG(RLF) 08.852 12V 20A	8-97060-926-1	01	1	9804-9909	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 02.100 12V 20A	8-97173-039-1	01	1	9804-9909	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.100 12V 20A	8-97173-039-1	01	1	9910-	●	●	●	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 4JA1 ENG(RLE),4JB1 ENG(RLF) 08.852 12V 20A	8-97060-926-1	01	1	9804-9909	●	●	●	●	●	●	●	●
98	02.485 RELAY; RR FOG LAMP RR FOG LAMP<T79> 08.852 12V 20A	8-97060-926-1	01	1	9804-9909		●	●		●	●
98	02.485 RELAY; RR FOG LAMP RR FOG LAMP<T79> 02.100 12V 20A	8-97173-039-1	01	1	9910-		●	●	●	●	●
151	09.277 RELAY; HTR & A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.852 (A) 12V 20A	8-97060-926-1	01	1	9804-	●	●	●	●	●	●	●	●
151	09.277 RELAY; HTR & A/C 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 (A) 12V 20A	8-97060-926-1	01	1	9804-	●	●	●	●	●	●	●	●
151	09.277 RELAY; HTR & A/C 4JH1 ENG(RJX),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) CHARGE AIR COOLER<6PL> 02.100 (B) 12V 20A	8-97173-039-1	01	1	0110-		●	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 22LE/C22NE ENG(RJT) 02.100 12V 20A	8-97173-039-1	01	1	9804-	●	●	●		●	●	●	●
277	03.900 RELAY; FUEL PUMP 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 08.852 12V 20A	8-97060-926-1	01	1	9804-	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.100 12V 20A	8-97173-039-1	01	1	9804-9909	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.100 12V 20A	8-97173-039-1	01	1	9910-	●	●	●	●	●	●	●	●
490	09.277 RELAY; THERMO 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 12V 20A	8-97060-926-1	01	1	9804-9909	●	●	●	●	●	●	●	●
660	02.510 RELAY; TCM 6VD1 ENG(RLV) A/T THM(RMQ) 02.100 12V 20A	8-97173-039-1	01	1	0101-	●	●	●	●	●	●

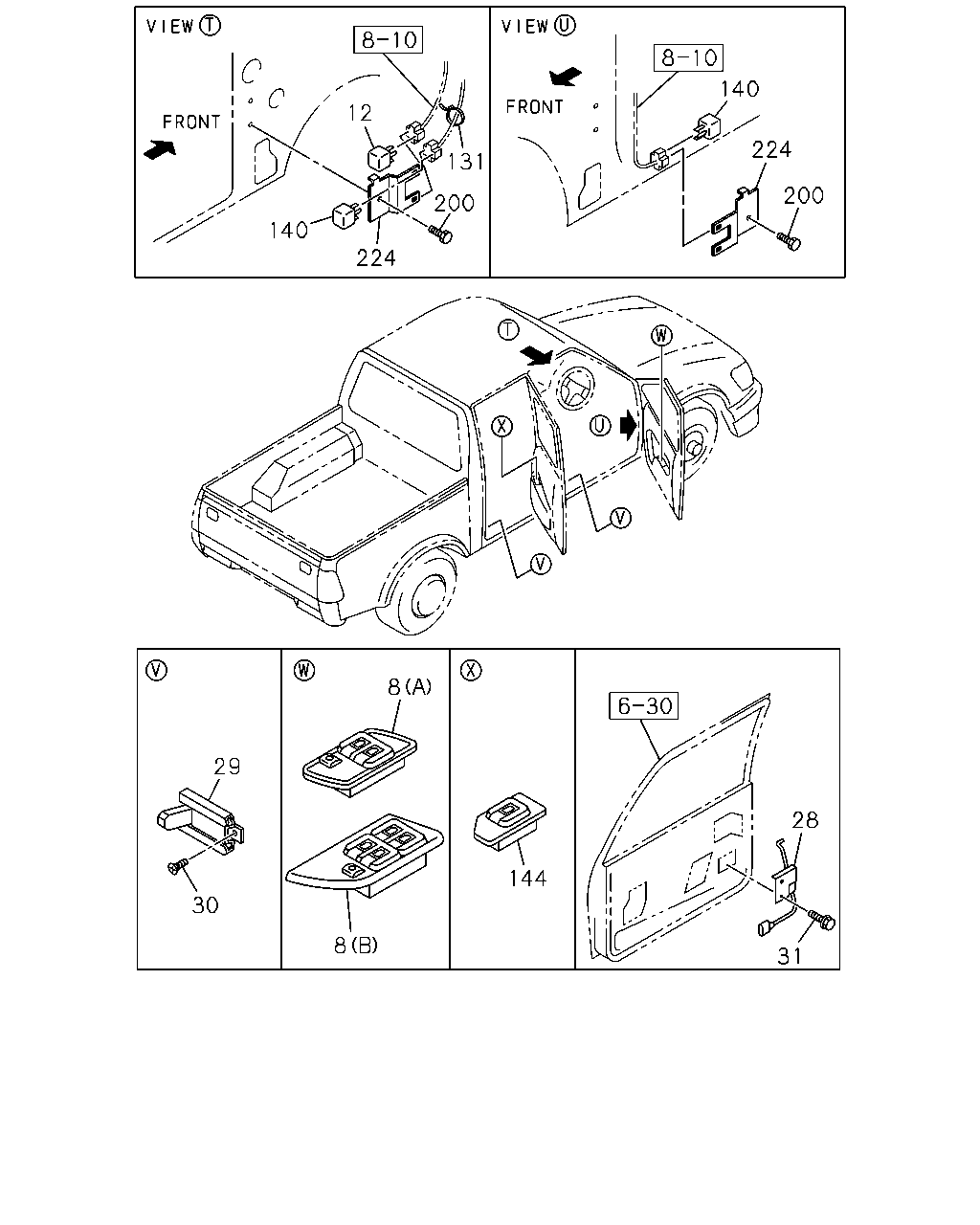

140 12 224 131 200 200 140 224 8 29 28 144 30 8 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A30> (A) BLACK	8-97152-735-1	01	1	9804-	●	●	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A30> (A) BLACK	8-97155-247-1	01	1	9804-	●	●		●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A30> (B) BLACK	8-97155-245-0	01	1	9804-			●			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW<A30> 12V 20A	8-97060-926-1	01	1	9804-	●	●	●	●	●	●
28	16.341 SWITCH ASM; DOOR LOCK AUTO DOOR LOCK<AU4>	8-94450-808-0	01	1	9804-9909			●			●
28	16.341 SWITCH ASM; DOOR LOCK AUTO DOOR LOCK<AU4>	8-94450-808-0	01	1	9910-		●	●	●	●	●
29	16.263 SWITCH; DOOR	8-97146-196-0	02	1	9804-	●	●		●	●		●	●
29	16.263 SWITCH; DOOR	8-97146-196-0	04	1	9804-			●			●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	9804-	●	●		●	●		●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	04	1	9804-			●			●
31	16.342 BOLT; DOOR LK SW AUTO DOOR LOCK<AU4> 10.701 M6X8	8-94155-893-0	02	1	9804-9909			●			●
31	16.342 BOLT; DOOR LK SW AUTO DOOR LOCK<AU4> 10.701 M6X8	8-94155-893-0	02	1	9910-		●	●	●	●	●
131	02.575 CLIP; BAND POWER WINDOW<A30> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.162 L=140	5-09707-031-1	01	1	9804-9909		●		●	●	●
131	02.575 CLIP; BAND POWER WINDOW<A30> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.162 L=140	5-09707-031-1	01	1	9910-0008		●		●		●
131	02.575 CLIP; BAND POWER WINDOW<A30> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.162 L=140	5-09707-031-1	01	1	0009-		●	●	●		●
140	09.778 RELAY; RR DEFOGGER REAR DEFOGGER<C49> 08.852 12V 20A	8-97060-926-1	01	1	9804-	●		●	●		●
144	16.283 SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97098-342-3	01	1	9804-			●			●
144	16.283 SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97098-341-3	01	1	9804-			●			●
200	09.277 BOLT; RELAY BRKT POWER WINDOW<A30> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-	●	●	●	●	●	●
200	09.277 BOLT; RELAY BRKT REAR DEFOGGER<C49> EXC. POWER WINDOW<A30> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-	●		●	●		●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30>	8-97161-132-0	01	1	9804-9909	●	●	●	●	●	●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-132-0	01	1	9804-9909	●		●	●		●
224	02.510 BRACKET; RELAY REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3)	8-97161-132-0	01	1	9804-9909			●			●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30>	8-97161-132-0	01	1	9910-0012	●	●	●	●	●	●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>	8-97161-132-0	01	1	9910-0012	●		●	●		●
224	02.510 BRACKET; RELAY POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3) EXC. REAR DEFOGGER<C49>	8-97161-132-0	01	1	9910-0012		●	●	●	●	●
224	02.510 BRACKET; RELAY REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3)	8-97161-132-0	01	1	9910-0012			●	●		●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQ UIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97161-132-0	01	1	0101-	●	●	●	●	●	●
224	02.510 BRACKET; RELAY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97161-132-0	01	1	0101-	●		●	●		●
224	02.510 BRACKET; RELAY POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3) EXC. REAR DEFOGGER<C49>	8-97161-132-0	01	1	0101-		●	●	●	●	●
224	02.510 BRACKET; RELAY REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3)	8-97161-132-0	01	1	0101-			●	●		●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQ UIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97161-133-0	01	1	9804-0012	●	●	●	●	●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97161-133-0	01	1	9804-0012	●		●	●		●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQ UIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97161-133-0	01	1	0101-0109	●	●	●	●	●	●
224	02.510 BRACKET; RELAY 4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97161-133-0	01	1	0101-0109	●		●	●		●
224	02.510 BRACKET; RELAY 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQ UIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97161-133-0	01	1	0110-	●	●	●	●	●	●
224	02.510 BRACKET; RELAY 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) REAR DEFOGGER<C49> EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97161-133-0	01	1	0110-	●		●	●		●
224	02.510 BRACKET; RELAY POWER WINDOW<A30> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97133-595-0	01	1	9804-9909		●		●	●	●
224	02.510 BRACKET; RELAY POWER WINDOW<A30> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97133-595-0	01	1	9910-0008		●		●		●
224	02.510 BRACKET; RELAY POWER WINDOW<A30> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97133-595-0	01	1	0009-		●	●	●		●
