2 |
03.300 HOUSING ASM; PUMP,FUEL INJ
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180
|
8-94174-844-0 |
01 |
1 |
- |
| |
2 |
03.300 HOUSING ASM; PUMP,FUEL INJ
ASM PART: C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-94177-921-0 |
01 |
1 |
- |
| |
2 |
03.300 HOUSING ASM; PUMP,FUEL INJ
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086
|
8-97231-940-0 |
01 |
1 |
- |
| |
2 |
03.300 HOUSING ASM; PUMP,FUEL INJ
ASM PART: H = 8-98253-290-0, 98253290
|
8-98259-840-0 |
01 |
1 |
- |
| |
10 |
03.340 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94247-716-0 |
04 |
1 |
- |
| |
11 |
03.330 HEAD ASM; DISTR,INJ PUMP
ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366
|
8-97032-166-0 |
01 |
1 |
- |
| |
11 |
03.330 HEAD ASM; DISTR,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181
|
8-97125-529-0 |
01 |
1 |
- |
| |
11 |
03.330 HEAD ASM; DISTR,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97214-499-0 |
01 |
1 |
- |
| |
12 |
03.330 SCREW; DISTR HD,INJ PUMP
(B) ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-94257-670-0 |
03 |
1 |
- |
| |
12 |
03.330 SCREW; DISTR HD,INJ PUMP
(B) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-94257-670-0 |
04 |
1 |
- |
| |
13 |
03.330 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-527-0 |
01 |
1 |
- |
| |
15 |
03.330 PLUG ASM; DISTR,INJ PUMP
03.300
ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366
|
8-94174-817-0 |
01 |
1 |
- |
| |
15 |
03.330 PLUG ASM; DISTR,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181
|
8-94433-807-0 |
01 |
1 |
- |
| |
15 |
03.330 PLUG ASM; DISTR,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97231-942-0 |
01 |
1 |
- |
| |
18 |
03.306 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-637-0 |
01 |
1 |
- |
| |
24 |
03.318 WASHER; PLUNGER,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-515-0 |
01 |
1 |
- |
| |
38 |
03.318 SHIM; PLUNGER BARREL,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-514-0 |
01 |
1 |
- |
| |
39 |
03.340 NUT; MTG BRKT FIX
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-97119-344-0 |
02 |
1 |
- |
| |
40 |
03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP
03.306
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181
|
8-94227-475-0 |
01 |
1 |
- |
| |
40 |
03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97147-034-0 |
01 |
1 |
- |
| |
41 |
03.306 BRACKET; INJ PUMP HSG
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-94174-843-0 |
01 |
1 |
- |
| |
41 |
03.306 BRACKET; INJ PUMP HSG
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97214-512-1 |
01 |
1 |
- |
| |
42 |
03.330 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-94458-257-0 |
01 |
1 |
- |
| |
42 |
03.330 GEAR; DRIVE,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97229-619-0 |
01 |
1 |
- |
| |
43 |
03.340 WASHER; LK,DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94226-554-0 |
01 |
1 |
- |
| |
44 |
03.330 NUT; DRIVE GEAR FIX,INJ PUMP
03.340, M14
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94226-565-0 |
01 |
1 |
- |
| |
51 |
03.340 KEY; DRIVE GEAR,INJ PUMP
03.330
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366
|
5-83539-024-0 |
01 |
1 |
- |
| |
51 |
03.340 KEY; DRIVE GEAR,INJ PUMP
ASM PART: G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94239-370-0 |
01 |
1 |
- |
| |
52 |
03.340 GEAR; GOV DRIVE,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-483-0 |
01 |
1 |
- |
| |
53 |
03.330 WASHER; GOV DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-94227-484-0 |
01 |
1 |
- |
| |
53 |
03.330 WASHER; GOV DRIVE GEAR,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-94317-488-0 |
01 |
1 |
- |
| |
54 |
03.340 KEY; FEED PUMP,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-481-0 |
01 |
1 |
- |
| |
55 |
03.340 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-94169-528-0 |
02 |
1 |
- |
| |
55 |
03.340 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181
|
8-94227-482-1 |
02 |
1 |
- |
| |
56 |
03.340 ROLLER ASM; TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-94433-760-0 |
01 |
1 |
- |
| |
56 |
03.340 ROLLER ASM; TIMER,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97218-960-0 |
01 |
1 |
- |
| |
57 |
03.340 SHAFT; DRIVE,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-94433-759-0 |
01 |
1 |
- |
| |
57 |
03.340 SHAFT; DRIVE,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97217-211-0 |
01 |
1 |
- |
| |
59 |
03.340 DISC; DRIVE,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-94433-761-0 |
01 |
1 |
- |
| |
59 |
03.340 DISC; DRIVE,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97144-349-1 |
01 |
1 |
- |
| |
60 |
03.320 SPRING; DRIVE DISC,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97214-524-0 |
01 |
1 |
- |
| |
61 |
03.300 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366
|
8-97032-165-0 |
01 |
1 |
- |
| |
61 |
03.300 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181
|
8-97125-528-0 |
01 |
1 |
- |
| |
61 |
03.300 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97214-495-0 |
01 |
1 |
- |
| |
62 |
03.320 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-516-1 |
01 |
1 |
- |
| |
64 |
03.320 SEAT; PLUNGER SPRING LWR,INJ PUM
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-517-0 |
02 |
1 |
- |
| |
65 |
03.308 SPRING KIT; PLUNGER,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-94433-816-0 |
01 |
1 |
- |
| |
65 |
03.308 SPRING KIT; PLUNGER,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97214-522-0 |
01 |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=0.50
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-518-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=0.80
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-519-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.00
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-520-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.20
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-521-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.50
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-522-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.80
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-523-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=2.00
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-524-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=0.90
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94433-204-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.10
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94433-205-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.30
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94433-206-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.40
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94433-207-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.60
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94433-208-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.70
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94433-209-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.40
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97146-139-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.60
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97146-140-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.70
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97146-141-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=1.90
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97146-142-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=2.10
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-360-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=2.20
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-361-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=2.30
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-362-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=2.40
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-363-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=2.50
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-364-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=2.60
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-365-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=2.70
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-366-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=2.80
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-367-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=2.90
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-368-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=3.00
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-369-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=3.10
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-370-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=3.20
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-371-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=3.30
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-372-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=3.40
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-373-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.20
ASM PART: D = 8-97204-201-9, 97204201, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97189-374-0 |
AR |
1 |
- |
| |
67 |
03.330 PIN; GUIDE,PLUNGER SPRING
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181
|
8-94433-776-0 |
02 |
1 |
- |
| |
67 |
03.330 PIN; GUIDE,PLUNGER SPRING
ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366
|
8-97185-285-0 |
02 |
1 |
- |
| |
67 |
03.330 PIN; GUIDE,PLUNGER SPRING
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97328-703-0 |
02 |
1 |
- |
| |
73 |
03.306 GASKET; COVER TO HSG
ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366
|
8-94227-491-0 |
01 |
1 |
- |
| |
73 |
03.306 GASKET; COVER TO HSG
03.330
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181
|
8-94433-763-0 |
01 |
1 |
- |
| |
73 |
03.306 GASKET; COVER TO HSG
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97383-765-0 |
01 |
1 |
- |
| |
74 |
03.300 COVER; HSG,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-97125-525-0 |
01 |
1 |
- |
| |
74 |
03.300 COVER; HSG,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97231-934-0 |
01 |
1 |
- |
| |
75 |
03.330 SCREW; COVER TO HSG
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-94313-276-0 |
02 |
1 |
- |
| |
75 |
03.330 SCREW; COVER TO HSG
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97231-933-0 |
02 |
1 |
- |
| |
84 |
03.306 GASKET; BRKT TO HSG
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086
|
8-94247-722-0 |
01 |
1 |
- |
| |
84 |
03.306 GASKET; BRKT TO HSG
06.061, ID=52.6
ASM PART: H = 8-98253-290-0, 98253290
|
9-09561-353-0 |
01 |
1 |
- |
| |
90 |
03.318 VALVE; OVERFLOW,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97214-509-0 |
01 |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.74
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94111-658-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.76
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94111-659-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.78
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94111-660-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.80
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94111-661-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.82
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94111-662-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.84
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94111-663-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.86
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94111-664-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.88
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94111-665-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=1.90
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-528-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=1.92
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-529-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=1.94
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-530-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=1.96
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-531-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=1.98
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-532-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.00
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-533-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.02
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-534-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.04
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-535-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.06
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-536-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.08
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-537-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.10
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-538-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.12
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-539-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.14
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-540-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.16
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-541-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.18
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-542-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.20
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-543-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.22
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-544-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.24
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-545-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.26
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-546-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.28
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-547-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.30
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-548-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.32
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-549-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.34
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-550-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.36
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-551-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.38
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-552-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.40
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-553-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.42
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-554-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.44
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-555-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.46
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-556-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.48
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-557-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.50
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-558-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.52
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-559-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.54
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-560-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.56
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-561-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.58
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-562-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.60
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-563-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.62
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-564-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.64
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-565-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.66
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-566-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.68
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-567-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.70
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-568-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.72
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-569-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.74
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-570-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.76
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-571-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.78
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-572-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.80
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-573-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.82
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-574-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.84
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-575-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.86
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-576-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.88
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-577-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.90
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-578-0 |
AR |
1 |
- |
| |
100 |

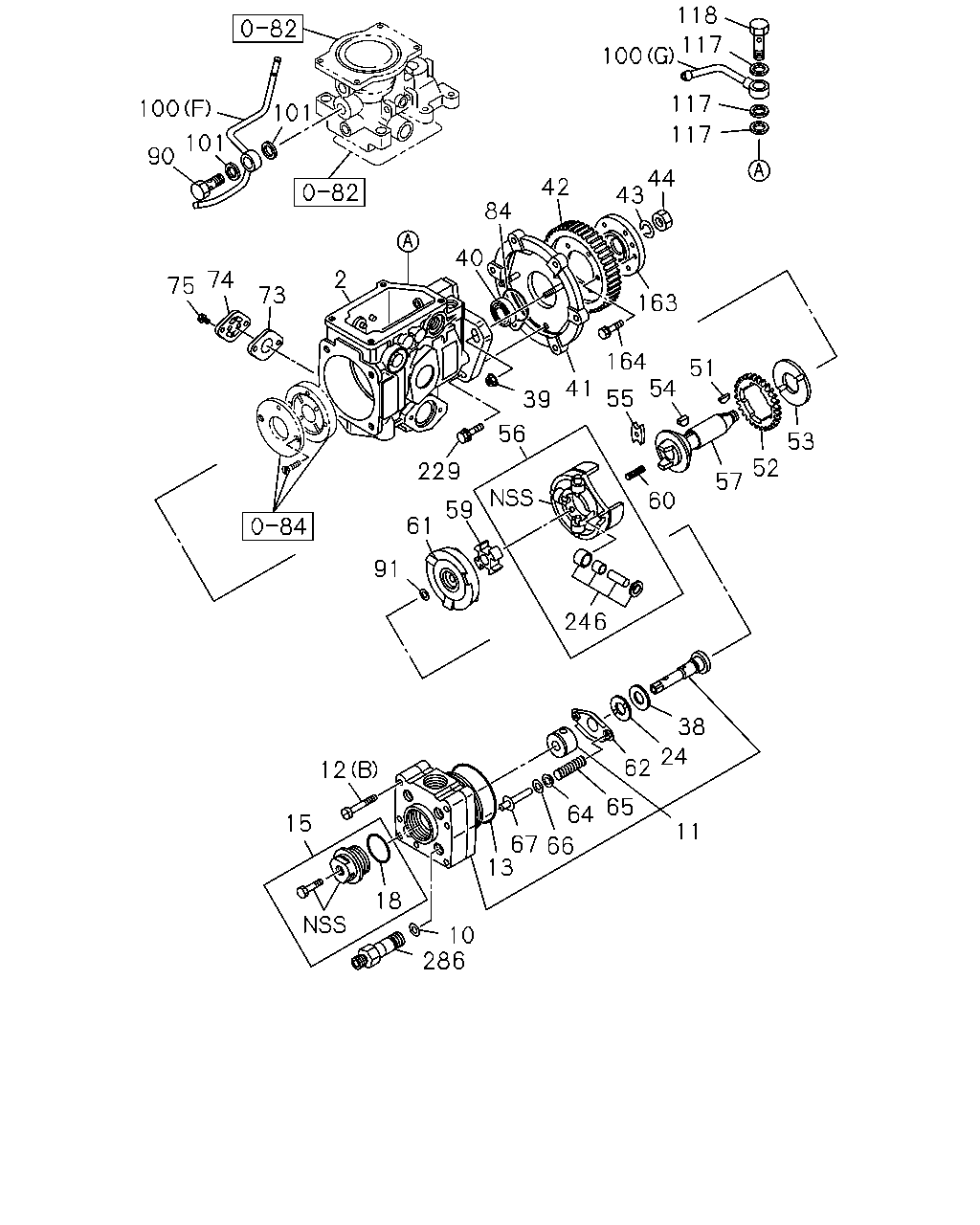

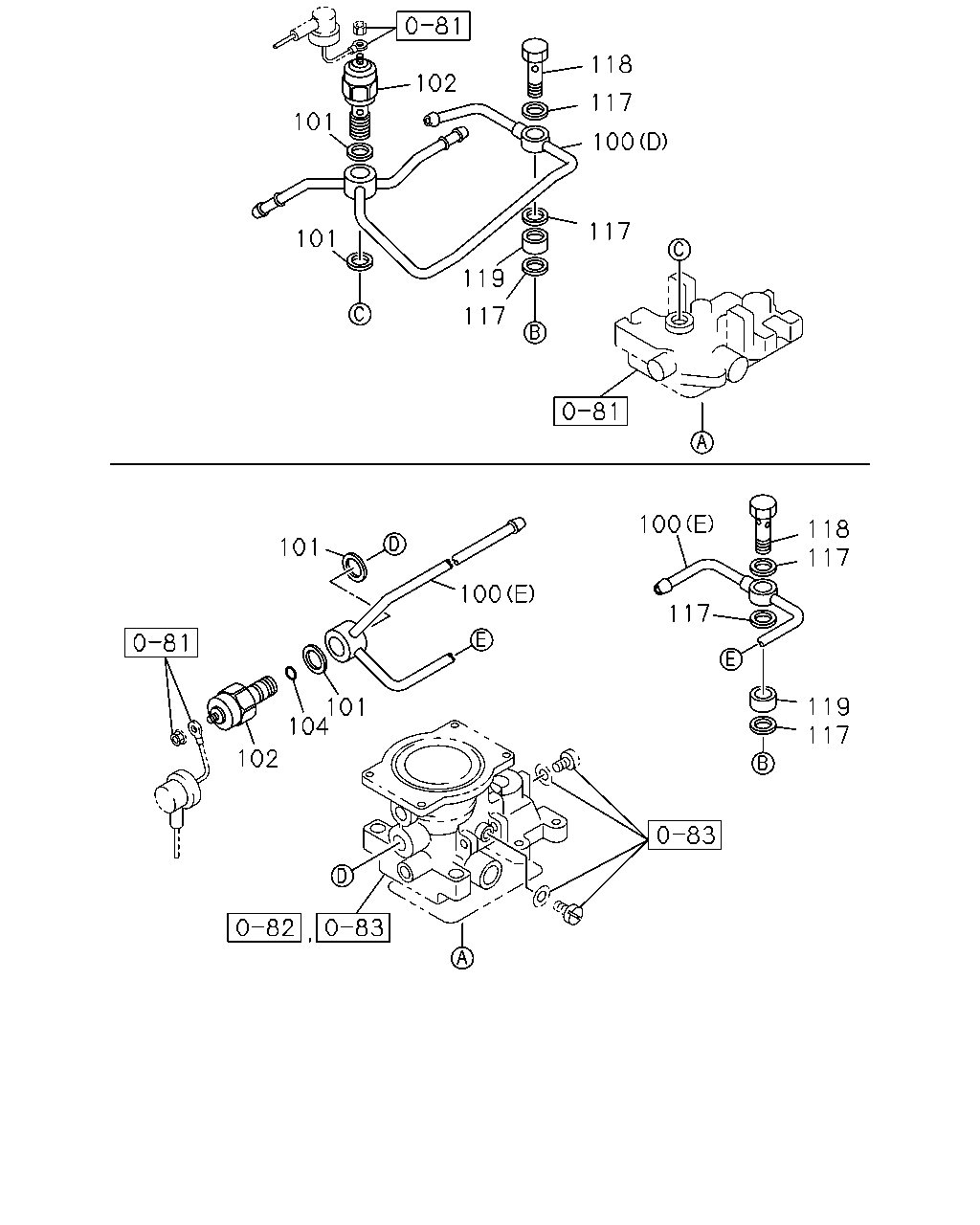

03.330 PIPE; FUEL INJ PUMP
(E) ASM PART: C = 8-97120-181-1, 97120181
|
8-97102-544-1 |
01 |
1 |
- |
| |
100 |
03.330 PIPE; FUEL INJ PUMP
(D) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180
|
8-97102-546-1 |
01 |
1 |
- |
| |
100 |
03.330 PIPE; FUEL INJ PUMP
(E) ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366
|
8-97185-287-0 |
01 |
1 |
- |
| |
100 |
03.330 PIPE; FUEL INJ PUMP
(F) ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97214-510-0 |
01 |
1 |
- |
| |
100 |
03.330 PIPE; FUEL INJ PUMP
(G) ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97385-181-0 |
01 |
1 |
- |
| |
101 |
03.162 GASKET; OVERFLOW VLV,INJ PUMP
03.332
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-97119-188-0 |
02 |
1 |
- |
| |
101 |
03.162 GASKET; OVERFLOW VLV,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97249-545-0 |
02 |
1 |
- |
| |
117 |
03.162 GASKET; EYE BOLT,INJ PUMP
03.318
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-97119-187-0 |
03 |
1 |
- |
| |
117 |
03.162 GASKET; EYE BOLT,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086
|
8-97249-545-0 |
03 |
1 |
- |
| |
117 |
03.162 GASKET; EYE BOLT,INJ PUMP
ASM PART: H = 8-98253-290-0, 98253290
|
8-97249-545-0 |
02 |
1 |
- |
| |
118 |
03.162 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-94379-688-0 |
01 |
1 |
- |
| |
118 |
03.162 BOLT; EYE,FUEL INL,INJ PUMP
03.308
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, E = 8-97216-365-0, 97216365,
F = 8-97216-366-0, 97216366
|
8-97165-709-0 |
01 |
1 |
- |
| |
163 |

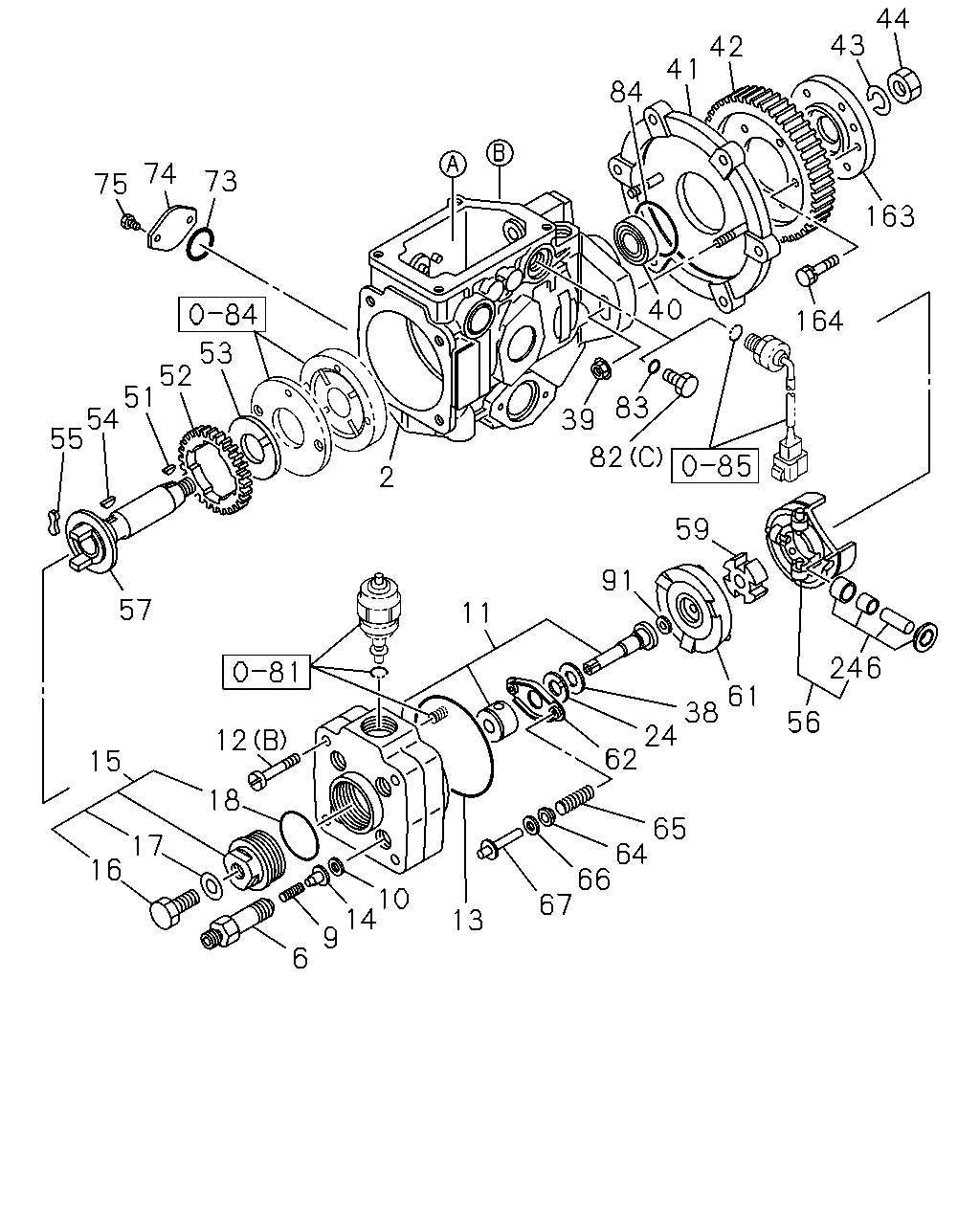

03.330 COUPLING; INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201,
E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366,
G = 8-97263-086-3, 97263086, H = 8-98253-290-0, 98253290
|
8-94227-337-1 |
01 |
1 |
- |
| |
229 |
03.330 BOLT; BRKT
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97049-904-0 |
01 |
1 |
- |
| |
246 |
03.300 ROLLER KIT; INJ PUMP
ASM PART: E = 8-97216-365-0, 97216365, F = 8-97216-366-0, 97216366
|
8-97163-172-0 |
01 |
1 |
- |
| |
246 |
03.300 ROLLER KIT; INJ PUMP
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97218-980-0 |
01 |
1 |
- |
| |
286 |
03.306 VALVE; PRESSURE,CONT
ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086,
H = 8-98253-290-0, 98253290
|
8-97227-581-1 |
04 |
1 |
- |
