Sayfa 0-66 - Isuzu EPC

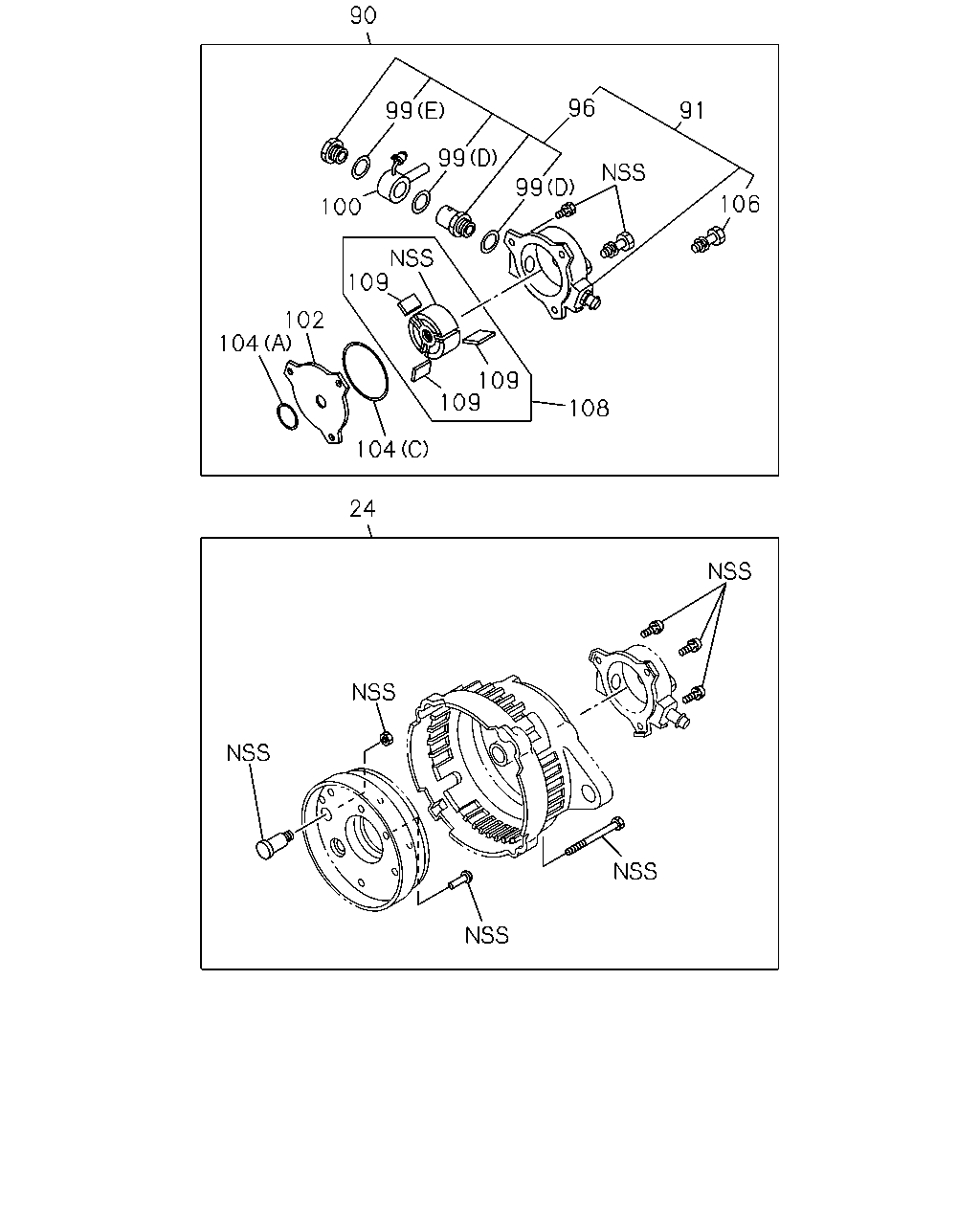

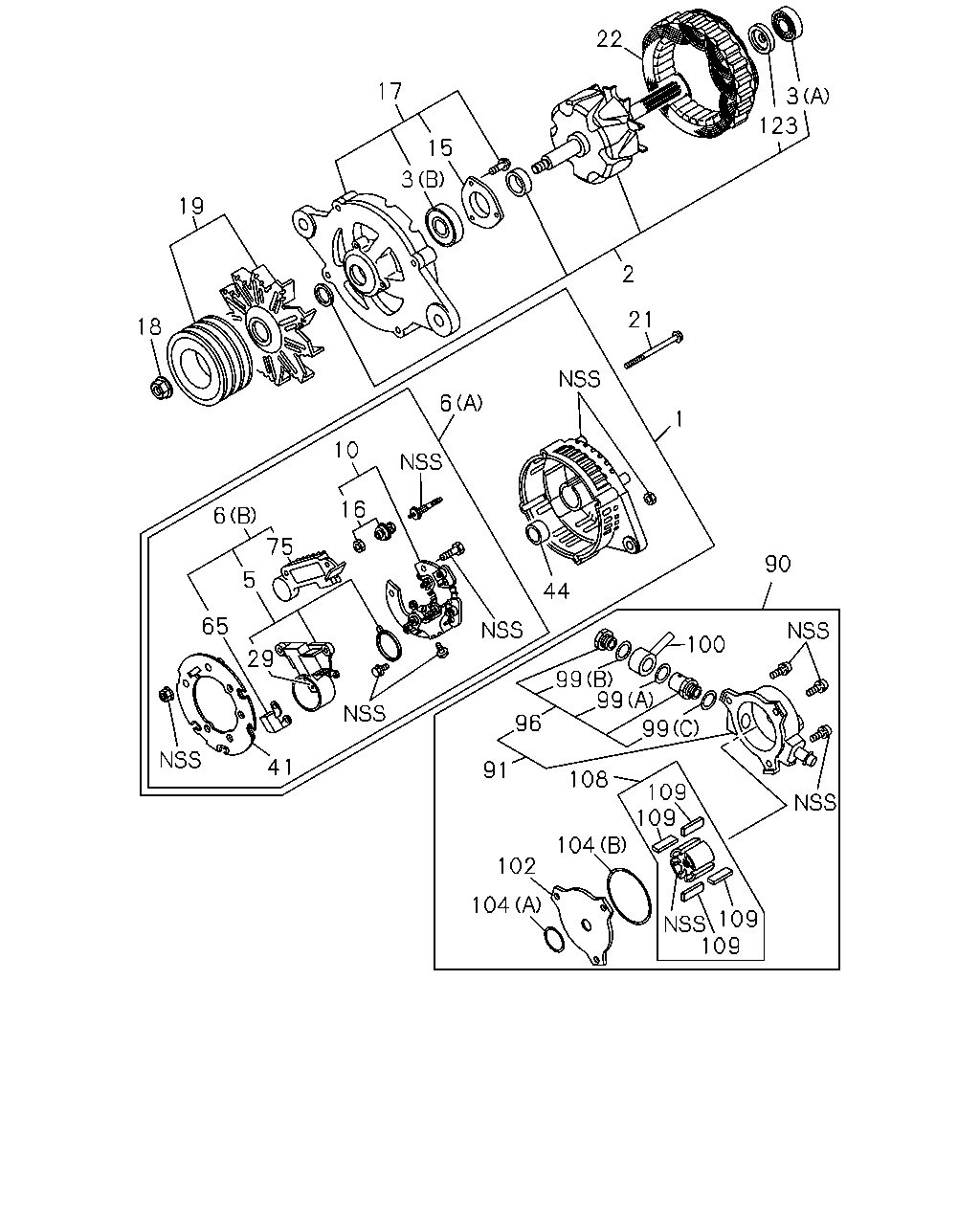

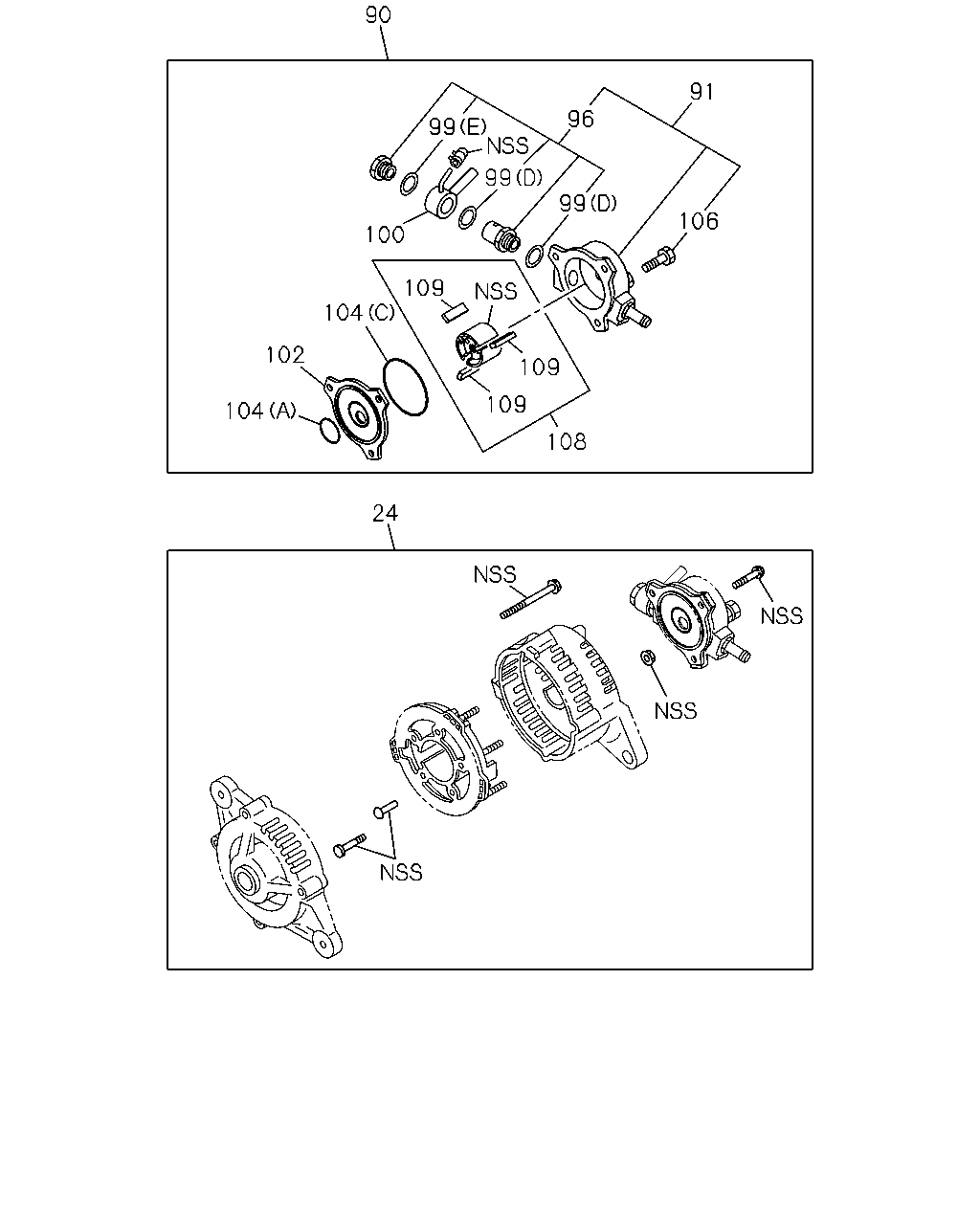

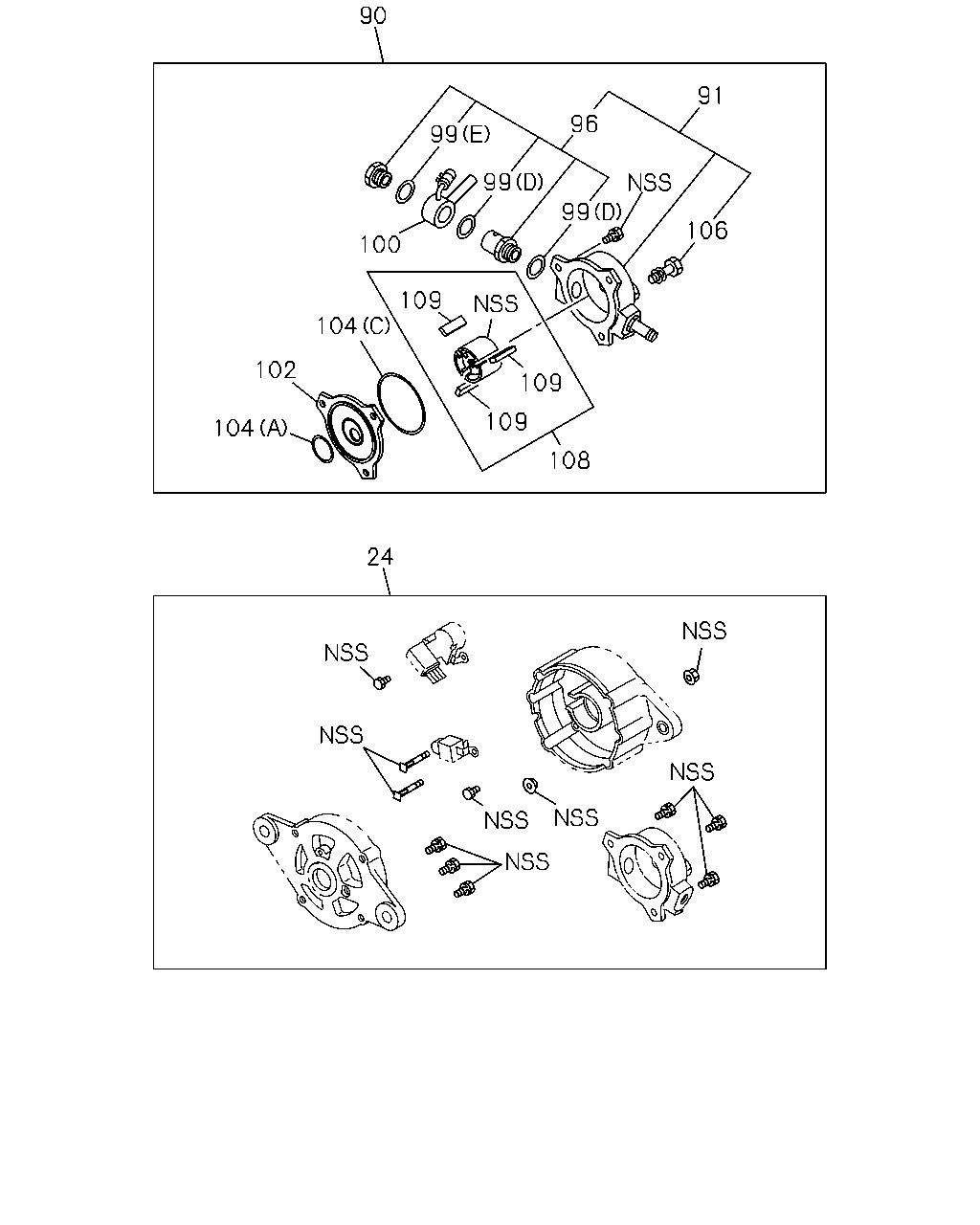

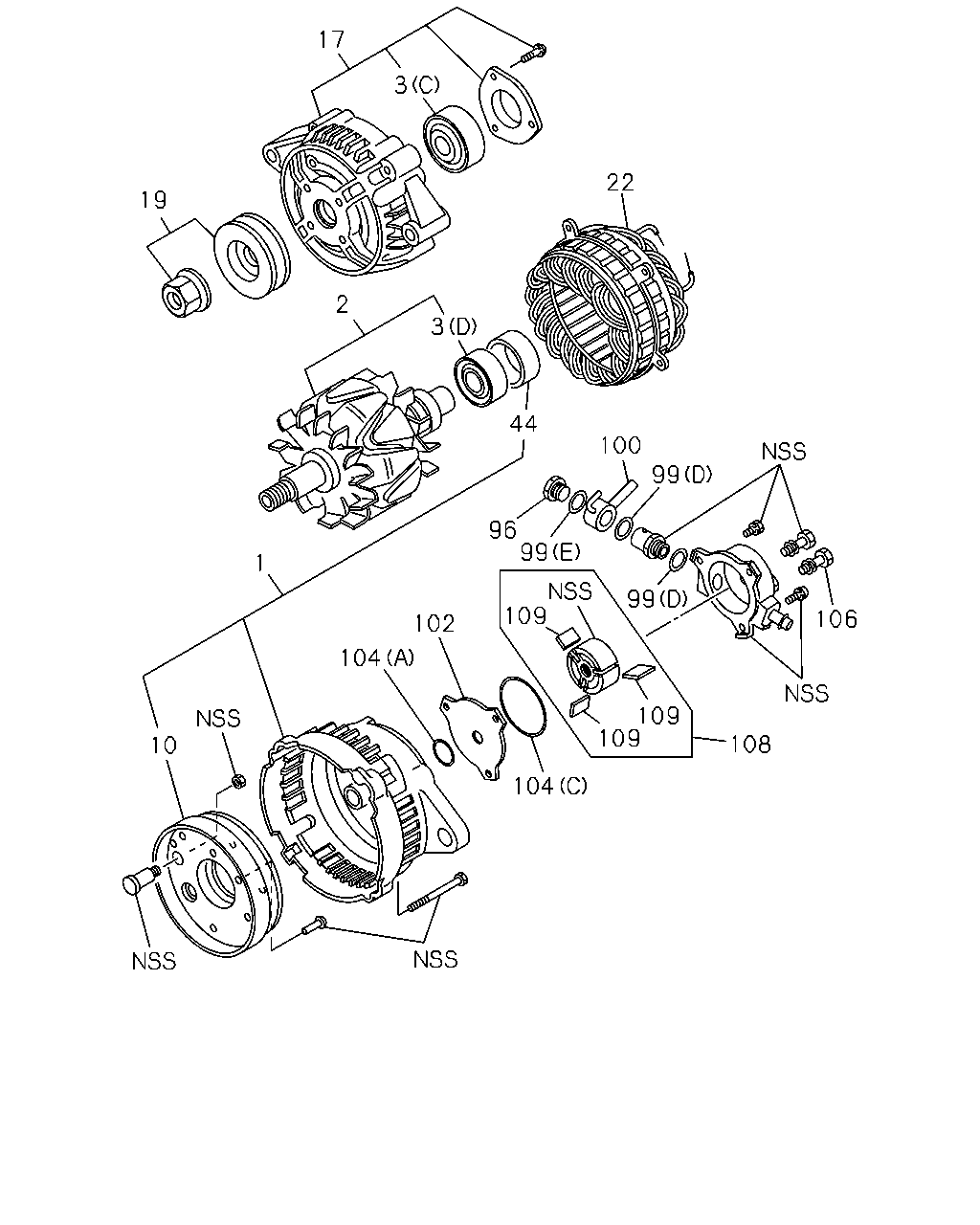

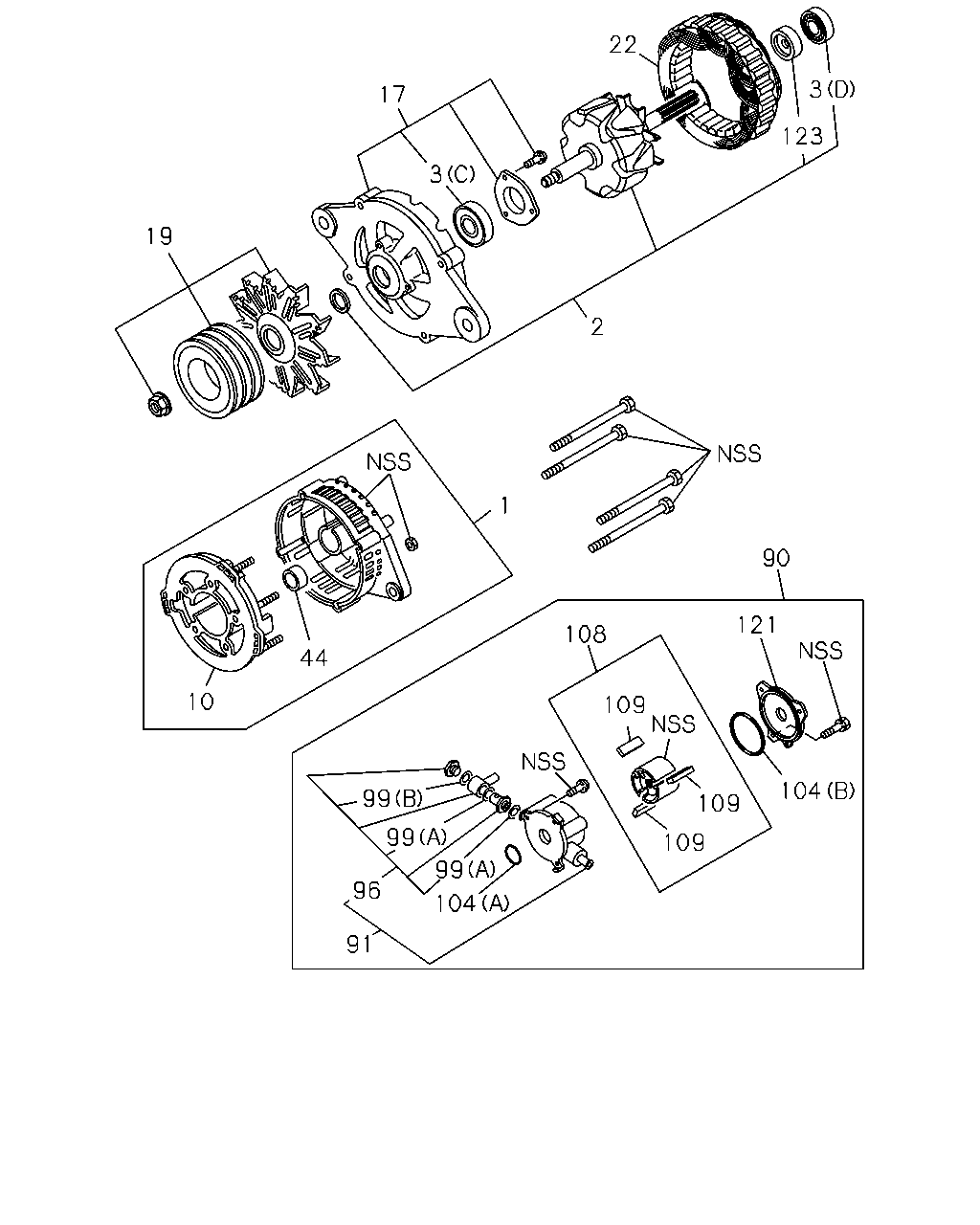

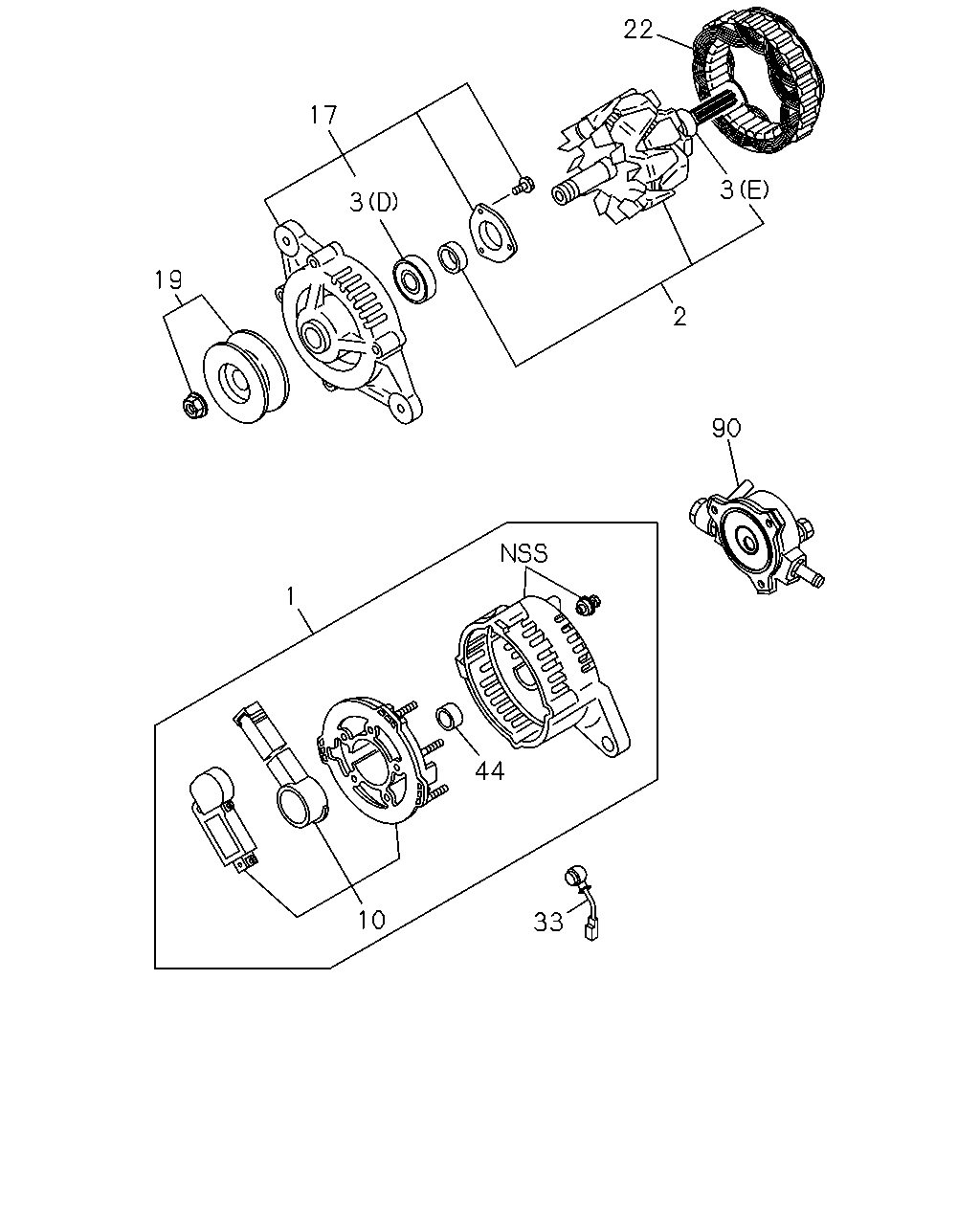

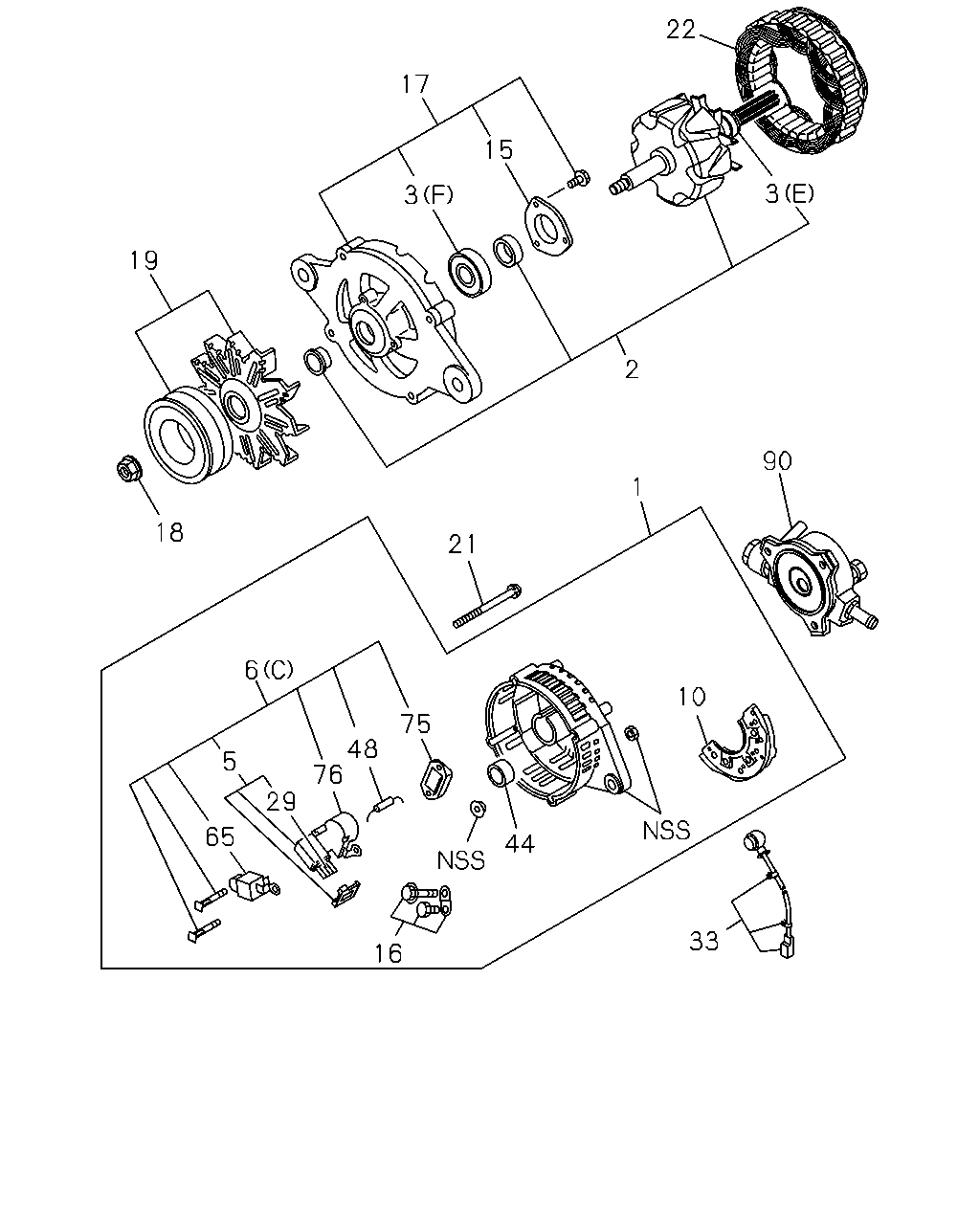

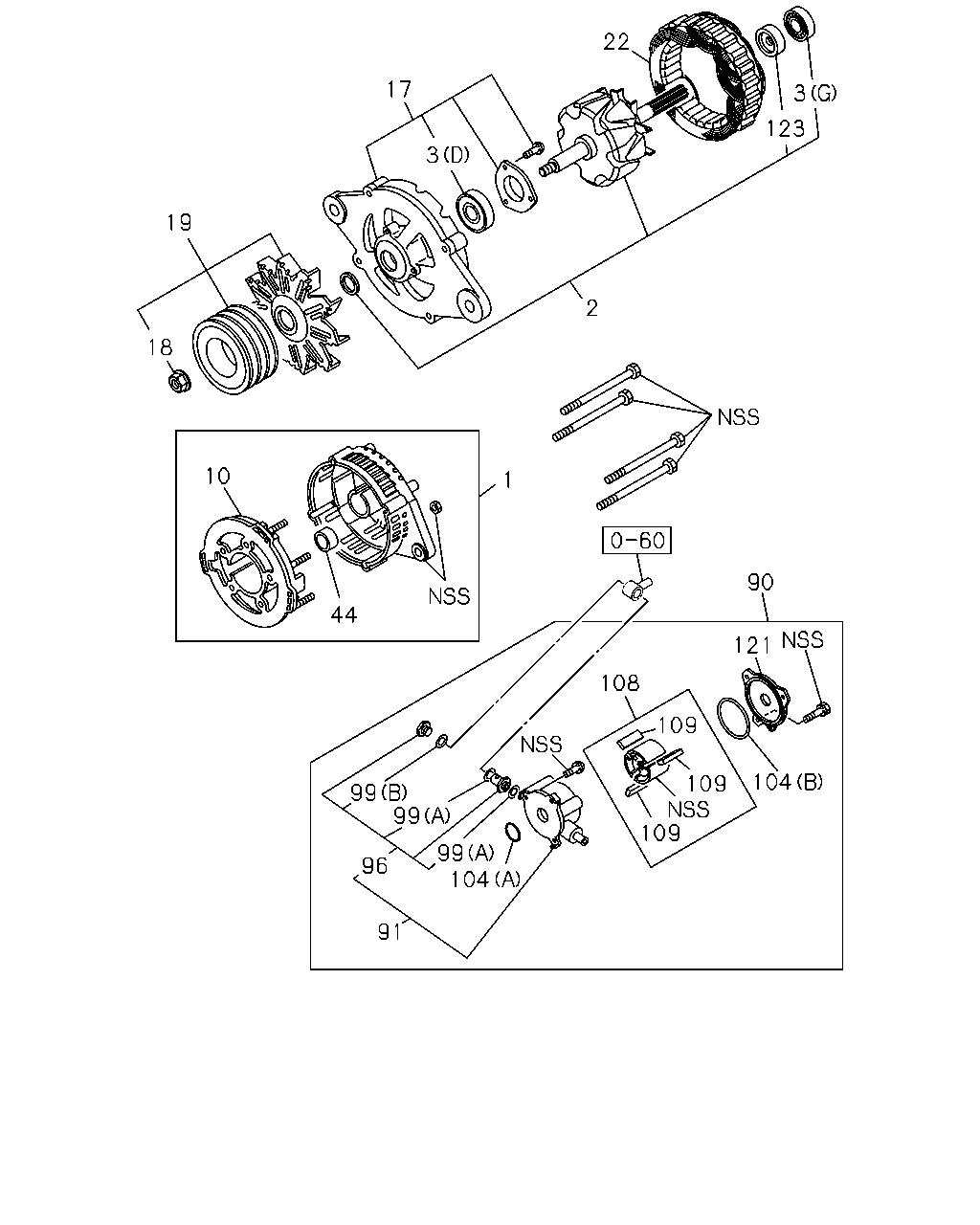

0-66 — GENERATOR (#46152) — 817 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-

24 104 102 109 100 99 90 99 99 96 91 106 108 109 109 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (D), ID=18 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (E), ID=12 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: A = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97249-209-3, 97249209	8-97313-452-0	01	1	-0401
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97249-209-3, 97249209	8-97313-453-0	01	1	0402-
102	03.280 COVER; FRT,VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-

17 3 22 3 2 19 1 44 100 99 106 108 109 109 104 109 99 99 96 102 104 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-658-2, 97187658	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-441-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-472-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97351-573-0, 97351573	8-98230-321-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97351-574-1, 97351574	8-98230-322-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-97083-010-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: E = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: F = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (E) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97186-551-1, 97186551	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-98159-457-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-473-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98230-331-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-97695-602-0, 97695602	8-97695-720-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97075-882-3, 97075882, H = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-448-0	01	1	-0401
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-449-0	01	1	0402-
19	02.274 PULLEY; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97240-270-2, 97240270, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (D), ID=18 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (E), ID=12 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: A = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97249-209-3, 97249209	8-97313-452-0	01	1	-0401
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97249-209-3, 97249209	8-97313-453-0	01	1	0402-
102	03.280 COVER; FRT,VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-

90 96 91 99 99 99 106 100 109 104 102 104 24 109 108 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (D), ID=18 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (E), ID=12 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: A = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97249-209-3, 97249209	8-97313-452-0	01	1	-0401
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97249-209-3, 97249209	8-97313-453-0	01	1	0402-
102	03.280 COVER; FRT,VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-

3 123 22 17 19 18 15 3 2 21 6 10 6 65 5 75 16 29 41 44 1 90 100 99 96 91 108 104 102 104 109 109 109 99 99 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-658-2, 97187658	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-441-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-472-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97351-573-0, 97351573	8-98230-321-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97351-574-1, 97351574	8-98230-322-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-97083-010-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: E = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: F = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (E) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97186-551-1, 97186551	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-98159-457-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-283-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (C) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: A = 8-97075-882-3, 97075882	8-97111-262-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: A = 8-97075-882-3, 97075882	8-97111-264-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-473-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98230-331-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-291-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-287-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-97695-602-0, 97695602	8-97695-720-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-97075-882-3, 97075882, H = 8-97351-573-0, 97351573	8-97083-293-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97075-882-3, 97075882, H = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-448-0	01	1	-0401
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-449-0	01	1	0402-
19	02.274 PULLEY; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-97075-882-3, 97075882	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97187-657-2, 97187657	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: D = 8-97187-658-2, 97187658	8-97083-014-0	04	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97240-270-2, 97240270, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97084-356-0	02	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-288-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97084-357-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97111-267-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (D), ID=18 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (E), ID=12 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: A = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97249-209-3, 97249209	8-97313-452-0	01	1	-0401
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97249-209-3, 97249209	8-97313-453-0	01	1	0402-
102	03.280 COVER; FRT,VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97075-882-3, 97075882	8-97083-274-0	01	1	-

22 17 15 3 3 19 2 90 1 18 21 6 10 75 48 76 5 29 65 44 33 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-658-2, 97187658	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-441-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-472-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97351-573-0, 97351573	8-98230-321-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97351-574-1, 97351574	8-98230-322-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-97083-010-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: E = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: F = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (E) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97186-551-1, 97186551	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-98159-457-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-283-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (C) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: A = 8-97075-882-3, 97075882	8-97111-262-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: A = 8-97075-882-3, 97075882	8-97111-264-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-473-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98230-331-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-291-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-287-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-97695-602-0, 97695602	8-97695-720-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-97075-882-3, 97075882, H = 8-97351-573-0, 97351573	8-97083-293-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97075-882-3, 97075882, H = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-448-0	01	1	-0401
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-449-0	01	1	0402-
19	02.274 PULLEY; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-97075-882-3, 97075882	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97187-657-2, 97187657	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: D = 8-97187-658-2, 97187658	8-97083-014-0	04	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97240-270-2, 97240270, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97084-356-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-597-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97084-357-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97111-267-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-591-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-

17 19 3 1 10 33 44 2 3 22 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-658-2, 97187658	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-441-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-472-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97351-573-0, 97351573	8-98230-321-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97351-574-1, 97351574	8-98230-322-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-97083-010-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: E = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: F = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (E) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97186-551-1, 97186551	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-98159-457-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-473-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98230-331-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-97695-602-0, 97695602	8-97695-720-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97075-882-3, 97075882, H = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-448-0	01	1	-0401
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-449-0	01	1	0402-
19	02.274 PULLEY; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97240-270-2, 97240270, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-597-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-

90 91 96 99 99 99 106 100 109 104 102 109 109 104 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (D), ID=18 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (E), ID=12 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: A = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97249-209-3, 97249209	8-97313-452-0	01	1	-0401
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97249-209-3, 97249209	8-97313-453-0	01	1	0402-
102	03.280 COVER; FRT,VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-

3 123 2 1 90 121 104 109 109 109 108 104 99 99 99 96 91 44 10 19 17 3 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-658-2, 97187658	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-441-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-472-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97351-573-0, 97351573	8-98230-321-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97351-574-1, 97351574	8-98230-322-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-97083-010-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: E = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: F = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (E) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97186-551-1, 97186551	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-98159-457-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-473-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98230-331-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-97695-602-0, 97695602	8-97695-720-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97075-882-3, 97075882, H = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-448-0	01	1	-0401
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-449-0	01	1	0402-
19	02.274 PULLEY; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97240-270-2, 97240270, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (D), ID=18 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (E), ID=12 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: A = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97075-882-3, 97075882	8-97083-274-0	01	1	-

3 123 22 17 19 18 10 44 1 2 3 90 121 104 109 109 108 104 99 91 96 99 99 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-658-2, 97187658	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-441-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-472-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97351-573-0, 97351573	8-98230-321-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97351-574-1, 97351574	8-98230-322-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-97083-010-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: E = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: F = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (E) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (G) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97186-551-1, 97186551	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572	8-98159-457-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: E = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97186-551-1, 97186551	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97374-473-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-98230-331-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-97695-602-0, 97695602	8-97695-720-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: K = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-97075-882-3, 97075882, H = 8-97351-573-0, 97351573	8-97083-293-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97075-882-3, 97075882, H = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-448-0	01	1	-0401
19	02.274 PULLEY; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-449-0	01	1	0402-
19	02.274 PULLEY; GEN ASM PART: J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-658-2, 97187658	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97240-270-2, 97240270, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97249-209-3, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (D), ID=18 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (E), ID=12 OD=24 ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: A = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658, E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573, I = 8-97351-574-1, 97351574	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97075-882-3, 97075882	8-97083-274-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97187-657-2, 97187657, D = 8-97187-658-2, 97187658	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97186-551-1, 97186551, G = 8-97351-572-1, 97351572, H = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97240-270-2, 97240270, F = 8-97249-209-3, 97249209, J = 8-97695-602-0, 97695602, K = 8-98284-007-0, 98284007, L = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
