◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#4615) — 510 parça

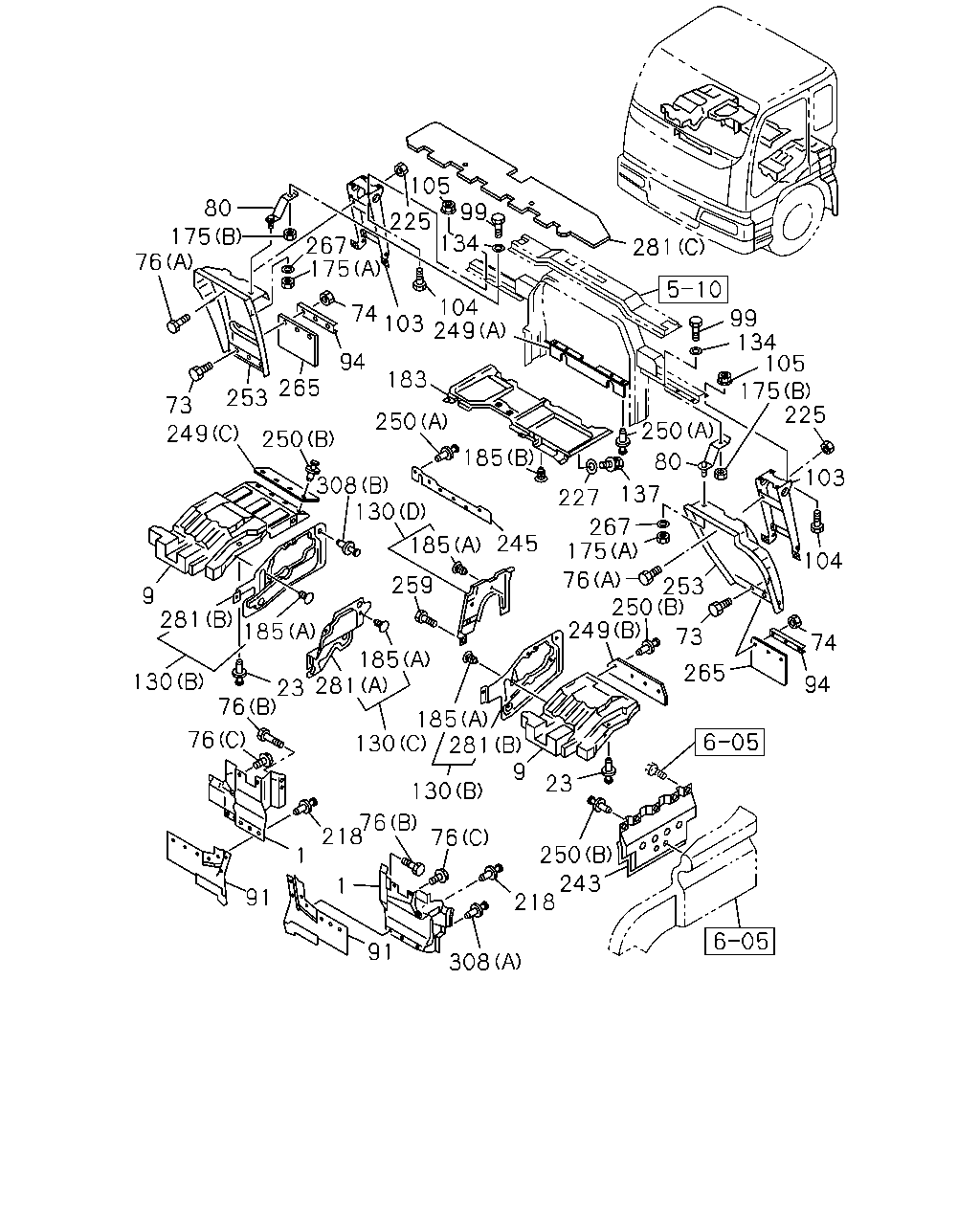

çizim 8579
105 99 80 175 76 281 225 267 175 134 104 74 103 249 99 134 105 175 225 94 183 265 253 73 249 250 250 250 103 185 80 308 130 137 227 267 175 245 185 104 76 253 250 249 259 9 281 185 73 74 185 281 265 130 94 23 76 185 9 76 23 130 76 218 76 250 1 243 218 1 91 91 308
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-4 01 1 9603-
1 GUARD; MUD,FRT 1-79937-894-5 01 1 9603-
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-908-3 01 1 9603-
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-907-3 01 1 9603-
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-893-3 01 1 9603-
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-892-3 01 1 9603-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 23 1 9603-9710
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 9711-
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 9603-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9603-9604
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9605-9606
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9607-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8X16 FLANGE 		0-28280-816-0 05 1 9605-9606
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8X16 FLANGE 		0-28280-816-0 03 1 9605-9606
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9603-9604
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9605-9606
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9607-
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8 FLANGE 		0-91150-108-0 01 1 9605-9606
74 NUT
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8 FLANGE 		0-91150-108-0 01 1 9605-9606
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9607-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9603-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9603-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 9603-
91 COVER; MUD,FRT 1-79931-200-1 01 1 9603-9904
91 COVER; MUD,FRT
EXC. FRONT SPOILER<VP1> 		1-79931-200-1 01 1 9905-9908
91 COVER; MUD,FRT 1-79931-200-1 01 1 9909-
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> 		1-79931-200-1 01 1 9909-
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-79931-200-1 01 1 9909-
91 COVER; MUD,FRT 1-79931-199-1 01 1 9603-9904
91 COVER; MUD,FRT
EXC. FRONT SPOILER<VP1> 		1-79931-199-1 01 1 9905-9908
91 COVER; MUD,FRT 1-79931-199-1 01 1 9909-
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> 		1-79931-199-1 01 1 9909-
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-79931-199-1 01 1 9909-
91 COVER; MUD,FRT
FRONT SPOILER<VP1> 		1-79931-241-1 01 1 9905-9908
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-79931-241-1 01 1 9909-
91 COVER; MUD,FRT
FRONT SPOILER<VP1> 		1-79931-240-1 01 1 9905-9908
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-79931-240-1 01 1 9909-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 9603-
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 02 1 9607-9609
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 9610-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-3 02 1 9603-9904
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 9905-
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28081-025-0 08 1 9603-9606
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28681-025-0 06 1 9607-
104 BOLT; BRKT
V TYPE ENG<91L> M10X25 FLANGE 		0-28081-025-0 07 1 9603-9606
104 BOLT; BRKT
V TYPE ENG<91L> M10X25 FLANGE 		0-28681-025-0 07 1 9607-
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-110-0 08 1 9603-9606
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-210-0 06 1 9607-
105 NUT; BRKT
V TYPE ENG<91L> M10 FLANGE 		0-91150-110-0 07 1 9603-9606
105 NUT; BRKT
V TYPE ENG<91L> M10 FLANGE 		0-91150-210-0 07 1 9607-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 9603-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 9603-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-768-3 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53193-210-0 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> 6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9905-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> 6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9603-9604
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9605-9606
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-6 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-200-3 01 1 9603-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-207-3 01 1 9603-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) 		1-53193-202-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> (A) 		1-53193-212-1 01 1 9603-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-2 01 1 9905-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9603-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-918-2 01 1 9603-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9607-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9603-
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9603-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (D) 		1-79937-920-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L),10PE1N(61L) (D) 		1-79937-920-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (C) 		1-79937-971-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L),10PE1N(61L) (C) 		1-79937-971-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (D) 		1-79937-945-1 01 1 9603-9810
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) (D) 		1-79937-945-1 01 1 9811-9904
130 PANEL; SHUTTER NOISE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (D) 		1-79937-945-1 01 1 9905-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 9805-9904
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0002-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9603-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 9603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-110-0 02 1 9603-9606
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) 		1-71907-374-0 01 1 9603-9705
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) 		1-71907-507-0 01 1 9706-9711
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) 		1-71907-539-2 01 1 9712-
185 CLIP; HEAT INSULATOR
(A) ID=6.2 L=11.4 		8-97808-623-0 05 1 9603-
185 CLIP; HEAT INSULATOR
(B) ID=6.2 L=11.4 		8-97808-623-0 06 1 9603-
218 FASTENER; RUBBER
ROUND TYPE 		1-09987-248-0 08 1 9603-9606
218 FASTENER; RUBBER
SQURE TYPE ID=6X6 OD=8 		1-09987-194-0 08 1 9607-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 9603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 9603-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-1 01 1 9603-
245 RUBBER; SHUTTER,RAD 1-79937-949-0 01 1 9603-
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9603-
249 RUBBER; SHUTTER
(A) 		1-79937-924-1 01 1 9603-
249 RUBBER; SHUTTER
(C) 		1-79937-975-0 01 1 9603-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9603-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9603-
250 FASTENER; SHUTTER
(B) D6X20 		8-94361-318-0 04 1 9603-
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-067-7 01 1 9603-
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-065-7 01 1 9603-
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-066-7 01 1 9603-
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-064-7 01 1 9603-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9603-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 9603-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 9603-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 9603-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 9603-
281 INSULATOR; NOISE
L TYPE ENG<90L> (A) 		1-71907-167-0 01 1 9603-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-3 01 1 9603-
281 INSULATOR; NOISE
10PE1S(60L) (A) 		1-71907-420-0 01 1 9603-9904
281 INSULATOR; NOISE
10PE1S(60L),10PE1N(61L) (A) 		1-71907-420-0 01 1 9905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 9603-
308 FASTENER; MUD GUARD
(B) D8X13.5 		1-09987-248-1 02 1 9603-9801
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 9802-

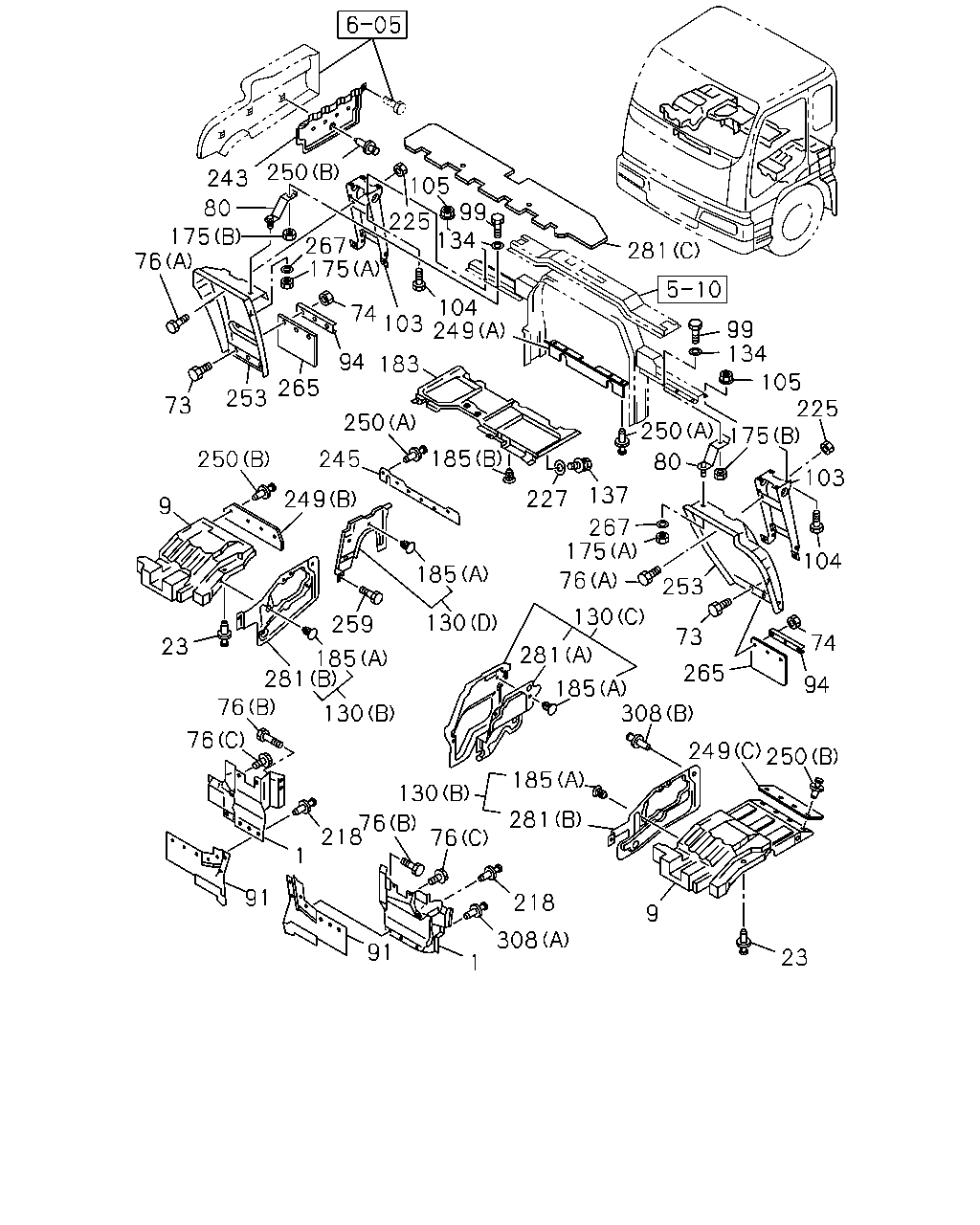

çizim 9029
250 105 243 80 175 76 99 225 134 281 267 175 104 74 103 249 99 134 94 183 105 225 175 265 253 73 250 250 103 185 245 250 80 137 227 249 9 267 175 104 185 76 253 130 130 259 73 74 23 281 185 281 76 265 94 185 308 130 76 249 250 185 130 281 76 218 76 1 91 218 9 91 308 23 1
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-4 01 1 9603-
1 GUARD; MUD,FRT 1-79937-894-5 01 1 9603-
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-908-3 01 1 9603-
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-907-3 01 1 9603-
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-893-3 01 1 9603-
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-892-3 01 1 9603-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 23 1 9603-9710
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 9711-
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 9603-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9603-9604
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9605-9606
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9607-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8X16 FLANGE 		0-28280-816-0 05 1 9605-9606
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8X16 FLANGE 		0-28280-816-0 03 1 9605-9606
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9603-9604
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9605-9606
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9607-
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8 FLANGE 		0-91150-108-0 01 1 9605-9606
74 NUT
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8 FLANGE 		0-91150-108-0 01 1 9605-9606
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9607-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9603-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9603-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 9603-
91 COVER; MUD,FRT 1-79931-200-1 01 1 9603-9904
91 COVER; MUD,FRT
EXC. FRONT SPOILER<VP1> 		1-79931-200-1 01 1 9905-9908
91 COVER; MUD,FRT 1-79931-200-1 01 1 9909-
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> 		1-79931-200-1 01 1 9909-
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-79931-200-1 01 1 9909-
91 COVER; MUD,FRT 1-79931-199-1 01 1 9603-9904
91 COVER; MUD,FRT
EXC. FRONT SPOILER<VP1> 		1-79931-199-1 01 1 9905-9908
91 COVER; MUD,FRT 1-79931-199-1 01 1 9909-
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> 		1-79931-199-1 01 1 9909-
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-79931-199-1 01 1 9909-
91 COVER; MUD,FRT
FRONT SPOILER<VP1> 		1-79931-241-1 01 1 9905-9908
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-79931-241-1 01 1 9909-
91 COVER; MUD,FRT
FRONT SPOILER<VP1> 		1-79931-240-1 01 1 9905-9908
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-79931-240-1 01 1 9909-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 9603-
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 02 1 9607-9609
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 9610-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-3 02 1 9603-9904
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 9905-
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28081-025-0 08 1 9603-9606
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28681-025-0 06 1 9607-
104 BOLT; BRKT
V TYPE ENG<91L> M10X25 FLANGE 		0-28081-025-0 07 1 9603-9606
104 BOLT; BRKT
V TYPE ENG<91L> M10X25 FLANGE 		0-28681-025-0 07 1 9607-
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-110-0 08 1 9603-9606
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-210-0 06 1 9607-
105 NUT; BRKT
V TYPE ENG<91L> M10 FLANGE 		0-91150-110-0 07 1 9603-9606
105 NUT; BRKT
V TYPE ENG<91L> M10 FLANGE 		0-91150-210-0 07 1 9607-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 9603-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 9603-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-768-3 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53193-210-0 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> 6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9905-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> 6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9603-9604
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9605-9606
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-6 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-200-3 01 1 9603-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-207-3 01 1 9603-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) 		1-53193-202-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> (A) 		1-53193-212-1 01 1 9603-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-2 01 1 9905-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9603-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-918-2 01 1 9603-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9607-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9603-
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9603-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (D) 		1-79937-920-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L),10PE1N(61L) (D) 		1-79937-920-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (C) 		1-79937-971-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L),10PE1N(61L) (C) 		1-79937-971-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (D) 		1-79937-945-1 01 1 9603-9810
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) (D) 		1-79937-945-1 01 1 9811-9904
130 PANEL; SHUTTER NOISE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (D) 		1-79937-945-1 01 1 9905-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 9805-9904
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0002-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9603-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 9603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-110-0 02 1 9603-9606
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) 		1-71907-374-0 01 1 9603-9705
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) 		1-71907-507-0 01 1 9706-9711
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) 		1-71907-539-2 01 1 9712-
185 CLIP; HEAT INSULATOR
(A) ID=6.2 L=11.4 		8-97808-623-0 05 1 9603-
185 CLIP; HEAT INSULATOR
(B) ID=6.2 L=11.4 		8-97808-623-0 06 1 9603-
218 FASTENER; RUBBER
ROUND TYPE 		1-09987-248-0 08 1 9603-9606
218 FASTENER; RUBBER
SQURE TYPE ID=6X6 OD=8 		1-09987-194-0 08 1 9607-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 9603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 9603-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-1 01 1 9603-
245 RUBBER; SHUTTER,RAD 1-79937-949-0 01 1 9603-
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9603-
249 RUBBER; SHUTTER
(A) 		1-79937-924-1 01 1 9603-
249 RUBBER; SHUTTER
(C) 		1-79937-975-0 01 1 9603-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9603-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9603-
250 FASTENER; SHUTTER
(B) D6X20 		8-94361-318-0 04 1 9603-
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-067-7 01 1 9603-
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-065-7 01 1 9603-
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-066-7 01 1 9603-
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-064-7 01 1 9603-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9603-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 9603-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 9603-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 9603-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 9603-
281 INSULATOR; NOISE
L TYPE ENG<90L> (A) 		1-71907-167-0 01 1 9603-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-3 01 1 9603-
281 INSULATOR; NOISE
10PE1S(60L) (A) 		1-71907-420-0 01 1 9603-9904
281 INSULATOR; NOISE
10PE1S(60L),10PE1N(61L) (A) 		1-71907-420-0 01 1 9905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 9603-
308 FASTENER; MUD GUARD
(B) D8X13.5 		1-09987-248-1 02 1 9603-9801
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 9802-

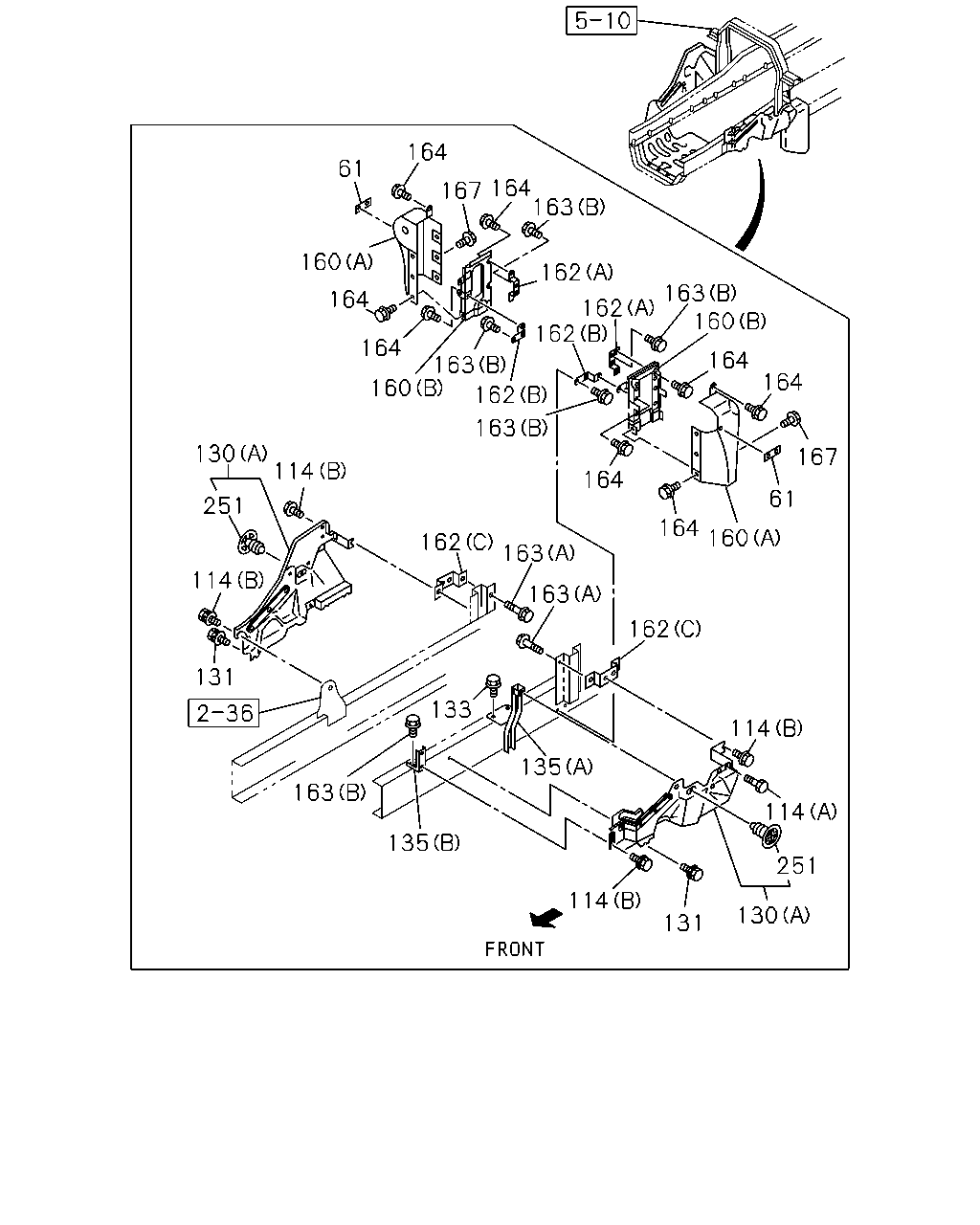

çizim 9795
164 61 164 163 167 160 162 163 160 164 162 162 164 164 163 160 164 162 163 130 114 167 164 61 251 164 160 162 163 114 163 162 131 133 114 135 163 114 251 135 114 130 131
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER
V TYPE ENG<91L> 		1-53441-536-1 02 1 9603-
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (A) M8X16 FLANGE 		0-28280-816-0 02 1 9603-9603
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9608-
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9603-9606
114 BOLT
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9607-
114 BOLT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 9605-9606
114 BOLT
L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9607-
114 BOLT
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 9603-9904
114 BOLT
10PE1S(60L),10PE1N(61L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 9905-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 9603-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 9603-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-768-3 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53193-210-0 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> 6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9905-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> 6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9603-9604
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9605-9606
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-6 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-200-3 01 1 9603-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-207-3 01 1 9603-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) 		1-53193-202-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> (A) 		1-53193-212-1 01 1 9603-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-2 01 1 9905-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9603-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-918-2 01 1 9603-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9607-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9603-
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9603-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (D) 		1-79937-920-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L),10PE1N(61L) (D) 		1-79937-920-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (C) 		1-79937-971-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L),10PE1N(61L) (C) 		1-79937-971-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (D) 		1-79937-945-1 01 1 9603-9810
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) (D) 		1-79937-945-1 01 1 9811-9904
130 PANEL; SHUTTER NOISE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (D) 		1-79937-945-1 01 1 9905-
131 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603-9606
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9607-
131 BOLT; PANEL
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9605-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28280-825-0 04 1 9603-9603
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 04 1 9604-9604
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 03 1 9605-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28680-825-0 03 1 9607-9904
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28280-830-0 01 1 9603-9603
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 01 1 9604-9604
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 02 1 9605-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9904
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X35 FLANGE 		0-28280-835-0 01 1 9603-9603
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X35 FLANGE 		0-28080-835-0 01 1 9604-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X35 FLANGE 		0-28680-835-0 01 1 9607-9904
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28280-825-0 04 1 9603-9603
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 04 1 9604-9606
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 04 1 9607-9607
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 04 1 9609-
133 BOLT; FRAME
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28280-825-0 02 1 9603-9603
133 BOLT; FRAME
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606
133 BOLT; FRAME
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904
133 BOLT; FRAME
10PE1S(60L),10PE1N(61L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 02 1 9905-
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-507-0 01 1 9603-
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9603-9606
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9607-9611
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9612-0012
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (A) 		1-53441-598-0 01 1 0101-
135 BRACKET; SIDE PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (C) 		1-47477-180-1 01 1 9603-9904
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9603-9611
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 9612-
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9612-
160 COVER ASM; EXH
V TYPE ENG<91L> (A) 		1-79931-063-1 01 1 9603-
160 COVER ASM; EXH
V TYPE ENG<91L> (B) 		1-79931-111-0 01 1 9603-
160 COVER ASM; EXH
V TYPE ENG<91L> (B) 		1-79931-061-1 01 1 9603-
160 COVER ASM; EXH
V TYPE ENG<91L> (A) 		1-79931-256-1 01 1 9603-
162 BRACKET
ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-520-0 02 1 9603-9606
162 BRACKET
(C) 		1-53441-520-0 02 1 9607-
162 BRACKET
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-520-0 01 1 9605-9606
162 BRACKET
V TYPE ENG<91L> (A) 		1-53441-521-2 02 1 9603-
162 BRACKET
V TYPE ENG<91L> (B) 		1-53441-522-0 02 1 9603-
163 BOLT; BRKT
ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606
163 BOLT; BRKT
ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9607
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9608-
163 BOLT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9605-9606
163 BOLT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607
163 BOLT; BRKT
V TYPE ENG<91L> (B) M8X25 FLANGE 		0-28080-825-0 06 1 9603-9606
163 BOLT; BRKT
V TYPE ENG<91L> (B) M8X25 FLANGE 		0-28680-825-0 06 1 9607-
164 BOLT; FLEX COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 06 1 9603-9603
164 BOLT; FLEX COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 10 1 9604-9606
164 BOLT; FLEX COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28680-820-0 10 1 9607-
164 BOLT; FLEX COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28280-820-0 04 1 9603-9603
167 BOLT; EXH COVER
V TYPE ENG<91L> M8X16 FLANGE 		0-28280-816-0 12 1 9603-9603
167 BOLT; EXH COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 12 1 9604-9606
167 BOLT; EXH COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28680-820-0 12 1 9607-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9603-9604
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94279-048-0 10 1 9605-9606
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9605-9606
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9607-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> 		8-94279-048-0 07 1 9603-9904
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> 		8-94279-048-0 08 1 9603-9904
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9603-9604
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9605-9606
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9607-
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94279-048-0 04 1 9605-9606
251 CLIP; NOISE INSULATOR
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> 		8-94279-048-0 30 1 9603-9904

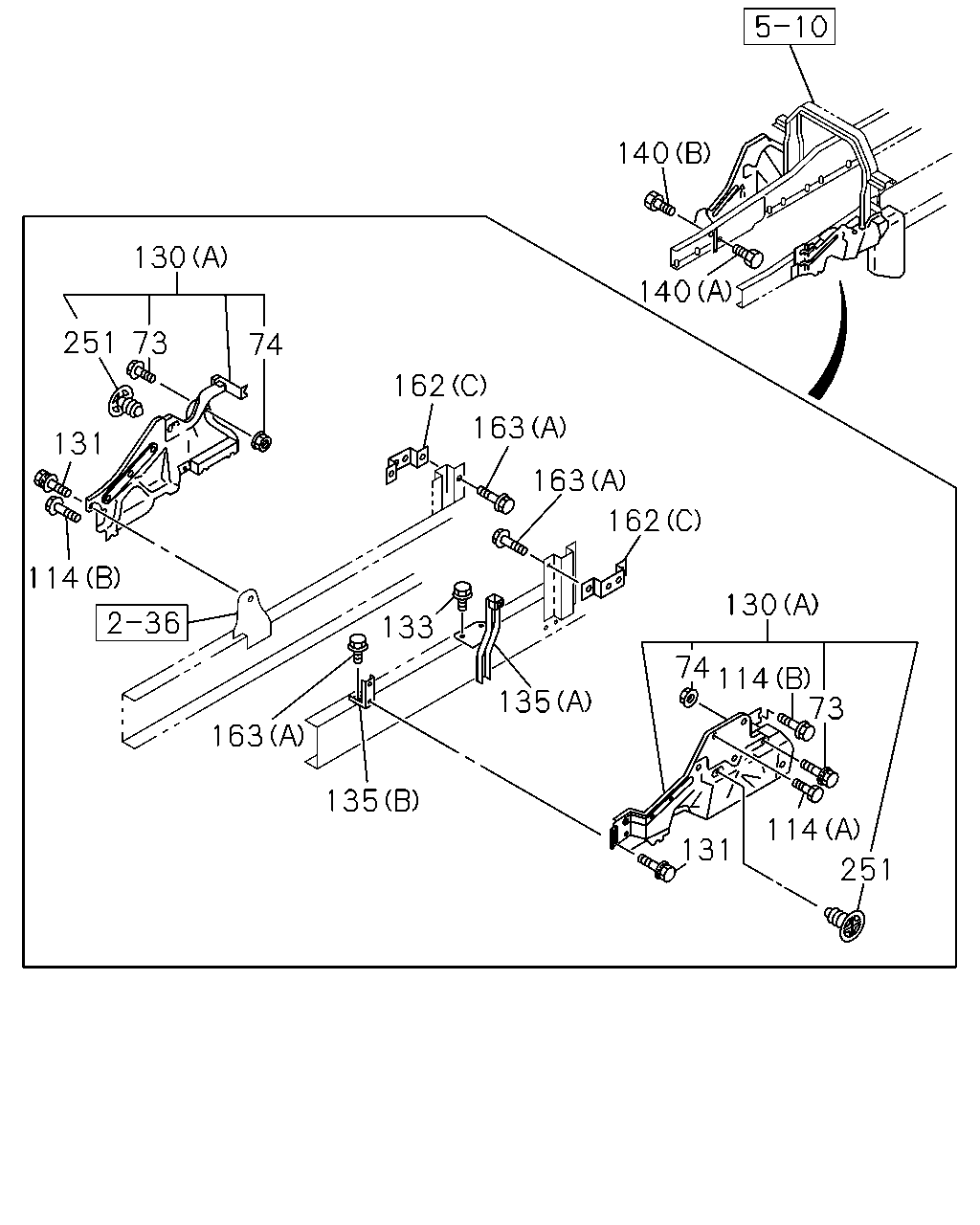

çizim 38982
140 130 140 251 73 74 162 163 131 163 162 114 130 133 74 114 73 135 163 135 114 131 251
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 9603-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9603-9604
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9605-9606
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9607-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8X16 FLANGE 		0-28280-816-0 05 1 9605-9606
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8X16 FLANGE 		0-28280-816-0 03 1 9605-9606
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9603-9604
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9605-9606
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9607-
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8 FLANGE 		0-91150-108-0 01 1 9605-9606
74 NUT
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M8 FLANGE 		0-91150-108-0 01 1 9605-9606
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9607-
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (A) M8X16 FLANGE 		0-28280-816-0 02 1 9603-9603
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9608-
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9603-9606
114 BOLT
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9607-
114 BOLT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 9605-9606
114 BOLT
L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9607-
114 BOLT
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 9603-9904
114 BOLT
10PE1S(60L),10PE1N(61L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 9905-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 9603-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 9603-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-768-3 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53193-210-0 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> 6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9603-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9905-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> 6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9603-9604
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9605-9606
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-6 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-200-3 01 1 9603-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-207-3 01 1 9603-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) 		1-53193-202-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9607-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> (A) 		1-53193-212-1 01 1 9603-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-2 01 1 9905-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9603-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-918-2 01 1 9603-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9607-
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9603-
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9603-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (D) 		1-79937-920-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L),10PE1N(61L) (D) 		1-79937-920-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (C) 		1-79937-971-2 01 1 9603-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L),10PE1N(61L) (C) 		1-79937-971-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (D) 		1-79937-945-1 01 1 9603-9810
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) (D) 		1-79937-945-1 01 1 9811-9904
130 PANEL; SHUTTER NOISE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (D) 		1-79937-945-1 01 1 9905-
131 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603-9606
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9607-
131 BOLT; PANEL
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9605-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28280-825-0 04 1 9603-9603
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 04 1 9604-9604
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 03 1 9605-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28680-825-0 03 1 9607-9904
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28280-830-0 01 1 9603-9603
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 01 1 9604-9604
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 02 1 9605-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9904
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X35 FLANGE 		0-28280-835-0 01 1 9603-9603
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X35 FLANGE 		0-28080-835-0 01 1 9604-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X35 FLANGE 		0-28680-835-0 01 1 9607-9904
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28280-825-0 04 1 9603-9603
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 04 1 9604-9606
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 04 1 9607-9607
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 04 1 9609-
133 BOLT; FRAME
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28280-825-0 02 1 9603-9603
133 BOLT; FRAME
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606
133 BOLT; FRAME
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904
133 BOLT; FRAME
10PE1S(60L),10PE1N(61L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 02 1 9905-
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-507-0 01 1 9603-
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9603-9606
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9607-9611
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9612-0012
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (A) 		1-53441-598-0 01 1 0101-
135 BRACKET; SIDE PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (C) 		1-47477-180-1 01 1 9603-9904
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9603-9611
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 9612-
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9612-
140 BOLT; SIDE PANEL
L TYPE ENG<90L> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9903-
140 BOLT; SIDE PANEL
L TYPE ENG<90L> (B) M8X30 FLANGE 		0-28680-830-0 02 1 9903-
162 BRACKET
ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-520-0 02 1 9603-9606
162 BRACKET
(C) 		1-53441-520-0 02 1 9607-
162 BRACKET
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-520-0 01 1 9605-9606
162 BRACKET
V TYPE ENG<91L> (A) 		1-53441-521-2 02 1 9603-
162 BRACKET
V TYPE ENG<91L> (B) 		1-53441-522-0 02 1 9603-
163 BOLT; BRKT
ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606
163 BOLT; BRKT
ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9607
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9608-
163 BOLT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9605-9606
163 BOLT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607
163 BOLT; BRKT
V TYPE ENG<91L> (B) M8X25 FLANGE 		0-28080-825-0 06 1 9603-9606
163 BOLT; BRKT
V TYPE ENG<91L> (B) M8X25 FLANGE 		0-28680-825-0 06 1 9607-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9603-9604
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94279-048-0 10 1 9605-9606
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9605-9606
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9607-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> 		8-94279-048-0 07 1 9603-9904
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> 		8-94279-048-0 08 1 9603-9904
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9603-9604
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9605-9606
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9607-
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94279-048-0 04 1 9605-9606
251 CLIP; NOISE INSULATOR
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> 		8-94279-048-0 30 1 9603-9904

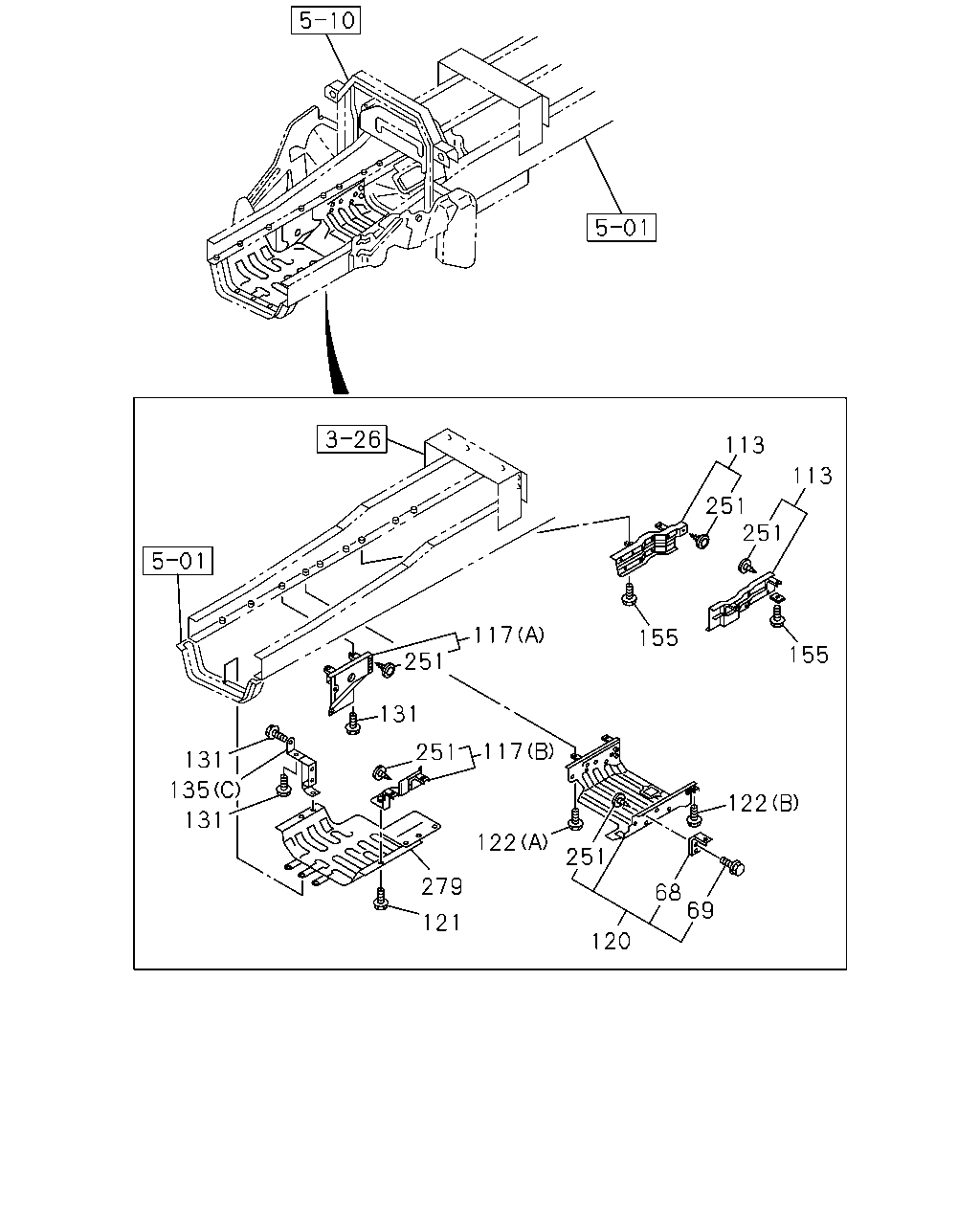

çizim 42403
113 113 251 251 117 155 155 251 131 117 251 131 135 122 131 122 251 279 68 69 121 120
BalonParca AdiParca NoAdetTipApplied Date
68 STAY; COVER
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> 		1-53441-541-0 02 1 9603-9904
68 STAY; COVER
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> 		1-53441-542-0 02 1 9603-9904
69 BOLT; COVER TO STAY
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X16 FLANGE 		0-28280-816-0 08 1 9603-9904
113 PANEL; SIDE
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> 		1-53192-871-2 01 1 9603-9904
113 PANEL; SIDE
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> 		1-53192-869-0 01 1 9603-9904
117 PANEL; SIDE,B UNDER
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (A) 		1-53192-607-0 01 1 9603-9904
117 PANEL; SIDE,B UNDER
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (B) 		1-53192-890-3 01 1 9603-9904
120 PANEL; UNDER
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> 		1-53192-892-3 01 1 9603-9904
121 BOLT
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X16 FLANGE 		0-28280-816-0 07 1 9603-9603
121 BOLT
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 07 1 9604-9606
121 BOLT
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X20 FLANGE 		0-28680-820-0 07 1 9607-9904
122 BOLT
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (A) M8X25 FLANGE 		0-28280-825-0 02 1 9603-9603
122 BOLT
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (A) M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606
122 BOLT
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904
122 BOLT
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (B) M8X35 FLANGE 		0-28280-835-0 02 1 9603-9603
122 BOLT
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (B) M8X35 FLANGE 		0-28080-835-0 02 1 9604-9606
122 BOLT
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (B) M8X35 FLANGE 		0-28680-835-0 02 1 9607-9904
131 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603-9606
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9607-
131 BOLT; PANEL
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9605-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28280-825-0 04 1 9603-9603
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 04 1 9604-9604
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 03 1 9605-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28680-825-0 03 1 9607-9904
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28280-830-0 01 1 9603-9603
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 01 1 9604-9604
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 02 1 9605-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X30 FLANGE 		0-28680-830-0 02 1 9607-9904
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X35 FLANGE 		0-28280-835-0 01 1 9603-9603
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X35 FLANGE 		0-28080-835-0 01 1 9604-9606
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X35 FLANGE 		0-28680-835-0 01 1 9607-9904
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-507-0 01 1 9603-
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9603-9606
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9607-9611
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9612-0012
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (A) 		1-53441-598-0 01 1 0101-
135 BRACKET; SIDE PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> (C) 		1-47477-180-1 01 1 9603-9904
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9603-9611
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 9612-
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9612-
155 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28280-825-0 04 1 9603-9603
155 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 04 1 9604-9606
155 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> M8X25 FLANGE 		0-28680-825-0 04 1 9607-9904
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9603-9604
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94279-048-0 10 1 9605-9606
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9605-9606
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9607-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> 		8-94279-048-0 07 1 9603-9904
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> 		8-94279-048-0 08 1 9603-9904
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9603-9604
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9605-9606
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9607-
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94279-048-0 04 1 9605-9606
251 CLIP; NOISE INSULATOR
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> 		8-94279-048-0 30 1 9603-9904
279 COVER; UNDER
TAIWAN EQUIPMENT(WW5) V TYPE ENG<91L> 		1-53192-889-3 01 1 9603-9904
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
