Sayfa 0-57 - Isuzu EPC

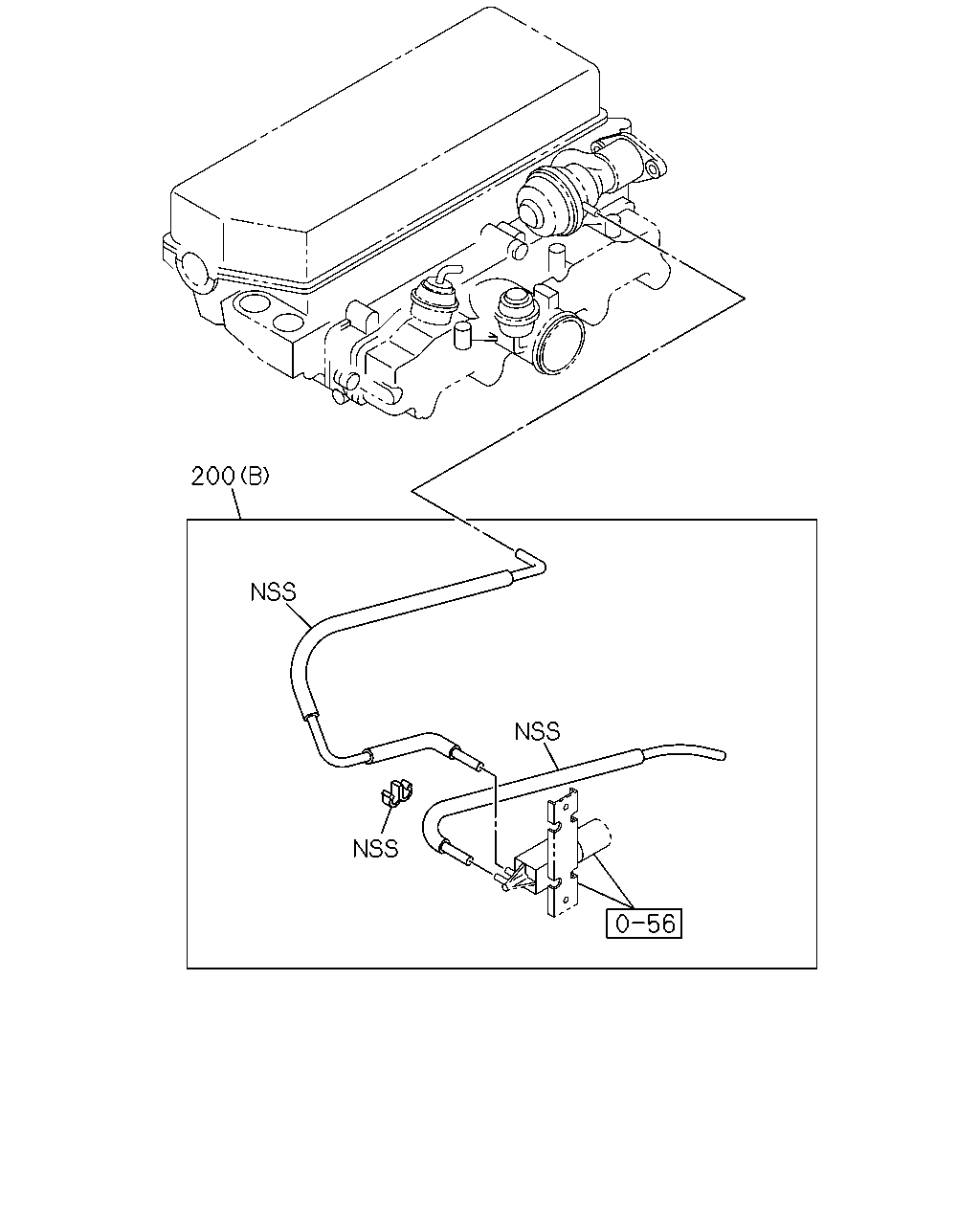

0-57 — EMISSION PIPING (#46148) — 315 parça

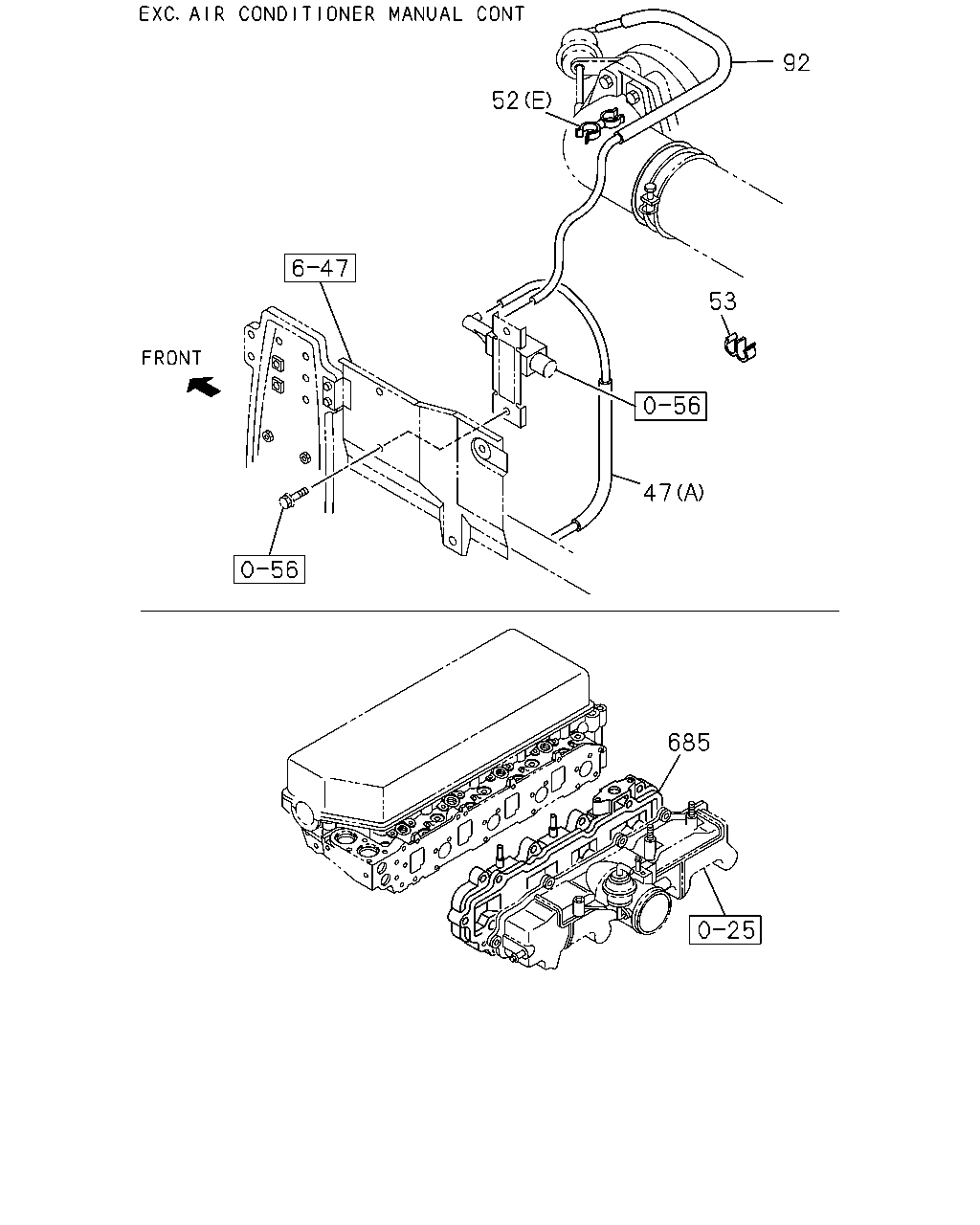

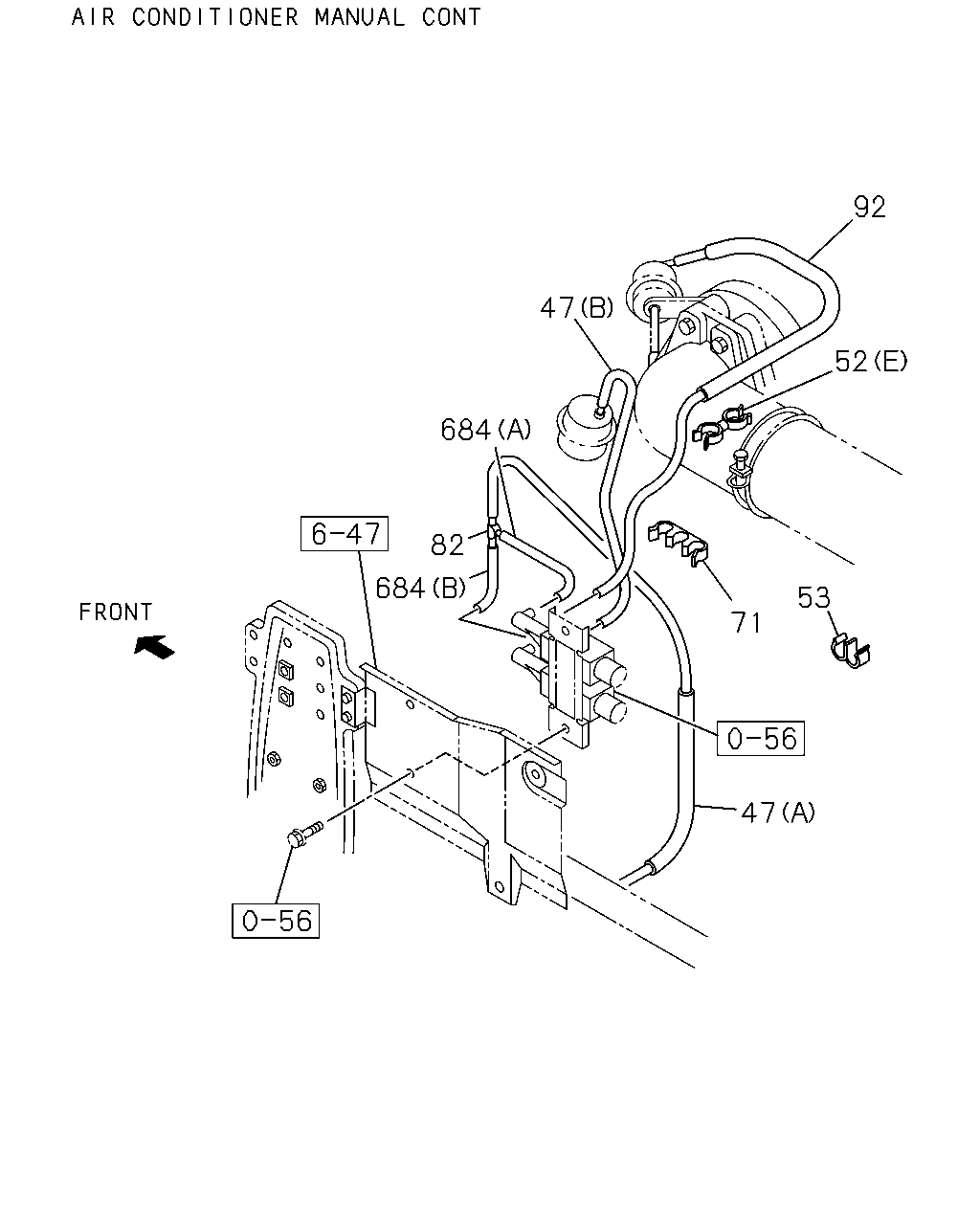

92 47 52 684 82 684 53 71 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B) L=260	8-97037-964-1	01	1	0502-		●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A) L=160	8-97119-143-1	01	1	0211-0501	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A) L=160	8-97119-143-1	01	1	0502-		●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A) L=200	8-97119-311-0	01	1	0211-0501	●		●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A) L=200	8-97119-311-0	01	1	0502-		●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> (E) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0501	●		●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> (E) ID=7.5 & 7.5	8-97019-084-0	01	1	0502-		●	●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0211-0501				●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0502-					●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0211-0501				●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0502-					●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0211-0501				●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0502-					●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0211-0501				●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0502-					●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	0211-0501	●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=6.8X2	8-94126-636-0	01	1	0211-0501			●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	0502-			●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=6.8X2	8-94126-636-0	01	1	0502-		●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0211-0501	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0502-		●	●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	0211-0501	●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	0502-		●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> L=520	8-97089-490-2	01	1	0211-0501	●		●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> L=520	8-97089-490-2	01	1	0502-		●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	0502-1006		●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1007-		●	●			●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	0502-1006		●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1007-		●	●			●

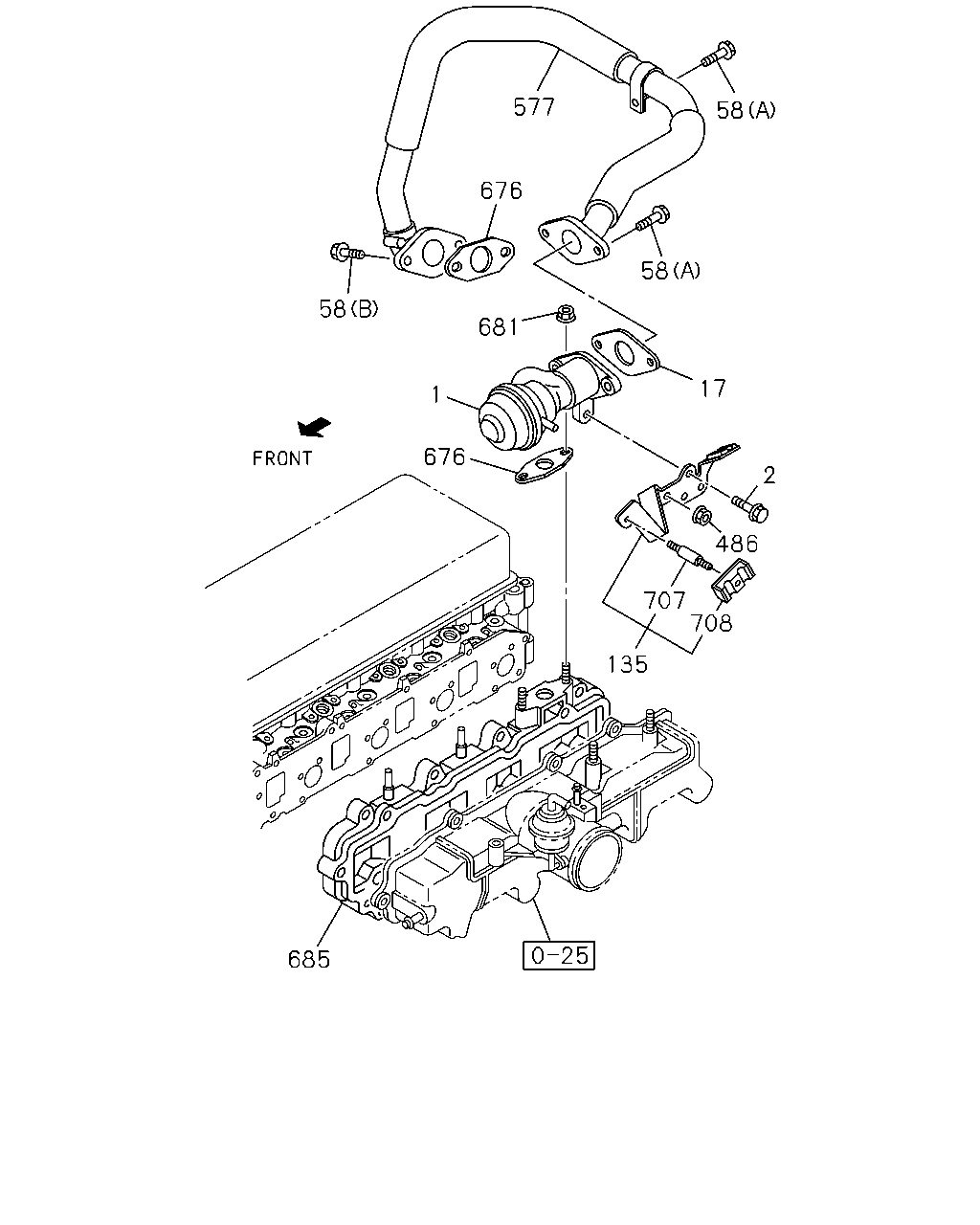

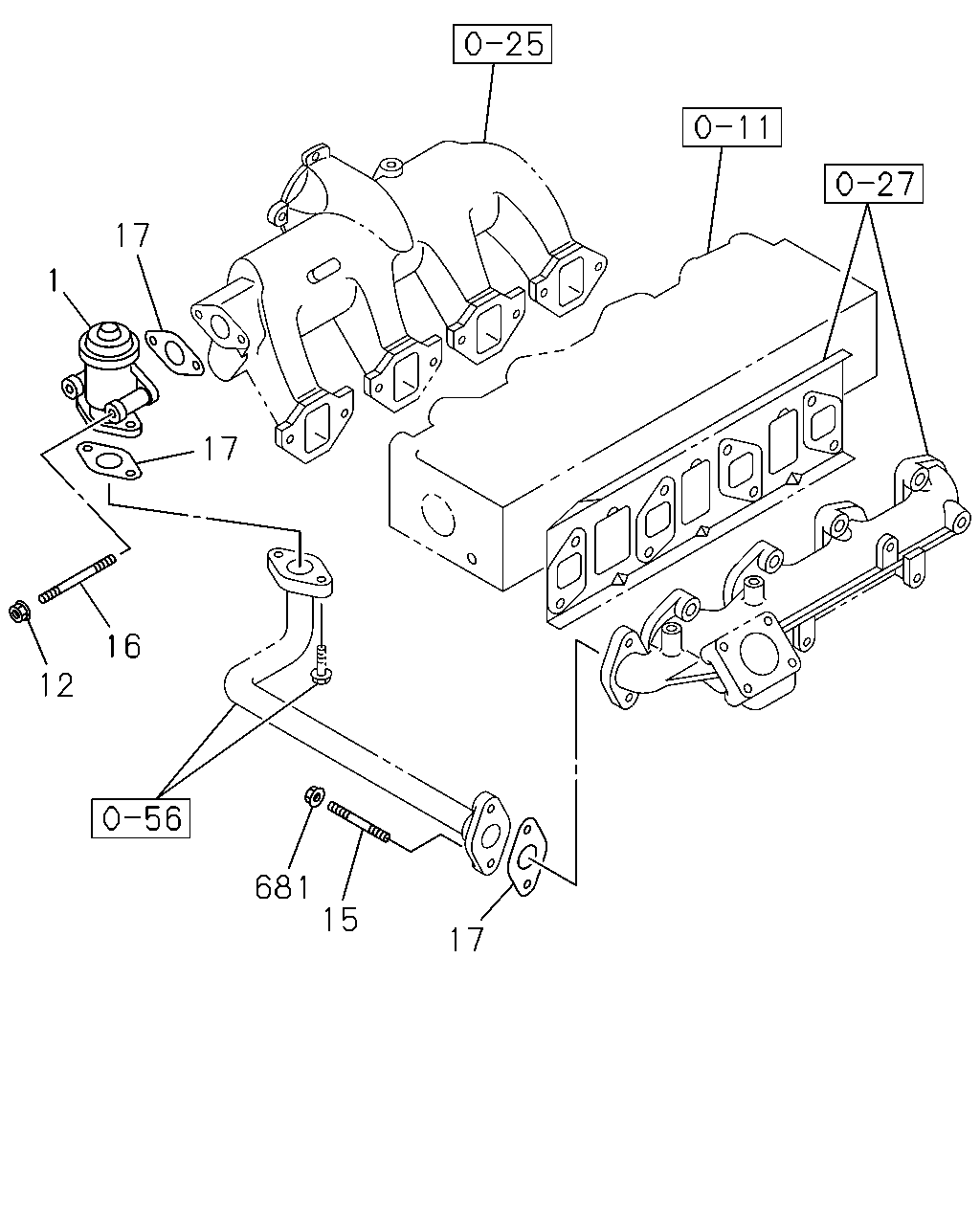

17 1 17 16 12 681 15 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F	G
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0211-0501	●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0502-0609		●
1	03.670 VALVE; EGR	8-97208-656-4	01	1	0610-		●		●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0610-1404			●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2014(VZE)	8-97115-533-3	01	1	1405-1405			●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2015(VZF)	8-97115-533-3	01	1	1406-			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-		●		●
15	03.670 STUD; EGR PIPE 01.073 M8X22 L=34	0-41010-822-0	02	1	1210-			●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0211-0408	●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0409-0501	●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0502-		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0610-				●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0211-0501	●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0502-0604		●
16	03.275 STUD; EGR VLV 01.097 M8X55 L=67	0-41010-855-0	02	1	0605-0609		●
16	03.275 STUD; EGR VLV 01.097 M8X55 L=67	0-41010-855-0	02	1	0610-		●		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98210-153-0	01	1	1212-1404			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE)	8-98210-153-0	01	1	1405-1405			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF)	8-98210-153-0	01	1	1406-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97113-023-0	01	1	0610-1211			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S)	8-97113-023-0	01	1	1212-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97192-765-0	03	1	0610-				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0211-0501	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0502-		●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-1404			●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-1405			●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1406-			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-				●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	93	03.675 HOSE ASM TURBOCHARGER<K51>	8-97216-313-0	01	1	0211-0501								●

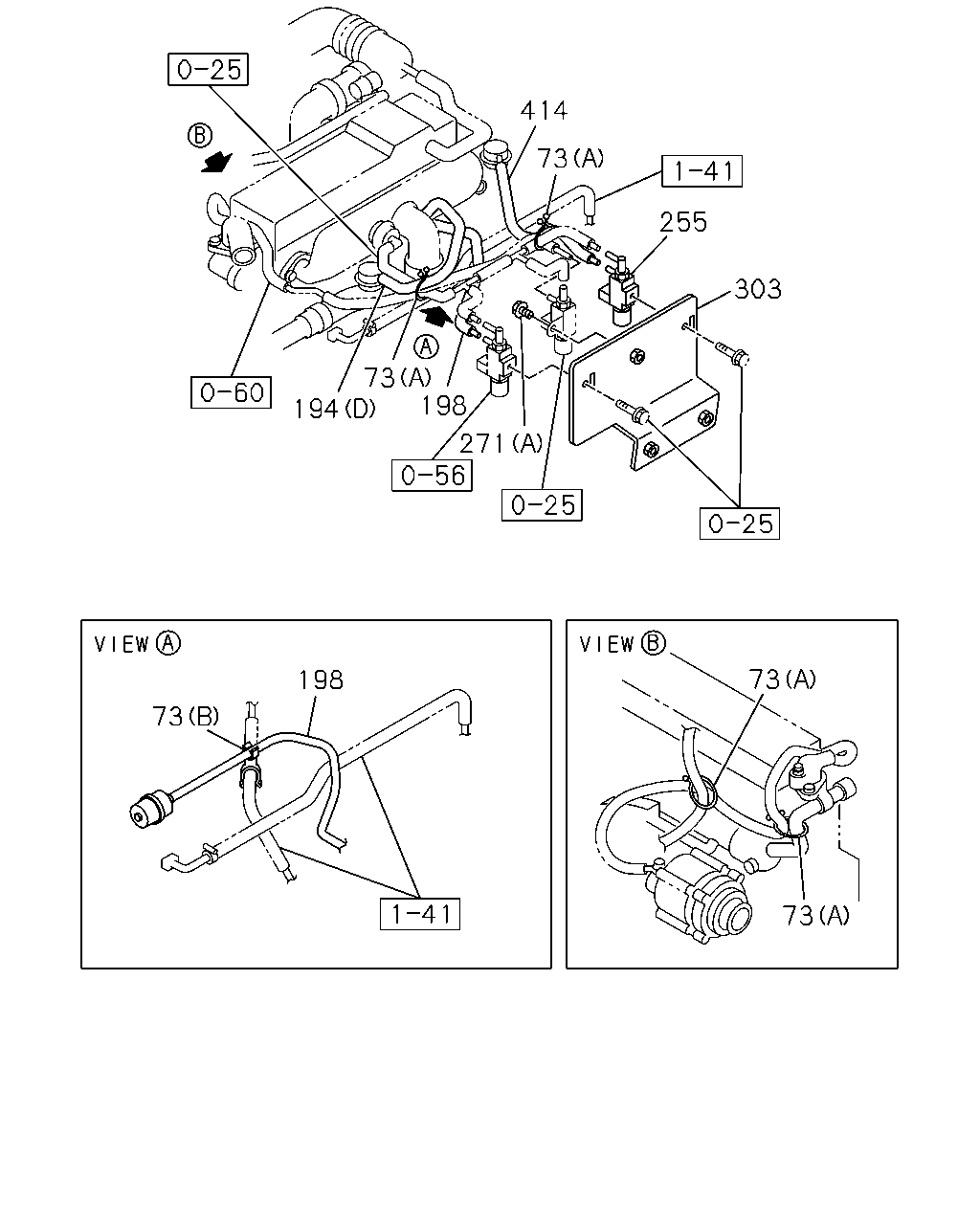

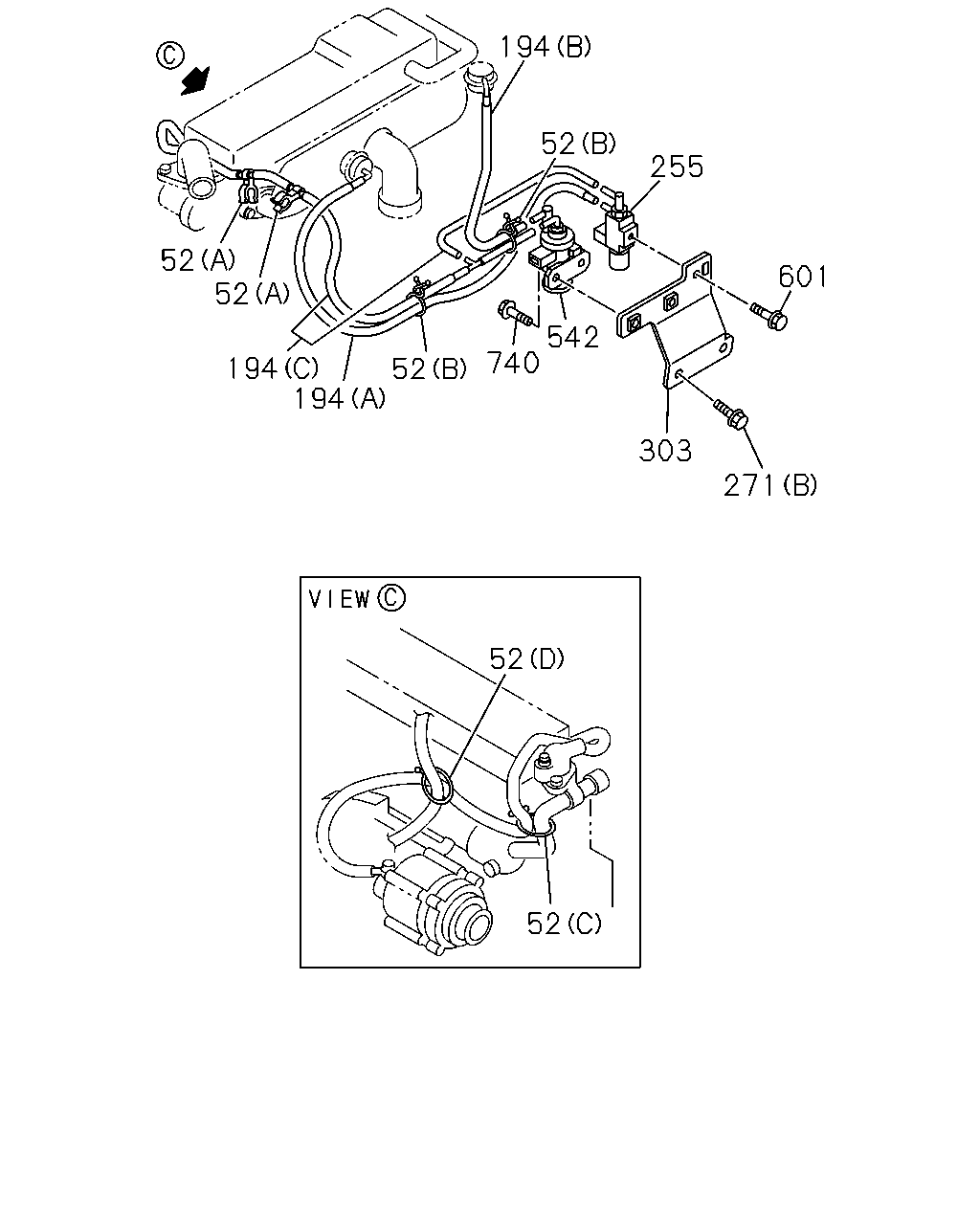

194 52 255 52 52 601 542 740 194 194 52 303 271 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	G	H
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> (E) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0501	●		●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> (E) ID=7.5 & 7.5	8-97019-084-0	01	1	0502-		●	●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0211-0501				●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0502-					●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0211-0501				●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0502-					●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0211-0501				●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0502-					●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0211-0501				●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0502-					●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0211-0501				●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0502-					●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0211-0501				●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0502-					●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0211-0501				●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0502-					●
194	03.675 HOSE; VAC (D)	8-97208-495-0	01	1	0610-						●
255	03.675 VALVE; VAC SW,EGR CONT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97171-030-0	01	1	0211-0501							●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0211-0501				●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0502-0609					●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0610-					●	●
271	03.675 BOLT; BRKT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501							●
271	03.675 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501				●
271	03.675 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512					●
271	03.675 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0609					●
271	03.675 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-					●	●
271	03.675 BOLT; BRKT 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0501				●
271	03.675 BOLT; BRKT 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0502-0512					●
271	03.675 BOLT; BRKT 04.338 (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-					●
303	03.671 BRACKET; VAC SW TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97225-561-0	01	1	0211-0501							●
303	03.671 BRACKET; VAC SW	8-97361-243-0	01	1	0211-0501				●
303	03.671 BRACKET; VAC SW	8-97361-243-0	01	1	0502-					●
303	03.671 BRACKET; VAC SW	8-97225-561-0	01	1	0610-						●
542	03.670 VALVE; VAC REGULATING	8-97240-699-0	01	1	0211-0501				●
542	03.670 VALVE; VAC REGULATING	8-97240-699-0	01	1	0502-					●
601	03.417 SCREW; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0211-0501				●
601	03.417 SCREW; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0502-0604					●
601	03.417 SCREW; VSV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0605-					●
740	03.680 BOLT; VAC REG VALVE 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0501				●
740	03.680 BOLT; VAC REG VALVE 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0512					●
740	03.680 BOLT; VAC REG VALVE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-					●

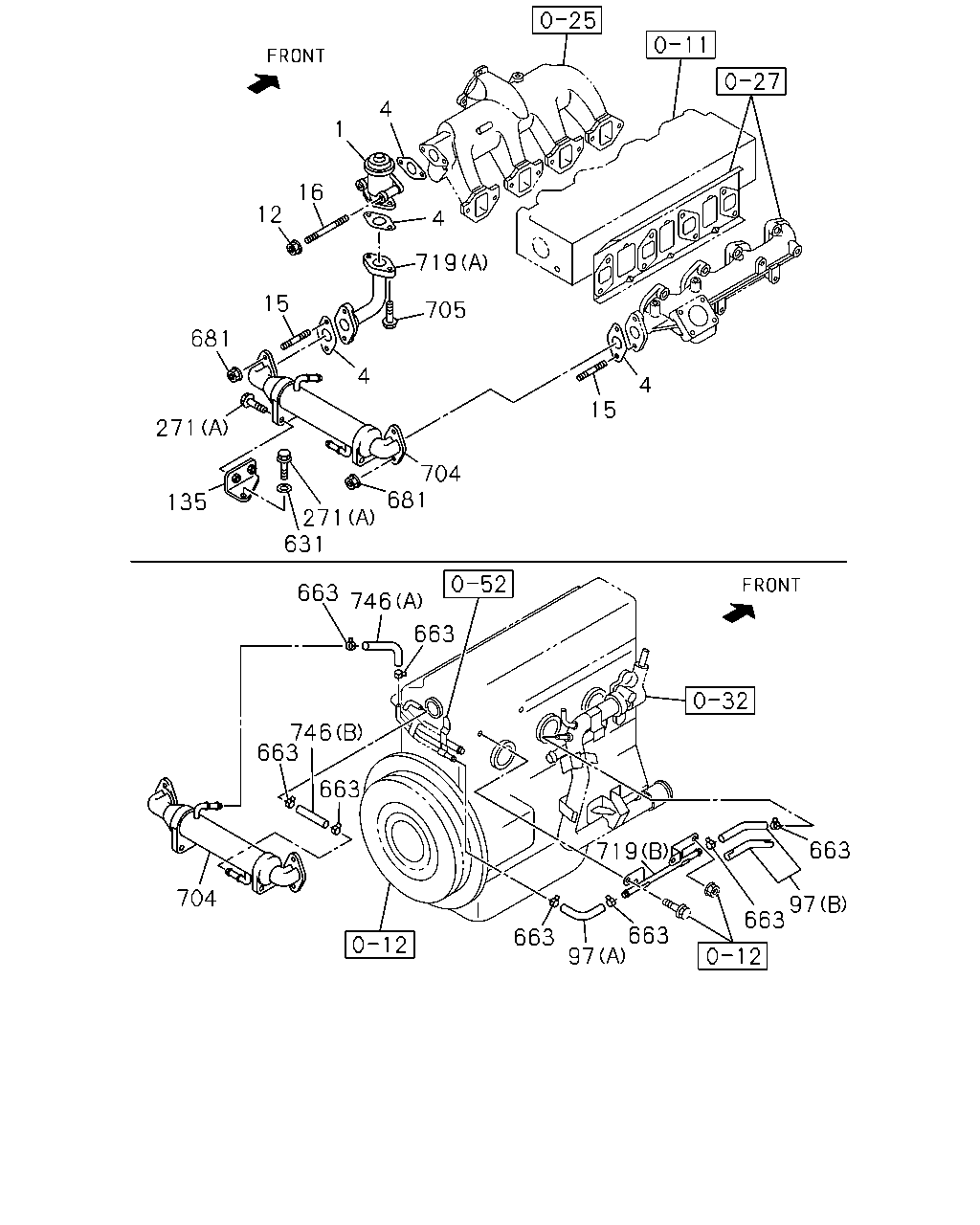

4 1 16 12 4 719 15 705 681 4 4 15 271 704 681 135 271 631 663 746 663 746 663 663 719 663 704 97 663 663 663 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F	G	H
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0211-0501	●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0502-0609		●
1	03.670 VALVE; EGR	8-97208-656-4	01	1	0610-		●		●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0610-1404			●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2014(VZE)	8-97115-533-3	01	1	1405-1405			●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2015(VZF)	8-97115-533-3	01	1	1406-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE) . 03.665	8-97192-765-0	04	1	0211-0501	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE) . 03.665	8-97192-765-0	04	1	0502-		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-		●		●
15	03.670 STUD; EGR PIPE 01.073 M8X22 L=34	0-41010-822-0	02	1	1210-			●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0211-0408	●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0409-0501	●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0502-		●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0610-				●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0211-0501	●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0502-0604		●
16	03.275 STUD; EGR VLV 01.097 M8X55 L=67	0-41010-855-0	02	1	0605-0609		●
16	03.275 STUD; EGR VLV 01.097 M8X55 L=67	0-41010-855-0	02	1	0610-		●		●
97	03.675 HOSE; RUBBER (A)	8-97240-636-0	01	1	0211-0501	●
97	03.675 HOSE; RUBBER (A)	8-97240-636-0	01	1	0502-		●
97	03.675 HOSE; RUBBER (B)	8-97312-730-0	01	1	0211-0501	●
97	03.675 HOSE; RUBBER (B)	8-97312-730-0	01	1	0502-		●
135	03.680 BRACKET; EGR	8-97247-717-2	01	1	0211-0501	●
135	03.680 BRACKET; EGR	8-97247-717-2	01	1	0502-		●
135	03.680 BRACKET; EGR	8-97221-358-1	01	1	0610-			●
271	03.675 BOLT; BRKT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501					●
271	03.675 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●
271	03.675 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
271	03.675 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0609		●
271	03.675 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-		●		●
271	03.675 BOLT; BRKT 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0501	●
271	03.675 BOLT; BRKT 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0502-0512		●
271	03.675 BOLT; BRKT 04.338 (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
631	03.417 WASHER; PL,BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	0211-0501	●
631	03.417 WASHER; PL,BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	0502-0605		●
631	03.417 WASHER; PL,BRKT 06.168 ID=8.4 OD=18	0-91610-608-0	01	1	0606-		●
663	03.417 CLIP; HOSE 01.153 ID=12.8	8-94367-943-0	08	1	0211-0501	●
663	03.417 CLIP; HOSE 01.153 ID=12.8	8-94367-943-0	08	1	0502-		●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0211-0501	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0502-		●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-1404			●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-1405			●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1406-			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-				●
704	03.337 COOLER ASM; EGR	8-97239-982-3	01	1	0211-0501	●
704	03.337 COOLER ASM; EGR	8-97239-982-4	01	1	0502-		●
705	03.675 BOLT; EGR VLV TO EGR PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●
705	03.675 BOLT; EGR VLV TO EGR PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
705	03.675 BOLT; EGR VLV TO EGR PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
719	03.675 PIPE; EGR (B)	8-97240-635-2	01	1	0211-0501	●
719	03.675 PIPE; EGR (B)	8-97240-635-2	01	1	0502-		●
719	03.675 PIPE; EGR (A)	8-97245-757-2	01	1	0211-0501	●
719	03.675 PIPE; EGR (A)	8-97245-757-2	01	1	0502-		●
746	03.675 HOSE; WATER,EGR COOLER 01.097 (B) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0211-0501	●
746	03.675 HOSE; WATER,EGR COOLER 01.097 (B) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0502-		●
746	03.675 HOSE; WATER,EGR COOLER (A)	8-97313-126-1	01	1	0211-0501	●
746	03.675 HOSE; WATER,EGR COOLER (A)	8-97313-126-1	01	1	0502-		●

92 52 53 47 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B) L=260	8-97037-964-1	01	1	0502-		●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A) L=160	8-97119-143-1	01	1	0211-0501	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A) L=160	8-97119-143-1	01	1	0502-		●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A) L=200	8-97119-311-0	01	1	0211-0501	●		●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A) L=200	8-97119-311-0	01	1	0502-		●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> (E) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0501	●		●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> (E) ID=7.5 & 7.5	8-97019-084-0	01	1	0502-		●	●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0211-0501				●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0502-					●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0211-0501				●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0502-					●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0211-0501				●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0502-					●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0211-0501				●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0502-					●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	0211-0501	●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=6.8X2	8-94126-636-0	01	1	0211-0501			●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> 03.162 ID=6.8X2	8-94126-636-0	01	1	0502-			●
53	03.675 CLIP; 2 HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=6.8X2	8-94126-636-0	01	1	0502-		●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> L=520	8-97089-490-2	01	1	0211-0501	●		●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> L=520	8-97089-490-2	01	1	0502-		●	●
685	03.680 CASE; INLET,EGR	8-98210-151-0	01	1	1210-1404						●
685	03.680 CASE; INLET,EGR INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE)	8-98210-151-0	01	1	1405-1405						●
685	03.680 CASE; INLET,EGR INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF)	8-98210-151-0	01	1	1406-						●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0211-0501	●		●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0502-1404		●	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1405-1405		●	●
685	03.680 CASE; INLET,EGR VIN MODEL YEAR 2014(VZE)	8-97146-873-1	01	1	1405-1405						●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1406-		●	●
685	03.680 CASE; INLET,EGR VIN MODEL YEAR 2015(VZF)	8-97146-873-1	01	1	1406-						●
685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	0610-1209						●
685	03.680 CASE; INLET,EGR EXC. INDONESIA EQUIPMENT(S4S)	8-97146-872-1	01	1	1210-						●

414 73 255 303 73 194 198 271 73 198 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	G	H
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.540 (A) ID=30	8-94315-423-0	03	1	0211-0501				●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	0211-0501				●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.278 (A) ID=37	8-94481-468-0	01	1	0211-0501				●
73	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) ID=16.5 & 7	8-97226-171-0	01	1	0211-0501				●
73	03.680 CLIP; VAC HOSE 01.540 (A) ID=30	8-94315-423-0	03	1	0610-			●
73	03.680 CLIP; VAC HOSE 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	0610-			●
73	03.680 CLIP; VAC HOSE 03.278 (A) ID=37	8-94481-468-0	01	1	0610-			●
73	03.680 CLIP; VAC HOSE (B) ID=16.5 & 7	8-97226-171-0	01	1	0610-1201			●
73	03.680 CLIP; VAC HOSE INDONESIA EQUIPMENT(S4S) (B) ID=16.5 & 7	8-97226-171-0	01	1	1202-			●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0211-0501	●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0502-		●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0211-0501	●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0502-		●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0211-0501	●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0502-		●
194	03.675 HOSE; VAC (D)	8-97208-495-0	01	1	0610-			●
198	03.675 HOSE; VAC,VSV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> L=300 SERVICED BY L=3000	0-04930-300-0	01	1	0211-0501				●
198	03.675 HOSE; VAC,VSV L=300 SERVICED BY L=3000	0-04930-300-0	01	1	0610-			●
255	03.675 VALVE; VAC SW,EGR CONT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97171-030-0	01	1	0211-0501				●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0211-0501	●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0502-0609		●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0610-		●	●
271	03.675 BOLT; BRKT TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501				●
271	03.675 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●
271	03.675 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
271	03.675 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0609		●
271	03.675 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-		●	●
271	03.675 BOLT; BRKT 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0501	●
271	03.675 BOLT; BRKT 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0502-0512		●
271	03.675 BOLT; BRKT 04.338 (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
303	03.671 BRACKET; VAC SW TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97225-561-0	01	1	0211-0501				●
303	03.671 BRACKET; VAC SW	8-97361-243-0	01	1	0211-0501	●
303	03.671 BRACKET; VAC SW	8-97361-243-0	01	1	0502-		●
303	03.671 BRACKET; VAC SW	8-97225-561-0	01	1	0610-			●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97259-489-0	01	1	0211-0501				●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV	8-97259-489-0	01	1	0610-			●

577 58 676 58 58 681 17 1 676 2 486 707 708 135 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0211-0501				●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0502-0609					●
1	03.670 VALVE; EGR	8-97208-656-4	01	1	0610-					●		●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0610-1404						●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2014(VZE)	8-97115-533-3	01	1	1405-1405						●
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2015(VZF)	8-97115-533-3	01	1	1406-						●
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0610-1404						●
2	03.670 BOLT; EGR VLV EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1405-1405						●
2	03.670 BOLT; EGR VLV EXC. VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1406-						●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98210-153-0	01	1	1212-1404						●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE)	8-98210-153-0	01	1	1405-1405						●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF)	8-98210-153-0	01	1	1406-						●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97113-023-0	01	1	0610-1211						●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S)	8-97113-023-0	01	1	1212-						●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97192-765-0	03	1	0610-							●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-1404						●
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2014(VZE) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1405-1405						●
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2015(VZF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1406-						●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	0610-1404						●
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2014(VZE) (B) M8X23 FLANGE	8-97378-077-0	02	1	1405-1405						●
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2015(VZF) (B) M8X23 FLANGE	8-97378-077-0	02	1	1406-						●
135	03.680 BRACKET; EGR	8-97247-717-2	01	1	0211-0501				●
135	03.680 BRACKET; EGR	8-97247-717-2	01	1	0502-					●
135	03.680 BRACKET; EGR	8-97221-358-1	01	1	0610-						●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-						●
577	03.675 PIPE; AIR,EGR	8-97200-643-2	01	1	0610-1404						●
577	03.675 PIPE; AIR,EGR EXC. VIN MODEL YEAR 2014(VZE)	8-97200-643-2	01	1	1405-1405						●
577	03.675 PIPE; AIR,EGR EXC. VIN MODEL YEAR 2015(VZF)	8-97200-643-2	01	1	1406-						●
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98210-154-0	02	1	1212-1404						●
676	03.417 GASKET; PIPE INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98210-154-0	02	1	1405-1405						●
676	03.417 GASKET; PIPE INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98210-154-0	02	1	1406-						●
676	03.417 GASKET; PIPE	8-97146-683-0	02	1	0610-1211						●
676	03.417 GASKET; PIPE EXC. INDONESIA EQUIPMENT(S4S) ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97146-683-0	02	1	1212-						●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0211-0501				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0502-					●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-1404						●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-1405						●
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1406-						●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-							●
685	03.680 CASE; INLET,EGR	8-98210-151-0	01	1	1210-1404						●
685	03.680 CASE; INLET,EGR INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE)	8-98210-151-0	01	1	1405-1405						●
685	03.680 CASE; INLET,EGR INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF)	8-98210-151-0	01	1	1406-						●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0211-0501	●		●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0502-1404		●	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1405-1405		●	●
685	03.680 CASE; INLET,EGR VIN MODEL YEAR 2014(VZE)	8-97146-873-1	01	1	1405-1405						●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1406-		●	●
685	03.680 CASE; INLET,EGR VIN MODEL YEAR 2015(VZF)	8-97146-873-1	01	1	1406-						●
685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	0610-1209						●
685	03.680 CASE; INLET,EGR EXC. INDONESIA EQUIPMENT(S4S)	8-97146-872-1	01	1	1210-						●
707	03.162 STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-1	01	1	0610-						●
708	03.162 CLIP; PIPE,INJ	8-97213-481-0	01	1	0610-						●

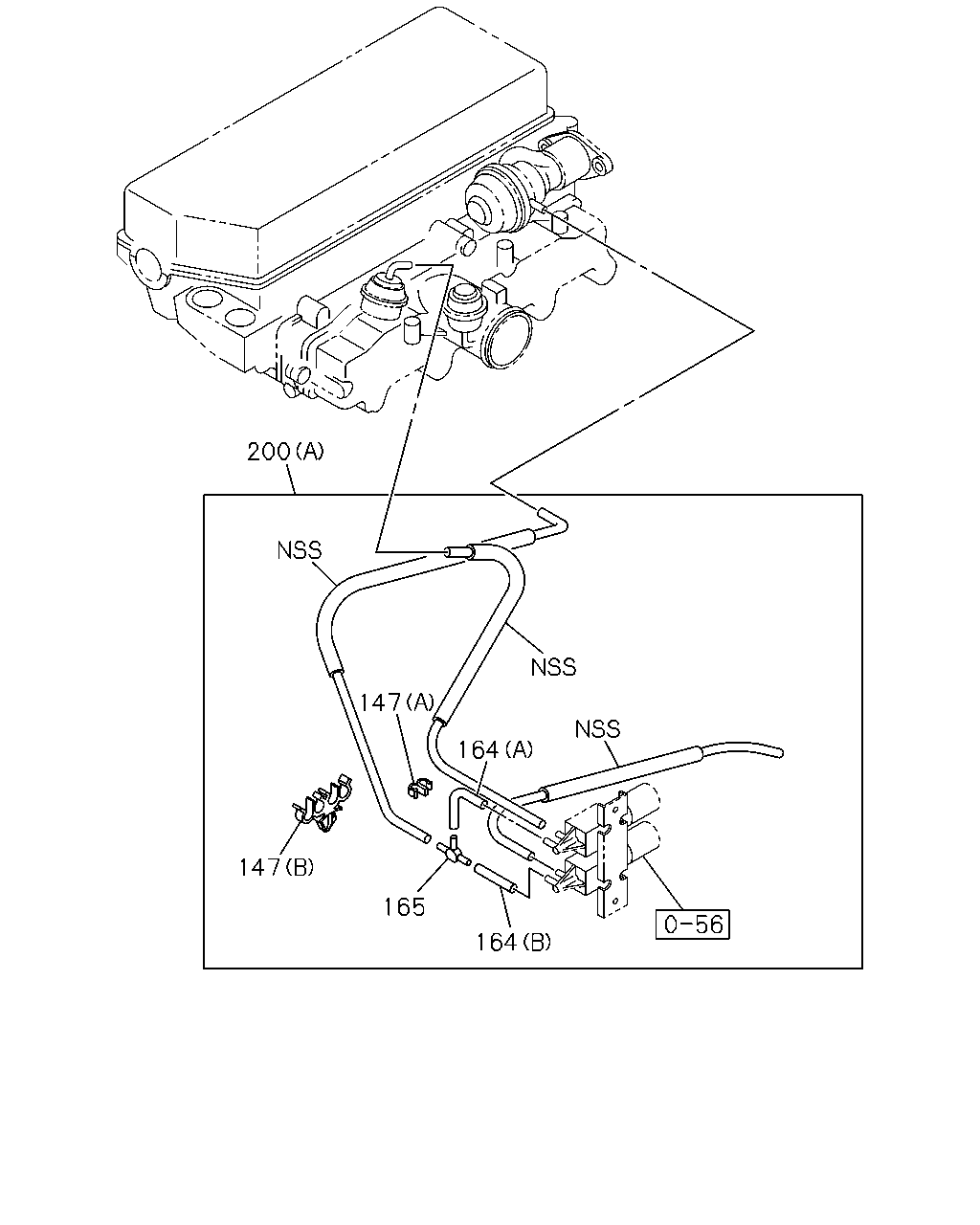

200 147 164 164 165 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	F
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	1405-1405	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	1406-	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0610-1404	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> VIN MODEL YEAR 2014(VZE) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	1405-1405	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015(VZF) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	1406-	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> 02.251 (B) 4XID=6.8	8-94132-799-0	01	1	0610-1404	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE) 02.251 (B) 4XID=6.8	8-94132-799-0	01	1	1405-1405	●
147	03.680 CLIP; RUBBER HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) 02.251 (B) 4XID=6.8	8-94132-799-0	01	1	1406-	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0610-1404	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE) 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	1405-1405	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	1406-	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> 08.962 (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0610-1404	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE) 08.962 (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1405-1405	●
164	03.675 HOSE; RUBBER EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) 08.962 (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1406-	●
165	03.680 JOINT; HOSE EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	0610-1404	●
165	03.680 JOINT; HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE) 3WAY	8-94208-695-0	01	1	1405-1405	●
165	03.680 JOINT; HOSE EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) 3WAY	8-94208-695-0	01	1	1406-	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> VIN MODEL YEAR 2014(VZE) (B)	8-98268-306-0	01	1	1405-1405	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015(VZF) (B)	8-98268-306-0	01	1	1406-	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> (A)	8-97207-664-2	01	1	0610-1404	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE) (A)	8-97207-664-2	01	1	1405-1405	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) (A)	8-97207-664-2	01	1	1406-	●

200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	F
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> VIN MODEL YEAR 2014(VZE) (B)	8-98268-306-0	01	1	1405-1405	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015(VZF) (B)	8-98268-306-0	01	1	1406-	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> (A)	8-97207-664-2	01	1	0610-1404	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2014(VZE) (A)	8-97207-664-2	01	1	1405-1405	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. VIN MODEL YEAR 2015(VZF) (A)	8-97207-664-2	01	1	1406-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
