Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#46147) — 36 parça

169 169 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

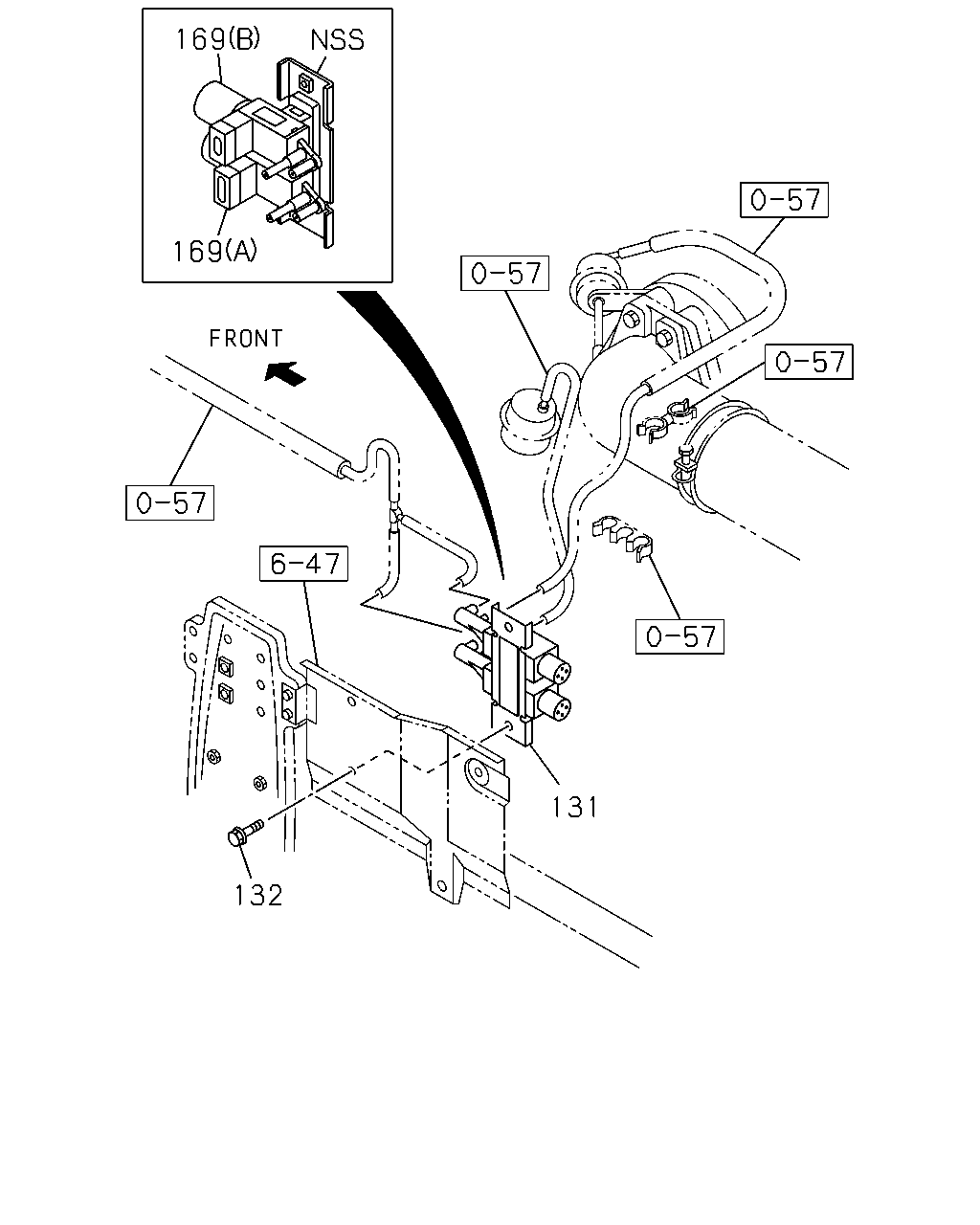

131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	0502-0609		●	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	0610-1404		●	●	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	1405-1405	●	●	●
131	03.670 VALVE; VAC SWITCHING EXC. VIN MODEL YEAR 2014(VZE)	8-97030-324-1	01	1	1405-1405				●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	1406-	●	●	●
131	03.670 VALVE; VAC SWITCHING EXC. VIN MODEL YEAR 2015(VZF)	8-97030-324-1	01	1	1406-				●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0211-0501	●	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0502-1404		●	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	1405-1406	●	●	●
131	03.670 VALVE; VAC SWITCHING VIN MODEL YEAR 2014(VZE)	8-97116-759-0	01	1	1405-1406				●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	1407-	●	●	●
131	03.670 VALVE; VAC SWITCHING VIN MODEL YEAR 2015(VZF)	8-97116-759-0	01	1	1407-				●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0305	●	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0306-0501	●	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0507		●	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512		●	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-0609		●	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0610-		●	●	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	0211-0501	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	0502-0609		●	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	0610-1404		●	●	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	1405-1405	●	●	●
169	03.670 VALVE; VAC SWITCHING EXC. VIN MODEL YEAR 2014(VZE) (A)	8-97012-878-0	01	1	1405-1405				●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	1406-	●	●	●
169	03.670 VALVE; VAC SWITCHING EXC. VIN MODEL YEAR 2015(VZF) (A)	8-97012-878-0	01	1	1406-				●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	0211-0501	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97021-705-1	01	1	0211-0501		●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	0502-0609		●	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	0610-0612		●	●	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	0701-	●	●	●
169	03.670 VALVE; VAC SWITCHING (B)	8-97021-705-1	01	1	0701-				●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

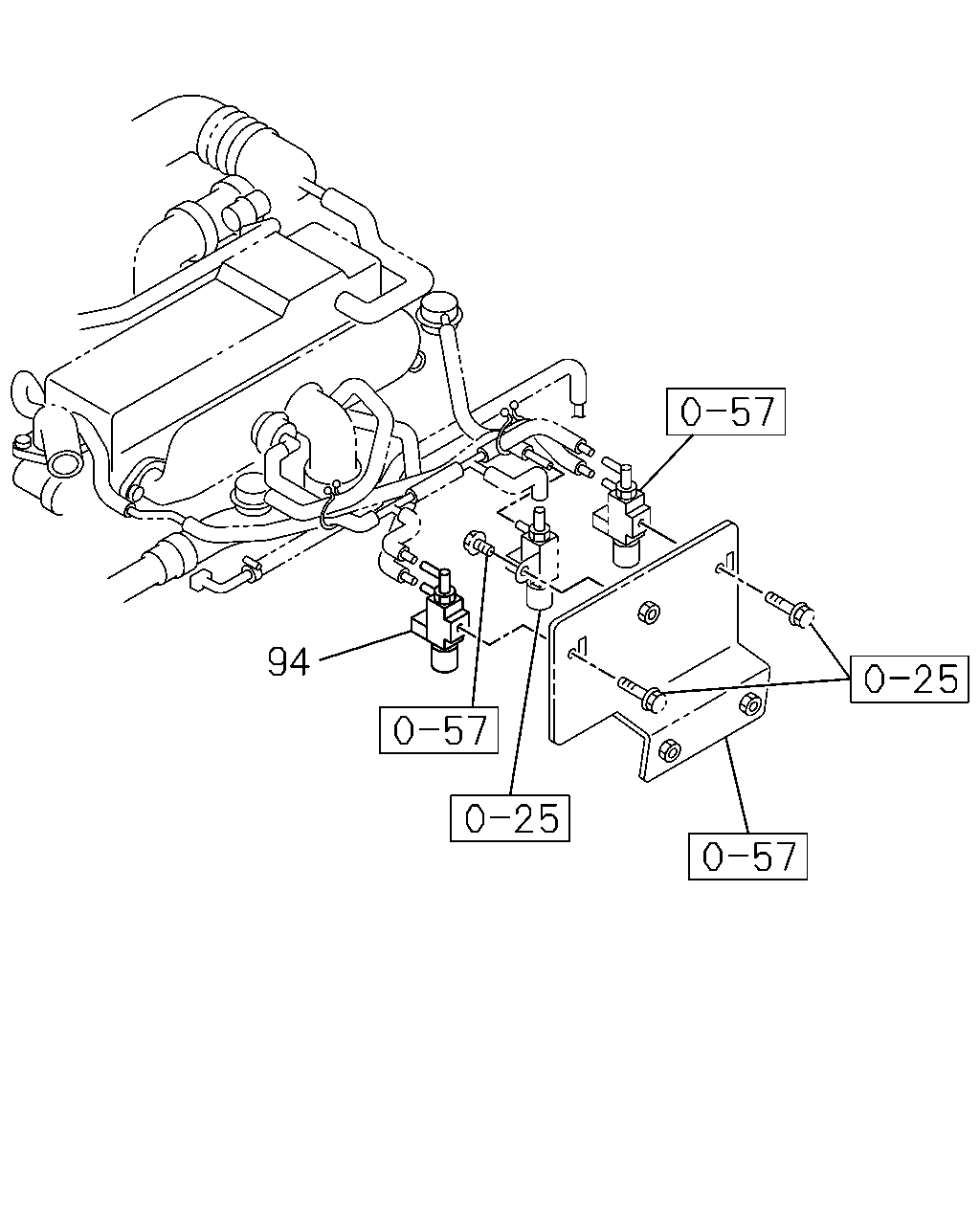

	94	03.670 VALVE; VAC SWITCH,FAST IDLE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-94384-335-0	01	1	0211-0501					●
	94	03.670 VALVE; VAC SWITCH,FAST IDLE	8-94384-335-0	01	1	0610-						●

52 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

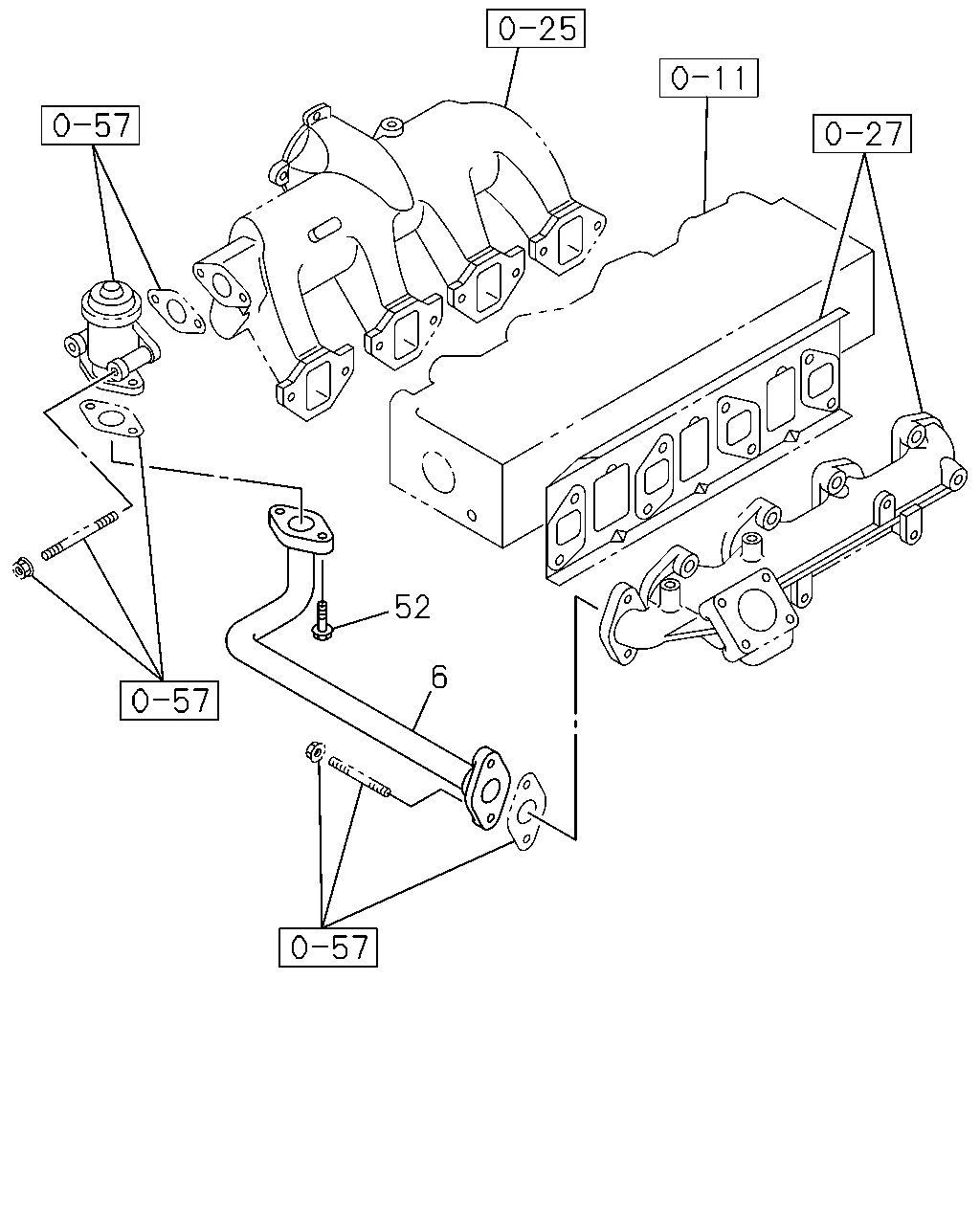

	6	03.675 PIPE; EGR	8-97208-682-1	01	1	0610-						●
	52	03.680 BOLT; EGR PIPE 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0610-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
