0-51 — OIL PUMP AND OIL STRAINER (#46145) — 181 parça

29 1 102 42 1 49 49 20 38 44 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.652 PUMP ASM; OIL	8-97033-175-4	01	1	0211-0407	●
1	01.652 PUMP ASM; OIL	8-97385-984-0	01	1	0408-0609	●
1	01.652 PUMP ASM; OIL	8-97385-984-0	01	1	0610-	●	●
1	01.652 PUMP ASM; OIL	8-97147-338-2	01	1	0211-0501			●	●
1	01.652 PUMP ASM; OIL	8-97147-338-2	01	1	0502-0609			●		●
1	01.652 PUMP ASM; OIL	8-97147-338-4	01	1	0610-1203			●		●	●
1	01.652 PUMP ASM; OIL	8-98017-585-1	01	1	1204-			●		●	●
1	01.652 PUMP ASM; OIL	8-97308-115-2	01	1	0211-0407							●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0408-0501							●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0502-								●
3	01.639 PIN; SPLIT 09.023 OD=3.7 L=30	9-08114-030-0	01	1	0211-0501			●	●
3	01.639 PIN; SPLIT 09.023 OD=3.7 L=30	9-08114-030-0	01	1	0502-0606			●		●
3	01.639 PIN; SPLIT 05.812 OD=3.7 L=30	0-81124-030-0	01	1	0607-0609			●		●
3	01.639 PIN; SPLIT 05.812 OD=3.7 L=30	0-81124-030-0	01	1	0610-0906			●		●	●
3	01.639 PIN; SPLIT 06.022 L=30	9-08104-030-0	01	1	0907-			●		●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0211-0501	●						●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0502-0609	●							●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0610-	●	●						●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0211-0501			●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0502-0609			●		●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0610-			●		●	●
20	01.639 GEAR; DRIVE,OIL PUMP Z=9	8-97078-736-0	01	1	0211-0501			●	●
20	01.639 GEAR; DRIVE,OIL PUMP Z=9	8-97078-736-0	01	1	0502-0609			●		●
20	01.639 GEAR; DRIVE,OIL PUMP Z=9	8-97078-736-0	01	1	0610-1203			●		●	●
20	01.639 GEAR; DRIVE,OIL PUMP	8-98059-192-0	01	1	1204-			●		●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0211-0501	●						●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0502-0512	●							●
29	01.652 BOLT; OIL PUMP 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-0609	●							●
29	01.652 BOLT; OIL PUMP 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0610-	●	●						●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	02	1	0211-0501			●	●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	02	1	0502-0512			●		●
29	01.652 BOLT; OIL PUMP 06.174 M8X25 FLANGE	0-28060-825-0	02	1	0601-0609			●		●
29	01.652 BOLT; OIL PUMP 06.174 M8X25 FLANGE	0-28060-825-0	02	1	0610-			●		●	●
29	01.652 BOLT; OIL PUMP 07.632 M8X30 FLANGE	0-28090-830-0	02	1	0211-0501			●	●
29	01.652 BOLT; OIL PUMP 07.632 M8X30 FLANGE	0-28090-830-0	02	1	0502-0512			●		●
29	01.652 BOLT; OIL PUMP M8X30 FLANGE	0-28060-830-0	02	1	0601-0609			●		●
29	01.652 BOLT; OIL PUMP M8X30 FLANGE	0-28060-830-0	02	1	0610-			●		●	●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0211-0501	●						●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0502-	●							●
38	01.657 CASE; OIL STRAINER	8-97147-505-2	01	1	0211-0501			●	●
38	01.657 CASE; OIL STRAINER	8-97147-505-2	01	1	0502-0609			●		●
38	01.657 CASE; OIL STRAINER	8-97147-505-3	01	1	0610-1203			●		●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0211-0501	●						●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0502-	●							●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0211-0501			●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0502-0609			●		●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0610-1203			●		●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-98213-867-0	01	1	1204-			●		●	●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	0211-0501			●	●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	0502-0609			●		●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	0610-			●		●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0211-0501			●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0502-0609			●		●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	0610-			●		●	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X14	8-97073-782-0	01	1	0211-0311			●	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28090-816-0	01	1	0312-0501			●	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28090-816-0	01	1	0502-0503			●		●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28090-816-0	02	1	0504-0512			●		●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	0601-0609			●		●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	0610-			●		●	●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=24.2	8-97137-501-0	01	1	0211-0211			●	●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 ID=24.5	8-94399-398-0	01	1	0212-0501			●	●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 ID=24.5	8-94399-398-0	01	1	0502-0609			●		●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 ID=24.5	8-94399-398-0	01	1	0610-			●		●	●

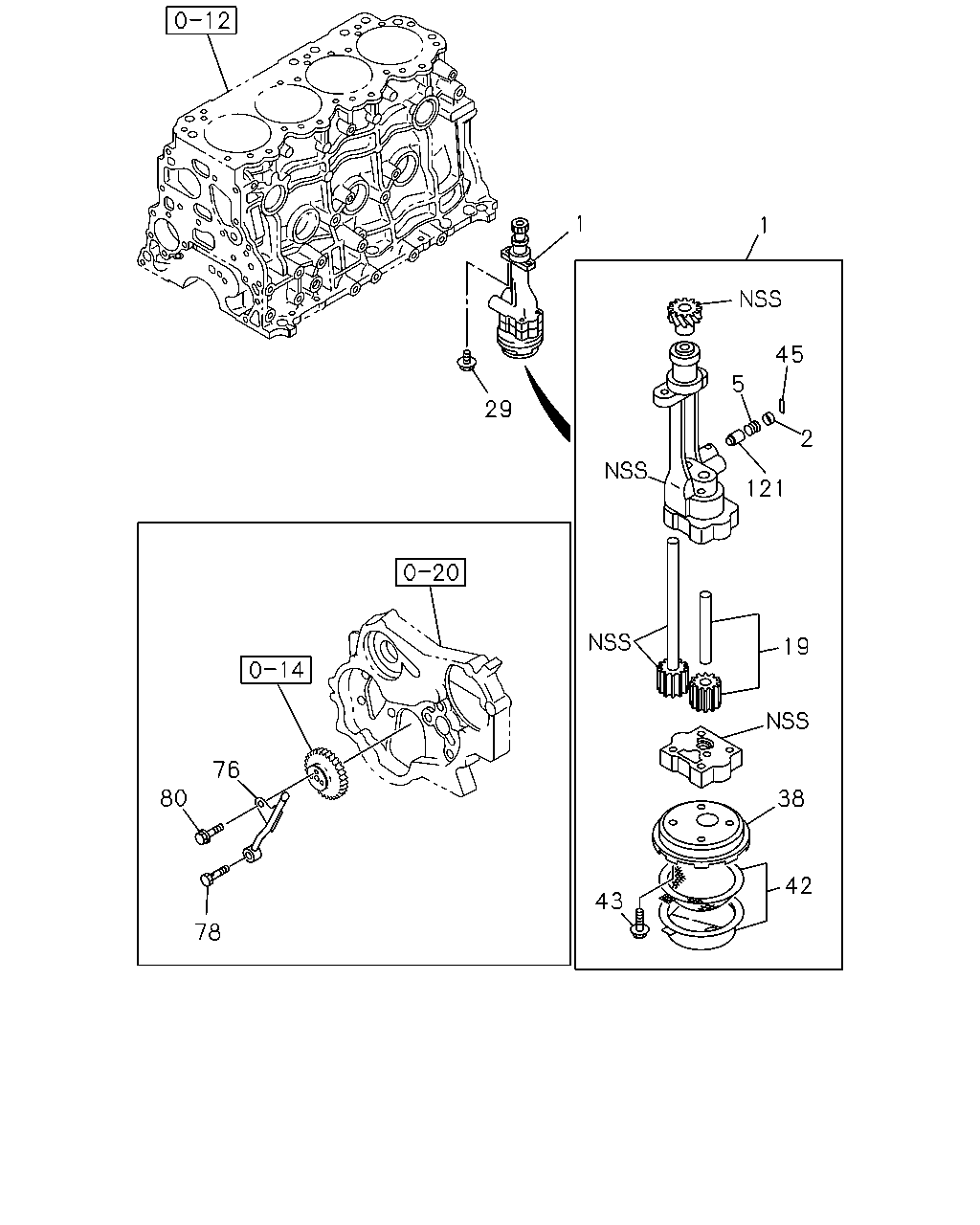

1 1 45 5 29 2 121 19 76 80 38 42 43 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.652 PUMP ASM; OIL	8-97033-175-4	01	1	0211-0407	●
1	01.652 PUMP ASM; OIL	8-97385-984-0	01	1	0408-0609	●
1	01.652 PUMP ASM; OIL	8-97385-984-0	01	1	0610-	●	●
1	01.652 PUMP ASM; OIL	8-97147-338-2	01	1	0211-0501			●	●
1	01.652 PUMP ASM; OIL	8-97147-338-2	01	1	0502-0609			●		●
1	01.652 PUMP ASM; OIL	8-97147-338-4	01	1	0610-1203			●		●	●
1	01.652 PUMP ASM; OIL	8-98017-585-1	01	1	1204-			●		●	●
1	01.652 PUMP ASM; OIL	8-97308-115-2	01	1	0211-0407							●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0408-0501							●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0502-								●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0211-0501	●						●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0502-0609	●							●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0610-	●	●						●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0211-0501	●						●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0502-0609	●							●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0610-	●	●						●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0211-0501			●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0502-0609			●		●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0610-			●		●	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0211-0501	●						●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0502-0609	●							●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0610-	●	●						●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0211-0501	●						●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0502-0512	●							●
29	01.652 BOLT; OIL PUMP 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-0609	●							●
29	01.652 BOLT; OIL PUMP 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0610-	●	●						●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	02	1	0211-0501			●	●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	02	1	0502-0512			●		●
29	01.652 BOLT; OIL PUMP 06.174 M8X25 FLANGE	0-28060-825-0	02	1	0601-0609			●		●
29	01.652 BOLT; OIL PUMP 06.174 M8X25 FLANGE	0-28060-825-0	02	1	0610-			●		●	●
29	01.652 BOLT; OIL PUMP 07.632 M8X30 FLANGE	0-28090-830-0	02	1	0211-0501			●	●
29	01.652 BOLT; OIL PUMP 07.632 M8X30 FLANGE	0-28090-830-0	02	1	0502-0512			●		●
29	01.652 BOLT; OIL PUMP M8X30 FLANGE	0-28060-830-0	02	1	0601-0609			●		●
29	01.652 BOLT; OIL PUMP M8X30 FLANGE	0-28060-830-0	02	1	0610-			●		●	●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0211-0501	●						●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0502-	●							●
38	01.657 CASE; OIL STRAINER	8-97147-505-2	01	1	0211-0501			●	●
38	01.657 CASE; OIL STRAINER	8-97147-505-2	01	1	0502-0609			●		●
38	01.657 CASE; OIL STRAINER	8-97147-505-3	01	1	0610-1203			●		●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0211-0501	●						●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0502-	●							●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0211-0501			●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0502-0609			●		●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0610-1203			●		●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-98213-867-0	01	1	1204-			●		●	●
43	01.656 BOLT; CASE 04.866 M8X30 FLANGE	0-28010-830-0	04	1	0211-0501	●						●
43	01.656 BOLT; CASE 04.866 M8X30 FLANGE	0-28010-830-0	04	1	0502-	●							●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0211-0501	●						●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0502-0609	●							●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0610-	●	●						●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	0211-0609	●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	0610-	●	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	0211-0609	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	0610-	●	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0609	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	0610-0909	●	●
80	01.531 BOLT; OIL PIPE FIX 01.153 M8X22 W/LK WASHER	0-50540-822-0	01	1	0910-	●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	0211-0501	●						●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	0502-0609	●							●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	0610-	●	●						●

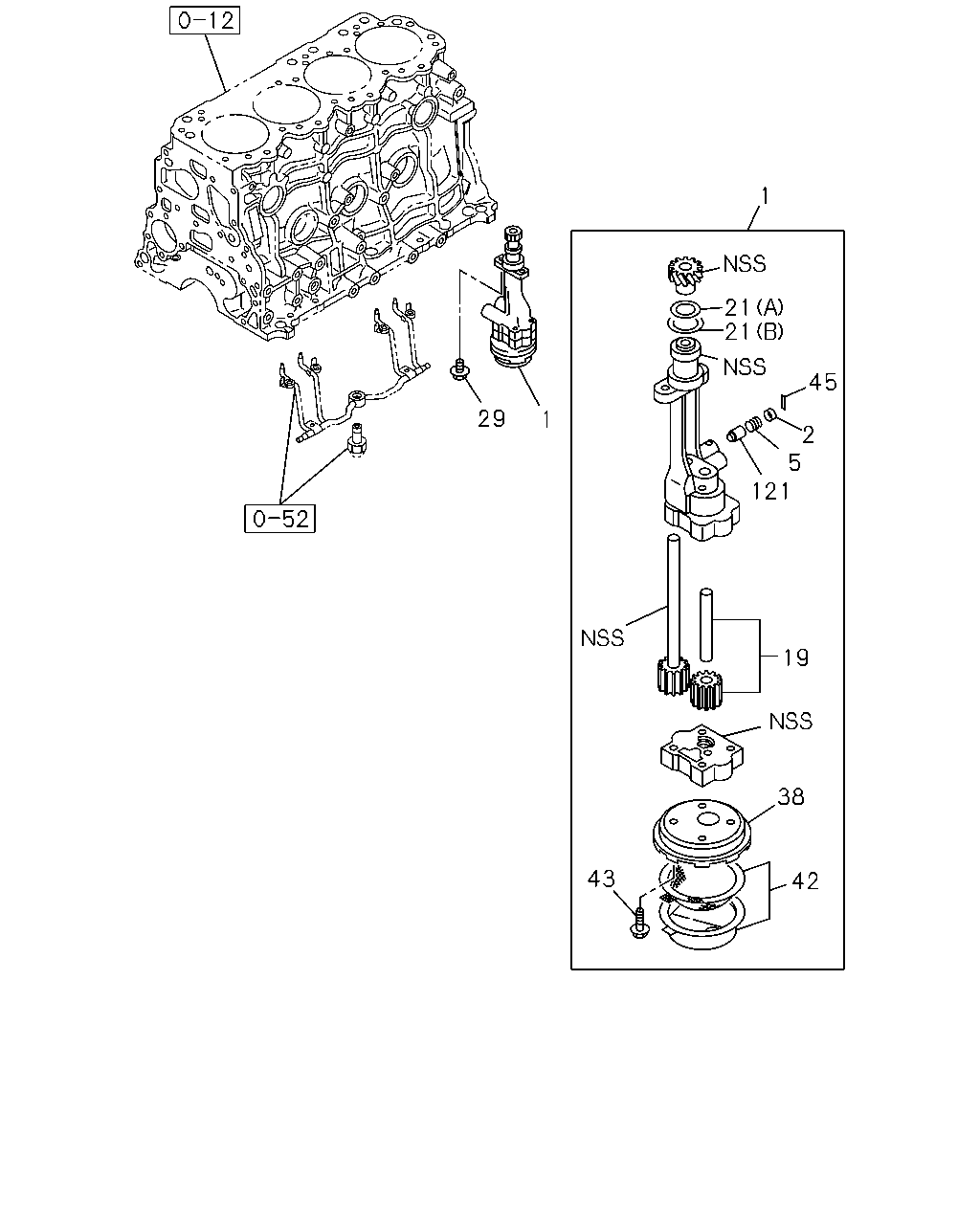

1 21 21 45 29 1 2 5 121 19 38 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.652 PUMP ASM; OIL	8-97033-175-4	01	1	0211-0407	●
1	01.652 PUMP ASM; OIL	8-97385-984-0	01	1	0408-0609	●
1	01.652 PUMP ASM; OIL	8-97385-984-0	01	1	0610-	●	●
1	01.652 PUMP ASM; OIL	8-97147-338-2	01	1	0211-0501			●	●
1	01.652 PUMP ASM; OIL	8-97147-338-2	01	1	0502-0609			●		●
1	01.652 PUMP ASM; OIL	8-97147-338-4	01	1	0610-1203			●		●	●
1	01.652 PUMP ASM; OIL	8-98017-585-1	01	1	1204-			●		●	●
1	01.652 PUMP ASM; OIL	8-97308-115-2	01	1	0211-0407							●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0408-0501							●
1	01.652 PUMP ASM; OIL	8-97385-988-0	01	1	0502-								●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0211-0501	●						●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0502-0609	●							●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0610-	●	●						●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0211-0501	●						●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0502-0609	●							●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0610-	●	●						●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0211-0501			●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0502-0609			●		●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	0610-			●		●	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0211-0501	●						●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0502-0609	●							●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0610-	●	●						●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (A) ID=27.7	1-09623-170-0	01	1	0211-0501							●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (A) ID=27.7	1-09623-170-0	01	1	0502-								●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (B) ID=31.2	1-09623-220-0	01	1	0211-0501							●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (B) ID=31.2	1-09623-220-0	01	1	0502-								●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0211-0501	●						●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0502-0512	●							●
29	01.652 BOLT; OIL PUMP 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-0609	●							●
29	01.652 BOLT; OIL PUMP 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0610-	●	●						●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	02	1	0211-0501			●	●
29	01.652 BOLT; OIL PUMP 08.155 M8X25 FLANGE	0-28090-825-0	02	1	0502-0512			●		●
29	01.652 BOLT; OIL PUMP 06.174 M8X25 FLANGE	0-28060-825-0	02	1	0601-0609			●		●
29	01.652 BOLT; OIL PUMP 06.174 M8X25 FLANGE	0-28060-825-0	02	1	0610-			●		●	●
29	01.652 BOLT; OIL PUMP 07.632 M8X30 FLANGE	0-28090-830-0	02	1	0211-0501			●	●
29	01.652 BOLT; OIL PUMP 07.632 M8X30 FLANGE	0-28090-830-0	02	1	0502-0512			●		●
29	01.652 BOLT; OIL PUMP M8X30 FLANGE	0-28060-830-0	02	1	0601-0609			●		●
29	01.652 BOLT; OIL PUMP M8X30 FLANGE	0-28060-830-0	02	1	0610-			●		●	●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0211-0501	●						●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0502-	●							●
38	01.657 CASE; OIL STRAINER	8-97147-505-2	01	1	0211-0501			●	●
38	01.657 CASE; OIL STRAINER	8-97147-505-2	01	1	0502-0609			●		●
38	01.657 CASE; OIL STRAINER	8-97147-505-3	01	1	0610-1203			●		●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0211-0501	●						●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0502-	●							●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0211-0501			●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0502-0609			●		●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	0610-1203			●		●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-98213-867-0	01	1	1204-			●		●	●
43	01.656 BOLT; CASE 04.866 M8X30 FLANGE	0-28010-830-0	04	1	0211-0501	●						●
43	01.656 BOLT; CASE 04.866 M8X30 FLANGE	0-28010-830-0	04	1	0502-	●							●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0211-0501	●						●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0502-0609	●							●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0610-	●	●						●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	0211-0501	●						●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	0502-0609	●							●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	0610-	●	●						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
